Hammond RH3195A 190 x 102 mm Handheld Enclosure with Battery Door
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Battery door on a 190 x 102 x 40.5 mm case
- Holds PCBs up to 179.07 x 91.17 mm
- M3-0.5 x 25 mm lid screws; replacement pack SC611-50
- Removable front panel for easy modification
- Light gray textured ABS rated UL94 HB
- Includes battery door, end panel, 4 PCB screws and 4 lid screws

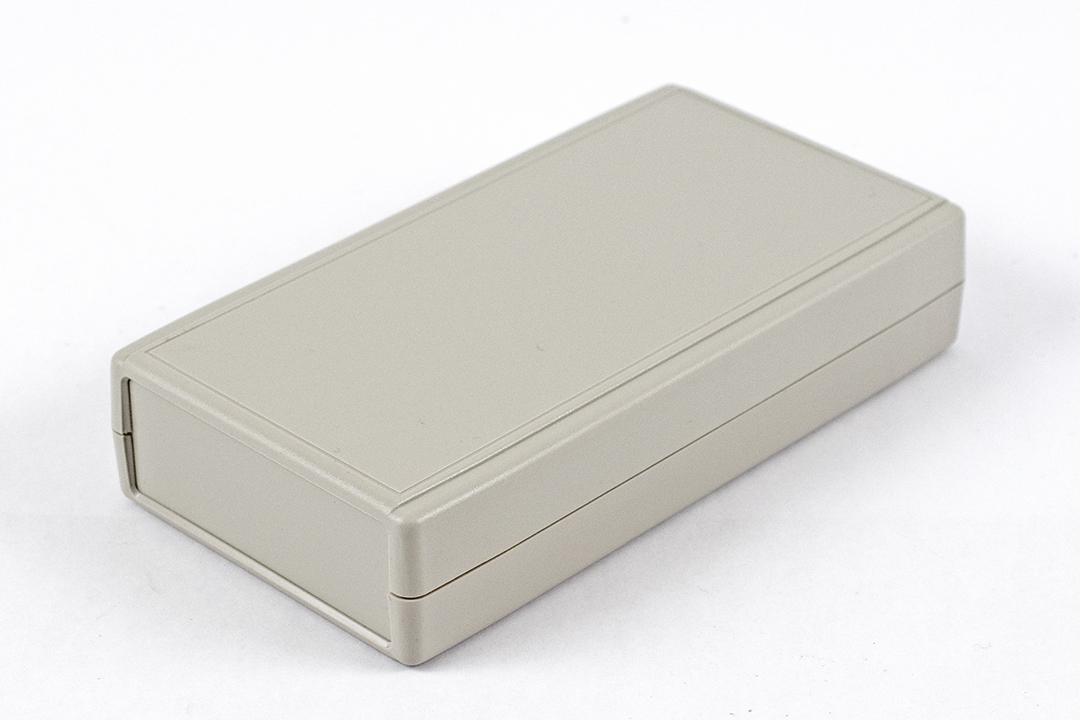

RH3195A is the battery-door version of the 190 x 102 x 40.5 mm (series table) RH Series hand-held enclosure, with a nominal 7.48 x 3.94 x 1.57 in (190 x 100 x 40 mm) on the part page. It is built for battery-powered instruments using a long PCB, up to 179.07 x 91.17 mm.
The case is molded in light gray general purpose ABS with a light texture; the material is rated UL94 HB. A lap joint provides some protection against dust accumulation and splashing water, and the removable front panel helps with modifications. The lid uses M3-0.5 x 25 mm cover screws (SC611-50), and the series describes M3 machine screws threaded into integral brass bushings for repeated assembly and disassembly.
Molded standoffs in both halves accept M2.6 self-tapping PCB screws. The purchased assembly includes the box, lid, 4 PCB screws, end panel, battery door and 4 lid screws; recommended torque is (43-50) Ozf.in / (30-35) cN.m.
RH3195A is REACH and RoHS compliant, and its part page lists a shipping weight of 0.01 lbs (0.00 kg). SC519-50 PCB screws and the CP-001G nylon belt clip kit are listed accessories. The version without a battery door is RH3195.
Ideal For
- Battery-powered hand-held instruments
- Portable equipment with long PCBs
- Hand-held controllers
- Field service devices
Overview
| Type | Hand-held, general purpose |
| Series | RH Series - ABS Plastic Hand Held Enclosures |
| CAD Models | Solid models available in .stp or .x_t |
| Description | ABS HANDHELD |
| Part Number | RH3195A |
| Product Type | Enclosure - plastic |
| Infrared Panel | Available (special order) |
| Included In Assembly | Box, lid, 4 PCB screws, end panel, battery door, and 4 lid screws |
| Version Without Battery Door | RH3195 |
Dimensions
| Series Table Width | 102 mm |
| Series Table Height | 40.5 mm |
| Series Table Length | 190 mm |
| Max. P.C. Board Width | 91.17 mm |
| Max. P.C. Board Length | 179.07 mm |
| Nominal Size (L X W X H) | 7.48 in x 3.94 in x 1.57 in (190 mm x 100 mm x 40 mm) |
Accessories
| Nylon Belt Clip Kit | CP-001G |
| Replacement Lid Screws | SC611-50 |
| Cover Screws M3-0.5 X 25 Mm (50 Pkg) | SC611-50 |
| Replacement PCB Screws M2.6 X 6 Mm Self-Tapping (50 Pkg) | SC519-50 |
Identifiers
| UPC | 623980318271 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Shipping Weight | 0.01 lbs (0.00 kg) |
Construction & Finish
| Color | Light Gray |
| Joint | Lap joint construction (some protection against dust accumulation and splashing water) |
| Material | ABS Plastic (general purpose ABS, light texture) |
| Front Panel | Removable, for easy modification |
| Battery Door | Yes |
| PCB Standoffs | Molded into both top and bottom halves; accept M2.6 self-tapping screws |
| Factory Modification | Milling, drilling, printing etc. available from the factory on request (quote) |
| Recommended Screw Torque | (43-50) Ozf.in / (30-35) cN.m |
Environmental & Protection
| Flame Rating | UL94 HB |
| Chemical Resistance Note | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents/cleaners and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the maximum PCB size for RH3195A?▾
179.07 x 91.17 mm.
What is included?▾
Box, lid, 4 PCB screws, end panel, battery door and 4 lid screws.
Which replacement lid screws fit?▾
SC611-50, M3-0.5 x 25 mm cover screws, pack of 50.
What is the recommended screw torque?▾
(43-50) Ozf.in / (30-35) cN.m.
Related Products
Save 52%RH3195 — enclosure - plastic
Hammond Manufacturing · RH3195
Save 52%SC520-50 — SC520 - Pkg Of 50 Screws
Hammond Manufacturing · SC520-50
Save 52%RH3185A — enclosure - plastic
Hammond Manufacturing · RH3185A

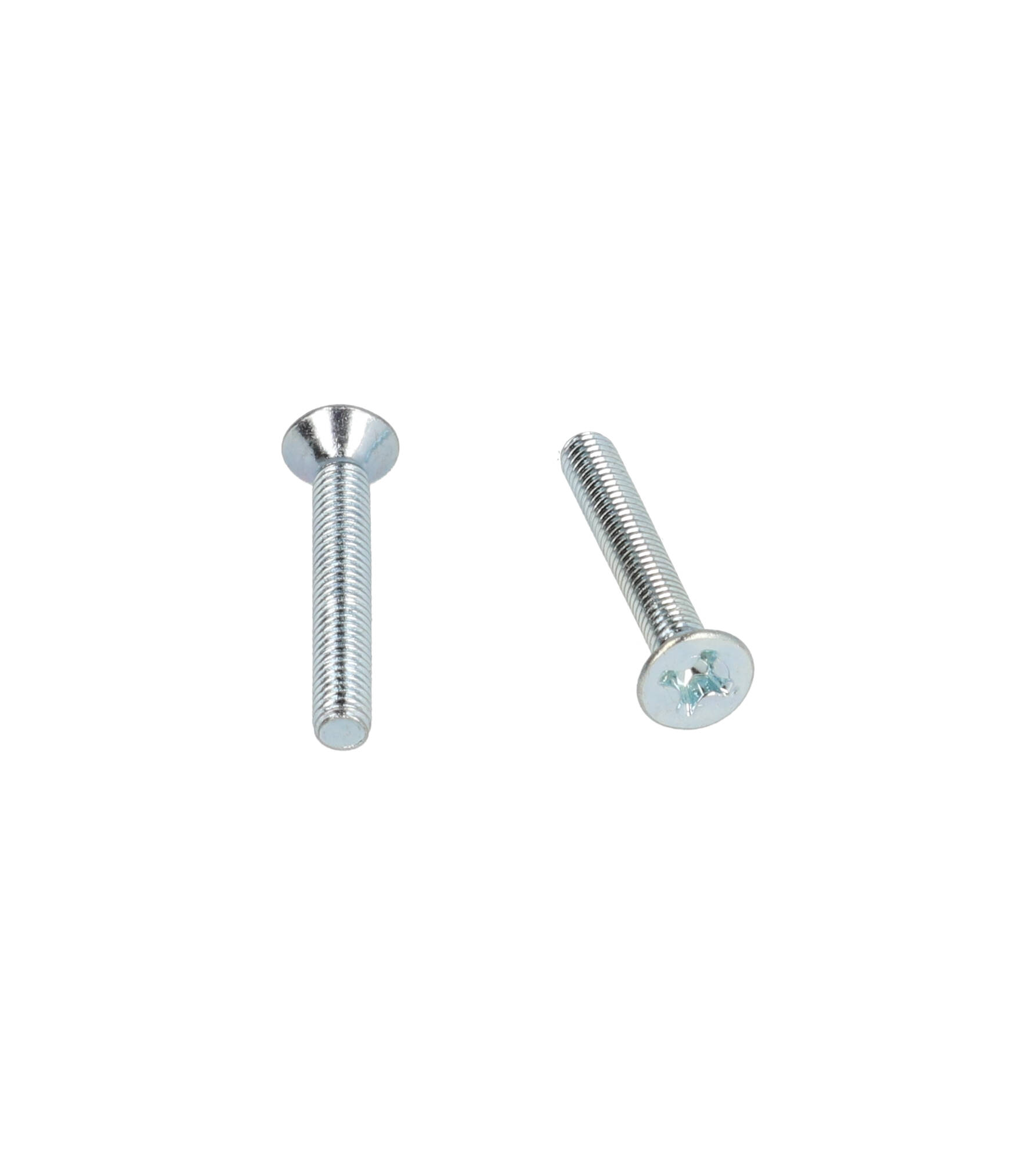

SC610-50 — FH M3-0.5 x 20
