Hammond RH3115A 100 x 62 mm Handheld Enclosure with Battery Door
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Integrated battery door on a compact 100 x 62 x 25.5 mm body
- Accepts PCBs up to 89.25 x 53.14 mm
- Removable front panel for easy modification
- Light gray textured ABS rated UL94 HB
- Supplied with battery door, end panel, 4 PCB screws and 3 lid screws
- Lap joint gives some dust and splash protection
- REACH and RoHS compliant

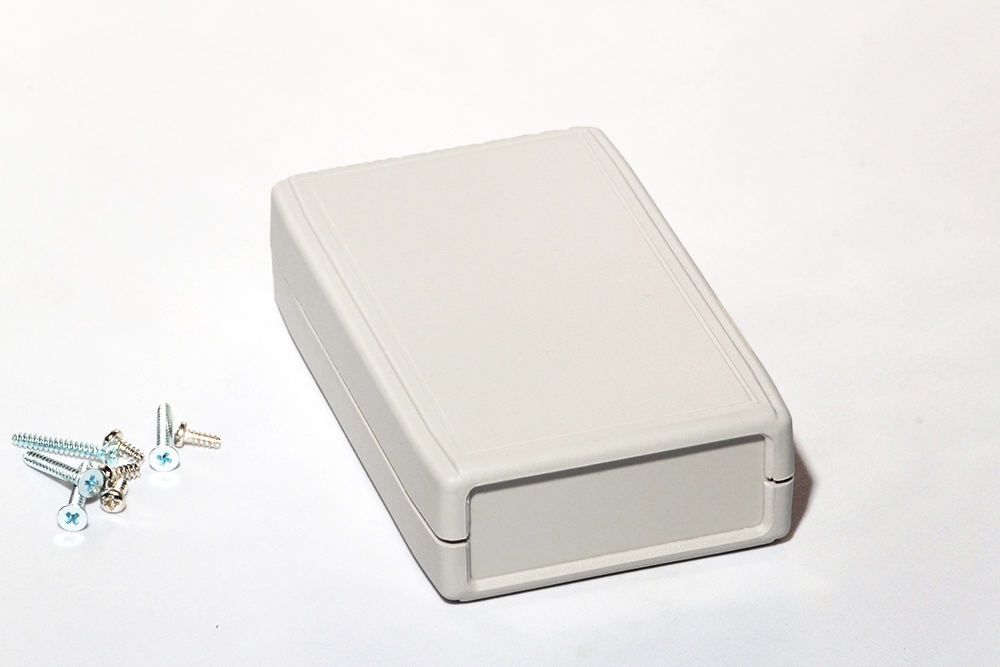

RH3115A is the battery-door version of the smallest RH Series hand-held enclosure. With a series-table size of 100 x 62 x 25.5 mm (nominal 3.94 x 2.36 x 0.98 in), it is aimed at designers of compact battery-powered devices who want an ergonomic case with user-accessible battery access instead of opening the whole enclosure.
It is molded in light gray general purpose ABS with a light texture, rated UL94 HB. The lap joint between the halves provides some protection against dust accumulation and splashing water, and the front panel can be removed for easy modification.
Molded standoffs in both halves accept M2.6 self-tapping screws and support a board up to 89.25 x 53.14 mm. Each assembly includes the box, lid, 4 PCB screws, end panel, battery door and 3 lid screws, to be tightened to (43-50) Ozf.in / (30-35) cN.m.
Replacement lid screws are SC520-50 (M2.6 x 18 mm self-tapping, 50 pcs) and PCB screws are SC519-50; a CP-001G nylon belt clip kit is listed as an accessory. RH3115A is REACH and RoHS compliant and ships in a bag at 0.14 lbs (0.06 kg). The same size without a battery door is RH3115.
Ideal For
- Compact battery-powered hand-held devices
- Portable meters and testers
- Remote controls and key fobs with PCBs
- Hand-held prototypes
Overview
| Type | Hand-held, general purpose |
| Series | RH Series - ABS Plastic Hand Held Enclosures |
| CAD Models | Solid models available in .stp or .x_t |
| Description | ABS HANDHELD |
| Part Number | RH3115A |
| Product Type | Enclosure - plastic |
| Infrared Panel | Available (special order) |
| Included In Assembly | Box, lid, 4 PCB screws, end panel, battery door, and 3 lid screws |
| Version Without Battery Door | RH3115 |
Dimensions
| Series Table Width | 62 mm |
| Series Table Height | 25.5 mm |
| Series Table Length | 100 mm |
| Max. P.C. Board Width | 53.14 mm |
| Max. P.C. Board Length | 89.25 mm |
| Nominal Size (L X W X H) | 3.94 in x 2.36 in x 0.98 in (100 mm x 60 mm x 25 mm) |
Accessories
| Nylon Belt Clip Kit | CP-001G |
| Replacement Lid Screws | SC520-50 |
| Cover Screws M2.6 X 18 Mm Self-Tapping (50 Pkg) | SC520-50 |
| Replacement PCB Screws M2.6 X 6 Mm Self-Tapping (50 Pkg) | SC519-50 |
Identifiers
| UPC | 623980179049 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | bag |
| Shipping Weight | 0.14 lbs (0.06 kg) |
Construction & Finish
| Color | Light Gray |
| Joint | Lap joint construction (some protection against dust accumulation and splashing water) |
| Material | ABS Plastic (general purpose ABS, light texture) |
| Front Panel | Removable, for easy modification |
| Battery Door | Yes |
| PCB Standoffs | Molded into both top and bottom halves; accept M2.6 self-tapping screws |
| Factory Modification | Milling, drilling, printing etc. available from the factory on request (quote) |
| Recommended Screw Torque | (43-50) Ozf.in / (30-35) cN.m |
Environmental & Protection
| Flame Rating | UL94 HB |
| Chemical Resistance Note | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents/cleaners and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How is RH3115A different from RH3115?▾
RH3115A includes a battery door; RH3115 does not. Otherwise both are listed at the same size and board capacity.
How big a board fits inside?▾
Up to 89.25 x 53.14 mm.
What parts come with it?▾
Box, lid, 4 PCB screws, end panel, battery door and 3 lid screws.
What is the recommended screw torque?▾
(43-50) Ozf.in / (30-35) cN.m.
Is a belt clip available?▾
Yes, the drawing lists nylon belt clip kit CP-001G.
