Hammond RH3165A 165 x 102 mm Handheld Enclosure with Battery Door
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Battery door on a wide 165 x 102 x 32.5 mm case
- Holds PCBs up to 153.79 x 92.17 mm
- M3-0.5 x 20 mm lid screws; replacement pack SC610-50
- Removable front panel for easy modification
- Light gray textured ABS rated UL94 HB
- Includes battery door, end panel, 4 PCB screws and 4 lid screws

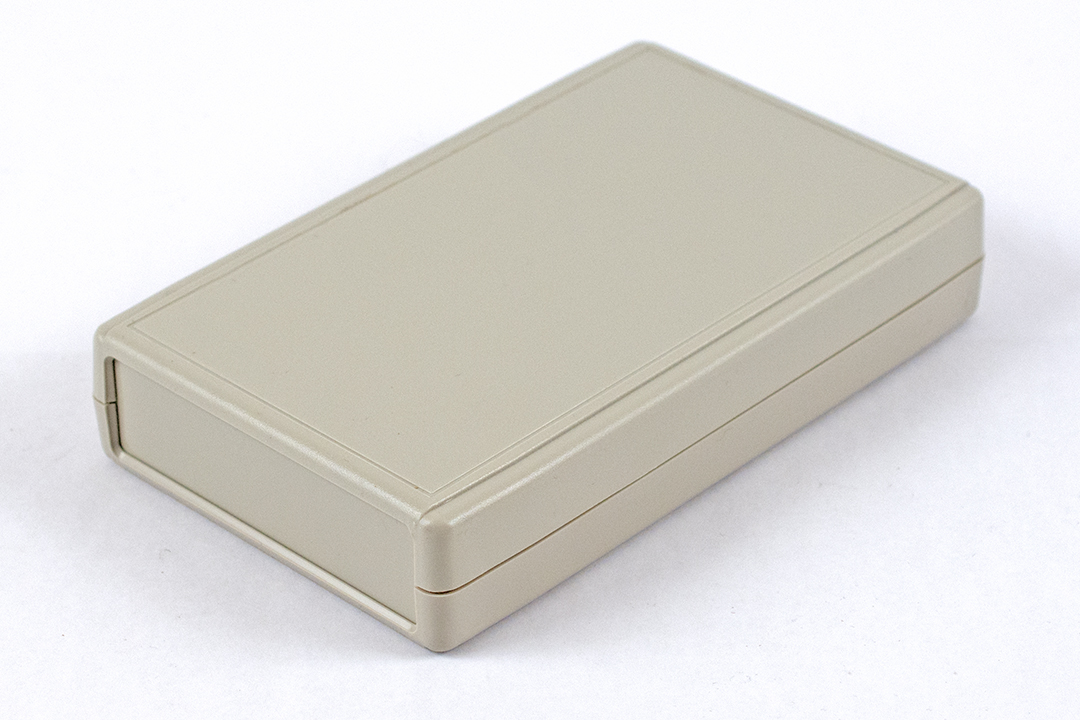

RH3165A combines the wide 165 x 102 x 32.5 mm (series table) RH Series hand-held enclosure with a battery door. The part page lists a nominal 6.5 x 3.94 x 1.26 in (165 x 100 x 32 mm). It is designed for battery-powered hand-held products with a large circuit board, up to 153.79 x 92.17 mm.
The enclosure is made from light gray general purpose ABS with a light texture, rated UL94 HB. Lap joint construction offers some protection against dust accumulation and splashing water, and the removable front panel allows easy modification. Cover screws are M3-0.5 x 20 mm (SC610-50); per the series, M3 machine screws thread into integral brass bushings for repetitive assembly and disassembly.
Molded standoffs in both halves accept M2.6 self-tapping PCB screws. The purchased assembly includes the box, lid, 4 PCB screws, end panel, battery door and 4 lid screws; recommended torque is (43-50) Ozf.in / (30-35) cN.m.
RH3165A is REACH and RoHS compliant, and its part page lists a shipping weight of 0.01 lbs (0.00 kg). The drawing lists SC519-50 PCB screws and the CP-001G nylon belt clip kit as accessories. The version without a battery door is RH3165.
Ideal For
- Battery-powered hand-held instruments
- Portable equipment with large PCBs
- Hand-held controllers
- Field test devices
Overview
| Type | Hand-held, general purpose |
| Series | RH Series - ABS Plastic Hand Held Enclosures |
| CAD Models | Solid models available in .stp or .x_t |
| Description | ABS HANDHELD |
| Part Number | RH3165A |
| Product Type | Enclosure - plastic |
| Infrared Panel | Available (special order) |
| Included In Assembly | Box, lid, 4 PCB screws, end panel, battery door, and 4 lid screws |
| Version Without Battery Door | RH3165 |
Dimensions
| Series Table Width | 102 mm |
| Series Table Height | 32.5 mm |
| Series Table Length | 165 mm |
| Max. P.C. Board Width | 92.17 mm |
| Max. P.C. Board Length | 153.79 mm |
| Nominal Size (L X W X H) | 6.5 in x 3.94 in x 1.26 in (165 mm x 100 mm x 32 mm) |
Accessories
| Nylon Belt Clip Kit | CP-001G |
| Replacement Lid Screws | SC610-50 |
| Cover Screws M3-0.5 X 20 Mm (50 Pkg) | SC610-50 |
| Replacement PCB Screws M2.6 X 6 Mm Self-Tapping (50 Pkg) | SC519-50 |
Identifiers
| UPC | 623980318240 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Shipping Weight | 0.01 lbs (0.00 kg) |
Construction & Finish
| Color | Light Gray |
| Joint | Lap joint construction (some protection against dust accumulation and splashing water) |
| Material | ABS Plastic (general purpose ABS, light texture) |
| Front Panel | Removable, for easy modification |
| Battery Door | Yes |
| PCB Standoffs | Molded into both top and bottom halves; accept M2.6 self-tapping screws |
| Factory Modification | Milling, drilling, printing etc. available from the factory on request (quote) |
| Recommended Screw Torque | (43-50) Ozf.in / (30-35) cN.m |
Environmental & Protection
| Flame Rating | UL94 HB |
| Chemical Resistance Note | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents/cleaners and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the maximum PCB size?▾
153.79 x 92.17 mm.
What is included?▾
Box, lid, 4 PCB screws, end panel, battery door and 4 lid screws.
Which lid screws fit?▾
SC610-50, M3-0.5 x 20 mm cover screws in a pack of 50.
What is the difference from RH3165?▾
RH3165A adds a battery door; the size and board capacity are the same.
