Multi Box Enclosure
- IP Rating IP40
- Ventilated Lid No
$14.64In stock
Buy now

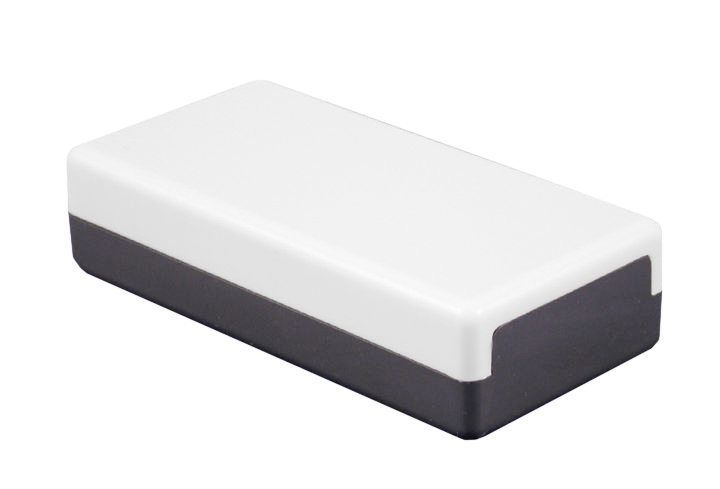

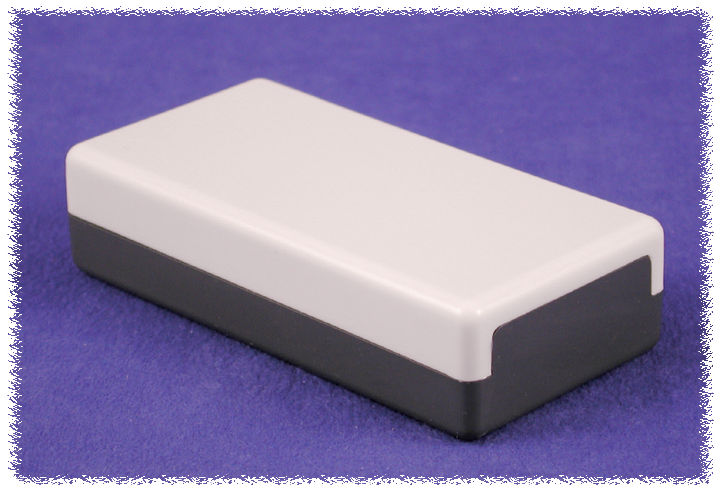

Two Tone Fixed Panel Enclosures · MB Series
Brand: Hammond Manufacturing · 16 part numbers
Polystyrene
- ■Rugged electronic instrument enclosures, ideally suited for mounting printed circuit boards for hand-held, desktop or wall mount applications.
- ■Front and rear panels are integral part of bottom unit.
- ■Molded in polystyrene plastic.
- ■Solid versions are rated IP40. Vented versions are rated IP20.

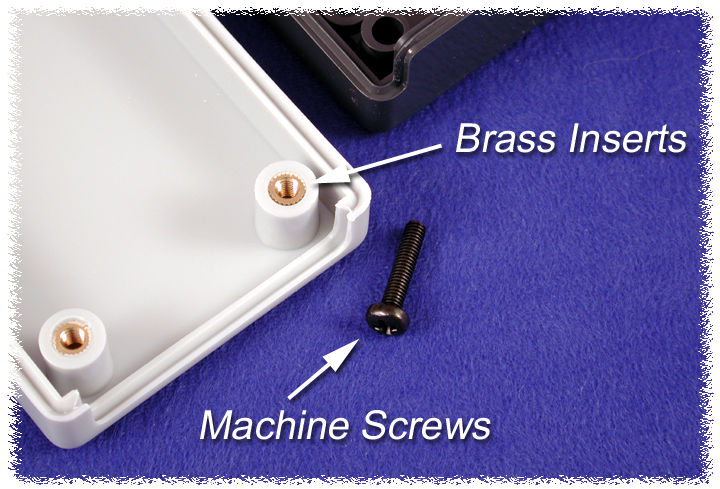

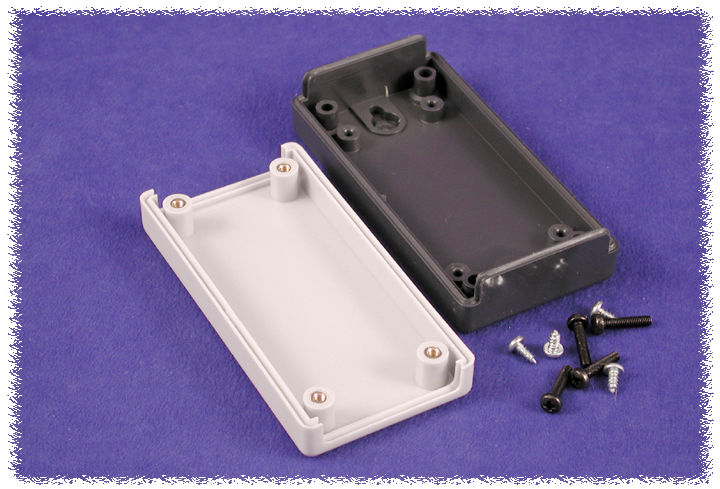

- ■Assembled with four M4 x 0.7” (14 mm) slotted machine screws (included) threaded into integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required. Screws are hidden in a recess in the base.
- ■Includes four M3 X 0.276" (7mm) self tapping screws for internal standoffs.
from $11.51
16 of 16 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your MB Series part number
Filter 16 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
16 of 16 part numbers · 16 priced online
Multi Box Enclosure
- IP Rating IP40
- Ventilated Lid No
$16.27In stock
Buy nowMulti Box Enclosure
- IP Rating IP20
- Ventilated Lid Yes
$17.24In stock
Buy nowMulti Box Enclosure
- IP Rating IP40
- Ventilated Lid No
$18.12In stock
Buy nowMulti Box Enclosure
- IP Rating IP20
- Ventilated Lid Yes
$20.24In stock
Buy nowMulti Box Enclosure
- IP Rating IP40
- Ventilated Lid No
$20.05In stock
Buy nowMulti Box Enclosure
- IP Rating IP40
- Ventilated Lid No
$20.60In stock
Buy nowMulti Box Enclosure
- IP Rating IP20
- Ventilated Lid Yes
$20.87In stock
Buy nowMulti Box Enclosure
- IP Rating IP40
- Ventilated Lid No
$25.10In stock
Buy nowMulti Box Enclosure
- IP Rating IP40
- Ventilated Lid No
$30.88In stock
Buy nowMulti Box Enclosure
- IP Rating IP40
- Ventilated Lid No
$54.84In stock
Buy nowMulti Box Enclosure
- IP Rating IP40
- Ventilated Lid No
$23.30In stock
Buy nowMulti Box Enclosure
- IP Rating IP40
- Ventilated Lid No
$27.02In stock
Buy nowMulti Box Enclosure
- IP Rating IP20
- Ventilated Lid Yes
$33.14In stock
Buy nowMulti Box Enclosure
- IP Rating IP40
- Ventilated Lid No
$11.51In stock
Buy nowMulti Box Enclosure
- IP Rating IP40
- Ventilated Lid No
$13.43In stock
Buy nowDimension tables (inches / mm)
| Part · Number | Ventilated · Lid | Outside Dimensions (mm) · Length | Outside Dimensions (mm) · Width | Depth | Internal Dimensions (mm) · Length | Internal Dimensions (mm) · Width | Internal Dimensions (mm) · Depth | Price | Order |
|---|---|---|---|---|---|---|---|---|---|
| MB655030 | No | 65 | 50 | 30 | 59 | 44 | 24 | $11.51In stock | Buy now |
| MB655045 | No | 65 | 50 | 45 | 59 | 44 | 39 | $13.43In stock | Buy now |
| MB105025 | No | 100 | 50 | 25 | 94 | 44 | 18 | $14.64In stock | Buy now |
| MB105040 | No | 100 | 50 | 40 | 94 | 44 | 33 | $16.27In stock | Buy now |
| MB105040VL | Yes | 100 | 50 | 40 | 94 | 44 | 34 | $17.24In stock | Buy now |
| MB126540 | No | 120 | 65 | 40 | 114 | 59 | 34 | $18.12In stock | Buy now |
| MB126540VL | Yes | 120 | 65 | 40 | 114 | 59 | 34 | $20.24In stock | Buy now |
| MB126565 | No | 120 | 65 | 65 | 114 | 59 | 58 | $20.05In stock | Buy now |
| MB158055 | No | 150 | 80 | 55 | 144 | 74 | 48 | $20.60In stock | Buy now |
| MB158055VL | Yes | 150 | 80 | 55 | 144 | 74 | 49 | $20.87In stock | Buy now |
| MB158080 | No | 150 | 80 | 80 | 144 | 74 | 73 | $25.10In stock | Buy now |
| MB181160 | No | 189 | 110 | 60 | 183 | 104 | 54 | $23.30In stock | Buy now |
| MB181170 | No | 189 | 110 | 70 | 183 | 104 | 64 | $27.02In stock | Buy now |
| MB181170VL | Yes | 189 | 110 | 70 | 183 | 104 | 63 | $33.14In stock | Buy now |
| MB181110 | No | 189 | 110 | 100 | 182 | 104 | 94 | $30.88In stock | Buy now |
| MB181112 | No | 189 | 110 | 120 | 186 | 104 | 114 | $54.84In stock | Buy now |
Key Features:
- ■Rugged electronic instrument enclosures, ideally suited for mounting printed circuit boards for hand-held, desktop or wall mount applications.
- ■Front and rear panels are integral part of bottom unit.
- ■Molded in polystyrene plastic.
- ■Solid versions are rated IP40. Vented versions are rated IP20.
- ■Assembled with four M4 x 0.7” (14 mm) slotted machine screws (included) threaded into integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required. Screws are hidden in a recess in the base.
- ■Includes four M3 X 0.276" (7mm) self tapping screws for internal standoffs.
- ■Lid is a smooth light gray (RAL 7035) and the bottom is a smooth dark gray (RAL 7012).
- ■Some chemicals can damage or weaken plastic. Please read our Chemical Resistance Statement under Downloads for more information.
