N4X-316-16X12X8 Slope Top
$887.57Backorder
Buy now
IP69K/Type 4X Stainless Steel Wallmount Enclosure · Waterfall Series
Brand: Hammond Manufacturing · 50 part numbers

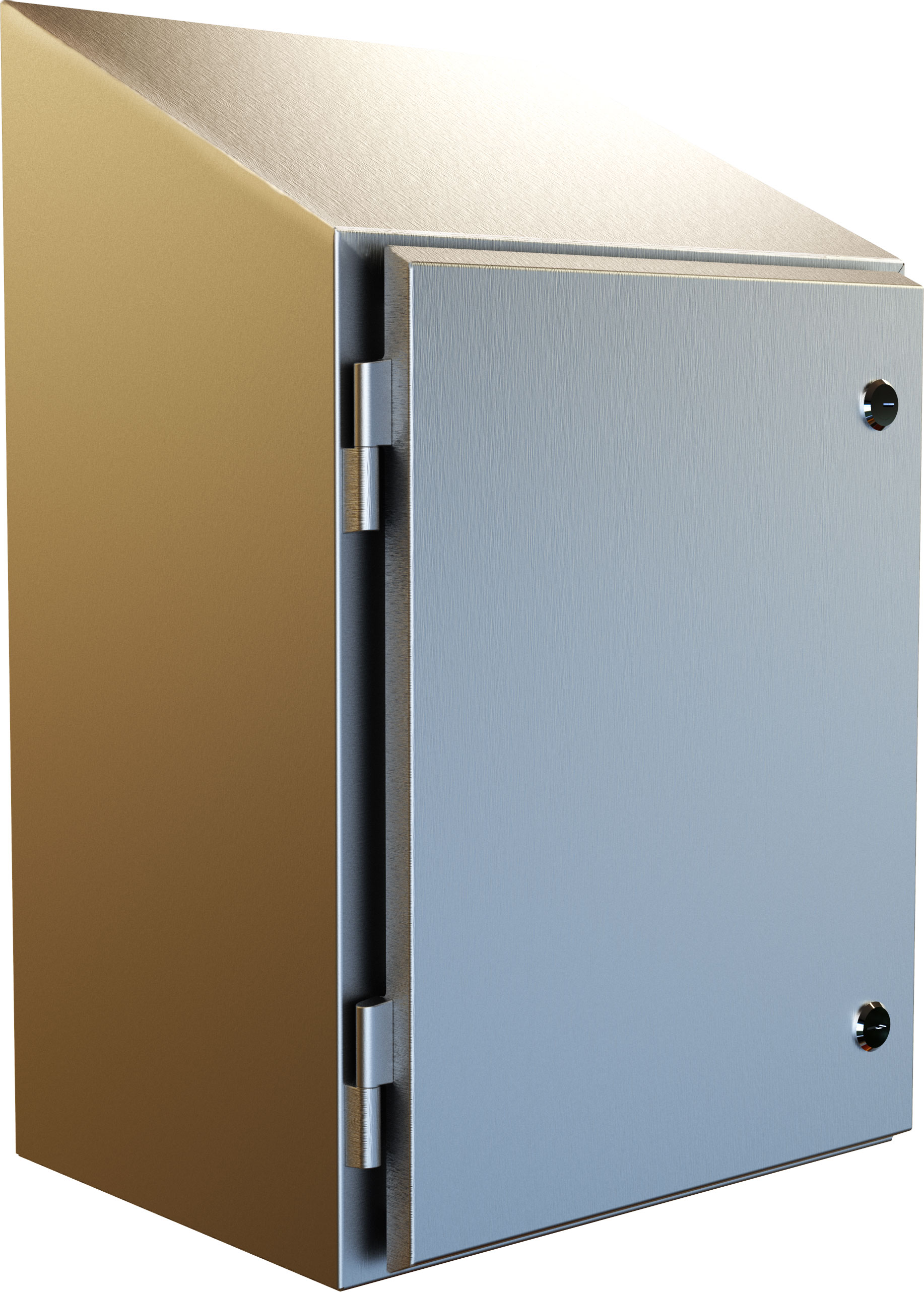

Sloped Top with Quarter Turns
- ■Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments for wallmount applications.
- ■Sloped top prevents water from resting on top as well as providing potential for controls mounting.
- ■Unique hinge design allows for easy cleaning in hose-down environments.
- ■A wide range of sizes and practical accessories make this product line a complete package.
- ■UL 508A Type 3R, 4, 4X and 12
- ■CSA Type 3R, 4, 4X and 12
from $28.22
50 of 50 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your Waterfall Series part number
Filter 38 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
38 of 38 part numbers · 38 priced online
N4X-304-16X12X8 Slope Top
$769.84Backorder
Buy nowN4X-316-16X16X8 Slope Top
$976.27In stock
Buy nowN4X-304-16X16X8 Slope Top
$847.79In stock
Buy nowN4X-316-20X16X12 Slope Top
$1,210.13Backorder
Buy nowN4X-304-20X16X12 Slope Top
$1,051.00In stock
Buy nowN4X-316-20X16X8 Slope Top
$1,080.04In stock
Buy nowN4X-304-20X16X8 Slope Top
$937.56Backorder
Buy nowN4X-316-20X20X12 Slope Top
$1,416.03In stock
Buy nowN4X-304-20X20X12 Slope Top
$1,227.88In stock
Buy nowN4X-316-20X20X8 Slope Top
$1,232.18In stock
Buy nowN4X-304-20X20X8 Slope Top
$1,070.36Backorder
Buy nowN4X-316-24X20X8 Slope Top
$1,310.66In stock
Buy nowN4X-304-24X20X8 Slope Top
$1,135.40In stock
Buy nowN4X-316-24X24X12 Slope Top
$1,636.44In stock
Buy nowN4X-304-24X24X12 Slope Top
$1,417.11In stock
Buy nowN4X-316-24X24X8 Slope Top
$1,438.61In stock
Buy nowN4X-304-24X24X8 Slope Top
$1,246.69In stock
Buy nowN4X-316-30X24X12 Slope Top
$1,855.79Backorder
Buy nowN4X-304-30X24X12 Slope Top
$1,606.88In stock
Buy nowN4X-316-30X24X8 Slope Top
$1,485.39Backorder
Buy nowN4X-304-30X24X8 Slope Top
$1,288.62In stock
Buy nowN4X-316-30X30X8 Slope Top
$1,864.38In stock
Buy nowN4X-304-30X30X8 Slope Top
$1,613.87In stock
Buy nowN4X-316-36X30X12 Slope Top
$2,363.81Backorder
Buy nowN4X-304-36X30X12 Slope Top
$2,046.63In stock
Buy nowN4X-316-36X30X16 Slope Top
$2,632.07In stock
Buy nowN4X-304-36X30X16 Slope Top
$2,278.87In stock
Buy nowN4X-316-36X30X8 Slope Top
$2,099.32Backorder
Buy nowN4X-304-36X30X8 Slope Top
$1,817.62In stock
Buy nowN4X-316-36X36X12 Slope Top
$2,657.34In stock
Buy nowN4X-304-36X36X12 Slope Top
$2,300.91In stock
Buy nowN4X-304-48X36X12 Slope Top
$2,788.51Backorder
Buy nowN4X-316-48X36X16 Slope Top
$3,579.31Backorder
Buy nowN4X-304-48X36X16 Slope Top
$3,098.17In stock
Buy nowN4X-304-60X36X12 Slope Top
$3,435.25In stock
Buy nowN4X-316-60X36X16 Slope Top
$4,409.90Backorder
Buy nowN4X-304-60X36X16 Slope Top
$3,813.71In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| 304 SS · Part No. | 316 SS · Part No. | Enclosure · H1 | Enclosure · H2 | Enclosure · W | Enclosure · D | Optional Inner Panel · Part No. | Optional Inner Panel · H | Optional Inner Panel · W | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| HWST16128SS | HWST16128S16 | 16.00 | 19.70 | 12.00 | 8.00 | 18P1309 | 13.00 | 9.00 | $769.84BackorderHWST16128SS | Buy now |
| HWST16168SS | HWST16168S16 | 16.00 | 19.70 | 16.00 | 8.00 | 18P1313 | 13.00 | 13.00 | $847.79In stockHWST16168SS | Buy now |
| HWST20168SS | HWST20168S16 | 20.00 | 23.70 | 16.00 | 8.00 | 18P1713 | 17.00 | 13.00 | $937.56BackorderHWST20168SS | Buy now |
| HWST20208SS | HWST20208S16 | 20.00 | 23.70 | 20.00 | 8.00 | 18P1717 | 17.00 | 17.00 | $1,070.36BackorderHWST20208SS | Buy now |
| HWST24208SS | HWST24208S16 | 24.00 | 27.70 | 20.00 | 8.00 | 18P2117 | 21.00 | 17.00 | $1,135.40In stockHWST24208SS | Buy now |
| HWST24248SS | HWST24248S16 | 24.00 | 27.70 | 24.00 | 8.00 | 18P2121 | 21.00 | 21.00 | $1,246.69In stockHWST24248SS | Buy now |
| HWST30248SS | HWST30248S16 | 30.00 | 33.70 | 24.00 | 8.00 | 18P2721 | 27.00 | 21.00 | $1,288.62In stockHWST30248SS | Buy now |
| HWST30308SS | HWST30308S16 | 30.00 | 33.70 | 30.00 | 8.00 | 18P2727 | 27.00 | 27.00 | $1,613.87In stockHWST30308SS | Buy now |
| HWST36308SS | HWST36308S16 | 36.00 | 39.70 | 30.00 | 8.00 | 18P3327 | 33.00 | 27.00 | $1,817.62In stockHWST36308SS | Buy now |
| HWST201612SS | HWST201612S16 | 20.00 | 25.60 | 16.00 | 12.00 | 18P1713 | 17.00 | 13.00 | $1,051.00In stockHWST201612SS | Buy now |
| HWST202012SS | HWST202012S16 | 20.00 | 25.60 | 20.00 | 12.00 | 18P1717 | 17.00 | 17.00 | $1,227.88In stockHWST202012SS | Buy now |
| HWST242412SS | HWST242412S16 | 24.00 | 29.60 | 24.00 | 12.00 | 18P2121 | 21.00 | 21.00 | $1,417.11In stockHWST242412SS | Buy now |
| HWST302412SS | HWST302412S16 | 30.00 | 35.60 | 24.00 | 12.00 | 18P2721 | 27.00 | 21.00 | $1,606.88In stockHWST302412SS | Buy now |
| HWST363012SS | HWST363012S16 | 36.00 | 41.60 | 30.00 | 12.00 | 18P3327 | 33.00 | 27.00 | $2,046.63In stockHWST363012SS | Buy now |
| HWST363612SS | HWST363612S16 | 36.00 | 41.60 | 36.00 | 12.00 | 18P3333 | 33.00 | 33.00 | $2,300.91In stockHWST363612SS | Buy now |
| HWST483612SS | 48.00 | 53.60 | 36.00 | 12.00 | 18P4533 | 45.00 | 33.00 | $2,788.51BackorderHWST483612SS | Buy now | |
| HWST603612SS | 60.00 | 65.60 | 36.00 | 12.00 | 18P5733 | 57.00 | 33.00 | $3,435.25In stockHWST603612SS | Buy now | |
| HWST363016SS | HWST363016S16 | 36.00 | 43.40 | 30.00 | 16.00 | 18P3327 | 33.00 | 27.00 | $2,278.87In stockHWST363016SS | Buy now |
| HWST483616SS | HWST483616S16 | 48.00 | 55.40 | 36.00 | 16.00 | 18P4533 | 45.00 | 33.00 | $3,098.17In stockHWST483616SS | Buy now |
| HWST603616SS | HWST603616S16 | 60.00 | 67.40 | 36.00 | 16.00 | 18P5733 | 57.00 | 33.00 | $3,813.71In stockHWST603616SS | Buy now |
Application
- ■Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments for wallmount applications.
- ■Sloped top prevents water from resting on top as well as providing potential for controls mounting.
- ■Unique hinge design allows for easy cleaning in hose-down environments.
- ■A wide range of sizes and practical accessories make this product line a complete package.
Standards
- ■UL 508A Type 3R, 4, 4X and 12
- ■CSA Type 3R, 4, 4X and 12
- ■NSF – ANSI 169 Not all accessories shown maintain NSF standard. Some are internal and NSF is not applicable. Refer to each accessory individually or call factory for specifics.
- ■Not all accessories shown maintain NSF standard. Some are internal and NSF is not applicable. Refer to each accessory individually or call factory for specifics.
- ■Complies with NEMA 3R, 4, 4X, 12 and 13 IEC 60529, IP 66, IP69K
- ■NEMA 3R, 4, 4X, 12 and 13
- ■IEC 60529, IP 66, IP69K
Construction
- ■Formed 304 or 316L stainless steel.
- ■Top sloped 25°
- ■Continuously welded seams ground smooth.
- ■Door stiffeners are provided where required for increased strength and rigidity - designed to also permit additional mounting options.
- ■Formed lip on enclosure to exclude flowing liquids and contaminants.
- ■Door latches (316 stainless steel quarter turns) feature the added safety of quarter turn slot requiring use of tool for opening.

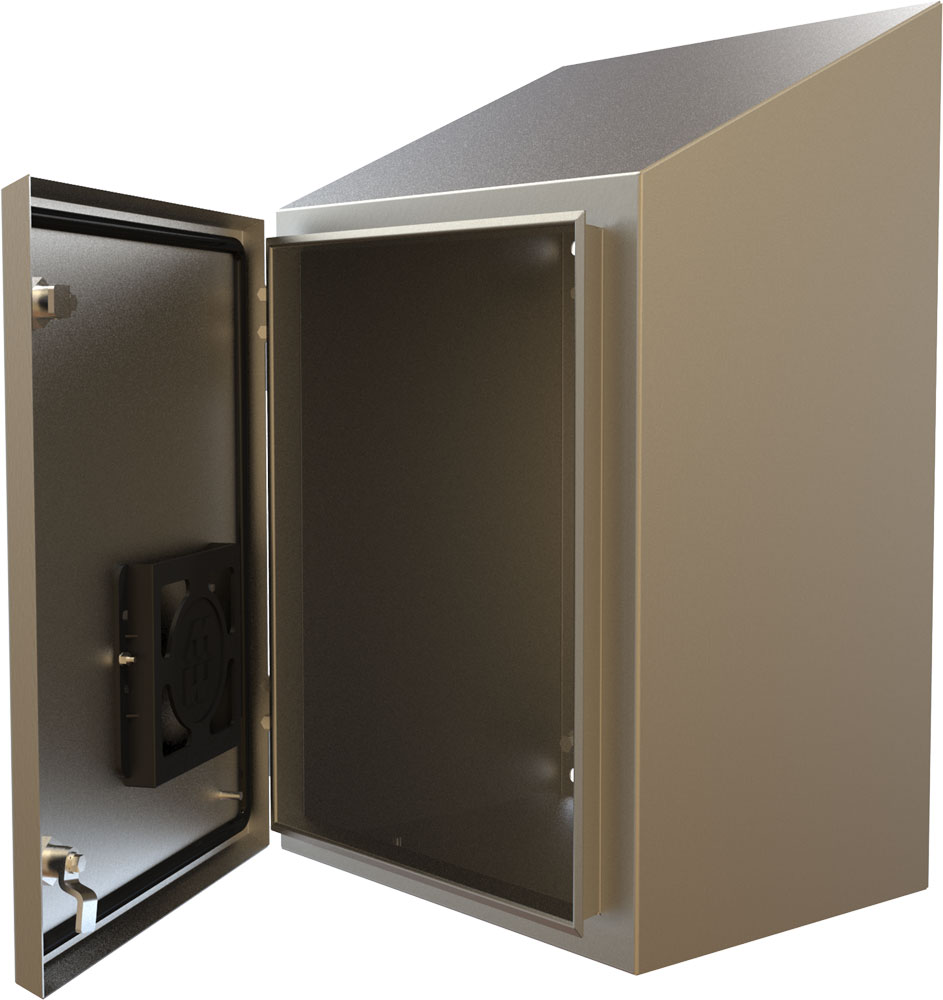

- ■Door hinges (316 stainless steel) are easy to clean, provide 180 degree opening, are easily removed for modifications and are interchangeable.
- ■Seamless poured-in place gasket.
- ■Collar studs provided for mounting inner panel.
- ■Includes hardware kit with panel mounting nuts and sealing washers for wall mounting holes.
- ■Bonding stud provided on door and grounding stud installed in enclosure.
Finish
- ■Cover and enclosure are natural stainless steel with a smooth brushed finish.
Documents
Additional information
Part Details
| 304 SS · Part No. | 316 SS · Part No. | Enclosure · H1 | Enclosure · H2 | Enclosure · W | Enclosure · D | Optional Inner Panel · Part No. | Optional Inner Panel · H | Optional Inner Panel · W |
|---|---|---|---|---|---|---|---|---|
| HWST16128SS | HWST16128S16 | 16.00 | 19.70 | 12.00 | 8.00 | 18P1309 | 13.00 | 9.00 |
| HWST16168SS | HWST16168S16 | 16.00 | 19.70 | 16.00 | 8.00 | 18P1313 | 13.00 | 13.00 |
| HWST20168SS | HWST20168S16 | 20.00 | 23.70 | 16.00 | 8.00 | 18P1713 | 17.00 | 13.00 |
| HWST20208SS | HWST20208S16 | 20.00 | 23.70 | 20.00 | 8.00 | 18P1717 | 17.00 | 17.00 |
| HWST24208SS | HWST24208S16 | 24.00 | 27.70 | 20.00 | 8.00 | 18P2117 | 21.00 | 17.00 |
| HWST24248SS | HWST24248S16 | 24.00 | 27.70 | 24.00 | 8.00 | 18P2121 | 21.00 | 21.00 |
| HWST30248SS | HWST30248S16 | 30.00 | 33.70 | 24.00 | 8.00 | 18P2721 | 27.00 | 21.00 |
| HWST30308SS | HWST30308S16 | 30.00 | 33.70 | 30.00 | 8.00 | 18P2727 | 27.00 | 27.00 |
| HWST36308SS | HWST36308S16 | 36.00 | 39.70 | 30.00 | 8.00 | 18P3327 | 33.00 | 27.00 |
| HWST201612SS | HWST201612S16 | 20.00 | 25.60 | 16.00 | 12.00 | 18P1713 | 17.00 | 13.00 |
| HWST202012SS | HWST202012S16 | 20.00 | 25.60 | 20.00 | 12.00 | 18P1717 | 17.00 | 17.00 |
| HWST242412SS | HWST242412S16 | 24.00 | 29.60 | 24.00 | 12.00 | 18P2121 | 21.00 | 21.00 |
| HWST302412SS | HWST302412S16 | 30.00 | 35.60 | 24.00 | 12.00 | 18P2721 | 27.00 | 21.00 |
| HWST363012SS | HWST363012S16 | 36.00 | 41.60 | 30.00 | 12.00 | 18P3327 | 33.00 | 27.00 |
| HWST363612SS | HWST363612S16 | 36.00 | 41.60 | 36.00 | 12.00 | 18P3333 | 33.00 | 33.00 |
| HWST483612SS | 48.00 | 53.60 | 36.00 | 12.00 | 18P4533 | 45.00 | 33.00 | |
| HWST603612SS | 60.00 | 65.60 | 36.00 | 12.00 | 18P5733 | 57.00 | 33.00 | |
| HWST363016SS | HWST363016S16 | 36.00 | 43.40 | 30.00 | 16.00 | 18P3327 | 33.00 | 27.00 |
| HWST483616SS | HWST483616S16 | 48.00 | 55.40 | 36.00 | 16.00 | 18P4533 | 45.00 | 33.00 |
| HWST603616SS | HWST603616S16 | 60.00 | 67.40 | 36.00 | 16.00 | 18P5733 | 57.00 | 33.00 |
