1PB 304SS 4X4X4.8
$248.35In stock
Buy now
Type 4, 4X Stainless Steel Pushbutton Enclosures · 1437SS Series
Brand: Hammond Manufacturing · 18 part numbers
Extra Deep
- ■Designed to accept standard heavy duty oil tight pushbuttons, switches and pilot lights.
- ■Provides protection from dirt, dust, oil and water.
- ■UL 508A Type 4 and 4X
- ■CSA Enclosure 4 and 4X
- ■Complies with NEMA Type 4 and 4X IEC 60529, IP66
- ■NEMA Type 4 and 4X
from $186.55
18 of 18 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 1437SS Series part number
Filter 18 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
18 of 18 part numbers · 18 priced online
2PB 304SS 6X4X4.8
$304.71In stock
Buy now
3PB 304SS 8X4X4.8
$353.33In stock
Buy now
4PB 304SS 10X4X4.8
$398.54In stock
Buy now
1PB 304SS 4X4X4.8
$191.04In stock
Buy now
2PB 304SS 6X4X4.8
$234.39In stock
Buy now
3PB 304SS 8X4X4.8
$271.83In stock
Buy now
4PB 304SS 10X4X4.8
$305.23In stock
Buy now
1PB 316SS 4X4X4.8
$229.75In stock
Buy now
2PB 316SS 6X4X4.8
$282.11In stock
Buy now
3PB 316SS 8X4X4.8
$327.24In stock
Buy now
4PB 316SS 10X4X4.8
$367.61In stock
Buy now
16PB 316SS 11.8X10.8X4.8
$696.14In stock
Buy now
1PB 304SS 4X4X4.8
$186.55In stock
Buy now
2PB 304SS 6X4X4.8
$227.94In stock
Buy now
3PB 304SS 8X4X4.8
$263.96In stock
Buy now
4PB 304SS 10X4X4.8
$296.76In stock
Buy now
16PB 304SS 11.8X10.8X4.8
$582.76In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| 304 S.S. · 22.5mm PB · Part No. | 304 S.S. · 30.5mm PB · Part No. | 316 S.S. · 22.5mm PB · Part No. | 316 S.S. · 30.5mm PB · Part No. | No. · Of · Holes | Enclosure · H | Enclosure · W | Enclosure · D | Price | Order |
|---|---|---|---|---|---|---|---|---|---|

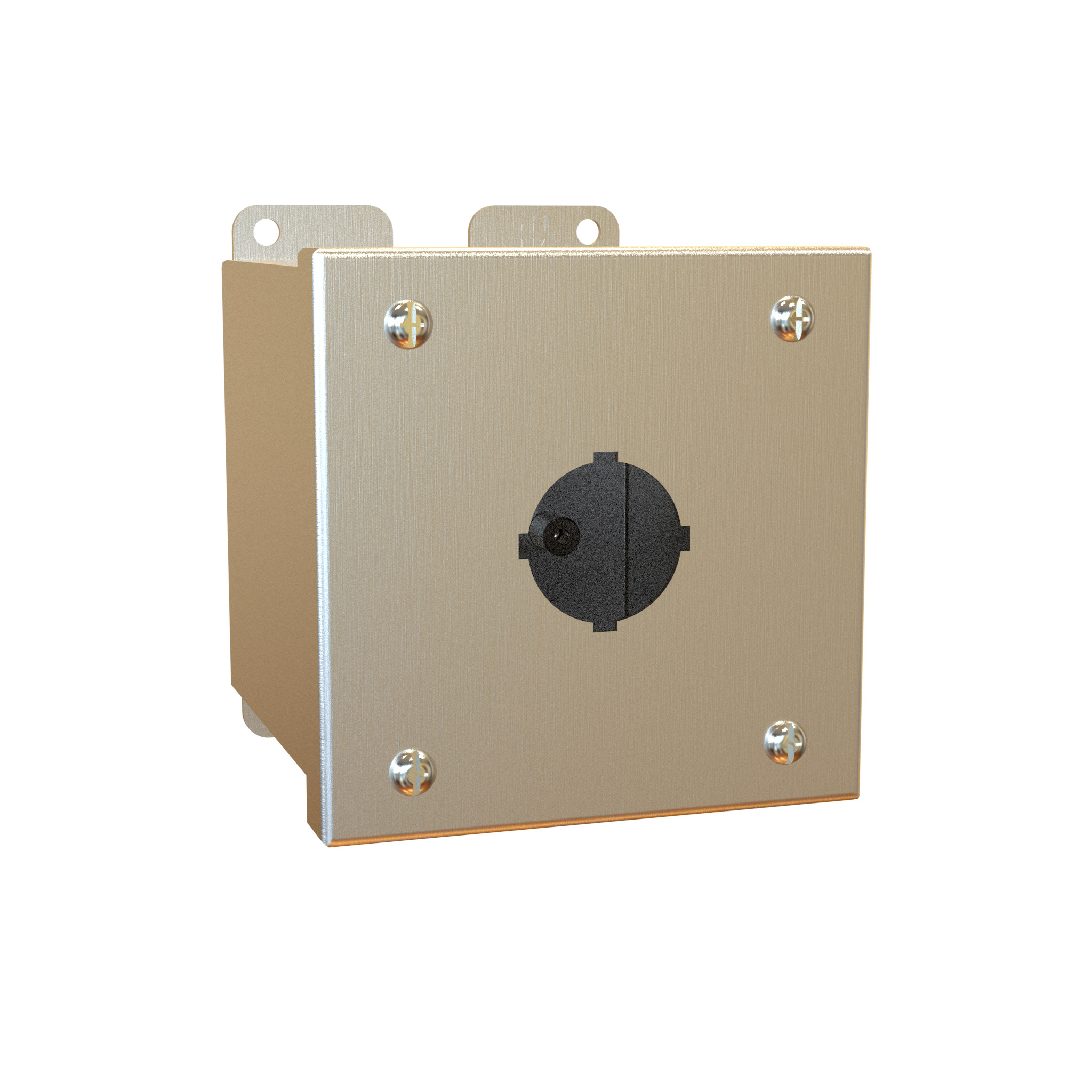

| 1437MSSA | 1437SSA | 1437MS16A | 1437S16A | 1 | 4.00 | 4.00 | 4.75 | $191.04In stock1437MSSA | Buy now |

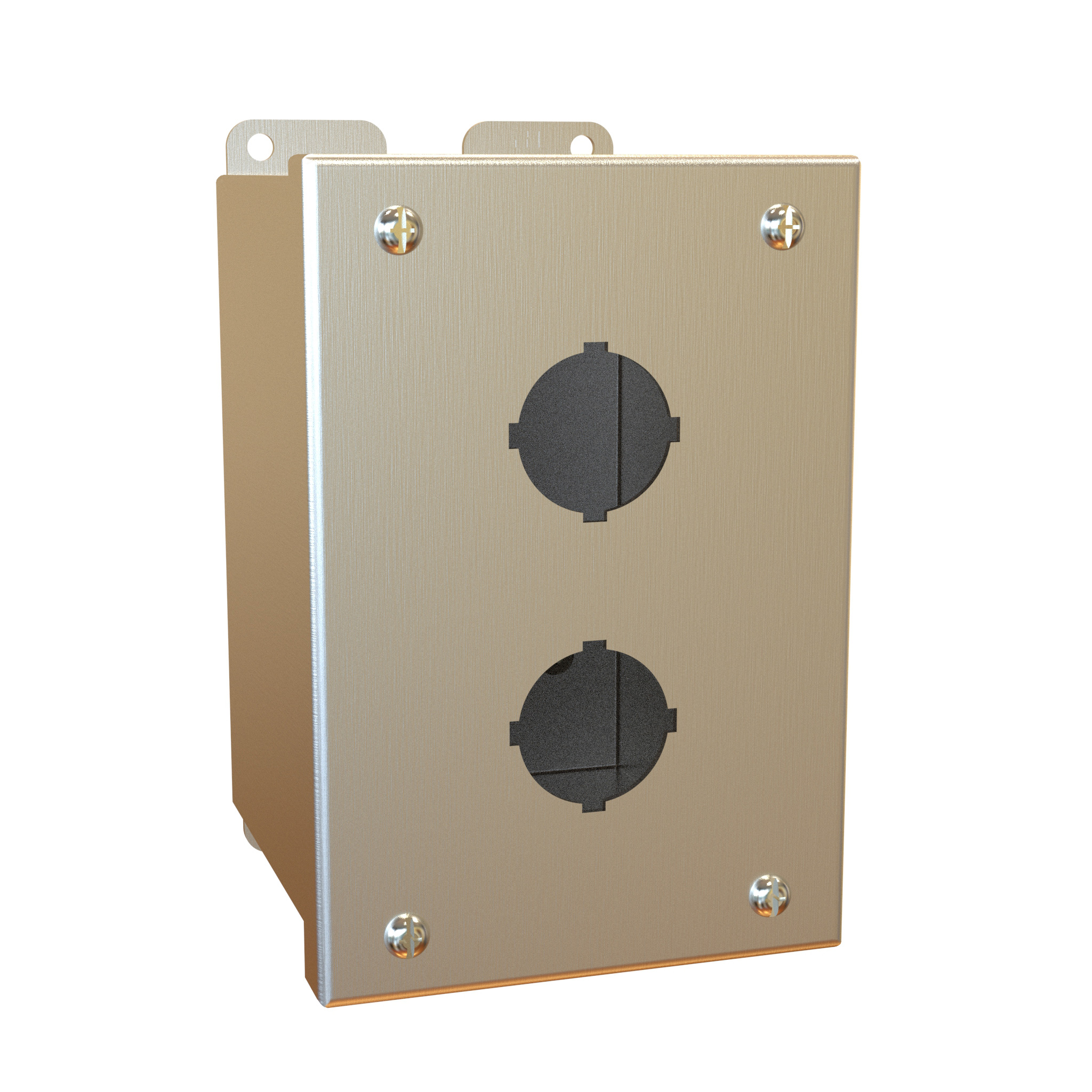

| 1437MSSB | 1437SSB | 1437MS16B | 1437S16B | 2 | 6.00 | 4.00 | 4.75 | $234.39In stock1437MSSB | Buy now |
| 1437MSSC | 1437SSC | 1437MS16C | 1437S16C | 3 | 8.00 | 4.00 | 4.75 | $271.83In stock1437MSSC | Buy now |
| 1437MSSD | 1437SSD | 1437MS16D | 1437S16D | 4 | 10.00 | 4.00 | 4.75 | $305.23In stock1437MSSD | Buy now |
| - | 1437SSS | - | 1437S16S | 16 | 11.75 | 10.75 | 4.75 | $582.76In stock1437SSS | Buy now |
Application
- ■Designed to accept standard heavy duty oil tight pushbuttons, switches and pilot lights.
- ■Provides protection from dirt, dust, oil and water.
Standards
- ■UL 508A Type 4 and 4X
- ■CSA Enclosure 4 and 4X
- ■Complies with NEMA Type 4 and 4X IEC 60529, IP66
- ■NEMA Type 4 and 4X
- ■IEC 60529, IP66
- ■Appropriate components are required to maintain these standards.
Construction
- ■Formed from 16 gauge steel
- ■Smooth continuously welded seams.
- ■Welded brackets provide for enclosure mounting.
- ■Captive cover screws fasten into threaded, sealed wells.
- ■Larger enclosures provide internally hinged removable covers, designed to hold the cover open during wiring (see drawings).
- ■Oil resistant gasket and adhesive.
- ■A bonding stud is provided on the door and a grounding stud is provided on the enclosure.
Finish
- ■Natural stainless steel with a smooth brushed finish.
Documents
Additional information
Part Details
| 304 S.S. · 22.5mm PB · Part No. | 304 S.S. · 30.5mm PB · Part No. | 316 S.S. · 22.5mm PB · Part No. | 316 S.S. · 30.5mm PB · Part No. | No. · Of · Holes | Enclosure · H | Enclosure · W | Enclosure · D |
|---|---|---|---|---|---|---|---|
| 1437MSSA ¹ | 1437SSA ¹ | 1437MS16A ¹ | 1437S16A ¹ | 1 | 4.00 | 4.00 | 4.75 |
| 1437MSSB | 1437SSB | 1437MS16B | 1437S16B | 2 | 6.00 | 4.00 | 4.75 |
| 1437MSSC | 1437SSC | 1437MS16C | 1437S16C | 3 | 8.00 | 4.00 | 4.75 |
| 1437MSSD | 1437SSD | 1437MS16D | 1437S16D | 4 | 10.00 | 4.00 | 4.75 |
| - | 1437SSS | - | 1437S16S | 16 | 11.75 | 10.75 | 4.75 |
