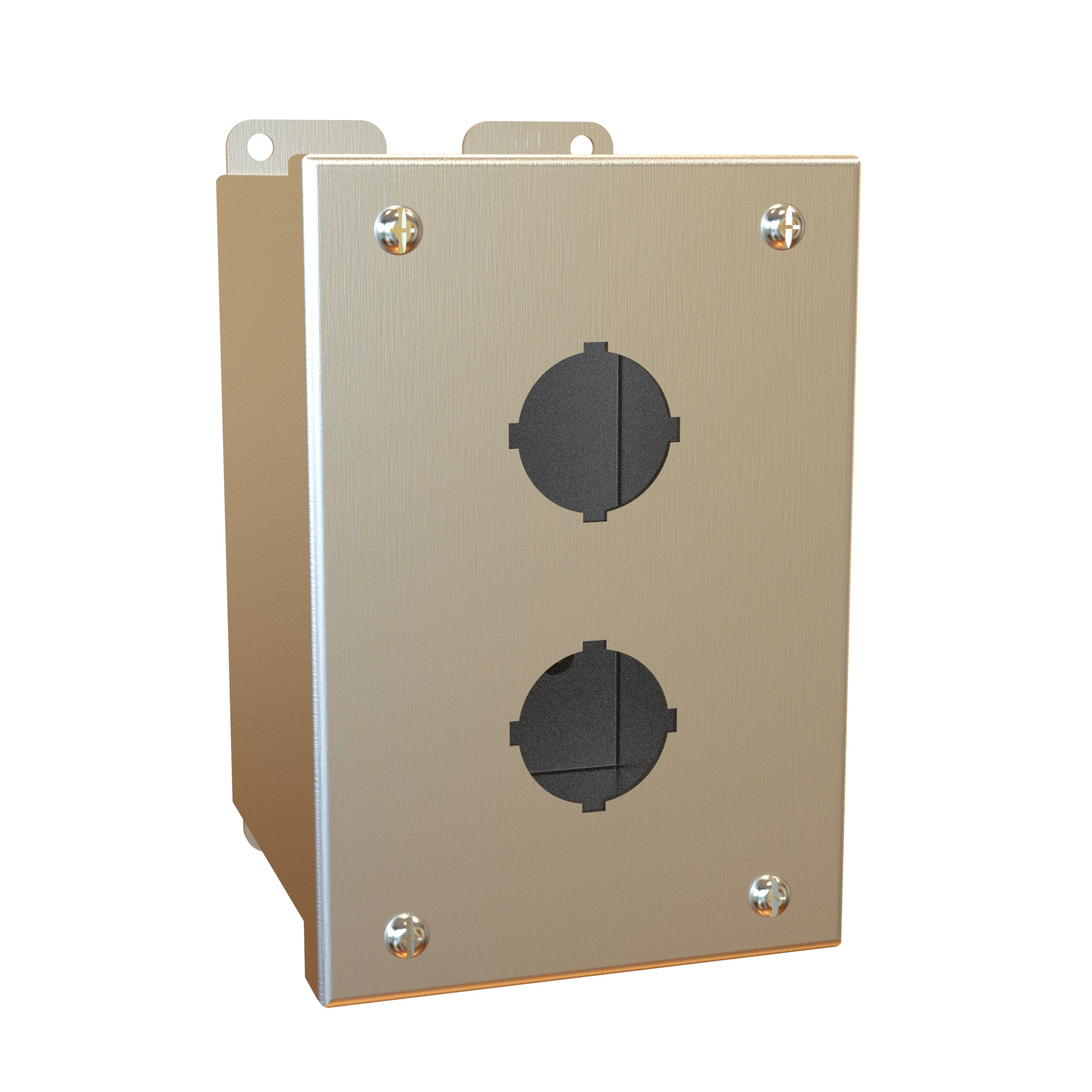

Hammond 1437S16B 2-Hole 30.5mm 316 Stainless Pushbutton Enclosure

Built for two 30.5mm operators, the 1437S16B is an extra deep 316 stainless steel pushbutton enclosure from the 1437SS Series. It is designed to accept standard heavy duty oil tight pushbuttons, switches and pilot lights, and provides protection from dirt, dust, oil and water for start/stop pairs and similar two-device stations.

The body is formed from 16 gauge steel with smooth, continuously welded seams and a natural stainless steel finish with a smooth brushed appearance. Captive cover screws thread into sealed wells, and an oil resistant gasket and adhesive seal the cover. There is a bonding stud on the door and a grounding stud on the enclosure. Per the series notes, larger enclosures have internally hinged removable covers that hold open during wiring, while only the 1-hole size is footnoted as not hinged.

Nominal size is 6 in x 4 in x 4.75 in (152 mm x 102 mm x 121 mm). The drawing shows a 6.75 in overall height, a 6.37 in by 4.37 in door, a 4.91 in overall depth and Ø1.21 in holes on 2.25 in centres. Welded brackets carry Ø0.25 in mounting holes on 3.13 in x 6.25 in centres. The 1437S16B ships boxed at 3 lbs (1.36 kg).

Series standards are UL 508A Type 4 and 4X and CSA Enclosure 4 and 4X, with compliance to NEMA Type 4 and 4X and IEC 60529 IP66 when appropriate components are used. It is covered by UL file E65324 and CSA certificate LR21001 and is REACH and RoHS compliant.
