Hammond 1437MSSA Single-Hole 22.5mm 304 Stainless Pushbutton Box
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Single 22.5mm pushbutton hole in 304 stainless steel
- Compact 4 in x 4 in x 4.75 in (102 x 102 x 121 mm) extra deep body
- UL 508A Type 4/4X, CSA Enclosure 4/4X, IEC 60529 IP66
- Non-hinged cover held by captive screws in threaded, sealed wells
- 16 gauge steel with smooth continuously welded seams
- Welded mounting brackets, Ø0.25 in holes on 3.12 x 4.50 in centres
- Bonding stud on door, grounding stud on enclosure

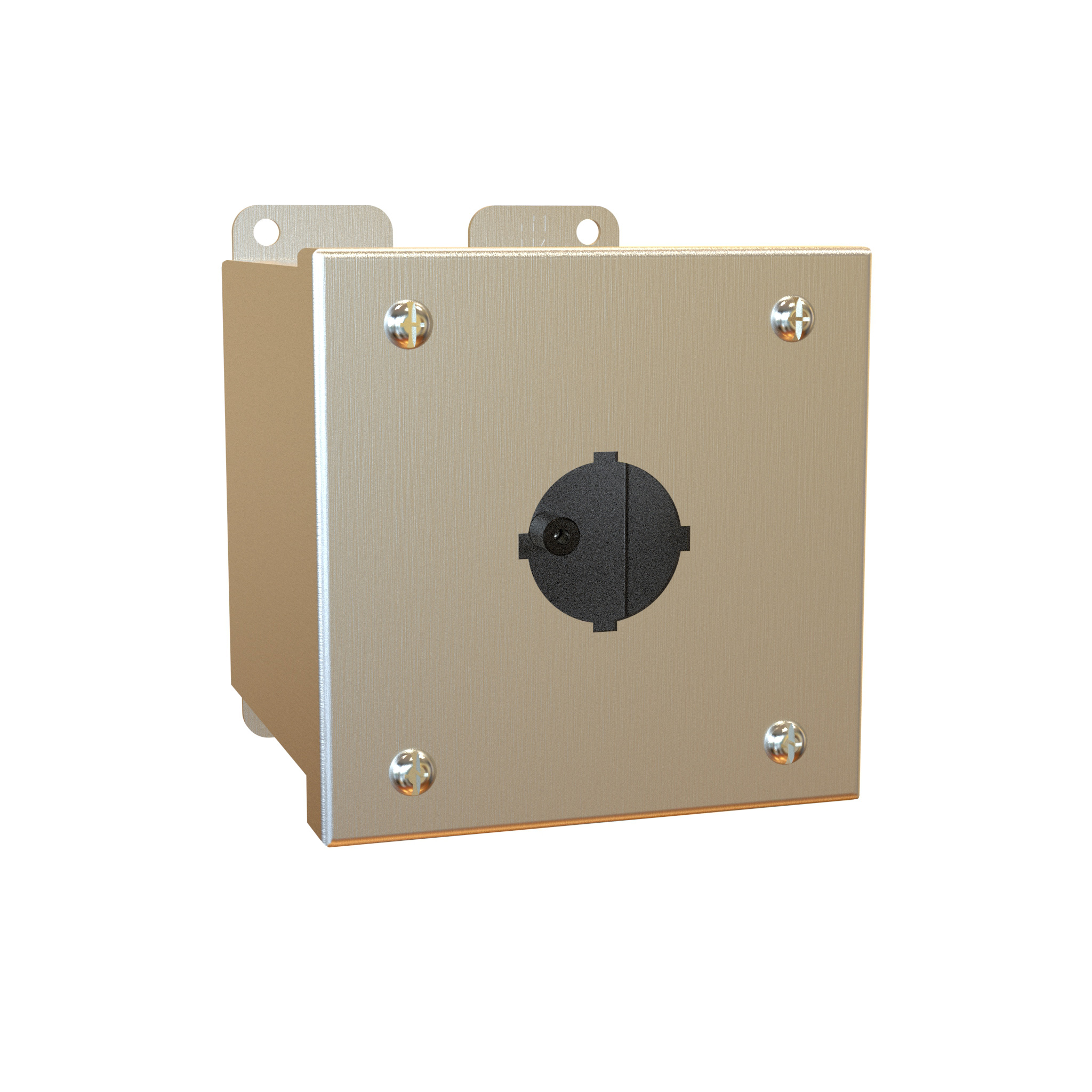

The 1437MSSA is the smallest size in the 1437SS Series: a 4 in x 4 in x 4.75 in (102 mm x 102 mm x 121 mm) extra deep enclosure in 304 stainless steel with a single hole for a 22.5mm operator. It is designed to accept a standard heavy duty oil tight pushbutton, switch or pilot light and protects it from dirt, dust, oil and water, which suits single-function stations such as an emergency stop, reset or indicator.
It is formed from 16 gauge steel with smooth, continuously welded seams and a natural stainless steel finish with a smooth brushed look. The cover on this 1-hole size is not hinged; it is held by captive cover screws that fasten into threaded, sealed wells, and sealed with an oil resistant gasket and adhesive. A bonding stud is provided on the door and a grounding stud on the enclosure.
The drawing lists a 4.75 in overall height, a 4.31 in square door, a 4.91 in overall depth and a Ø0.89 in pushbutton hole. Welded brackets provide for mounting, with Ø0.25 in holes on 3.12 in x 4.50 in centres. Shipping weight is 3 lbs (1.36 kg), packed in a box.
Series ratings include UL 508A Type 4 and 4X and CSA Enclosure 4 and 4X, and the design complies with NEMA Type 4 and 4X and IEC 60529 IP66 when appropriate components are used. The 1437MSSA is covered by UL file E65324 and CSA certificate LR21001 and is REACH and RoHS compliant.
Ideal For
- Single emergency stop or reset station
- Individual pilot light housing
- Remote start or stop pushbutton at machinery
- Oil tight control point in wet or dusty areas
Mounting
| Mounting Method | Welded brackets for enclosure mounting |
| Mounting Hole Centres (Drawing, Back View) | 3.12 in x 4.50 in |
Overview
| Series | 1437SS Series – Type 4, 4X Stainless Steel Pushbutton Enclosures, Extra Deep |
| Material | 304 stainless steel (304 S.S.) |
| Application | Accepts standard heavy duty oil tight pushbuttons, switches and pilot lights; protection from dirt, dust, oil and water |
| Description | Pushbutton Encl - Extra Deep - 1 PB x 22.5mm - 304SS |
| Pushbutton Size | 22.5mm |
| Number Of Pushbutton Holes | 1 |
Dimensions
| Size (H X W X D) | 4 in x 4 in x 4.75 in (102 mm x 102 mm x 121 mm) |
| Door Width (Drawing) | 4.31 in |
| Door Height (Drawing) | 4.31 in |
| Overall Depth (Drawing) | 4.91 in |
| Overall Height (Drawing) | 4.75 in |
| Pushbutton Hole Diameter (Drawing) | Ø0.89 in |
Accessories
| Available Accessories | Hole plugs; 10 AWG bonding wire kits |
Identifiers
| UPC | 623980433820 |
| UNSPSC | 39121326 |
| Part Number | 1437MSSA |
Packaging & Shipping
| Packaging Type | Box |
| Shipping Weight | 3 lbs (1.36 kg) |
Related Part Numbers
| 304 S.S., 30.5mm PB (Same Size) | 1437SSA |
| 316 S.S., 22.5mm PB (Same Size) | 1437MS16A |
| 316 S.S., 30.5mm PB (Same Size) | 1437S16A |
Construction & Finish
| Seams | Smooth continuously welded seams |
| Finish | Natural stainless steel with a smooth brushed finish |
| Gasket | Oil resistant gasket and adhesive |
| Cover Hinge | Not hinged (ordering table footnote for the 1-hole size) |
| Steel Gauge | Formed from 16 gauge steel |
| Cover Fastening | Captive cover screws fasten into threaded, sealed wells |
| Bonding / Grounding | Bonding stud on the door; grounding stud on the enclosure |
Environmental & Protection
| Rating Note | Appropriate components are required to maintain these standards |
| Enclosure Rating | NEMA Type 4 and 4X; IEC 60529, IP66 |
Compliance & Certifications
| UL | UL 508A Type 4 and 4X |
| CSA | CSA Enclosure 4 and 4X |
| UL File # | E65324 |
| CSA Cert. # | LR21001 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| DoC Additional Declarations | RoHS Directive 2011/65/EU; Directive (EU) 2015/863 |
| EU Declaration Of Conformity | Low Voltage Directive 2014/35/EU |
| DoC Standard – Degrees Of Protection | EN 60529: 1992 + A2: 2013 / IEC 60529: 2001-02 + A2: 2013-08 (IP code) |
| DoC Standard – Electrical Equipment Of Machines | EN 60204-1: 2006 / IEC 60204-1: 2005-10 (Safety of Machinery – Electrical Equipment of Machines – Part 1: General Requirements) |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Does the 1437MSSA have a hinged cover?▾
No. The 1-hole size is footnoted as not hinged; the cover is secured with captive screws into threaded, sealed wells.
What pushbutton size does it take?▾
One 22.5mm operator; the drawing shows a Ø0.89 in hole.
What is it made of?▾
304 stainless steel, formed from 16 gauge steel with a natural smooth brushed finish.
How big is it?▾
4 in x 4 in x 4.75 in (102 mm x 102 mm x 121 mm); overall height 4.75 in and overall depth 4.91 in per the drawing.
Is there a 316 stainless version?▾
Yes, the same size with a 22.5mm hole in 316 stainless steel is 1437MS16A.
