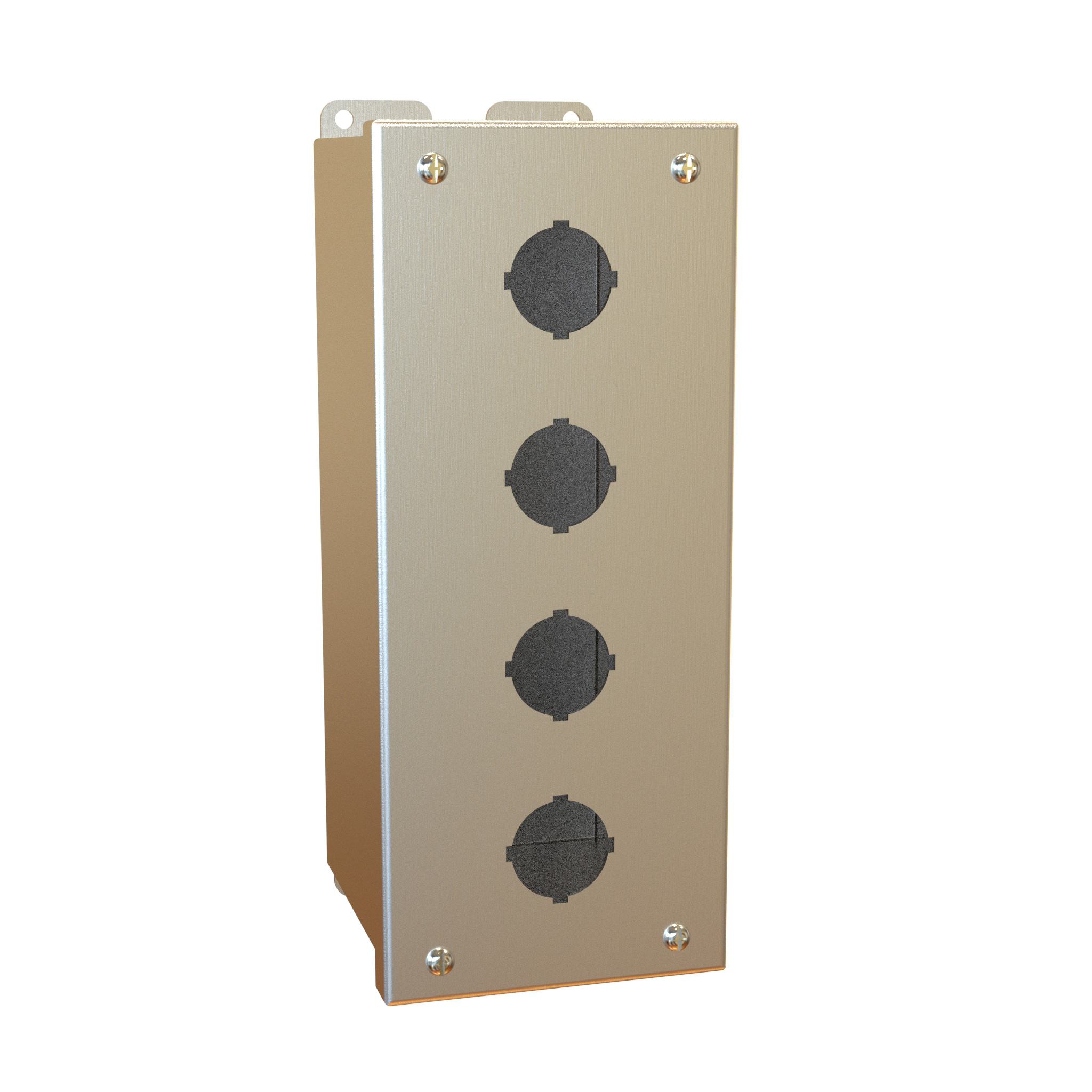

Hammond 1437S16D 4-Hole 30.5mm 316 Stainless Pushbutton Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Four 30.5mm pushbutton holes in 316 stainless steel
- 10 in x 4 in x 4.75 in (254 x 102 x 121 mm) extra deep enclosure
- UL 508A Type 4/4X, CSA Enclosure 4/4X, IEC 60529 IP66
- 16 gauge steel with smooth continuously welded seams
- Captive cover screws into threaded, sealed wells; oil resistant gasket
- Welded brackets, Ø0.25 in holes on 3.13 x 10.75 in centres
- Bonding stud on door, grounding stud on enclosure
With four 30.5mm openings in a 10 in tall body, the 1437S16D is the largest single-column size in the 1437SS Series of extra deep stainless pushbutton enclosures. It is made in 316 stainless steel and designed to accept standard heavy duty oil tight pushbuttons, switches and pilot lights, protecting them from dirt, dust, oil and water.
Construction is formed 16 gauge steel with smooth, continuously welded seams and a natural brushed stainless finish. Captive cover screws fasten into threaded, sealed wells, and an oil resistant gasket and adhesive seal the cover. A bonding stud is provided on the door and a grounding stud on the enclosure. The series describes internally hinged removable covers on its larger enclosures that hold the cover open during wiring; only the 1-hole size is footnoted as not hinged.
- Size: 10 in x 4 in x 4.75 in (254 mm x 102 mm x 121 mm)
- Drawing overall height 11.00 in, door height 10.37 in, overall depth 4.91 in
- Four Ø1.21 in holes on 2.25 in centres
- Welded brackets with Ø0.25 in mounting holes on 3.13 in x 10.75 in centres
The series is rated UL 508A Type 4 and 4X and CSA Enclosure 4 and 4X and complies with NEMA Type 4 and 4X and IEC 60529 IP66 when appropriate components are used. The 1437S16D carries UL file E65324 and CSA certificate LR21001, is REACH and RoHS compliant, and ships in a box at 3 lbs (1.36 kg).
Ideal For
- Four-function 30.5mm operator stations
- Machine and conveyor control stations
- Pilot light and selector switch housings
- Corrosion resistant controls in wet or oily areas
Mounting
| Mounting Method | Welded brackets for enclosure mounting |
| Mounting Hole Centres (Drawing, Back View) | 3.13 in x 10.75 in |
Overview
| Series | 1437SS Series – Type 4, 4X Stainless Steel Pushbutton Enclosures, Extra Deep |
| Material | 316 stainless steel (316 S.S.) |
| Application | Accepts standard heavy duty oil tight pushbuttons, switches and pilot lights; protection from dirt, dust, oil and water |
| Description | Pushbutton Encl - Extra Deep - 4 PB x 30.5mm - 316SS |
| Pushbutton Size | 30.5mm |
| Number Of Pushbutton Holes | 4 |
Dimensions
| Size (H X W X D) | 10 in x 4 in x 4.75 in (254 mm x 102 mm x 121 mm) |
| Door Height (Drawing) | 10.37 in |
| Overall Depth (Drawing) | 4.91 in |
| Overall Height (Drawing) | 11.00 in |
| Pushbutton Hole Diameter (Drawing) | Ø1.21 in |
Accessories
| Available Accessories | Hole plugs; 10 AWG bonding wire kits |
Identifiers
| UPC | 623980153933 |
| UNSPSC | 39121326 |
| Part Number | 1437S16D |
Packaging & Shipping
| Packaging Type | Box |
| Shipping Weight | 3 lbs (1.36 kg) |
Related Part Numbers
| 304 S.S., 22.5mm PB (Same Size) | 1437MSSD |
| 304 S.S., 30.5mm PB (Same Size) | 1437SSD |
| 316 S.S., 22.5mm PB (Same Size) | 1437MS16D |
Construction & Finish
| Seams | Smooth continuously welded seams |
| Finish | Natural stainless steel with a smooth brushed finish |
| Gasket | Oil resistant gasket and adhesive |
| Cover Hinge | Series note: larger enclosures provide internally hinged removable covers designed to hold the cover open during wiring (see drawings); only the 1-hole size is footnoted as not hinged |
| Steel Gauge | Formed from 16 gauge steel |
| Cover Fastening | Captive cover screws fasten into threaded, sealed wells |
| Bonding / Grounding | Bonding stud on the door; grounding stud on the enclosure |
Environmental & Protection
| Rating Note | Appropriate components are required to maintain these standards |
| Enclosure Rating | NEMA Type 4 and 4X; IEC 60529, IP66 |
Compliance & Certifications
| UL | UL 508A Type 4 and 4X |
| CSA | CSA Enclosure 4 and 4X |
| UL File # | E65324 |
| CSA Cert. # | LR21001 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| DoC Additional Declarations | RoHS Directive 2011/65/EU; Directive (EU) 2015/863 |
| EU Declaration Of Conformity | Low Voltage Directive 2014/35/EU |
| DoC Standard – Degrees Of Protection | EN 60529: 1992 + A2: 2013 / IEC 60529: 2001-02 + A2: 2013-08 (IP code) |
| DoC Standard – Electrical Equipment Of Machines | EN 60204-1: 2006 / IEC 60204-1: 2005-10 (Safety of Machinery – Electrical Equipment of Machines – Part 1: General Requirements) |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How many 30.5mm operators does the 1437S16D hold?▾
Four, in Ø1.21 in holes on 2.25 in centres per the drawing.
What are its dimensions?▾
10 in x 4 in x 4.75 in (254 mm x 102 mm x 121 mm); overall height 11.00 in and overall depth 4.91 in on the drawing.
Which stainless grade is used?▾
316 stainless steel. The same size in 304 stainless steel is 1437SSD.
What accessories are offered for the series?▾
Hole plugs and 10 AWG bonding wire kits are listed as series accessories.
What does it weigh?▾
Shipping weight is 3 lbs (1.36 kg).
