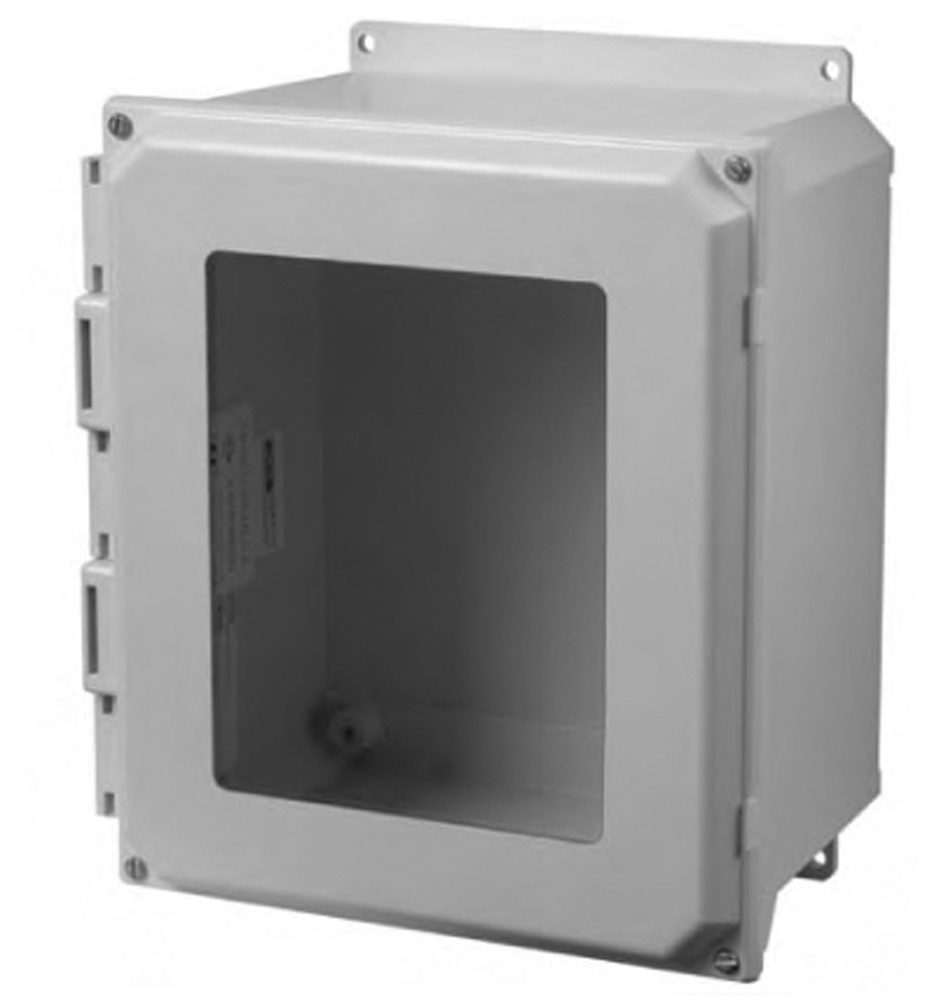

Type 4X Polyester Junction Box w/ Window PJU Series

Type 4X Polyester Junction Box w/ Window · PJU Series

Brand: Hammond Manufacturing · 62 part numbers

Various Door Styles

  • ■Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
  • ■Provides outstanding insulation and protection where equipment may be hosed down or be very wet.
  • ■Ideal in applications with high temperatures or highly corrosive environments.
  • ■UL 508A Type 1, 2, 3, 4, 4X, 12 and 13
  • ■cUL Type 1, 2, 3, 4, 4X, 12 and 13 per CSA 22.2 No. 94
  • ■Complies with NEMA Type 1, 2, 3, 4, 4X, 12 and 13 IEC 60529, IP66

from $5.35

58 of 62 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocuments

Configure & price

Find your PJU Series part number

Filter 54 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

54 of 54 part numbers · 50 priced online

PJU1084LW

Non Met Hng Snap L Wdncvr Feet

$192.64In stock
Buy now
PJU1084W

Non Met Lift Off Sc Wdn Feet

$172.22Backorder
Buy now
PJU1084WF

Nonmet Lifoff Sc Wdn Cvr Flan

$176.97Backorder
Buy now
PJU1086LW

Non Met Hng Snap L Wdncvr Feet

$199.03Backorder
Buy now
PJU1086W

Non Met Lift Off Sc Wdn Feet

$178.40Backorder
Buy now
PJU1086WF

Nonmet Lifoff Sc Wdn Cvr Flan

$183.33Backorder
Buy now
PJU12106W

Nonmet Liftoff Sc Wdn Cvr Feet

$218.53Backorder
Buy now
PJU14126W

Nonmet Liftoff Sc Wdncvr Feet

$264.34Backorder
Buy now
PJU16148W

Nonmet Liftoff Sc Wdn Cvr Feet

$298.03Backorder
Buy now
PJU664HW

Non Met Hng Sc Wdn Cvr Feet

$146.28Backorder
Buy now
PJU664LWF

Non Met Hng Snapl Wdn Cvr Flan

$167.02Backorder
Buy now
PJU664W

Non Met Liftoff Sc Wdncvr Feet

$142.75In stock
Buy now
PJU664WF

Nonmet Lift Off Sc Wdn Cvrflan

$146.60Backorder
Buy now
Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

Lift-Off Screw Cover · w/Flange · Part No.Lift-Off Screw Cover · w/Feet · Part No.Hinged Screw Cover · w/Flange · Part No.Hinged Screw Cover · w/Feet · Part No.Hinged Snap Latch · w/Flange · Part No.Hinged Snap Latch · w/Feet · Part No.Enclosure · HEnclosure · WEnclosure · DOptional Inner Panel · HOptional Inner Panel · WOptional Inner Panel · Part No.PriceOrder
PJU664WFPJU664WPJU664HWFPJU664HWPJU664LWFPJU664LW6.056.274.134.884.8814R0505$146.60BackorderPJU664WFBuy now
PJU864WFPJU864WPJU864HWFPJU864HWPJU864LWFPJU864LW8.056.274.136.754.8814R0705$157.12BackorderPJU864WFBuy now
PJU1084WFPJU1084WPJU1084HWFPJU1084HWPJU1084LWFPJU1084LW10.058.274.138.756.8814R0907$176.97BackorderPJU1084WFBuy now
PJU1086WFPJU1086WPJU1086HWFPJU1086HWPJU1086LWFPJU1086LW10.058.276.138.756.8814R0907$183.33BackorderPJU1086WFBuy now
PJU12106WFPJU12106WPJU12106HWFPJU12106HWPJU12106LWFPJU12106LW12.0510.276.1310.758.8814R1109$224.58BackorderPJU12106WFBuy now
PJU14126WFPJU14126WPJU14126HWFPJU14126HWPJU14126LWFPJU14126LW14.0512.276.1312.7510.8814R1311$271.51BackorderPJU14126WFBuy now
PJU16148WFPJU16148WPJU16148HWFPJU16148HWPJU16148LWFPJU16148LW16.0514.278.1314.7512.8814R1513$306.22BackorderPJU16148WFBuy now
PJU181610WFPJU181610WPJU181610HWFPJU181610HWPJU181610LWFPJU181610LW18.3016.5210.1316.8814.88P1868$385.86BackorderPJU181610WFBuy now
PJU201610WFPJU201610WPJU201610HWFPJU201610HWPJU201610LWFPJU201610LW20.5016.2710.1318.4414.44P2068$595.64BackorderPJU201610WFBuy now

Application

  • ■Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
  • ■Provides outstanding insulation and protection where equipment may be hosed down or be very wet.
  • ■Ideal in applications with high temperatures or highly corrosive environments.

Standards

  • ■UL 508A Type 1, 2, 3, 4, 4X, 12 and 13
  • ■cUL Type 1, 2, 3, 4, 4X, 12 and 13 per CSA 22.2 No. 94
  • ■Complies with NEMA Type 1, 2, 3, 4, 4X, 12 and 13 IEC 60529, IP66
  • ■NEMA Type 1, 2, 3, 4, 4X, 12 and 13
  • ■IEC 60529, IP66

Construction

  • ■Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled.
  • ■Enhanced UV inhibitors protect against outdoor weathering.
  • ■Standard JIC sizes under 18"x16".
  • ■Threaded brass inserts are provided for optional inner panel or terminal kit mounting. Mounting hardware is included.
  • ■Various latching options.
  • ■Enclosures are available with bonded polycarbonate viewing windows.
  • ■Door is supported with a continuous stainless steel hinge pin.
  • ■Captive oil resistant gasket provides a positive seal.
  • ■Threaded brass inserts are provided for mounting feet to the rear of the enclosure.
  • ■Operating temperatures between 130°C and -40°C (266°F to -40°F).
  • ■Impact index of 6.78J (5 ft/lb).
  • ■For corrosion resistance information, please refer to table in the Technical Information section.

Finish

  • ■Fiberglass polyester material has a light gray finish.
  • ■Optional inner panels are available in white powder coated finished steel or unfinished aluminum, or Fiberglass.
