Choke
- D.C. Current 25 ma.
- Inductance +/- 15% 7H
- Maximum Operating 300
- Ohms 770
$25.62In stock
Buy now

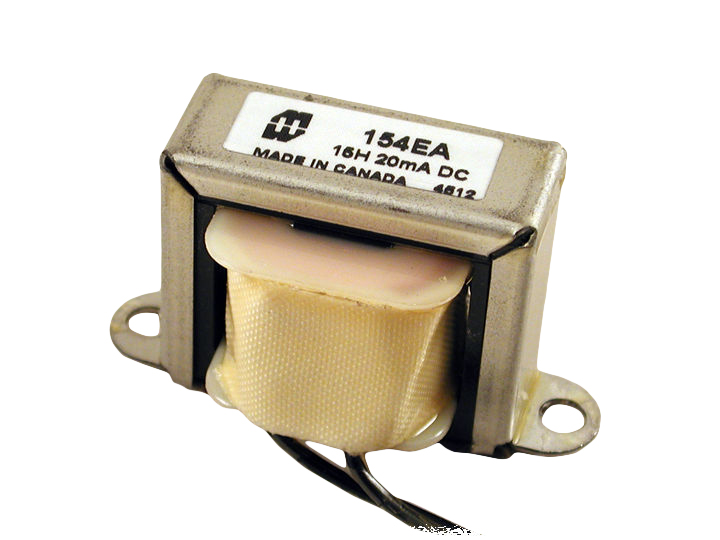

D.C. Reactors or filter chokes · 153-159 Series
Brand: Hammond Manufacturing · 54 part numbers
Low to medium current
- ■Economical "open bracket" channel mount.
- ■Tolerance of 15% on both inductance & resistance.
- ■Inductances measured at rated D.C. current.
- ■Minimum 5" long leads.
- ■Units will exhibit less inductance at slightly higher currents or more inductance at lower currents.
- ■Perfect for high voltage power supply filtering.
from $7.55
54 of 54 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 153-159 Series part number
Filter 54 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
54 of 54 part numbers · 54 priced online
Choke
- D.C. Current 50 ma.
- Inductance +/- 15% 2.2H
- Maximum Operating 300
- Ohms 305
$16.97In stock
Buy nowChoke
- D.C. Current 75 ma.
- Inductance +/- 15% 0.9H
- Maximum Operating 300
- Ohms 125
$25.20In stock
Buy nowChoke
- D.C. Current 100 ma.
- Inductance +/- 15% 0.6H
- Maximum Operating 300
- Ohms 86
$24.96In stock
Buy nowNoise Filter Choke
- D.C. Current 1.5 A
- Inductance +/- 15% 3mH
- Maximum Operating 300
- Ohms 0.14
$12.86In stock
Buy nowChoke
- D.C. Current 20 ma.
- Inductance +/- 15% 20H
- Maximum Operating 300
- Ohms 1666
$14.39In stock
Buy now

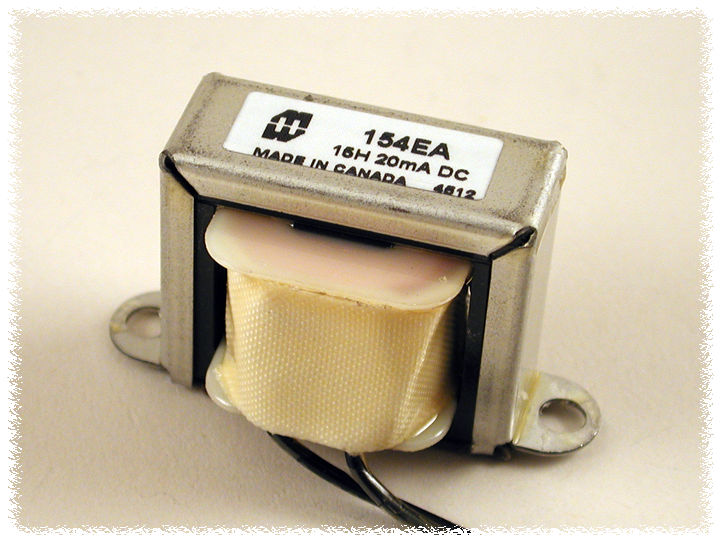

Choke
- D.C. Current 20 ma.
- Inductance +/- 15% 15H
- Maximum Operating 500
- Ohms 966
$7.55In stock
Buy nowChoke
- D.C. Current 40 ma.
- Inductance +/- 15% 9H
- Maximum Operating 300
- Ohms 700
$13.73In stock
Buy nowChoke
- D.C. Current 50 ma.
- Inductance +/- 15% 4H
- Maximum Operating 300
- Ohms 300
$13.66In stock
Buy now
Choke
- D.C. Current 100 ma.
- Inductance +/- 15% 2H
- Maximum Operating 300
- Ohms 175
$13.07In stock
Buy now
Choke
- D.C. Current 2A
- Inductance +/- 15% 6mH
- Maximum Operating 400
- Ohms 0.3
$15.24In stock
Buy nowChoke
- D.C. Current 8 ma.
- Inductance +/- 15% 60H
- Maximum Operating 400
- Ohms 2750
$15.36In stock
Buy nowChoke
- D.C. Current 40 ma.
- Inductance +/- 15% 7H
- Maximum Operating 400
- Ohms 340
$15.63In stock
Buy nowChoke
- D.C. Current 50 ma.
- Inductance +/- 15% 5H
- Maximum Operating 400
- Ohms 270
$15.88In stock
Buy nowChoke
- D.C. Current 30 ma.
- Inductance +/- 15% 15H
- Maximum Operating 400
- Ohms 1026
$16.43In stock
Buy now
Choke
- D.C. Current 300 ma.
- Inductance +/- 15% 0.5H
- Maximum Operating 400
- Ohms 30
$7.80Backorder
Buy nowChoke
- D.C. Current 5A
- Inductance +/- 15% 1.5mH
- Maximum Operating 400
- Ohms 0.07
$16.06In stock
Buy nowChoke
- D.C. Current 8 ma.
- Inductance +/- 15% 150H
- Maximum Operating 400
- Ohms 3700
$16.75In stock
Buy nowChoke
- D.C. Current 40 ma.
- Inductance +/- 15% 9H
- Maximum Operating 400
- Ohms 300
$15.36In stock
Buy now

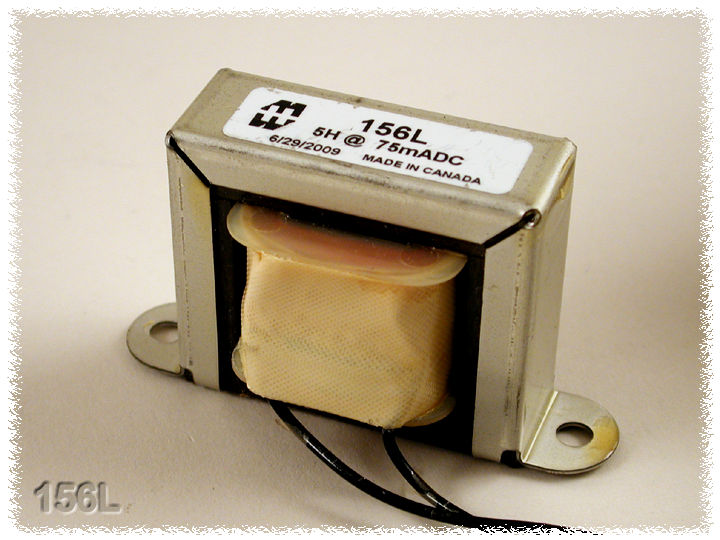

Choke
- D.C. Current 75 ma.
- Inductance +/- 15% 5H
- Maximum Operating 400
- Ohms 135
$15.88In stock
Buy now

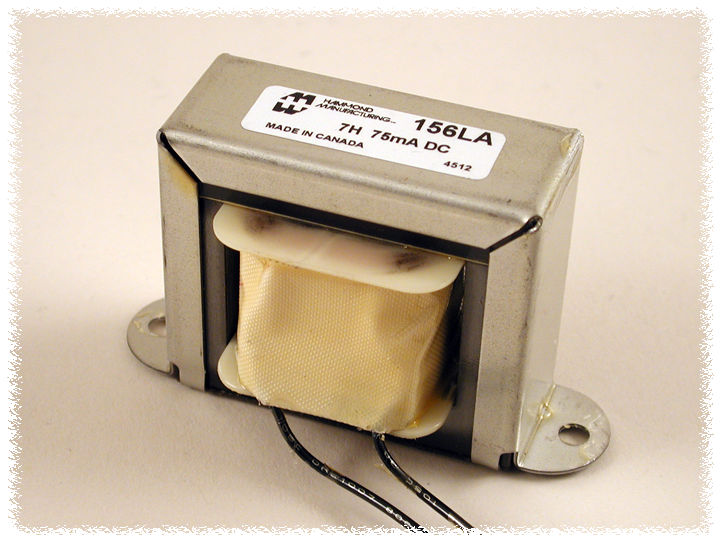

Choke
- D.C. Current 75 ma.
- Inductance +/- 15% 7H
- Maximum Operating 400
- Ohms 241
$23.25In stock
Buy now

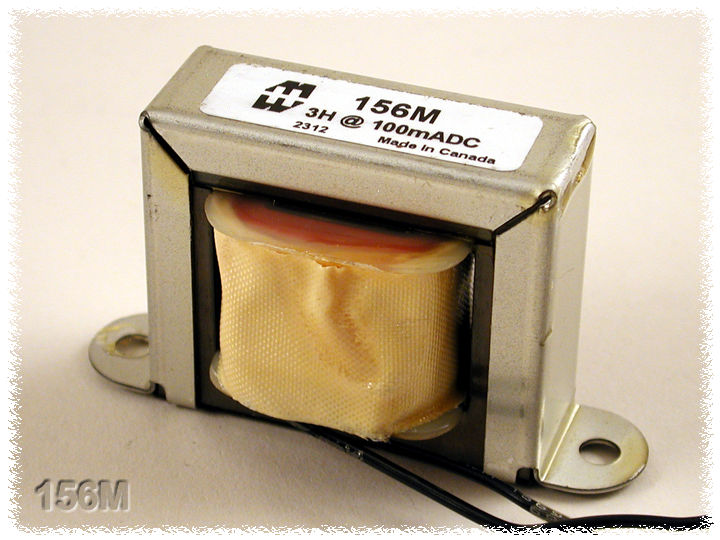

Choke
- D.C. Current 100 ma.
- Inductance +/- 15% 3H
- Maximum Operating 400
- Ohms 86
$15.71In stock
Buy now
Choke
- D.C. Current 200 ma.
- Inductance +/- 15% 1.5H
- Maximum Operating 400
- Ohms 56
$17.46In stock
Buy now
Choke
- D.C. Current 10A
- Inductance +/- 15% 1mH
- Maximum Operating 400
- Ohms 0.038
$20.14In stock
Buy nowChoke
- D.C. Current 4A
- Inductance +/- 15% 6mH
- Maximum Operating 500
- Ohms 0.133
$30.15In stock
Buy now

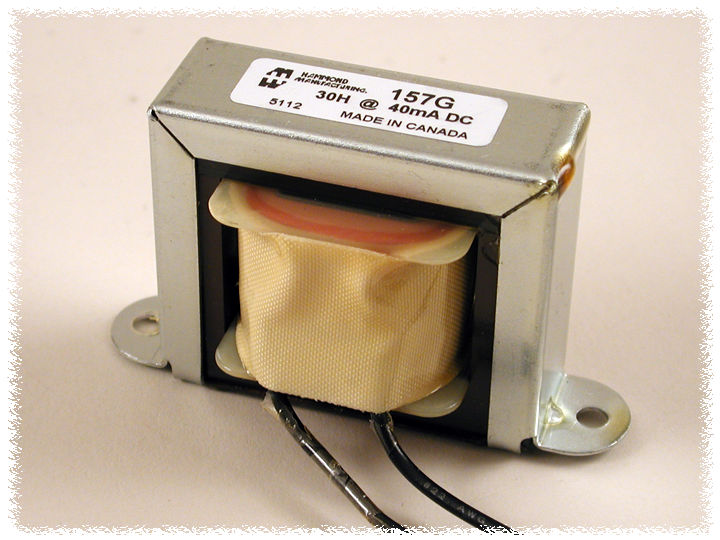

Choke
- D.C. Current 40 ma.
- Inductance +/- 15% 30H
- Maximum Operating 400
- Ohms 595
$29.38In stock
Buy now

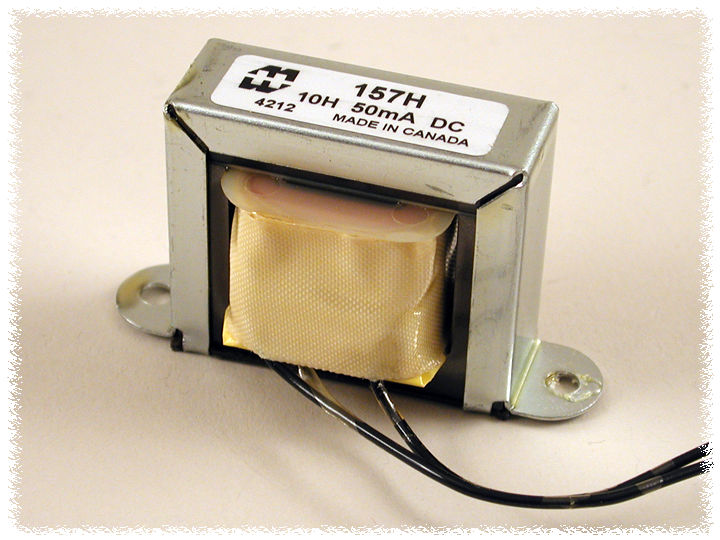

Choke
- D.C. Current 50 ma.
- Inductance +/- 15% 10H
- Maximum Operating 500
- Ohms 408
$12.86In stock
Buy nowChoke
- D.C. Current 65 ma.
- Inductance +/- 15% 10H
- Maximum Operating 400
- Ohms 205
$25.62In stock
Buy nowChoke
- D.C. Current 75 ma.
- Inductance +/- 15% 14H
- Maximum Operating 400
- Ohms 429
$26.51In stock
Buy nowChoke
- D.C. Current 100 ma.
- Inductance +/- 15% 8H
- Maximum Operating 400
- Ohms 259
$26.09In stock
Buy nowChoke
- D.C. Current 150 ma.
- Inductance +/- 15% 3.5H
- Maximum Operating 400
- Ohms 98
$25.43In stock
Buy nowChoke
- D.C. Current 200 ma.
- Inductance +/- 15% 2H
- Maximum Operating 400
- Ohms 57
$25.27In stock
Buy nowChoke
- D.C. Current 75 ma.
- Inductance +/- 15% 15H
- Maximum Operating 400
- Ohms 411
$23.30In stock
Buy now

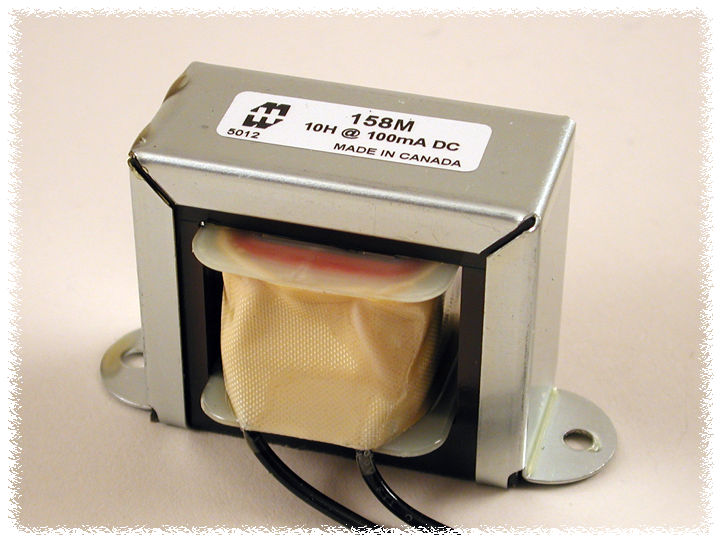

Choke
- D.C. Current 100 ma.
- Inductance +/- 15% 10H
- Maximum Operating 400
- Ohms 195
$25.44Backorder
Buy now

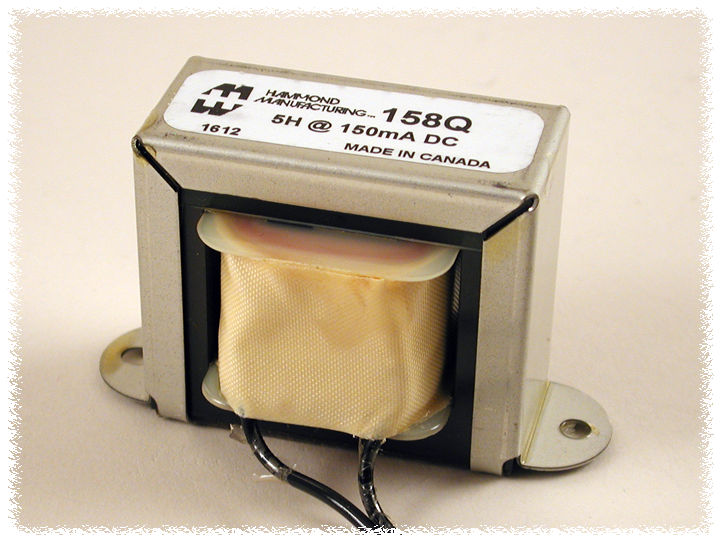

Choke
- D.C. Current 150 ma.
- Inductance +/- 15% 5H
- Maximum Operating 400
- Ohms 105
$25.74In stock
Buy nowChoke
- D.C. Current 250 ma.
- Inductance +/- 15% 1.5H
- Maximum Operating 400
- Ohms 60
$22.84In stock
Buy now
Choke
- D.C. Current 240 ma.
- Inductance +/- 15% 1.0H
- Maximum Operating 400
- Ohms 41
$8.40In stock
Buy nowChoke
- D.C. Current 300 ma.
- Inductance +/- 15% 1.0H
- Maximum Operating 400
- Ohms 40
$22.22In stock
Buy now
Choke
- D.C. Current 300 ma.
- Inductance +/- 15% 1.5H
- Maximum Operating 400
- Ohms 40
$16.92In stock
Buy nowChoke
- D.C. Current 100 ma.
- Inductance +/- 15% 15H
- Maximum Operating 500
- Ohms 256
$32.67In stock
Buy nowChoke
- D.C. Current 125 ma.
- Inductance +/- 15% 10H
- Maximum Operating 500
- Ohms 155
$29.67In stock
Buy now
Choke
- D.C. Current 150 ma.
- Inductance +/- 15% 7H
- Maximum Operating 500
- Ohms 100
$29.30In stock
Buy now

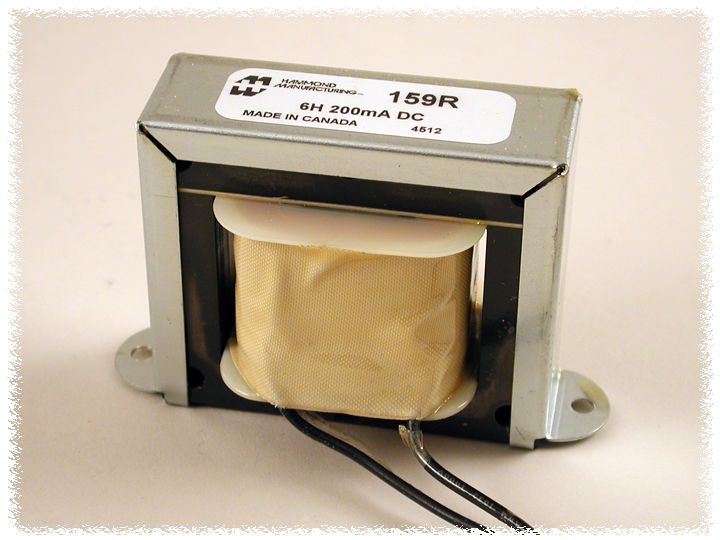

Choke
- D.C. Current 200 ma.
- Inductance +/- 15% 6H
- Maximum Operating 500
- Ohms 150
$18.87In stock
Buy now

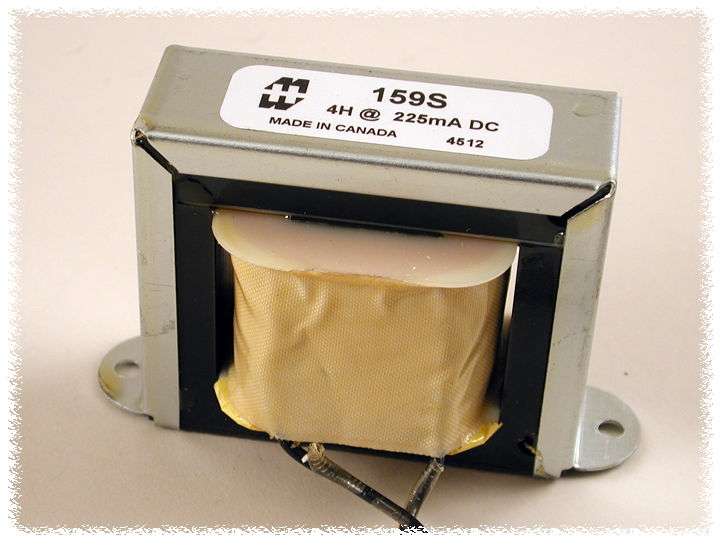

Choke
- D.C. Current 225 ma.
- Inductance +/- 15% 4H
- Maximum Operating 500
- Ohms 65
$28.85In stock
Buy nowChoke
- D.C. Current 300 ma.
- Inductance +/- 15% 2.5H
- Maximum Operating 500
- Ohms 43
$28.89In stock
Buy nowChoke 159V
- D.C. Current 500 ma.
- Inductance +/- 15% 1.5H
- Maximum Operating 500
- Ohms 27
$29.13In stock
Buy nowChoke
- D.C. Current 750 ma.
- Inductance +/- 15% 0.6H
- Maximum Operating 500
- Ohms 11
$29.13In stock
Buy now
Choke
- D.C. Current 1A
- Inductance +/- 15% 300mH
- Maximum Operating 500
- Ohms 6
$31.46In stock
Buy nowDimension tables (inches / mm)
| Part No. | Inductance · +/- 15% (mH) | D.C. · Current | Resistance · +/- 15% · (Ohms) | Maximum · Operating · Volts (D.C.) | Weight · (lbs.) | Dim. Ref. | Price | Order |
|---|---|---|---|---|---|---|---|---|

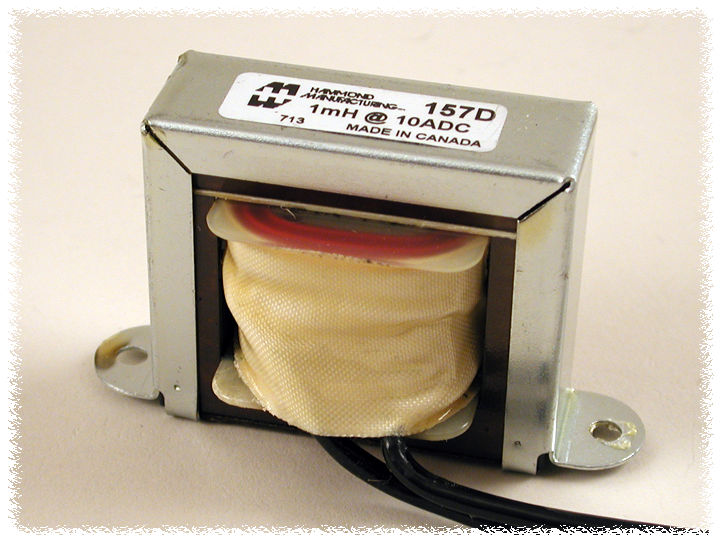

| 157D | 1mH | 10 A | 0.038 | 400 | 1 | C9H | $20.14In stock | Buy now |
| 156B | 1.5mH | 5 A | 0.07 | 400 | 0.5 | C6H | $16.06In stock | Buy now |
| 159ZL | 2.5mH | 10 A | 0.044 | 500 | 2.75 | C14H | $31.58In stock | Buy now |
| 154B | 3mH | 1.5 A | 0.14 | 300 | 0.25 | C2H | $12.86In stock | Buy now |

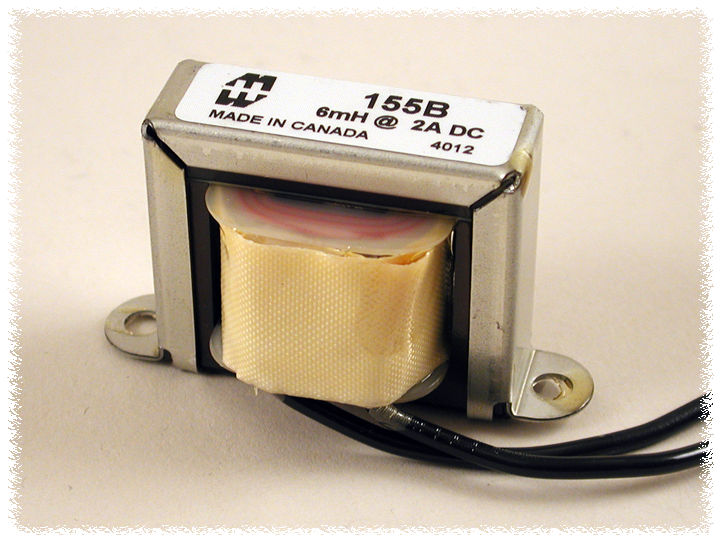

| 155B | 6mH | 2 A | 0.3 | 400 | 0.3 | C4H | $15.24In stock | Buy now |
| 157E | 6mH | 4 A | 0.133 | 500 | 1 | C9H | $30.15In stock | Buy now |
| 159ZJ | 10mH | 5 A | 0.16 | 500 | 2.75 | C14H | $28.19In stock | Buy now |
| 159ZG | 15mH | 4 A | 0.25 | 500 | 2.75 | C14H | $31.10In stock | Buy now |
| 159ZE | 28mH | 3 A | 0.43 | 500 | 2.75 | C14H | $28.49In stock | Buy now |
| 159ZC | 60mH | 2 A | 0.7 | 500 | 2.5 | C14H | $28.67In stock | Buy now |

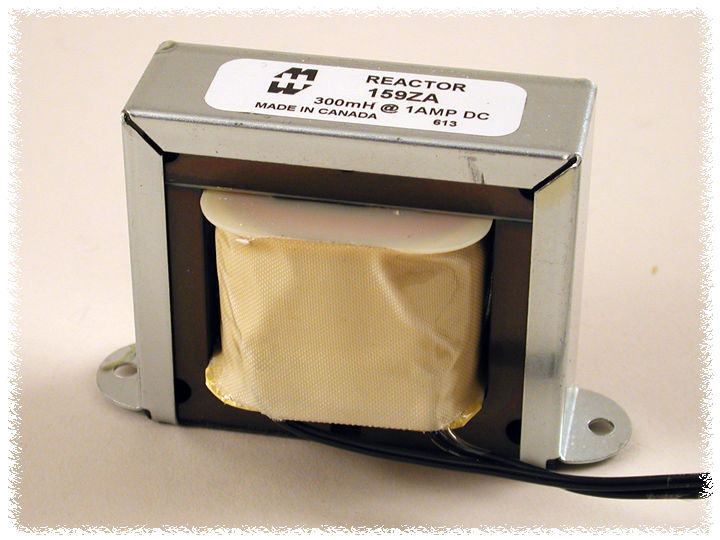

| 159ZA | 300mH | 1 A | 6 | 500 | 2.5 | C14H | $31.46In stock | Buy now |
| 159ZB | 320mH | 600 ma. | 7.8 | 400 | 1.5 | C10H | $11.65In stock | Buy now |

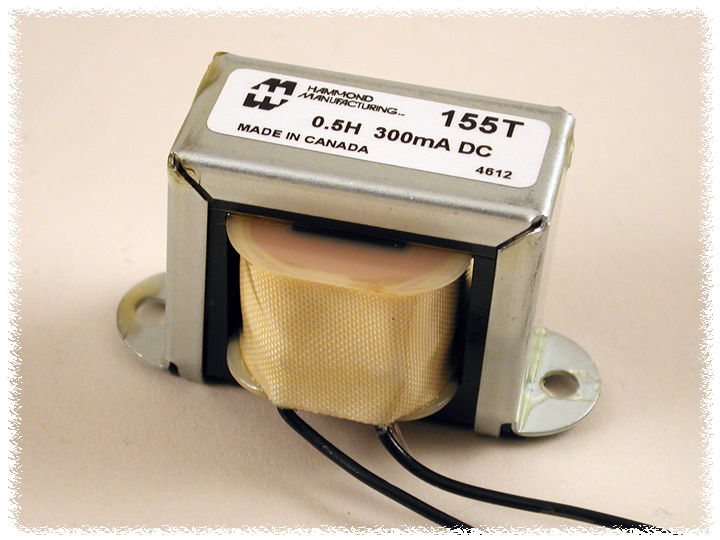

| 155T | 0.5H | 300 ma. | 30 | 400 | 0.5 | C4H | $7.80Backorder | Buy now |
| 153M | 0.6H | 100 ma. | 86 | 300 | 0.1 | C1H | $24.96In stock | Buy now |
| 159Y | 0.6H | 750 ma. | 11 | 500 | 2.25 | C14H | $29.13In stock | Buy now |
| 153L | 0.9H | 75 ma. | 125 | 300 | 0.1 | C1H | $25.20In stock | Buy now |

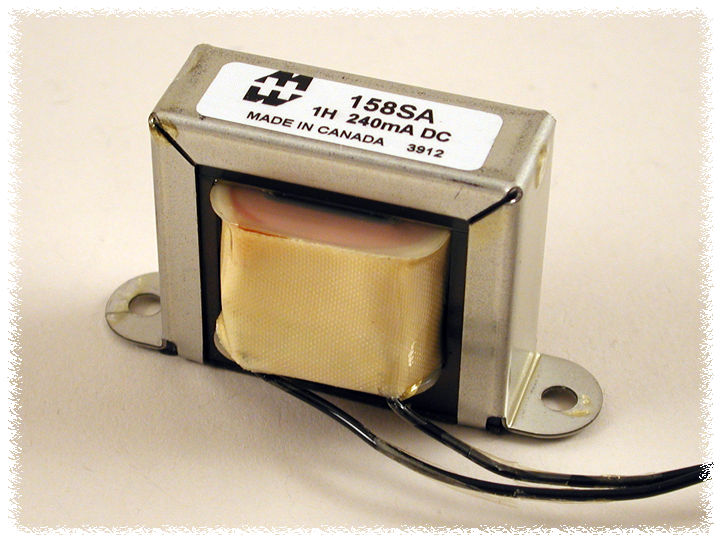

| 158SA | 1.0H | 240 ma. | 41 | 400 | 0.5 | C6H | $8.40In stock | Buy now |
| 158T | 1.0H | 300 ma. | 40 | 400 | 1.5 | C10H | $22.22In stock | Buy now |

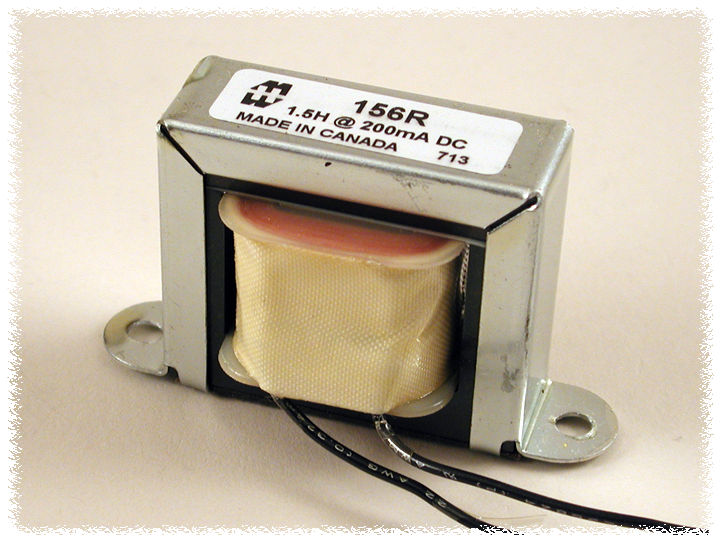

| 156R | 1.5H | 200 ma. | 56 | 400 | 0.5 | C6H | $17.46In stock | Buy now |
| 158S | 1.5H | 250 ma. | 60 | 400 | 1.5 | C10H | $22.84In stock | Buy now |

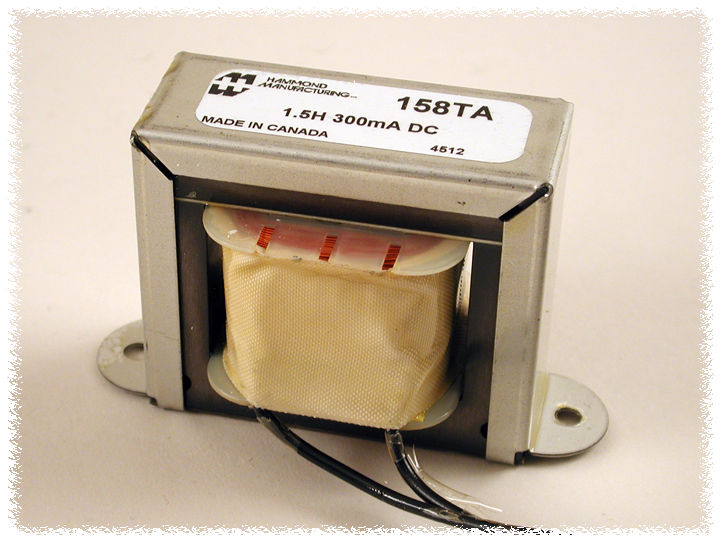

| 158TA | 1.5H | 300 ma. | 40 | 400 | 1.7 | C12H | $16.92In stock | Buy now |
| 159V | 1.5H | 500 ma. | 27 | 500 | 2.25 | C14H | $29.13In stock | Buy now |

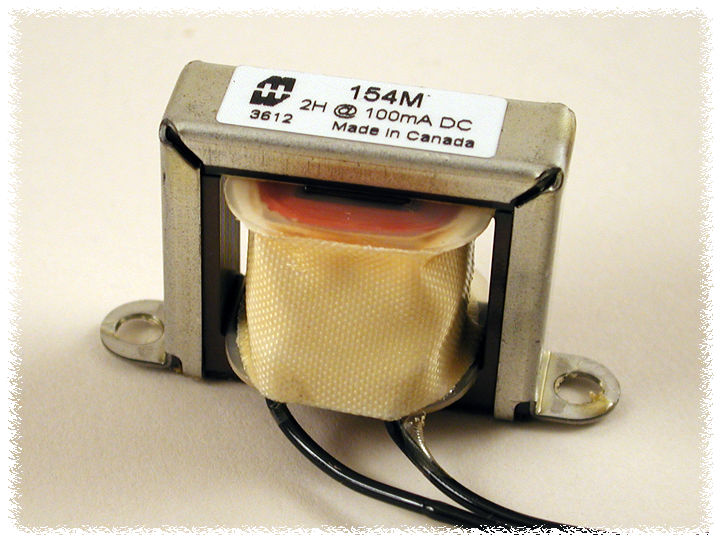

| 154M | 2H | 100 ma. | 175 | 300 | 0.25 | C2H | $13.07In stock | Buy now |
| 157R | 2H | 200 ma. | 57 | 400 | 1 | C9H | $25.27In stock | Buy now |
| 153H | 2.2H | 50 ma. | 305 | 300 | 0.1 | C1H | $16.97In stock | Buy now |
Mechanical Data
Units shown: inch . Switch units to: mm
| Mtg. Style | Dimensions · A | Dimensions · B | Dimensions · C | Dimensions · D | Mtg. Hole | Price | Order |
|---|---|---|---|---|---|---|---|
| C1H | 1.63 | 0.88 | 0.81 | 1.38 | 0.12 | Quote | Quote |
| C2H | 2.06 | 1.25 | 1.19 | 1.75 | 0.19 | Quote | Quote |
| C4H | 2.38 | 1.38 | 1.38 | 2.00 | 0.19 | Quote | Quote |
| C6H | 2.81 | 1.50 | 1.69 | 2.38 | 0.19 | Quote | Quote |
| C9H | 3.25 | 1.75 | 2.00 | 2.81 | 0.19 | Quote | Quote |
| C10H | 3.25 | 1.88 | 2.00 | 2.81 | 0.19 | Quote | Quote |
| C12H | 3.69 | 2.00 | 2.31 | 3.13 | 0.19 | Quote | Quote |
| C14H | 4.03 | 2.25 | 2.63 | 3.56 | 0.19 | Quote | Quote |
These part numbers are quoted per order — send us the quantities and we'll price them within one business day.
Features
- ■Economical "open bracket" channel mount.
- ■Tolerance of 15% on both inductance & resistance.
- ■Inductances measured at rated D.C. current.
- ■Minimum 5" long leads.
- ■Units will exhibit less inductance at slightly higher currents or more inductance at lower currents.
- ■Perfect for high voltage power supply filtering.
- ■Every unit is Hipot tested (100%) at 1,500 VAC
- ■Units are vacuum impregnated with polyurethane varnish for quiet operation and long life.
- ■For more sizes and voltages in enclosed-type design, refer to our 193 Series .
