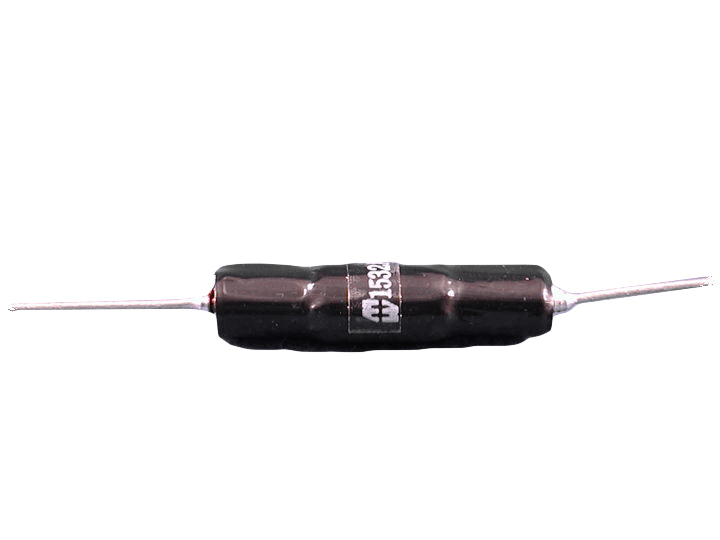

R.F. & Hash Chokes 1531-1535 Series

R.F. & Hash Chokes · 1531-1535 Series

Brand: Hammond Manufacturing · 8 part numbers

  • ■All models impregnated with a moisture and fungus resistant varnish.
  • ■Lead length of 1.5" (+/- 0.13")
  • ■Wound for low distributed capacity by using solenoid (single coil) windings.
  • ■Includes vinyl insulation covering.
  • ■Ambient Temperature range -40°C to +105°C

from $1.03

6 of 8 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocuments

Configure & price

Find your 1531-1535 Series part number

Filter 16 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

16 of 16 part numbers · 6 priced online

1531L

RF Choke 2.4UH 1500MA C50

  • Coil Diameter Max. 0.27
  • Core Length 0.75
  • Core Material Phenolic
  • uH 2.4 uH
QuoteRequest a quote
1531R

RF Choke 10UH 500MA C50

  • Coil Diameter Max. 0.27
  • Core Length 0.75
  • Core Material Phenolic
  • uH 10 uH
QuoteRequest a quote

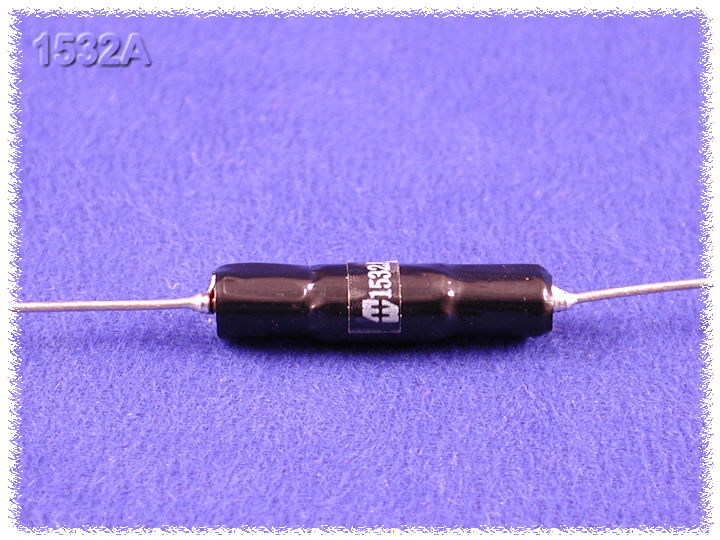

1532A

Choke 10 Uh 1500 Ma

  • Coil Diameter Max. 0.29
  • Core Length 0.875
  • Core Material Iron
  • uH 10 uH
$1.03Backorder
Buy now
1532B

Choke 15 Uh 1000 Ma

  • Coil Diameter Max. 0.29
  • Core Length 0.875
  • Core Material Iron
  • uH 15 uH
$1.03In stock
Buy now
1532C

Choke 24 Uh 800 Ma

  • Coil Diameter Max. 0.29
  • Core Length 0.875
  • Core Material Iron
  • uH 24 uH
$1.03In stock
Buy now
1532D

Choke 39 Uh 600 Ma

  • Coil Diameter Max. 0.29
  • Core Length 0.875
  • Core Material Iron
  • uH 39 uH
$1.03In stock
Buy now
1532E

Choke 55 Uh 500 Ma

  • Coil Diameter Max. 0.29
  • Core Length 0.875
  • Core Material Iron
  • uH 55 uH
$1.03In stock
Buy now
1532H

Choke 100 Uh 400 Ma

  • Coil Diameter Max. 0.29
  • Core Length 0.875
  • Core Material Iron
  • uH 100 uH
$1.03In stock
Buy now
Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

Part No.Inductance · LL · ToleranceQ · MinimumTest · FrequencySelf Resonant · Min. Freq. · (MHz)Maximum · D.C. Resistor · (Ohms)Maximum · D.C. Current · (ma.)Coil · DiameterCore · MaterialCore · LengthCoil · TypePriceOrder
1531L2.4 uH+/- 10%567.9 MHz1200.1915000.27Phenolic0.75SingleQuoteQuote
1531R10 uH+/- 10%367.9 MHz611.55000.27Phenolic0.75SingleQuoteQuote
1532A10 uH+/- 10%692.5 MHz400.1115000.29Iron0.88Single$1.03BackorderBuy now
1532B15 uH+/- 10%622.5 MHz330.1710000.29Iron0.88Single$1.03In stockBuy now
1532C24 uH+/- 10%652.5 MHz250.348000.29Iron0.88Single$1.03In stockBuy now
1532D39 uH+/- 10%702.5 MHz0.20.656000.29Iron0.88Single$1.03In stockBuy now
1532E55 uH+/- 10%722.5 MHz1715000.29Iron0.88Single$1.03In stockBuy now
1532H100 uH+/- 10%1070.79 MHz1234000.29Iron0.88Single$1.03In stockBuy now

Features

  • ■All models impregnated with a moisture and fungus resistant varnish.
  • ■Lead length of 1.5" (+/- 0.13")
  • ■Wound for low distributed capacity by using solenoid (single coil) windings.
  • ■Includes vinyl insulation covering.
  • ■Ambient Temperature range -40°C to +105°C

Documents

Specification Sheet
