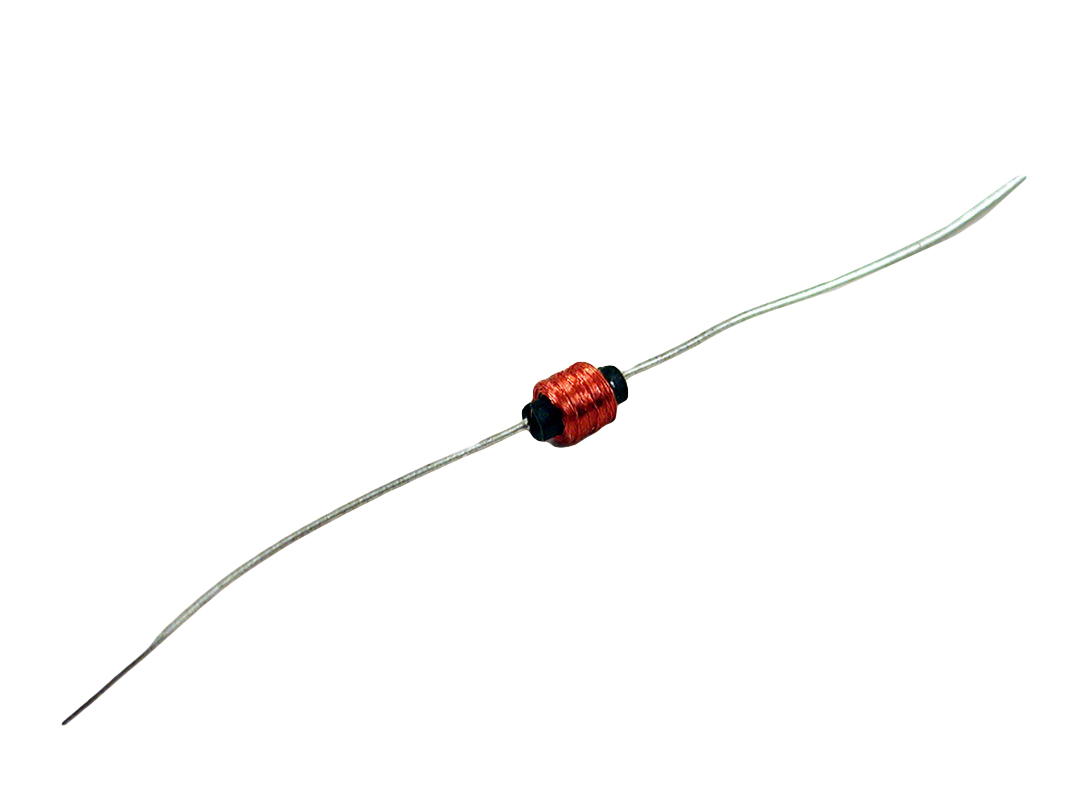

Sub- Miniature R.F. Chokes 1530 Series

Sub- Miniature R.F. Chokes · 1530 Series

Brand: Hammond Manufacturing · 38 part numbers

  • ■Subminiature design ranging from only .25" to .63"
  • ■Coils are varnish impregnated.
  • ■Ideally suited to network, filter, delay lines etc., applications.
  • ■L and Q values measured on a Q meter.

Quoted per order

Choose your part numbers below — we price 1530 Series within one business day, with volume tiers.

Select part numbersRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocuments

Configure & price

Find your 1530 Series part number

Filter 38 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

38 of 38 part numbers

1530B103

RF Choke 1MH 79MA C50

  • Coil Diameter Max. 0.225
  • Core Material Iron
  • Fo Min. MHz 1.4
  • Form Length +/- 0. 0.25
QuoteRequest a quote
1530B104

RF Choke 100UH 139MA C50

  • Coil Diameter Max. 0.165
  • Core Material Iron
  • Fo Min. MHz 3.6
  • Form Length +/- 0. 0.25
QuoteRequest a quote
1530B105

RF Choke

  • Coil Diameter Max. 0.16
  • Core Material Iron
  • Fo Min. MHz 19
  • Form Length +/- 0. 0.25
QuoteRequest a quote
1530B106

RF Choke

  • Coil Diameter Max. 0.165
  • Core Material Iron
  • Fo Min. MHz 118
  • Form Length +/- 0. 0.25
QuoteRequest a quote
1530B126

RF Choke

  • Coil Diameter Max. 0.16
  • Core Material Iron
  • Fo Min. MHz 118
  • Form Length +/- 0. 0.25
QuoteRequest a quote
1530B153

RF Choke

  • Coil Diameter Max. 0.225
  • Core Material Iron
  • Fo Min. MHz 1.1
  • Form Length +/- 0. 0.25
QuoteRequest a quote
1530B154

RF Choke

  • Coil Diameter Max. 0.165
  • Core Material Iron
  • Fo Min. MHz 3
  • Form Length +/- 0. 0.25
QuoteRequest a quote
1530B155

RF Choke

  • Coil Diameter Max. 0.165
  • Core Material Iron
  • Fo Min. MHz 16
  • Form Length +/- 0. 0.25
QuoteRequest a quote
1530B156

RF Choke

  • Coil Diameter Max. 0.16
  • Core Material Iron
  • Fo Min. MHz 102
  • Form Length +/- 0. 0.25
QuoteRequest a quote
1530B223

RF Choke 2.2MH 57MA C50

  • Coil Diameter Max. 0.24
  • Core Material Iron
  • Fo Min. MHz 0.96
  • Form Length +/- 0. 0.25
QuoteRequest a quote
1530B224

RF Choke 220UH 114MA

  • Coil Diameter Max. 0.17
  • Core Material Iron
  • Fo Min. MHz 2.5
  • Form Length +/- 0. 0.25
QuoteRequest a quote
1530B225

RF Choke 22UH 229MA C50

  • Coil Diameter Max. 0.165
  • Core Material Iron
  • Fo Min. MHz 13
  • Form Length +/- 0. 0.25
QuoteRequest a quote
1530B276

RF Choke

  • Coil Diameter Max. 0.16
  • Core Material Iron
  • Fo Min. MHz 74
  • Form Length +/- 0. 0.25
QuoteRequest a quote
1530B334

RF Choke

  • Coil Diameter Max. 0.175
  • Core Material Iron
  • Fo Min. MHz 2
  • Form Length +/- 0. 0.25
QuoteRequest a quote
1530B335

RF Choke

  • Coil Diameter Max. 0.17
  • Core Material Iron
  • Fo Min. MHz 10
  • Form Length +/- 0. 0.25
QuoteRequest a quote
1530B336

RF Choke

  • Coil Diameter Max. 0.15
  • Core Material Iron
  • Fo Min. MHz 66
  • Form Length +/- 0. 0.25
QuoteRequest a quote
1530B395

RF Choke

  • Coil Diameter Max. 0.175
  • Core Material Iron
  • Fo Min. MHz 9.3
  • Form Length +/- 0. 0.25
QuoteRequest a quote
1530B396

RF Choke

  • Coil Diameter Max. 0.15
  • Core Material Iron
  • Fo Min. MHz 61
  • Form Length +/- 0. 0.25
QuoteRequest a quote
1530B474

RF Choke

  • Coil Diameter Max. 0.185
  • Core Material Iron
  • Fo Min. MHz 1.8
  • Form Length +/- 0. 0.25
QuoteRequest a quote
1530B475

RF Choke

  • Coil Diameter Max. 0.175
  • Core Material Iron
  • Fo Min. MHz 9.1
  • Form Length +/- 0. 0.25
QuoteRequest a quote
1530B476

RF Choke

  • Coil Diameter Max. 0.15
  • Core Material Iron
  • Fo Min. MHz 53
  • Form Length +/- 0. 0.25
QuoteRequest a quote
1530B565

RF Choke

  • Coil Diameter Max. 0.18
  • Core Material Iron
  • Fo Min. MHz 8.6
  • Form Length +/- 0. 0.25
QuoteRequest a quote
1530B566

RF Choke

  • Coil Diameter Max. 0.15
  • Core Material Iron
  • Fo Min. MHz 49
  • Form Length +/- 0. 0.25
QuoteRequest a quote
1530B684

RF Choke

  • Coil Diameter Max. 0.2
  • Core Material Iron
  • Fo Min. MHz 1.6
  • Form Length +/- 0. 0.25
QuoteRequest a quote
1530B685

RF Choke

  • Coil Diameter Max. 0.18
  • Core Material Iron
  • Fo Min. MHz 8.1
  • Form Length +/- 0. 0.25
QuoteRequest a quote
1530B686

RF Choke

  • Coil Diameter Max. 0.15
  • Core Material Iron
  • Fo Min. MHz 49
  • Form Length +/- 0. 0.25
QuoteRequest a quote
1530B824

RF Choke

  • Coil Diameter Max. 0.21
  • Core Material Iron
  • Fo Min. MHz 1.6
  • Form Length +/- 0. 0.25
QuoteRequest a quote
1530B825

RF Choke

  • Coil Diameter Max. 0.185
  • Core Material Iron
  • Fo Min. MHz 6.7
  • Form Length +/- 0. 0.25
QuoteRequest a quote
1530C102

RF Choke 10MH 38MA C50

  • Coil Diameter Max. 0.335
  • Core Material Iron
  • Fo Min. MHz 0.52
  • Form Length +/- 0. 0.38
QuoteRequest a quote
1530C182

RF Choke 18MH 44MA C50

  • Coil Diameter Max. 0.325
  • Core Material Iron
  • Fo Min. MHz 0.29
  • Form Length +/- 0. 0.5
QuoteRequest a quote
1530C253

RF Choke 2.5MH 57MA C50

  • Coil Diameter Max. 0.26
  • Core Material Iron
  • Fo Min. MHz 0.96
  • Form Length +/- 0. 0.38
QuoteRequest a quote
1530C333

RF Choke

  • Coil Diameter Max. 0.26
  • Core Material Iron
  • Fo Min. MHz 0.8
  • Form Length +/- 0. 0.38
QuoteRequest a quote
1530C473

RF Choke 4.7MH 48MA C50

  • Coil Diameter Max. 0.285
  • Core Material Iron
  • Fo Min. MHz 0.68
  • Form Length +/- 0. 0.38
QuoteRequest a quote
1530C683

RF Choke

  • Coil Diameter Max. 0.31
  • Core Material Iron
  • Fo Min. MHz 0.64
  • Form Length +/- 0. 0.38
QuoteRequest a quote
1530C823

RF Choke

  • Coil Diameter Max. 0.33
  • Core Material Iron
  • Fo Min. MHz 0.6
  • Form Length +/- 0. 0.38
QuoteRequest a quote
1530D101

RF Choke 22UH 229MA C50

  • Coil Diameter Max. 0.446
  • Core Material Ferrite
  • Fo Min. MHz 0.157
  • Form Length +/- 0. 0.63
QuoteRequest a quote
1530D252

RF Choke

  • Coil Diameter Max. 0.34
  • Core Material Ferrite
  • Fo Min. MHz 0.25
  • Form Length +/- 0. 0.63
QuoteRequest a quote
1530D332

RF Choke

  • Coil Diameter Max. 0.353
  • Core Material Ferrite
  • Fo Min. MHz 0.232
  • Form Length +/- 0. 0.63
QuoteRequest a quote
Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

Part No.Inductance L uHInduct. ToleranceQ Min.Test Freq. Mhz.Fo Min. MhzR - D.C. Max. OhmsI - D.C. Max. ma.Coil Dia. Max.Form Length +/- .03"Core MaterialPriceOrder
1530B1061+/- 20%41251180.04820410.1650.25IronQuoteQuote
1530B1261.2+/- 10%457.91180.07216660.160.25IronQuoteQuote
1530B1561.5+/- 10%427.91020.09614430.160.25IronQuoteQuote
1530B2762.7+/- 10%347.9740.16810910.160.25IronQuoteQuote
1530B3363.3+/- 10%407.9660.249120.150.25IronQuoteQuote
1530B3963.9+/- 10%357.9610.2648700.150.25IronQuoteQuote
1530B4764.7+/- 10%437.9530.4576610.150.25IronQuoteQuote
1530B5665.6+/- 10%417.9490.4926370.150.25IronQuoteQuote
1530B6866.8+/- 10%407.9490.6245660.150.25IronQuoteQuote
1530B10510+/- 10%367.9191.562770.160.25IronQuoteQuote
1530B15515+/- 10%522.5161.922500.1650.25IronQuoteQuote
1530B22522+/- 5%512.5132.282290.1650.25IronQuoteQuote
1530B33533+/- 5%502.5102.762080.170.25IronQuoteQuote
1530B39539+/- 5%482.59.33.361880.1750.25IronQuoteQuote
1530B47547+/- 5%442.59.13.361880.1750.25IronQuoteQuote
1530B56556+/- 5%452.58.63.841760.180.25IronQuoteQuote
1530B68568+/- 5%422.58.14.21690.180.25IronQuoteQuote
1530B82582+/- 5%412.56.74.81580.1850.25IronQuoteQuote
1530B104100+/- 5%252.53.67.681390.1650.25IronQuoteQuote
1530B154150+/- 5%470.7938.161350.1650.25IronQuoteQuote
1530B224220+/- 5%460.792.511.51140.170.25IronQuoteQuote
1530B334330+/- 5%410.79213.91030.1750.25IronQuoteQuote
1530B474470+/- 5%350.791.816.3950.1850.25IronQuoteQuote
1530B684680+/- 5%370.791.619.8870.20.25IronQuoteQuote
1530B824820+/- 5%330.791.622.9800.210.25IronQuoteQuote
1530B1031000+/- 5%300.791.424790.2250.25IronQuoteQuote
1530B1531500+/- 5%400.251.137.2630.2250.25IronQuoteQuote
1530B2232200+/- 5%400.250.9645.6570.240.25IronQuoteQuote
1530C2532500+/- 5%480.250.9645.6570.260.38IronQuoteQuote
1530C3333300+/- 5%520.250.851.6530.260.38IronQuoteQuote
1530C4734700+/- 5%490.250.6864.8480.2850.38IronQuoteQuote
1530C6836800+/- 5%510.250.6478430.310.38IronQuoteQuote
1530C8238200+/- 5%480.250.692.4400.330.38IronQuoteQuote
1530C10210000+/- 5%410.250.52101380.3350.38IronQuoteQuote
1530C18218000+/- 5%490.0790.29128440.3250.50IronQuoteQuote
1530D25225000+/- 5%590.0790.25115460.340.63FerriteQuoteQuote
1530D33233000+/- 5%610.0790.232134430.3530.63FerriteQuoteQuote
1530D101100000+/- 5%480.0790.157278290.4460.63FerriteQuoteQuote

These part numbers are quoted per order — send us the quantities and we'll price them within one business day.

Features

  • ■Subminiature design ranging from only .25" to .63"
  • ■Coils are varnish impregnated.
  • ■Ideally suited to network, filter, delay lines etc., applications.
  • ■L and Q values measured on a Q meter.

Documents

Specification Sheet
