Hash Choke 3.35 Uh 20A
- Coil Diameter 0.53
- Core Length 1.31
- ohms 0.01
- uH 3.35
$1.88In stock
Buy now

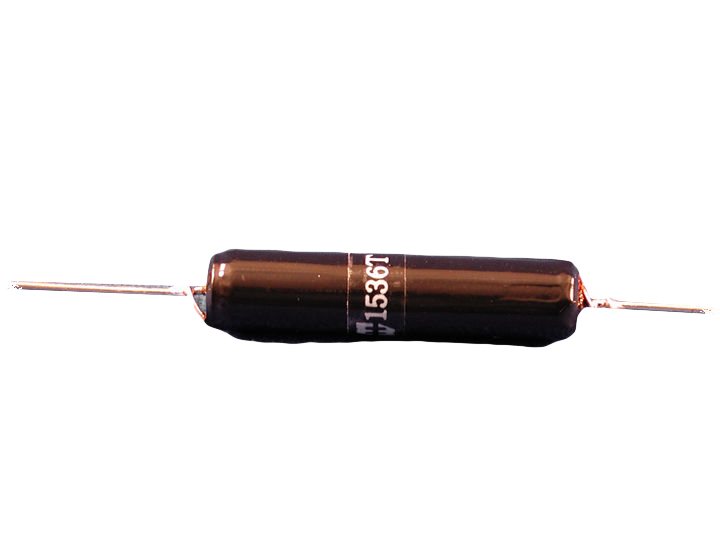

R.F. Chokes · 1536 Series
Brand: Hammond Manufacturing · 12 part numbers
Heavy Duty Hash
- ■Molded powdered iron core
- ■All chokes include vinyl insulation covering.
- ■1.25" long leads (+/- 0.1")
- ■High inductance & high current
- ■L measured at 7.9 Mhz. on 1536D, E and F all others at 1 Khz.
from $1.20
11 of 12 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 1536 Series part number
Filter 12 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
12 of 12 part numbers · 11 priced online
Hash Choke 4.9 Uh 15A
- Coil Diameter 0.5
- Core Length 1.25
- ohms 0.016
- uH 4.9
$2.09In stock
Buy nowHash Choke 8.8 Uh 10A
- Coil Diameter 0.5
- Core Length 1.25
- ohms 0.021
- uH 8.8
$1.88In stock
Buy nowHash Choke 4 Uh 8A
- Coil Diameter 0.31
- Core Length 0.91
- ohms 0.012
- uH 4
$1.20In stock
Buy nowHash Choke 40 Uh 3A
- Coil Diameter 0.31
- Core Length 1.25
- ohms 0.082
- uH 40
$1.20In stock
Buy nowHash Choke 68 Uh 5A
- Coil Diameter 0.53
- Core Length 1.25
- ohms 0.054
- uH 68
$1.20In stock
Buy nowHash Choke 100 Uh 2A
- Coil Diameter 0.31
- Core Length 1.25
- ohms 0.216
- uH 100
$1.20In stock
Buy nowHash Choke 100 Uh 1A
- Coil Diameter 0.8
- Core Length 1.1
- ohms 0.55
- uH 100
QuoteRequest a quote
Hash Choke 125 Uh 3.5A
- Coil Diameter 0.5
- Core Length 1.25
- ohms 0.08
- uH 125
$1.22In stock
Buy nowHash Choke 250 Uh 2.5A
- Coil Diameter 0.43
- Core Length 1.25
- ohms 0.17
- uH 250
$1.22In stock
Buy nowHash Choke 500 Uh 2A
- Coil Diameter 0.56
- Core Length 1.25
- ohms 0.26
- uH 500
$1.22In stock
Buy nowHash Choke 1000 Uh 1A
- Coil Diameter 0.5
- Core Length 1.03
- ohms 0.55
- uH 1000
$1.22In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Inductance · +/-20% · (uH) | D.C. · Resistance · (Ohms) | Self Resonant · Frequency · (MHz.) | Maximum · D.C. Current · (Amps) | Coil · Diameter | Core · Length | Price | Order |
|---|---|---|---|---|---|---|---|---|
| 1536D | 3.35 | 0.01 | 45 | 20 | 0.53 | 1.31 | $1.88In stock | Buy now |
| 1536E | 4.9 | 0.016 | 42 | 15 | 0.50 | 1.25 | $2.09In stock | Buy now |
| 1536F | 8.8 | 0.021 | 28 | 10 | 0.50 | 1.25 | $1.88In stock | Buy now |
| 1536L | 4 | 0.012 | 24.3 | 8 | 0.31 | 0.91 | $1.20In stock | Buy now |
| 1536P | 40 | 0.082 | 10.4 | 3 | 0.31 | 1.25 | $1.20In stock | Buy now |
| 1536S | 68 | 0.054 | 5.7 | 5 | 0.53 | 1.25 | $1.20In stock | Buy now |

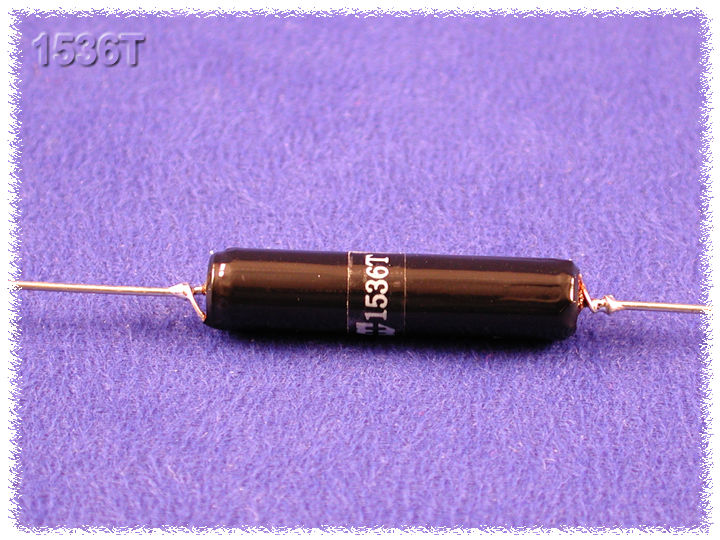

| 1536T | 100 | 0.216 | 4.1 | 2 | 0.31 | 1.25 | $1.20In stock | Buy now |
| 1536TA | 100 | 0.55 | - | 1 | 0.80 | 1.10 | Quote | Quote |
| 1536W | 125 | 0.08 | 2.65 | 3.5 | 0.50 | 1.25 | $1.22In stock | Buy now |
| 1536X | 250 | 0.17 | 1.5 | 2.5 | 0.43 | 1.25 | $1.22In stock | Buy now |
| 1536Y | 500 | 0.26 | 1.17 | 2 | 0.56 | 1.25 | $1.22In stock | Buy now |
| 1536Z | 1000 | 0.55 | - | 1 | 0.50 | 1.03 | $1.22In stock | Buy now |
Features
Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)
Units shown: inch . Switch units to: mm
- ■Molded powdered iron core
- ■All chokes include vinyl insulation covering.
- ■1.25" long leads (+/- 0.1")
- ■High inductance & high current
- ■L measured at 7.9 Mhz. on 1536D, E and F all others at 1 Khz.
Documents
Additional information
Part Details
| Part No. | Inductance · +/-20% · (uH) | D.C. · Resistance · (Ohms) | Self Resonant · Frequency · (MHz.) | Maximum · D.C. Current · (Amps) | Coil · Diameter | Core · Length |
|---|---|---|---|---|---|---|
| 1536D | 3.35 | 0.01 | 45 | 20 | 0.53 | 1.31 |
| 1536E | 4.9 | 0.016 | 42 | 15 | 0.50 | 1.25 |
| 1536F | 8.8 | 0.021 | 28 | 10 | 0.50 | 1.25 |
| 1536L | 4 | 0.012 | 24.3 | 8 | 0.31 | 0.91 |
| 1536P | 40 | 0.082 | 10.4 | 3 | 0.31 | 1.25 |
| 1536S | 68 | 0.054 | 5.7 | 5 | 0.53 | 1.25 |
| 1536T | 100 | 0.216 | 4.1 | 2 | 0.31 | 1.25 |
| 1536TA | 100 | 0.55 | - | 1 | 0.80 | 1.10 |
| 1536W | 125 | 0.08 | 2.65 | 3.5 | 0.50 | 1.25 |
| 1536X | 250 | 0.17 | 1.5 | 2.5 | 0.43 | 1.25 |
| 1536Y | 500 | 0.26 | 1.17 | 2 | 0.56 | 1.25 |
| 1536Z | 1000 | 0.55 | - | 1 | 0.50 | 1.03 |
