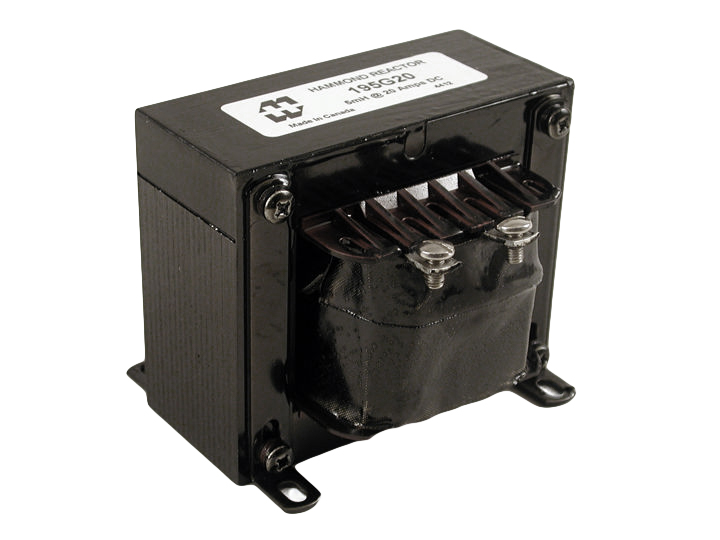

Heavy Current Chassis Mount · 195-196 Series
Brand: Hammond Manufacturing · 53 part numbers
- ■Open core & coil, 4-slot bracket mounting chokes
- ■Tolerance of 15% on both inductance & resistance
- ■Storage: -40C to 105C temperature range
- ■Operating: -40C to 85C temperature range
- ■Inductances measured at rated D.C. current
- ■The "195" series is single coil
from $28.91
53 of 53 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 195-196 Series part number
Filter 53 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
53 of 53 part numbers · 53 priced online
0.1mH @ 300ADC
$618.30In stock
Buy now0.5mH @ 100ADC
- A 100
- mH 0.5
- Ohms 0.002
$306.88In stock
Buy nowChoke
- A 150
- mH 0.5
- Ohms 0.0018
- Insulation Class B
$412.21In stock
Buy nowChoke
- A 100
- mH 1
- Ohms 0.0036
- Insulation Class B
$331.89In stock
Buy nowChoke
- A 20
- mH 1
- Ohms 0.013
- Insulation Class A
$61.83In stock
Buy nowChoke
- A 30
- mH 1
- Ohms 0.009
- Insulation Class A
$93.69In stock
Buy nowChoke
- A 50
- mH 1
- Ohms 0.005
- Insulation Class A
$161.15In stock
Buy nowChoke
- A 75
- mH 1
- Ohms 0.004
- Insulation Class A
$269.34In stock
Buy now1.4mH @ 50ADC
- A 50
- mH 1.4
- Ohms 0.005
$256.50In stock
Buy nowChoke
- A 100
- mH 2.5
- Ohms 0.006
- Insulation Class B
$749.46In stock
Buy nowChoke
- A 20
- mH 2.5
- Ohms 0.022
- Insulation Class A
$84.34In stock
Buy nowChoke
- A 30
- mH 2.5
- Ohms 0.013
- Insulation Class A
$131.14Backorder
Buy nowChoke
- A 50
- mH 2.5
- Ohms 0.008
- Insulation Class A
$299.82In stock
Buy nowChoke
- A 75
- mH 2.5
- Ohms 0.008
- Insulation Class B
$327.88In stock
Buy now4mH @ 30ADC
- A 30
- mH 4
- Ohms 0.018
$240.90In stock
Buy nowChoke
- A 10
- mH 5
- Ohms 0.04
- Insulation Class A
$71.19In stock
Buy nowChoke
- A 20
- mH 5
- Ohms 0.025
- Insulation Class A
$121.77Backorder
Buy now5mH @ 25ADC
- A 25
- mH 5
- Ohms 0.014
$181.84In stock
Buy nowChoke
- A 30
- mH 5
- Ohms 0.023
- Insulation Class A
$234.21In stock
Buy nowChoke
- A 50
- mH 5
- Ohms 0.021
- Insulation Class B
$515.24In stock
Buy nowChoke
- A 75
- mH 5
- Ohms 0.01
- Insulation Class B
$843.15In stock
Buy now7mH @ 20ADC
- A 20
- mH 7
- Ohms 0.062
$156.62In stock
Buy nowChoke
- A 10
- mH 10
- Ohms 0.07
- Insulation Class A
$82.43In stock
Buy now10mH @ 12.5A DC
- A 12.5
- mH 10
- Ohms 0.072
- Insulation Class B
$85.44In stock
Buy nowChoke
- A 20
- mH 10
- Ohms 0.045
- Insulation Class A
$177.99Backorder
Buy nowChoke
- A 30
- mH 10
- Ohms 0.037
- Insulation Class A
$327.88In stock
Buy nowChoke
- A 50
- mH 10
- Ohms 0.023
- Insulation Class B
$749.46In stock
Buy now15mH @ 12ADC
- A 12
- mH 15
- Ohms 0.062
$137.38In stock
Buy now15mH @ 16ADC
- A 16
- mH 15
- Ohms 0.062
$196.81In stock
Buy nowChoke
- A 10
- mH 20
- Ohms 0.013
- Insulation Class A
$104.92In stock
Buy nowChoke
- A 20
- mH 20
- Ohms 0.075
- Insulation Class A
$346.61In stock
Buy nowChoke
- A 30
- mH 20
- Ohms 0.045
- Insulation Class B
$421.56Backorder
Buy nowChoke
- A 10
- mH 30
- Ohms 0.17
- Insulation Class A
$131.14In stock
Buy nowChoke
- A 20
- mH 30
- Ohms 0.13
- Insulation Class B
$365.35Backorder
Buy nowChoke
- A 5
- mH 30
- Ohms 0.23
- Insulation Class A
$84.34In stock
Buy now30mH @ 8ADC
- A 8
- mH 30
- Ohms 0.3
$94.85In stock
Buy now35mH @ 2A DC
- A 2
- mH 35
- Ohms 0.61
- Insulation Class B
$39.64Backorder
Buy now40mH @ 6ADC
- A 6
- mH 40
- Ohms 0.4
$84.51In stock
Buy nowChoke
- A 10
- mH 50
- Ohms 0.165
- Insulation Class A
$215.47In stock
Buy nowChoke
- A 20
- mH 50
- Ohms 0.13
- Insulation Class B
$786.92In stock
Buy now70mH @ 2ADC
- A 2
- mH 70
- Ohms 0.9
$50.41In stock
Buy now70mH @ 4ADC
- A 4
- mH 70
- Ohms 0.6
$82.09In stock
Buy now100mH @1ADC
- A 1
- mH 100
- Ohms 1.5
$39.69In stock
Buy nowChoke
- A 10
- mH 100
- Ohms 0.42
- Insulation Class B
$365.35Backorder
Buy nowChoke
- A 5
- mH 100
- Ohms 0.64
- Insulation Class A
$112.41Backorder
Buy now0.5mH@50A Ser, 0.12mH@100A Par
- A 100
- mH 0.125
- Ohms 0.018
- A 50
$174.39In stock
Buy now1.2mH @25A Ser, 0.3mH @50A Par
- A 50
- mH 0.3
- Ohms 0.005
- A 25
$96.97In stock
Buy nowDimension tables (inches / mm)
195 Series
Units shown: inch . Switch units to: mm
| Part No. | Inductance mH · (Millihenries) | D.C. Current · (Amps) | Insulation · Class | Dimensions · A | Dimensions · B | Dimensions · C | Dimensions · D | Dimensions · E | Mounting Slot · G | Mounting Slot · G (2) | Mounting Slot · G (3) | Weight · (lbs.) | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 195A200 | 0.3 | 200 | - | 7.50 | 7.00 | 6.50 | 6.00 | 5.25 | 0.28 | x | 0.56 | 46 | $479.16In stock | Buy now |
| 195A300 | 0.1 | 300 | B | 7.50 | 7.00 | 6.38 | 6.00 | 5.25 | 0.37 | x | 1.00 | 46 | $618.30In stock | Buy now |
| 195B100 | 0.5 | 100 | - | 6.38 | 6.25 | 5.38 | 5.25 | 4.13 | 0.28 | x | 0.56 | 31 | $306.88In stock | Buy now |
| 195B150 | 0.5 | 150 | B | 5.25 | 5.50 | 4.47 | 4.38 | 4.13 | 0.28 | x | 0.56 | 26 | $412.21In stock | Buy now |
| 195C20 | 1 | 20 | A | 3.00 | 3.06 | 2.50 | 2.50 | 2.25 | 0.20 | x | 0.38 | 3 | $61.83In stock | Buy now |
| 195C30 | 1 | 30 | A | 3.75 | 3.85 | 3.13 | 3.13 | 2.50 | 0.20 | x | 0.38 | 6 | $93.69In stock | Buy now |
| 195C50 | 1 | 50 | A | 4.50 | 5.25 | 3.75 | 3.75 | 3.50 | 0.20 | x | 0.38 | 14.5 | $161.15In stock | Buy now |
| 195C75 | 1 | 75 | A | 5.25 | 6.00 | 4.47 | 4.38 | 4.63 | 0.28 | x | 0.56 | 23 | $269.34In stock | Buy now |
| 195C100 | 1 | 100 | B | 5.25 | 6.50 | 4.47 | 4.38 | 5.13 | 0.28 | x | 0.56 | 26 | $331.89In stock | Buy now |
| 195D50 | 1.4 | 50 | - | 6.38 | 5.50 | 5.38 | 5.25 | 3.88 | 0.28 | x | 0.56 | 28 | $256.50In stock | Buy now |
| 195E20 | 2.5 | 20 | A | 3.75 | 4.20 | 3.13 | 3.13 | 2.75 | 0.20 | x | 0.38 | 6.5 | $84.34In stock | Buy now |
| 195E30 | 2.5 | 30 | A | 4.50 | 5.25 | 3.75 | 3.75 | 3.50 | 0.20 | x | 0.38 | 12.5 | $131.14Backorder | Buy now |
| 195E50 | 2.5 | 50 | A | 5.25 | 6.00 | 4.47 | 4.38 | 4.63 | 0.28 | x | 0.56 | 23.5 | $299.82In stock | Buy now |
| 195E75 | 2.5 | 75 | B | 6.00 | 6.63 | 5.16 | 5.00 | 4.88 | 0.28 | x | 0.56 | 32.5 | $327.88In stock | Buy now |
| 195E100 | 2.5 | 100 | B | 9.00 | 9.75 | 7.50 | 7.00 | 6.00 | 0.44 | x | 0.75 | 88 | $749.46In stock | Buy now |
| 195F30 | 4 | 30 | - | 6.38 | 5.00 | 5.38 | 5.25 | 3.25 | 0.28 | x | 0.56 | 23 | $240.90In stock | Buy now |
| 195G10 | 5 | 10 | A | 3.75 | 3.60 | 3.13 | 3.13 | 2.25 | 0.20 | x | 0.38 | 5.5 | $71.19In stock | Buy now |
| 195G20 | 5 | 20 | A | 4.50 | 4.75 | 3.75 | 3.75 | 3.00 | 0.20 | x | 0.38 | 10.5 | $121.77Backorder | Buy now |
| 195G25 | 5 | 25 | - | 5.25 | 6.00 | 4.44 | 4.38 | 3.63 | 0.28 | x | 0.56 | 18 | $181.84In stock | Buy now |
| 195G30 | 5 | 30 | A | 5.25 | 5.00 | 4.47 | 4.38 | 3.63 | 0.28 | x | 0.56 | 16 | $234.21In stock | Buy now |
| 195G50 | 5 | 50 | B | 7.50 | 6.50 | 6.25 | 6.00 | 4.50 | 0.38 | x | 0.63 | 38 | $515.24In stock | Buy now |
| 195G75 | 5 | 75 | B | 9.00 | 9.50 | 7.76 | 7.00 | 7.00 | 0.44 | x | 0.75 | 87 | $843.15In stock | Buy now |
| 195H20 | 7 | 20 | - | 5.25 | 6.00 | 4.44 | 4.38 | 3.63 | 0.28 | x | 0.56 | 17 | $156.62In stock | Buy now |
| 195J10 | 10 | 10 | A | 3.75 | 4.35 | 3.13 | 3.13 | 3.00 | 0.20 | x | 0.38 | 8 | $82.43In stock | Buy now |
| 195J12 | 10 | 12.5 | B | 4.12 | 3.25 | 3.44 | 3.44 | 2.34 | 0.20 | x | 0.38 | - | $85.44In stock | Buy now |
196 Series - Dual Coil - Heavy Current Chokes
Units shown: inch . Switch units to: mm
| Part No. | Parallel Connected · Inductance mH · (Millihenries) | D.C. Current · (Amps) | Series Connected · Inductance mH · (Millihenries) | D.C. Current · (Amps) (2) | Resistance · (Each Winding) · (Ohms) | Insulation · Class | Overall Dimensions · A | Overall Dimensions · B | Overall Dimensions · C | Overall Dimensions · D | Overall Dimensions · E | Mounting · Slot · G | Mounting · Slot · G (2) | Mounting · Slot · G (3) | Weight · (lbs.) | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 196B50 | 0.125 | 100 | 0.5 | 50 | 0.018 | - | 4.50 | 4.50 | 3.75 | 3.75 | 3.00 | 0.28 | x | 0.56 | 8.00 | $174.39In stock | Buy now |
| 196D25 | 0.3 | 50 | 1.2 | 25 | 0.006 | - | 3.75 | 4.25 | 3.13 | 3.13 | 2.75 | 0.28 | x | 0.56 | 6.45 | $96.97In stock | Buy now |
| 196G12 | 1.2 | 24 | 4.8 | 12 | 0.024 | - | 3.38 | 3.56 | 2.81 | 2.81 | 3.00 | 0.20 | x | 0.38 | 6 | $81.66In stock | Buy now |
| 196K6 | 3 | 12 | 12 | 6 | 0.052/0.056 | - | 3.37 | 3.06 | 2.81 | 2.81 | 2.50 | 0.20 | x | 0.38 | 4.45 | $73.21In stock | Buy now |
| 196M4 | 5 | 8 | 20 | 4 | 0.11 | - | 3.00 | 2.87 | 2.50 | 2.50 | 2.50 | 0.20 | x | 0.38 | 3.3 | $64.71In stock | Buy now |
| 196Q2 | 10 | 4 | 40 | 2 | 0.24 | - | 3.12 | 2.12 | 2.75 | 2.81 | - | 0.19 | 0.19 | 0.19 | 1.85 | $28.91In stock | Buy now |
| 196S1 | 18 | 2 | 72 | 1 | 0.553 | - | 2.00 | 2.00 | 2.31 | 2.38 | - | 0.19 | 0.19 | 0.19 | 1.4 | $33.75In stock | Buy now |
Features
- ■Open core & coil, 4-slot bracket mounting chokes
- ■Tolerance of 15% on both inductance & resistance
- ■Storage: -40C to 105C temperature range
- ■Operating: -40C to 85C temperature range
- ■Inductances measured at rated D.C. current
- ■The "195" series is single coil
- ■The "196" series is dual coil - allowing more versatility
- ■Recommended maximum operating voltage 600 VAC (winding to core)
- ■Hipot tested at 2,500 VAC
- ■Connections are made to a screw terminal or heavy copper tabs with holes
- ■Perfect for high current power supply filtering
- ■All chokes are UL approved under Type 3AH , E207860, 30V7
- ■For AC applications 60 Hz to 10,000 Hz try our 197 Series
