Choke 50MA, 1500 Ohms
- Amplifier Model Na Deluxe, Deluxe Reverb, Vibrolux, Vibrolux Reverb 1964 Blackface 6G15 Reverb
- mA 50 ma.
- Inductance +/-15% 4 H
- Original Amp Mfr. Fender
$19.06In stock
Buy now
Tube Guitar Amplifier - Chokes · 194 Series
Brand: Hammond Manufacturing · 8 part numbers
REPLACEMENT & UPGRADES
- ■Designed for drop in replacement of original units.
- ■Physically, parts were designed to look similar to original factory units (where possible).
- ■Inductances measured at rated D.C. current.
- ■Material used & design specs. were kept as close as possible to the original part to preserve the stock "tone".
- ■Units are vacuum impregnated with polyurethane varnish for quiet and long life operation.
- ■"Click" on thumbnail photos below for a full size photo of each part.
from $19.06
8 of 8 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 194 Series part number
Filter 7 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
7 of 7 part numbers · 7 priced online
Choke 90MA, 1500 Ohms
- Amplifier Model Na Bandmaster, Dual Showman, Pro Reverb, Twin Super
- mA 90 ma.
- Inductance +/-15% 4 H
- Original Amp Mfr. Fender
$20.76In stock
Buy now
Choke For Jcm 800, Marshall
- Amplifier Model Na Pre-amp Plexi/JCM800
- mA 50 ma.
- Inductance +/-15% 40 H
- Original Amp Mfr. Marshall
$43.62In stock
Buy now
Choke For AC30 Re-Issue, Vox
- Amplifier Model Na AC30 reissue
- mA 150 ma.
- Inductance +/-15% 5 H
- Original Amp Mfr. VOX
$41.53In stock
Buy now
Choke For AC30 Vintage, Vox
- Amplifier Model Na AC30 reissue
- mA 100 ma.
- Inductance +/-15% 30 H
- Original Amp Mfr. VOX
$37.92In stock
Buy now
Choke For Marshall JCM800
- Amplifier Model Na Later Mark II and 800 (50 & 100 Watt) not Plexis
- mA 120 ma.
- Inductance +/-15% 5 H
- Original Amp Mfr. Marshall
$30.12In stock
Buy now
3H Choke
- Amplifier Model Na Plexi
- mA 250 ma.
- Inductance +/-15% 3H
- Original Amp Mfr. Marshall
$25.73In stock
Buy nowDimension tables (inches / mm)
Fender (Power Supply Chokes)
| Hammond · Part No. | Inductance · +/- 15% | D.C. · Current | Amplifier · Manufacturer | Amplifier · Model Names | Equivalent To · Manufacturer Part No | Price | Order |
|---|---|---|---|---|---|---|---|
| 194A | 4 H | 50 ma. | Fender | Deluxe, Deluxe Reverb, Vibrolux, Vibrolux Reverb 1964 Blackface 6G15 Reverb | 125C3A & 022707 | $19.06In stock | Buy now |
| 194B | 4 H | 90 ma. | Fender | Bandmaster, Dual Showman, Pro Reverb, Twin Super | 125C1A & 022699 | $20.76In stock | Buy now |
Marshall (Power Supply Chokes)
| Hammond · Part No. | Inductance · +/- 15% | D.C. · Current | Amplifier · Manufacturer | Amplifier · Model Names | Equivalent To · Manufacturer Part No | Price | Order |
|---|---|---|---|---|---|---|---|

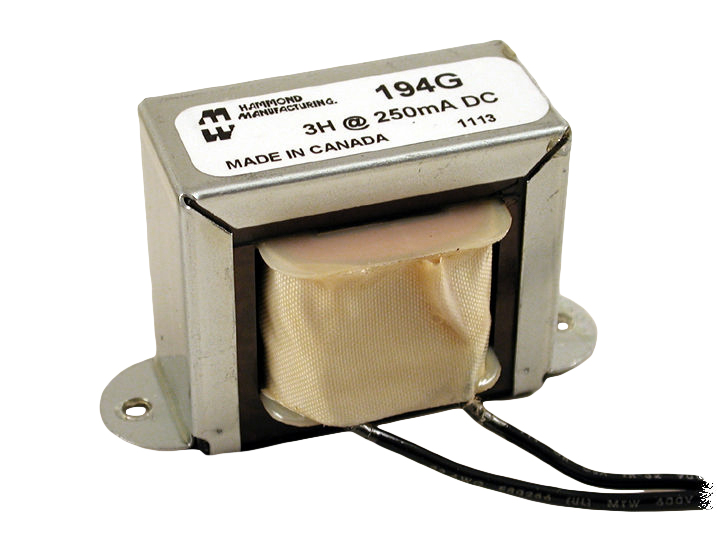

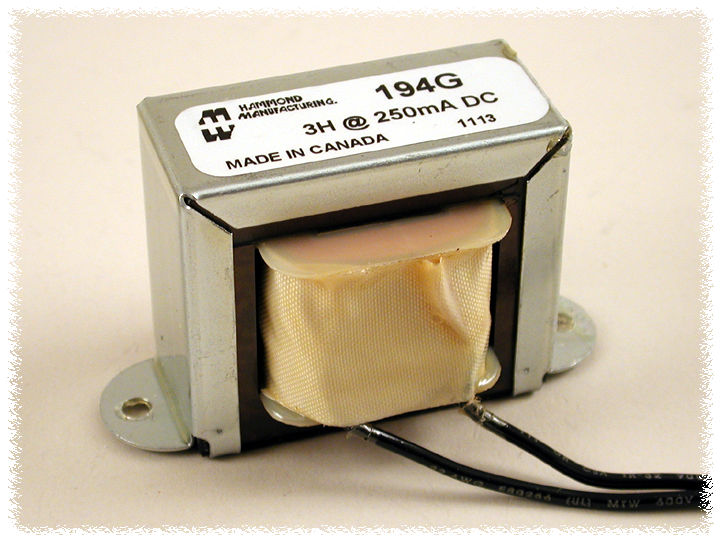

| 194G | 3H | 250 ma. | Marshall | Plexi | - | $25.73In stock | Buy now |
| 194F | 5 H | 120 ma. | Marshall | Later Mark II and 800 (50 & 100 Watt) not Plexis | - | $30.12In stock | Buy now |
| 194C | 40 H | 50 ma. | Marshall | Pre-amp Plexi/JCM800 | - | $43.62In stock | Buy now |
VOX (Power Supply Chokes)
Features
- ■Designed for drop in replacement of original units.
- ■Physically, parts were designed to look similar to original factory units (where possible).
- ■Inductances measured at rated D.C. current.
- ■Material used & design specs. were kept as close as possible to the original part to preserve the stock "tone".
- ■Units are vacuum impregnated with polyurethane varnish for quiet and long life operation.
- ■"Click" on thumbnail photos below for a full size photo of each part.
