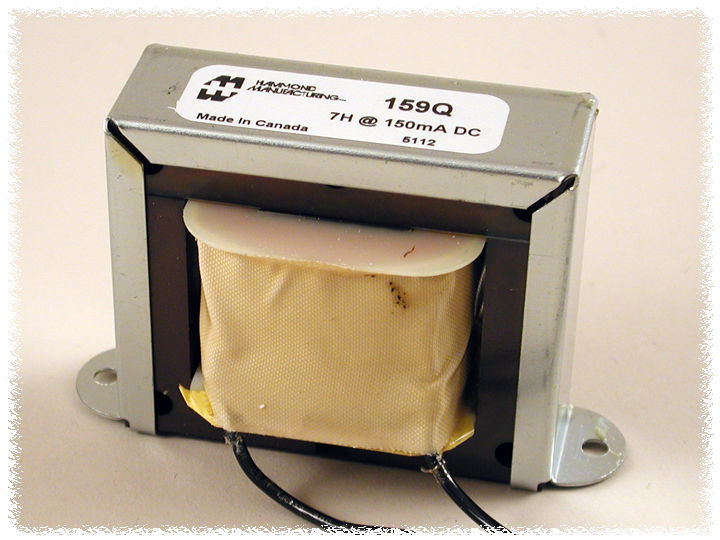

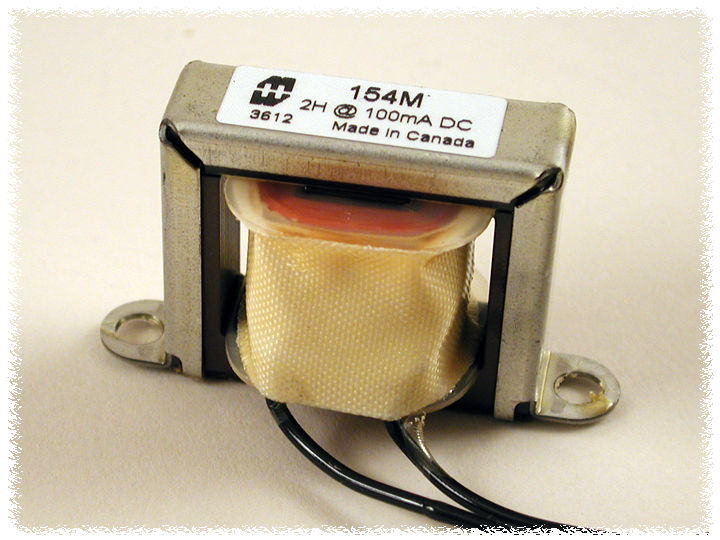

Hammond 159Q 7H 150mA Filter Choke, 500VDC C14H Frame
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 7H ±15% inductance at rated 150 mA DC current
- 100 ohm ±15% DC resistance; 500 VDC maximum operating voltage
- Open-bracket channel mount, mounting style C14H (A 4.03 in x C 2.63 in)
- Vacuum impregnated with polyurethane varnish for quiet operation and long life
- Every unit Hipot tested (100%) at 1,500 VAC; leads minimum 5 in long
- RoHS and REACH compliant
The 159Q is a 7 henry filter choke rated for 150 mA DC and 500 VDC maximum operating voltage, for smoothing high voltage DC supplies.
At 150 mA it offers more inductance than the 5H 158Q or 3.5H 157Q, in the larger C14H frame with a 500 VDC rating and 100 ohms of DC resistance.
Electrically, the 159Q is specified at 7H ±15% with its inductance measured at the rated 150 mA DC. DC resistance is 100 ohms ±15% and the maximum operating voltage is 500 VDC. As with every choke in the 153-159 Series, it will show less inductance at slightly higher currents and more inductance at lower currents, so size it to the actual load current.

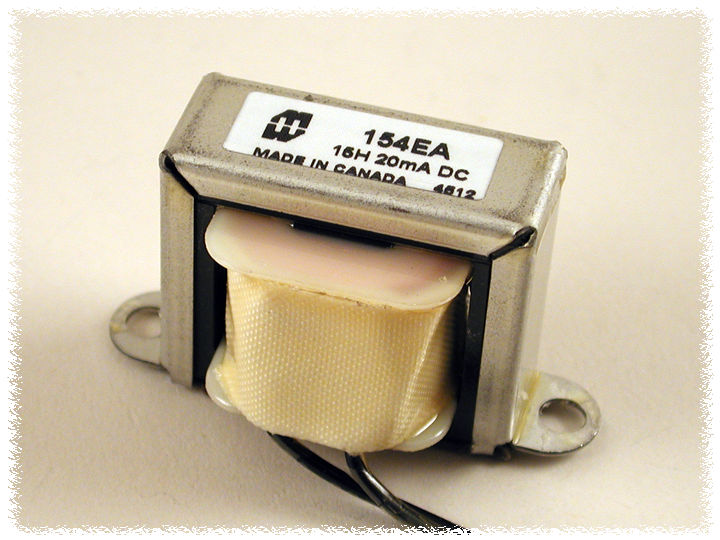

Construction follows the series' economical open-bracket channel mount, with leads at least 5 in long. Units are vacuum impregnated with polyurethane varnish for quiet operation and long life, and every unit is Hipot tested (100%) at 1,500 VAC.
Mechanically it uses mounting style C14H: the series table lists A 4.03 in, B 2.25 in, C 2.63 in and D 3.56 in with a 0.19 in mounting hole. Weight is 2.25 lb in the series table and 2.25 lbs (1.02 kg) shipping weight. The part is RoHS and REACH compliant (UNSPSC 39121301, UPC 623980204802).
Ideal For
- High voltage power supply filtering
- DC reactor for supply rails up to 500 VDC at 150 mA
- Open-bracket channel mounting in equipment chassis
- Replacement filter choke for existing 159Q designs
Overview
| Series | 153-159 Series D.C. Reactors or Filter Chokes (low to medium current) |
| Description | DC reactor, filter choke, open channel mount, inductance 7H, DC current 150 ma. |
| Part Number | 159Q |
| Short Description | CHOKE |
Dimensions
| Mounting Style (Dim. Ref.) | C14H |
| Mounting Hole (Series Table) | 0.19 in |
| Dimension A (C14H Series Table) | 4.03 in |
| Dimension B (C14H Series Table) | 2.25 in |
| Dimension C (C14H Series Table) | 2.63 in |
| Dimension D (C14H Series Table) | 3.56 in |
Electrical
| Inductance (±15%) | 7H |
| Resistance (±15%) | 100 ohms |
| Hipot Test (Series) | Every unit Hipot tested (100%) at 1,500 VAC |
| DC Current (Rated) | 150 ma. |
| Inductance Measurement | Measured at rated D.C. current |
| Inductance Vs. Current | Less inductance at slightly higher currents, more inductance at lower currents |
| Maximum Operating Voltage DC | 500 VDC |
| Inductance & Resistance Tolerance | 15% |
Identifiers
| UPC | 623980204802 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Shipping Weight | 2.25 lbs (1.02 kg) |
| Weight (Series Table) | 2.25 lbs |
Construction & Finish
| Leads | Minimum 5" long |
| Mounting | Economical "open bracket" channel mount |
| Impregnation | Vacuum impregnated with polyurethane varnish for quiet operation and long life |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the inductance and current ratings of the 159Q?▾
The 159Q is rated 7H ±15% at 150 mA DC, and its inductance is measured at that rated DC current.
What voltage can the 159Q be used at?▾
The listed maximum operating voltage is 500 VDC.
How is the choke mounted?▾
It uses an economical open-bracket channel mount in mounting style C14H, with a 0.19 in mounting hole per the series mechanical table.
What happens if my circuit draws more or less than 150 mA?▾
Per the manufacturer, units exhibit less inductance at slightly higher currents and more inductance at lower currents.
Is the 159Q RoHS compliant?▾
Yes. It is listed as both RoHS and REACH compliant.
How much does the 159Q weigh?▾
The series table lists 2.25 lb and the shipping weight is 2.25 lbs (1.02 kg).
