Hammond 159ZE 28mH 3A DC Reactor, 500VDC Open Channel
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 28mH ±15% inductance at rated 3 A DC current
- 0.43 ohm ±15% DC resistance; 500 VDC maximum operating voltage
- Open-bracket channel mount, mounting style C14H (A 4.03 in x C 2.63 in)
- Vacuum impregnated with polyurethane varnish for quiet operation and long life
- Class B (130°C) insulation; operating temperature -40°C to 105°C
- Every unit Hipot tested (100%) at 1,500 VAC; leads minimum 5 in long
- RoHS and REACH compliant
The 159ZE is a 28 mH DC reactor rated for 3 A DC and 500 VDC maximum operating voltage, for power supply designers filtering higher-current DC rails.
Its drawing (Rev. 0, 03/25/24) specifies a 5 V, 60 Hz inductance test with 3 A DC bias, a measured DCR of 0.430 ohms, Class B (130°C) insulation and a drawing weight of 2.4 lb.
Electrically, the 159ZE is specified at 28mH ±15% with its inductance measured at the rated 3 A DC. DC resistance is 0.43 ohms ±15% and the maximum operating voltage is 500 VDC. As with every choke in the 153-159 Series, it will show less inductance at slightly higher currents and more inductance at lower currents, so size it to the actual load current.
Construction follows the series' economical open-bracket channel mount, with leads at least 5 in long. Units are vacuum impregnated with polyurethane varnish for quiet operation and long life, and every unit is Hipot tested (100%) at 1,500 VAC. The part drawing adds class B (130°C) insulation, black leads, an operating temperature of -40°C to 105°C and storage from -40°C to 85°C.
Mechanically it uses mounting style C14H: the series table lists A 4.03 in, B 2.25 in, C 2.63 in and D 3.56 in with a 0.19 in mounting hole. Weight is 2.75 lb in the series table and 2.8 lbs (1.27 kg) shipping weight. The part is RoHS and REACH compliant (UNSPSC 39121301, UPC 623980205700).
Ideal For
- High voltage power supply filtering
- DC reactor for supply rails up to 500 VDC at 3 A
- Open-bracket channel mounting in equipment chassis
- Replacement filter choke for existing 159ZE designs
Overview
| Series | 153-159 Series D.C. Reactors or Filter Chokes (low to medium current) |
| Description | DC reactor, filter choke, open channel mount, inductance 28mH, DC current 3A |
| Part Number | 159ZE |
| Short Description | CHOKE |
Dimensions
| Dimension A (Part Drawing) | 4.000" ±0.063 |
| Dimension B (Part Drawing) | 2.085" ±0.125 |
| Dimension C (Part Drawing) | 2.625" ±0.063 |
| Dimension D (Part Drawing) | 3.563" ±0.063 |
| Mounting Style (Dim. Ref.) | C14H |
| Mounting Hole (Series Table) | 0.19 in |
| Mounting Hole G (Part Drawing) | 0.187" ±0.015 |
| Dimension A (C14H Series Table) | 4.03 in |
| Dimension B (C14H Series Table) | 2.25 in |
| Dimension C (C14H Series Table) | 2.63 in |
| Dimension D (C14H Series Table) | 3.56 in |
Electrical
| DCR (Drawing) | 0.430 Ω ±15% @ 20°C, BLK - BLK |
| Hipot (Drawing) | 2500V, 60Hz, 1 sec (primary - secondary) |
| Inductance (±15%) | 28mH |
| Resistance (±15%) | 0.43 ohms |
| Hipot Test (Series) | Every unit Hipot tested (100%) at 1,500 VAC |
| DC Current (Rated) | 3A |
| Inductance Measurement | Measured at rated D.C. current |
| Inductance Vs. Current | Less inductance at slightly higher currents, more inductance at lower currents |
| Label Marking (Drawing) | 28mH ±15%, 3A DC, 500VDC MAX. Op. |
| Inductance Test (Drawing) | @ 5V, 60Hz, 3A DC, BLK - BLK: 28mH ±15% |
| Maximum Operating Voltage DC | 500 VDC |
| Inductance & Resistance Tolerance | 15% |
Identifiers
| UPC | 623980205700 |
| UNSPSC | 39121301 |
| Drawing Revision | Rev. 0, released 03/25/24 |
Packaging & Shipping
| Shipping Weight | 2.8 lbs (1.27 kg) |
| Weight (Part Drawing) | 2.4 lbs |
| Weight (Series Table) | 2.75 lbs |
Construction & Finish
| Leads | Minimum 5" long |
| Mounting | Economical "open bracket" channel mount |
| Insulation | Class B (130°C) insulation |
| Impregnation | Vacuum impregnated with polyurethane varnish for quiet operation and long life |
| Channel Frame Thickness | 0.030" |
Environmental & Protection
| Storage Temperature | -40°C to 85°C |
| Operating Temperature | -40°C to 105°C |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| Drawing Compliance Note | RoHS & REACH Compliant |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the inductance and current ratings of the 159ZE?▾
The 159ZE is rated 28mH ±15% at 3A DC, and its inductance is measured at that rated DC current.
What voltage can the 159ZE be used at?▾
The listed maximum operating voltage is 500 VDC.
How is the choke mounted?▾
It uses an economical open-bracket channel mount in mounting style C14H, with a 0.19 in mounting hole per the series mechanical table.
What happens if my circuit draws more or less than 3 A?▾
Per the manufacturer, units exhibit less inductance at slightly higher currents and more inductance at lower currents.
Is the 159ZE RoHS compliant?▾
Yes. It is listed as both RoHS and REACH compliant.
What temperatures is the 159ZE rated for?▾
The part drawing gives an operating temperature of -40°C to 105°C and a storage temperature of -40°C to 85°C, with class B (130°C) insulation.
Related Products

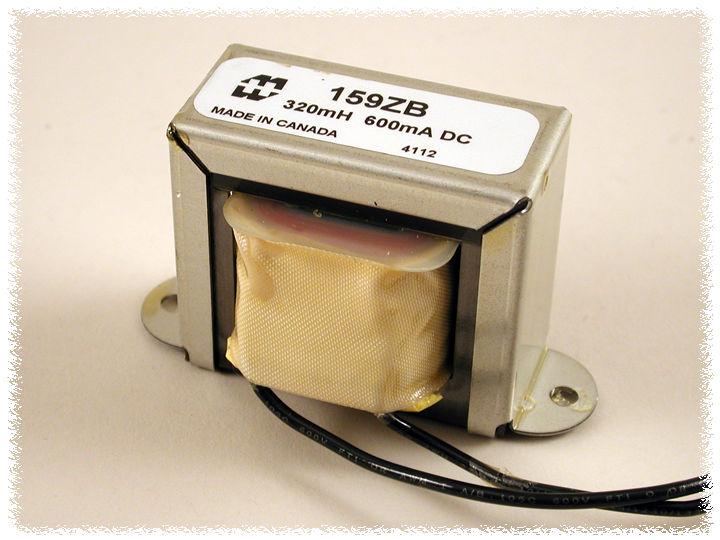

Save 52%159ZC — DC reactor, filter choke, open channel mount, inductance 60mH, DC current 2A
