N4X 316SS 2 Door Floormnt
$9,053.12Backorder
Buy now
Type 4X Stainless Steel Two Door Floormount Enclosure · 1422 N4 QT SS Series
Brand: Hammond Manufacturing · 10 part numbers
Continuous Hinge Door with Quarter Turn
- ■Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
- ■Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion is a serious problem.
- ■UL 508A Type 3R, 4, 4X, and 12
- ■CSA Type 3R, 4, 4X, and 12
- ■Complies with NEMA Type 3R, 4, 4X, 12 and 13 IEC 60529, IP66
- ■NEMA Type 3R, 4, 4X, 12 and 13
from $6,654.36
10 of 10 part numbers priced · available on backorder · ships by ground · volume pricing on request
Configure & price
Find your 1422 N4 QT SS Series part number
Filter 10 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
10 of 10 part numbers · 10 priced online
N4X 316SS 2 Door Floormnt
$10,185.84Backorder
Buy now
N4X 316SS 2 Door Floormnt
$12,241.06Backorder
Buy now
N4X 316SS 2 Door Floormnt
$12,608.78Backorder
Buy now
N4X 316SS 2 Door Floormnt
$15,922.53Backorder
Buy now
N4X 2 Door Floormount Enclosure
$6,654.36Backorder
Buy now
N4X 2 Door Enclosure 60X60X12
$7,504.84Backorder
Buy now
N4X SS 2 Door Floormount
$8,580.57Backorder
Buy now
N4X 2 Dr Enclosure 72X72X12
$9,322.46Backorder
Buy now
N4X SS 2 Door Floormount
$11,250.82Backorder
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| 304 S.S. · Part No. | 316 S.S. · Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Panel · H | Panel · W | Price | Order |
|---|---|---|---|---|---|---|---|---|

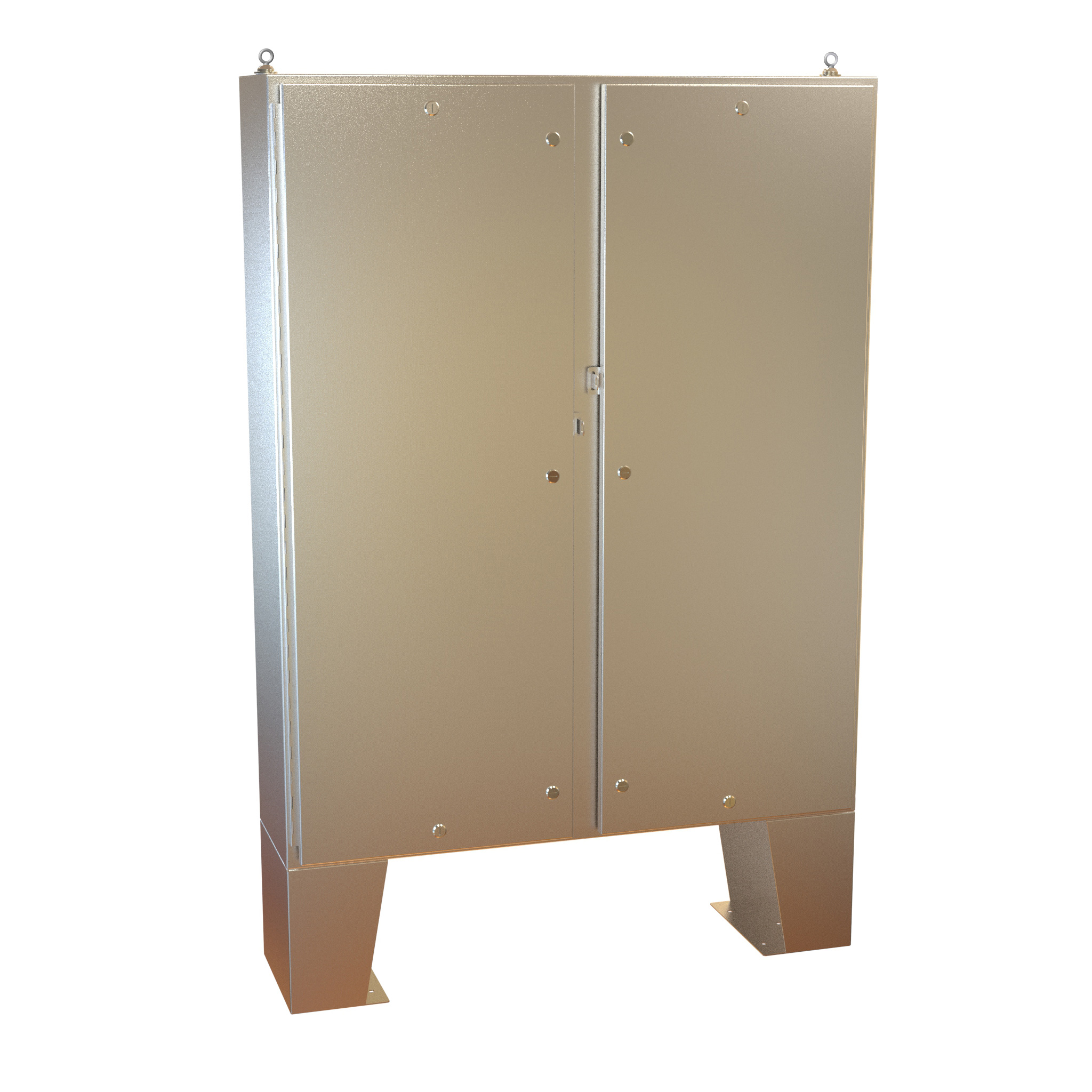

| 1422N4SSB12FQT | 1422N4S16B12FQT | 60.13 | 48.06 | 12.69 | 56.00 | 44.00 | $6,654.36Backorder1422N4SSB12FQT | Buy now |

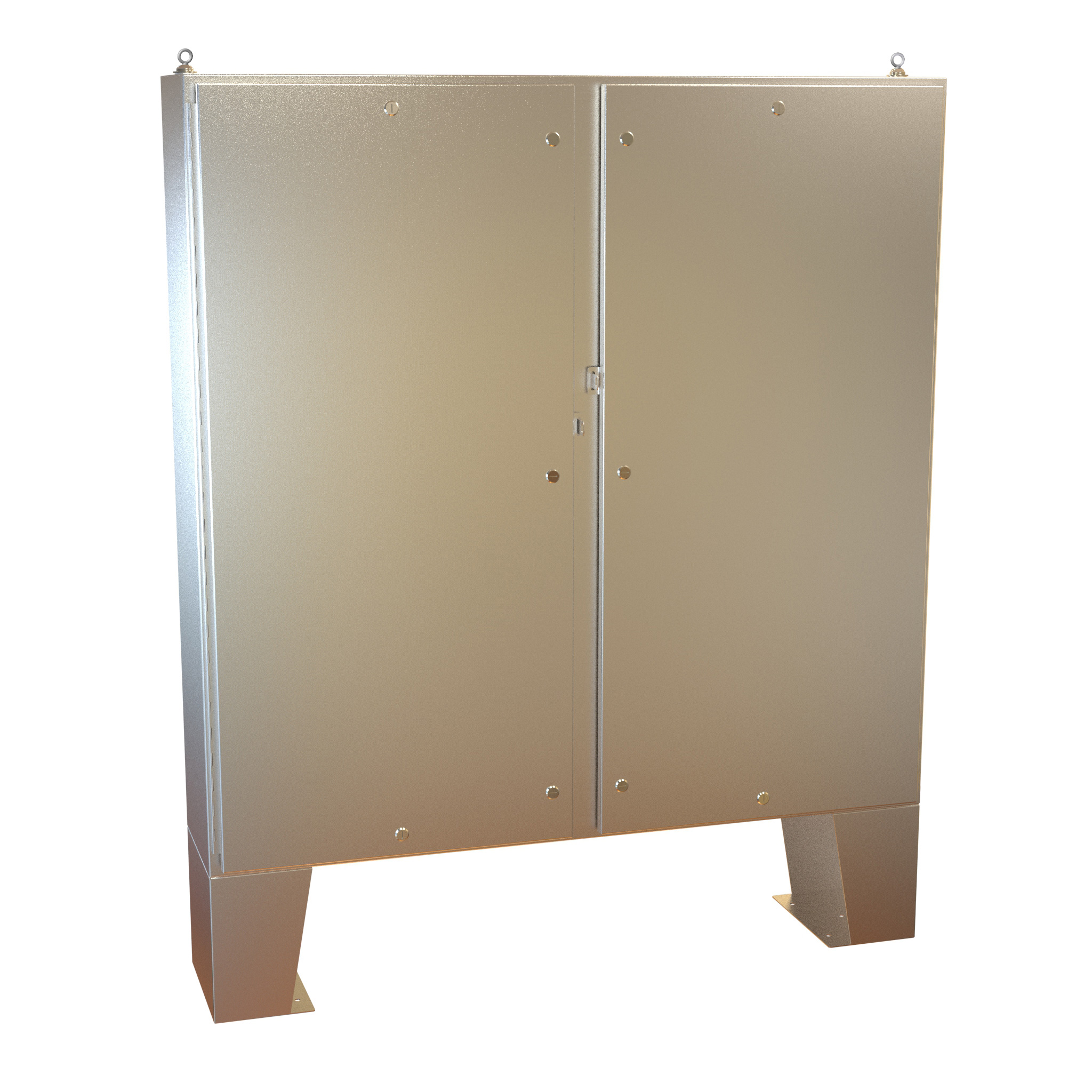

| 1422N4SSD12FQT | 1422N4S16D12FQT | 60.13 | 60.06 | 12.69 | 56.00 | 56.00 | $7,504.84Backorder1422N4SSD12FQT | Buy now |

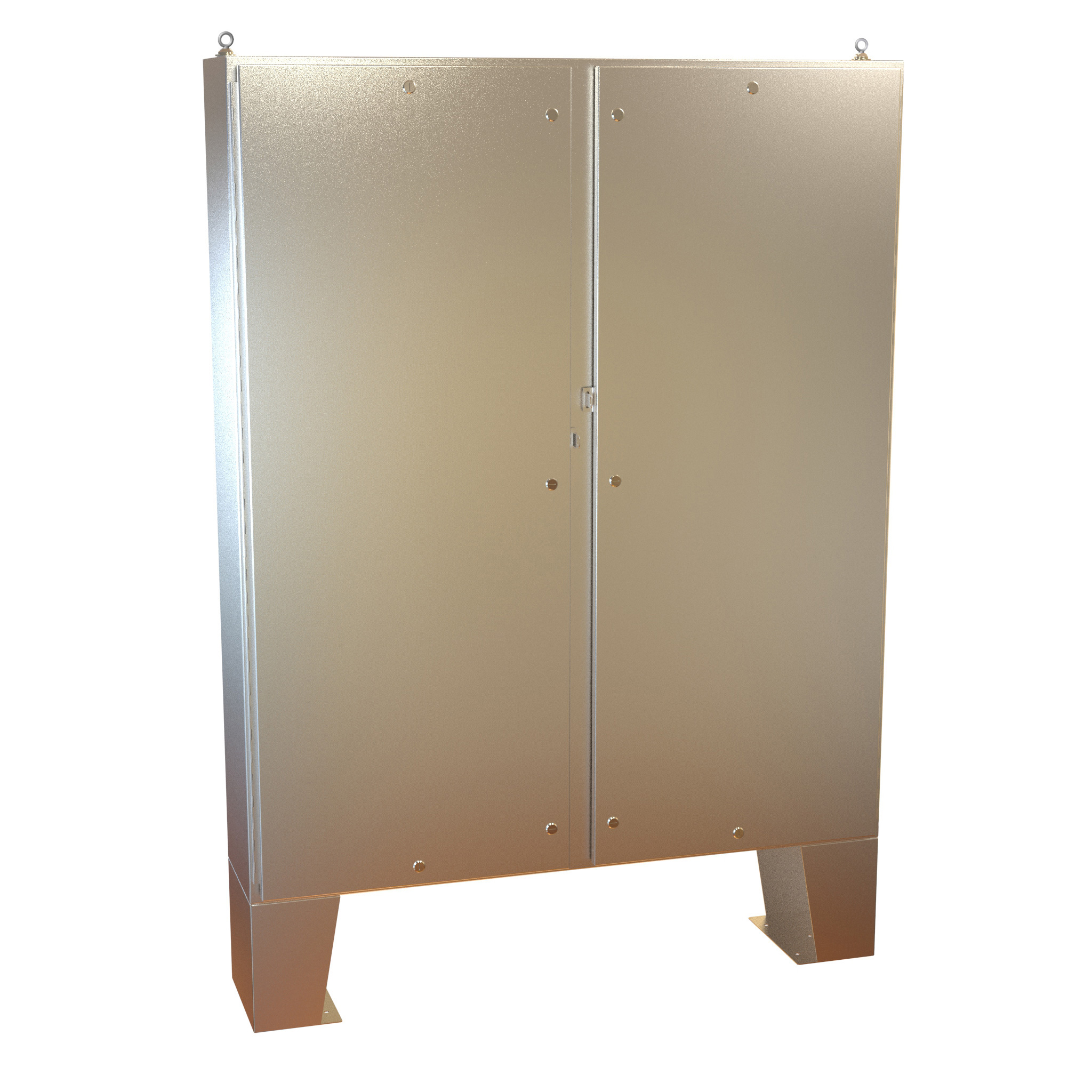

| 1422N4SSE12FQT | 1422N4S16E12FQT | 72.13 | 60.06 | 12.69 | 68.00 | 56.00 | $8,580.57Backorder1422N4SSE12FQT | Buy now |

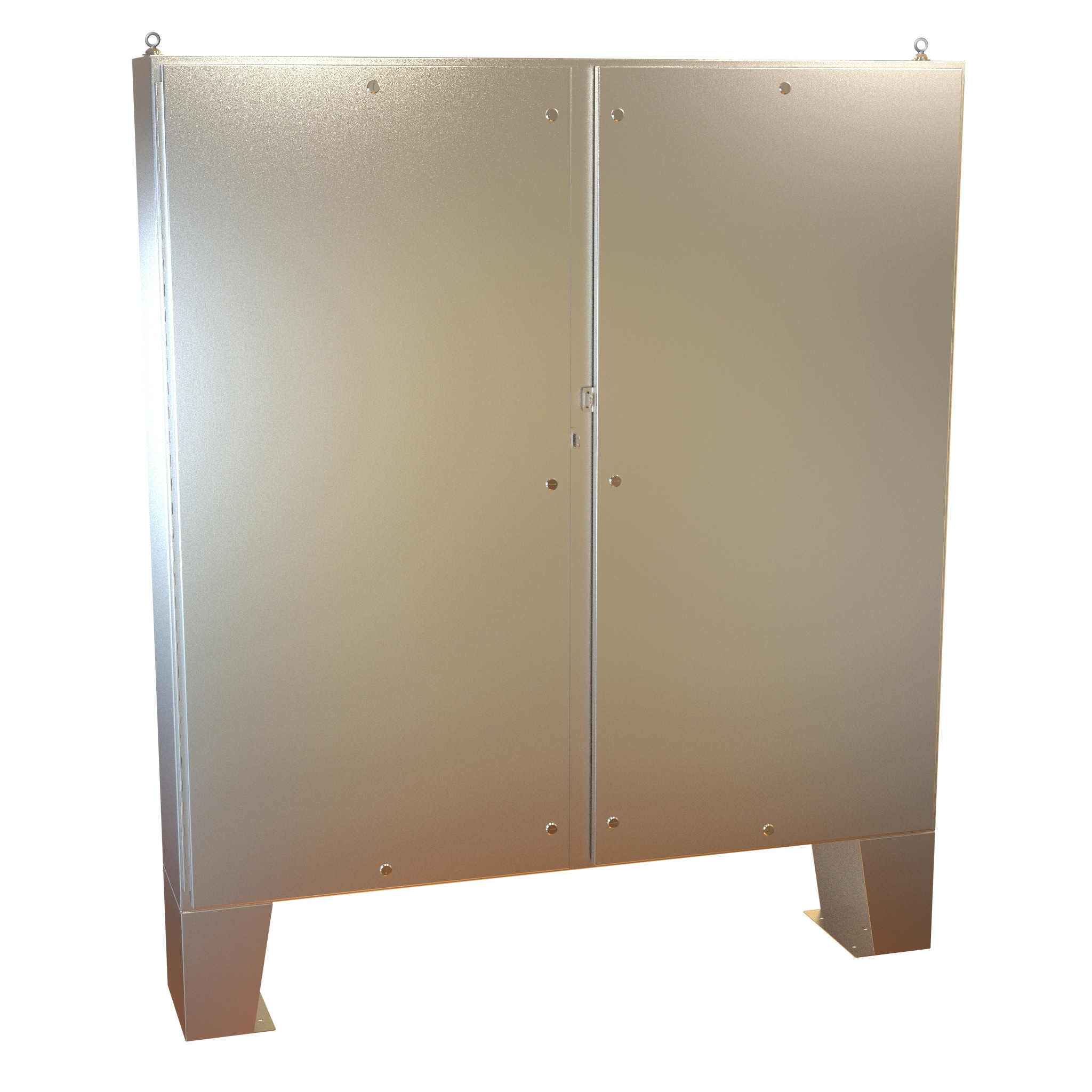

| 1422N4SSF12FQT | 1422N4S16F12FQT | 72.13 | 72.06 | 12.69 | 68.00 | 68.00 | $9,322.46Backorder1422N4SSF12FQT | Buy now |

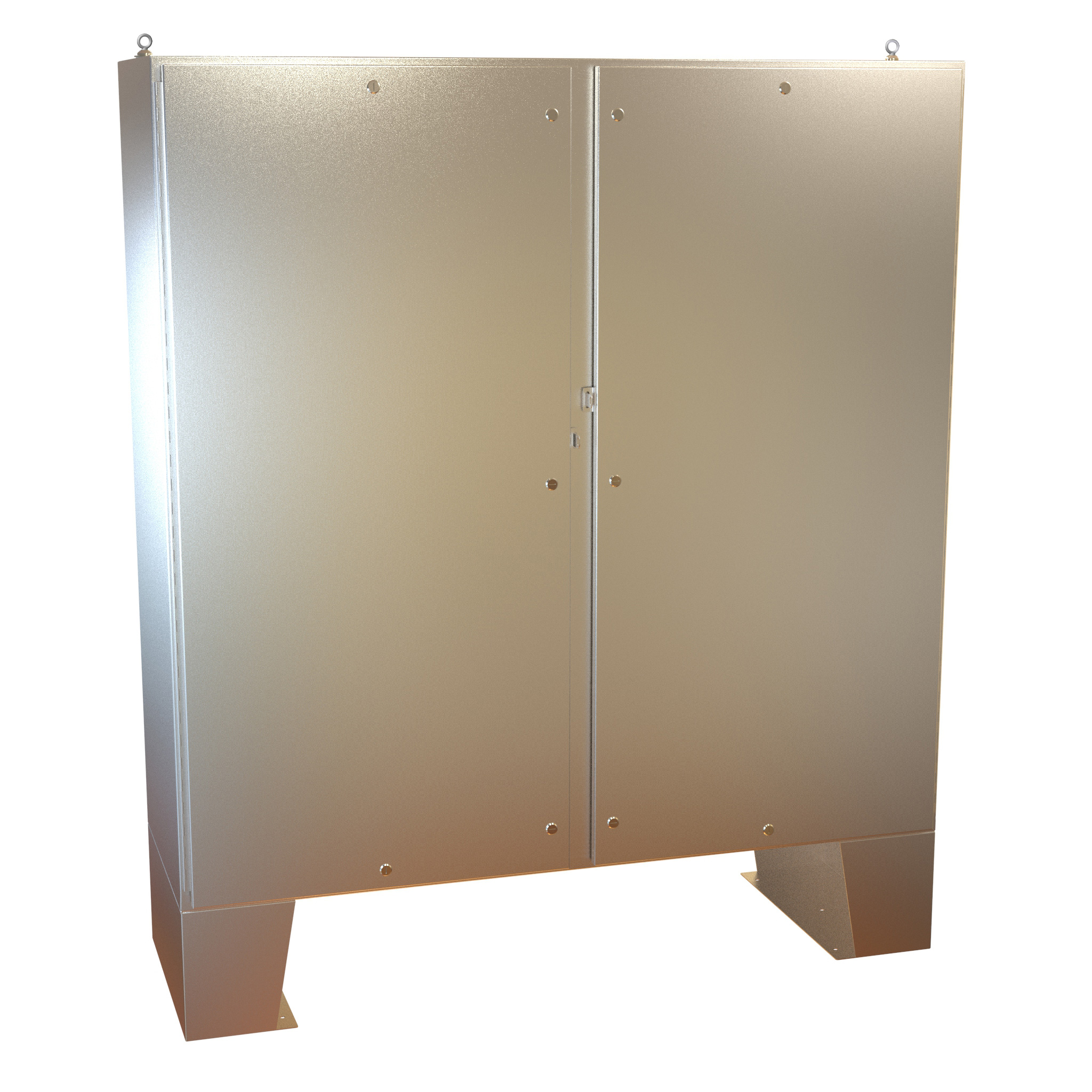

| 1422N4SSF24FQT | 1422N4S16F24FQT | 72.13 | 72.06 | 24.69 | 68.00 | 68.00 | $11,250.82Backorder1422N4SSF24FQT | Buy now |
Application
- ■Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
- ■Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion is a serious problem.
Standards
- ■UL 508A Type 3R, 4, 4X, and 12
- ■CSA Type 3R, 4, 4X, and 12
- ■Complies with NEMA Type 3R, 4, 4X, 12 and 13 IEC 60529, IP66
- ■NEMA Type 3R, 4, 4X, 12 and 13
- ■IEC 60529, IP66
Construction
- ■Formed 12 gauge 304 or 316 stainless steel.
- ■Smooth, continuously welded seams without knockouts, cutouts or holes.
- ■Body stiffeners are provided in the larger enclosures for extra rigidity.
- ■Heavy duty stainless steel lifting eyebolts are provided with reinforcing support angles.
- ■Center post is removable for easy installation of the inner panel.
- ■Formed lip on door and top of enclosure opening exclude flowing liquids and contaminants.
- ■Continuously hinged doors may be removed by pulling the stainless steel hinge pin.
- ■Doors are secured with quarter turn latches.
- ■Provision for padlocking.
- ■12" floor stands are welded to the enclosure.
- ■Seamless poured-in place gasket.
- ■Panel supports are provided for easy panel installation.
- ■Collar studs are provided for mounting inner panels.
- ■A bonding stud is provided on the door and a grounding stud is provided in the enclosure for each door.
- ■A literature pocket is provided.
Finish
- ■Cover and enclosure are natural stainless steel with a smooth brushed finish.
- ■Removable 10 gauge inner panel is finished in white powder coating.
Documents
Additional information
Part Details
| 304 S.S. · Part No. | 316 S.S. · Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Panel · H | Panel · W |
|---|---|---|---|---|---|---|
| 1422N4SSB12FQT | 1422N4S16B12FQT | 60.13 | 48.06 | 12.69 | 56.00 | 44.00 |
| 1422N4SSD12FQT | 1422N4S16D12FQT | 60.13 | 60.06 | 12.69 | 56.00 | 56.00 |
| 1422N4SSE12FQT | 1422N4S16E12FQT | 72.13 | 60.06 | 12.69 | 68.00 | 56.00 |
| 1422N4SSF12FQT | 1422N4S16F12FQT | 72.13 | 72.06 | 12.69 | 68.00 | 68.00 |
| 1422N4SSF24FQT | 1422N4S16F24FQT | 72.13 | 72.06 | 24.69 | 68.00 | 68.00 |
