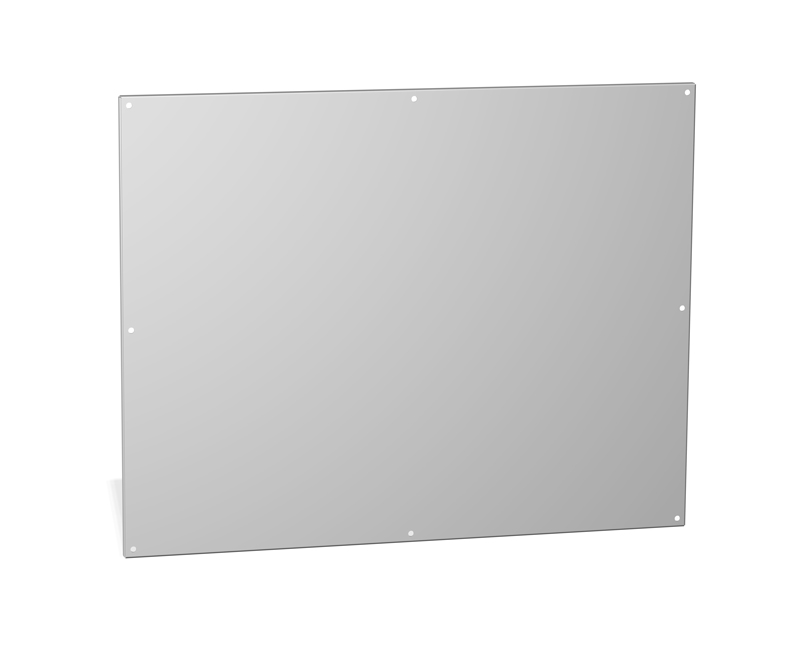

Inner Panel For 1422A Size Enc
$310.17Backorder
Buy now
Inner Panels · 22P Series
Brand: Hammond Manufacturing · 5 part numbers
HN4FM/1422 Series Floormount Enclosures
- ■22P5038 is formed from 12 gauge steel, all others are 10 gauge steel.
- ■Panels and mounting hardware are included with 1422 and HN4FM Series enclosures.
- ■Finished in white.
from $310.17
5 of 5 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 22P Series part number
Filter 5 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
Dimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Panel · L | Panel · W | For Use With Enclosure · H | For Use With Enclosure · W | Price | Order |
|---|---|---|---|---|---|---|
| 22P5038 | 50.00 | 38.00 | 54.00 | 42.00 | $310.17Backorder | Buy now |
| 22P5644 | 56.00 | 44.00 | 60.00 | 48.00 | $396.64In stock | Buy now |
| 22P5656 | 56.00 | 56.00 | 60.00 | 60.00 | $490.25In stock | Buy now |
| 22P6856 | 68.00 | 56.00 | 72.00 | 60.00 | $582.27In stock | Buy now |
| 22P6868 | 68.00 | 68.00 | 72.00 | 72.00 | $694.91Backorder | Buy now |
Features
Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)
Units shown: inch . Switch units to: mm
- ■22P5038 is formed from 12 gauge steel, all others are 10 gauge steel.
- ■Panels and mounting hardware are included with 1422 and HN4FM Series enclosures.
- ■Finished in white.
Documents
Additional information
Part Details
| Part No. | Panel · L | Panel · W | For Use With Enclosure · H | For Use With Enclosure · W |
|---|---|---|---|---|
| 22P5038 | 50.00 | 38.00 | 54.00 | 42.00 |
| 22P5644 | 56.00 | 44.00 | 60.00 | 48.00 |
| 22P5656 | 56.00 | 56.00 | 60.00 | 60.00 |
| 22P6856 | 68.00 | 56.00 | 72.00 | 60.00 |
| 22P6868 | 68.00 | 68.00 | 72.00 | 72.00 |
