Barrier Kit N4 Fm 60HX10/12D
- Description For use with 60H x 10/12D
$219.75In stock
Buy now

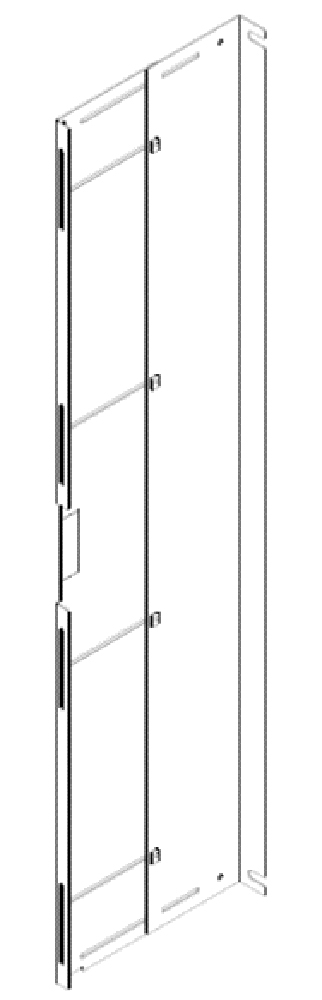

Barrier Kits for Type 4 Floormount · BKFM Series
Brand: Hammond Manufacturing · 4 part numbers

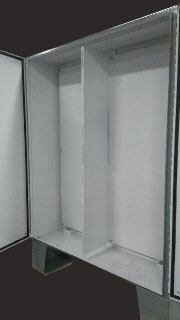

- ■Barrier kits are designed to provide 2 vertical sections within 2 door, Type 4 enclosures.
- ■For use with HN4FM Series,1422N4 Series and 2STFSD Series
- ■For application example, can provide separation between power and control sections within one cabinet.
- ■Does NOT provide complete physical separation as there is space above and below the barrier to run wiring.
- ■Depth mounted - bolted to the inner panel at rear and the center post at front.
- ■Certain sizes are depth adjustable
from $219.75
4 of 4 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your BKFM Series part number
Filter 4 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
4 of 4 part numbers · 4 priced online
Features
Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)
- ■Barrier kits are designed to provide 2 vertical sections within 2 door, Type 4 enclosures.
- ■For use with HN4FM Series,1422N4 Series and 2STFSD Series
- ■For application example, can provide separation between power and control sections within one cabinet.
- ■Does NOT provide complete physical separation as there is space above and below the barrier to run wiring.
- ■Depth mounted - bolted to the inner panel at rear and the center post at front.
- ■Certain sizes are depth adjustable
- ■Panels are steel and painted white.
- ■Mounting hardware included.
Documents
Additional information
Part Details
| Part No. | Description |
|---|---|
| BKFM6012 | For use with 60H x 10/12D |
| BKFM6018 | For use with 60H x 18D |
| BKFM7218 | For use with 72H x 12/18D |
| BKFM7224 | For use with 72H x 24D |
