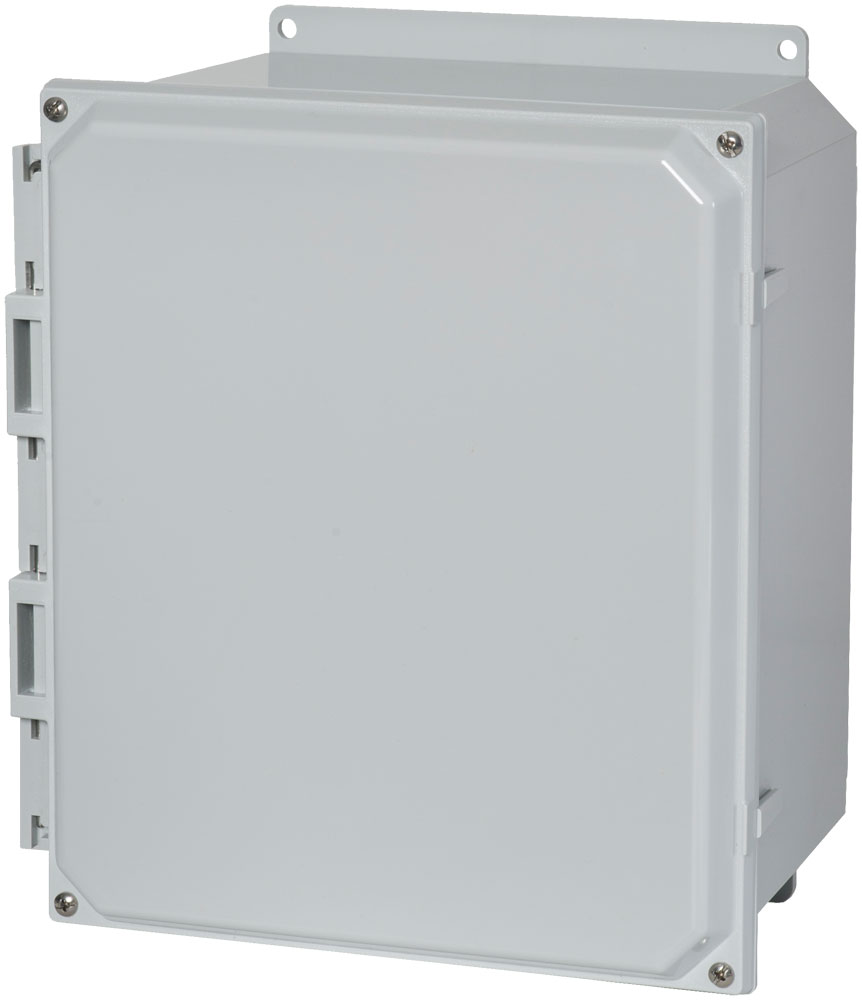

Type 4X Polycarbonate Junction Box (Solid and Clear Cover) PCJ Series

Type 4X Polycarbonate Junction Box (Solid and Clear Cover) · PCJ Series

Brand: Hammond Manufacturing · 65 part numbers

Lift-Off Screw Cover

  • ■Designed to insulate and protect controls and components in both indoor and outdoor conditions
  • ■Ideal for industrial pump controls, waste water, irrigation control along with solar/wind and chemical plants
  • ■UL 508A Type 1, 2, 3, 3R, 4, 4X, 12 and 13 (sizes 14x12x6 and smaller, also 6P)
  • ■cUL Type 1, 2, 3, 3R, 4, 4X, 12 and 13per CSA 22.2 No. 94 (sizes 14x12x6 and smaller, also 6P)
  • ■Complies with NEMA Type 1, 2, 3, 3R, 4, 4X, 12 and 13 IEC 60529, IP66 (sizes 14x12x6 and smaller, also IP68) Flammability V-O per UL 94 UV rating (f1) per UL746C - UV stabilized for outdoor use Compliant with RoHS directive
  • ■NEMA Type 1, 2, 3, 3R, 4, 4X, 12 and 13

from $7.52

65 of 65 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocumentsAdditional information

Configure & price

Find your PCJ Series part number

Filter 56 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

56 of 56 part numbers · 56 priced online

PCJ1082

PC Non Met Lift Off Feet

$55.34Backorder
Buy now
PCJ1082F

PC Non Met Lift Off Flange

$58.28Backorder
Buy now
PCJ1084

PC Non Met Lift Off Feet

$58.00In stock
Buy now
PCJ1086

PC Non Met Lift Off Feet

$61.53In stock
Buy now
PCJ443

PC Non Met Lift Off Feet

$36.19In stock
Buy now
PCJ443CC

PC Non Met Lift Off Clr Feet

$39.77Backorder
Buy now

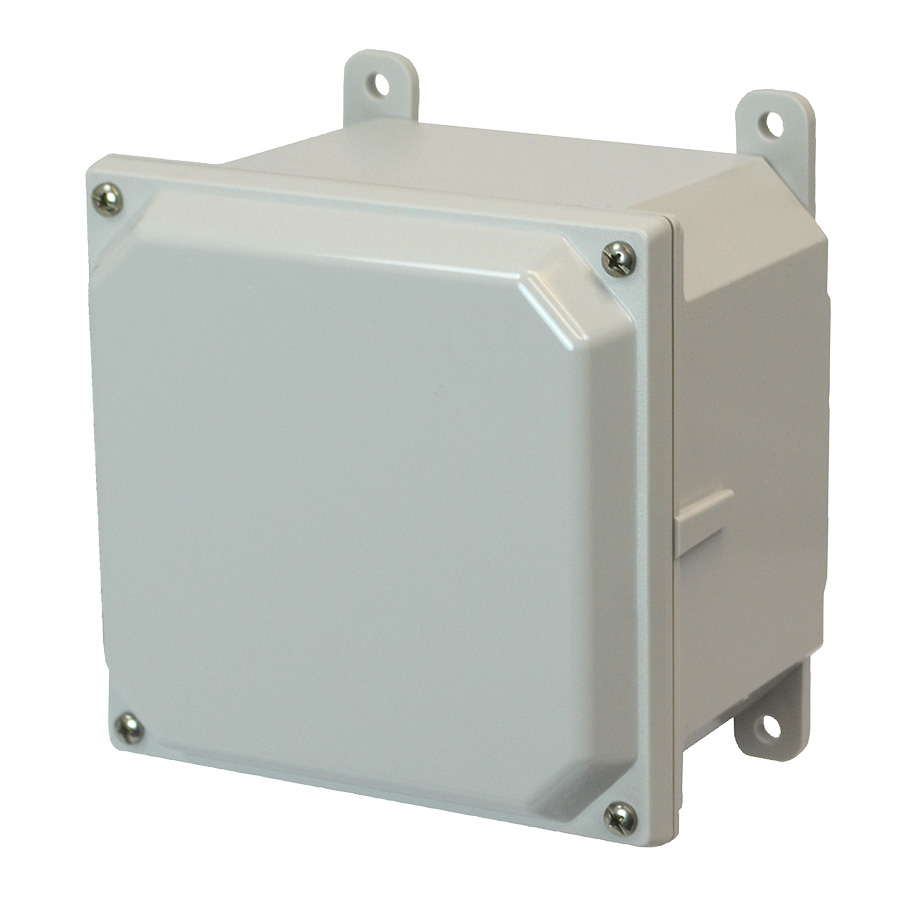

PCJ664

PC Non Met Lift Off Feet

$52.80In stock
Buy now

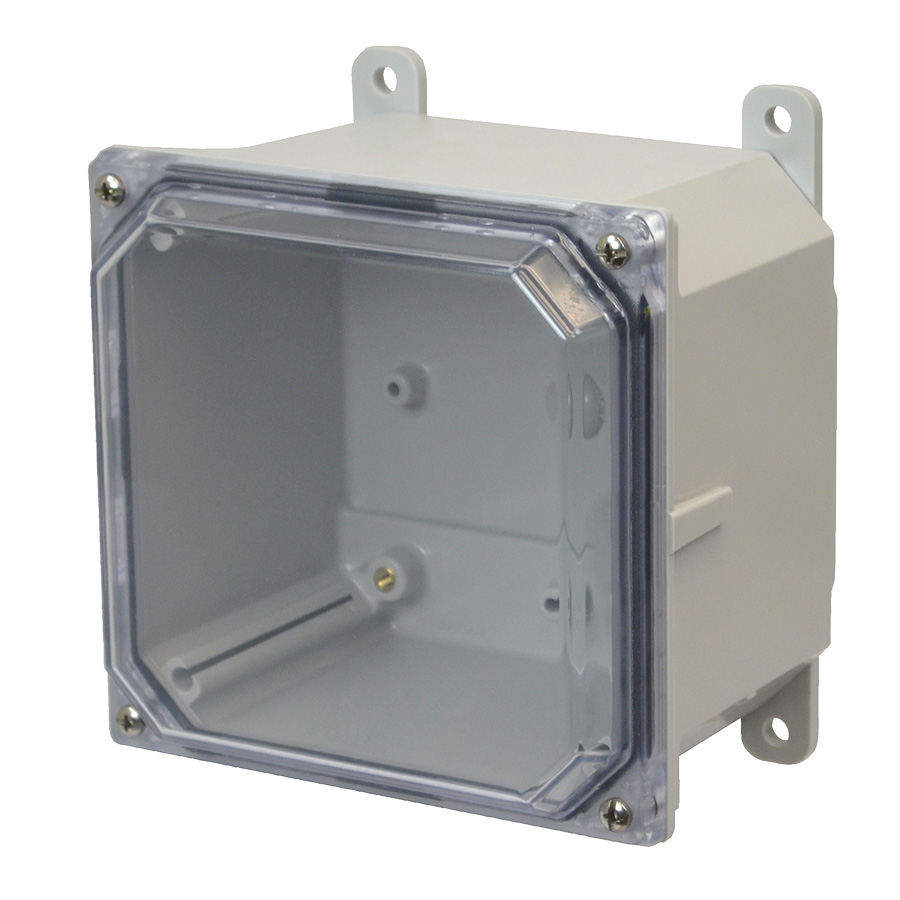

PCJ664CC

PC Non Met Lift Off Clr Feet

$58.08Backorder
Buy now

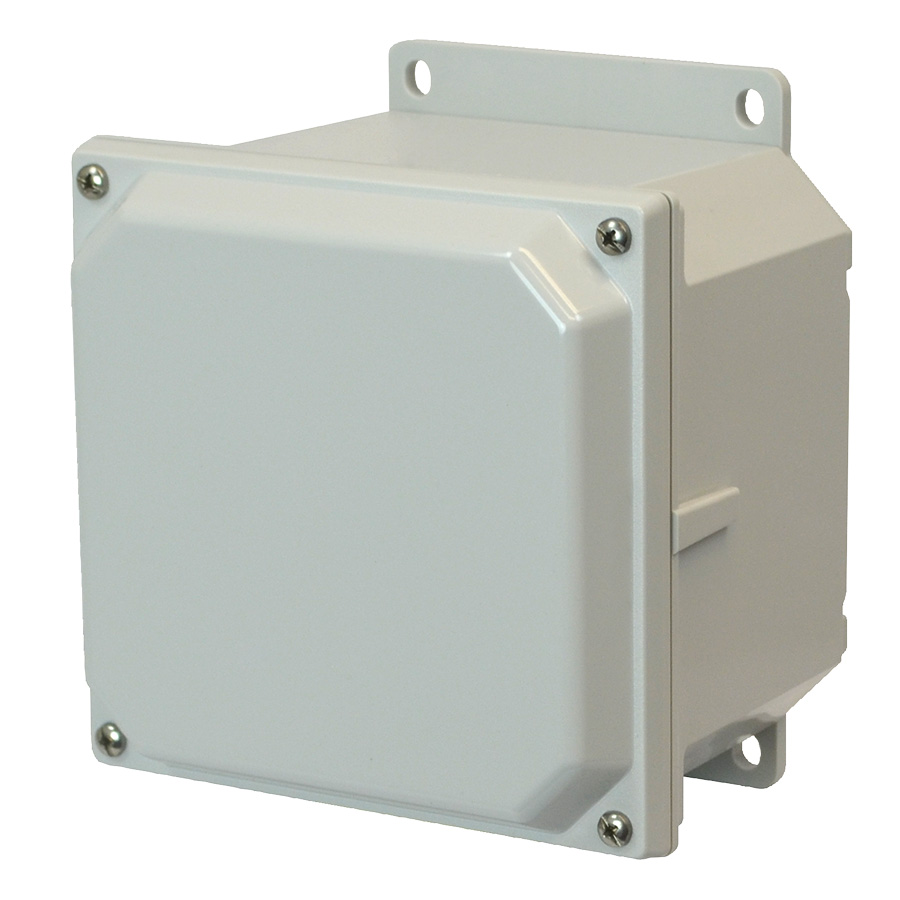

PCJ664F

PC Non Met Lift Off Flange

$55.46In stock
Buy now

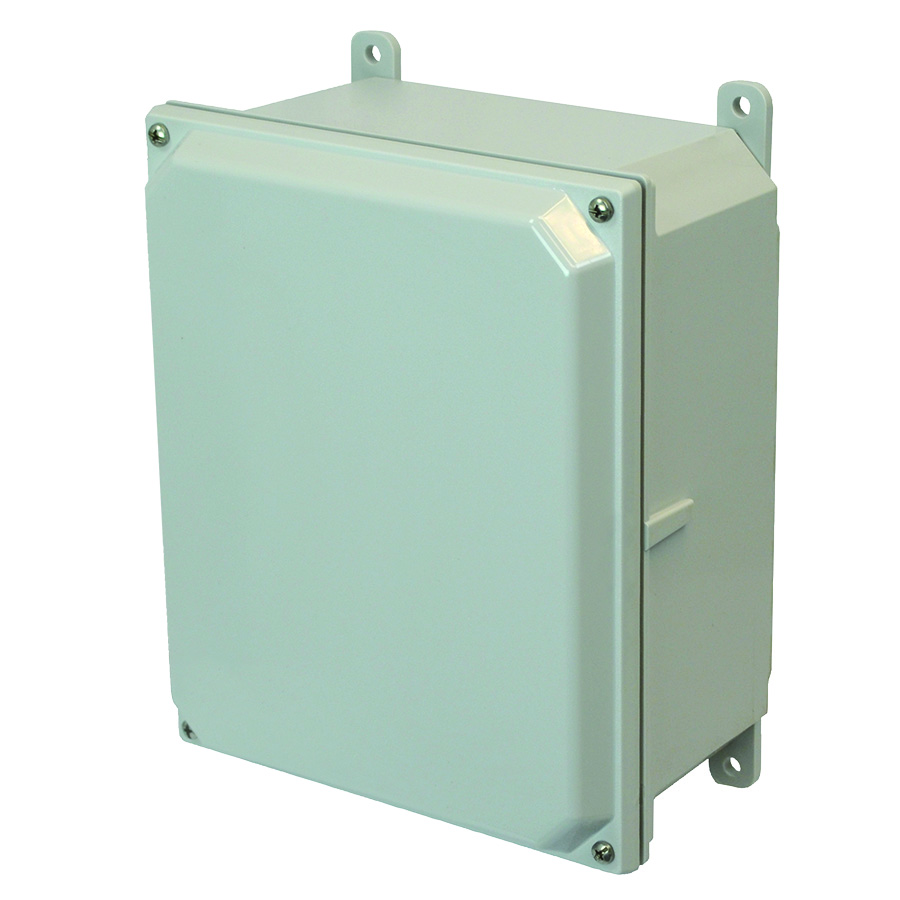

PCJ864

PC Non Met Lift Off Feet

$55.77In stock
Buy now

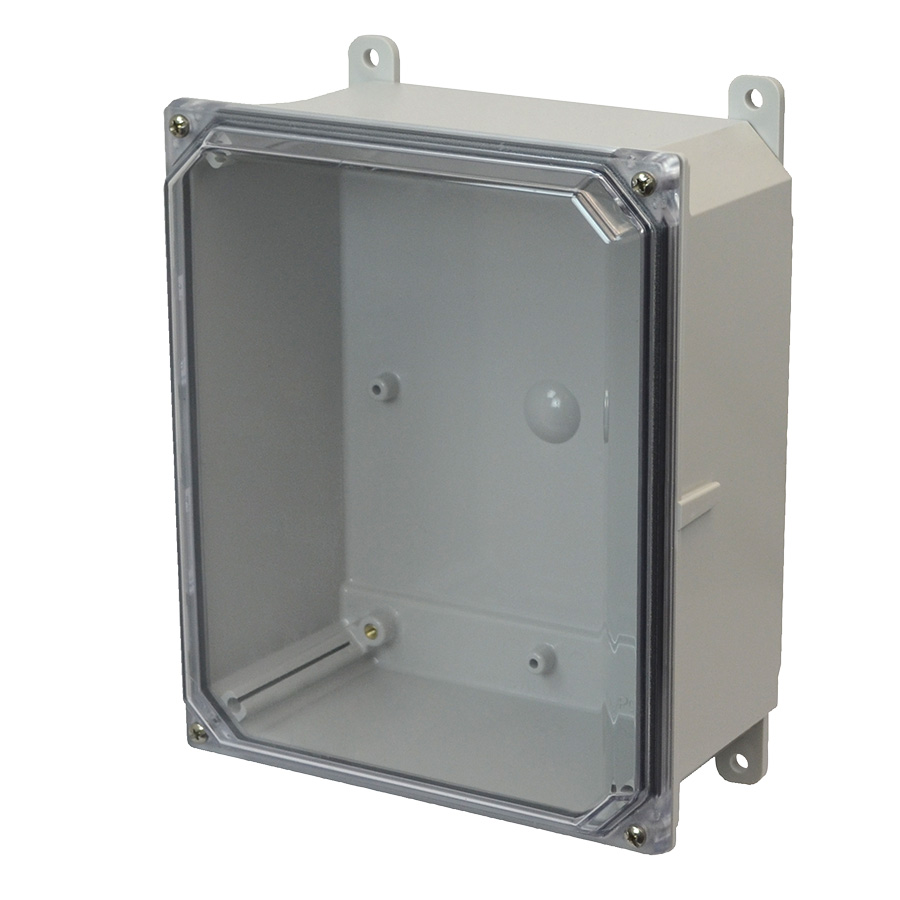

PCJ864CC

PC Non Met Lift Off Clr Feet

$61.30In stock
Buy now
Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

Solid Cover · w/Flange · Part No.Solid Cover · w/Feet · Part No.Clear Cover · w/Flange · Part No.Clear Cover · w/Feet · Part No.Enclosure · HEnclosure · WEnclosure · DOptional Inner Panel · HOptional Inner Panel · WOptional Inner Panel · Part No.PriceOrder
PCJ443PCJ443CC3.953.953.313.563.56PCJR0303$36.19In stockPCJ443Buy now
PCJ664FPCJ664PCJ664CCFPCJ664CC5.936.163.984.814.81PCJR0505$55.46In stockPCJ664FBuy now
PCJ864FPCJ864PCJ864CCFPCJ864CC7.946.163.986.754.88PCJR0705$58.55In stockPCJ864FBuy now
PCJ884FPCJ884PCJ884CCFPCJ884CC7.948.153.986.756.88PCJR0808$60.10In stockPCJ884FBuy now
PCJ1082FPCJ1082PCJ1082CCFPCJ1082CC9.938.152.708.756.88PCJR0907$58.28BackorderPCJ1082FBuy now
PCJ1084FPCJ1084PCJ1084CCFPCJ1084CC9.938.153.988.756.88PCJR0907$60.86In stockPCJ1084FBuy now
PCJ1086FPCJ1086PCJ1086CCFPCJ1086CC9.938.155.988.756.88PCJR0907$64.60In stockPCJ1086FBuy now
PCJ12104FPCJ12104PCJ12104CCFPCJ12104CC11.9210.153.9810.758.88PCJR1109$74.57BackorderPCJ12104FBuy now
PCJ12106FPCJ12106PCJ12106CCFPCJ12106CC11.9210.155.9810.758.88PCJR1109$81.00BackorderPCJ12106FBuy now
PCJ12126FPCJ12126PCJ12126CCFPCJ12126CC11.9212.165.9810.7510.88PCJR1111$91.29In stockPCJ12126FBuy now
PCJ14126FPCJ14126PCJ14126CCFPCJ14126CC13.9412.165.9812.7510.88PCJR1311$96.02In stockPCJ14126FBuy now
PCJ16148FPCJ16148PCJ16148CCFPCJ16148CC15.9813.987.8114.7512.8814R1513$129.82In stockPCJ16148FBuy now
PCJ181610FPCJ181610PCJ181610CCFPCJ181610CC18.0416.049.8116.8814.88P1868$155.73In stockPCJ181610FBuy now
PCJ201610FPCJ201610PCJ201610CCFPCJ201610CC19.7615.9810.1318.8814.88P2068$234.70In stockPCJ201610FBuy now

Application

  • ■Designed to insulate and protect controls and components in both indoor and outdoor conditions
  • ■Ideal for industrial pump controls, waste water, irrigation control along with solar/wind and chemical plants

Standards

  • ■UL 508A Type 1, 2, 3, 3R, 4, 4X, 12 and 13 (sizes 14x12x6 and smaller, also 6P)
  • ■cUL Type 1, 2, 3, 3R, 4, 4X, 12 and 13per CSA 22.2 No. 94 (sizes 14x12x6 and smaller, also 6P)
  • ■Complies with NEMA Type 1, 2, 3, 3R, 4, 4X, 12 and 13 IEC 60529, IP66 (sizes 14x12x6 and smaller, also IP68) Flammability V-O per UL 94 UV rating (f1) per UL746C - UV stabilized for outdoor use Compliant with RoHS directive
  • ■NEMA Type 1, 2, 3, 3R, 4, 4X, 12 and 13
  • ■IEC 60529, IP66 (sizes 14x12x6 and smaller, also IP68)
  • ■Flammability V-O per UL 94
  • ■UV rating (f1) per UL746C - UV stabilized for outdoor use
  • ■Compliant with RoHS directive

Construction

  • ■Injection moulded polycarbonate thermoplastic enclosure with matching cover is easily punched, cut, or drilled
  • ■Enhanced UV inhibitors protect against outdoor weathering
  • ■Threaded brass inserts are provided for optional inner panel or terminal kit mounting. Mounting hardware is included
  • ■Stainless steel 316 screw fasteners
  • ■Lift-off Cover is fixed with 4 stainless steel screws.

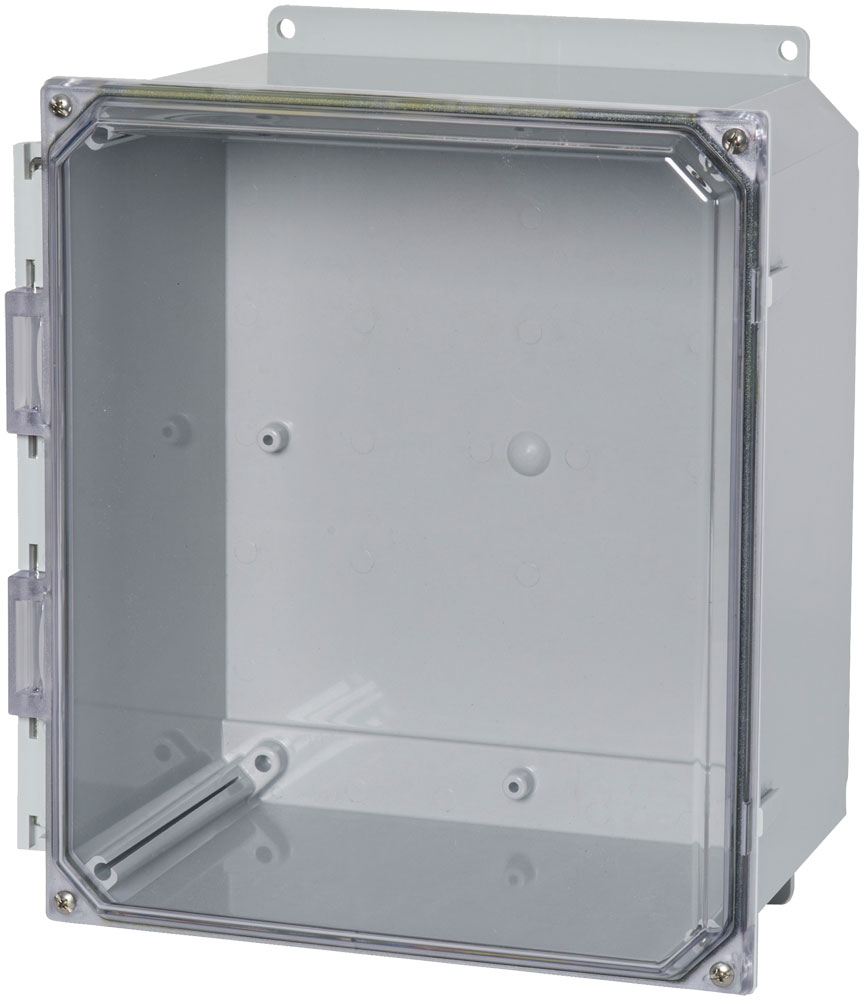

  • ■Enclosure available with clear Polycarbonate cover
  • ■Captive oil resistant gasket provides a positive seal
  • ■Available with Polycarbonate flange or foot mount brackets for multi-directional mounting
  • ■Operating temperatures between 130°C and - 35 °C (266°F to - 31 °F)
  • ■Impact index of 16 J (12 ft/lb)
  • ■For corrosion resistance information, please refer to table in the Technical Information section

Finish

  • ■Polycarbonate material has a light gray finish
  • ■Optional inner panels are available in white powder coated finished steel, unfinished aluminum, or fiberglass

Documents

Specification Sheet

Additional information

Part Details

Solid Cover · w/Flange · Part No.Solid Cover · w/Feet · Part No.Clear Cover · w/Flange · Part No.Clear Cover · w/Feet · Part No.Enclosure · HEnclosure · WEnclosure · DOptional Inner Panel · HOptional Inner Panel · WOptional Inner Panel · Part No.
PCJ443 *PCJ443CC *3.953.953.313.563.56PCJR0303
PCJ664F *PCJ664 *PCJ664CCF *PCJ664CC *5.936.163.984.814.81PCJR0505
PCJ864F *PCJ864 *PCJ864CCF *PCJ864CC *7.946.163.986.754.88PCJR0705
PCJ884F *PCJ884 *PCJ884CCF *PCJ884CC *7.948.153.986.756.88PCJR0808
PCJ1082FPCJ1082PCJ1082CCFPCJ1082CC9.938.152.708.756.88PCJR0907
PCJ1084FPCJ1084PCJ1084CCFPCJ1084CC9.938.153.988.756.88PCJR0907
PCJ1086FPCJ1086PCJ1086CCFPCJ1086CC9.938.155.988.756.88PCJR0907
PCJ12104FPCJ12104PCJ12104CCFPCJ12104CC11.9210.153.9810.758.88PCJR1109
PCJ12106FPCJ12106PCJ12106CCFPCJ12106CC11.9210.155.9810.758.88PCJR1109
PCJ12126FPCJ12126PCJ12126CCFPCJ12126CC11.9212.165.9810.7510.88PCJR1111
PCJ14126FPCJ14126PCJ14126CCFPCJ14126CC13.9412.165.9812.7510.88PCJR1311
PCJ16148FPCJ16148PCJ16148CCFPCJ16148CC15.9813.987.8114.7512.8814R1513
PCJ181610FPCJ181610PCJ181610CCFPCJ181610CC18.0416.049.8116.8814.88P1868
PCJ201610FPCJ201610PCJ201610CCFPCJ201610CC19.7615.9810.1318.8814.88P2068
