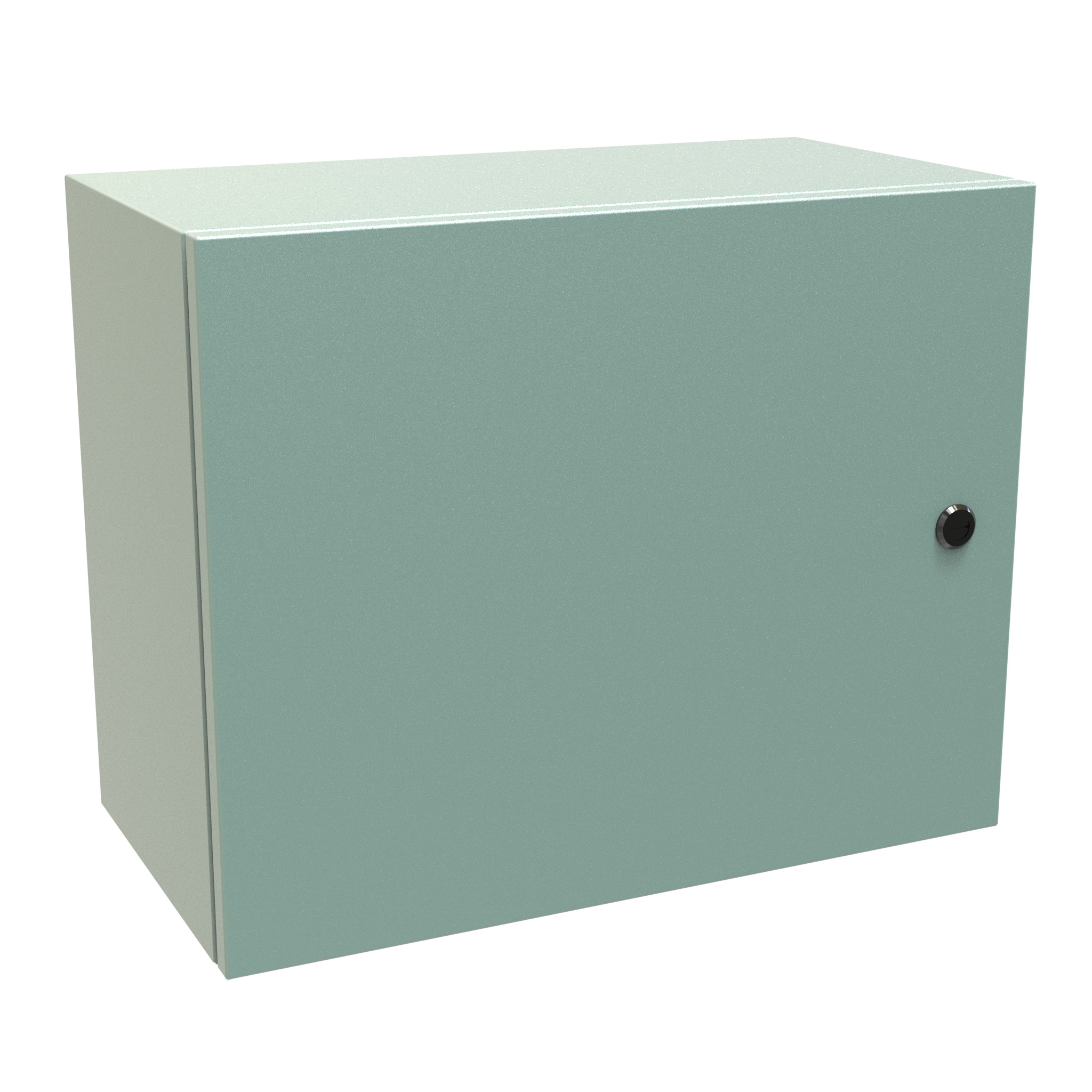

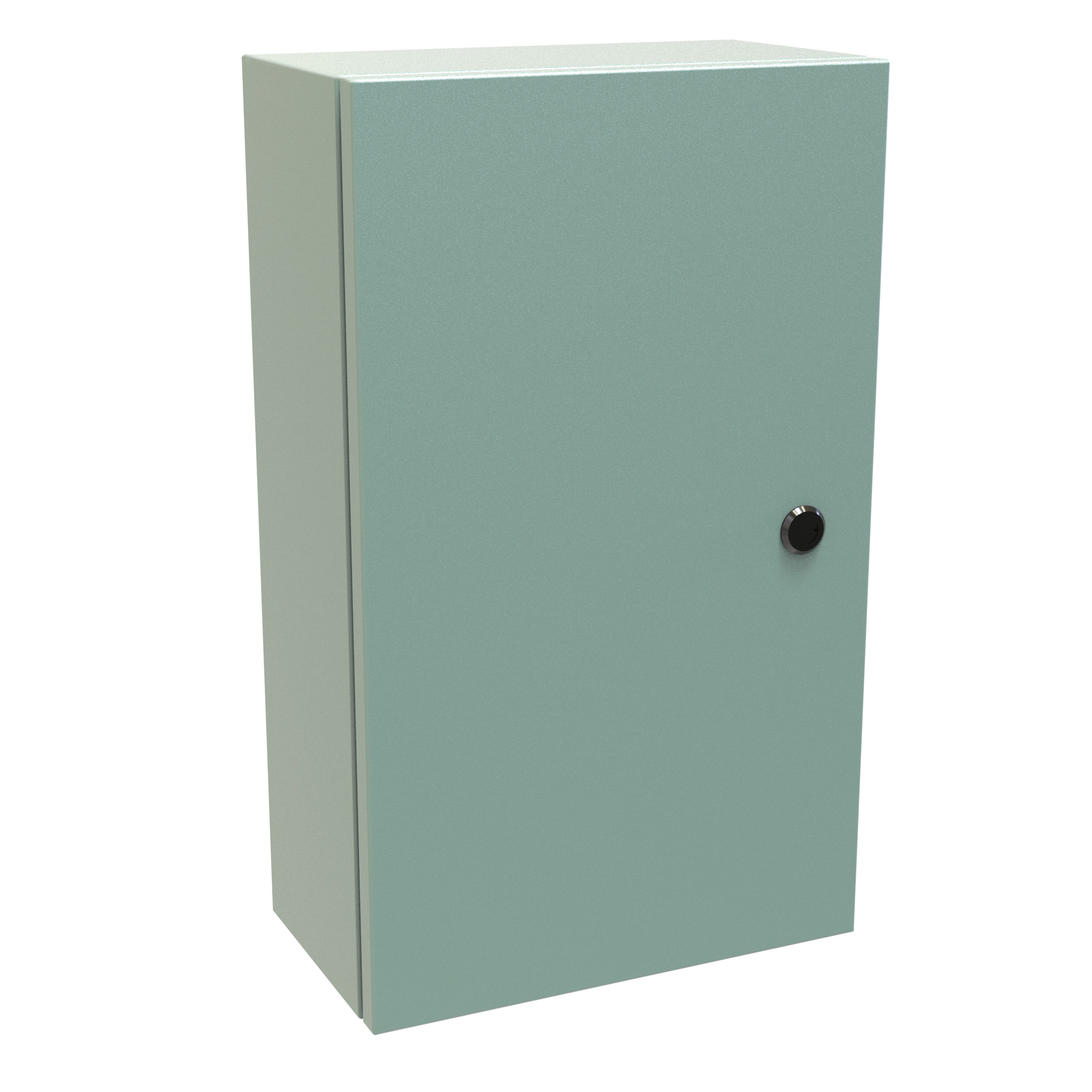

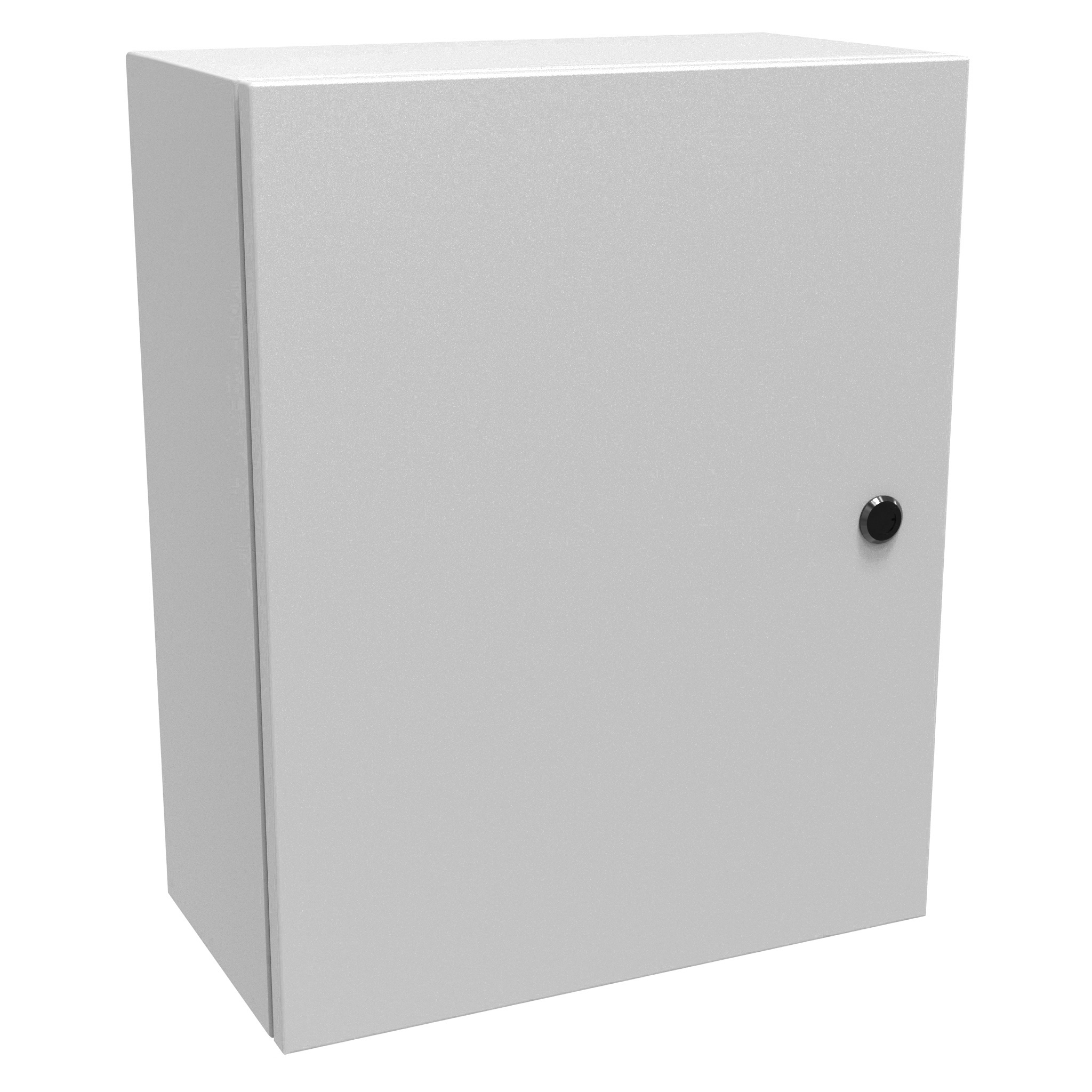

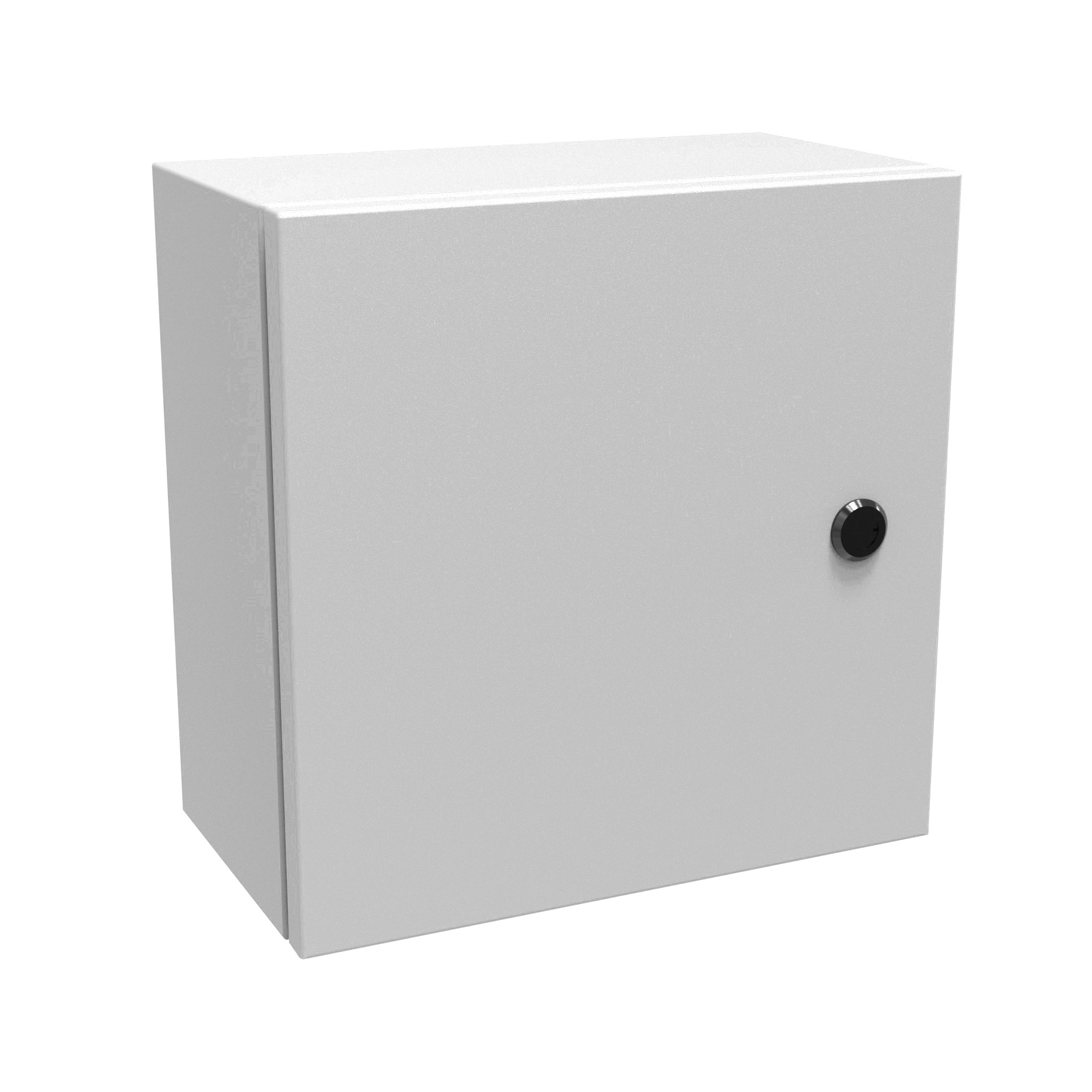

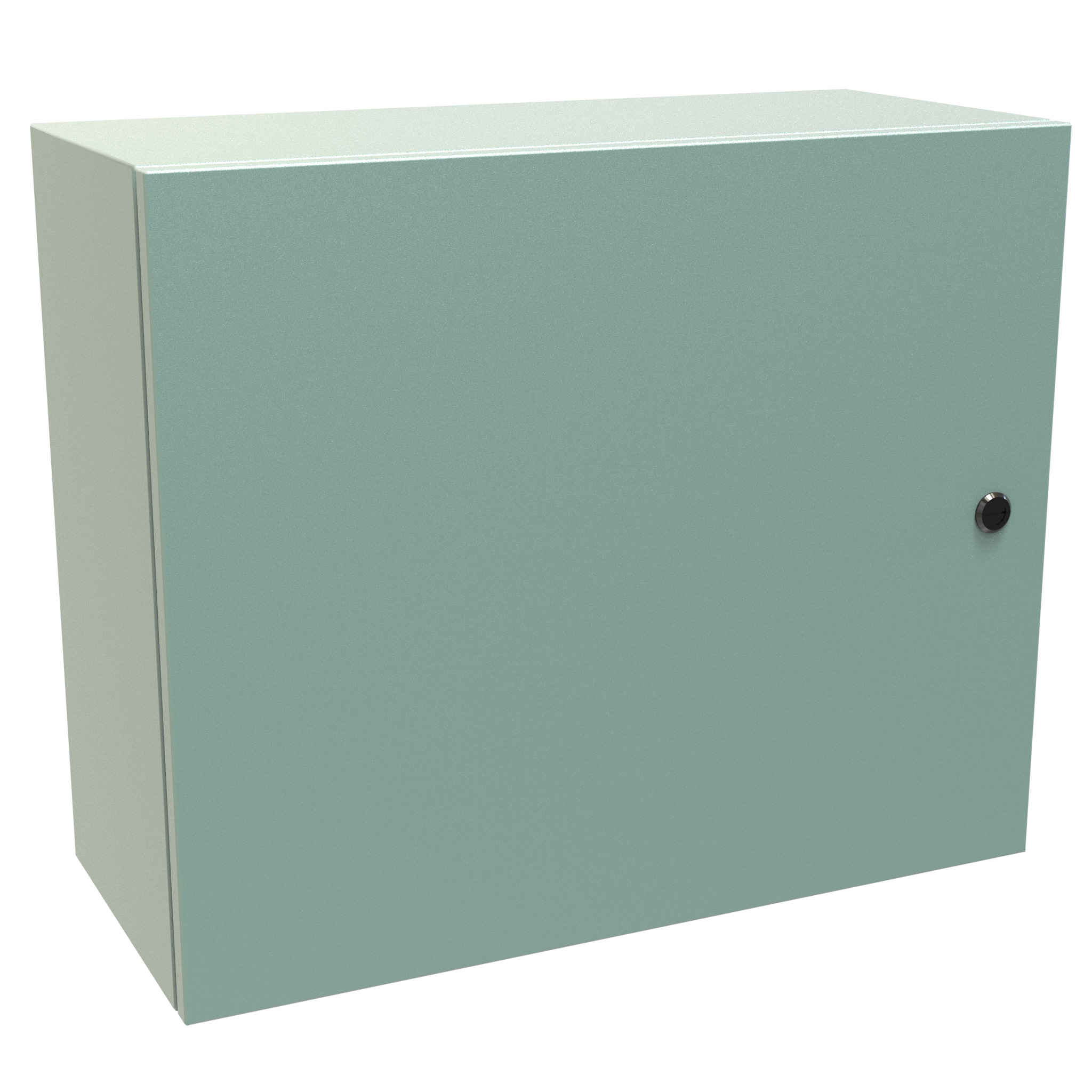

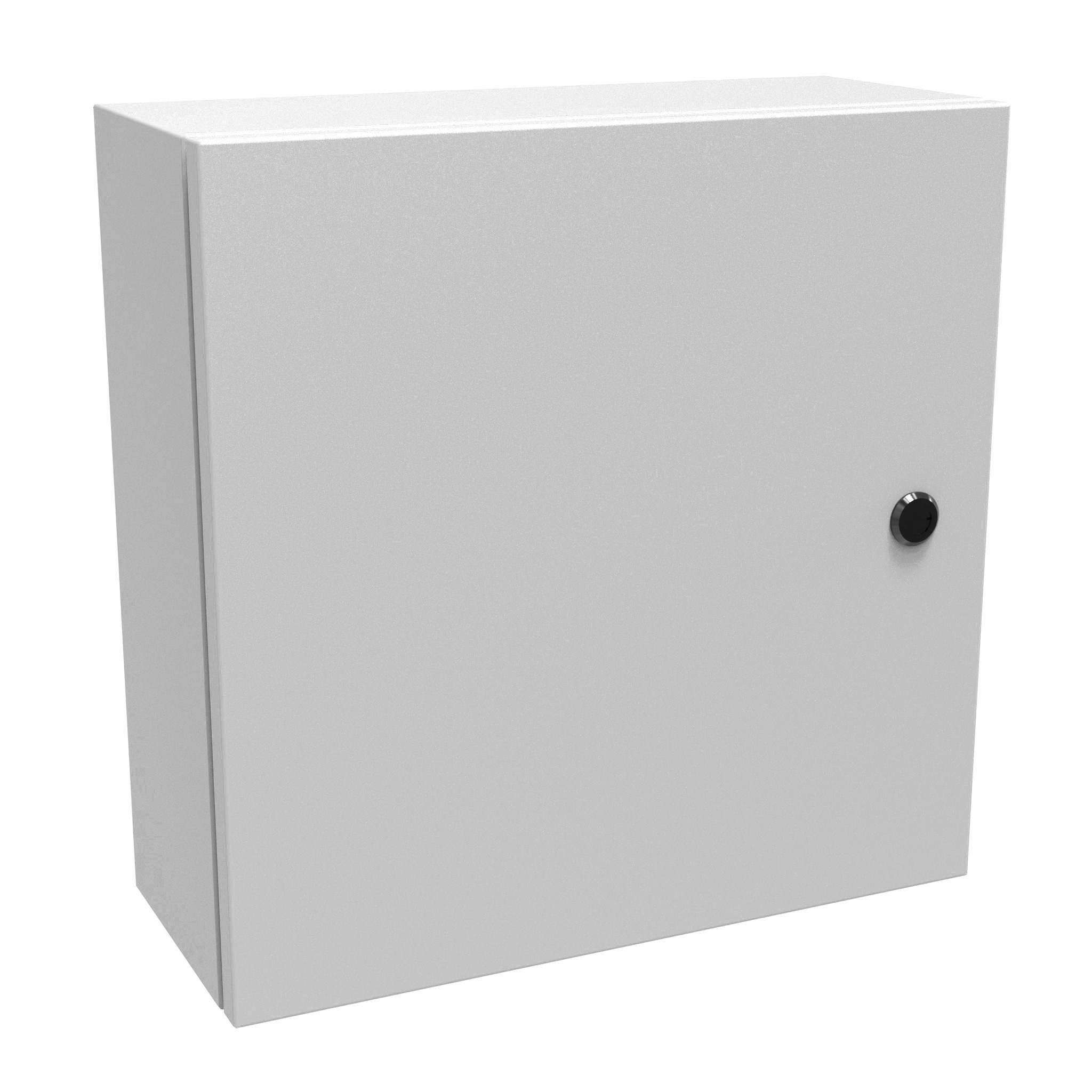

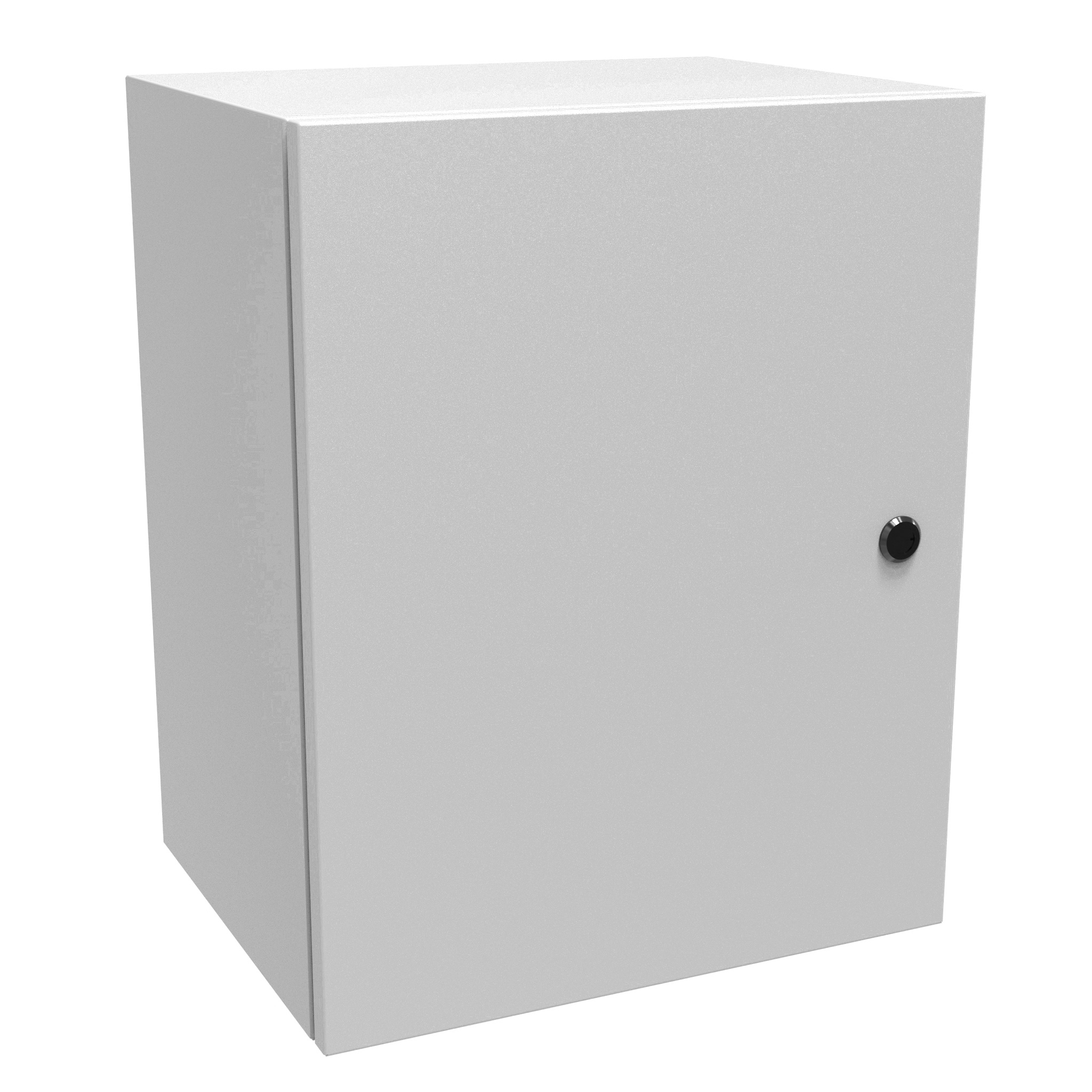

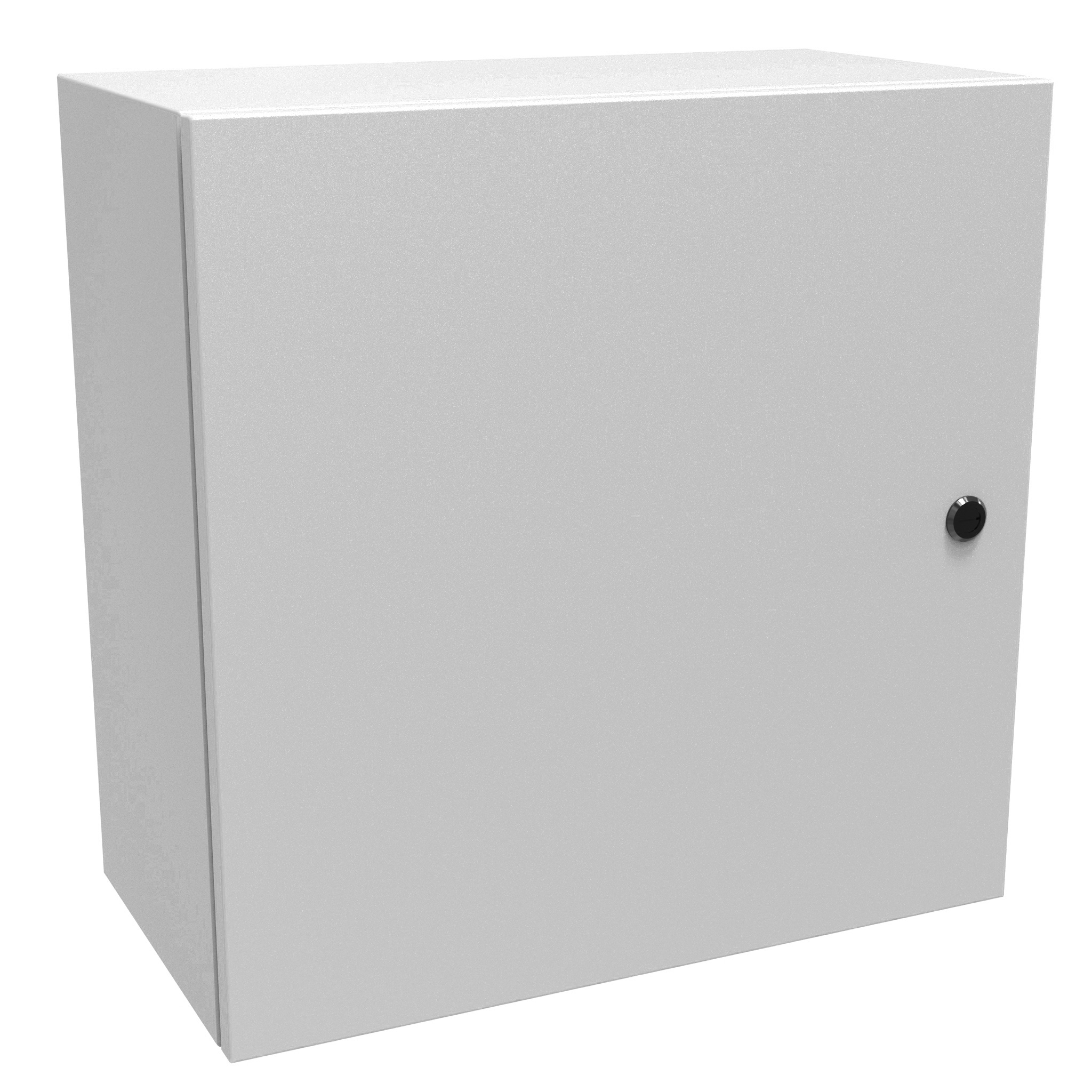

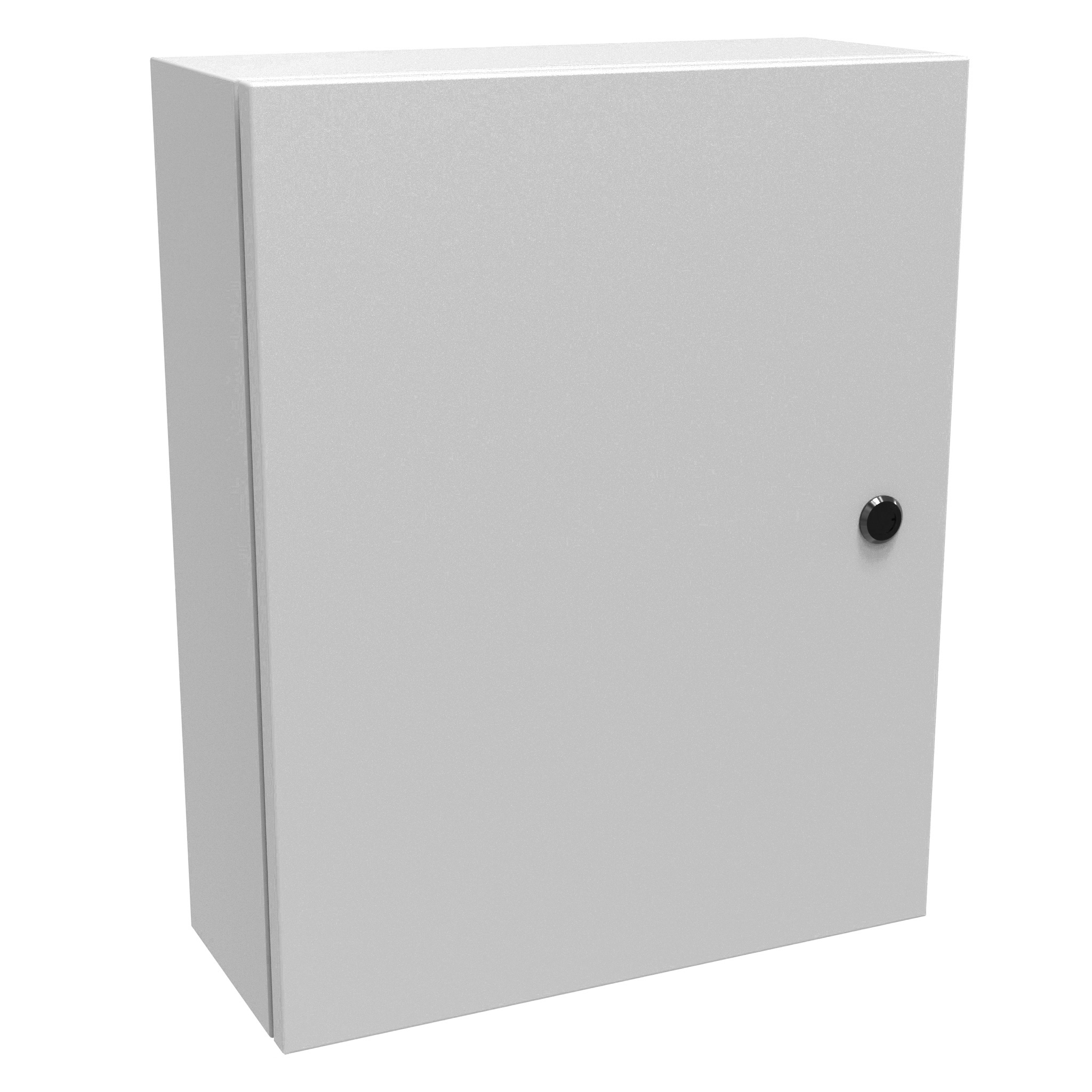

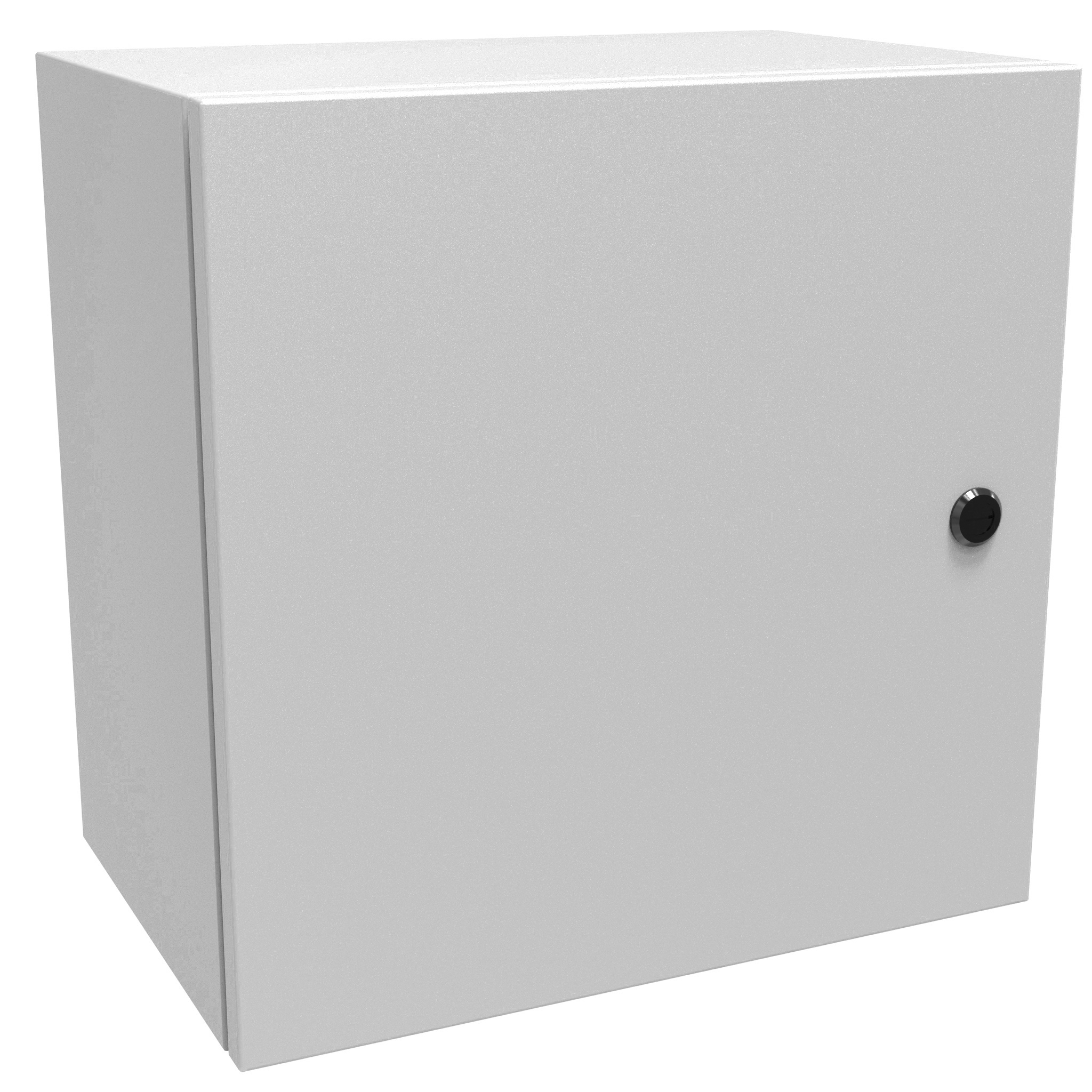

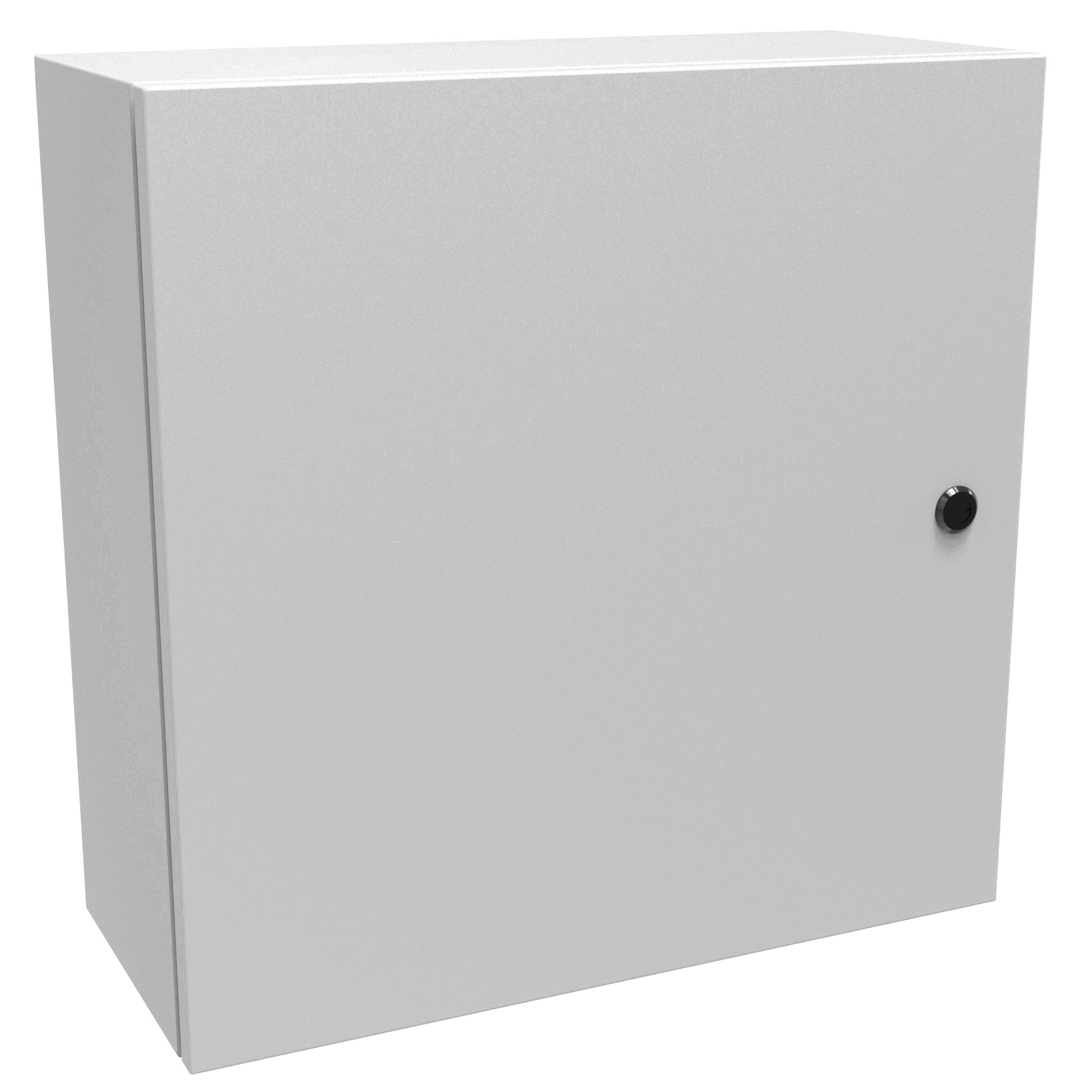

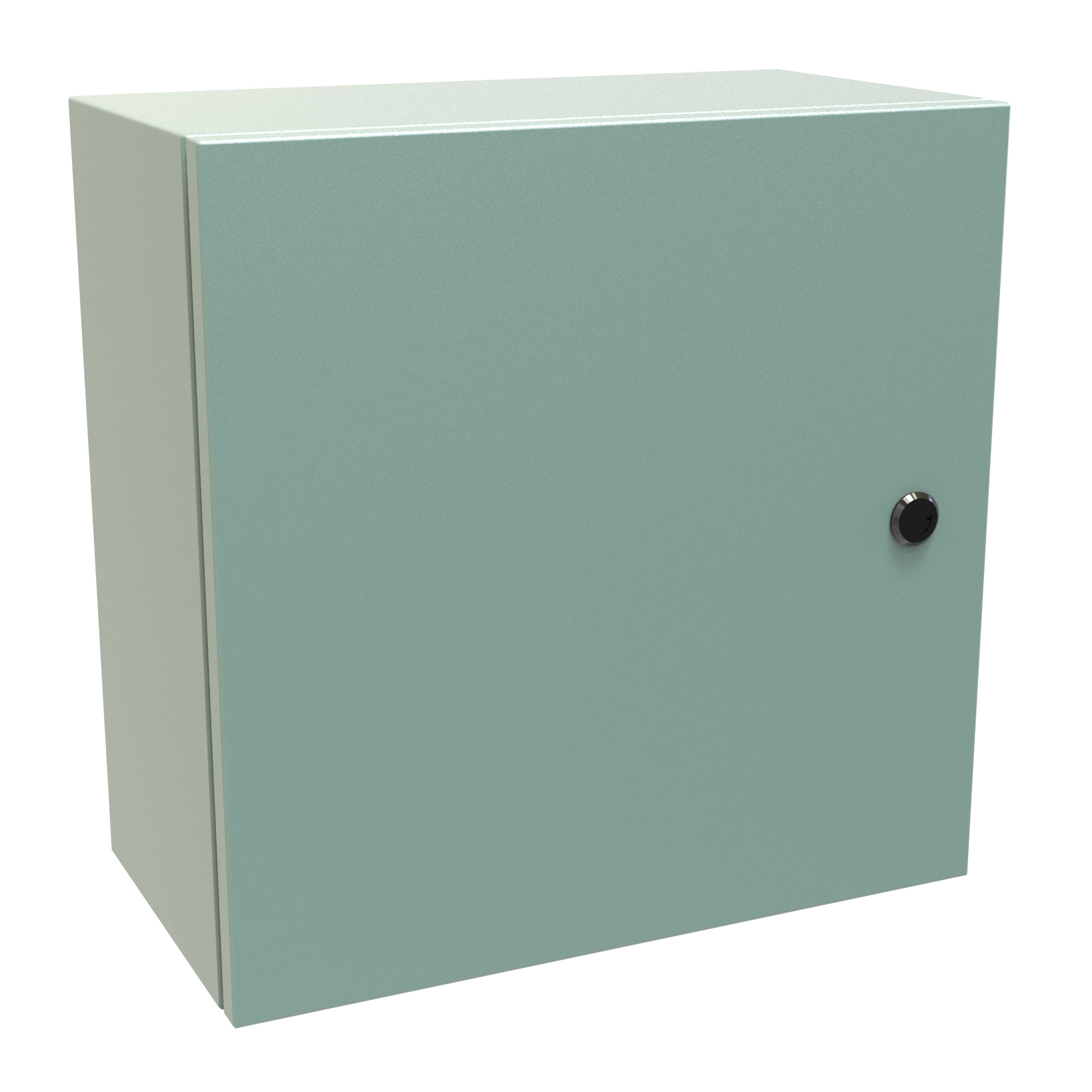

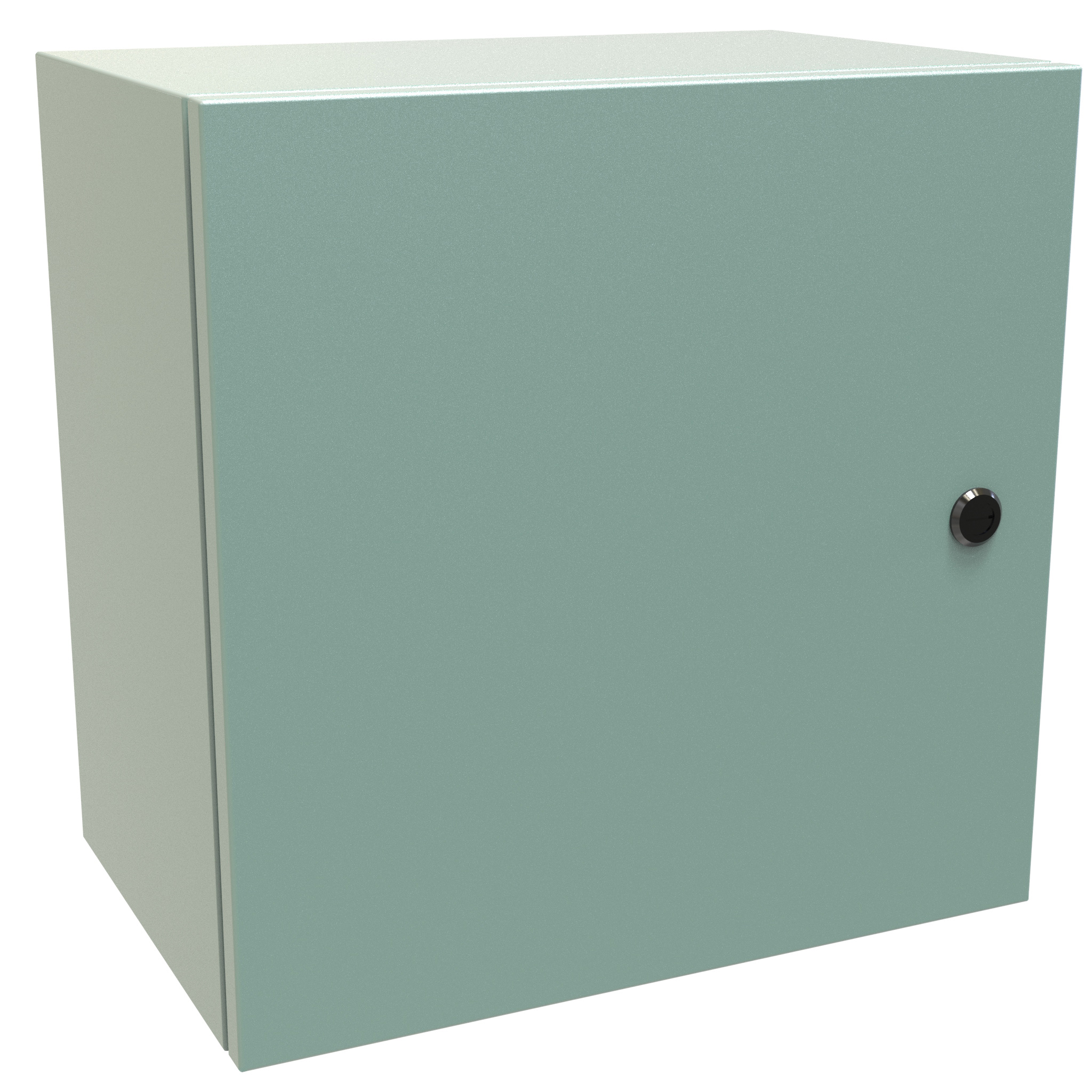

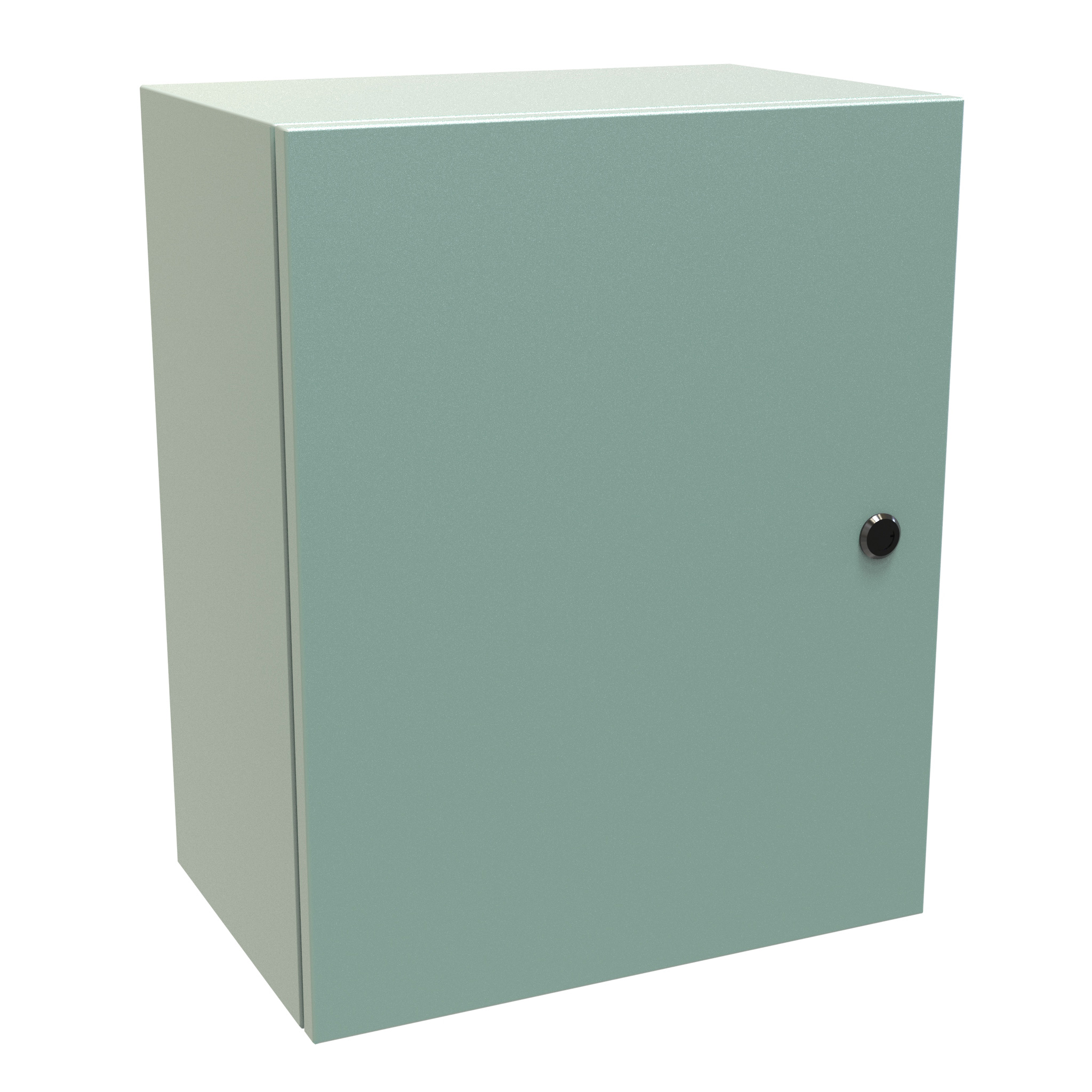

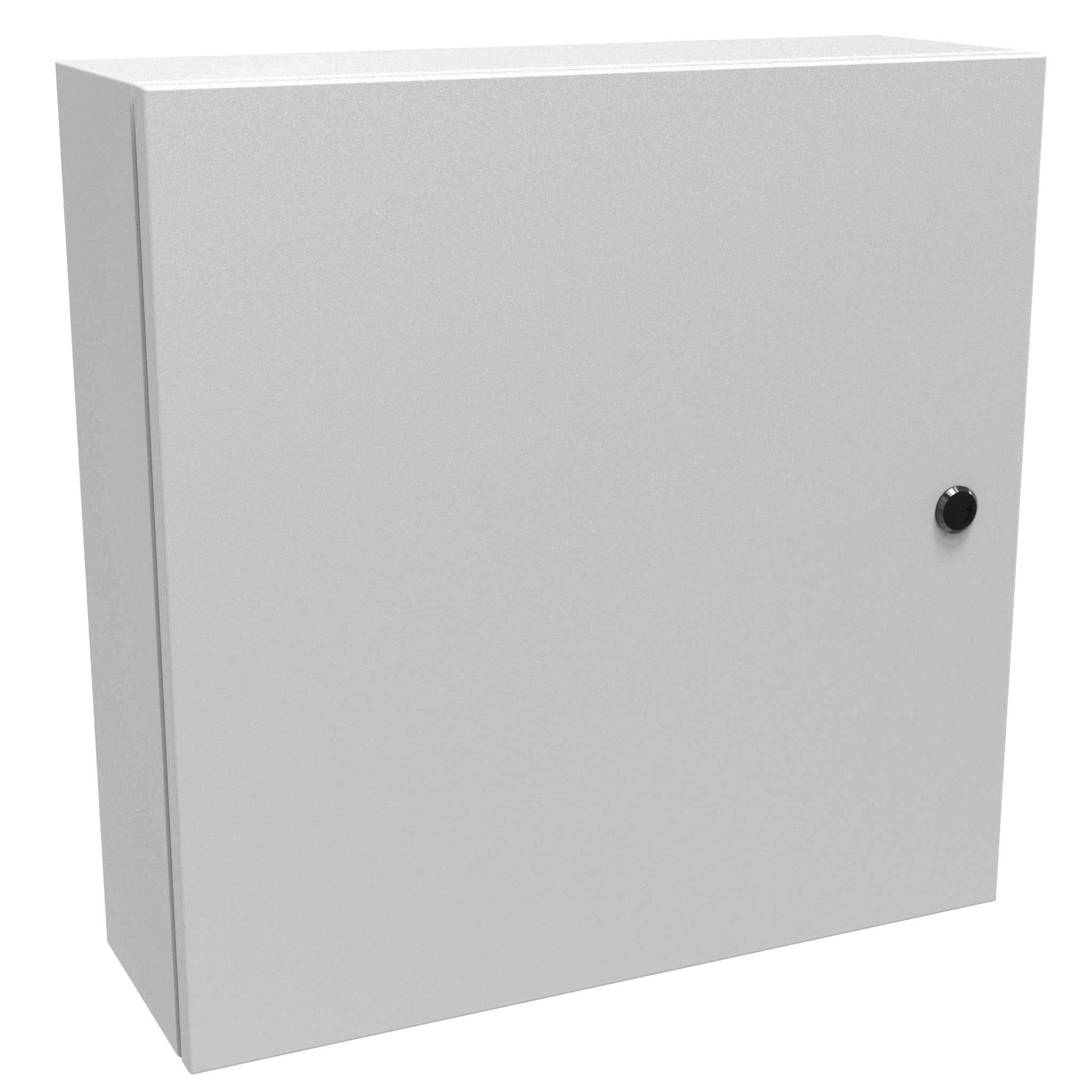

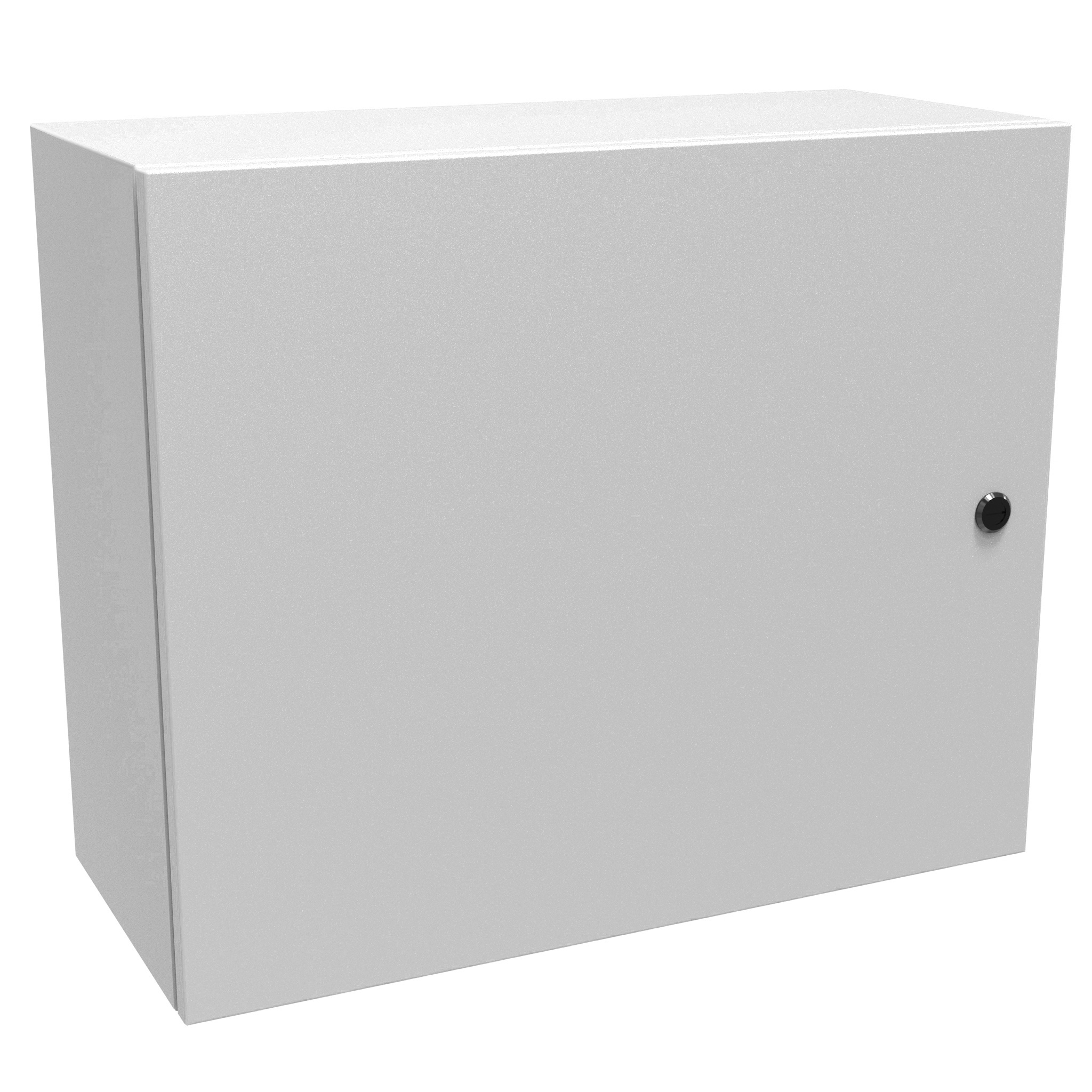

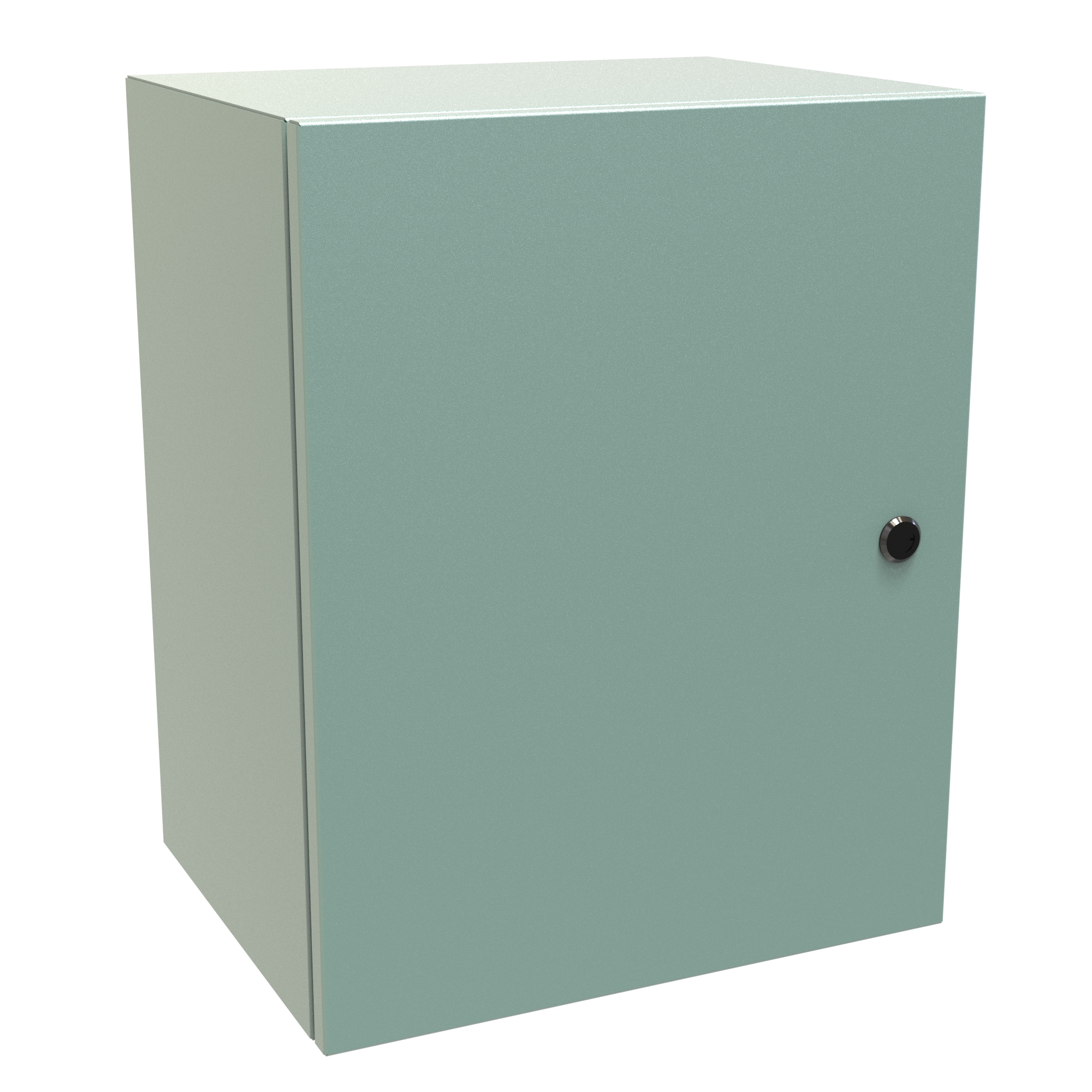

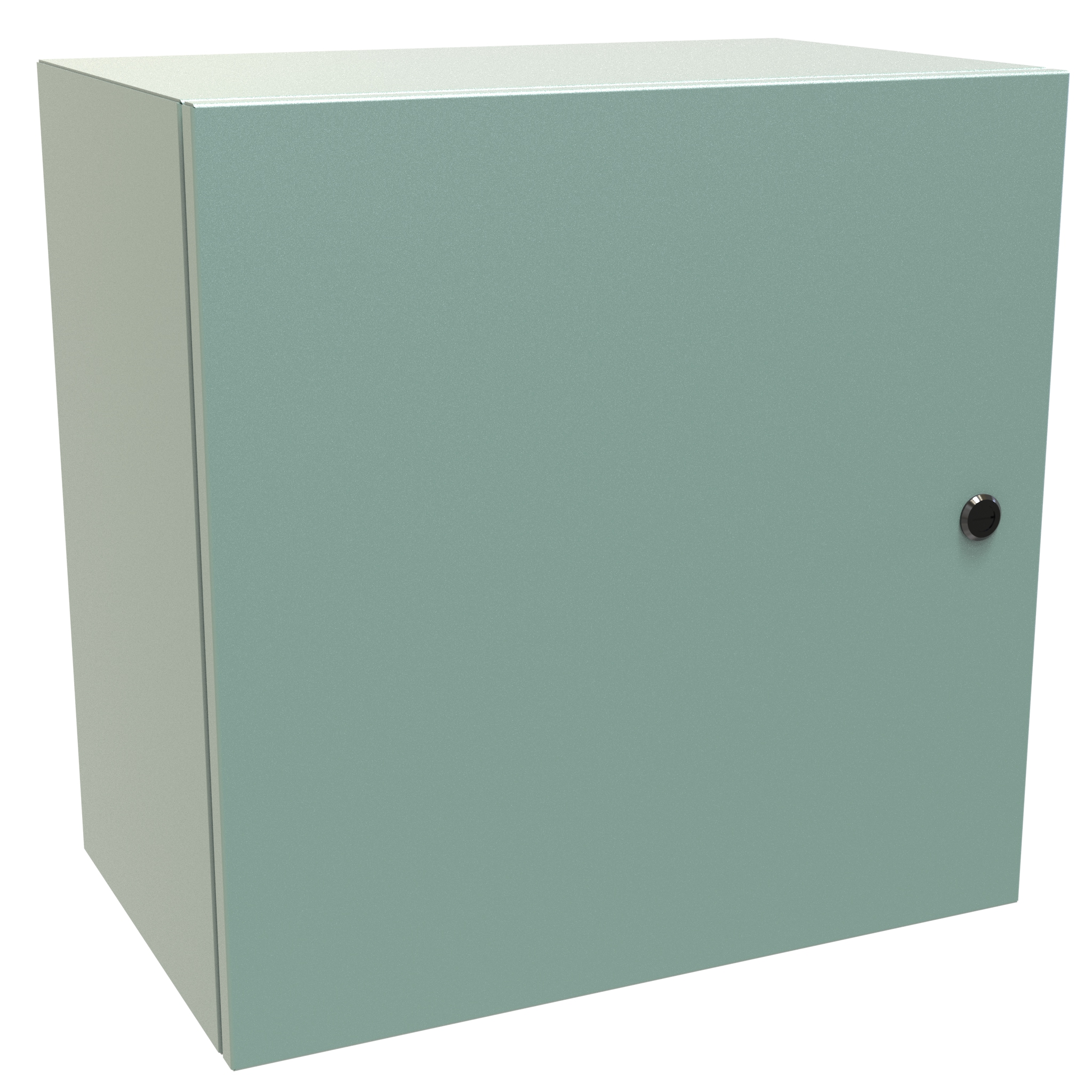

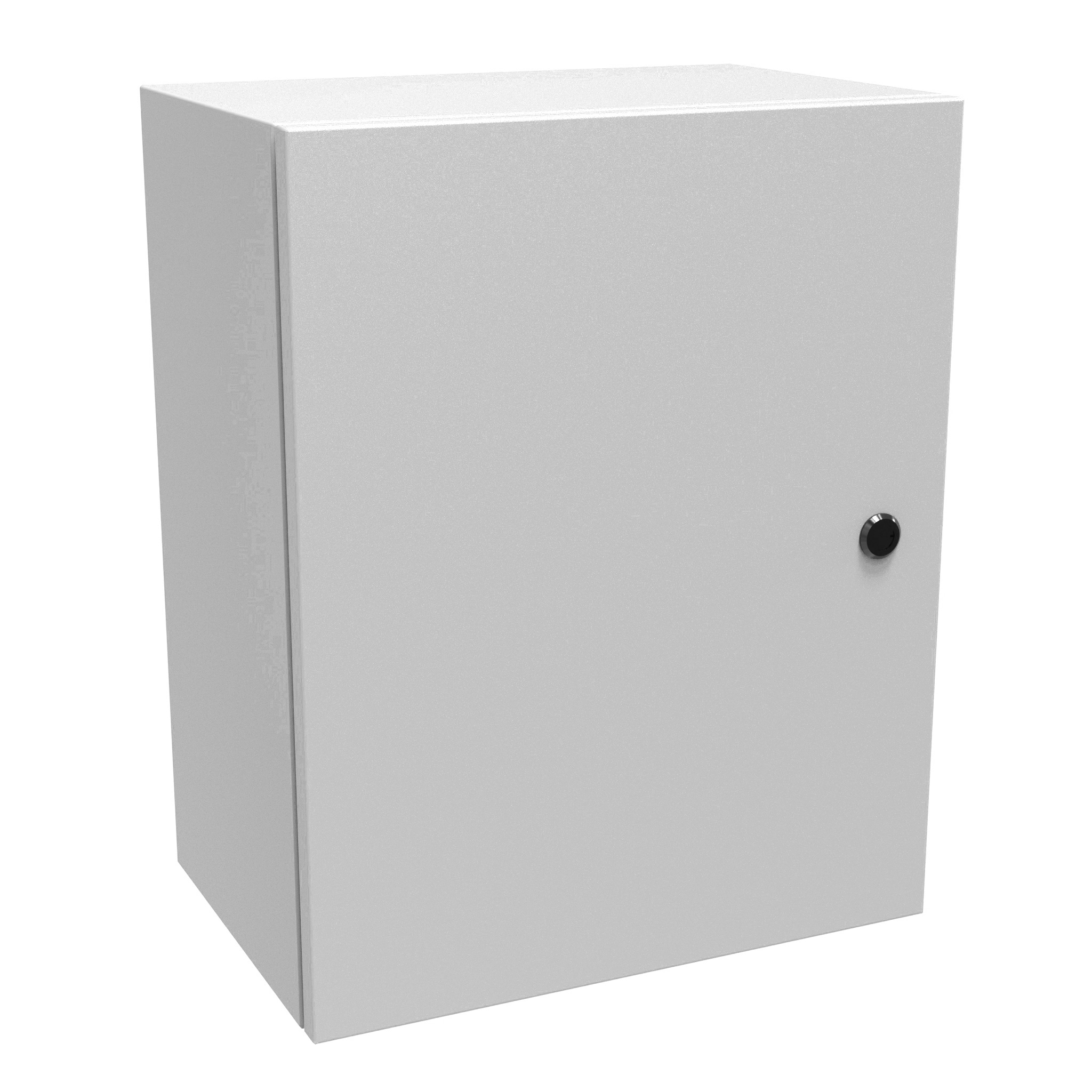

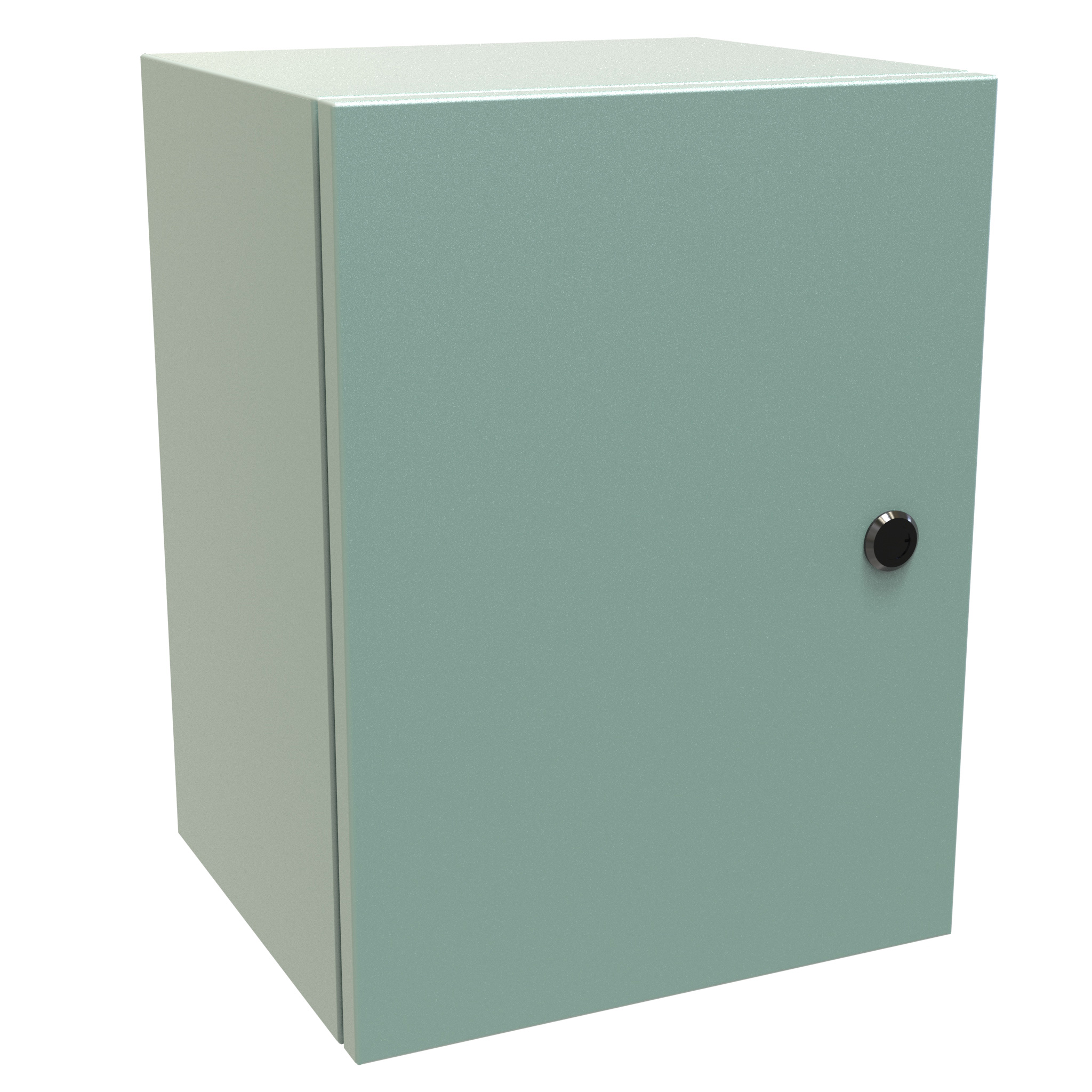

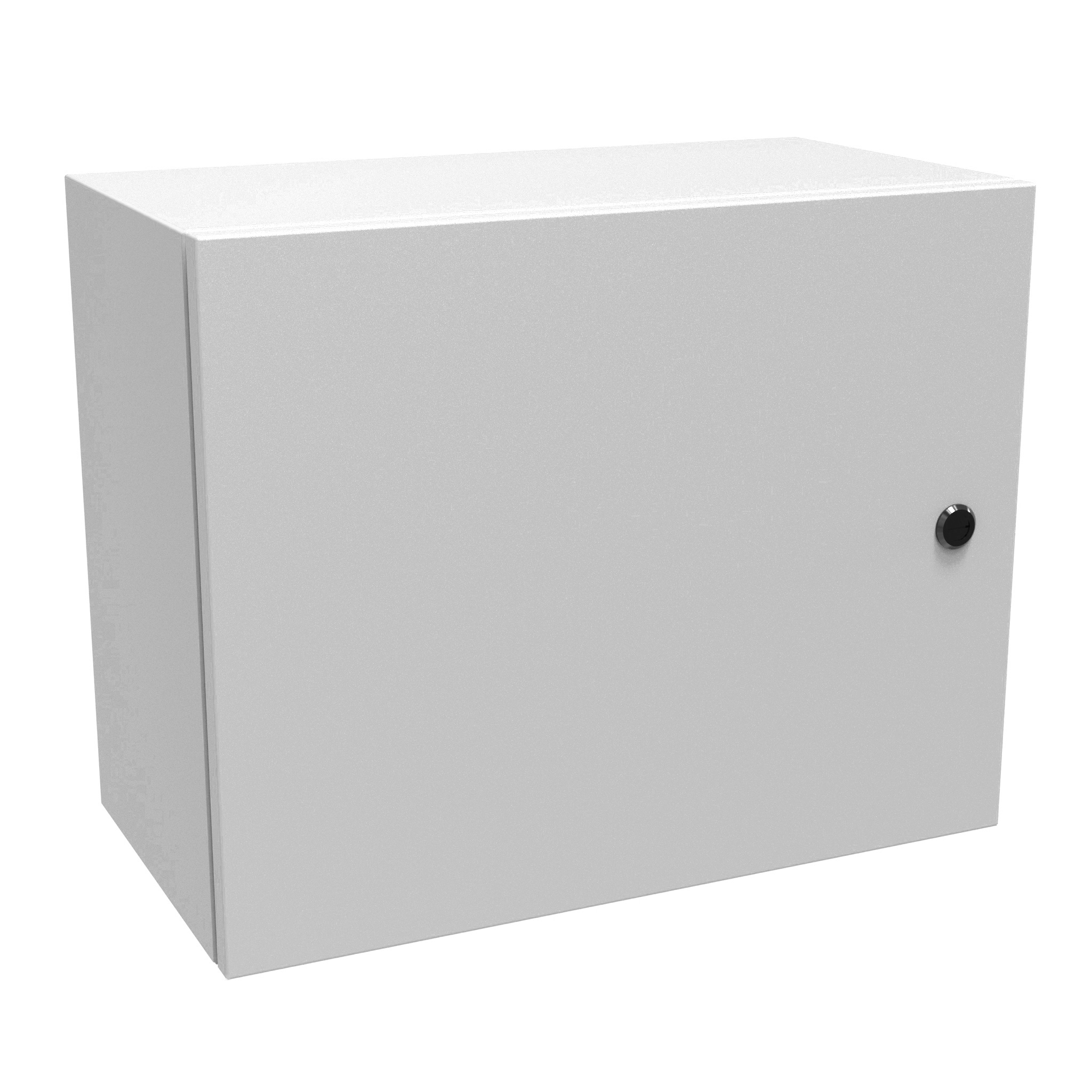

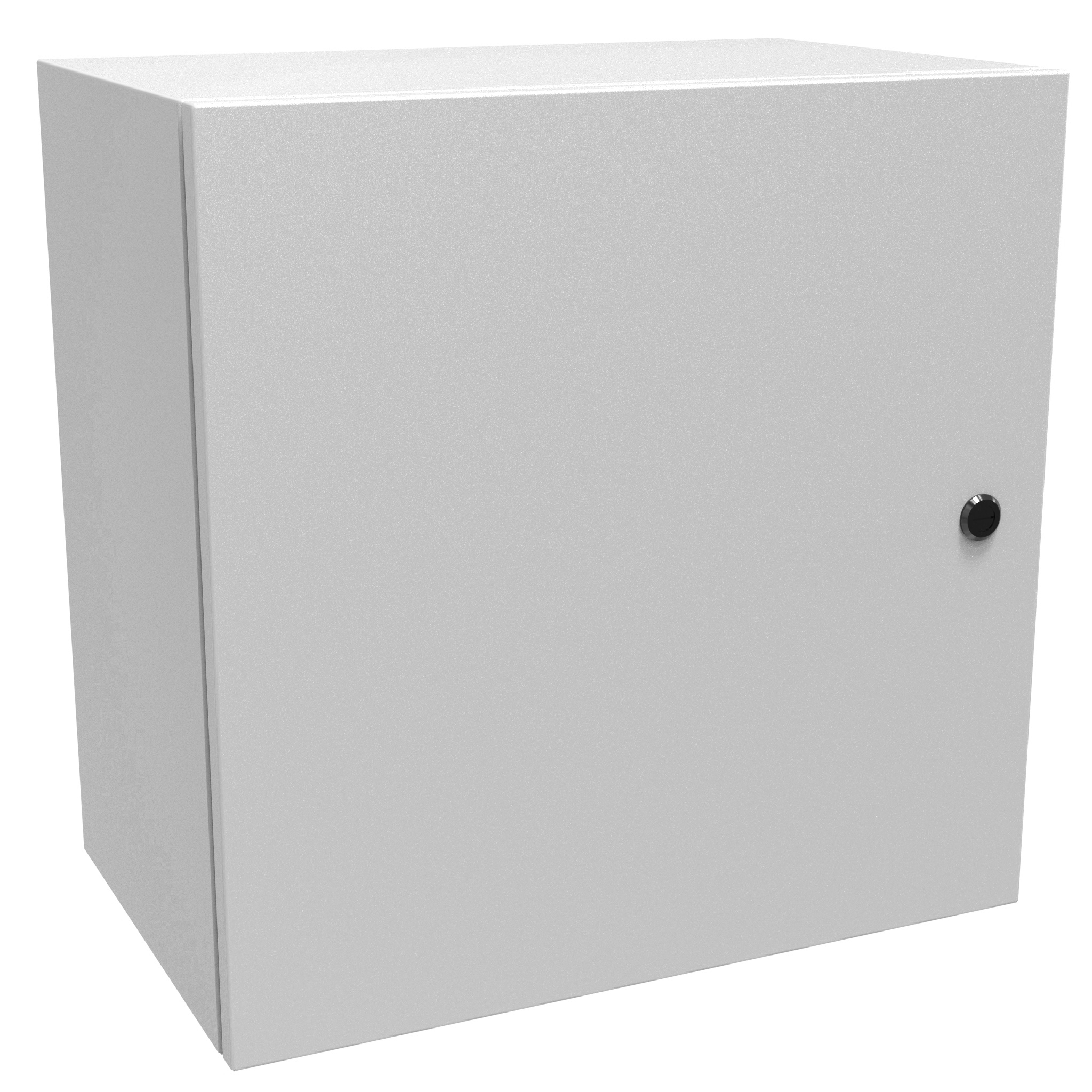

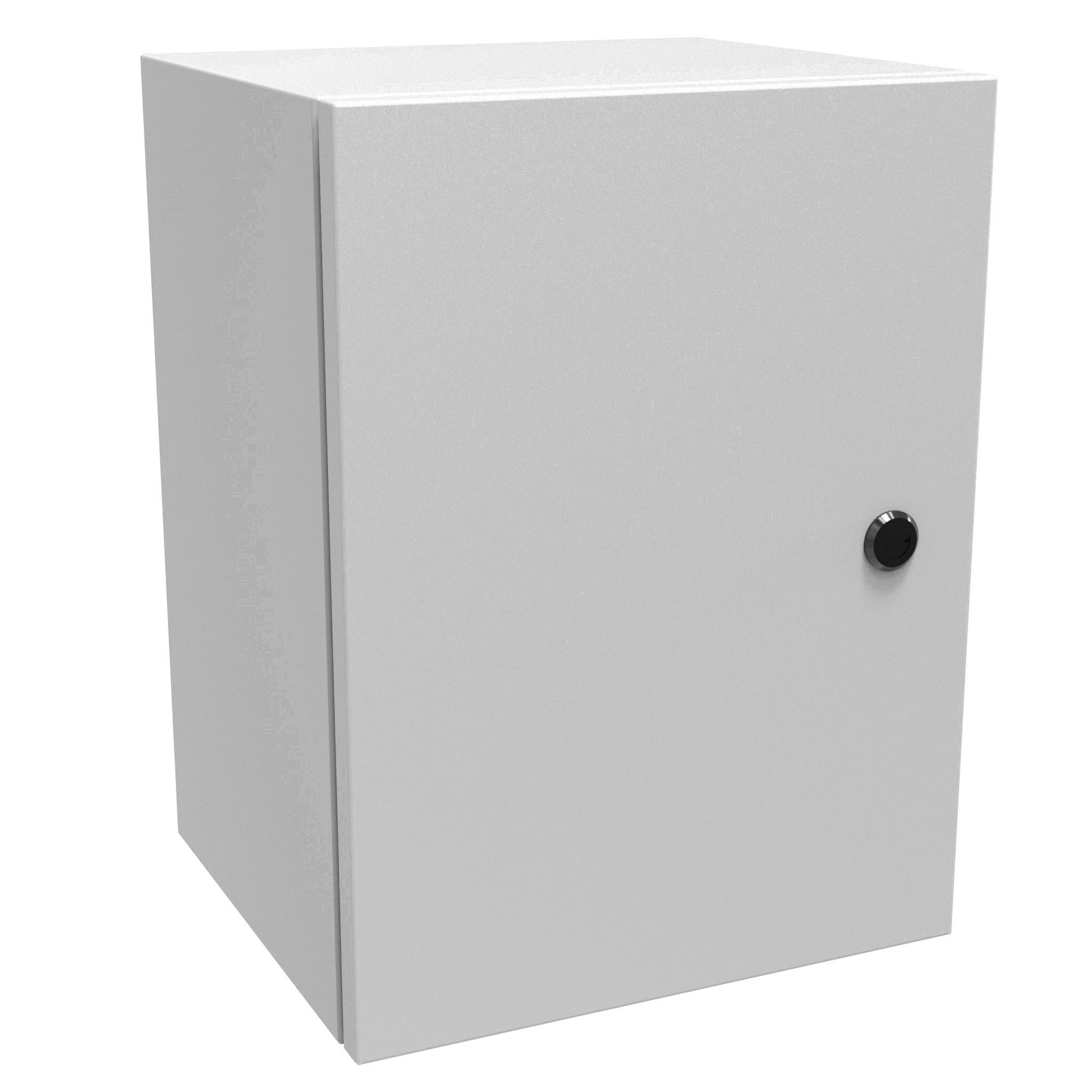

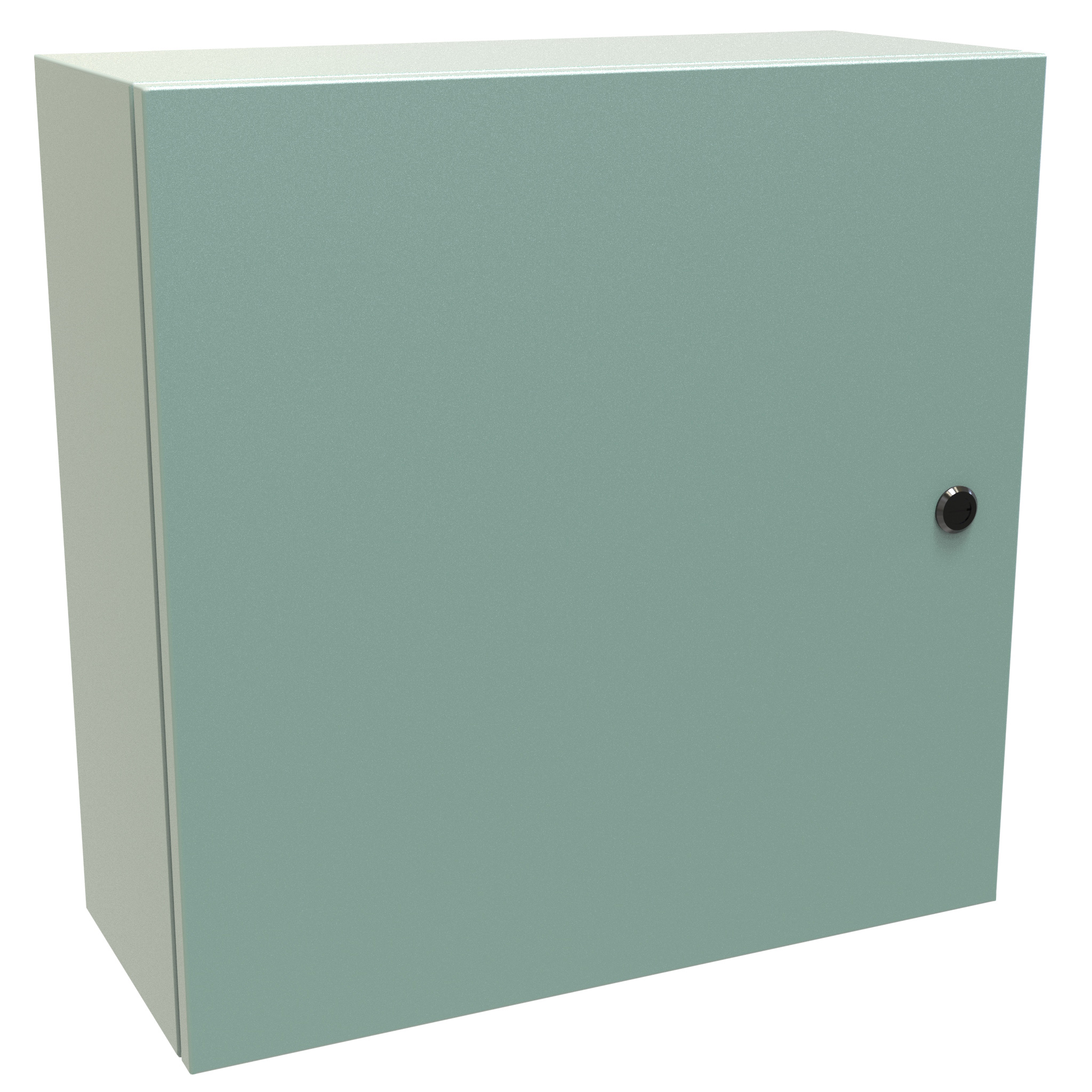

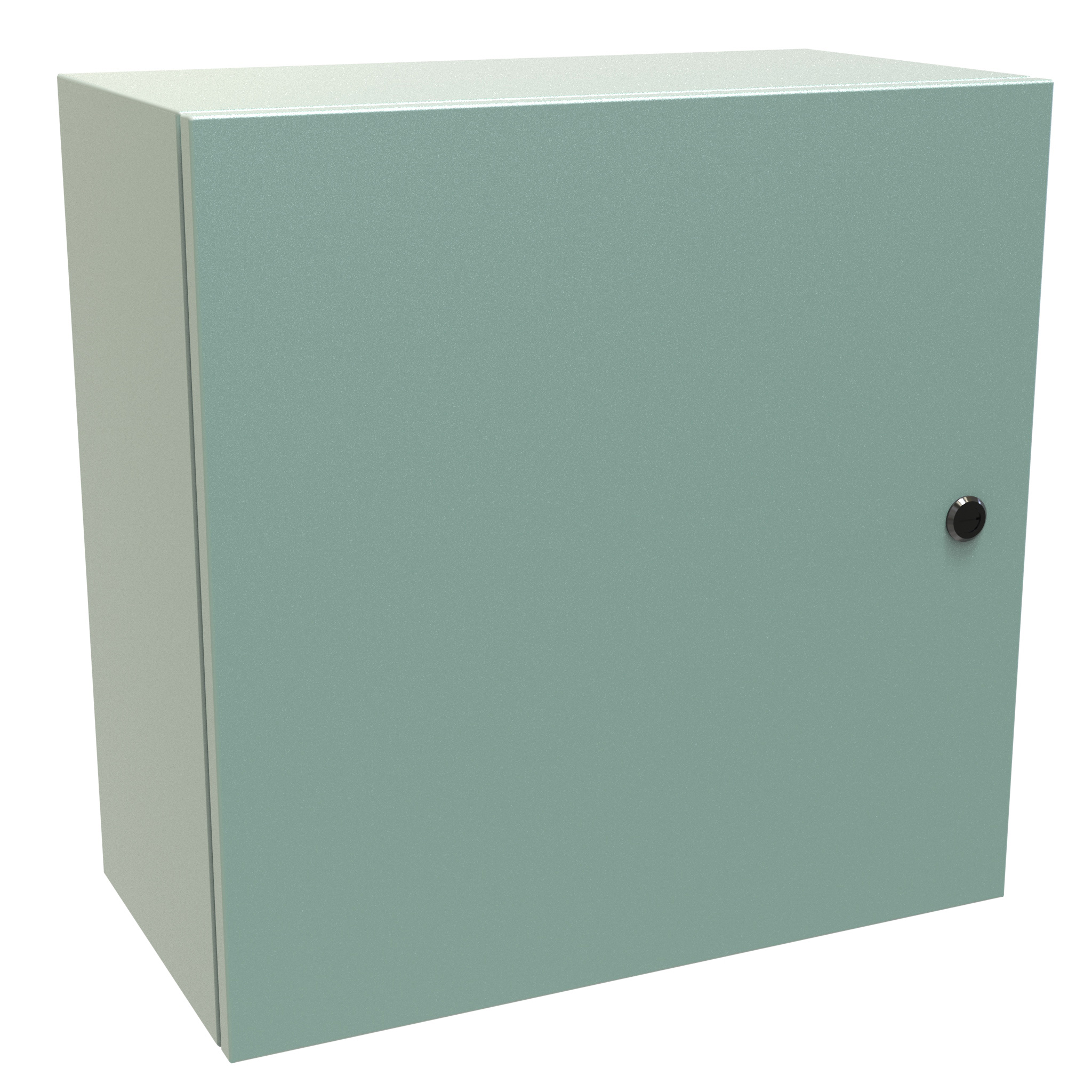

Type 4 Mild Steel Wallmount Enclosure Eclipse Series

Type 4 Mild Steel Wallmount Enclosure · Eclipse Series

Brand: Hammond Manufacturing · 247 part numbers

Hinge Door with Quarter Turn/Handle

  • ■Wallmount electrical enclosure designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments for wallmount applications.
  • ■Impressive styling features like hidden hinges, attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation.
  • ■A wide range of sizes and practical accessories make this product line a complete package.
  • ■UL 508A Type 3R, 4, and 12
  • ■CSA Type 3R, 4, and 12 Mounting foot kit required to maintain UL/CSA external mounting requirements. Sizes >24" (600mm) wide require inner panel to maintain UL/CSA.
  • ■Mounting foot kit required to maintain UL/CSA external mounting requirements.

from $14.98

247 of 247 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocuments

Configure & price

Find your Eclipse Series part number

Filter 224 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

224 of 224 part numbers · 224 priced online

Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

ANSI 61 Gray · Part No.RAL 7035 Light Gray · Part No.Enclosure · HEnclosure · WEnclosure · DLatch · TypeOptional Inner Panel · Part No.Optional Inner Panel · HOptional Inner Panel · WPriceOrder

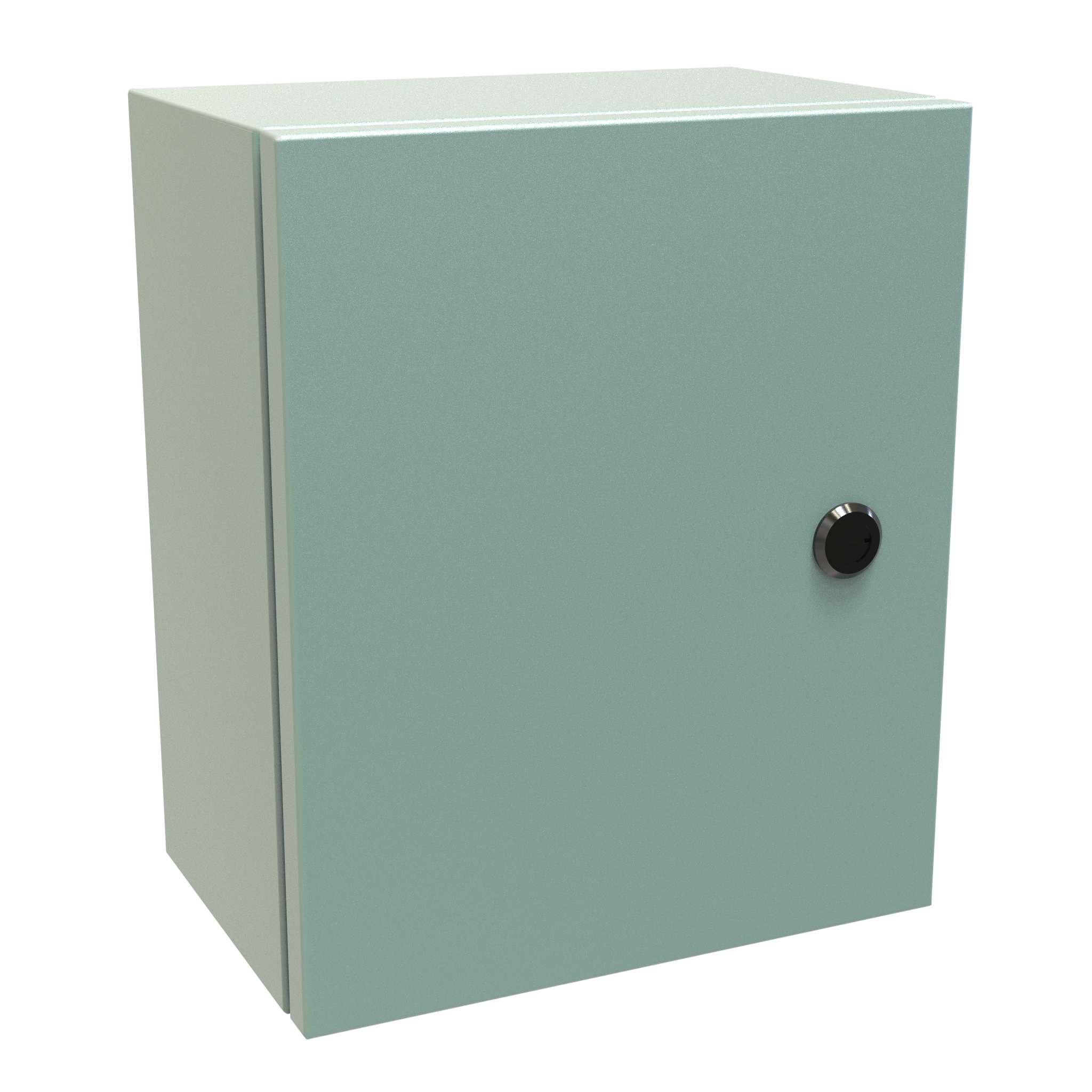

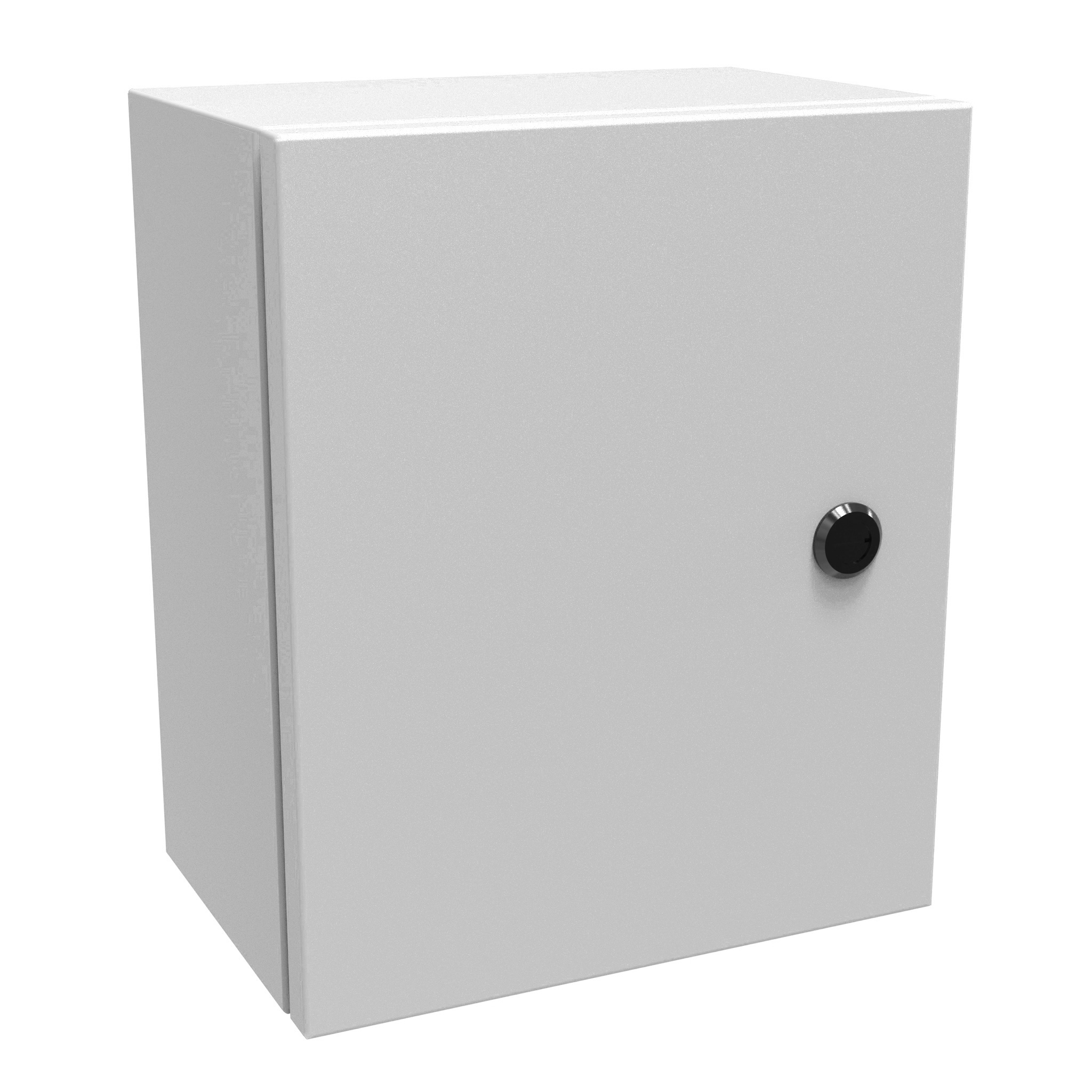

EN4SD12106GYEN4SD12106LG12.0010.006.00AEP121010.208.20$224.69In stockEN4SD12106GYBuy now

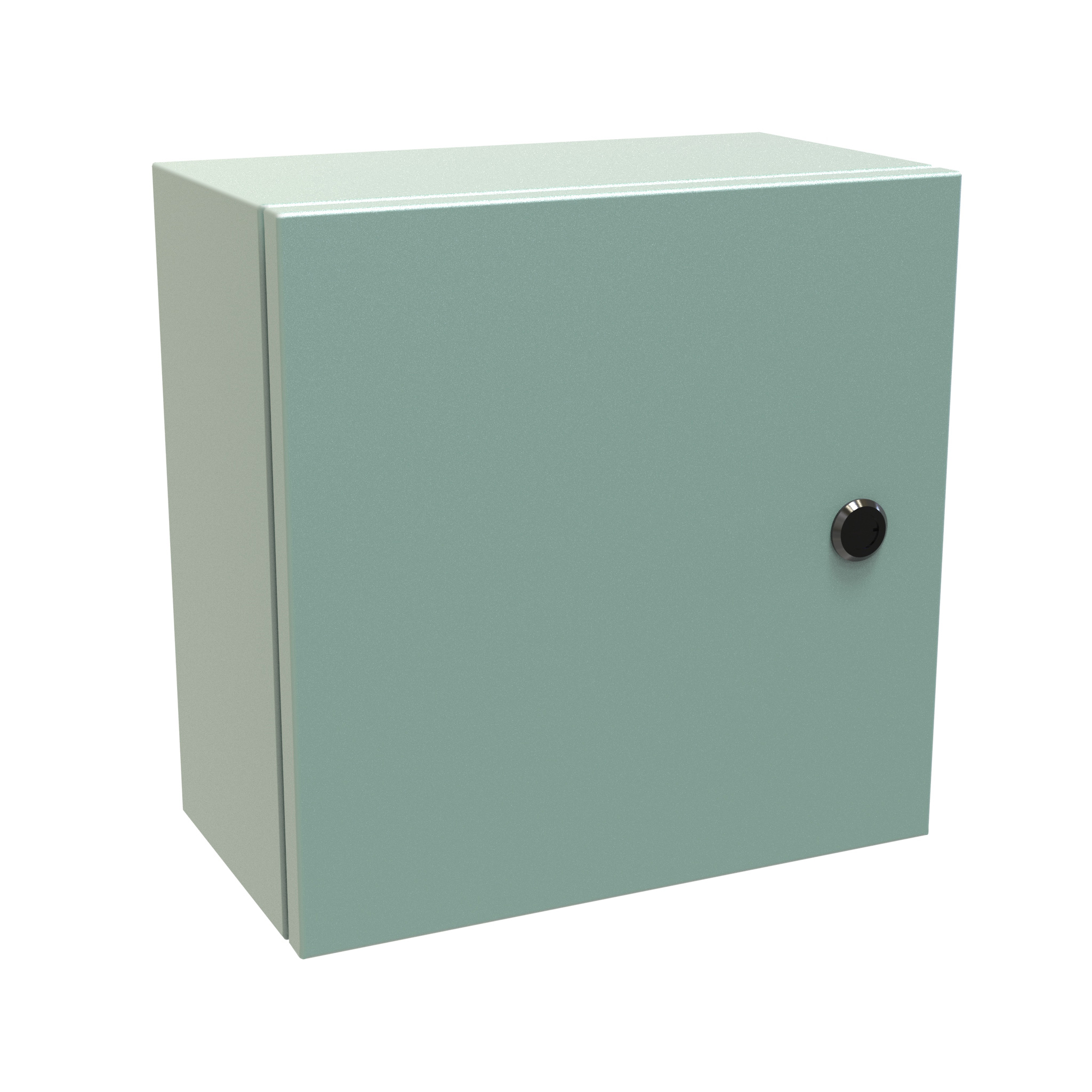

EN4SD12126GYEN4SD12126LG12.0012.006.00AEP121210.2010.20$230.04BackorderEN4SD12126GYBuy now

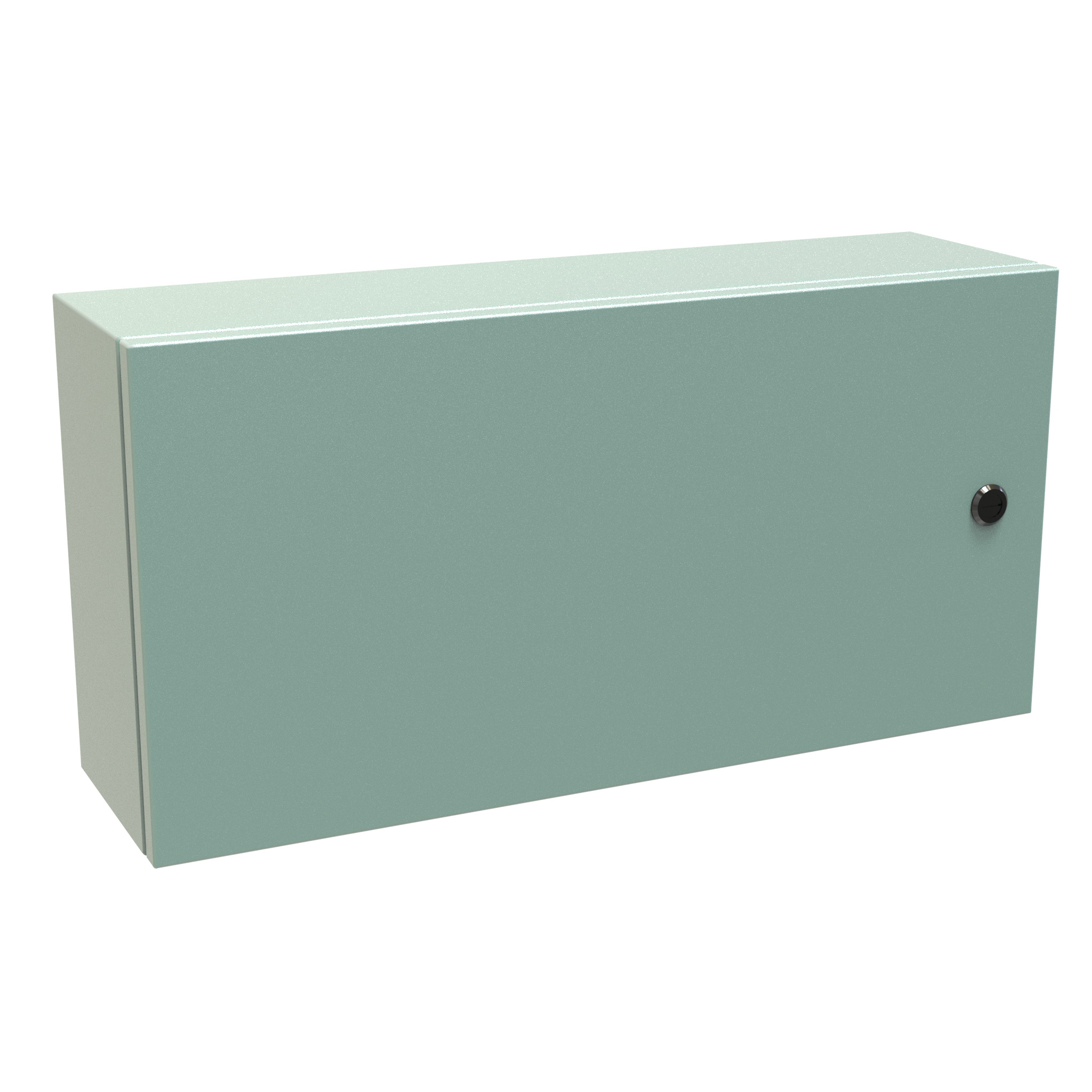

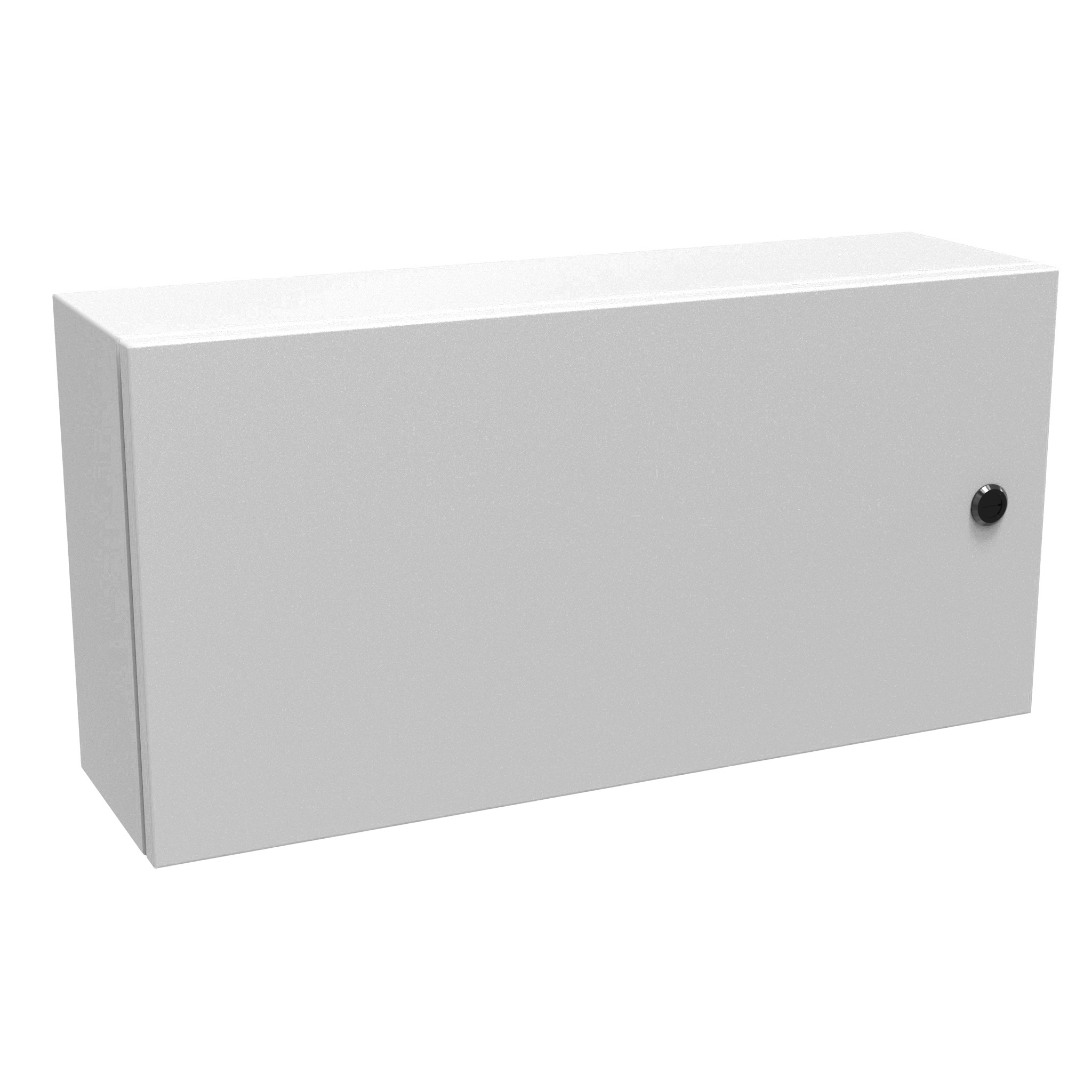

EN4SD12246GYEN4SD12246LG12.0024.006.00AEP122410.2022.20$235.39In stockEN4SD12246GYBuy now

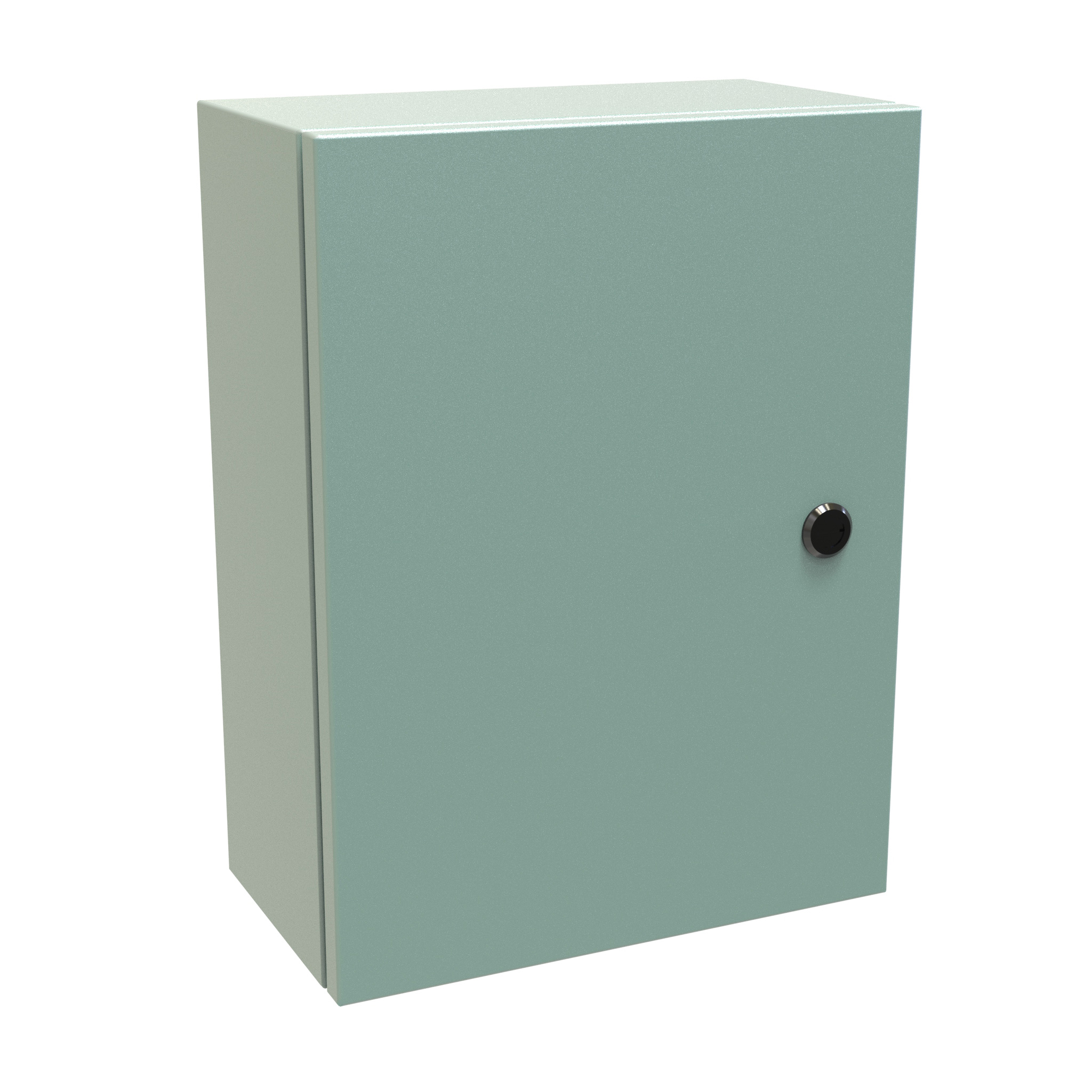

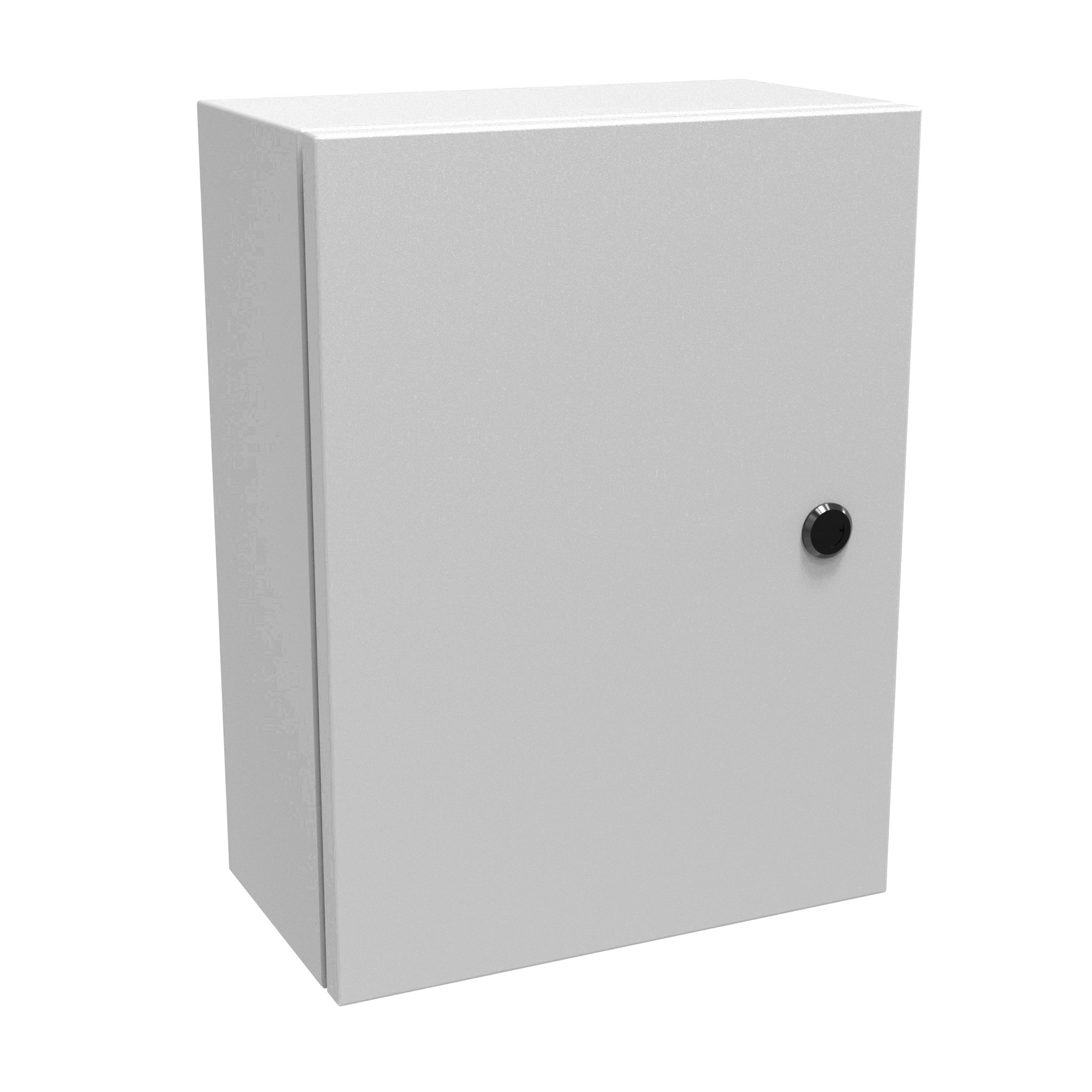

EN4SD16126GYEN4SD16126LG16.0012.006.00AEP161214.2010.20$246.09In stockEN4SD16126GYBuy now

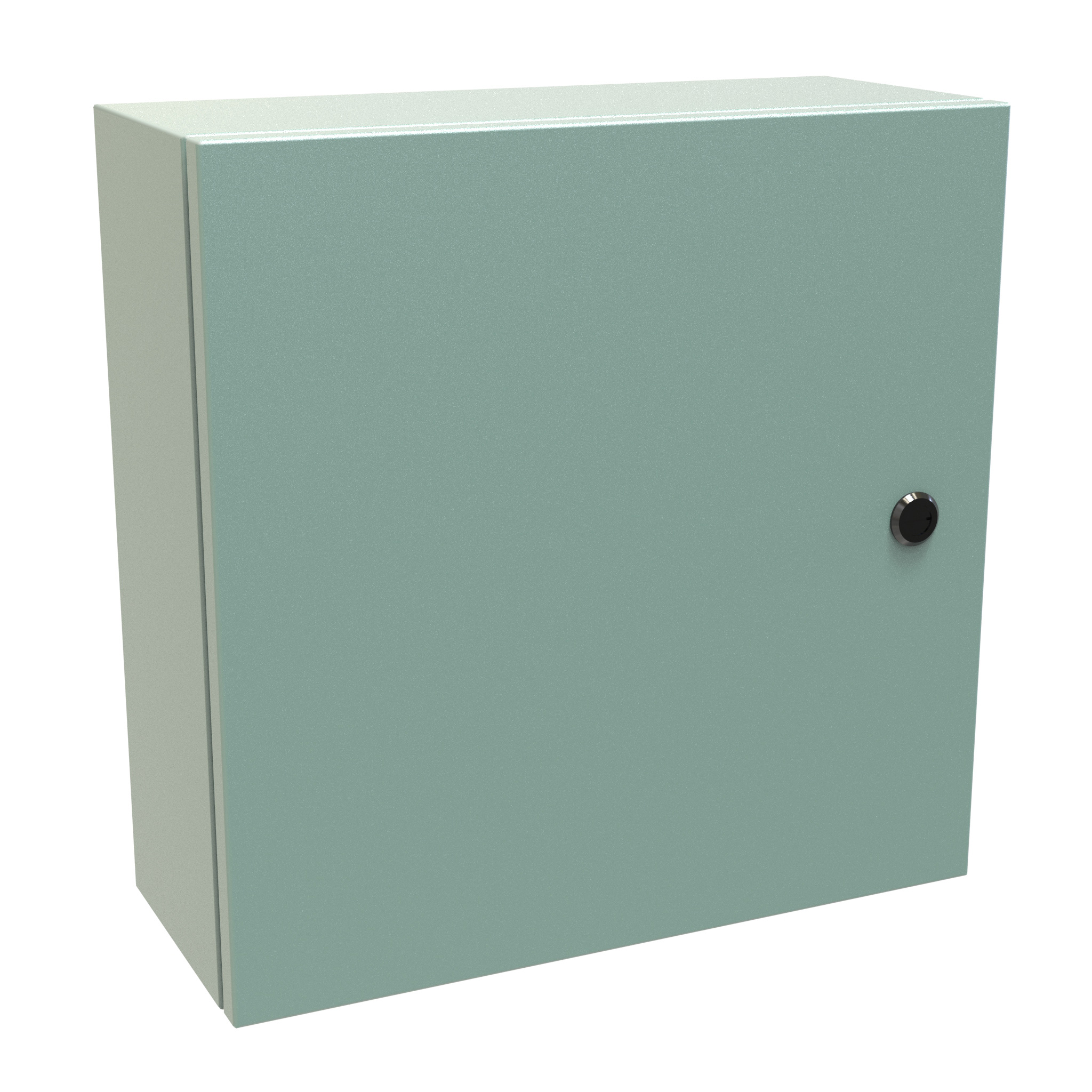

EN4SD16166GYEN4SD16166LG16.0016.006.00AEP161614.2014.20$264.14BackorderEN4SD16166GYBuy now

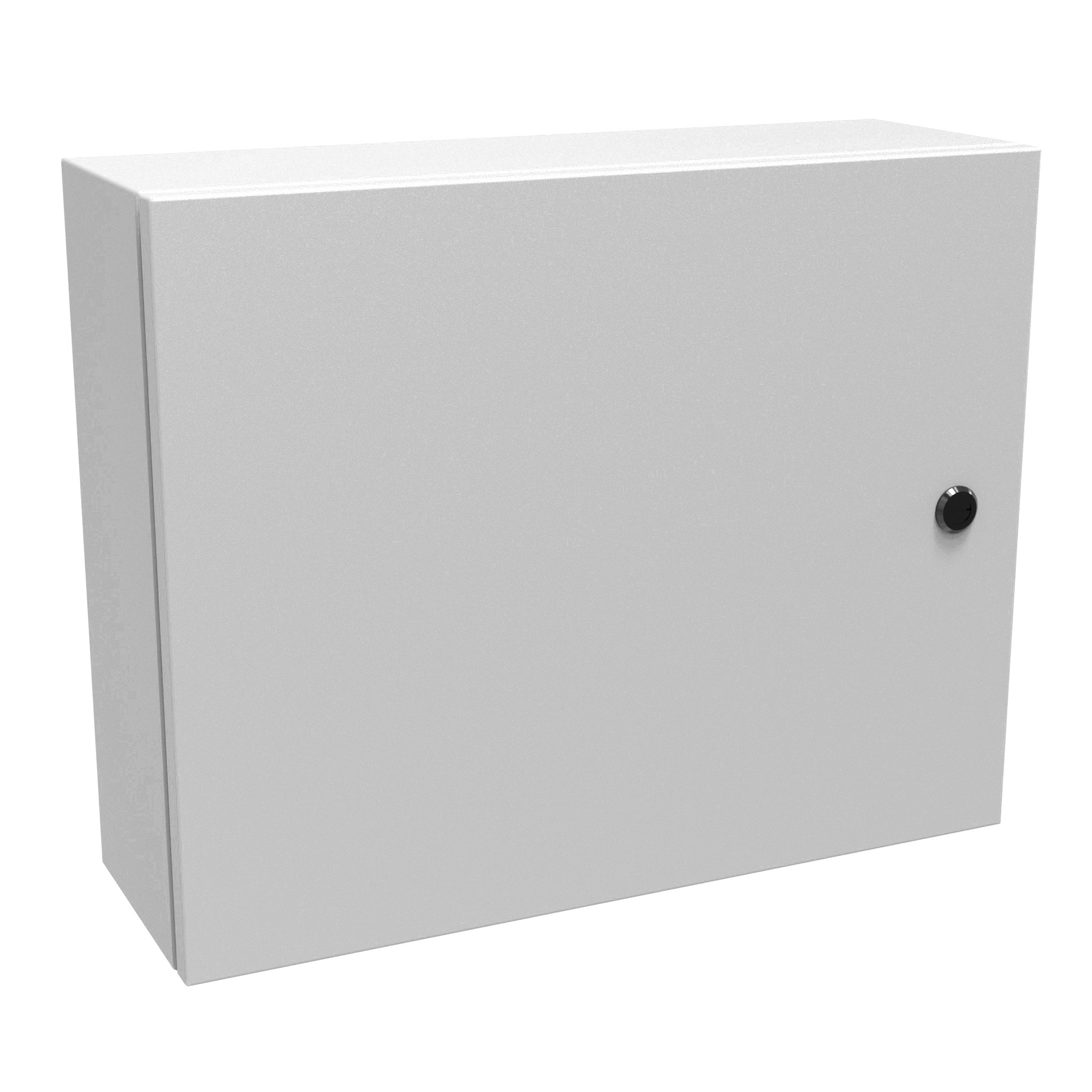

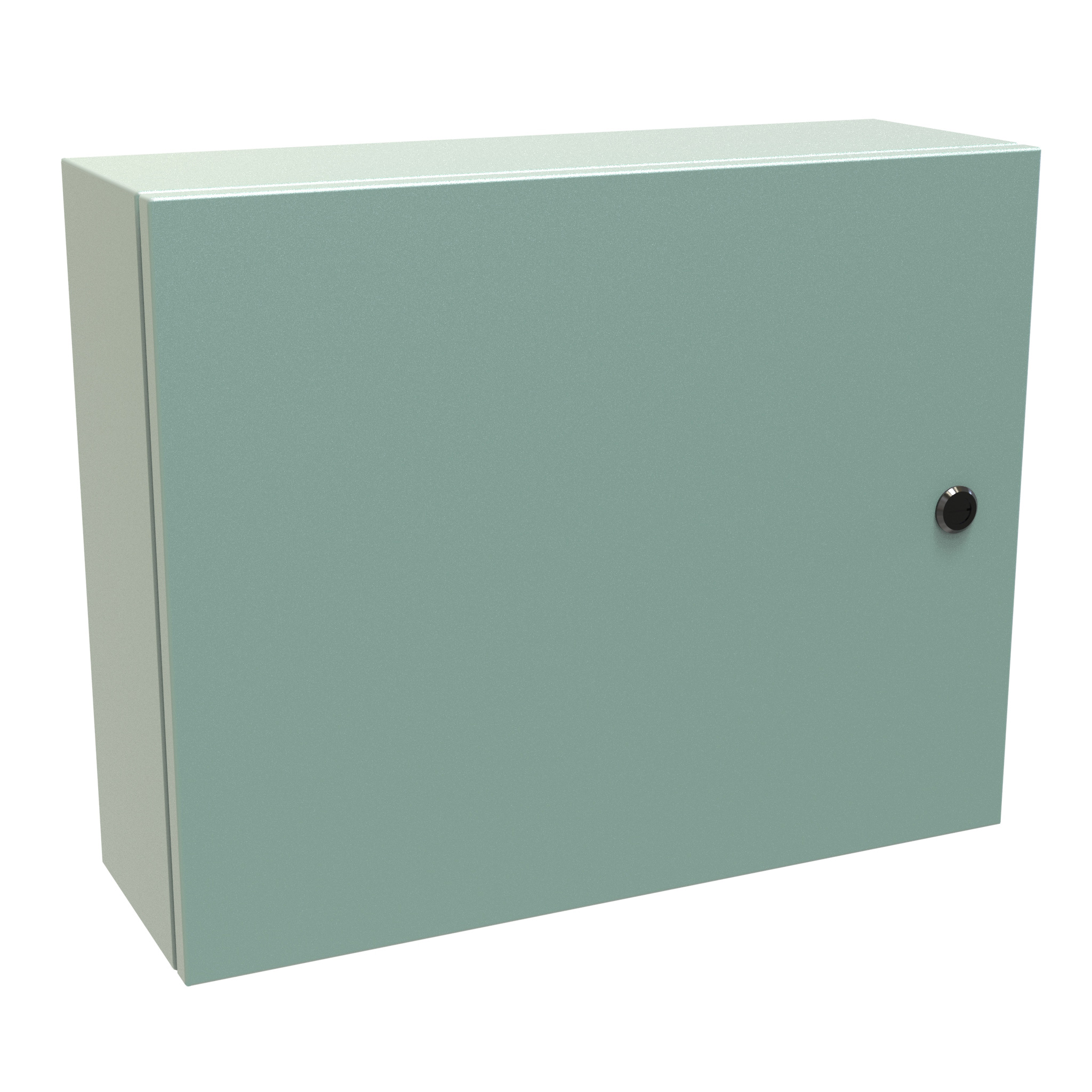

EN4SD16206GYEN4SD16206LG16.0020.006.00AEP162014.2018.20$282.87In stockEN4SD16206GYBuy now

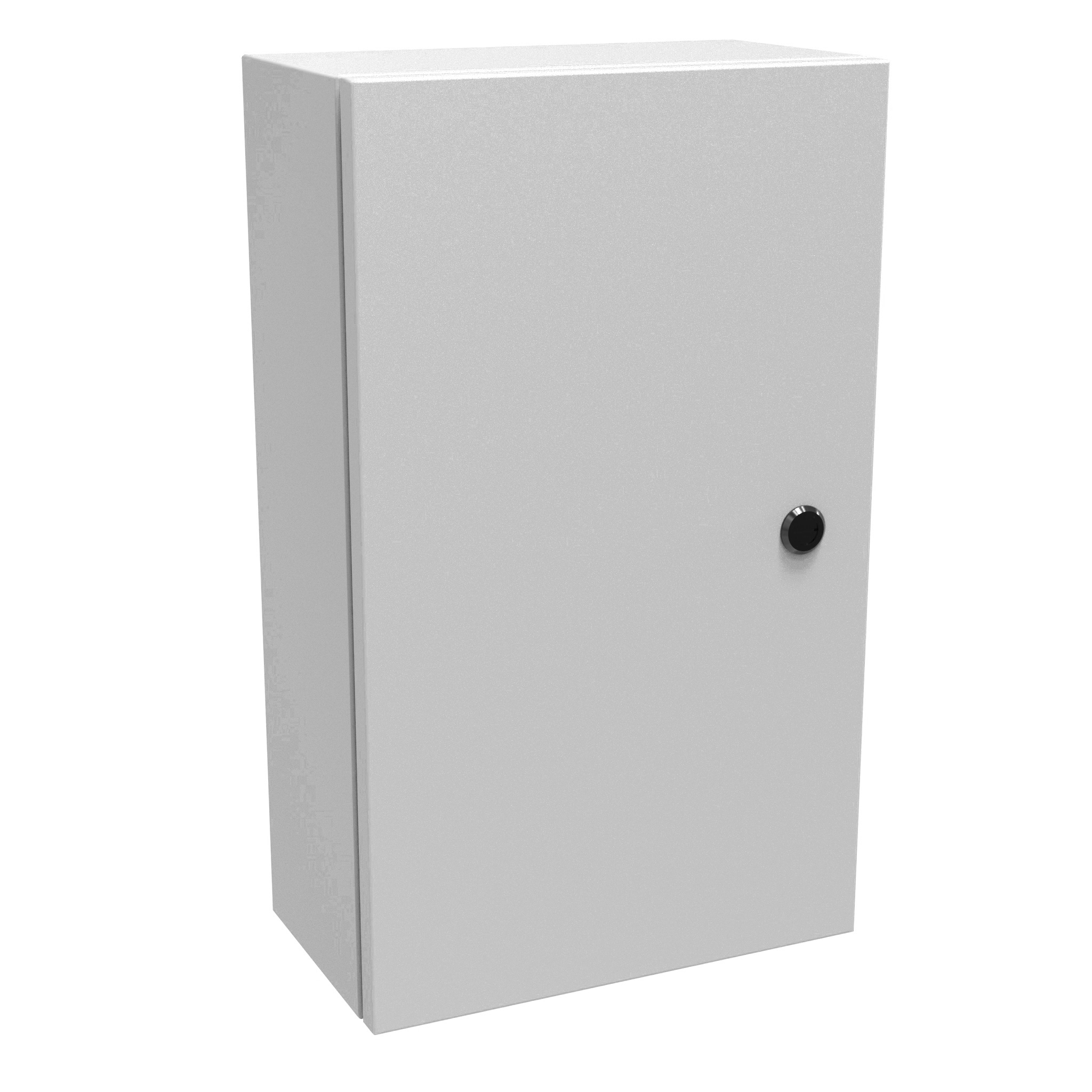

EN4SD20126GYEN4SD20126LG20.0012.006.00AEP201218.2010.20$280.86BackorderEN4SD20126GYBuy now

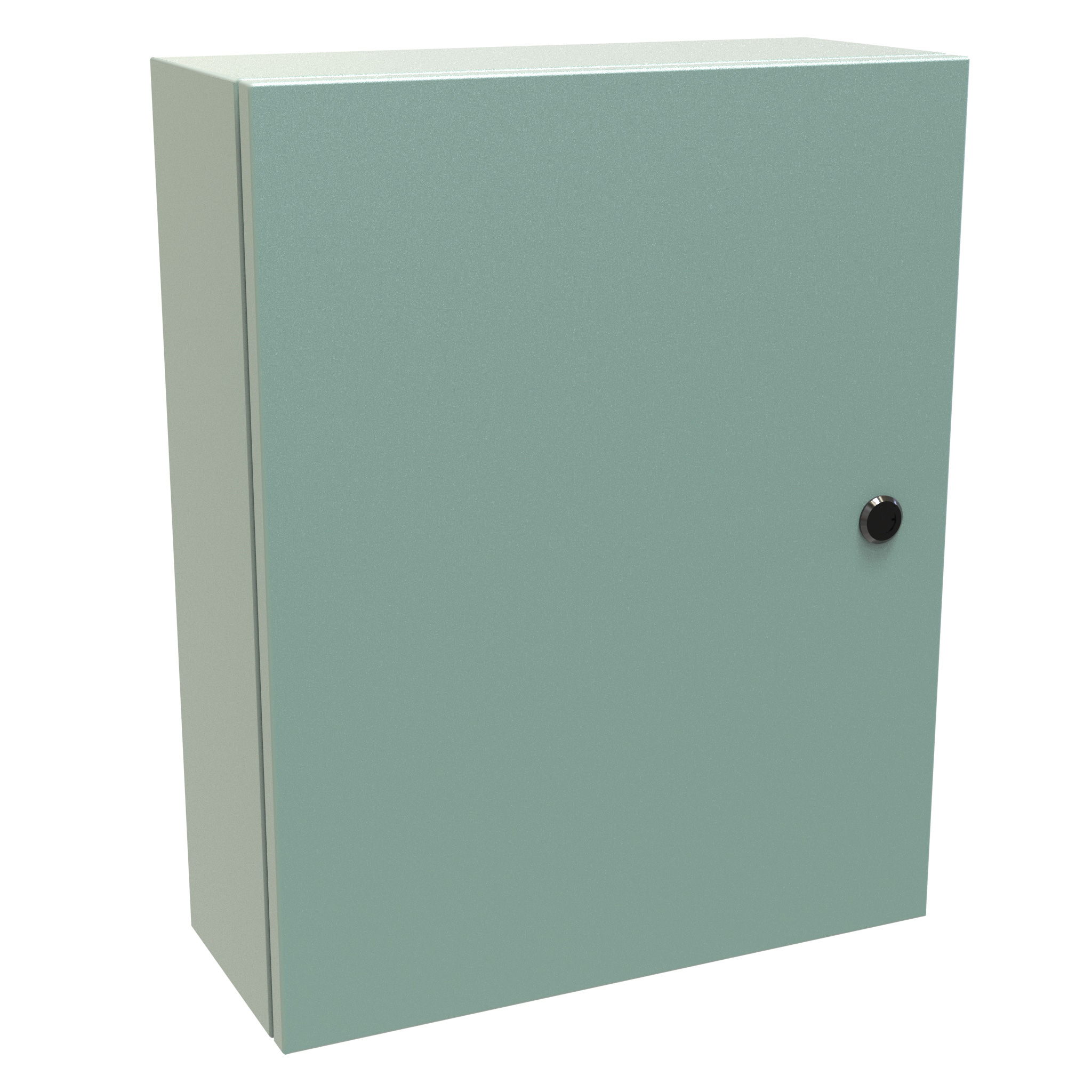

EN4SD20166GYEN4SD20166LG20.0016.006.00AEP201618.2014.20$282.87In stockEN4SD20166GYBuy now

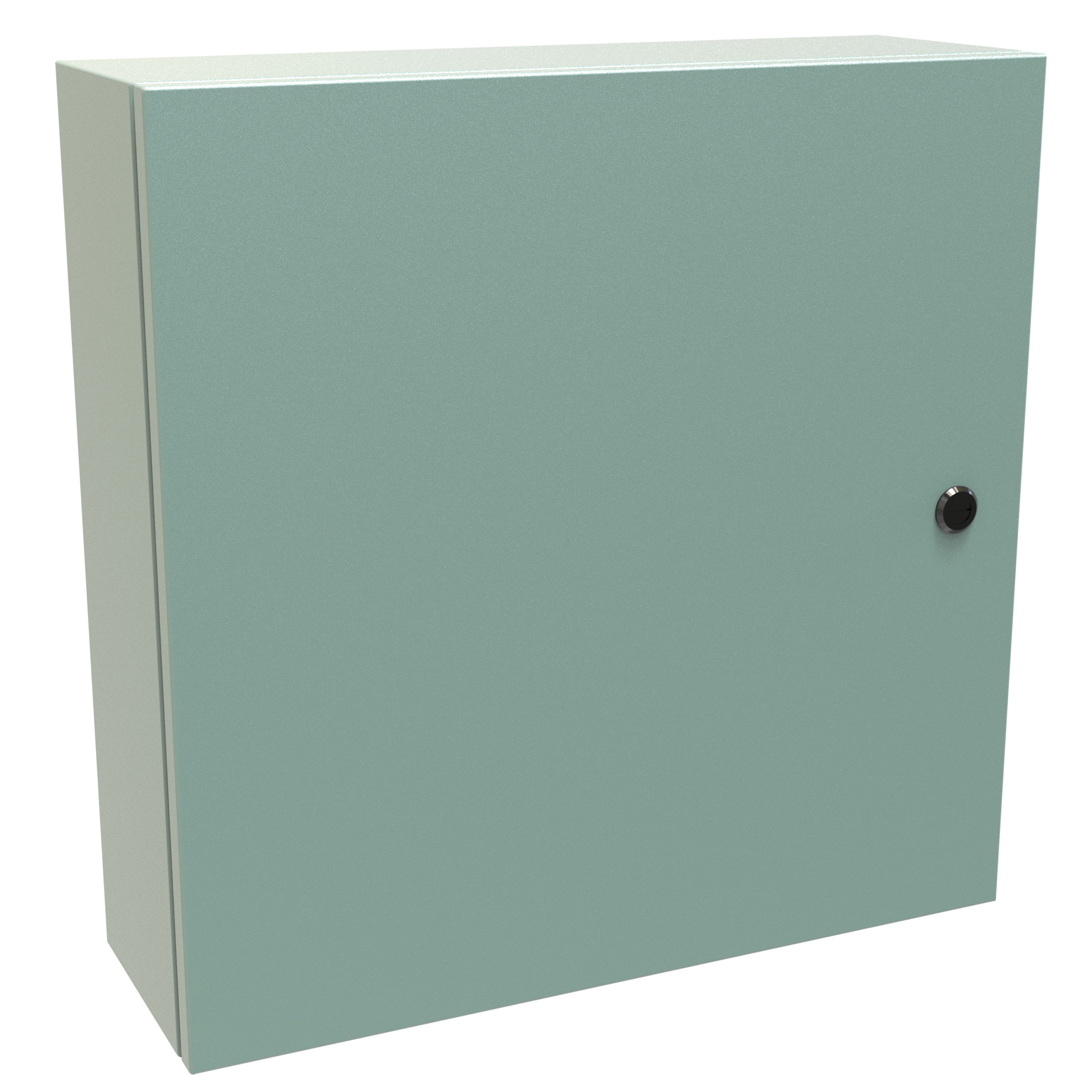

EN4SD20206GYEN4SD20206LG20.0020.006.00AEP202018.2018.20$304.94In stockEN4SD20206GYBuy now
EN4SD20246GYEN4SD20246LG20.0024.006.00AEP202418.2010.20$344.39In stockEN4SD20246GYBuy now
EN4SD24126GYEN4SD24126LG24.0012.006.00AEP241222.2010.20$284.21BackorderEN4SD24126GYBuy now
EN4SD24166GYEN4SD24166LG24.0016.006.00AEP241622.2014.20$310.29In stockEN4SD24166GYBuy now
EN4SD24206GYEN4SD24206LG24.0020.006.00AEP242022.2018.20$335.03In stockEN4SD24206GYBuy now
EN4SD24246GYEN4SD24246LG24.0024.006.00AEP242422.2022.20$363.11BackorderEN4SD24246GYBuy now
EN4SD30166GYEN4SD30166LG30.0016.006.00AEP301628.2014.20$369.13In stockEN4SD30166GYBuy now
EN4SD30206GYEN4SD30206LG30.0020.006.00AEP302028.2018.20$376.49BackorderEN4SD30206GYBuy now
EN4SD30246GYEN4SD30246LG30.0024.006.00AEP302428.2022.20$392.54In stockEN4SD30246GYBuy now
EN4SD36246GYEN4SD36246LG36.0024.006.00AEP362434.2022.20$454.73BackorderEN4SD36246GYBuy now
EN4SD36306GYEN4SD36306LG36.0030.006.00AEP363034.2028.20$502.21In stockEN4SD36306GYBuy now

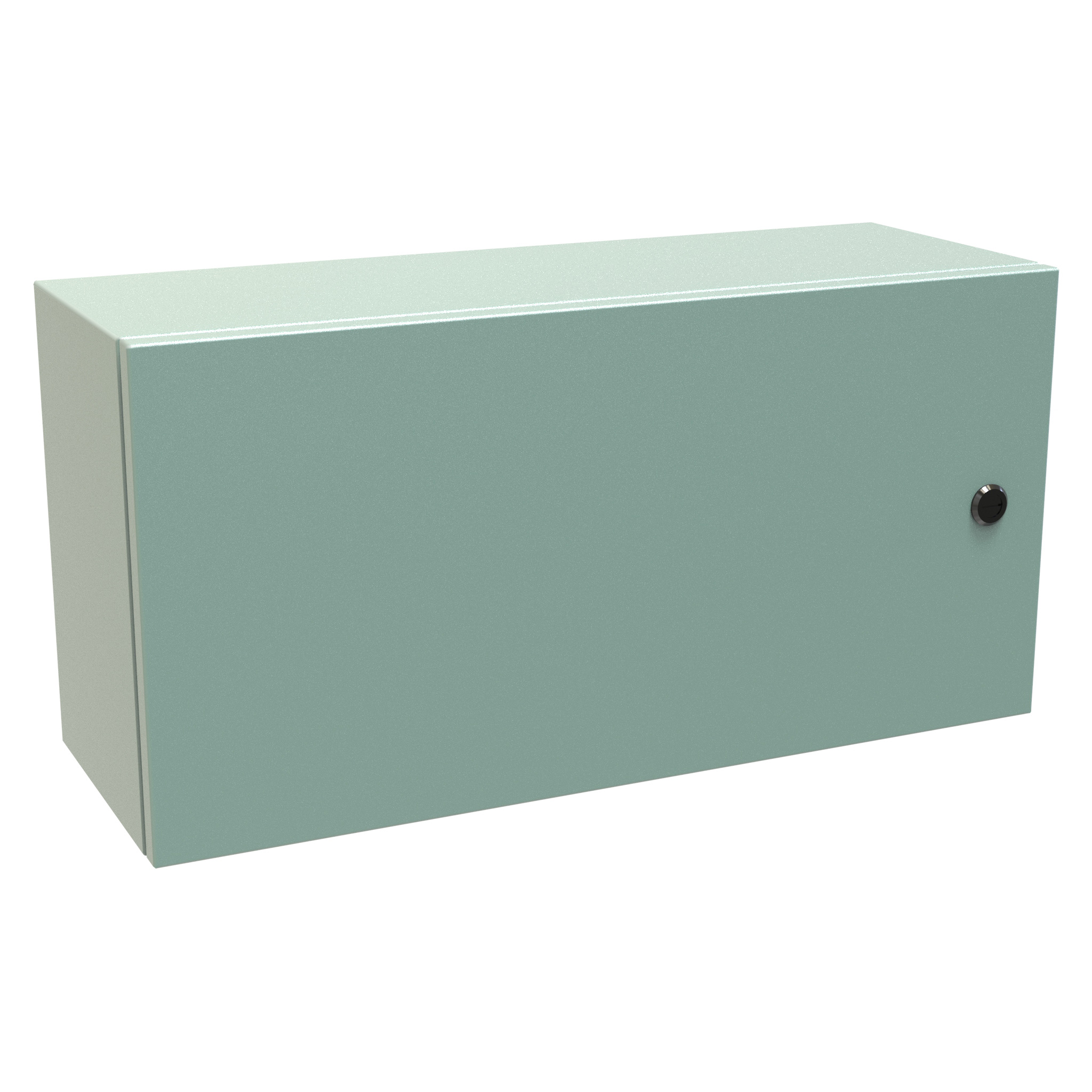

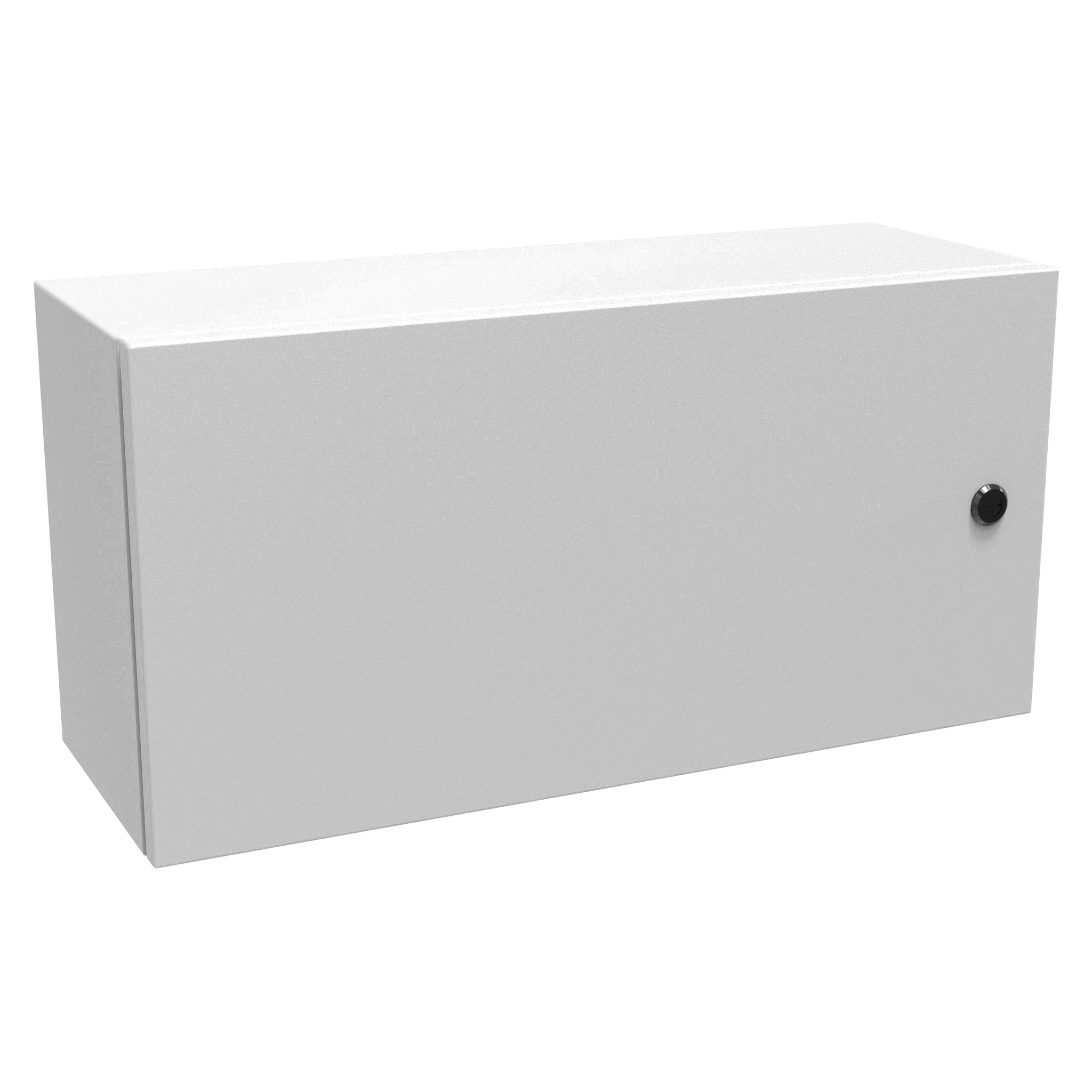

EN4SD12248GYEN4SD12248LG12.0024.008.00AEP122410.2022.20$243.41In stockEN4SD12248GYBuy now

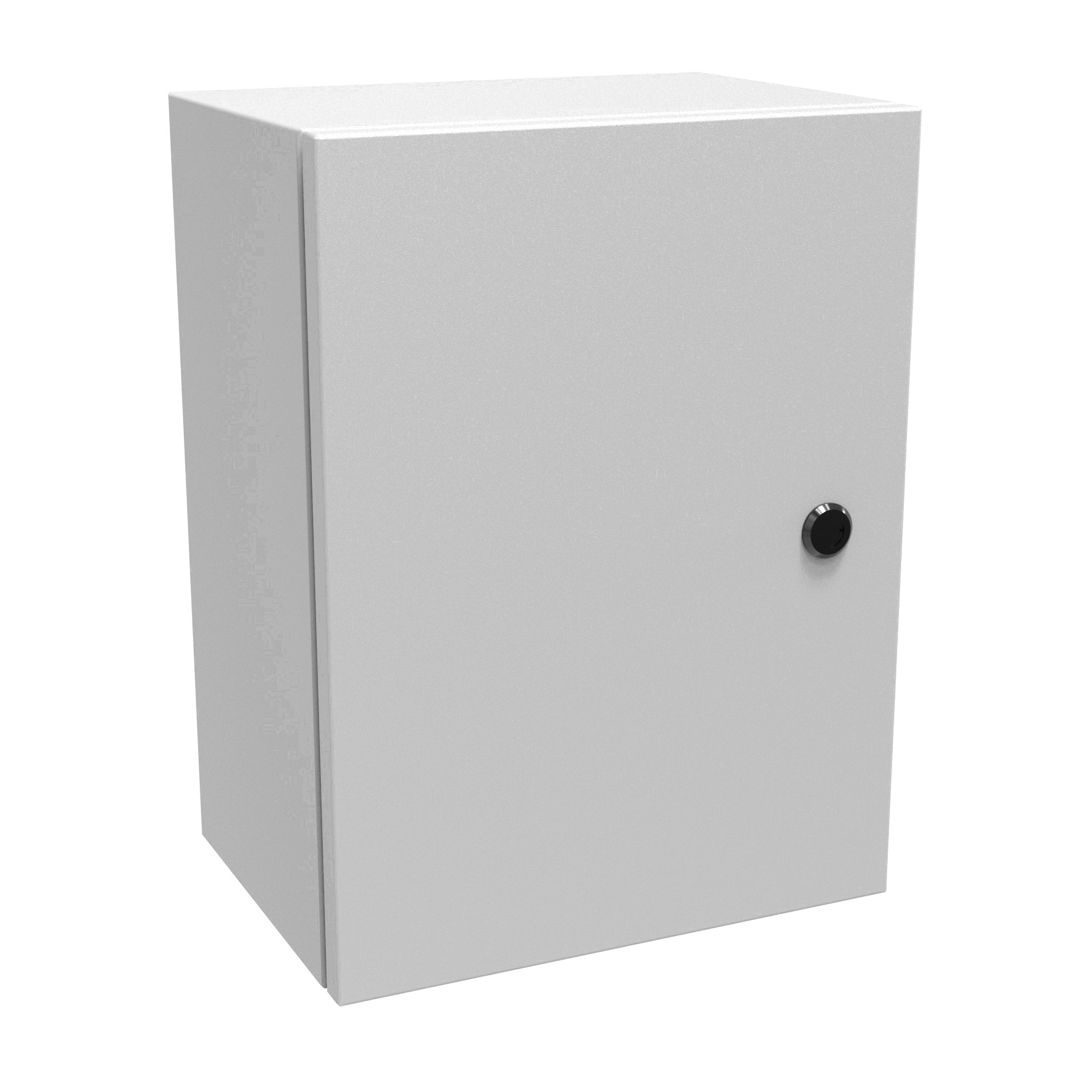

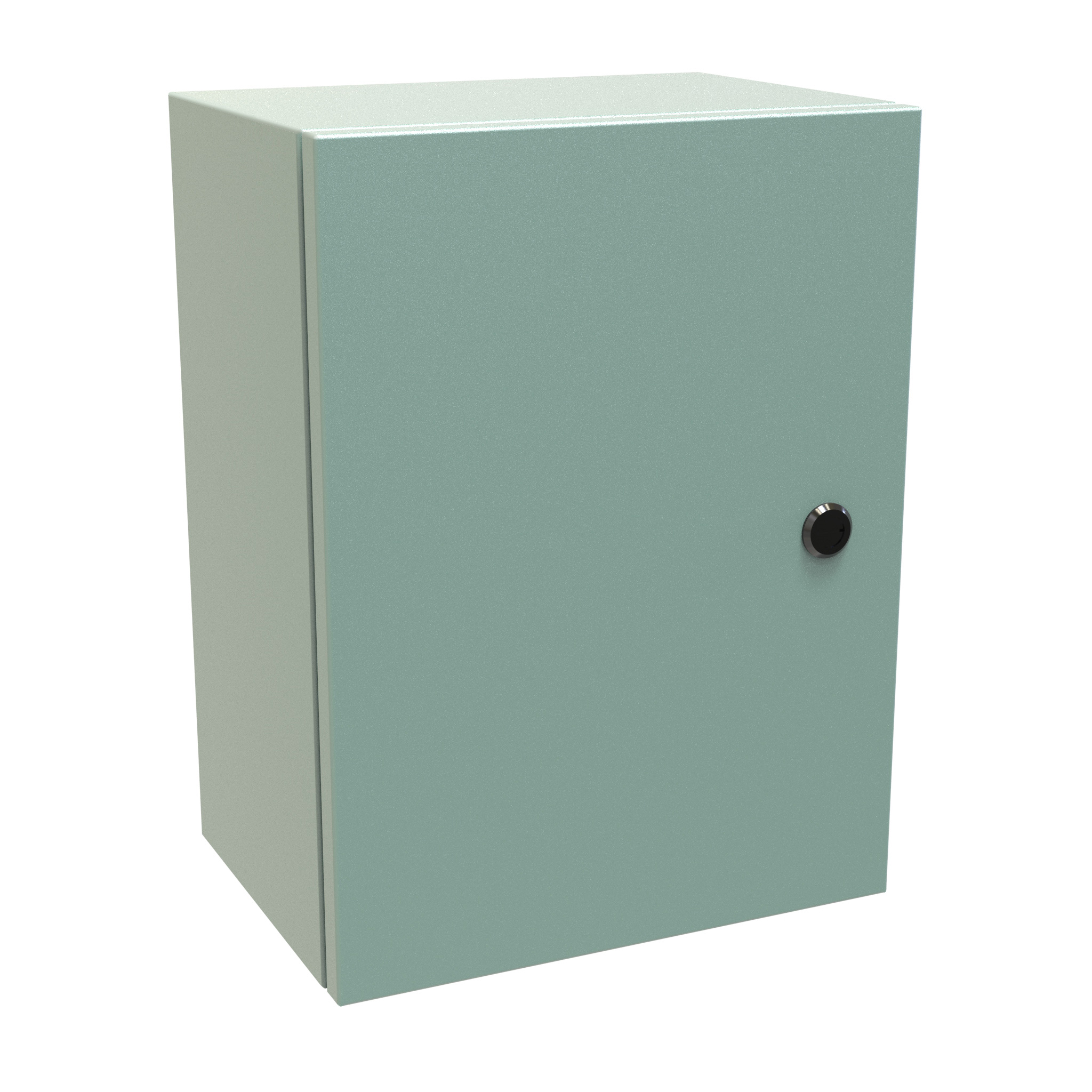

EN4SD16128GYEN4SD16128LG16.0012.008.00AEP161214.2010.20$257.46In stockEN4SD16128GYBuy now

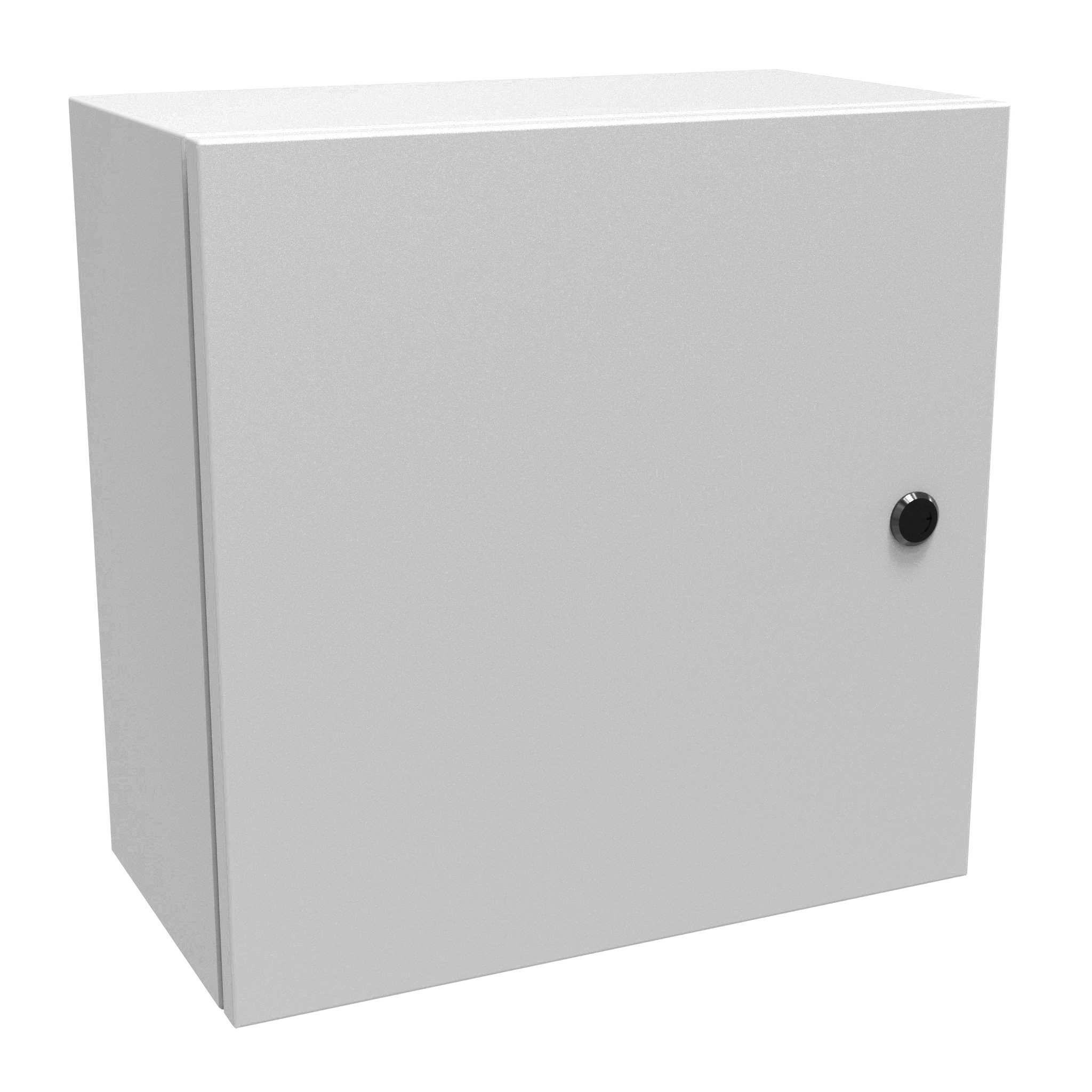

EN4SD16168GYEN4SD16168LG16.0016.008.00AEP161614.2014.20$278.19In stockEN4SD16168GYBuy now

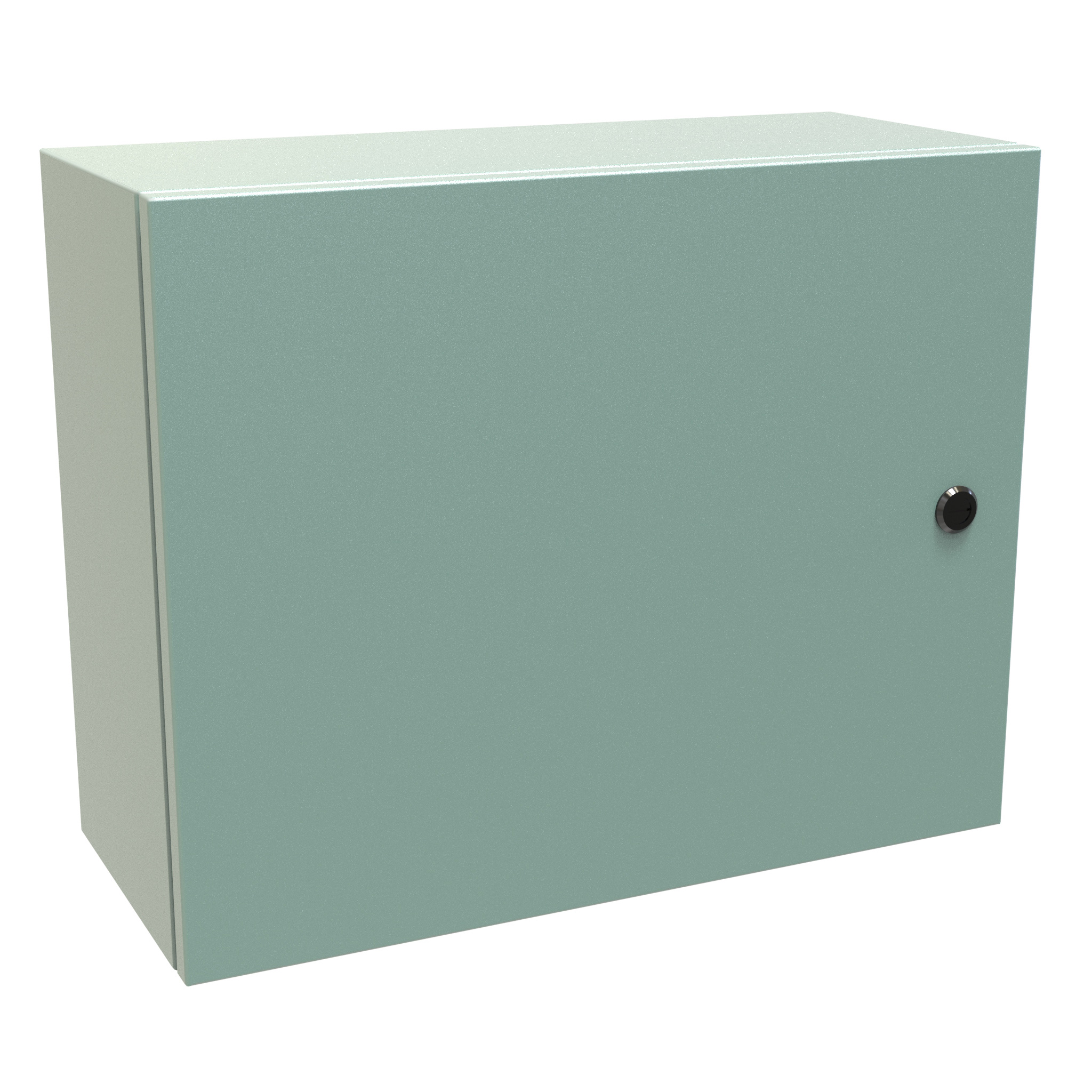

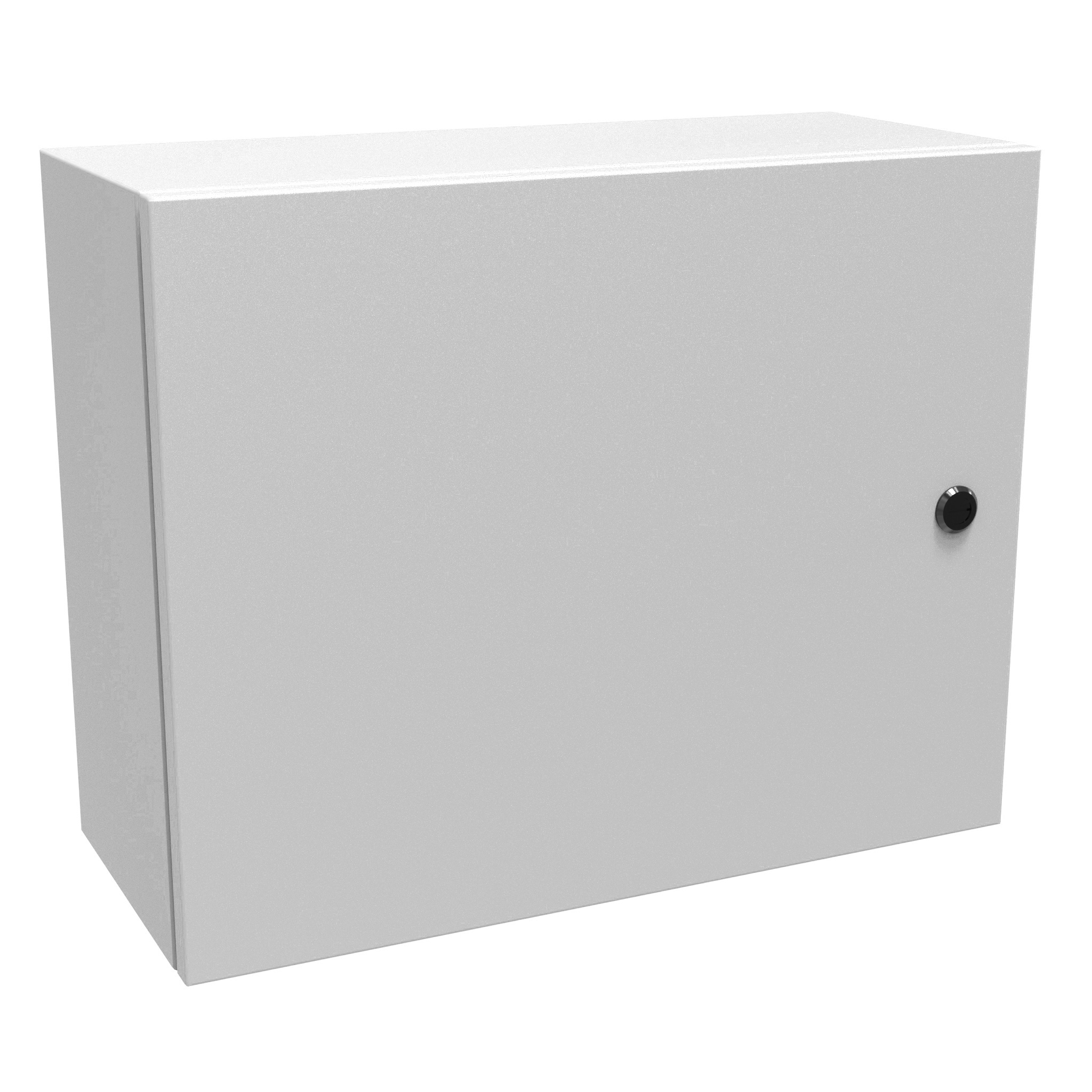

EN4SD16208GYEN4SD16208LG16.0020.008.00AEP162014.2018.20$298.25BackorderEN4SD16208GYBuy now

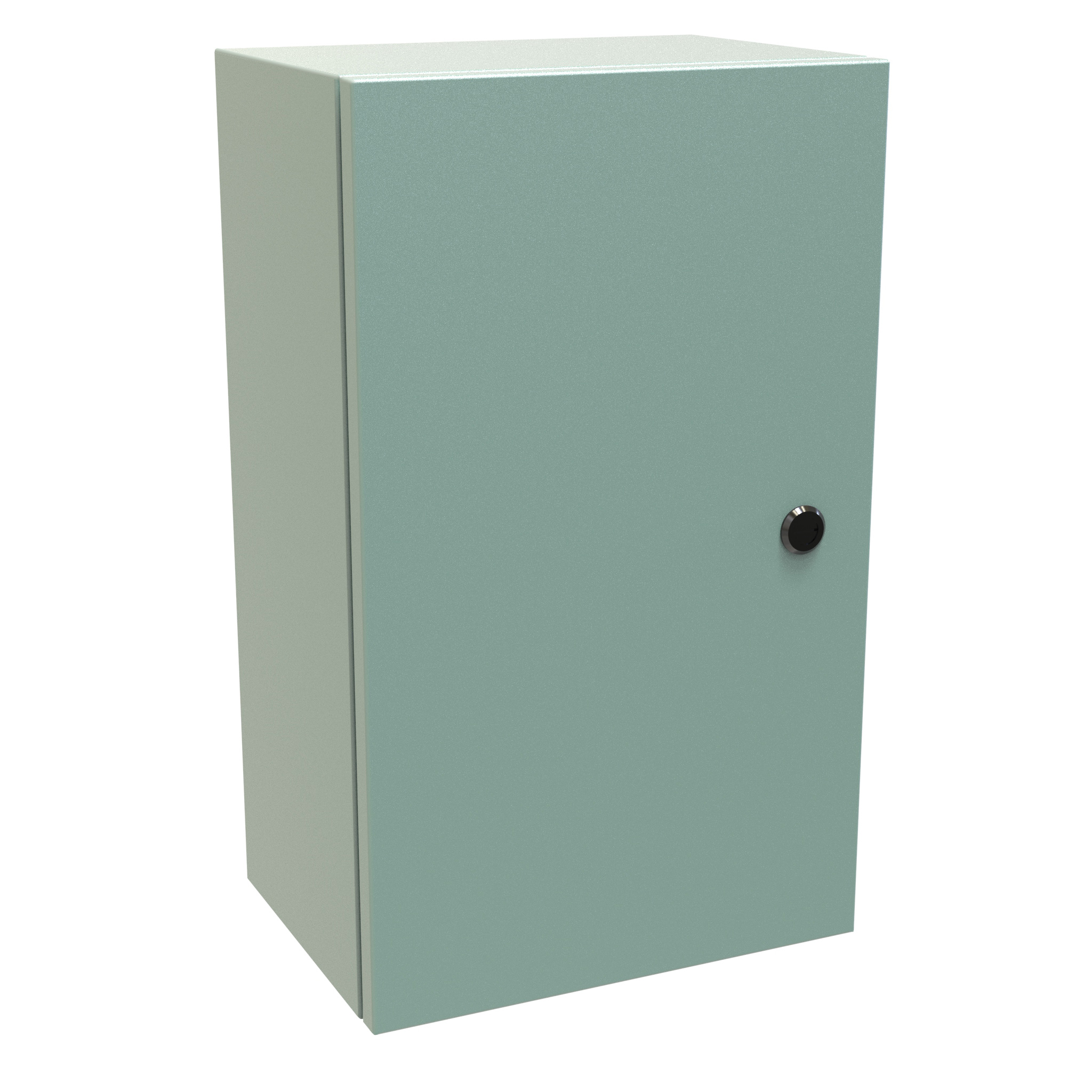

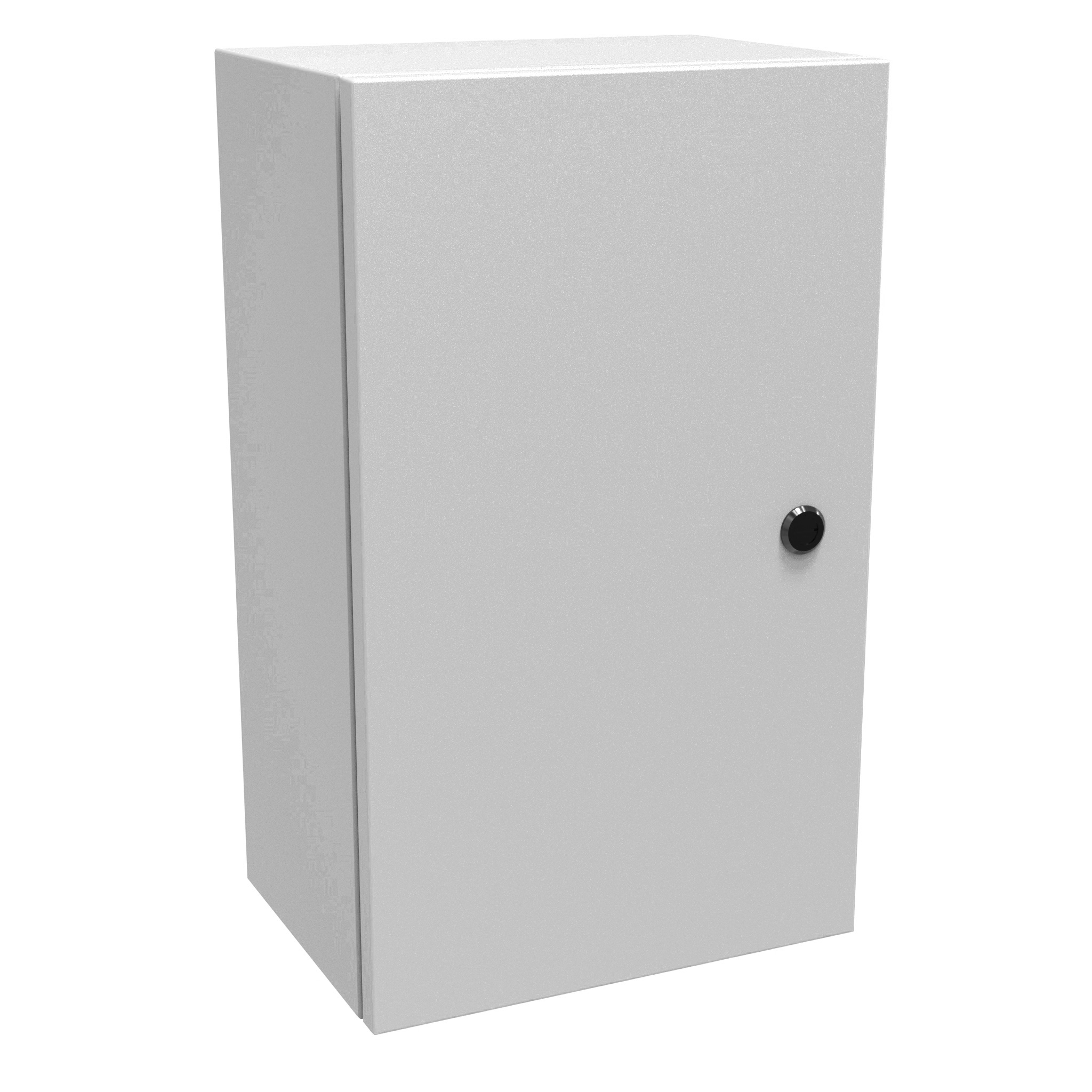

EN4SD20128GYEN4SD20128LG20.0012.008.00AEP201218.2010.20$286.21In stockEN4SD20128GYBuy now

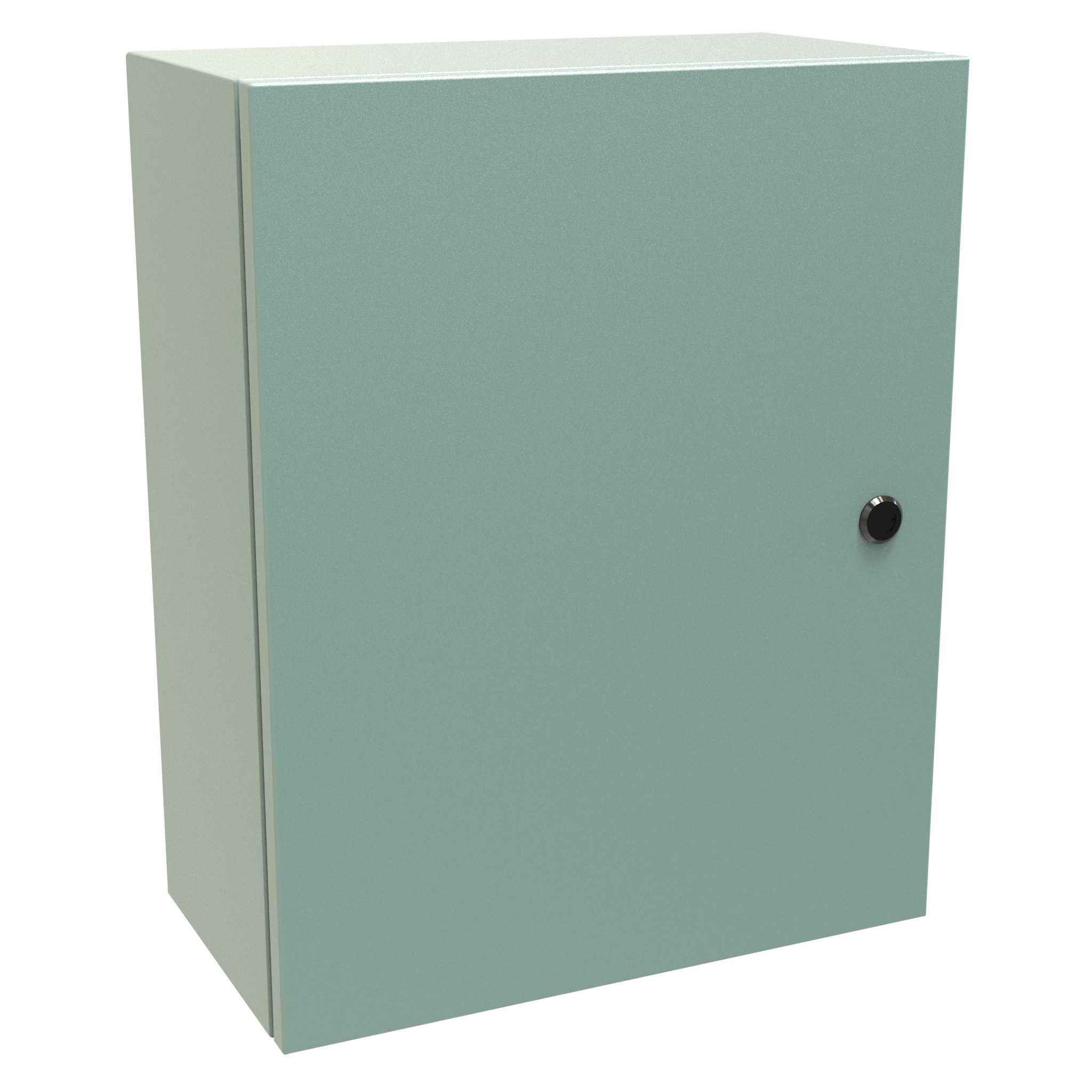

EN4SD20168GYEN4SD20168LG20.0016.008.00AEP201618.2014.20$298.25BackorderEN4SD20168GYBuy now

Application

  • ■Wallmount electrical enclosure designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments for wallmount applications.
  • ■Impressive styling features like hidden hinges, attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation.
  • ■A wide range of sizes and practical accessories make this product line a complete package.

Standards

  • ■UL 508A Type 3R, 4, and 12
  • ■CSA Type 3R, 4, and 12 Mounting foot kit required to maintain UL/CSA external mounting requirements. Sizes >24" (600mm) wide require inner panel to maintain UL/CSA.
  • ■Mounting foot kit required to maintain UL/CSA external mounting requirements.
  • ■Sizes >24" (600mm) wide require inner panel to maintain UL/CSA.
  • ■Complies with IEC 60529, IP66
  • ■IEC 60529, IP66
  • ■NEMA Type 3R, 4, and 12
  • ■NEMA Type 3R, 4, and 12

Construction

  • ■Formed 14 (24x24" and larger) or 16 (24x20" and smaller) gauge steel.
  • ■Smooth, continuously welded seams ground smooth.
  • ■Door stiffeners are provided where required for increased strength and rigidity - designed to also permit additional mounting options. Please note that several smaller sizes of this series will no longer feature C channel stiffener/door brackets – see drawing for details. Removing this feature allows for more usable door space. Inventory will take some time to be converted to the new design. Note: If desired, the C channel door brackets can be added as a special order modification.
  • ■Please note that several smaller sizes of this series will no longer feature C channel stiffener/door brackets – see drawing for details. Removing this feature allows for more usable door space.
  • ■Inventory will take some time to be converted to the new design.
  • ■Note: If desired, the C channel door brackets can be added as a special order modification.
  • ■Formed lip on enclosure to exclude flowing liquids and contaminants.
  • ■Door latching: Type A has slotted quarter turns, Type B has handle with 3 point latching, Type C has handle with 3 point latching plus additional quarter turns top and bottom.
  • ■Doors may be easily removed for modifications and are interchangeable.
  • ■Seamless poured-in place gasket.
  • ■Collar studs provided for mounting inner panel.
  • ■Includes hardware kit with panel mounting nuts and sealing washers for wall mounting holes.
  • ■Bonding stud provided on door and grounding stud installed in enclosure.
  • ■Hinges are constructed from 304 stainless steel.
  • ■Hinge pins are stainless steel.
  • ■Quarter turn latch and multi-point handle (key lockable) are zinc diecast with black epoxy finish.
  • ■Door alignment guide provided on 36" wide enclosures.
  • ■Door swing can be reversed - requires ordering adapter kit EHLLSAK (for EN4SD72* enclosures, 2 adapter kits required).

Finish

  • ■Cover and enclosure are phosphatized and finished with a recoatable powder inside and out with choice of ANSI 61 smooth Gray (GY) or RAL7035 textured light gray (LG).
