ABS Project Enclosure
- Type Project box, general purpose
- Color Light Gray
$2.05In stock
Buy now
ABS Plastic Project Enclosures · RL Series
Brand: Hammond Manufacturing · 60 part numbers
Shallow Lid
- ■Designed to house P.C. boards for hand-held use or wall mount.
- ■Molded in light grey or black general purpose ABS plastic with a light texture.
- ■Two part construction. Both halves include smooth recessed area for membrane, label or silkscreen (see chart below for recess size).
- ■P.C. board standoffs are molded into both halves of the enclosure (see photo tables for details).
- ■Designed to meet IP54.
- ■All sizes also available in a flanged lid version.
from $2.05
60 of 60 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your RL Series part number
Filter 60 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
60 of 60 part numbers · 60 priced online
ABS Flangled Project Enclosure
- Type Project box, flanged
- Color Light Gray
$2.44In stock
Buy now
ABS Flangled Project Enclosure
- Type Project box, flanged
- Color Black
$2.44In stock
Buy now
ABS Project Enclosure Black
- Type Project box, general purpose
- Color Trans. Black
$2.05In stock
Buy now
ABS Project Enclosure
- Type Project box, general purpose
- Color Light Gray
$2.24In stock
Buy now
ABS Flanged Project Enclosure
- Type Project box, flanged
- Color Light Gray
$2.71In stock
Buy now
ABS Flanged Project Enclosure
- Type Project box, flanged
- Color Black
$2.73In stock
Buy now
ABS Project Enclosure
- Type Project box, general purpose
- Color Black
$2.24In stock
Buy now
ABS Project Enclosure
- Type Project box, general purpose
- Color Light Gray
$2.67In stock
Buy now
ABS Flanged Project Enclosure
- Type Project box, flanged
- Color Light Gray
$3.09In stock
Buy now
ABS Flanged Project Enclosure
- Type Project box, flanged
- Color Black
$3.09In stock
Buy now
ABS Project Enclosure
- Type Project box, general purpose
- Color Black
$2.67In stock
Buy now
ABS Project Enclosure
- Type Project box, general purpose
- Color Light Gray
$2.75In stock
Buy now
ABS Flanged Project Enclosure
- Type Project box, flanged
- Color Light Gray
$3.16In stock
Buy now
ABS Flanged Project Enclosure
- Type Project box, flanged
- Color Black
$3.16In stock
Buy nowABS Project Enclosure
- Type Project box, general purpose
- Color Black
$2.75In stock
Buy nowABS Project Enclosure
- Type Project box, general purpose
- Color Light Gray
$2.81In stock
Buy nowABS Flanged Project Enclosure
- Type Project box, flanged
- Color Light Gray
$3.29In stock
Buy nowABS Flanged Project Enclosure
- Type Project box, flanged
- Color Black
$3.29In stock
Buy nowABS Project Enclosure Black
- Type Project box, general purpose
- Color Black
$2.81In stock
Buy now
ABS Project Enclosure
- Type Project box, general purpose
- Color Light Gray
$2.86In stock
Buy now
ABS Flanged Project Enclosure
- Type Project box, flanged
- Color Light Gray
$3.38In stock
Buy now
ABS Flanged Project Enclosure
- Type Project box, flanged
- Color Black
$3.38In stock
Buy now
ABS Project Enclosure Black
- Type Project box, general purpose
- Color Trans. Black
$2.86In stock
Buy now
ABS Project Enclosure
- Type Project box, general purpose
- Color Light Gray
$3.14In stock
Buy now
ABS Flanged Project Enclosure
- Type Project box, flanged
- Color Light Gray
$3.58In stock
Buy now
ABS Flanged Project Enclosure
- Type Project box, flanged
- Color Black
$3.58In stock
Buy now
ABS Project Enclosure
- Type Project box, general purpose
- Color Black
$3.14In stock
Buy now
ABS Project Enclosure
- Type Project box, general purpose
- Color Light Gray
$4.28In stock
Buy now
ABS Flanged Project Enclosure
- Type Project box, flanged
- Color Light Gray
$4.90In stock
Buy now
ABS Flanged Project Enclosure
- Type Project box, flanged
- Color Black
$4.90In stock
Buy now
ABS Project Enclosure
- Type Project box, general purpose
- Color Black
$4.28In stock
Buy now
ABS Project Enclosure
- Type Project box, general purpose
- Color Light Gray
$5.56In stock
Buy now
ABS Flanged Project Enclosure
- Type Project box, flanged
- Color Light Gray
$6.26In stock
Buy now
ABS Flanged Project Enclosure
- Type Project box, flanged
- Color Black
$6.26In stock
Buy now
ABS Project Enclosure
- Type Project box, general purpose
- Color Black
$5.56In stock
Buy now
ABS Project Enclosure
- Type Project box, general purpose
- Color Light Gray
$4.71In stock
Buy now
ABS Flanged Project Enclosure
- Type Project box, flanged
- Color Light Gray
$5.36In stock
Buy now
ABS Flanged Project Enclosure
- Type Project box, flanged
- Color Black
$5.36Backorder
Buy now
ABS Project Enclosure
- Type Project box, general purpose
- Color Black
$4.71In stock
Buy now
ABS Project Enclosure
- Type Project box, general purpose
- Color Light Gray
$6.44Backorder
Buy now
ABS Flanged Project Enclosure
- Type Project box, flanged
- Color Light Gray
$7.12In stock
Buy now
ABS Flanged Project Enclosure
- Type Project box, flanged
- Color Black
$7.12In stock
Buy now
ABS Project Enclosure
- Type Project box, general purpose
- Color Black
$6.44In stock
Buy now
ABS Project Enclosure
- Type Project box, general purpose
- Color Light Gray
$7.12In stock
Buy now
ABS Flanged Project Enclosure
- Type Project box, flanged
- Color Light Gray
$8.01In stock
Buy now
ABS Flanged Project Enclosure
- Type Project box, flanged
- Color Black
$8.01In stock
Buy now
ABS Project Enclosure
- Type Project box, general purpose
- Color Black
$7.12In stock
Buy nowDimension tables (inches / mm)
Enclosures (No Wall Mounting Flanges)
| Black · Enclosure (Part No.) | Gray · Enclosure (Part No.) | Length (mm) | Width (mm) | Height (mm) | Max PCB · Length (mm) | Max PCB · Width (mm) | Price | Order |
|---|---|---|---|---|---|---|---|---|

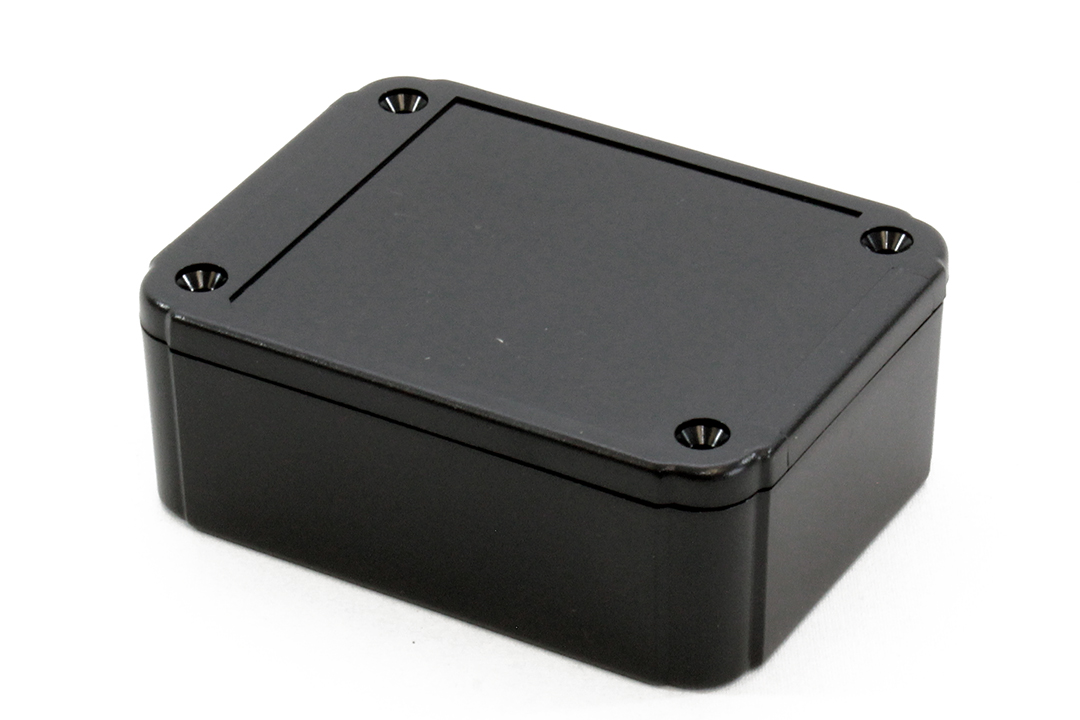

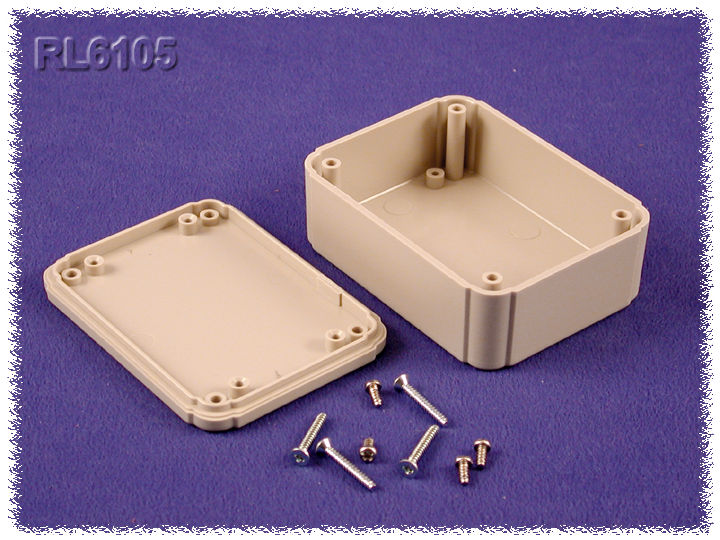

| RL6105BK | RL6105 | 80 | 60 | 30 | 74.43 | 54.43 | $2.05In stockRL6105BK | Buy now |

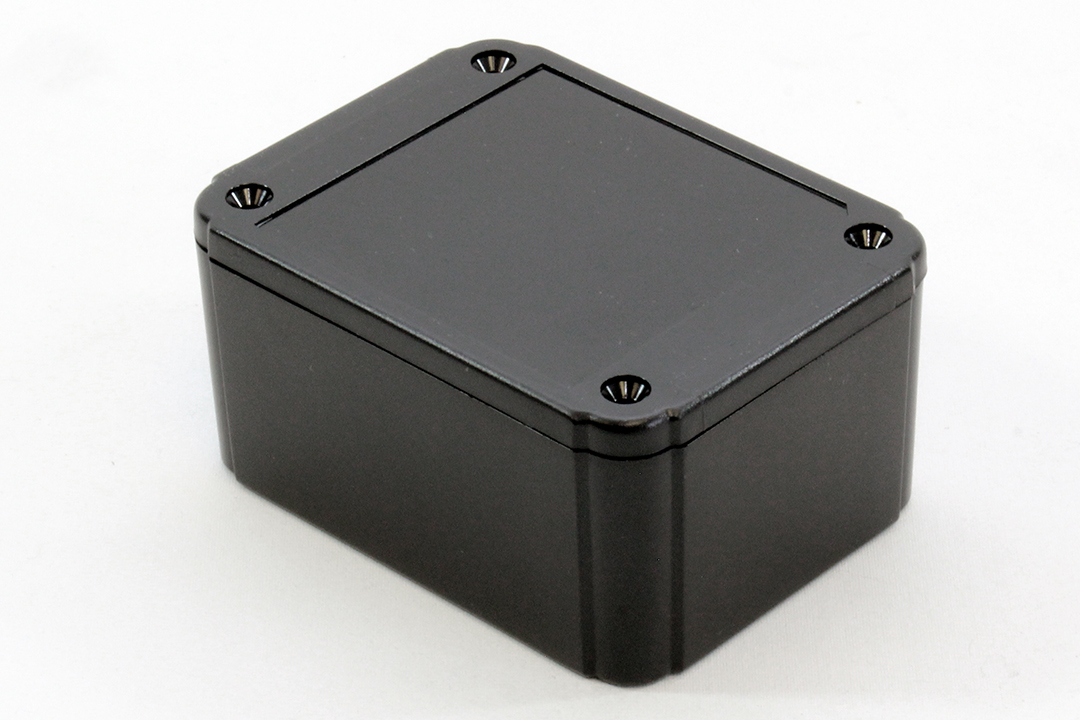

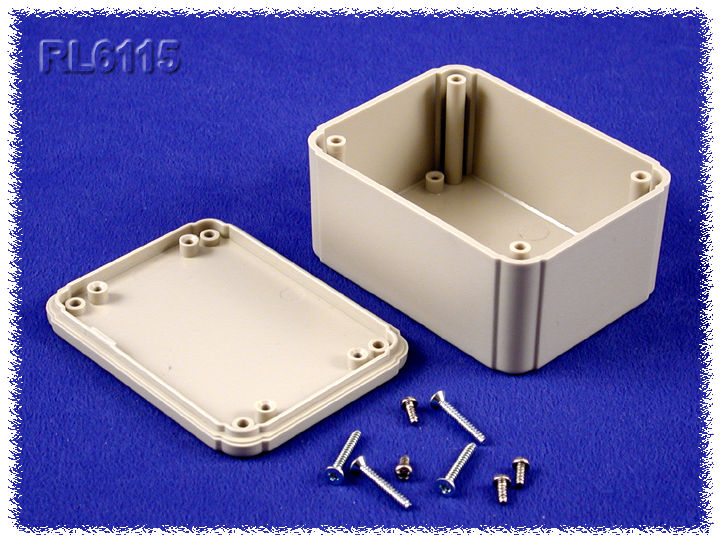

| RL6115BK | RL6115 | 80 | 60 | 40 | 73.91 | 53.91 | $2.24In stockRL6115BK | Buy now |

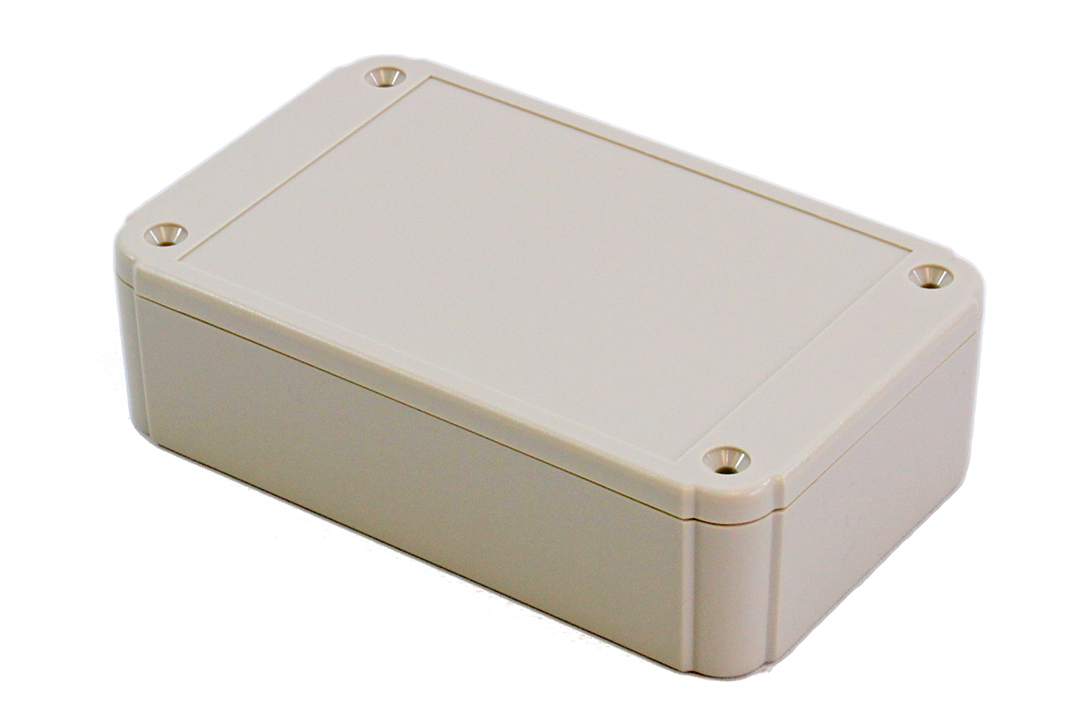

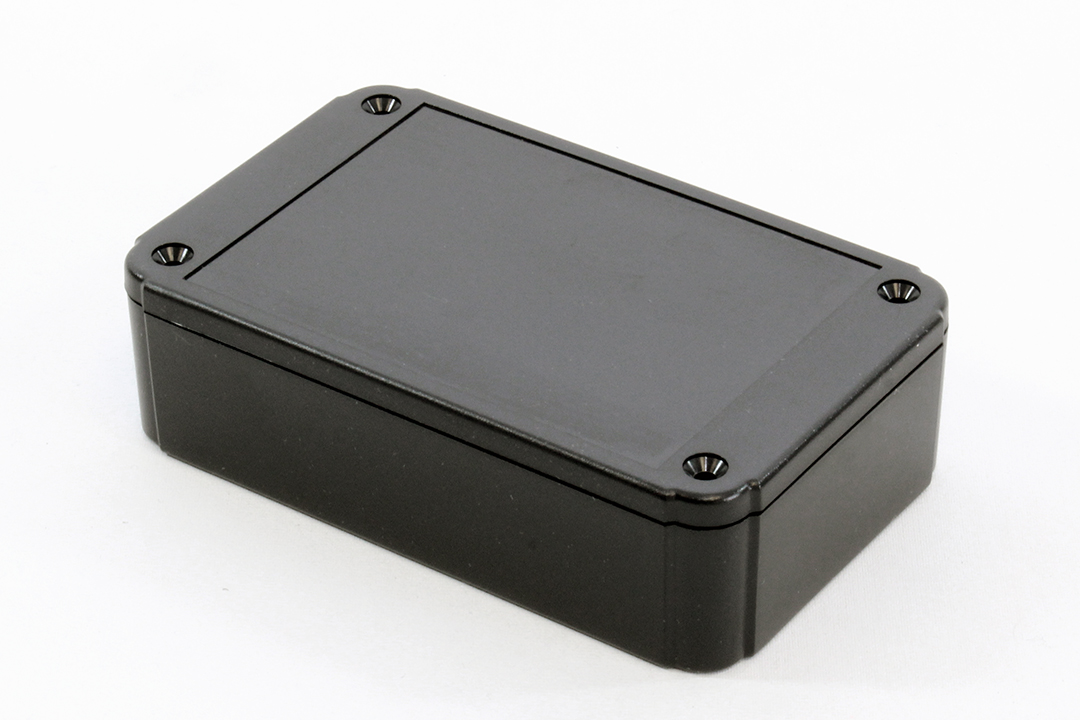

| RL6165BK | RL6165 | 105 | 65 | 30 | 99.43 | 59.43 | $2.67In stockRL6165BK | Buy now |

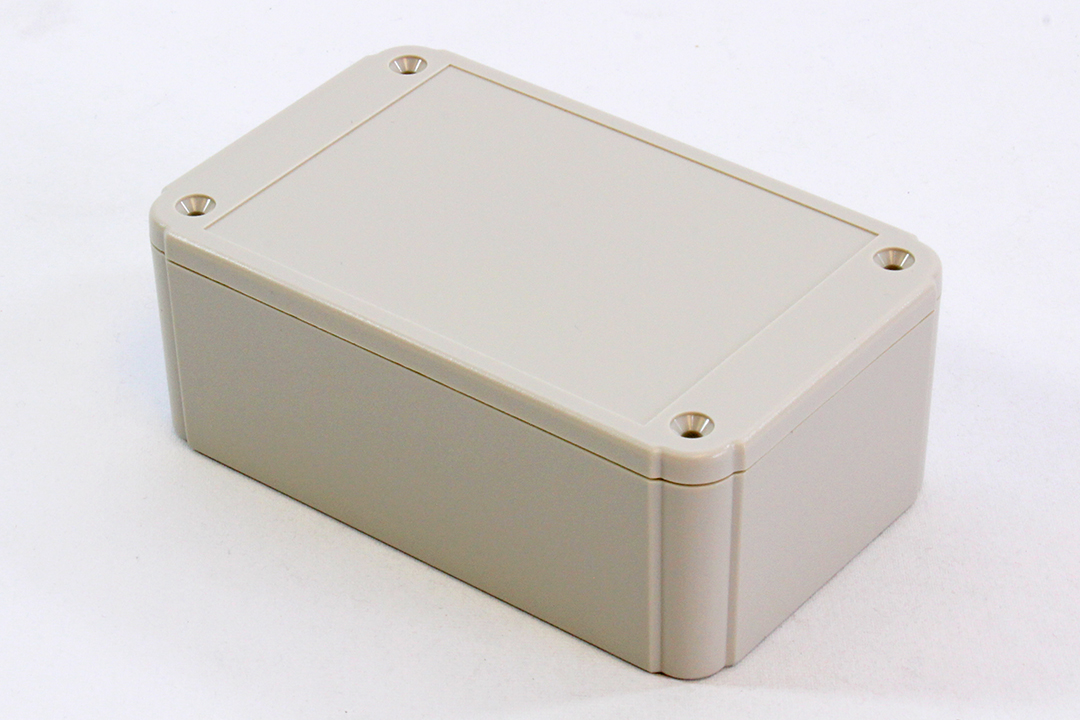

| RL6175BK | RL6175 | 105 | 65 | 40 | 98.91 | 58.91 | $2.75In stockRL6175BK | Buy now |
| RL6205BK | RL6205 | 125 | 80 | 25 | 119.31 | 74.31 | $2.81In stockRL6205BK | Buy now |

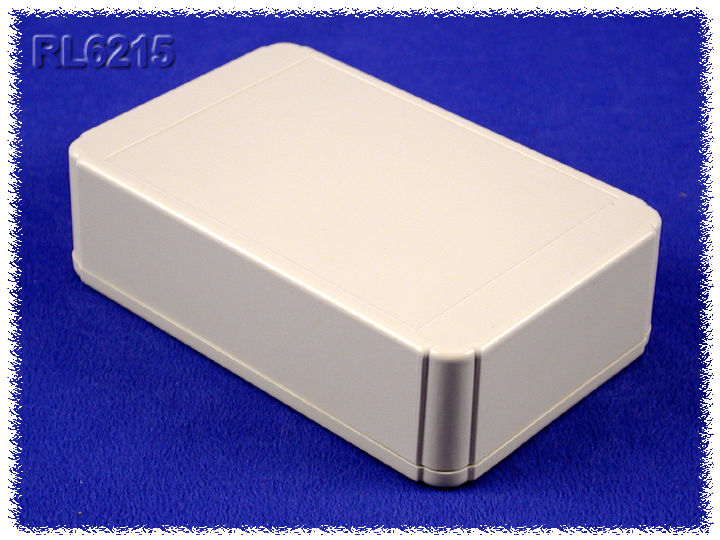

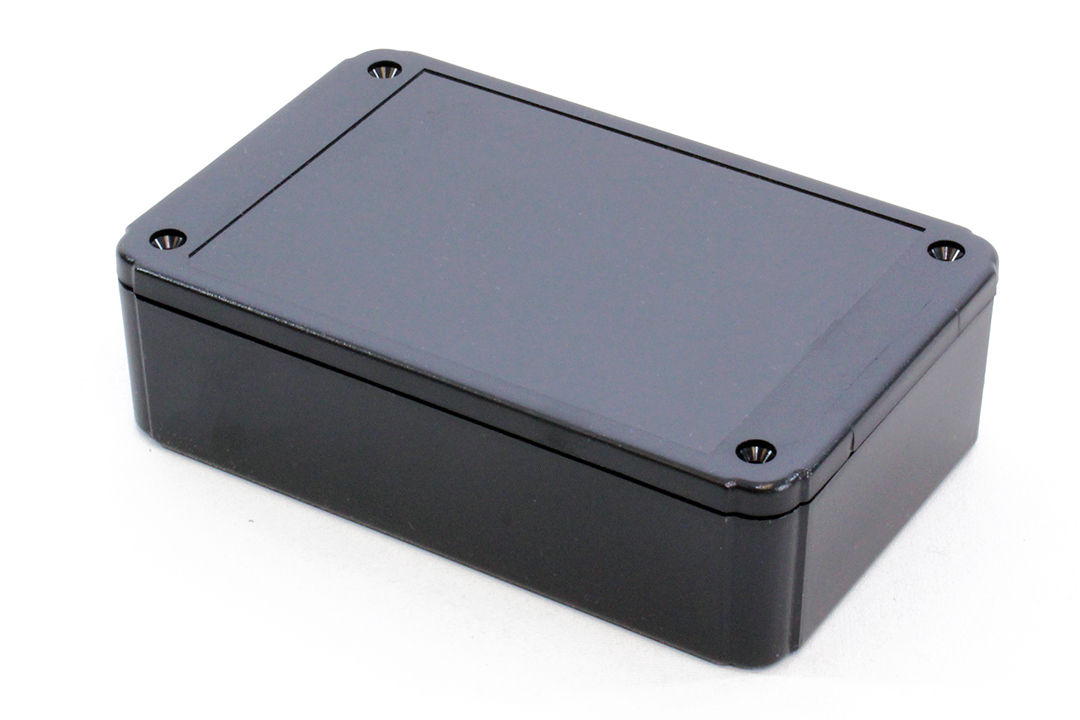

| RL6215BK | RL6215 | 125 | 80 | 35 | 118.84 | 73.84 | $2.86In stockRL6215BK | Buy now |

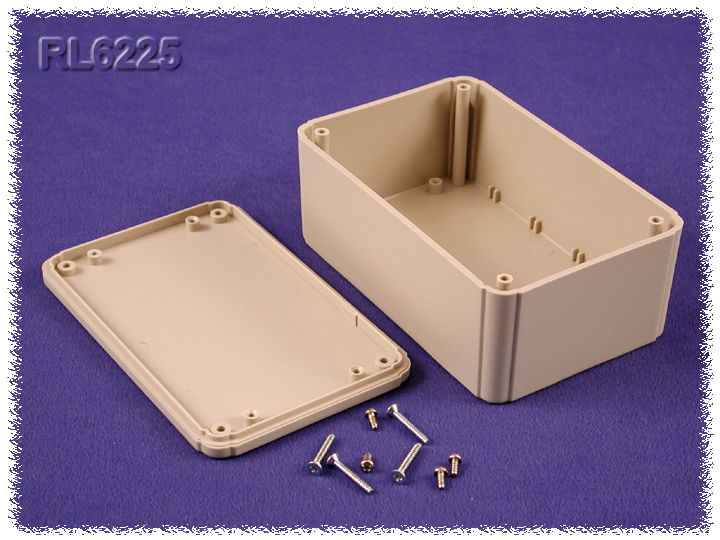

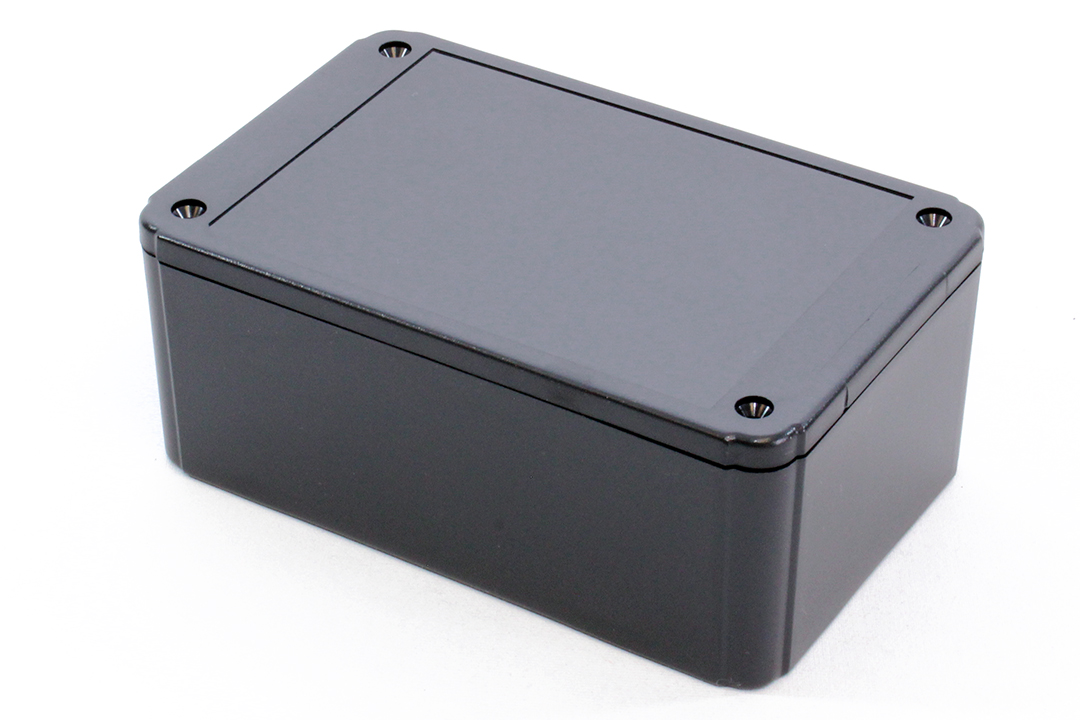

| RL6225BK | RL6225 | 125 | 80 | 50 | 118.05 | 73.05 | $3.14In stockRL6225BK | Buy now |

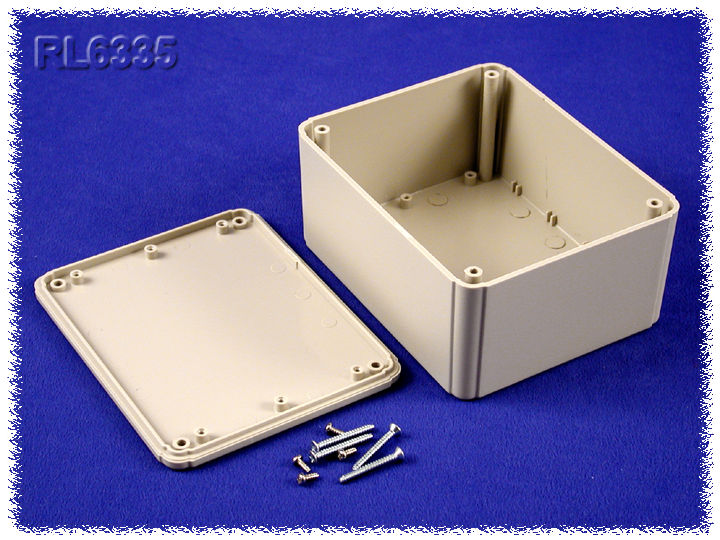

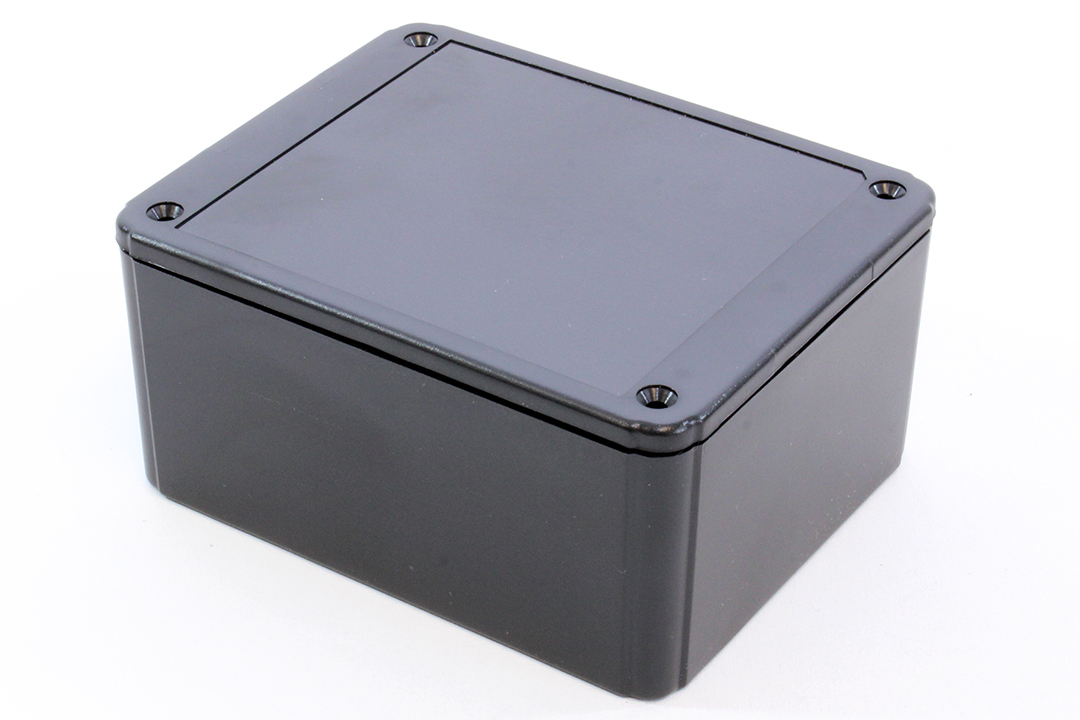

| RL6335BK | RL6335 | 125 | 100 | 60 | 117.53 | 92.53 | $4.28In stockRL6335BK | Buy now |

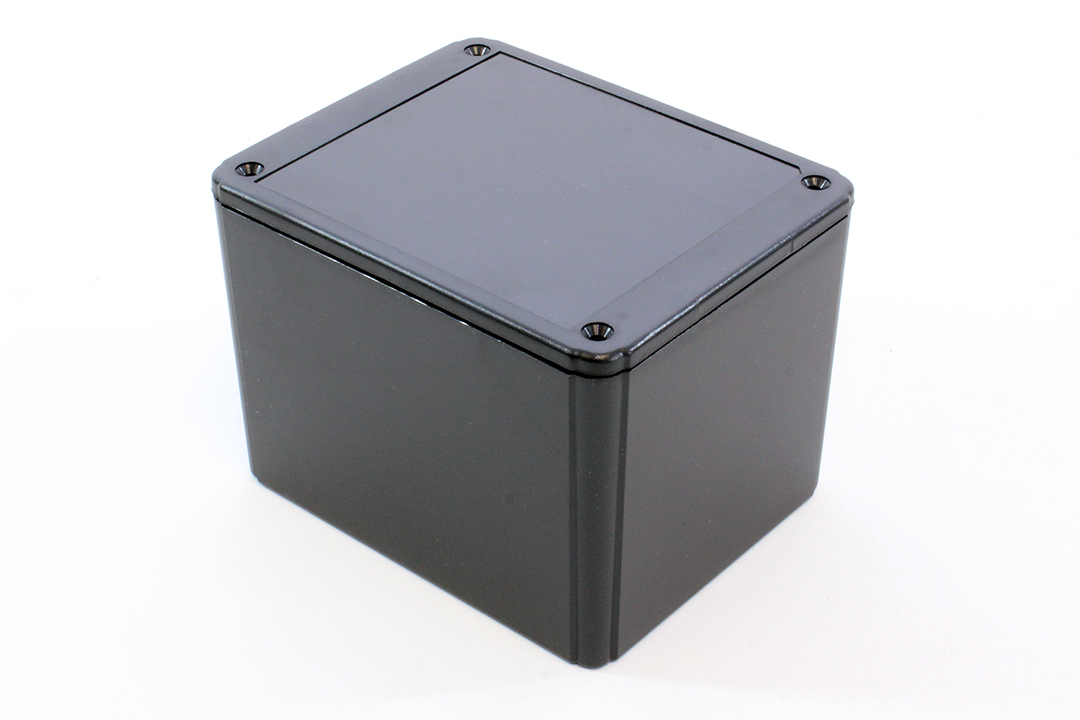

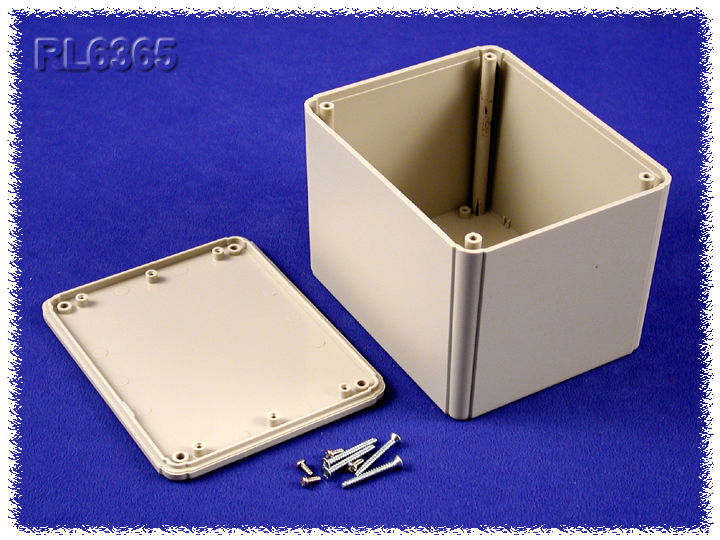

| RL6365BK | RL6365 | 125 | 100 | 90 | 115.96 | 85.26 | $5.56In stockRL6365BK | Buy now |

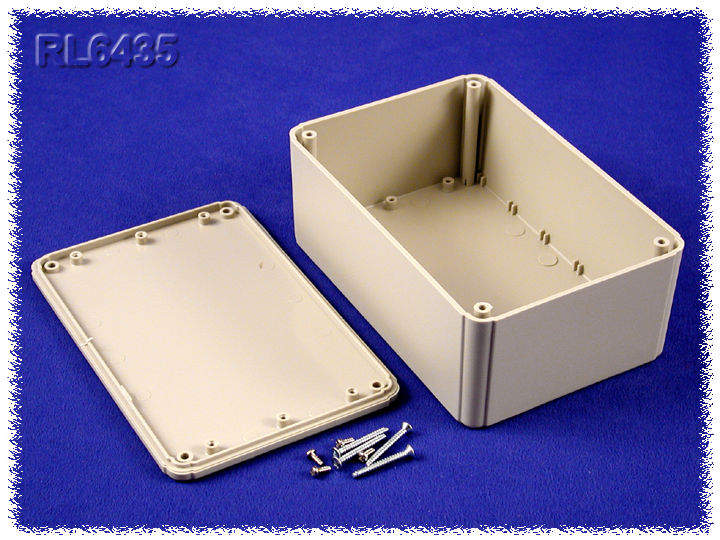

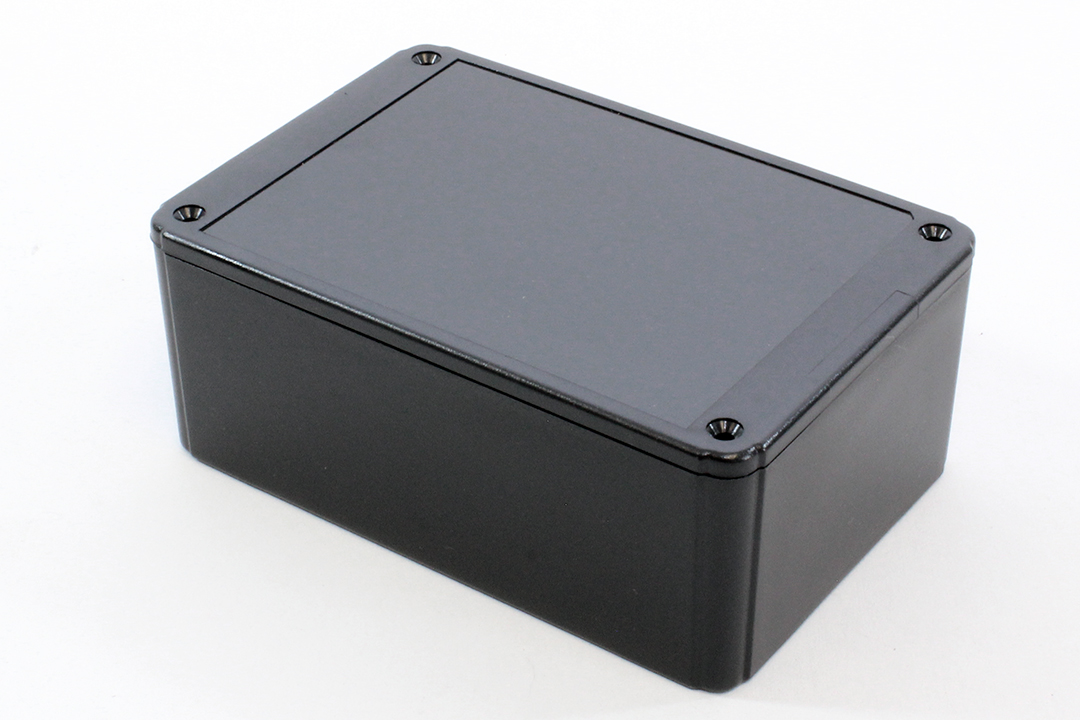

| RL6435BK | RL6435 | 150 | 100 | 60 | 142.53 | 87.35 | $4.71In stockRL6435BK | Buy now |

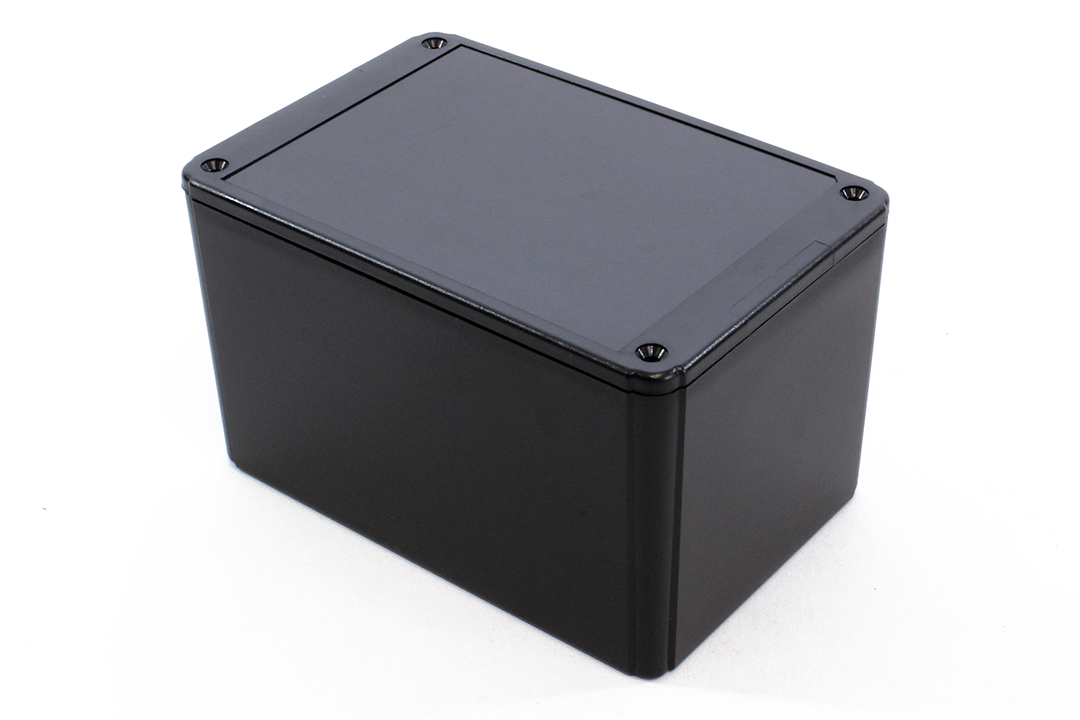

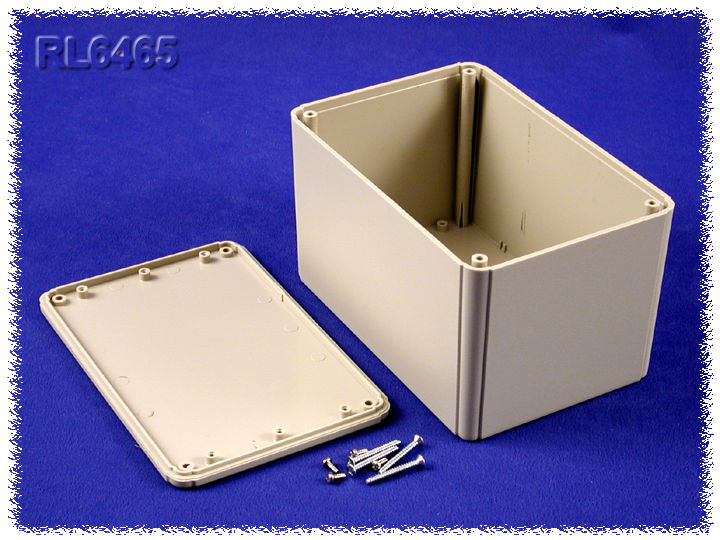

| RL6465BK | RL6465 | 150 | 100 | 90 | 140.96 | 87.35 | $6.44In stockRL6465BK | Buy now |

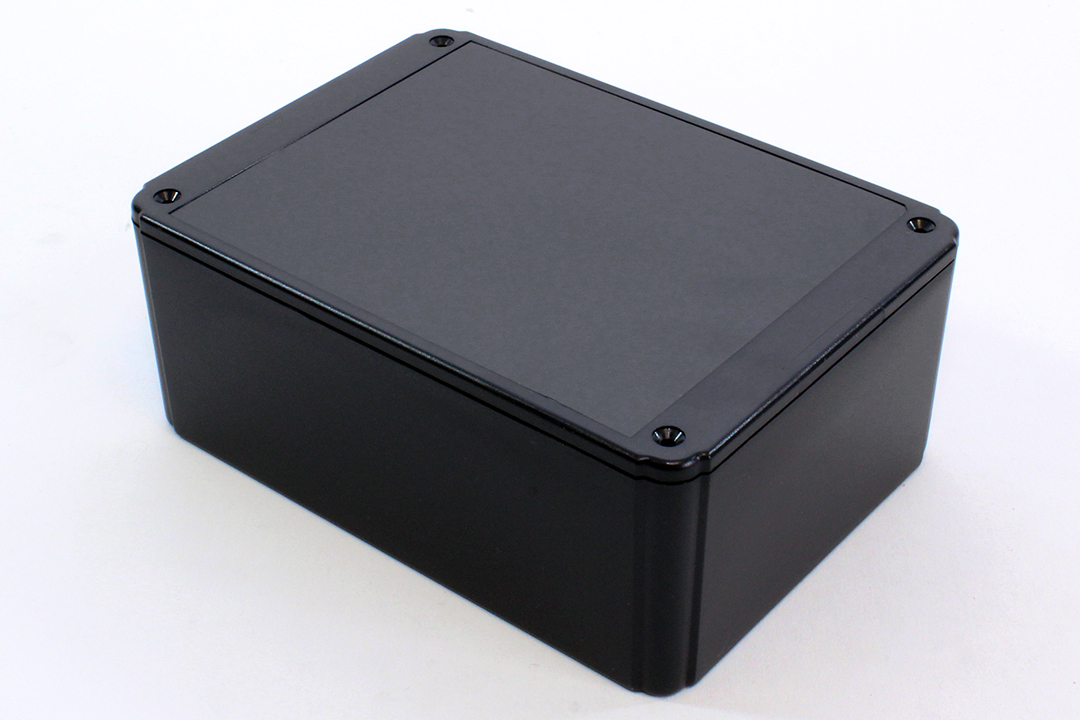

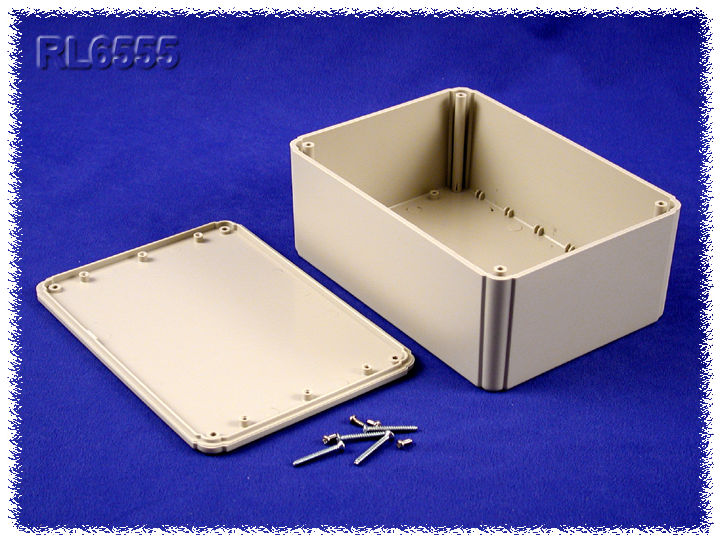

| RL6555BK | RL6555 | 175 | 125 | 70 | 166.03 | 109.35 | $7.12In stockRL6555BK | Buy now |
| RL6585BK | RL6585 | 175 | 125 | 100 | 164.46 | 109.35 | $10.02In stockRL6585BK | Buy now |
| RL6655BK | RL6655 | 200 | 150 | 70 | 191.03 | 133.35 | $8.65In stockRL6655BK | Buy now |
| RL6685BK | RL6685 | 200 | 150 | 100 | 189.46 | 133.35 | $11.61In stockRL6685BK | Buy now |
Enclosures with Wall Mounting Flanges
| Black · Enclosure (Part No.) | Gray · Enclosure (Part No.) | Length (mm) | Width (mm) | Height (mm) | Max PCB · Length (mm) | Max PCB · Width (mm) | Price | Order |
|---|---|---|---|---|---|---|---|---|

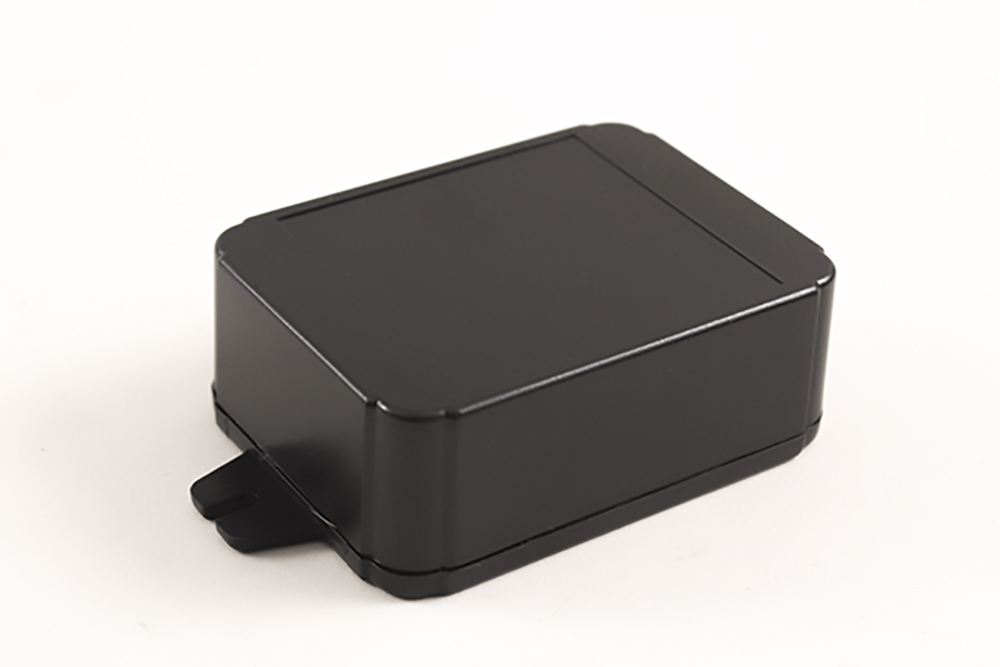

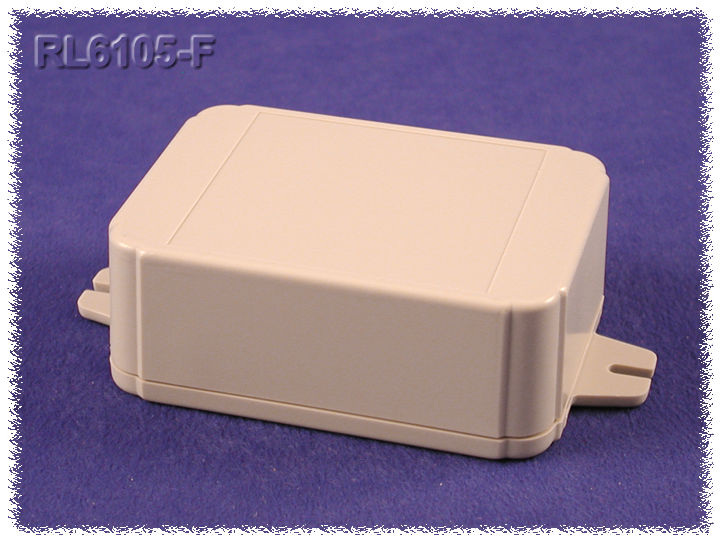

| RL6105-FBK | RL6105-F | 80 | 60 | 30 | 74.43 | 54.43 | $2.44In stockRL6105-FBK | Buy now |

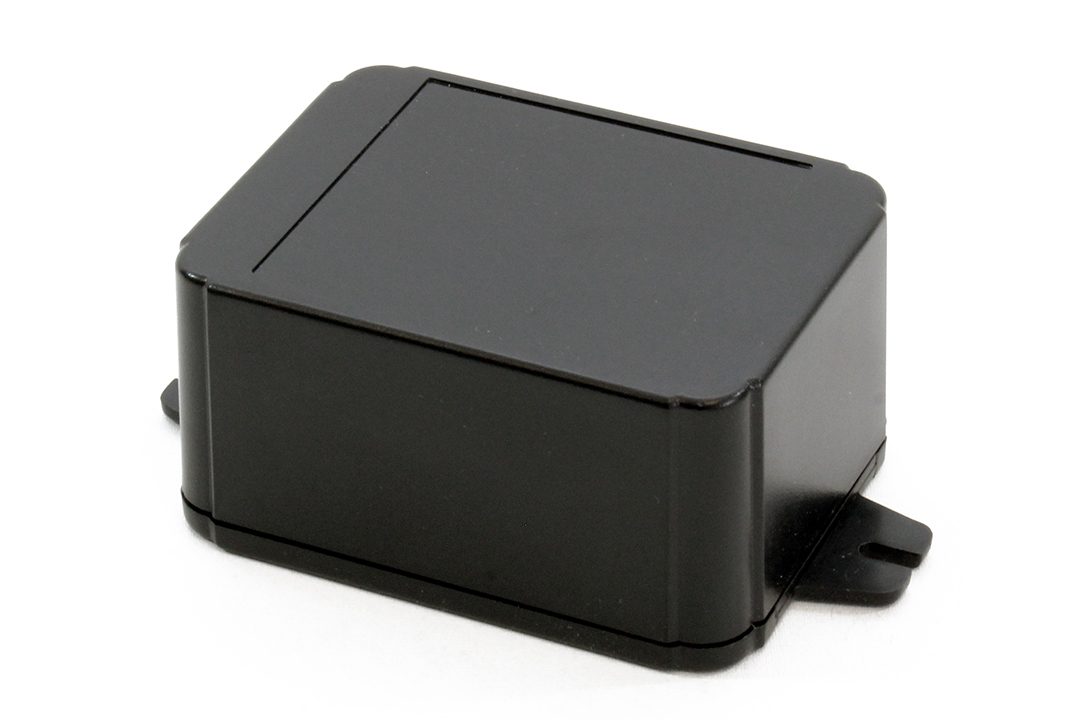

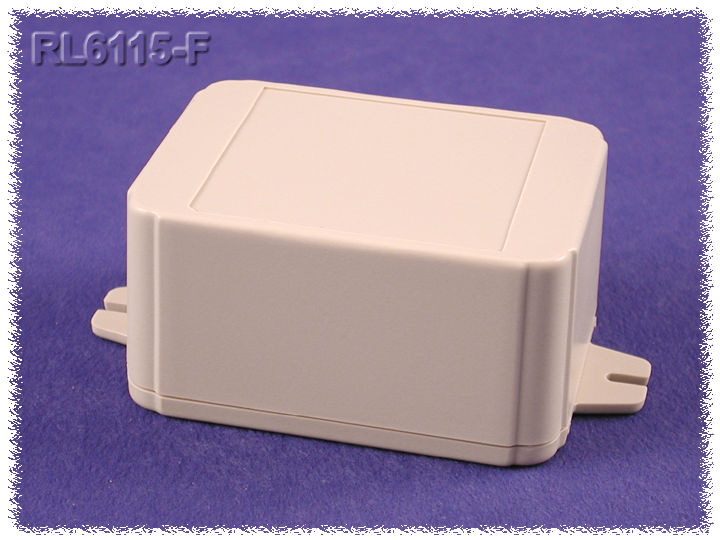

| RL6115-FBK | RL6115-F | 80 | 60 | 40 | 73.91 | 53.91 | $2.73In stockRL6115-FBK | Buy now |

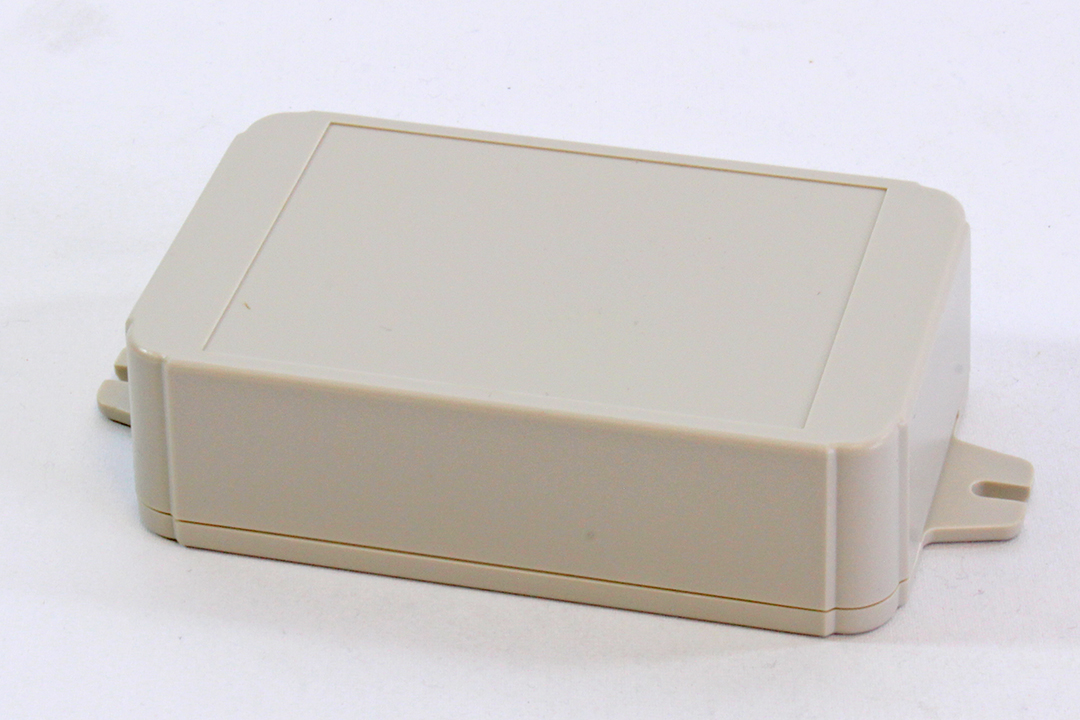

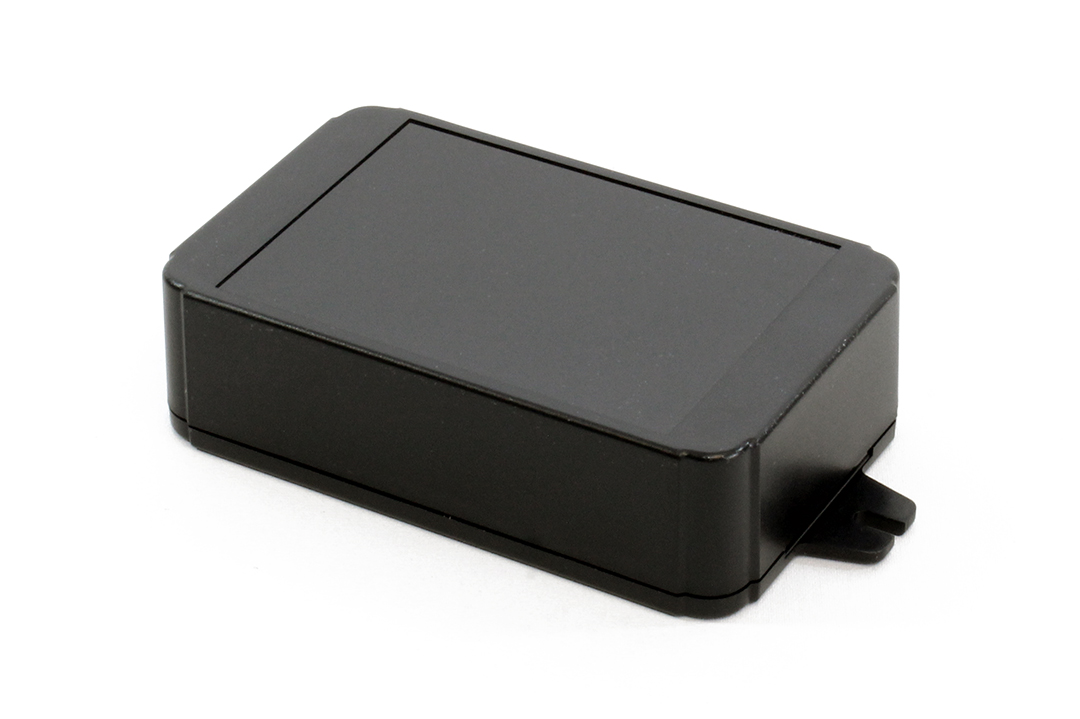

| RL6165-FBK | RL6165-F | 105 | 65 | 30 | 99.43 | 59.43 | $3.09In stockRL6165-FBK | Buy now |

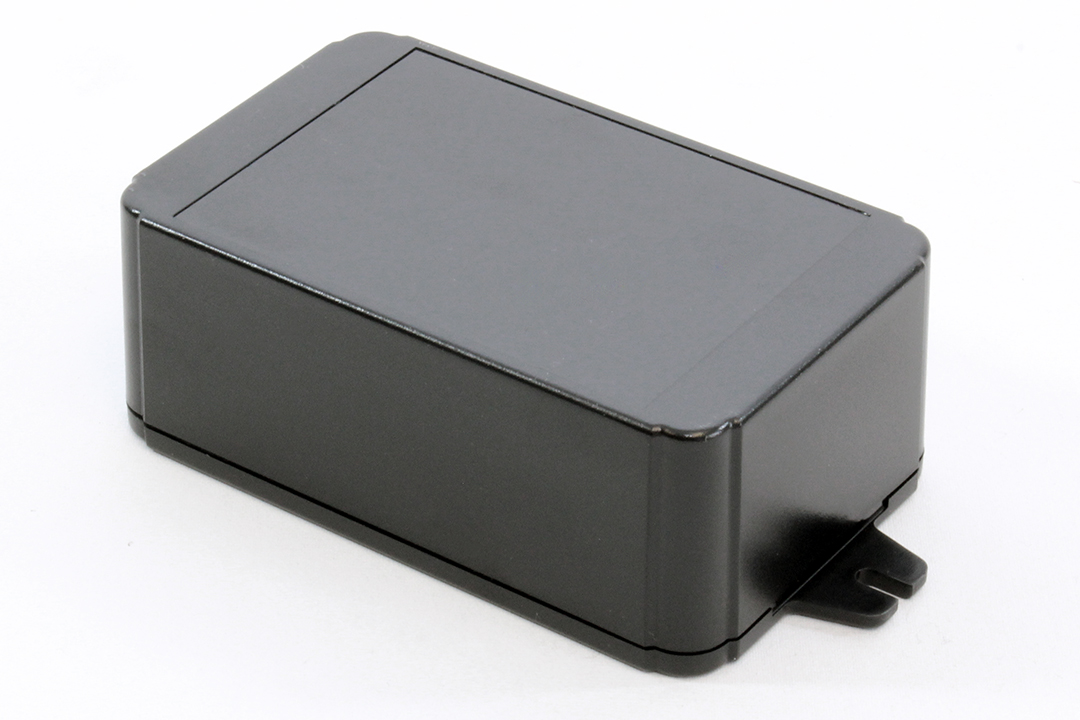

| RL6175-FBK | RL6175-F | 105 | 65 | 40 | 98.91 | 58.91 | $3.16In stockRL6175-FBK | Buy now |
| RL6205-FBK | RL6205-F | 125 | 80 | 25 | 119.31 | 74.31 | $3.29In stockRL6205-FBK | Buy now |

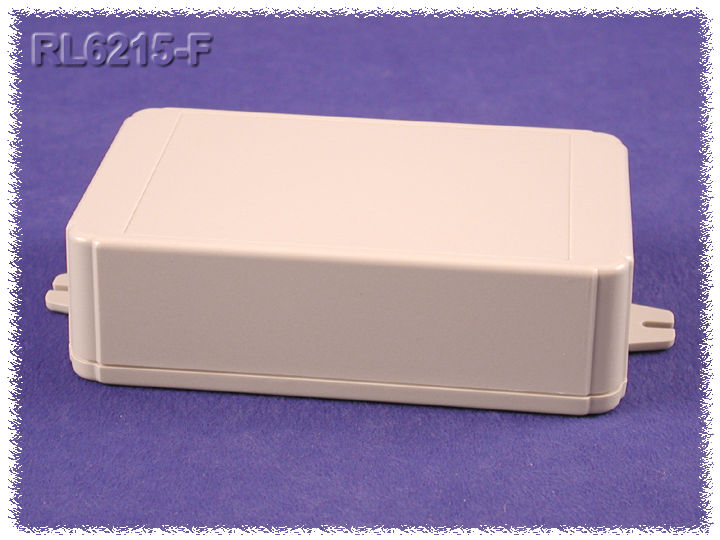

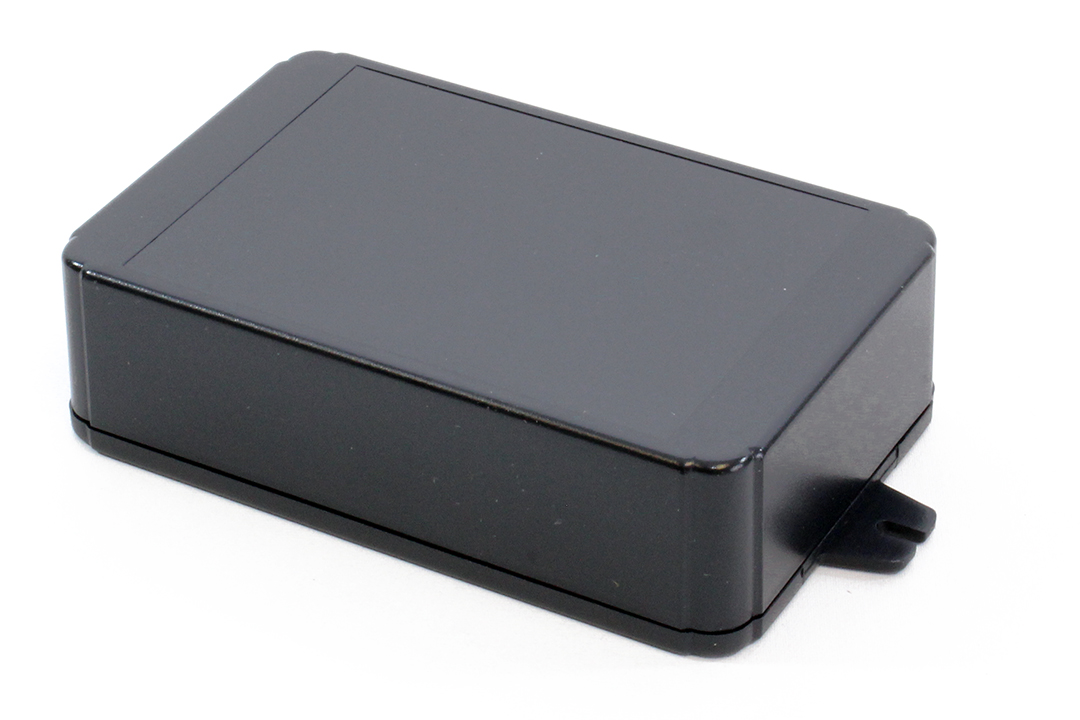

| RL6215-FBK | RL6215-F | 125 | 80 | 35 | 118.84 | 73.84 | $3.38In stockRL6215-FBK | Buy now |

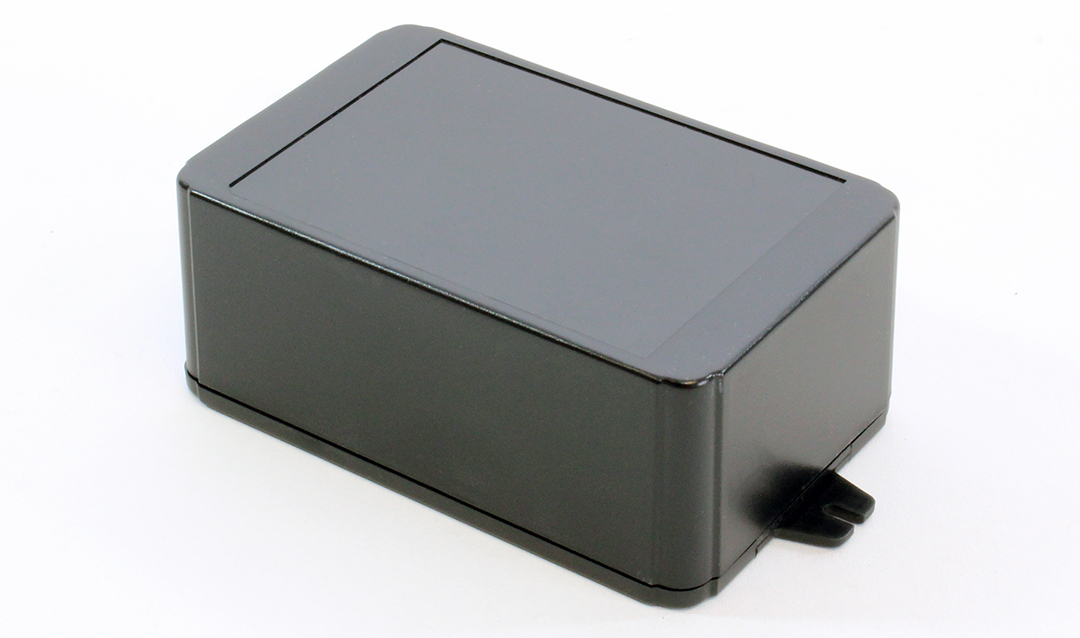

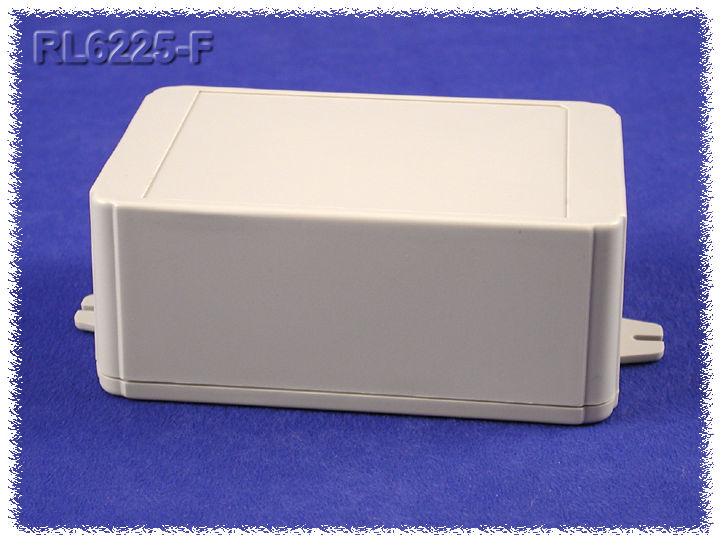

| RL6225-FBK | RL6225-F | 125 | 80 | 50 | 118.05 | 73.05 | $3.58In stockRL6225-FBK | Buy now |

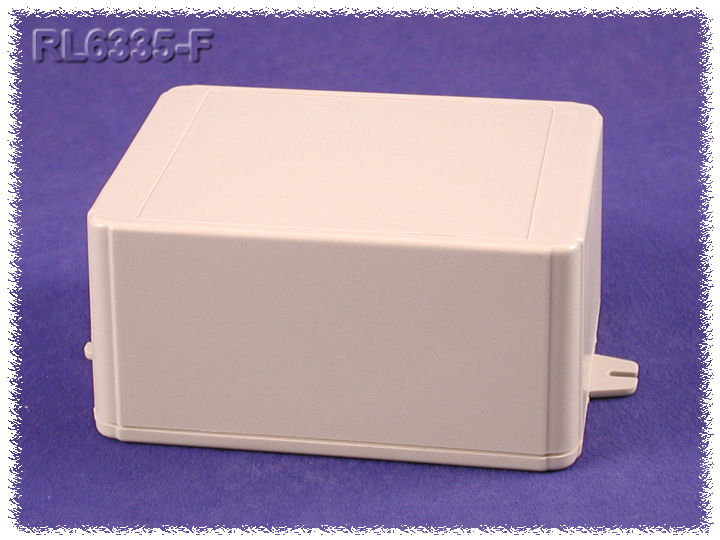

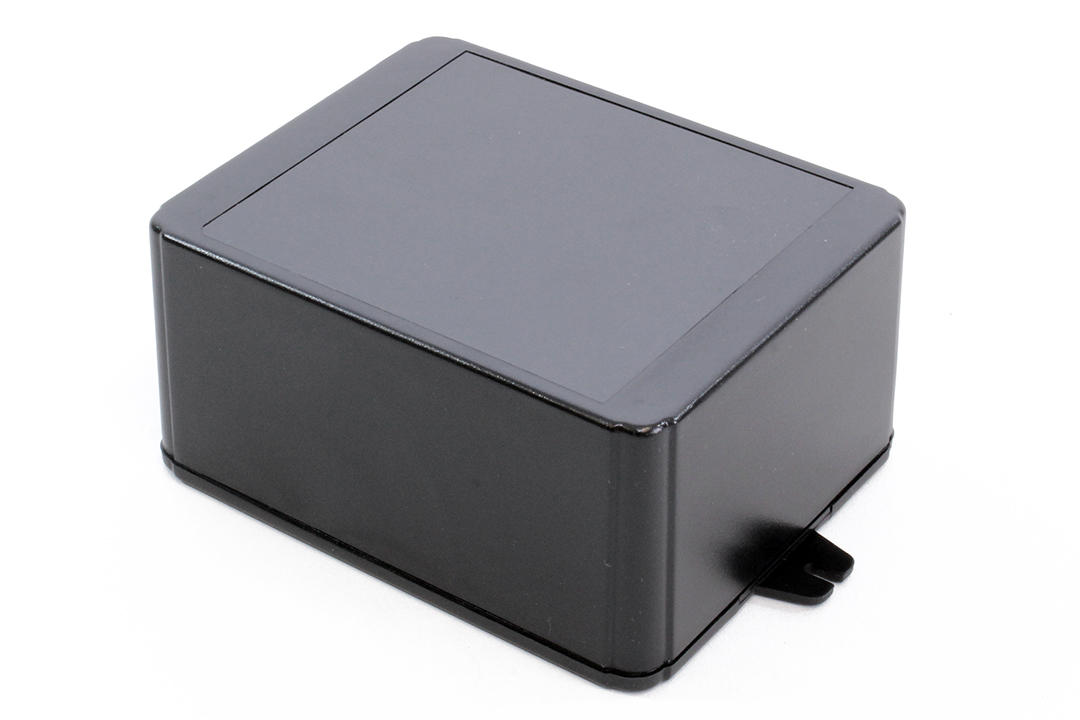

| RL6335-FBK | RL6335-F | 125 | 100 | 60 | 117.53 | 92.53 | $4.90In stockRL6335-FBK | Buy now |

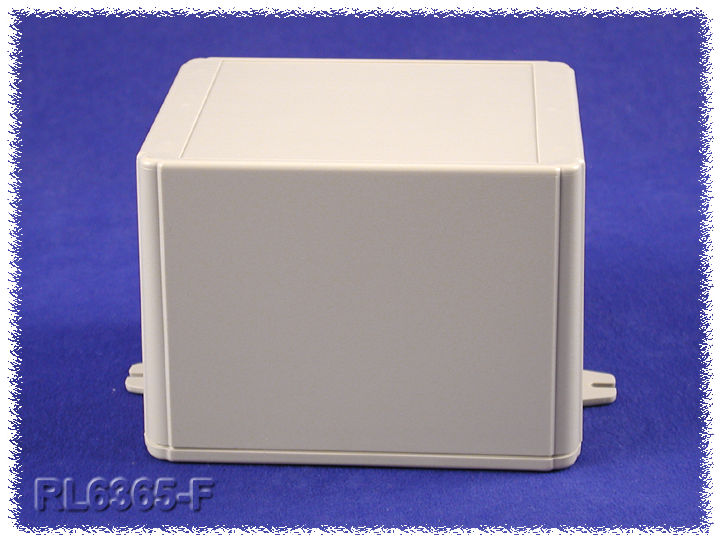

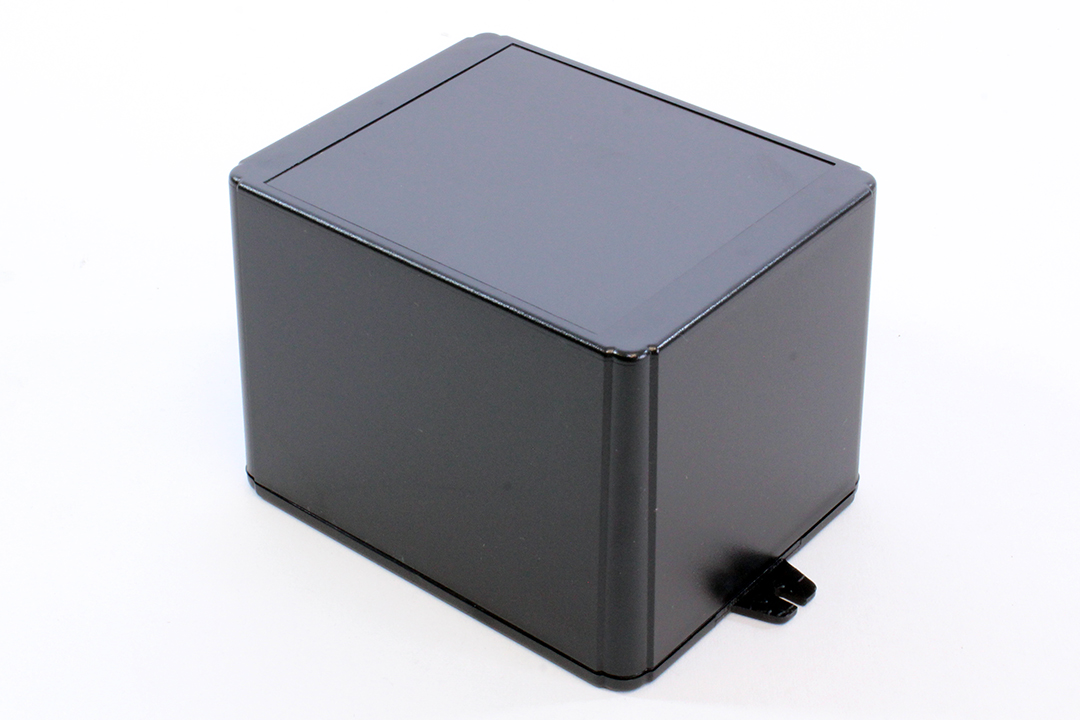

| RL6365-FBK | RL6365-F | 125 | 100 | 90 | 115.96 | 85.26 | $6.26In stockRL6365-FBK | Buy now |

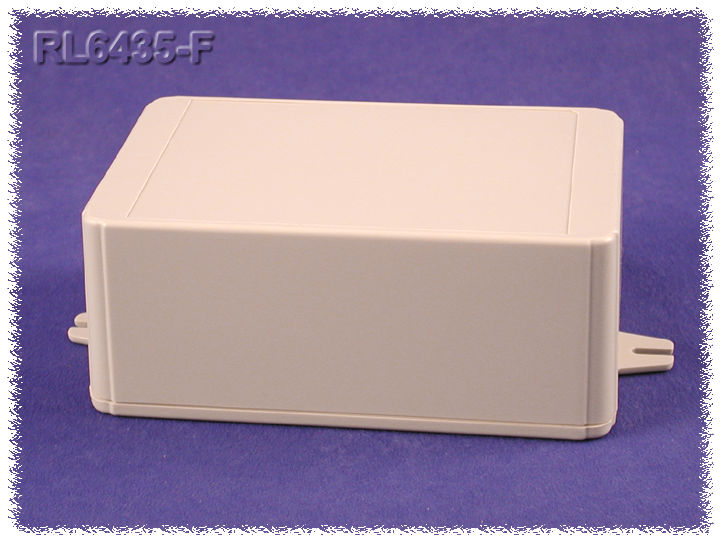

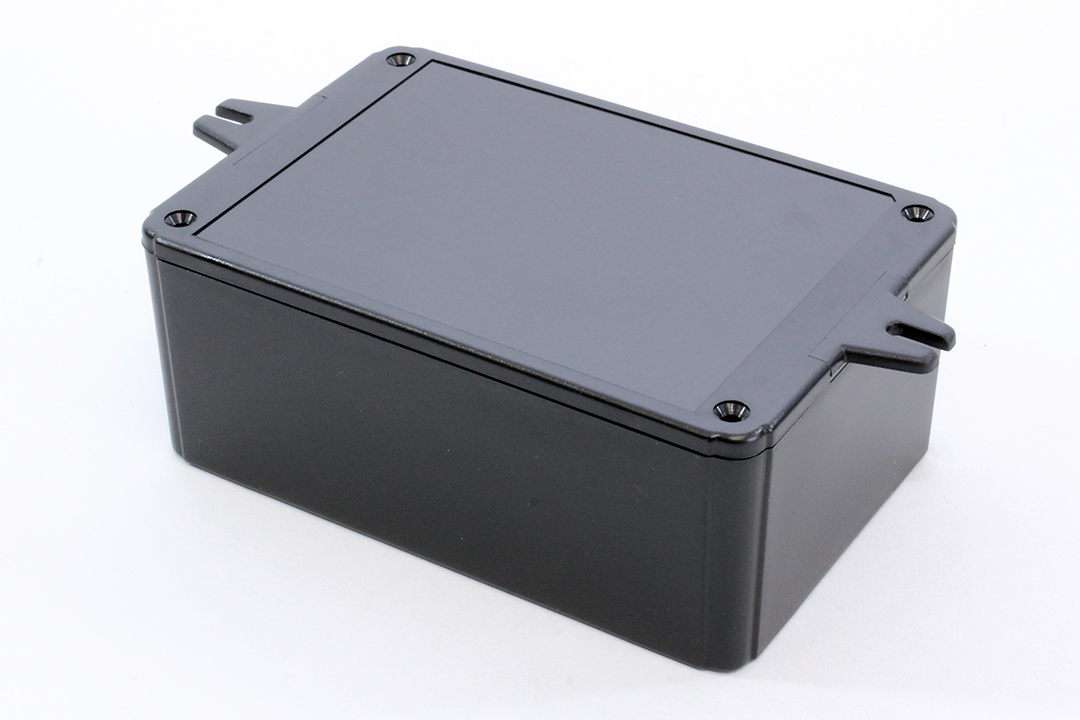

| RL6435-FBK | RL6435-F | 150 | 100 | 60 | 142.53 | 87.35 | $5.36BackorderRL6435-FBK | Buy now |

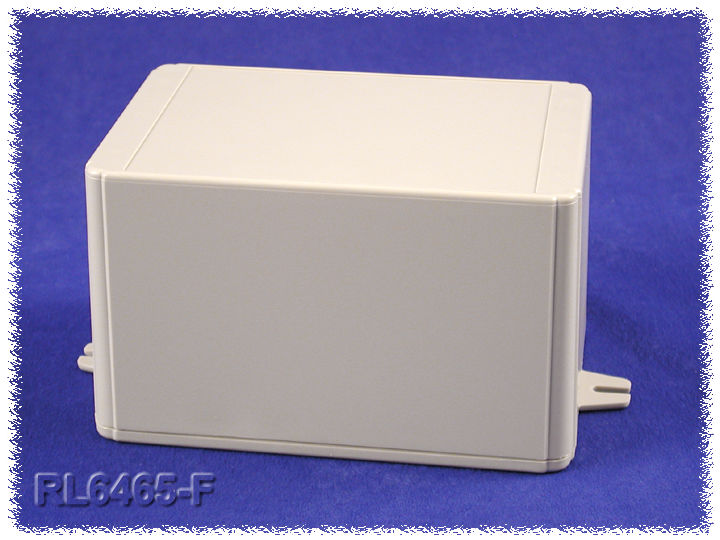

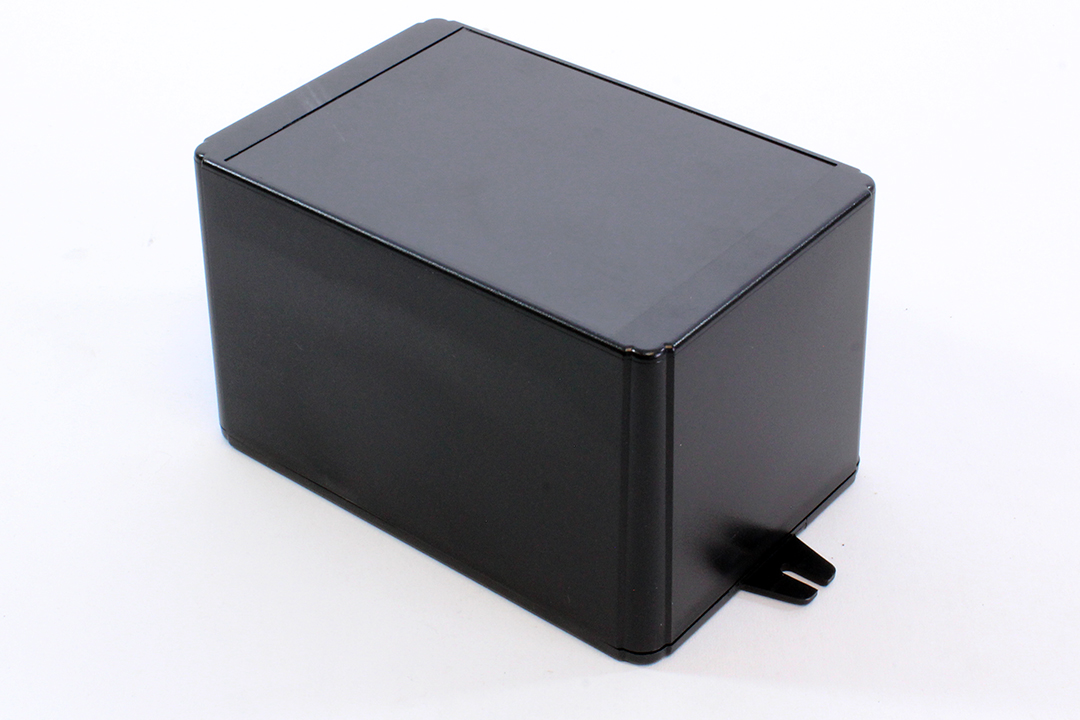

| RL6465-FBK | RL6465-F | 150 | 100 | 90 | 140.96 | 87.35 | $7.12In stockRL6465-FBK | Buy now |

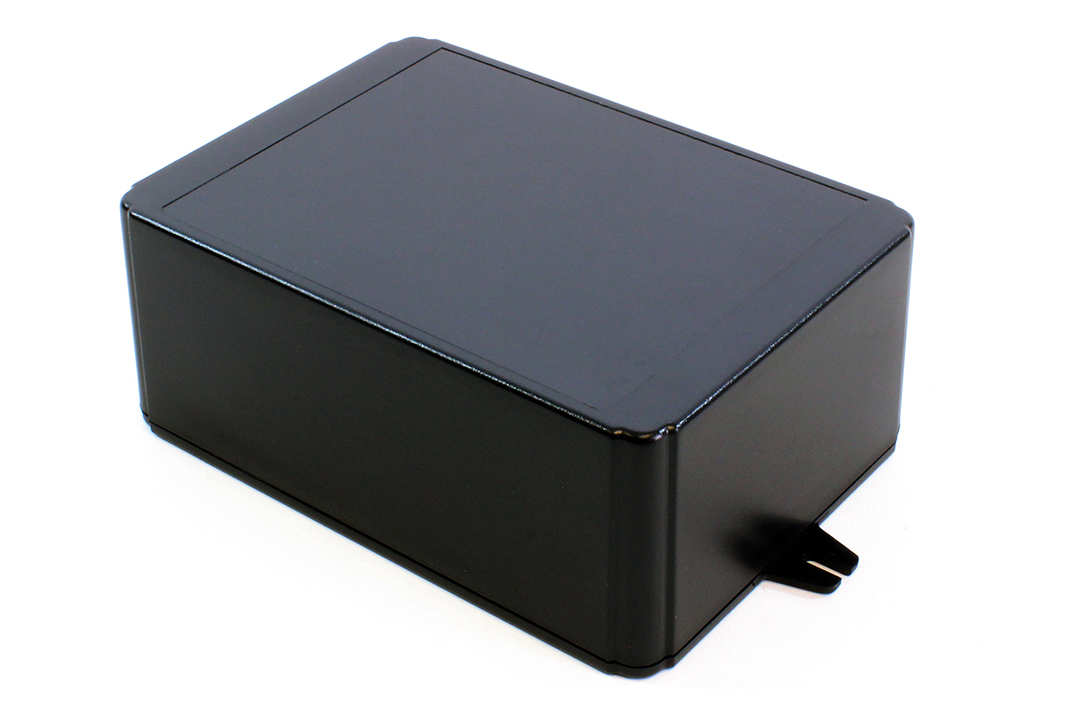

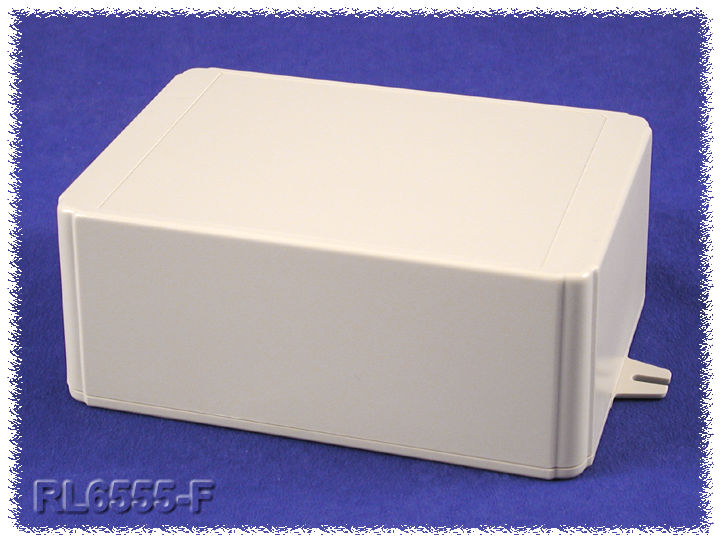

| RL6555-FBK | RL6555-F | 175 | 125 | 70 | 166.03 | 109.35 | $8.01In stockRL6555-FBK | Buy now |
| RL6585-FBK | RL6585-F | 175 | 125 | 100 | 164.46 | 109.35 | $10.92In stockRL6585-FBK | Buy now |
| RL6655-FBK | RL6655-F | 200 | 150 | 70 | 191.03 | 133.35 | $9.80In stockRL6655-FBK | Buy now |
| RL6685-FBK | RL6685-F | 200 | 150 | 100 | 189.46 | 133.35 | $12.68In stockRL6685-FBK | Buy now |
Key Features:
- ■Designed to house P.C. boards for hand-held use or wall mount.
- ■Molded in light grey or black general purpose ABS plastic with a light texture.
- ■Two part construction. Both halves include smooth recessed area for membrane, label or silkscreen (see chart below for recess size).
- ■P.C. board standoffs are molded into both halves of the enclosure (see photo tables for details).
- ■Designed to meet IP54.
- ■All sizes also available in a flanged lid version.
- ■Enclosures include lid screws and PCB screws. For corresponding packs of replacement screws, see part drawings below.
- ■Some chemicals can damage or weaken plastic. Please read our Chemical Resistance Statement under Downloads for more information.
