Hammond RL6105-FBK 80x60x30 mm Flanged ABS Project Box, Black
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Black ABS with integral wall mounting flanges
- 80 x 60 x 30 mm body; 103.92 mm long with flanges
- Designed to meet IP54
- Holds PCBs up to 74.43 x 54.43 mm
- Recessed areas on both halves for labels or silkscreen
- Includes 4 PCB screws and 4 lid screws
- UL94 HB material; REACH and RoHS compliant

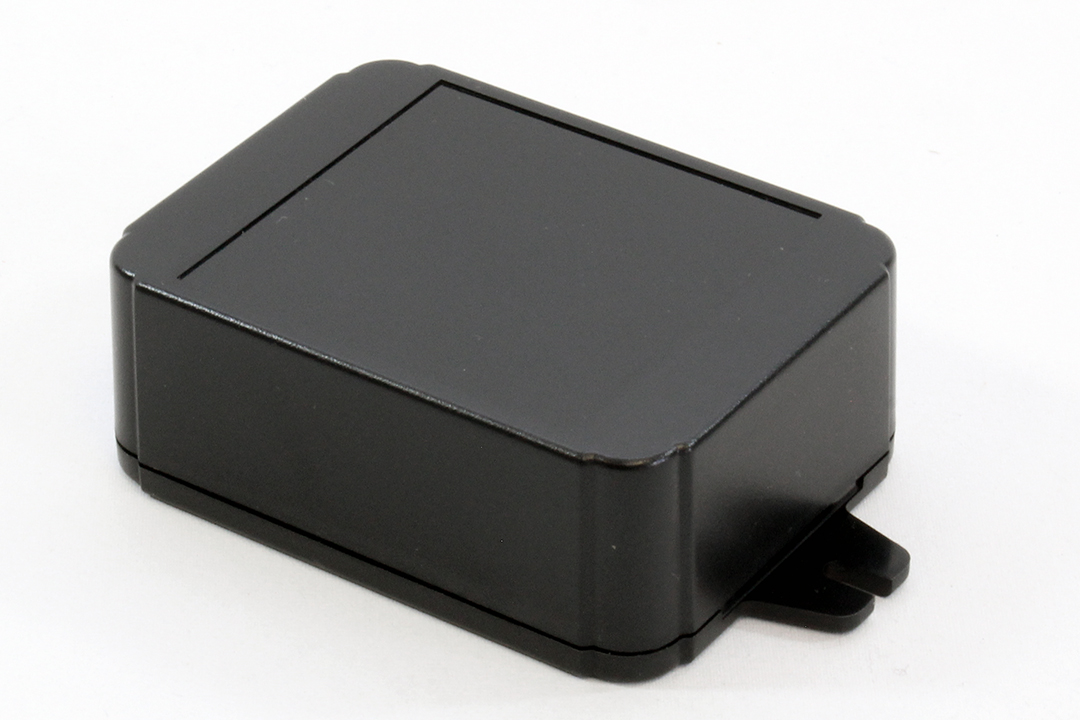

RL6105-FBK is the black, flanged version of the 80 x 60 x 30 mm (3.15 x 2.36 x 1.18 in) RL Series shallow-lid project enclosure. Its mounting flanges bring the overall length to 103.92 mm (4.09 in) on the drawing, so it can be fixed to a wall or panel rather than held in the hand.
It is a two-part enclosure molded in black general purpose ABS with a light texture, rated UL94 HB. The RL design is intended to meet IP54, and each half has a smooth recessed area 0.30 mm deep for a membrane, label or silkscreen.
The inside measures 75.25 x 55.25 x 24.70 mm per the drawing, and the maximum P.C. board is 74.43 x 54.43 mm. Standoffs molded into both halves accept M2.6 self-tapping screws.

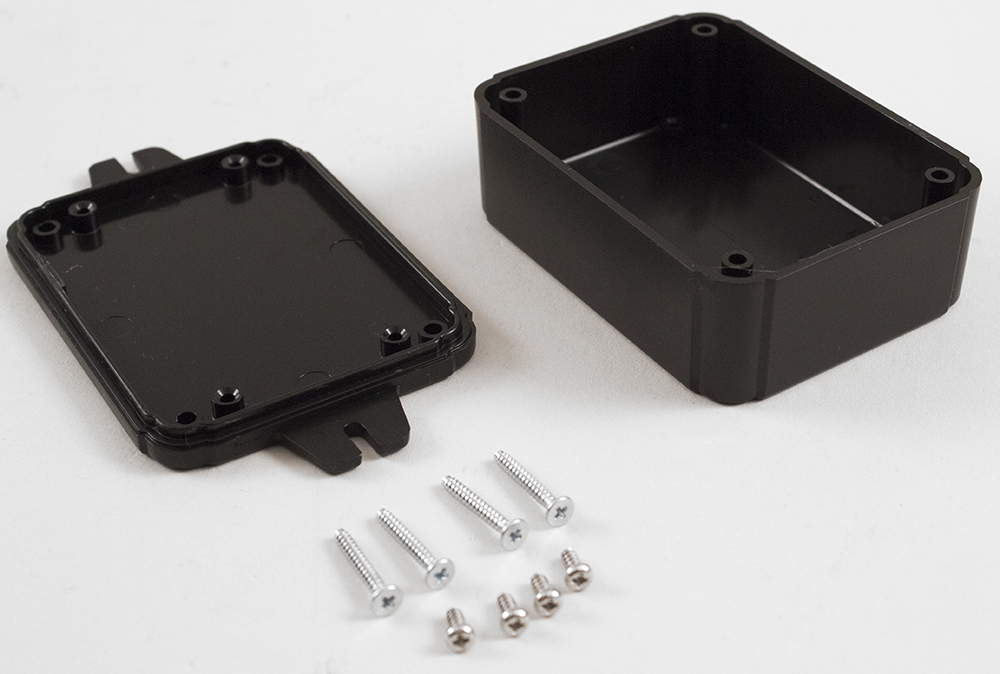

Each RL6105-FBK includes the box, lid, 4 PCB screws and 4 lid screws; recommended torque is (43-50) Ozf.in / (30-35) cN.m. Replacement packs are SC520-50 (M2.6 x 18 mm lid screws) and SC519-50 (PCB screws). It is REACH and RoHS compliant, ships bagged at 0.09 lbs (0.04 kg), and has a light gray twin, RL6105-F.
Ideal For
- Wall-mounted electronics
- Panel-mounted sensor or interface boxes
- Black-finish control enclosures
- Small PCB assemblies needing fixed mounting
Mounting
| Mounting | Wall mounting flanges |
Overview
| Type | Project box, flanged |
| Series | RL Series - ABS Plastic Project Enclosures (Shallow Lid) |
| CAD Models | Solid models available in .stp or .x_t |
| Description | ABS FLANGLED PROJECT ENCL |
| Part Number | RL6105-FBK |
| Product Type | Enclosure - plastic |
| Related Versions | Gray flanged: RL6105-F; without flanges: RL6105 (gray), RL6105BK (black) |
| Included In Assembly | Box, lid, 4 PCB screws and 4 lid screws |
Dimensions
| Inside Width | 55.25 mm [2.18 in] |
| Inside Height | 24.70 mm [0.97 in] |
| Inside Length | 75.25 mm [2.96 in] |
| Inlay (Recess) Depth | 0.30 mm [0.01 in] |
| Max. P.C. Board Width | 54.43 mm |
| Max. P.C. Board Length | 74.43 mm |
| Nominal Size (L X W X H) | 3.15 in x 2.36 in x 1.18 in (80 mm x 60 mm x 30 mm) |
| Series Table Size (L X W X H) | 80 mm x 60 mm x 30 mm |
| Overall Length Including Flanges (Drawing) | 103.92 mm [4.09 in] |
Accessories
| PCB Screw M2.6 X 6 Mm Self-Tapping (50 Pkg) | SC519-50 |
| Lid Screw M2.6 X 18 Mm Self-Tapping (50 Pkg) | SC520-50 |
Identifiers
| UPC | 623980406091 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | bag |
| Shipping Weight | 0.09 lbs (0.04 kg) |
Construction & Finish
| Color | Black |
| Material | ABS Plastic (general purpose ABS, light texture) |
| Construction | Two-part; both halves include a smooth recessed area for membrane, label or silkscreen |
| PCB Standoffs | Molded into both halves; accept M2.6 self-tapping screws |
| Factory Modification | Milling, drilling, printing etc. available from the factory on request (quote) |
| Recommended Screw Torque | (43-50) Ozf.in / (30-35) cN.m |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 HB |
| Chemical Resistance Note | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents/cleaners and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What colour is RL6105-FBK?▾
Black. The light gray flanged version is RL6105-F.
What are the inside dimensions?▾
75.25 mm long, 55.25 mm wide and 24.70 mm high per the drawing.
What mounting does it have?▾
It has wall mounting flanges; the overall length with flanges is 103.92 mm.
Which replacement screws fit?▾
SC520-50 lid screws (M2.6 x 18 mm self-tapping) and SC519-50 PCB screws (M2.6 x 6 mm self-tapping), 50 per pack.
