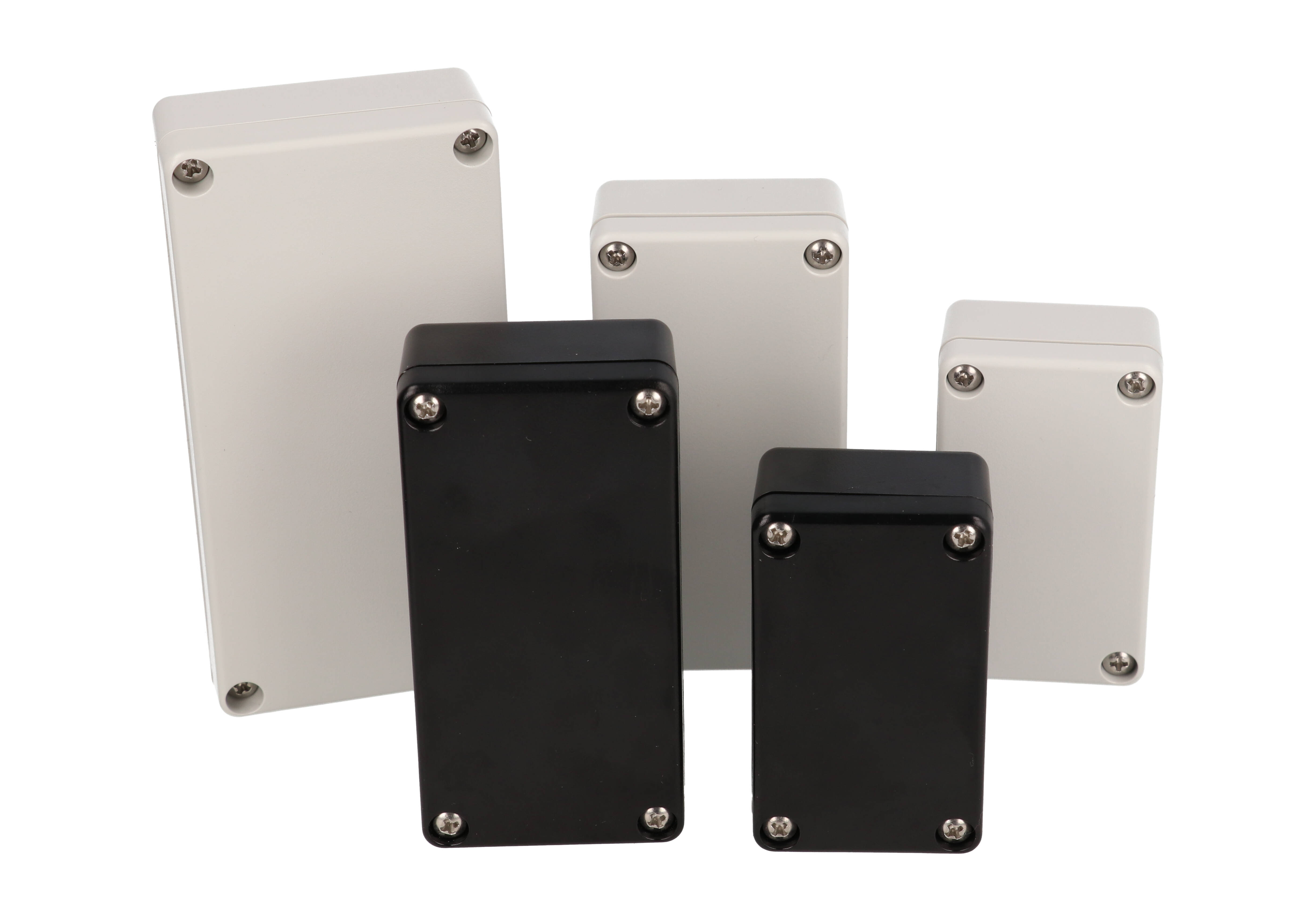

Watertight Polycarbonate Miniature Enclosures · 1551W Series

Brand: Hammond Manufacturing · 27 part numbers

■Ideally suited for mounting small printed circuit boards.
■Molded from robust polycarbonate with satin texture finish.
■Suitable for outdoor use.
■Polycarbonate has a flame rating of UL94 V-0.
■Includes lid and four plastite #4 self-tapping screws.

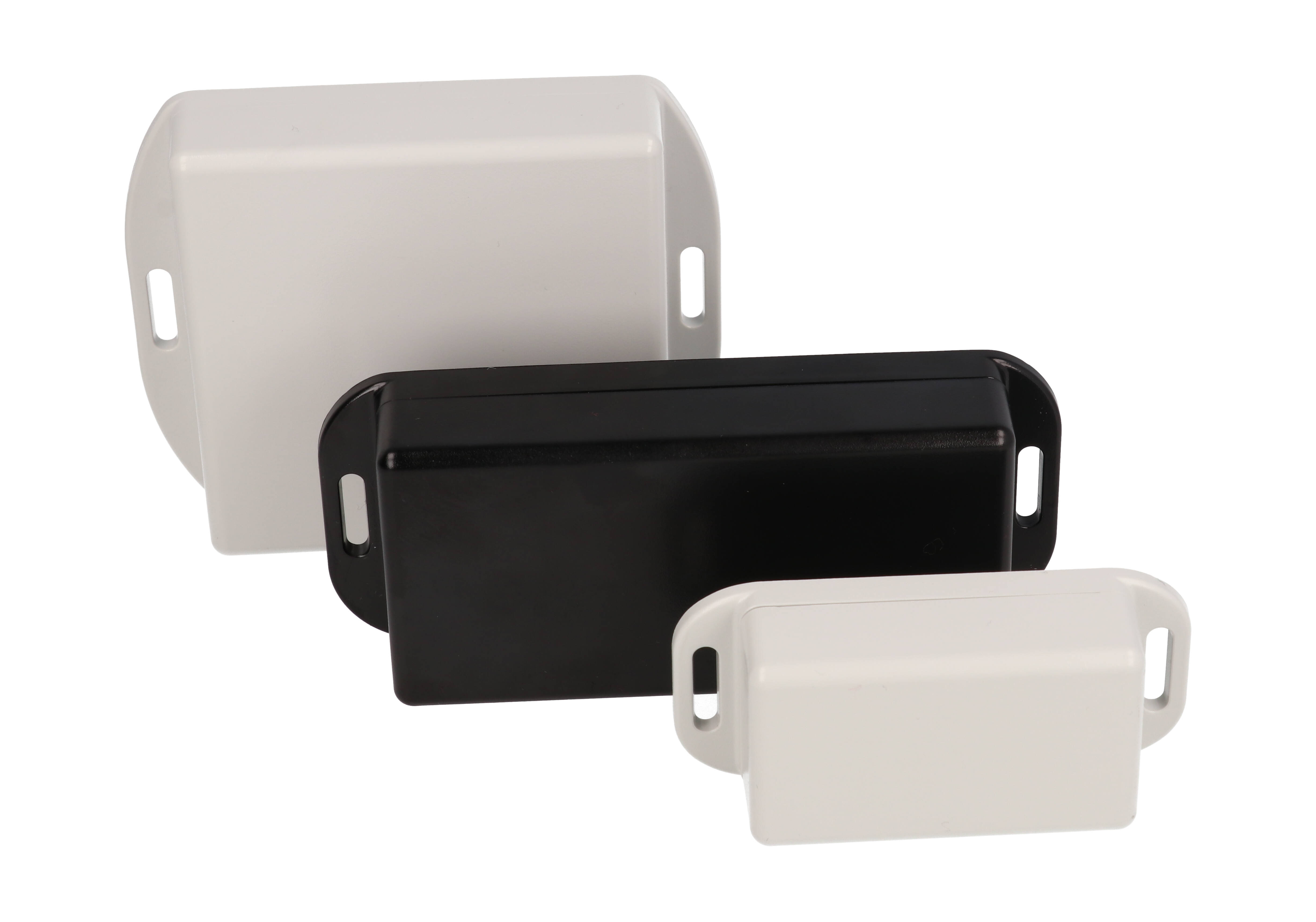

■Available with or without integrated wallmounting flanges.

from $2.38

27 of 27 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy now Request a quote

Specification sheet (PDF) (224) 955-1644

Part details Features Documents

Configure & price

Find your 1551W Series part number

Filter 25 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

25 of 25 part numbers · 25 priced online

1551WHBK

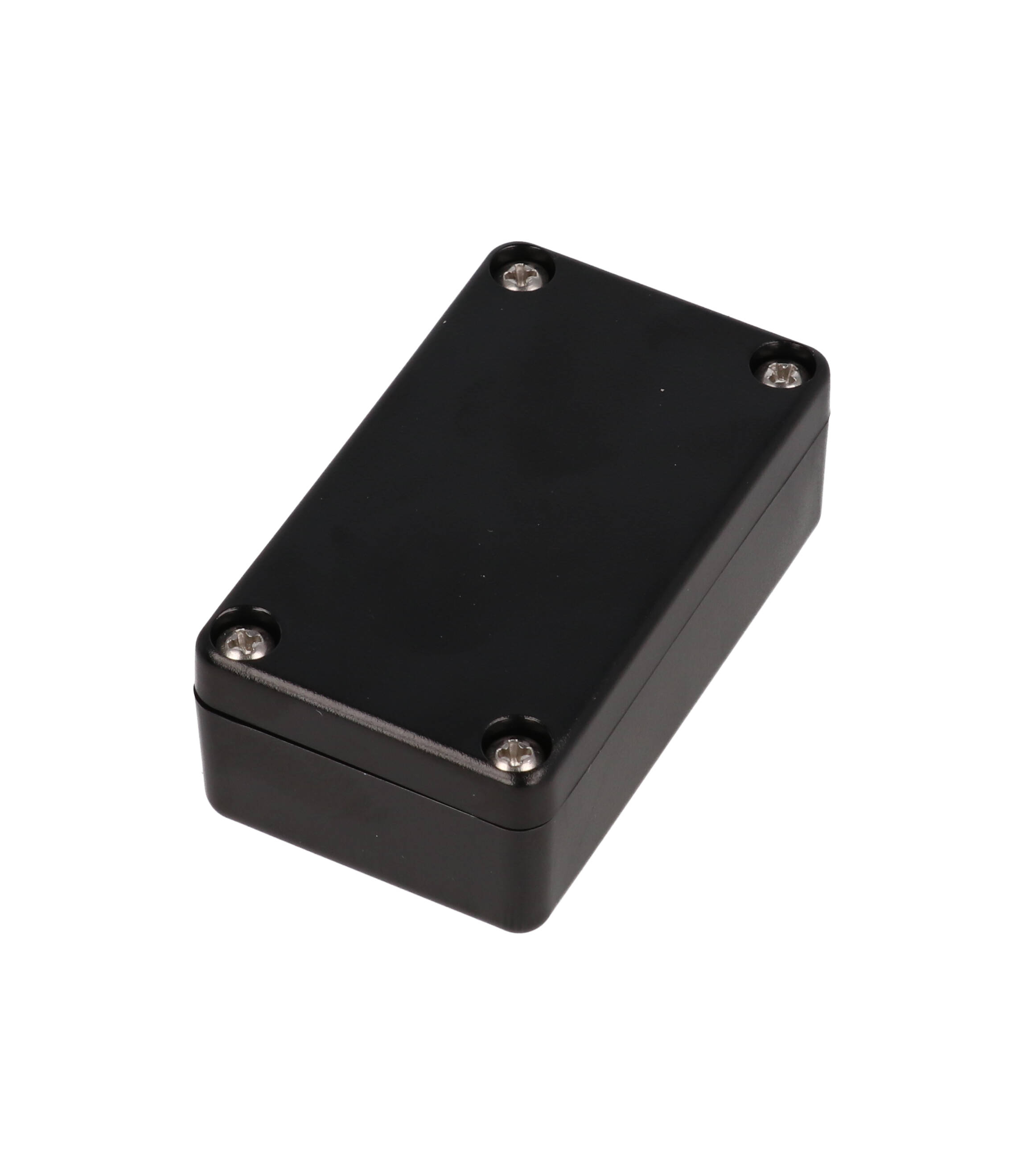

35x60x22mm PC W/Gask BK

Type Miniature, watertight
Material Polycarbonate
Color Black

$3.72In stock

Buy now

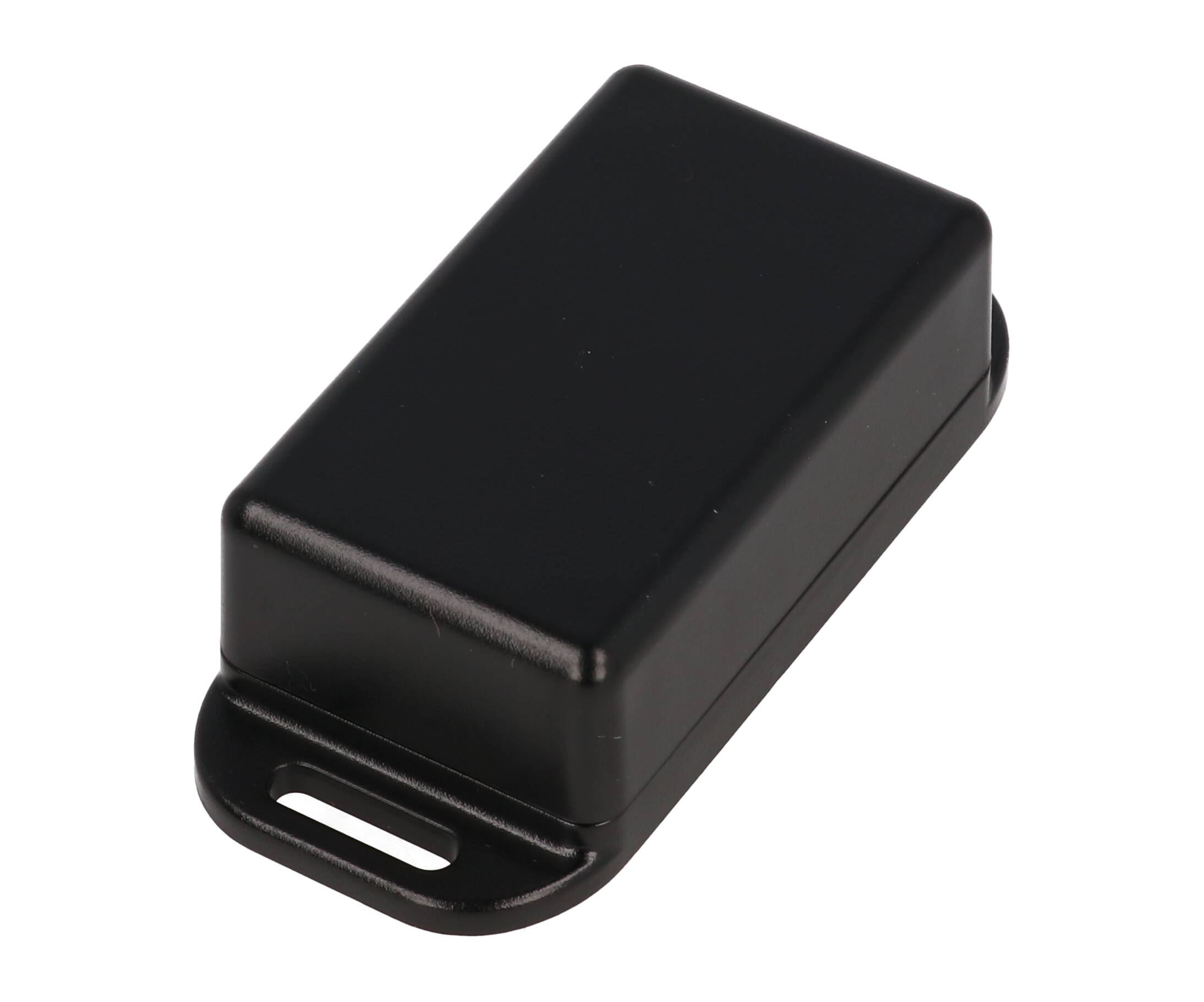

1551WHFLBK

35x60x22mm PC W/Gask Fl BK

Type Miniature flanged watertight
Material Polycarbonate
Color Black

$3.75In stock

Buy now

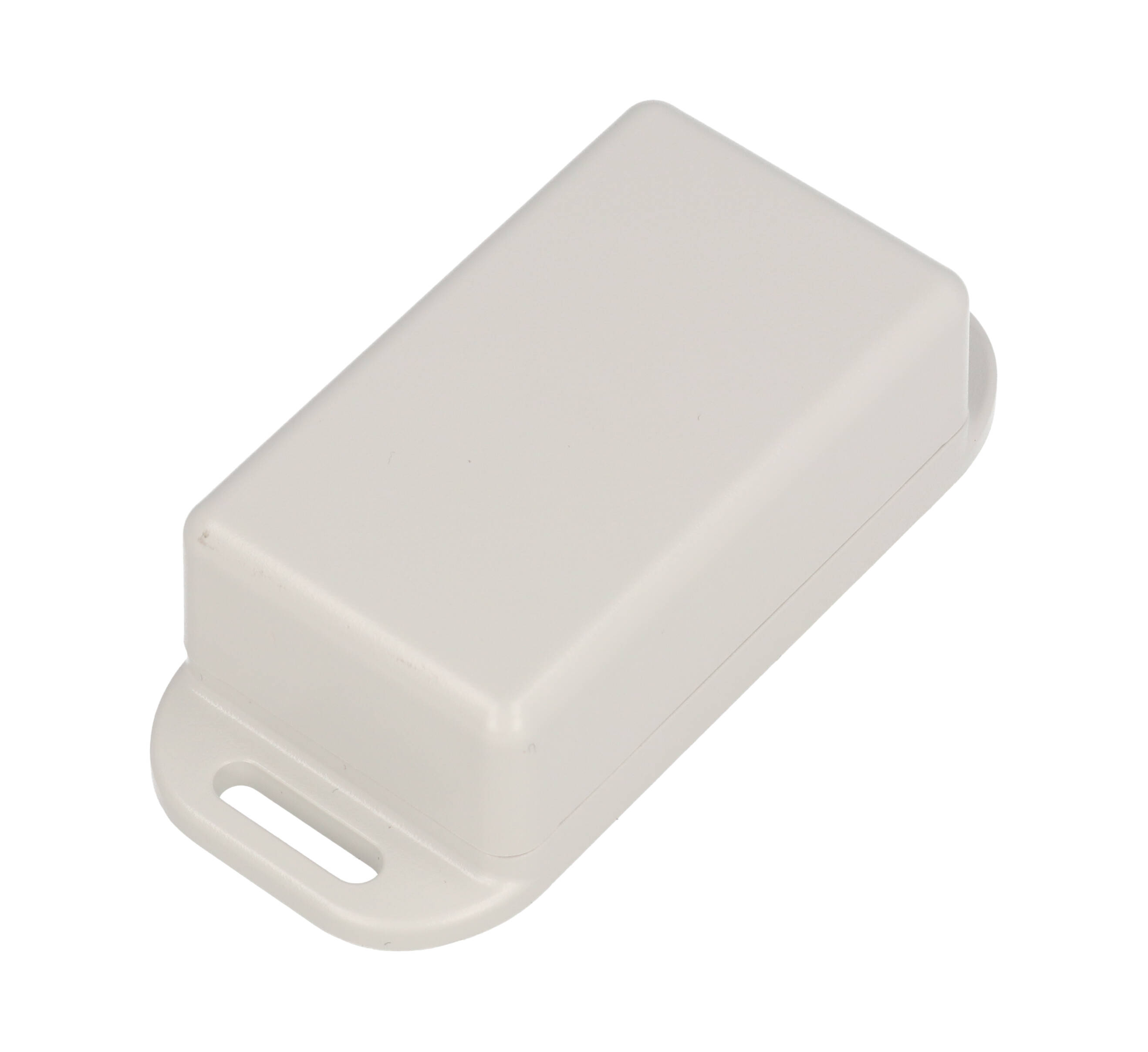

1551WHFLGY

35x60x22mm PC W/Gask Fl GY

Type Miniature flanged watertight
Material Polycarbonate
Color Light Gray

$3.75In stock

Buy now

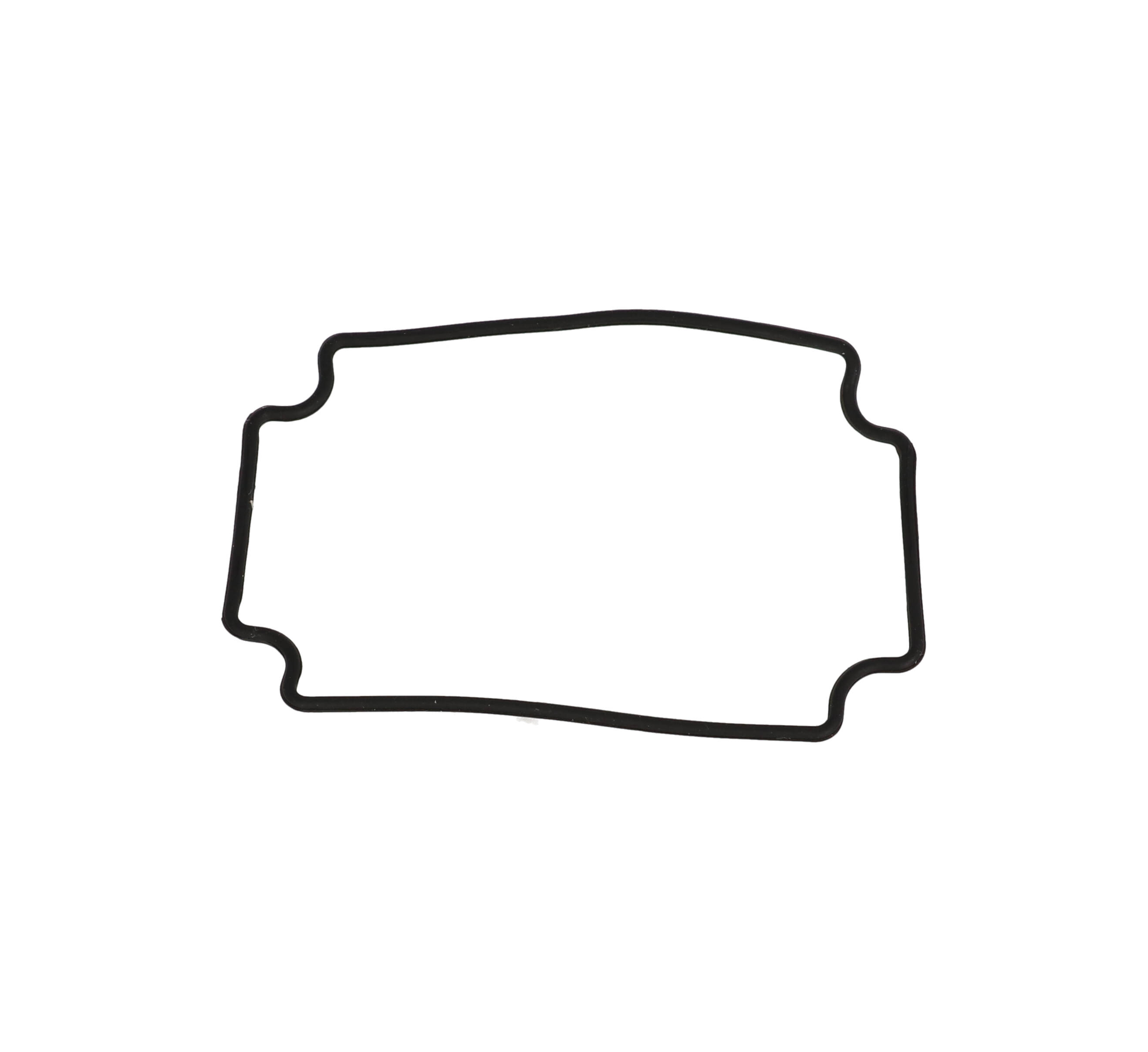

1551WHGASKET

2-PACK Replace Gasket, 1551WH

Type Gaskets
Material Silicone

$2.38In stock

Buy now

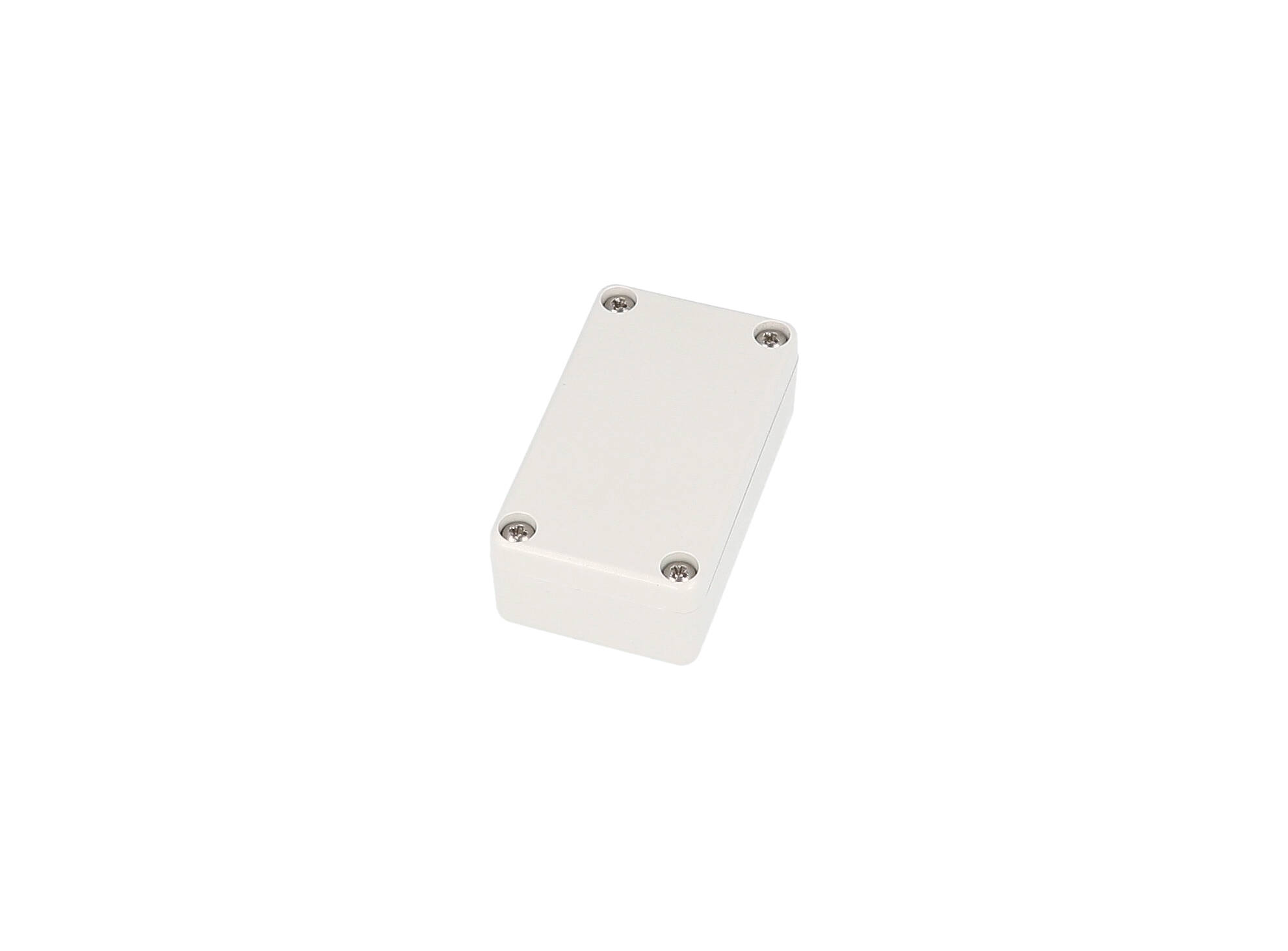

1551WHGY

35x60x22mm PC W/Gask GY

Type Miniature, watertight
Material Polycarbonate
Color Light Gray

$3.72In stock

Buy now

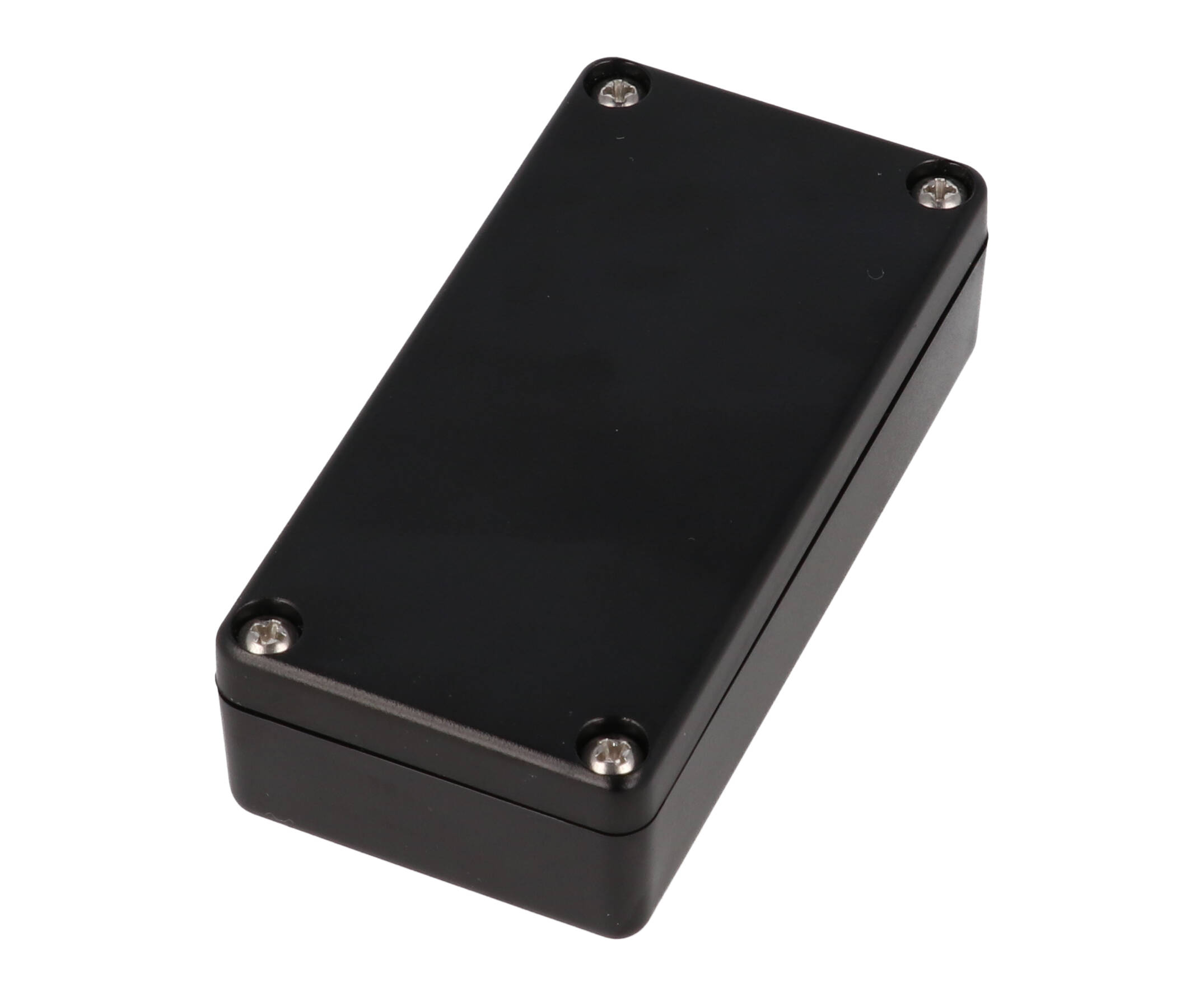

1551WKBK

40x80x22mm PC W/Gask BK

Type Miniature, watertight
Material Polycarbonate
Color Black

$3.86In stock

Buy now

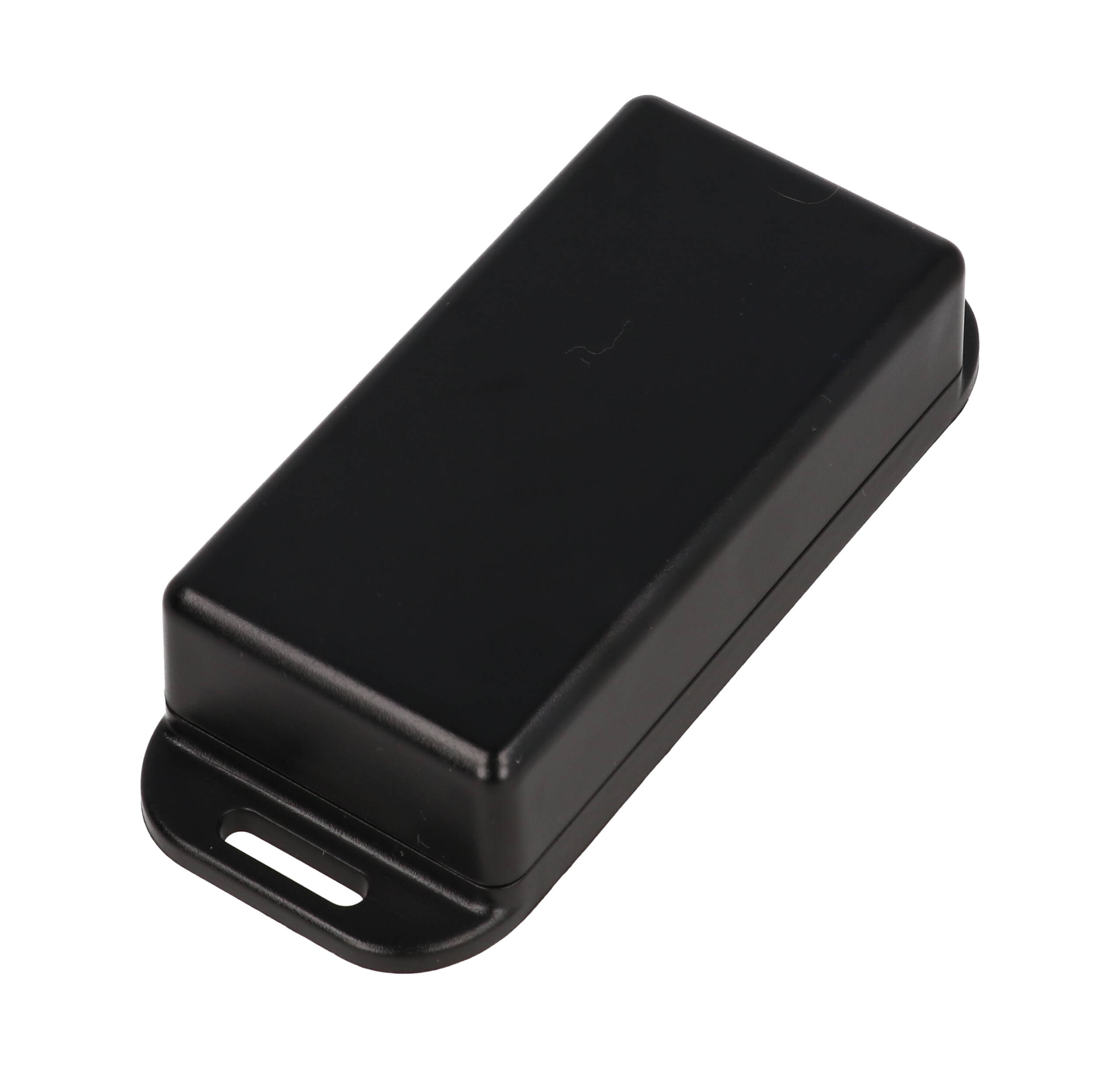

1551WKFLBK

40x80x22mm PC W/Gask Fl BK

Type Miniature flanged watertight
Material Polycarbonate
Color Black

$3.92In stock

Buy now

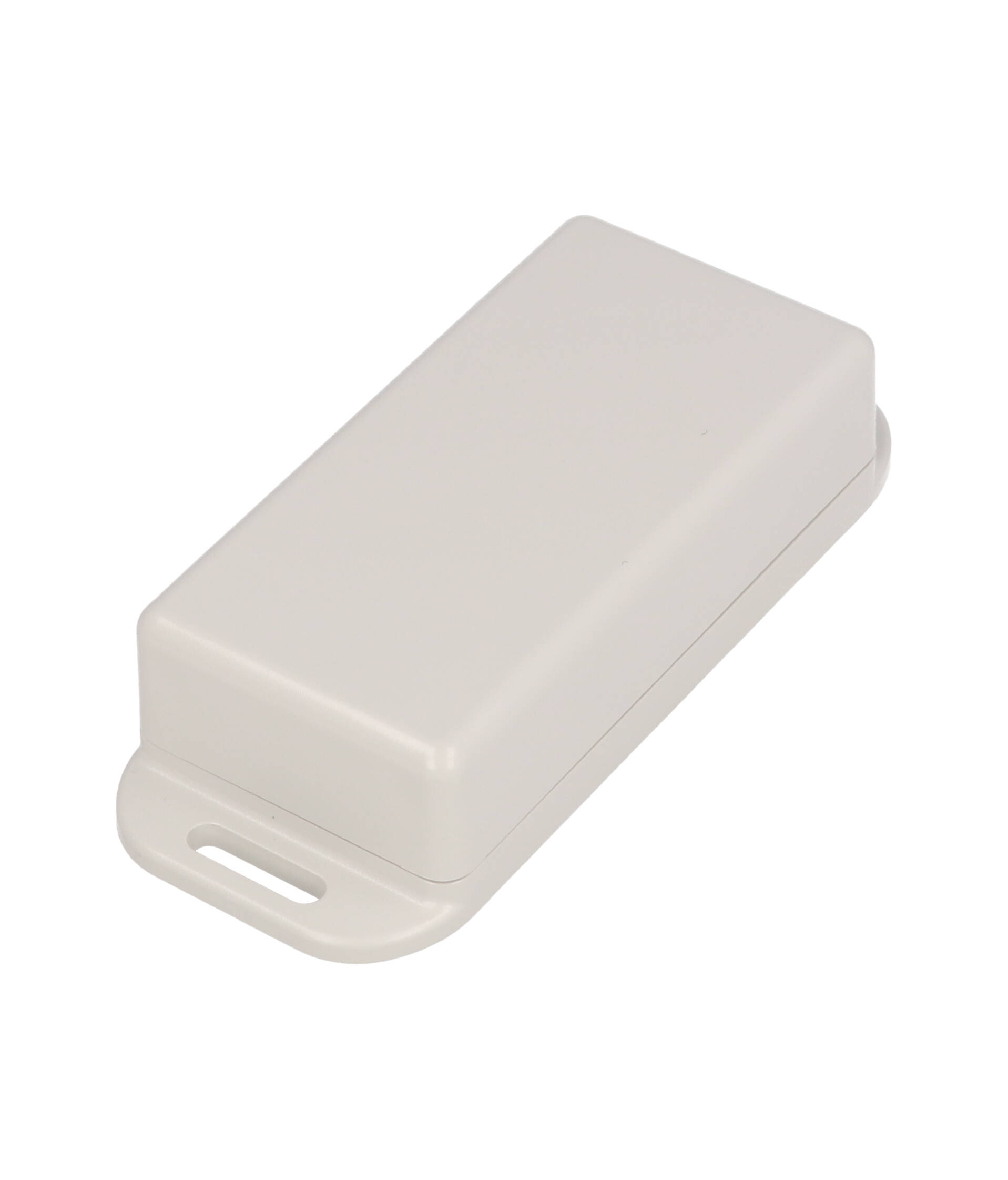

1551WKFLGY

40x80x22mm PC W/Gask Fl GY

Type Miniature flanged watertight
Material Polycarbonate
Color Light Gray

$3.92In stock

Buy now

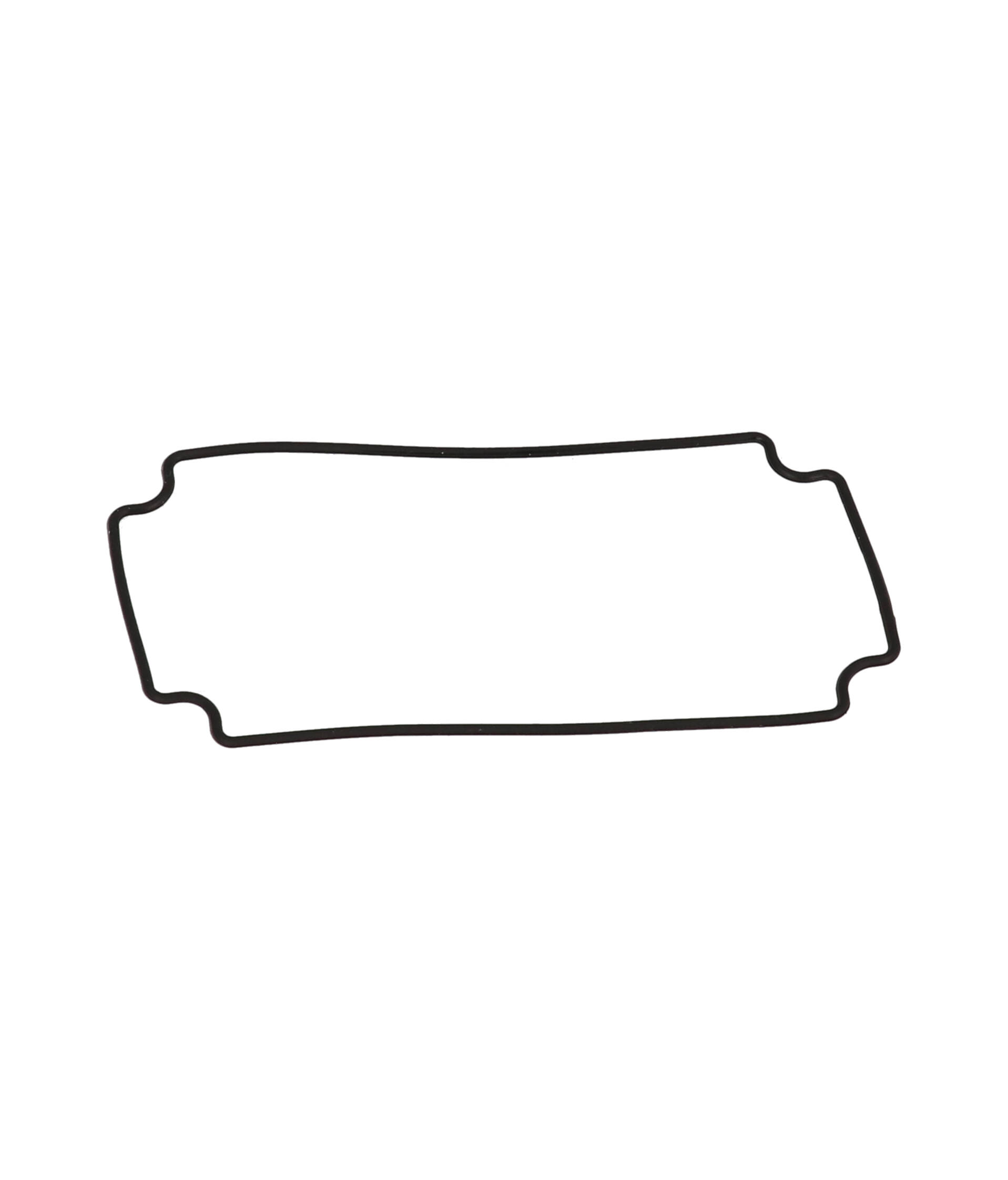

1551WKGASKET

2-PACK Replace Gasket, 1551WK

Type Gaskets
Material Silicone

$2.38In stock

Buy now

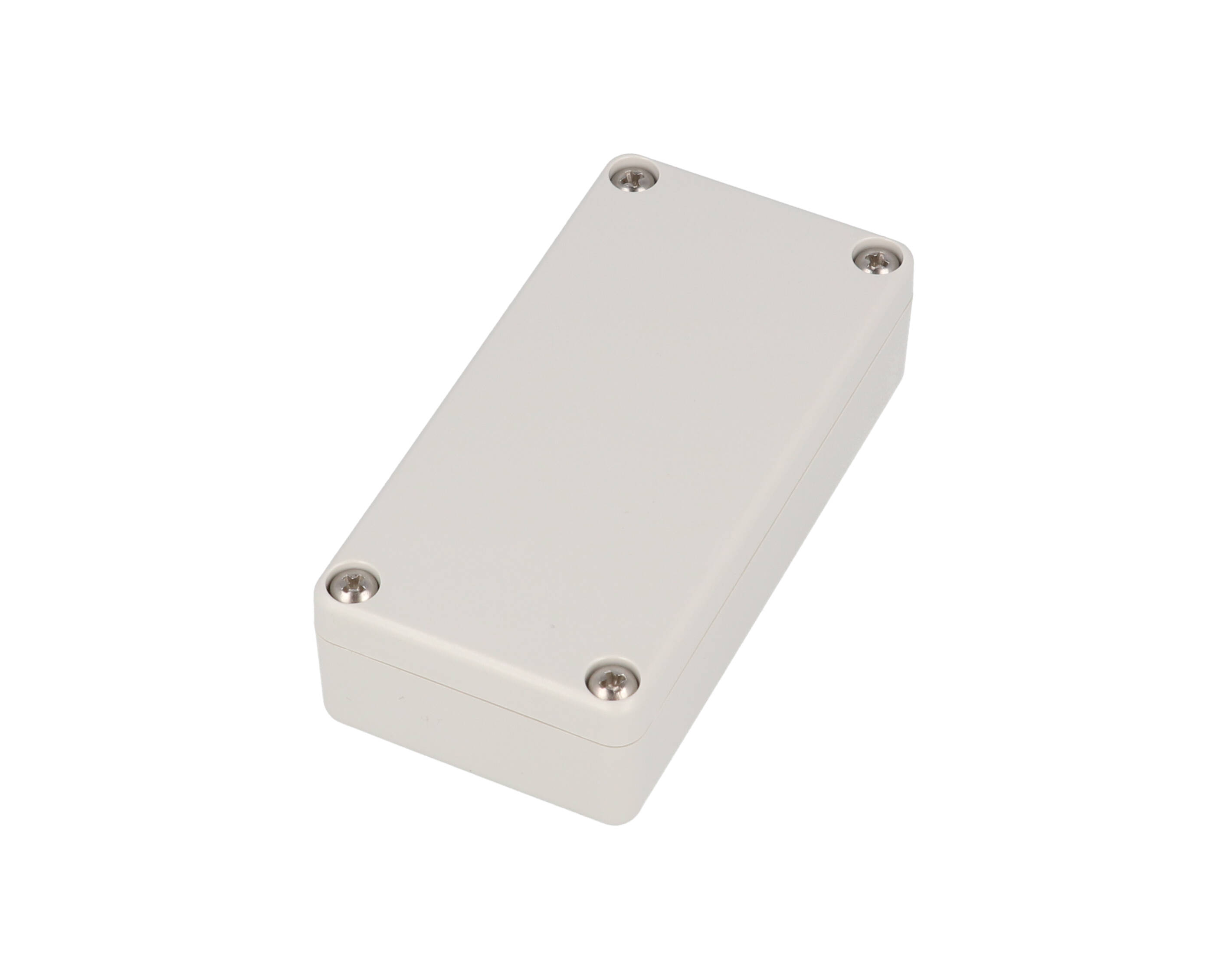

1551WKGY

40x80x22mm PC W/Gask GY

Type Miniature, watertight
Material Polycarbonate
Color Light Gray

$3.86In stock

Buy now

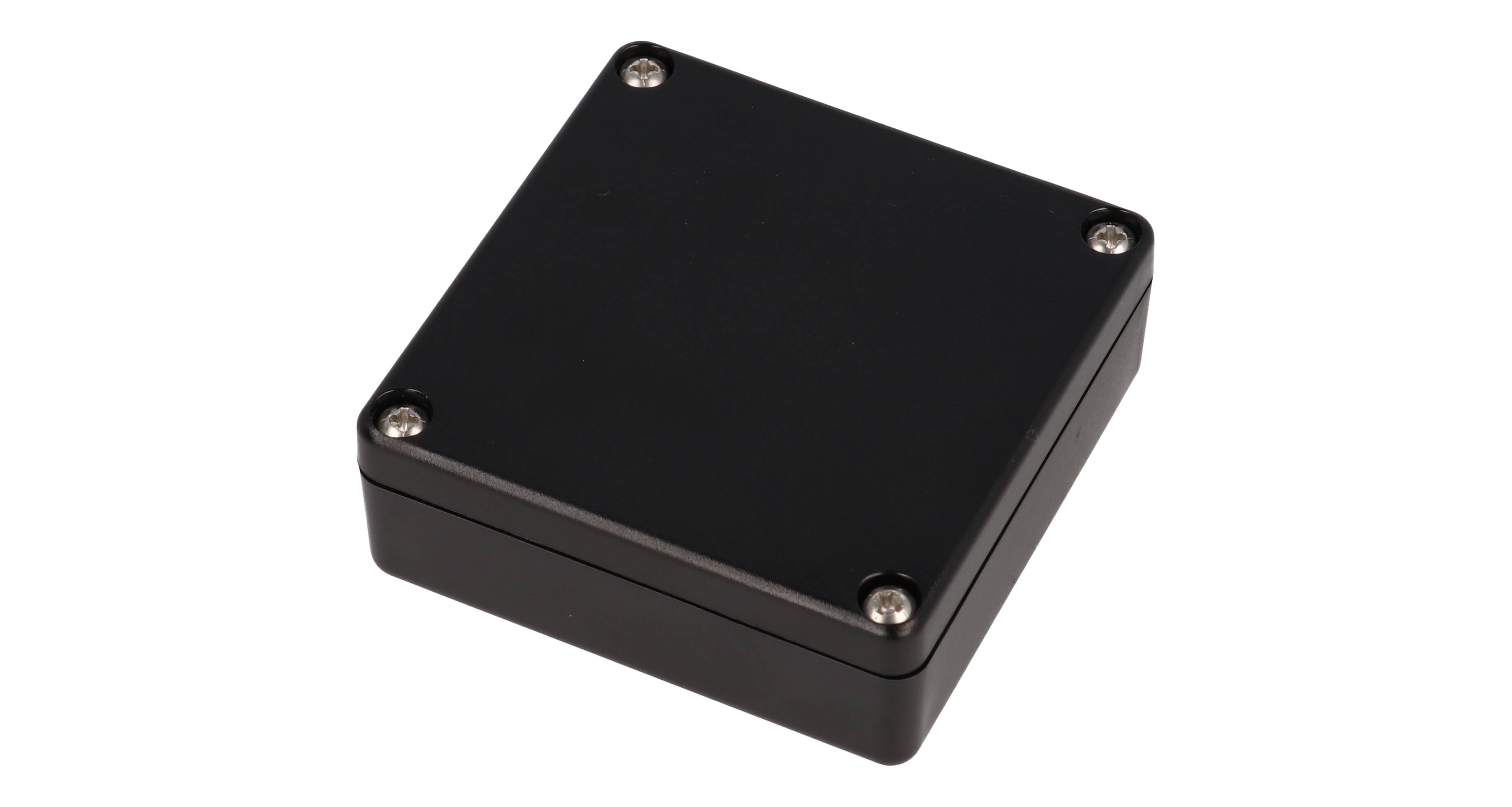

1551WTBK

60x60x22mm PC W/Gask BK

Type Miniature, watertight
Material Polycarbonate
Color Black

$3.92In stock

Buy now

1551WTFLBK

60x60x22mm PC W/Gask Fl BK

Type Miniature flanged watertight
Material Polycarbonate
Color Black

$3.99In stock

Buy now

1551WTFLGY

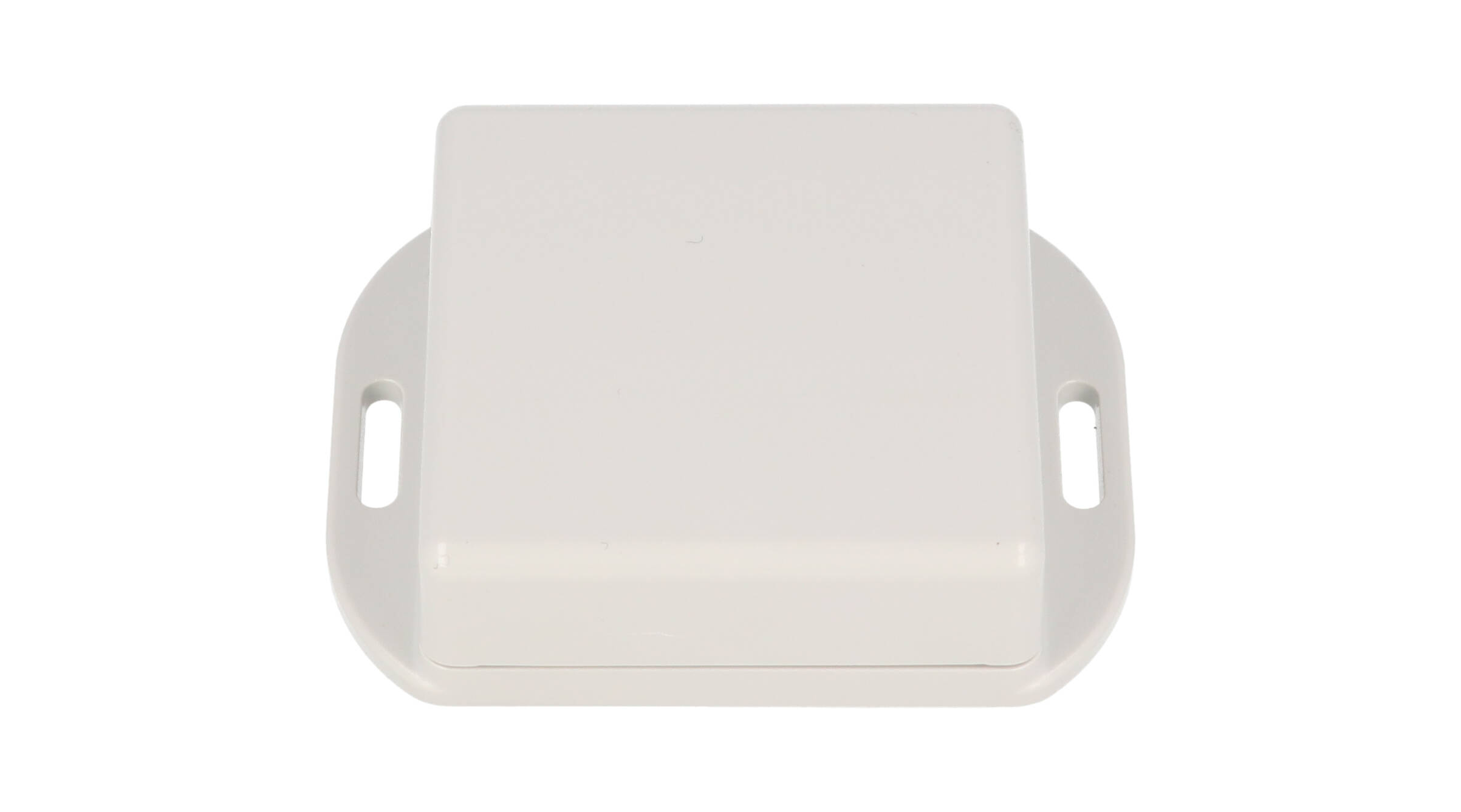

60x60x22mm PC W/Gask Fl GY

Type Miniature flanged watertight
Material Polycarbonate
Color Light Gray

$3.99In stock

Buy now

1551WTGASKET

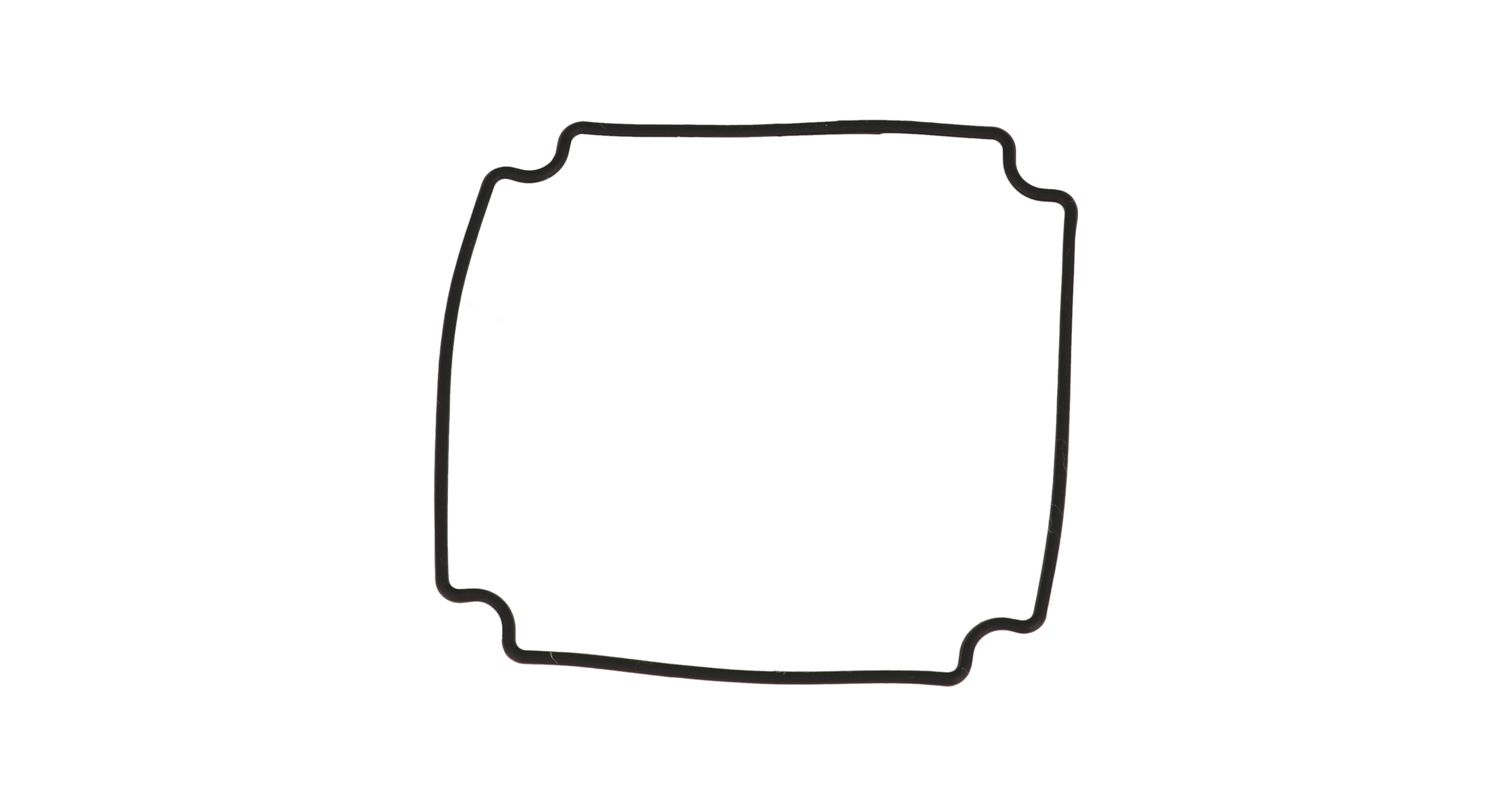

2-PACK Replace Gasket, 1551WT

Type Gaskets
Material Silicone

$2.38In stock

Buy now

1551WTGY

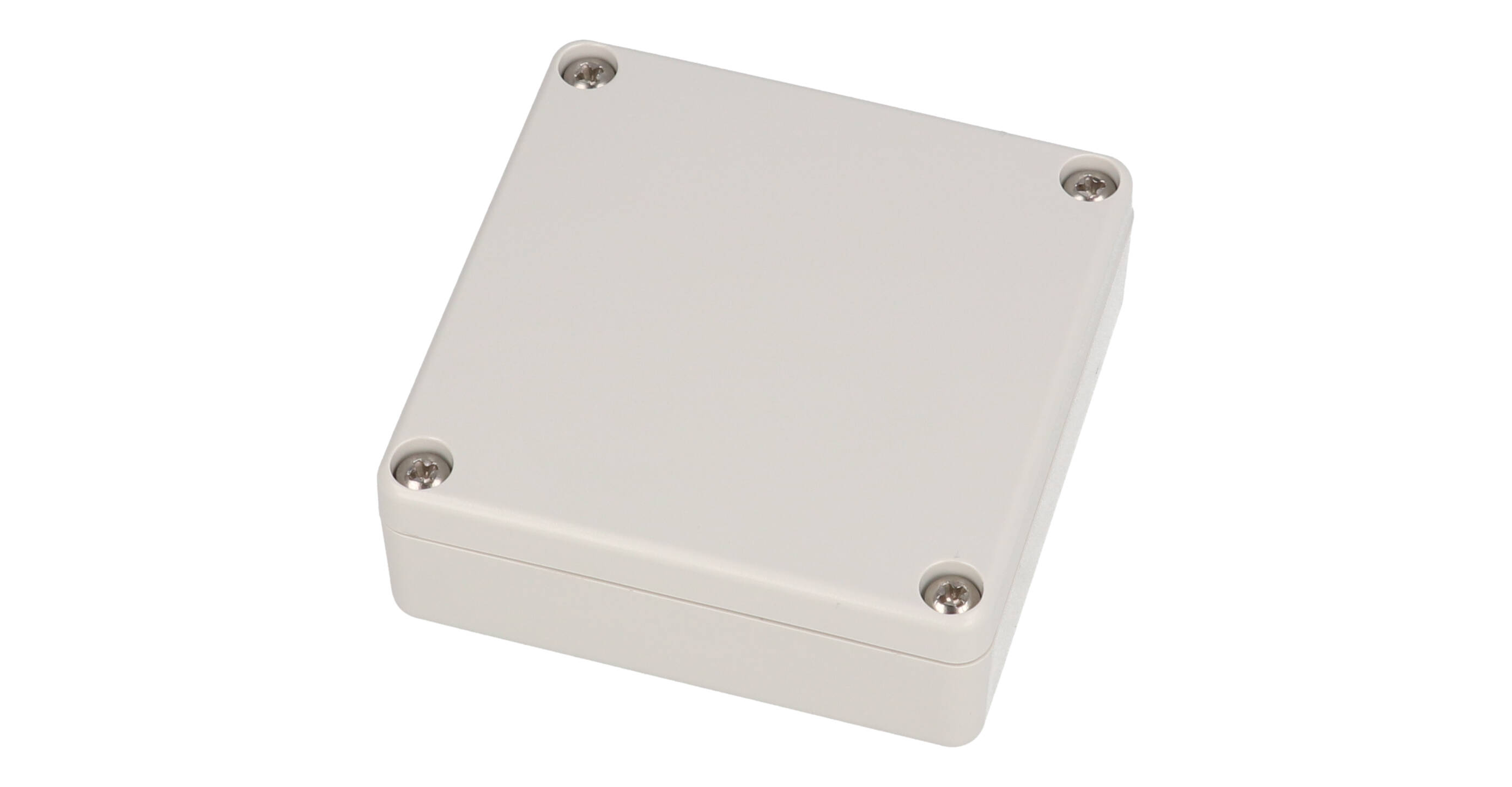

60x60x22mm PC W/Gask GY

Type Miniature, watertight
Material Polycarbonate
Color Light Gray

$3.92In stock

Buy now

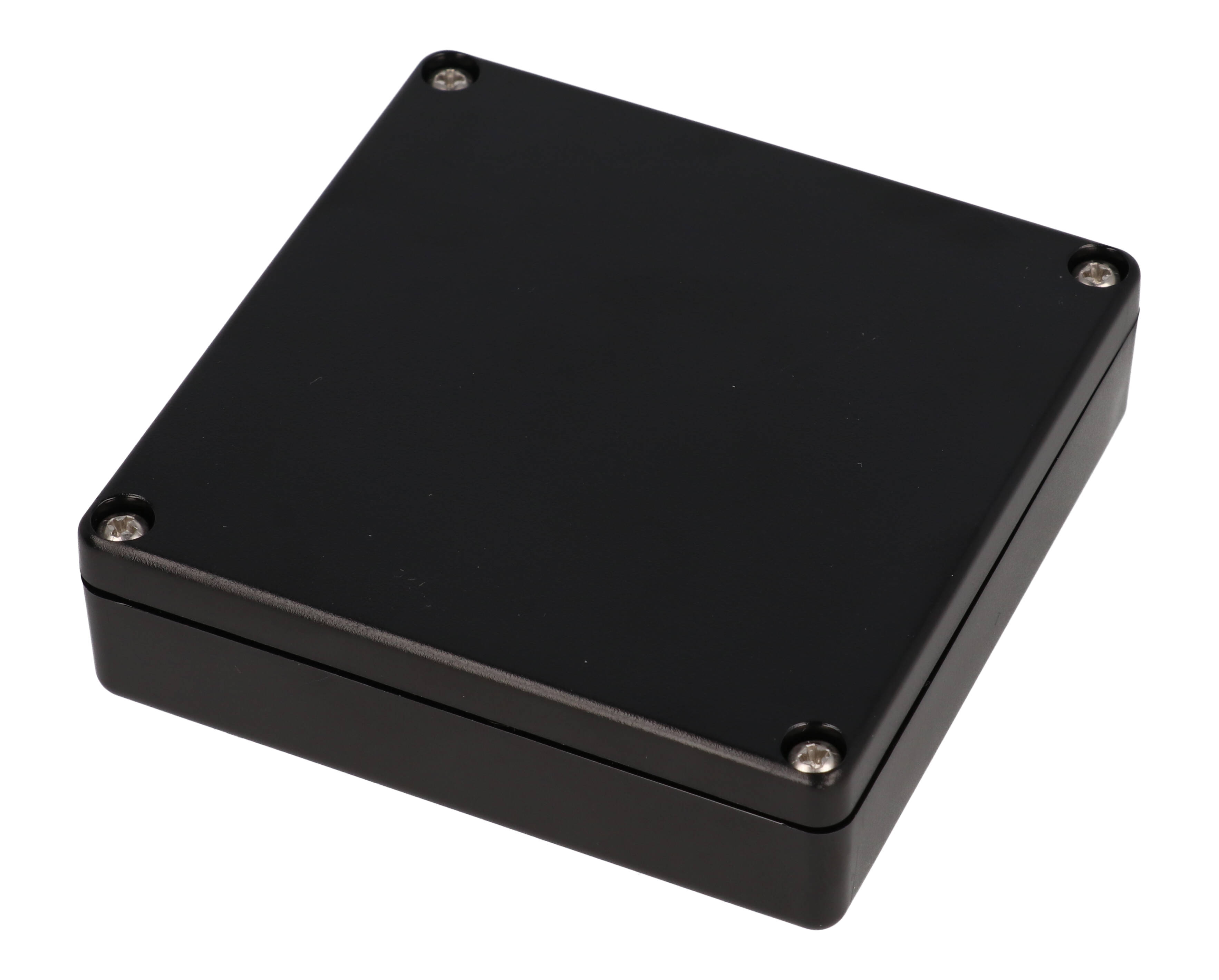

1551WXBK

80x80x22mm PC W/Gask BK

Type Miniature, watertight
Material Polycarbonate
Color Black

$4.31In stock

Buy now

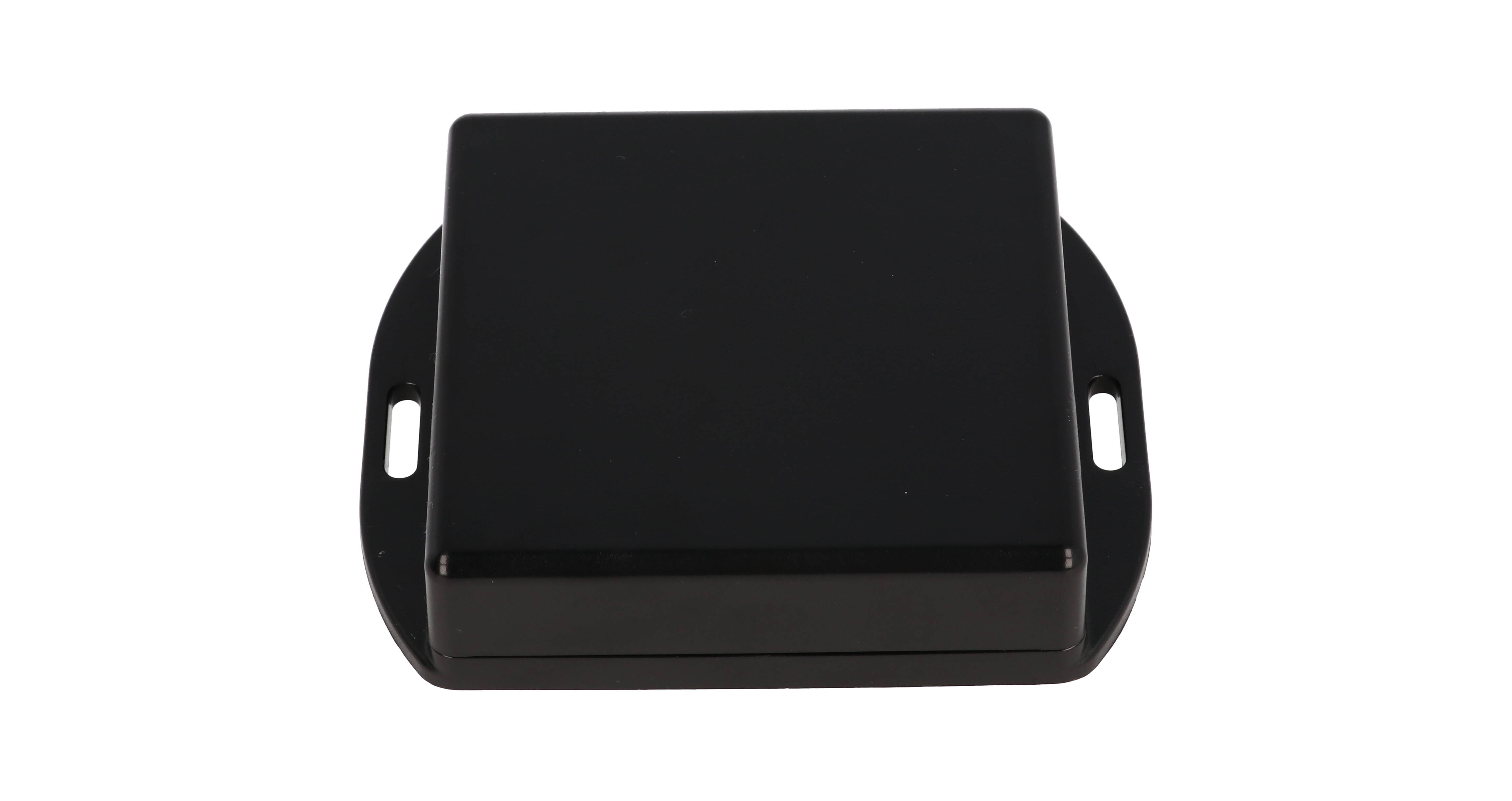

1551WXFLBK

80x80x22mm PC W/Gask Fl BK

Type Miniature flanged watertight
Material Polycarbonate
Color Black

$4.42In stock

Buy now

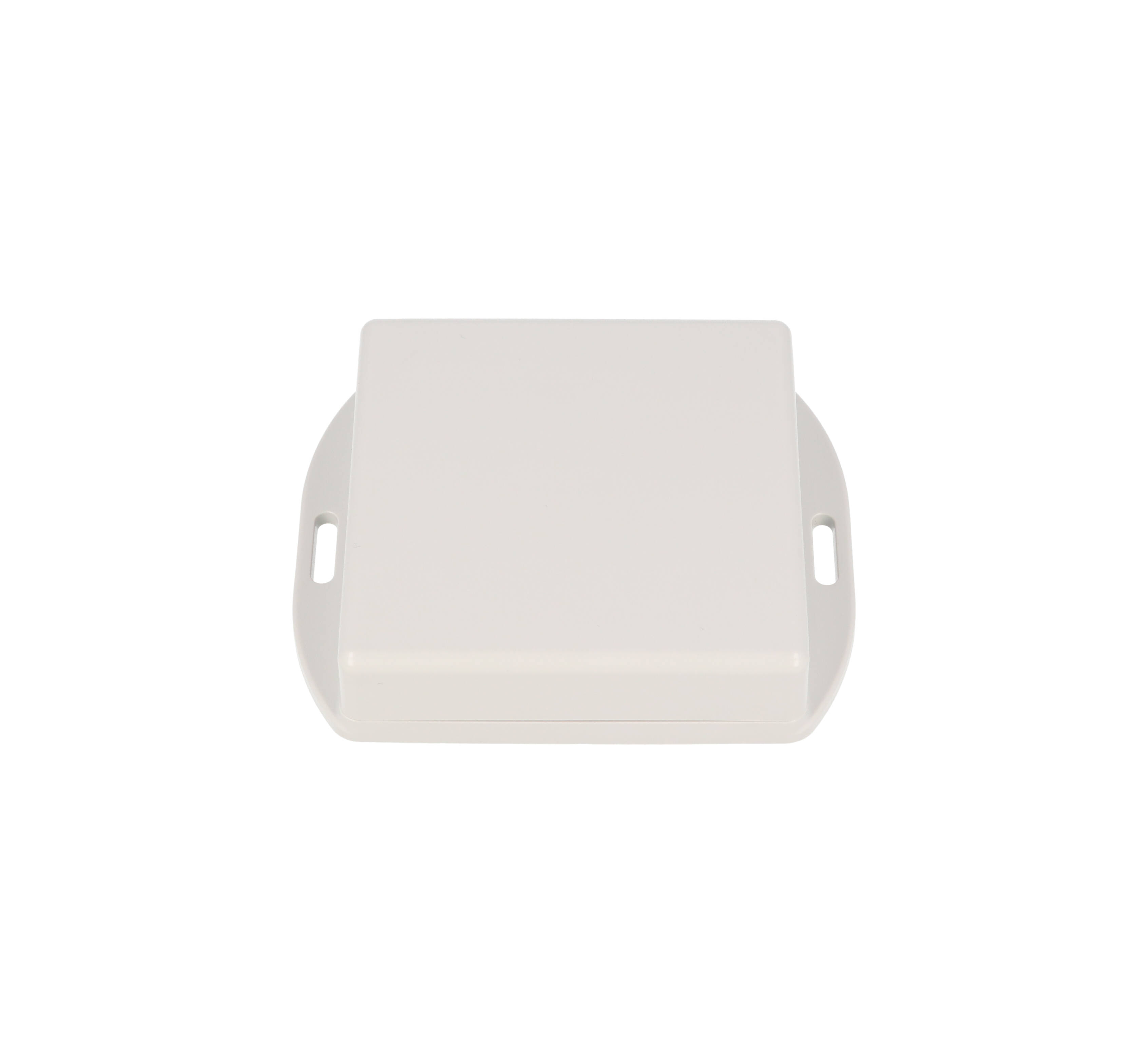

1551WXFLGY

80x80x22mm PC W/Gask Fl GY

Type Miniature flanged watertight
Material Polycarbonate
Color Light Gray

$4.42In stock

Buy now

1551WXGASKET

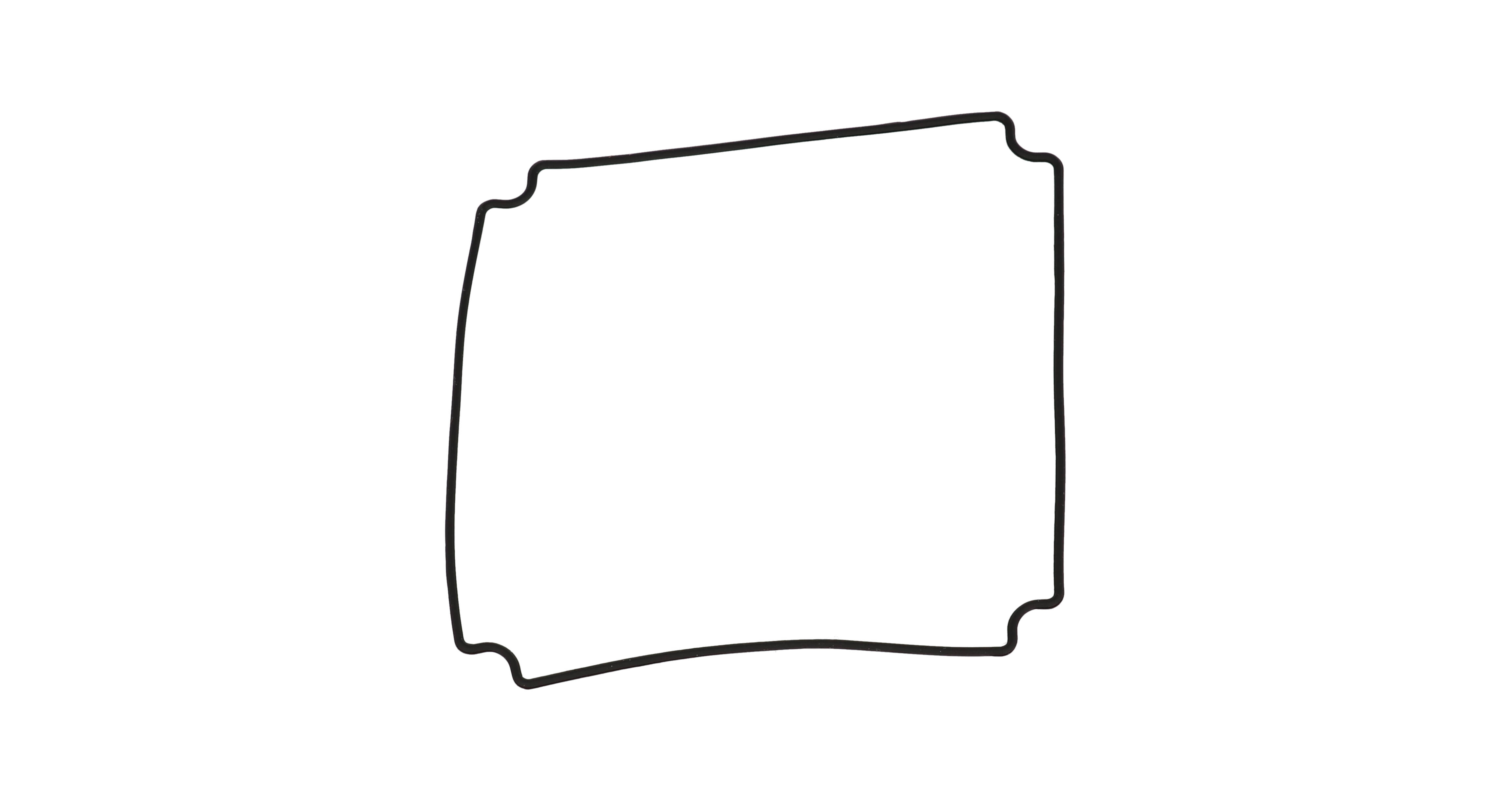

2-PACK Replace Gasket, 1551WX

Type Gaskets
Material Silicone

$2.38In stock

Buy now

1551WXGY

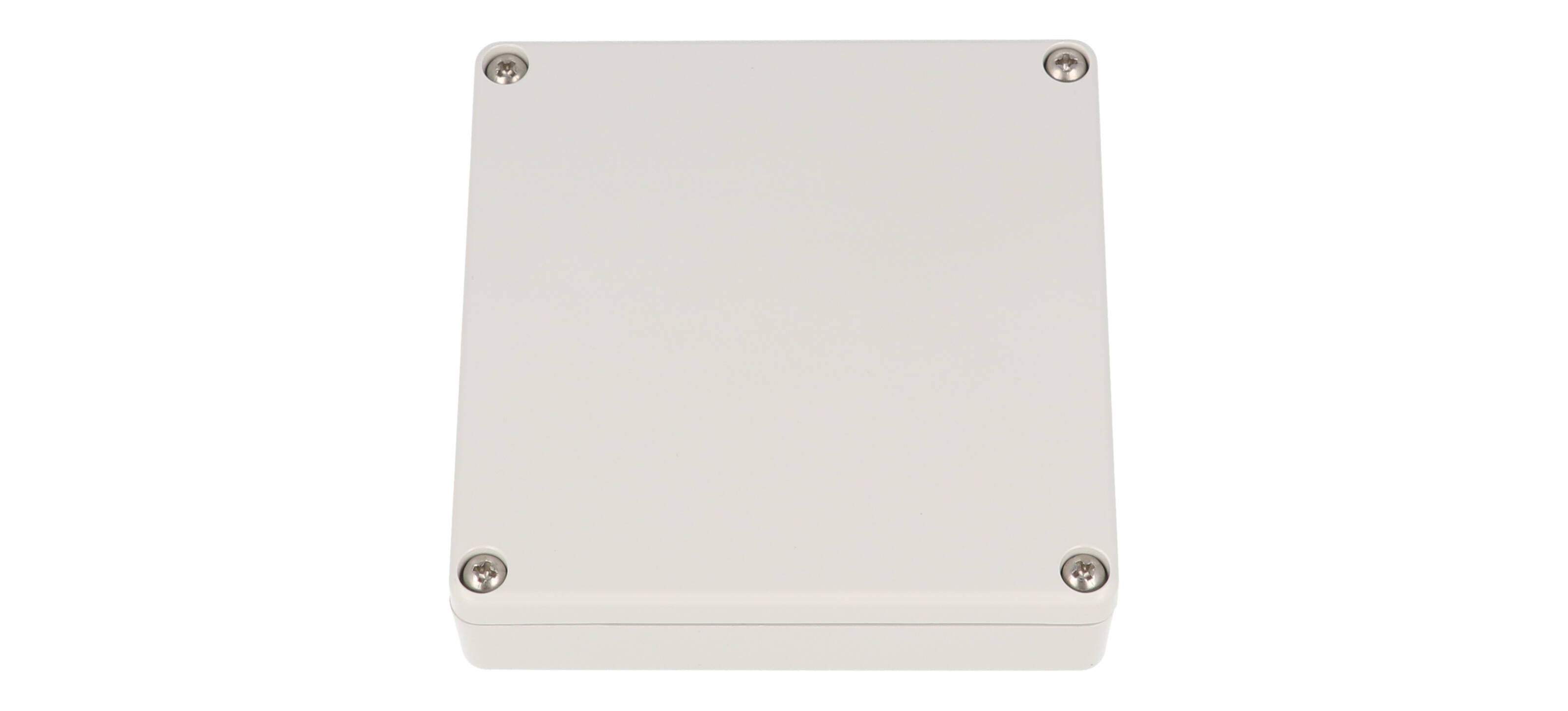

80x80x22mm PC W/Gask GY

Type Miniature, watertight
Material Polycarbonate
Color Light Gray

$4.31In stock

Buy now

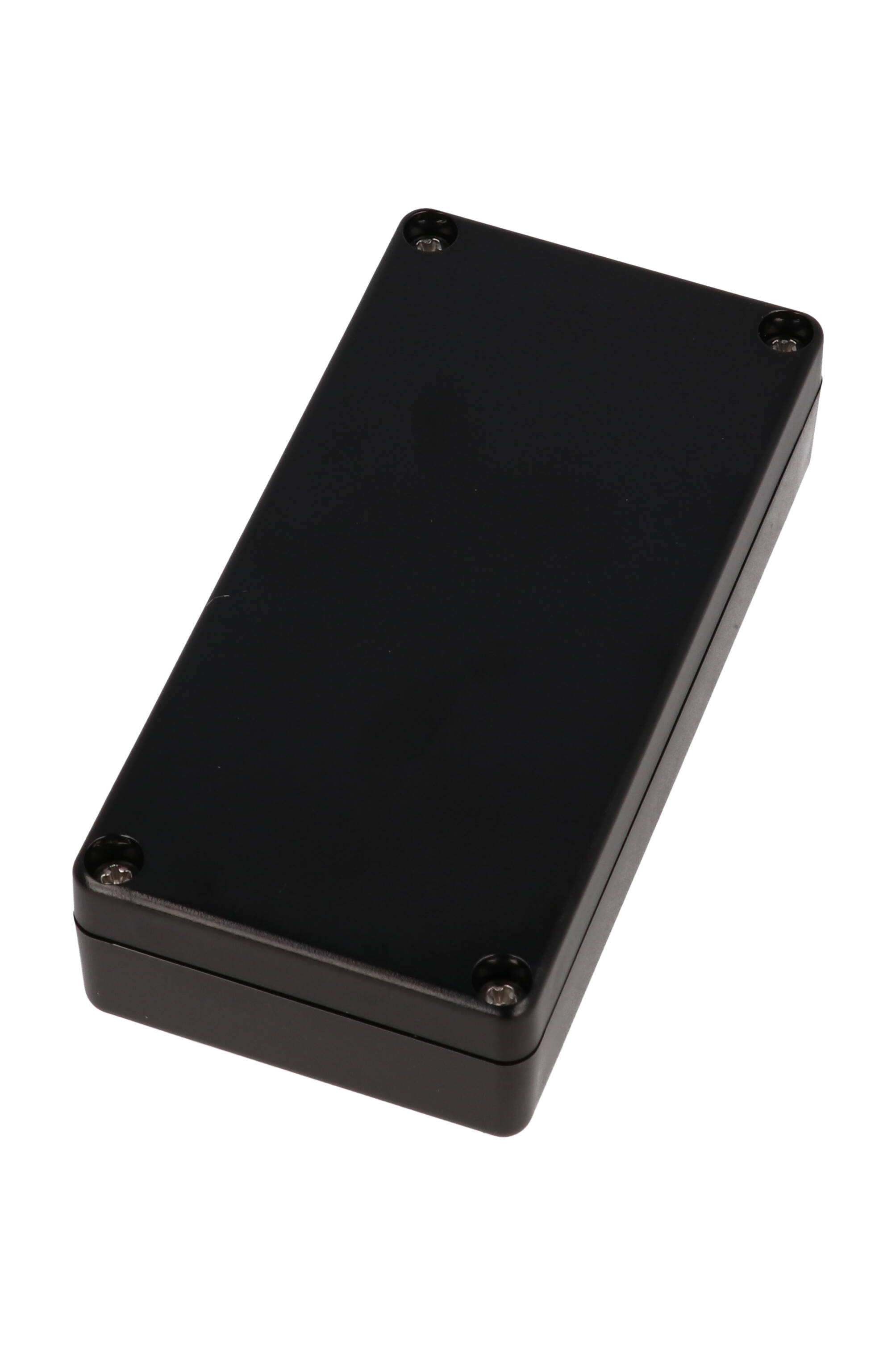

1551WYBK

50x100x24mm PC W/Gask BK

Type Miniature, watertight
Material Polycarbonate
Color Black

$4.16In stock

Buy now

1551WYFLBK

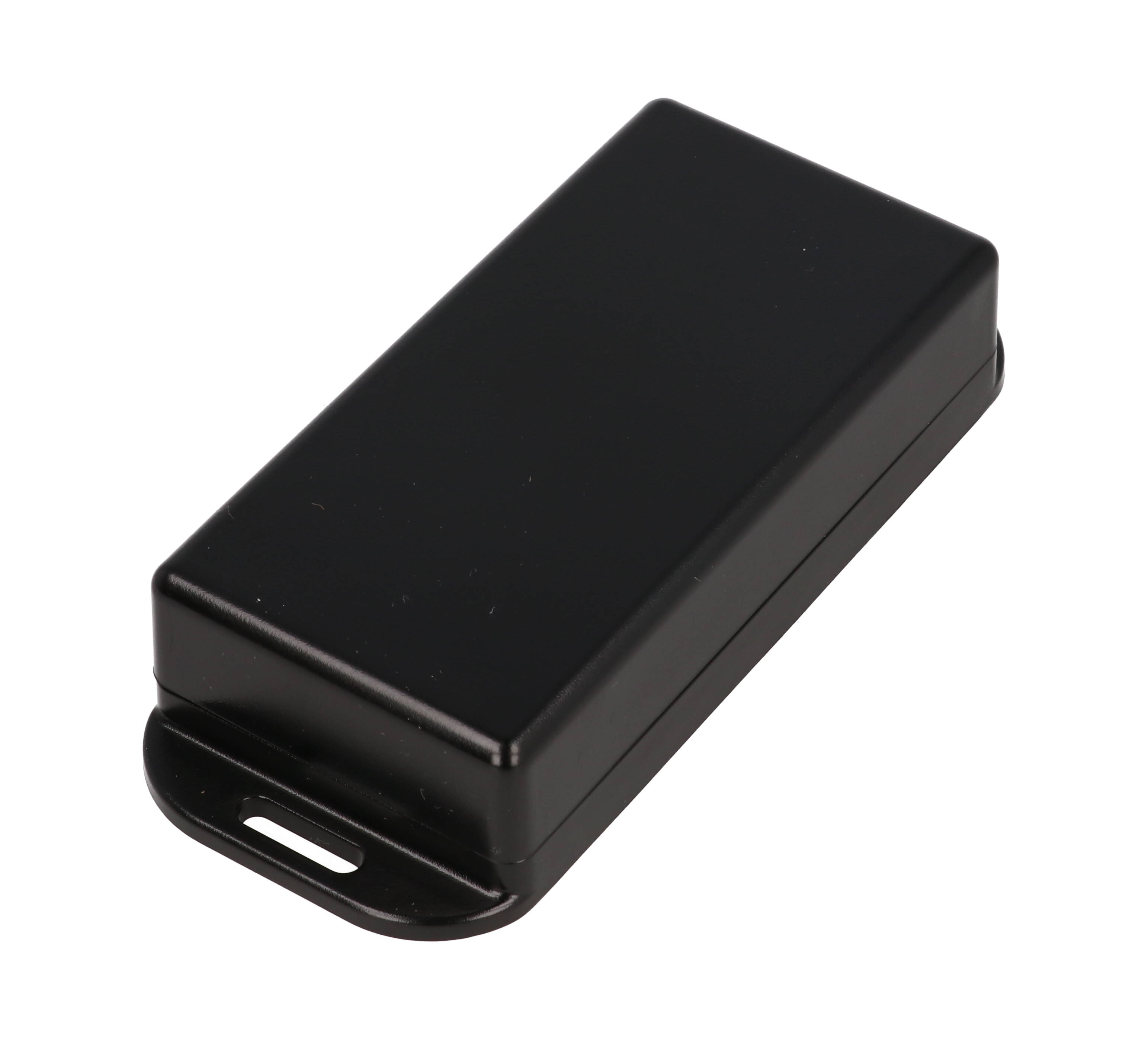

50x100x24mm PC W/Gask Fl BK

Type Miniature flanged watertight
Material Polycarbonate
Color Black

$4.22In stock

Buy now

1551WYFLGY

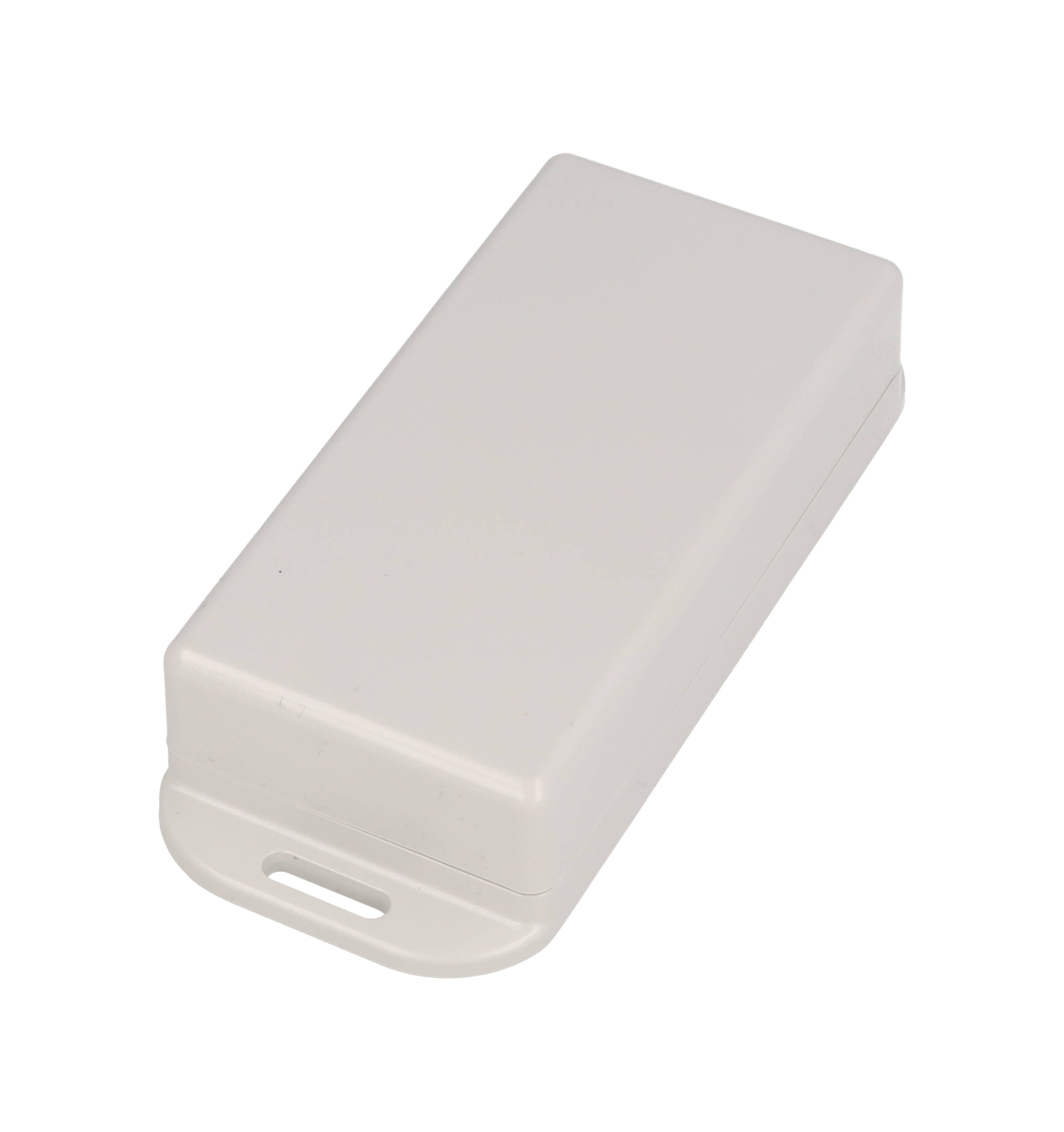

50x100x24mm PC W/Gask Fl GY

Type Miniature flanged watertight
Material Polycarbonate
Color Light Gray

$4.22In stock

Buy now

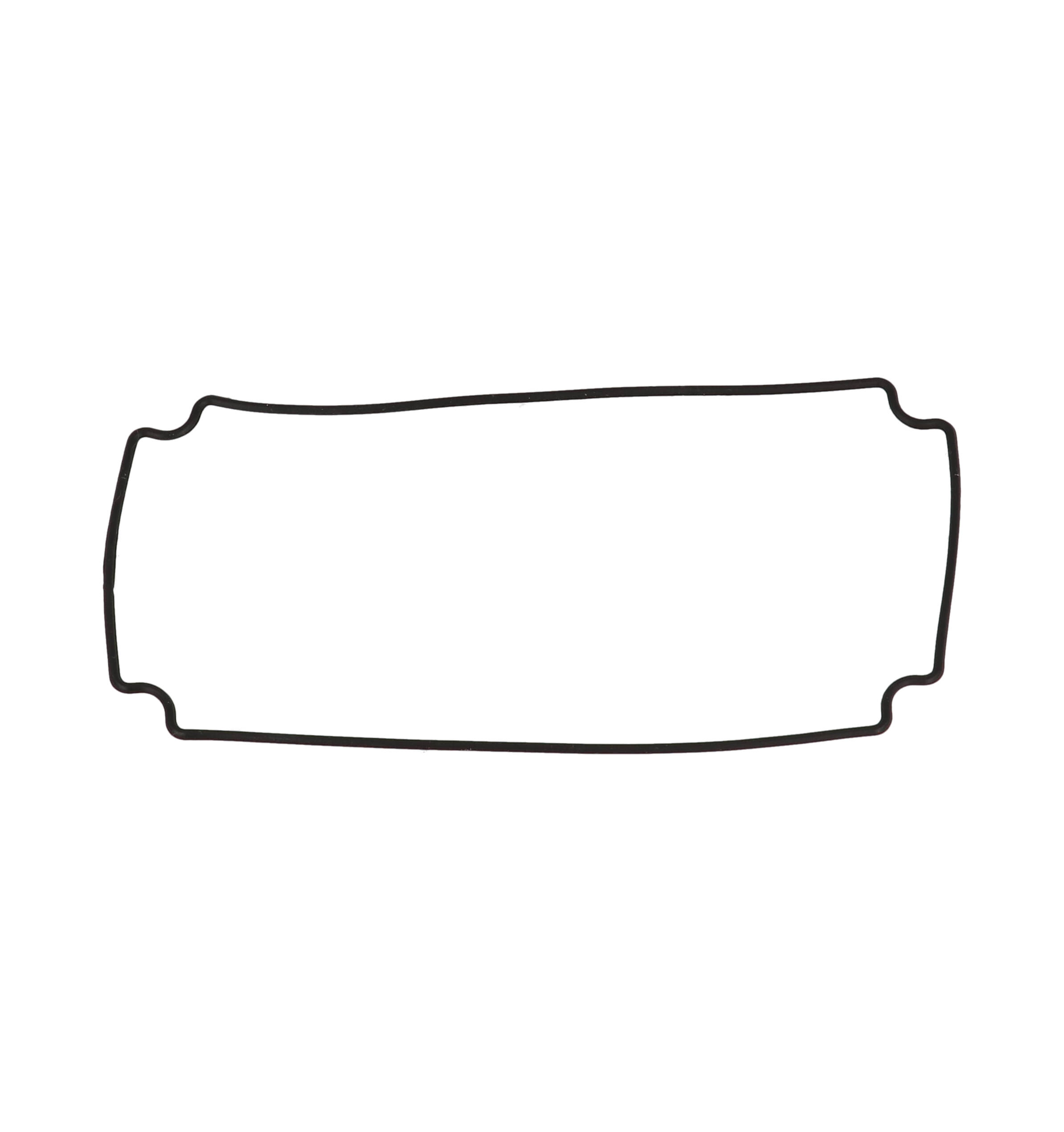

1551WYGASKET

2-PACK Replace Gasket, 1551WY

Type Gaskets
Material Silicone

$2.38In stock

Buy now

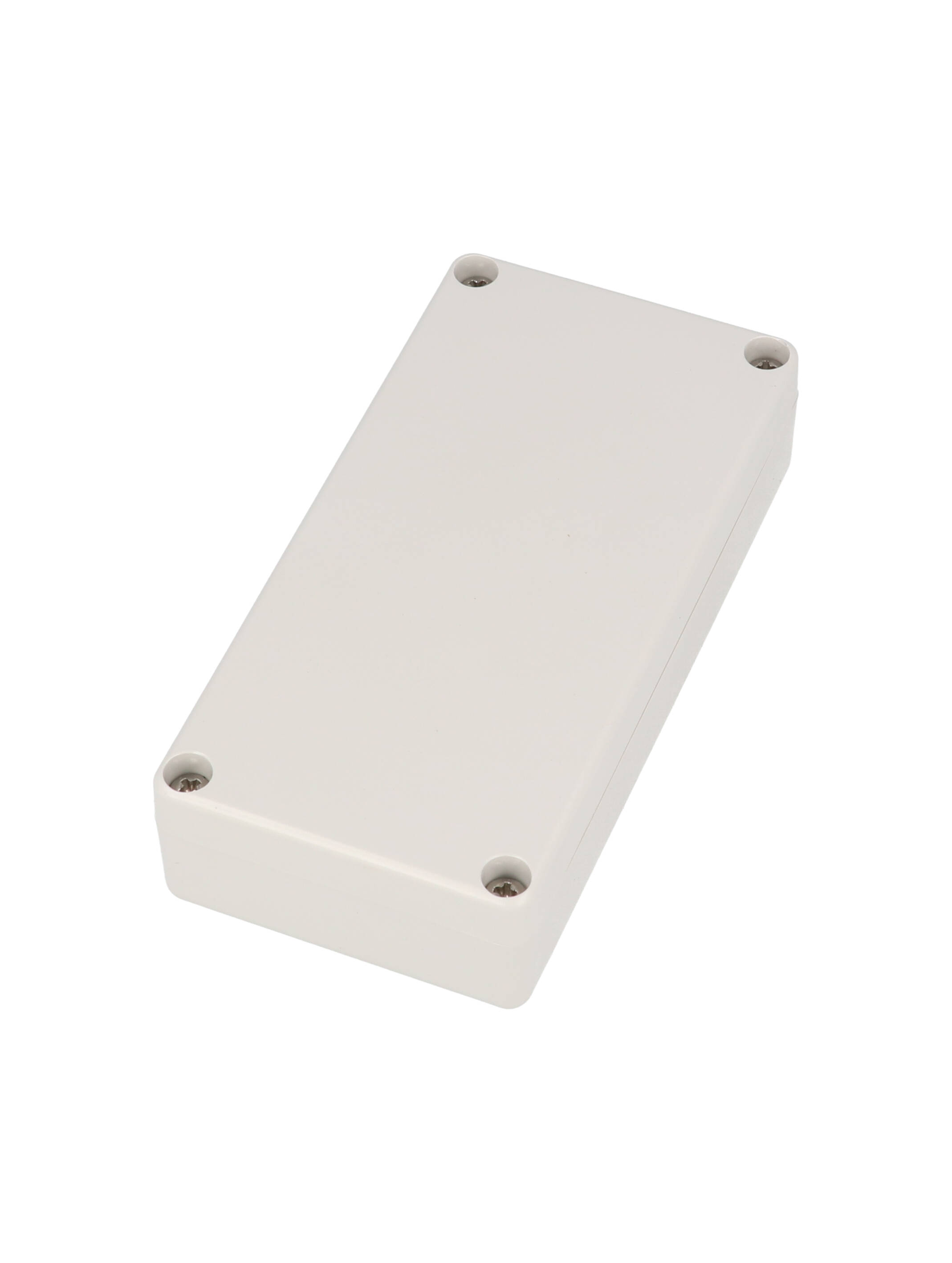

1551WYGY

50x100x24mm PC W/Gask GY

Type Miniature, watertight
Material Polycarbonate
Color Light Gray

$4.16In stock

Buy now

Dimension tables (inches / mm)

Enclosures

Units shown: mm . Switch units to: inch

Black · Without Flange (Part No.)	Gray · Without Flange (Part No.)	Black · With Flange (Part No.)	Gray · With Flange (Part No.)	Length · (Not Including Flange)	Width	Depth · (Including Lid)	Replacement · Gasket (2-pack) (Part No.)	Price	Order
1551WHBK	1551WHGY	1551WHFLBK	1551WHFLGY	2.36	1.38	0.87	1551WHGASKET	$3.72In stock1551WHBK	Buy now
1551WTBK	1551WTGY	1551WTFLBK	1551WTFLGY	2.36	2.36	0.87	1551WTGASKET	$3.92In stock1551WTBK	Buy now
1551WKBK	1551WKGY	1551WKFLBK	1551WKFLGY	3.15	1.57	0.87	1551WKGASKET	$3.86In stock1551WKBK	Buy now
1551WXBK	1551WXGY	1551WXFLBK	1551WXFLGY	3.15	3.15	0.87	1551WXGASKET	$4.31In stock1551WXBK	Buy now
1551WYBK	1551WYGY	1551WYFLBK	1551WYFLGY	3.94	1.97	0.94	1551WYGASKET	$4.16In stock1551WYBK	Buy now

Hardware

Part Number	Description	Price	Order
1553WTS100	Internal mounting post screws	$6.44In stock	Buy now
SC509-50	Replacement cover screws	$5.35In stock	Buy now

Key Features:

■Ideally suited for mounting small printed circuit boards.
■Molded from robust polycarbonate with satin texture finish.
■Suitable for outdoor use.
■Polycarbonate has a flame rating of UL94 V-0.
■Includes lid and four plastite #4 self-tapping screws.
■Available with or without integrated wallmounting flanges.
■PC board standoffs are molded into interior for easy installation.
■Includes replaceable silicone gasket to protect against ingress of water or dust.
■Designed to meet IP68.
■For general purpose (not watertight) miniature enclosures, see our 1551 series.
■Some chemicals can damage or weaken plastic. Please read our Chemical Resistance Statement under Downloads for more information.
