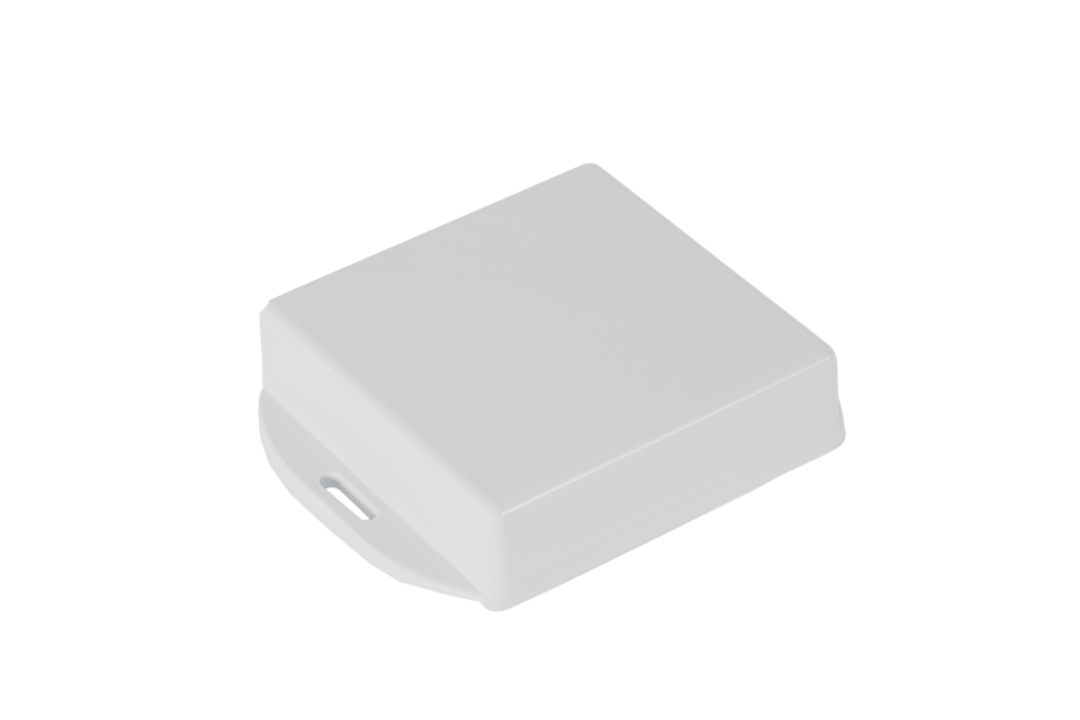

Hammond 1551WXFLGY 80x80x22mm Flanged IP68 Polycarbonate Enclosure, Gray

The 1551WXFLGY pairs the 80 x 80 x 22 mm square 1551W watertight body with integrated wall-mounting flanges, in light gray. It is built for OEM engineers, installers and integrators who need to fix a sealed circuit-board housing to a wall or structure, including outdoors.

Body and lid are molded from robust polycarbonate with a satin texture finish, rated UL94 V-0. A replaceable silicone gasket protects against ingress of water or dust, and the enclosure is designed to meet IP68.

• Body: 80 mm (3.15 in) long not including flange x 80 mm (3.15 in) wide x 22 mm (0.87 in) deep including lid
• Overall length across flanges (drawing): 100.01 mm [3.94 in]
• Maximum P.C. board: 74.5 x 74.5 mm on molded-in standoffs for #2 self-tapping screws
• Torque: #4 cover screws 71-100 ozf.in (50-70 cN.m); #2 internal screws 21-28 ozf.in (15-20 cN.m)

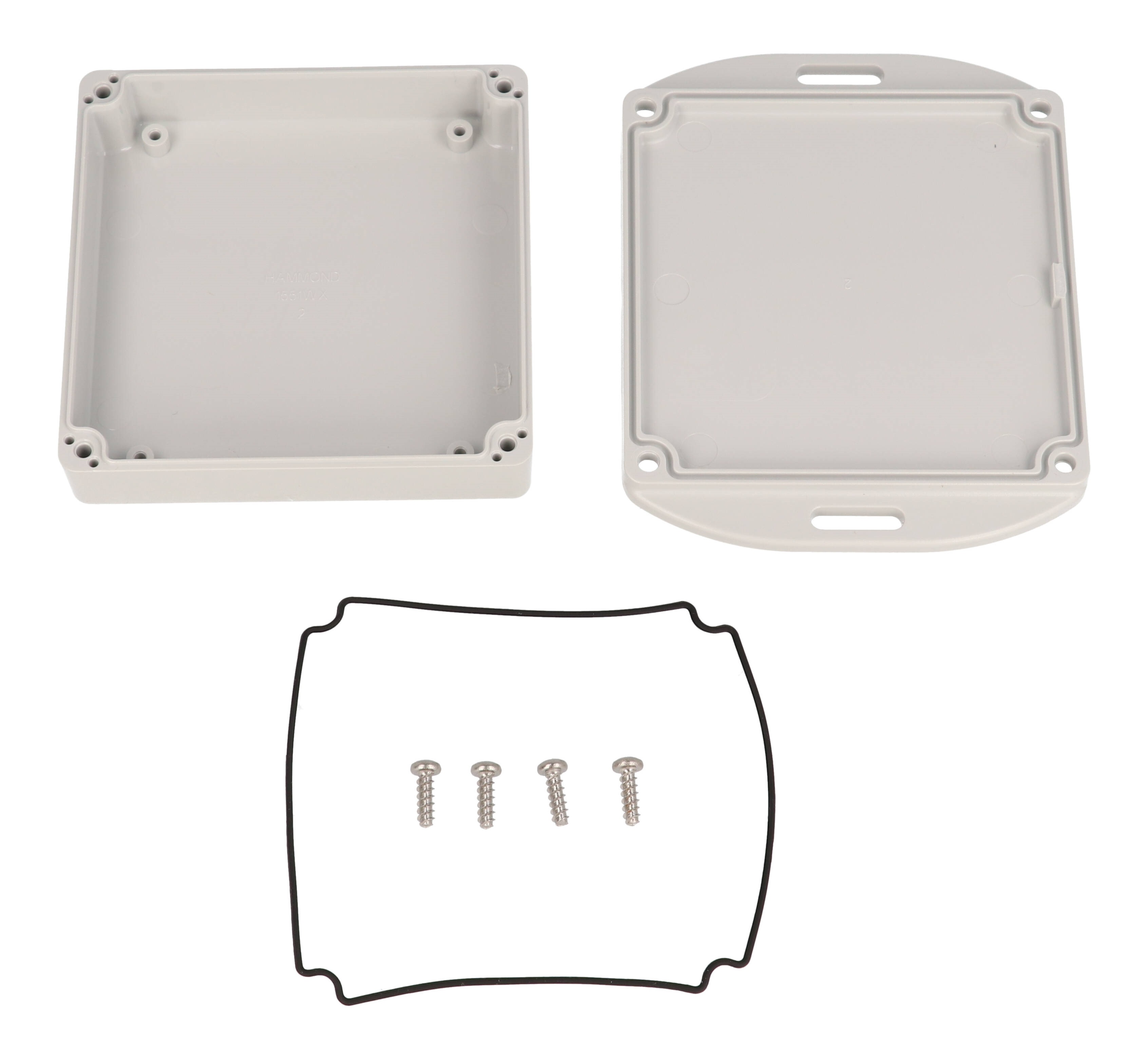

The purchased assembly includes box, lid, gasket and four #4 plastite self-tapping cover screws. The other flanged colour is 1551WXFLBK, the flangeless version in this colour is 1551WXGY, and replacement gaskets are 1551WXGASKET (2-pack).

This part is RoHS and REACH compliant and ships shrink wrapped at 0.13 lbs (0.06 kg). Solid models are available in .stp or .x_t, and factory modification (milling, drilling, printing) can be quoted.
