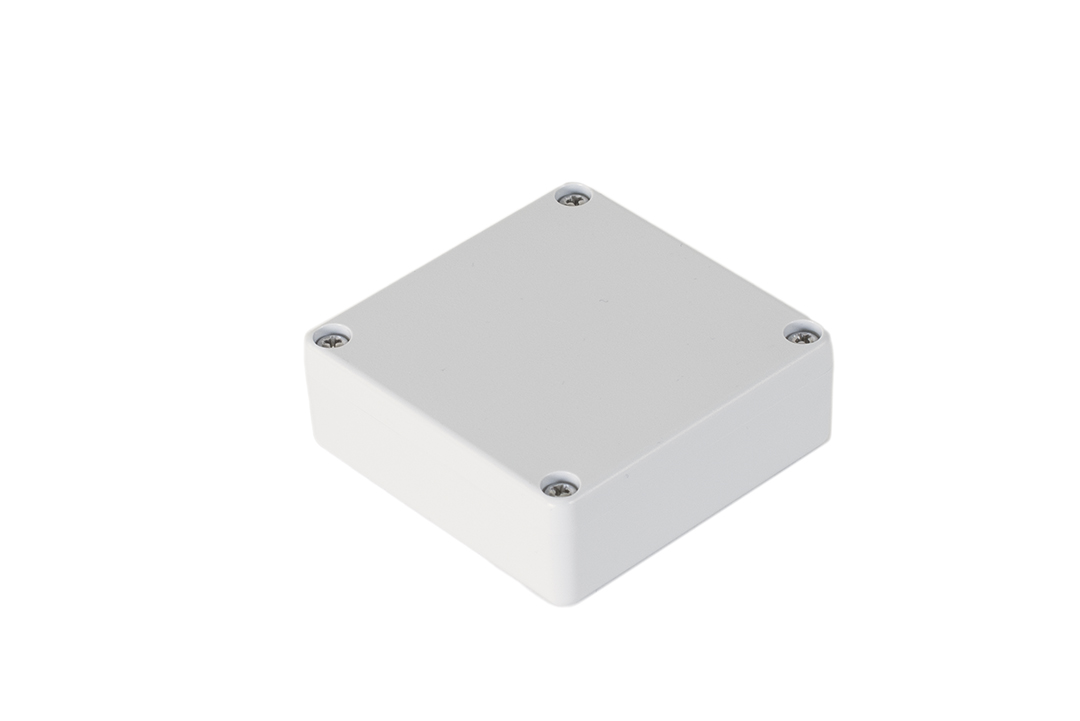

Hammond 1551WTGY 60x60x22mm Square IP68 Polycarbonate Enclosure, Gray
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Square 60 x 60 x 22 mm light gray polycarbonate enclosure without flanges
- Designed to meet IP68 with a replaceable silicone gasket; suitable for outdoor use
- Accepts a PC board up to 54.5 x 54.5 mm on molded-in standoffs for #2 screws
- UL94 V-0 polycarbonate with satin texture finish
- Includes box, lid, gasket and four #4 plastite self-tapping cover screws
- RoHS and REACH compliant; 0.08 lbs (0.04 kg) shipping weight
Square and light gray, the 1551WTGY is the 60 x 60 x 22 mm flangeless member of the 1551W watertight polycarbonate miniature enclosure range. OEM engineers and installers use this format to protect a compact circuit board from water and dust in outdoor or wash-down-prone locations.

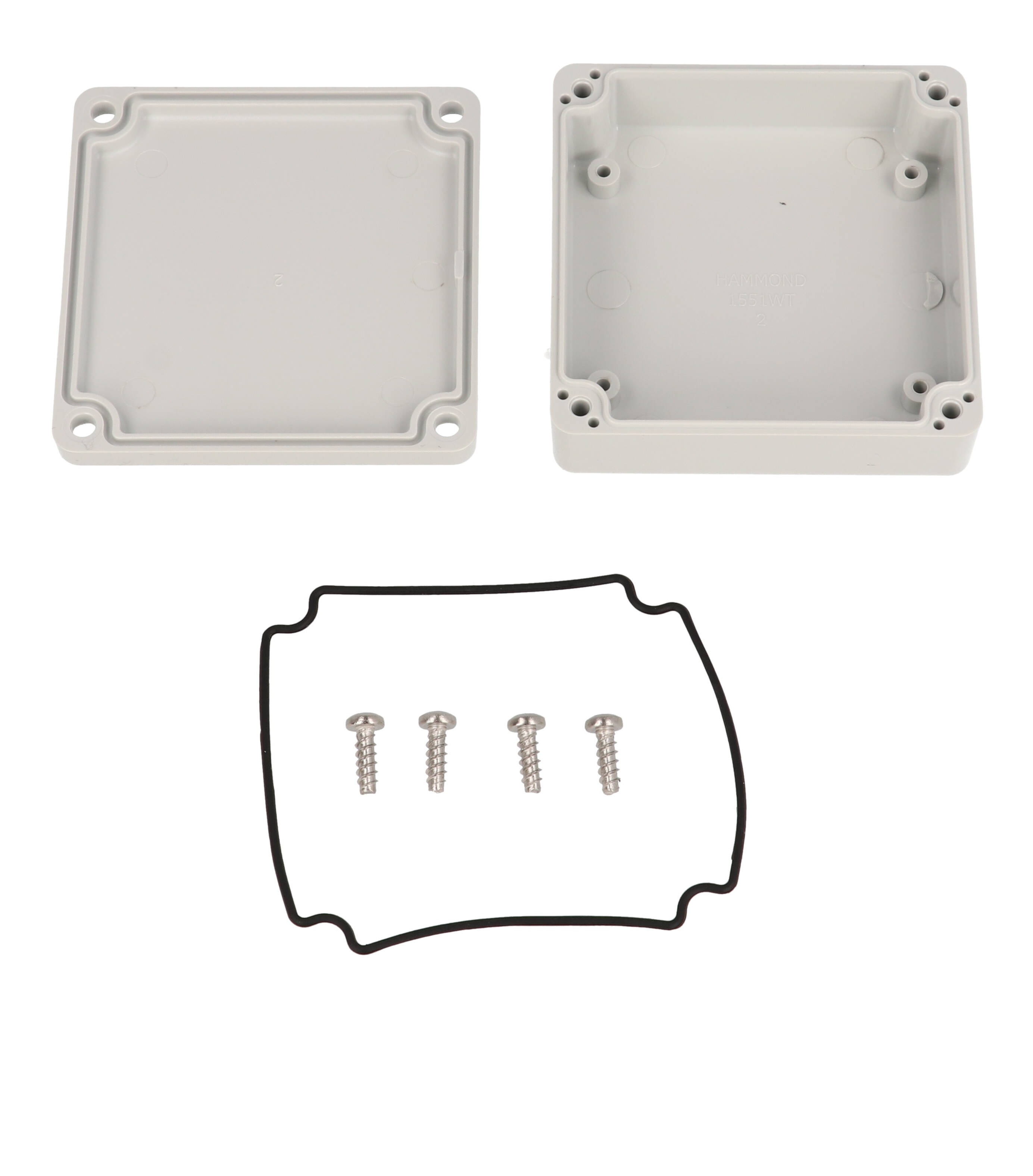

The body and lid are robust polycarbonate with a satin texture finish, rated UL94 V-0 for flammability. Sealing comes from a replaceable silicone gasket, and the enclosure is designed to meet IP68. Supplied with box, lid, gasket and four #4 plastite self-tapping cover screws.
Dimensions are 60 mm (2.36 in) by 60 mm (2.36 in) with a 22 mm (0.87 in) depth including the lid. Inside, molded standoffs accept #2 self-tapping screws and a board up to 54.5 mm by 54.5 mm.
- #4 cover screw torque: 71-100 ozf.in (50-70 cN.m)
- #2 internal screw torque: 21-28 ozf.in (15-20 cN.m)
- Black version: 1551WTBK; flanged light gray version: 1551WTFLGY
- Replacement gasket 2-pack: 1551WTGASKET
The 1551WTGY is RoHS and REACH compliant and ships shrink wrapped at 0.08 lbs (0.04 kg). Solid models are available in .stp or .x_t, and factory milling, drilling and printing can be quoted.
Ideal For
- Square PCB housings for sensors and controllers
- Outdoor electronics exposed to water or dust
- Sealed enclosures for compact OEM products
- Protective housing for small wireless or interface boards
Overview
| Type | Miniature, watertight |
| Series | 1551W Series Watertight Polycarbonate Miniature Enclosures |
| Product | Watertight plastic enclosure |
| Part Number | 1551WTGY |
| Mounting Flanges | Without flange |
| Short Description | 60x60x22mm PC W/GASK GY |
Dimensions
| Width | 2.36 in (60 mm) |
| Depth (Including Lid) | 0.87 in (22 mm) |
| Overall Width (Drawing) | 60.00 mm [2.36 in] |
| Overall Height (Drawing) | 22.00 mm [.87 in] |
| Overall Length (Drawing) | 60.00 mm [2.36 in] |
| Length (Not Including Flange) | 2.36 in (60 mm) |
| Nominal Size (L X W X H, As Listed) | 2.36 in x 2.36 in x 0.87 in (60 mm x 60 mm x 22 mm) |
Accessories
| Colour / Flange Variants | 1551WTBK, 1551WTFLBK, 1551WTFLGY |
| Replacement Gasket (2-pack) | 1551WTGASKET |
| Internal Mounting Post Screw | 1553WTS100 (Pkg 100) - #2 x 3/16" Plastite self-tapping (4.8 mm) |
| Stainless Steel Cover Screws | SC509-50 (Pkg 50) - #4 x 3/8" Plastite self-tapping (9.5 mm) |
Identifiers
| UPC | 623980173702 |
| UNSPSC | 39121301 |
| Drawing Revision | REV: 31.08.2023 |
PCB Mounting
| PC Board Standoffs | Molded into interior |
| Max. P.C. Board Width | 54.5 mm |
| Max. P.C. Board Length | 54.5 mm |
| Internal Mounting Posts | Accept #2 self-tapping screw |
| Recommended Torque, #2 Internal Screws | (21-28) Ozf.in / (15-20) cN.m |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.08 lbs (0.04 kg) |
Construction & Finish
| Color | Light Gray |
| Finish | Satin texture |
| Gasket | Replaceable silicone gasket |
| Included | Box, lid, gasket, 4 cover screws |
| Material | Polycarbonate |
| CAD Models | Solid models available in .stp or .x_t |
| Cover Screws | Accept #4 self-tapping screw (four plastite #4 self-tapping screws included) |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
| Recommended Torque, #4 Cover Screw | (71-100) Ozf.in / (50-70) cN.m |
Environmental & Protection
| IP Rating | IP68 |
| Outdoor Use | Suitable for outdoor use |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection and anti-seize paste, strong solvents or cleaners, and some greases and oils |
Compliance & Certifications
| Flame Rating | UL94 V-0 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the outside dimensions of the 1551WTGY?▾
60 mm (2.36 in) long, 60 mm (2.36 in) wide and 22 mm (0.87 in) deep including the lid.
What size PCB will fit?▾
Up to 54.5 mm by 54.5 mm, fastened to molded-in standoffs with #2 self-tapping screws.
Is it suitable for outdoor use?▾
Yes. It has a replaceable silicone gasket, is designed to meet IP68 and the series is described as suitable for outdoor use.
Is there a flanged version?▾
Yes, 1551WTFLGY is the flanged version in the same colour.
What screws and torque are used?▾
Four #4 plastite self-tapping cover screws are included, torqued to 71-100 ozf.in (50-70 cN.m). Internal #2 screws should be torqued to 21-28 ozf.in (15-20 cN.m).
