Hammond 1551WTBK 60x60x22mm Square IP68 Polycarbonate Enclosure, Black
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Square 60 x 60 x 22 mm black polycarbonate enclosure without flanges
- Designed to meet IP68 with a replaceable silicone gasket; suitable for outdoor use
- Accepts a PC board up to 54.5 x 54.5 mm on molded-in standoffs for #2 screws
- UL94 V-0 polycarbonate with satin texture finish
- Includes box, lid, gasket and four #4 plastite self-tapping cover screws
- RoHS and REACH compliant; 0.08 lbs (0.04 kg) shipping weight

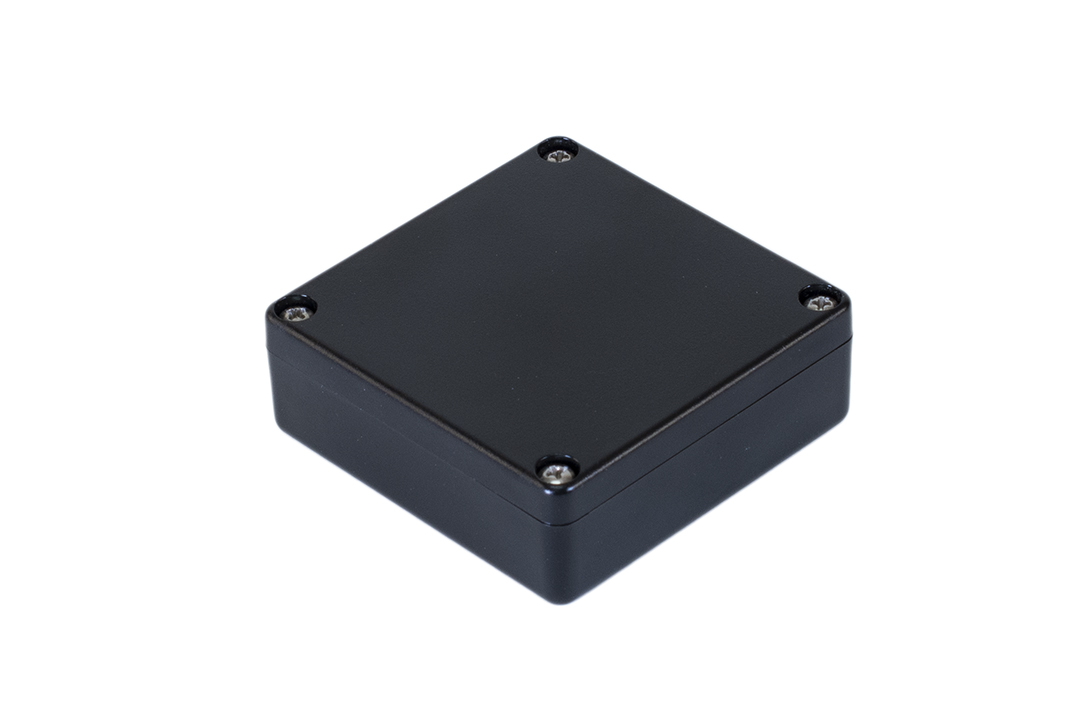

The 1551WTBK is a black, square watertight miniature enclosure from the 1551W series, measuring 60 x 60 x 22 mm without flanges. It gives electronics designers a sealed home for a small square circuit board in devices that may see rain, splashes or dust.

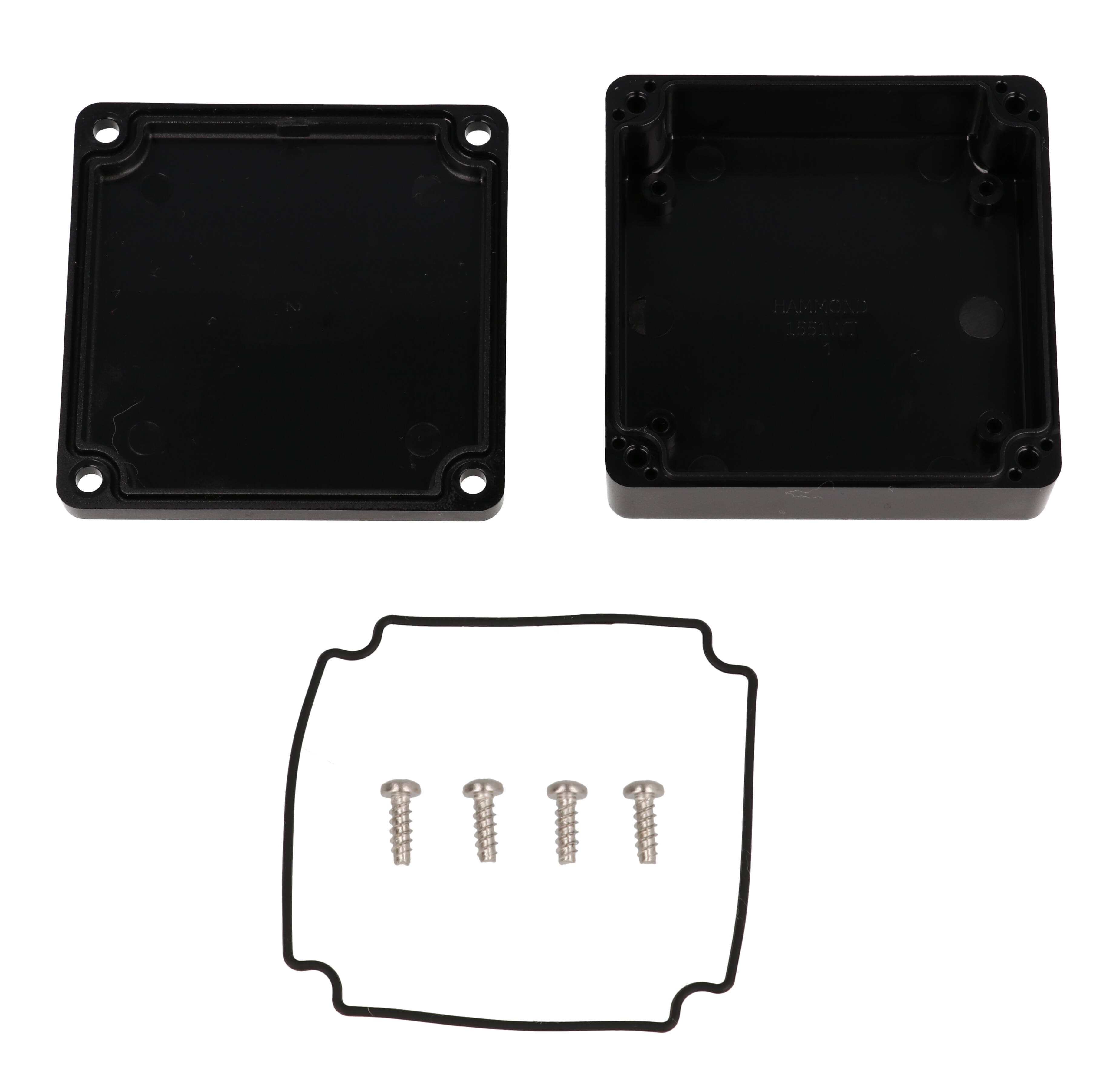

It is molded from robust polycarbonate with a satin texture, and the material is flame rated UL94 V-0. A replaceable silicone gasket protects against ingress of water or dust and the enclosure is designed to meet IP68, so it is suitable for outdoor use. The assembly includes the box, lid, gasket and four #4 plastite self-tapping cover screws.
External size is 60 mm (2.36 in) long by 60 mm (2.36 in) wide by 22 mm (0.87 in) deep including the lid. PC board standoffs are molded into the interior and take #2 self-tapping screws; the maximum board is 54.5 x 54.5 mm. Tighten #4 cover screws to 71-100 ozf.in (50-70 cN.m) and #2 internal screws to 21-28 ozf.in (15-20 cN.m).
Related parts: the light gray version is 1551WTGY, the black flanged version is 1551WTFLBK, and replacement gaskets are 1551WTGASKET (2-pack). The 1551WTBK is RoHS and REACH compliant, ships shrink wrapped at 0.08 lbs (0.04 kg), and can be factory modified by milling, drilling or printing.
Ideal For
- Square PCB housings for sensors and controllers
- Outdoor electronics exposed to water or dust
- Sealed enclosures for compact OEM products
- Protective housing for small wireless or interface boards
Overview
| Type | Miniature, watertight |
| Series | 1551W Series Watertight Polycarbonate Miniature Enclosures |
| Product | Watertight plastic enclosure |
| Part Number | 1551WTBK |
| Mounting Flanges | Without flange |
| Short Description | 60x60x22mm PC W/GASK BK |
Dimensions
| Width | 2.36 in (60 mm) |
| Depth (Including Lid) | 0.87 in (22 mm) |
| Overall Width (Drawing) | 60.00 mm [2.36 in] |
| Overall Height (Drawing) | 22.00 mm [.87 in] |
| Overall Length (Drawing) | 60.00 mm [2.36 in] |
| Length (Not Including Flange) | 2.36 in (60 mm) |
| Nominal Size (L X W X H, As Listed) | 2.36 in x 2.36 in x 0.87 in (60 mm x 60 mm x 22 mm) |
Accessories
| Colour / Flange Variants | 1551WTGY, 1551WTFLBK, 1551WTFLGY |
| Replacement Gasket (2-pack) | 1551WTGASKET |
| Internal Mounting Post Screw | 1553WTS100 (Pkg 100) - #2 x 3/16" Plastite self-tapping (4.8 mm) |
| Stainless Steel Cover Screws | SC509-50 (Pkg 50) - #4 x 3/8" Plastite self-tapping (9.5 mm) |
Identifiers
| UPC | 623980173696 |
| UNSPSC | 39121301 |
| Drawing Revision | REV: 31.08.2023 |
PCB Mounting
| PC Board Standoffs | Molded into interior |
| Max. P.C. Board Width | 54.5 mm |
| Max. P.C. Board Length | 54.5 mm |
| Internal Mounting Posts | Accept #2 self-tapping screw |
| Recommended Torque, #2 Internal Screws | (21-28) Ozf.in / (15-20) cN.m |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.08 lbs (0.04 kg) |
Construction & Finish
| Color | Black |
| Finish | Satin texture |
| Gasket | Replaceable silicone gasket |
| Included | Box, lid, gasket, 4 cover screws |
| Material | Polycarbonate |
| CAD Models | Solid models available in .stp or .x_t |
| Cover Screws | Accept #4 self-tapping screw (four plastite #4 self-tapping screws included) |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
| Recommended Torque, #4 Cover Screw | (71-100) Ozf.in / (50-70) cN.m |
Environmental & Protection
| IP Rating | IP68 |
| Outdoor Use | Suitable for outdoor use |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection and anti-seize paste, strong solvents or cleaners, and some greases and oils |
Compliance & Certifications
| Flame Rating | UL94 V-0 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the outside dimensions of the 1551WTBK?▾
60 mm (2.36 in) long, 60 mm (2.36 in) wide and 22 mm (0.87 in) deep including the lid.
What size PCB will fit?▾
Up to 54.5 mm by 54.5 mm, fastened to molded-in standoffs with #2 self-tapping screws.
Is it suitable for outdoor use?▾
Yes. It has a replaceable silicone gasket, is designed to meet IP68 and the series is described as suitable for outdoor use.
Is there a flanged version?▾
Yes, 1551WTFLBK is the flanged version in the same colour.
What screws and torque are used?▾
Four #4 plastite self-tapping cover screws are included, torqued to 71-100 ozf.in (50-70 cN.m). Internal #2 screws should be torqued to 21-28 ozf.in (15-20 cN.m).
