Hammond 1551WTFLBK 60x60x22mm Flanged Watertight Enclosure, Black
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Square 60 x 60 x 22 mm body with integrated wall-mounting flanges (80.01 mm overall)
- Replaceable silicone gasket; designed to meet IP68 for outdoor use
- Molded-in standoffs take a PC board up to 54.5 x 54.5 mm with #2 self-tapping screws
- Black polycarbonate, satin texture, flame rated UL94 V-0
- Includes box, lid, gasket and four #4 plastite self-tapping cover screws
- RoHS and REACH compliant; 0.09 lbs (0.04 kg) shipping weight

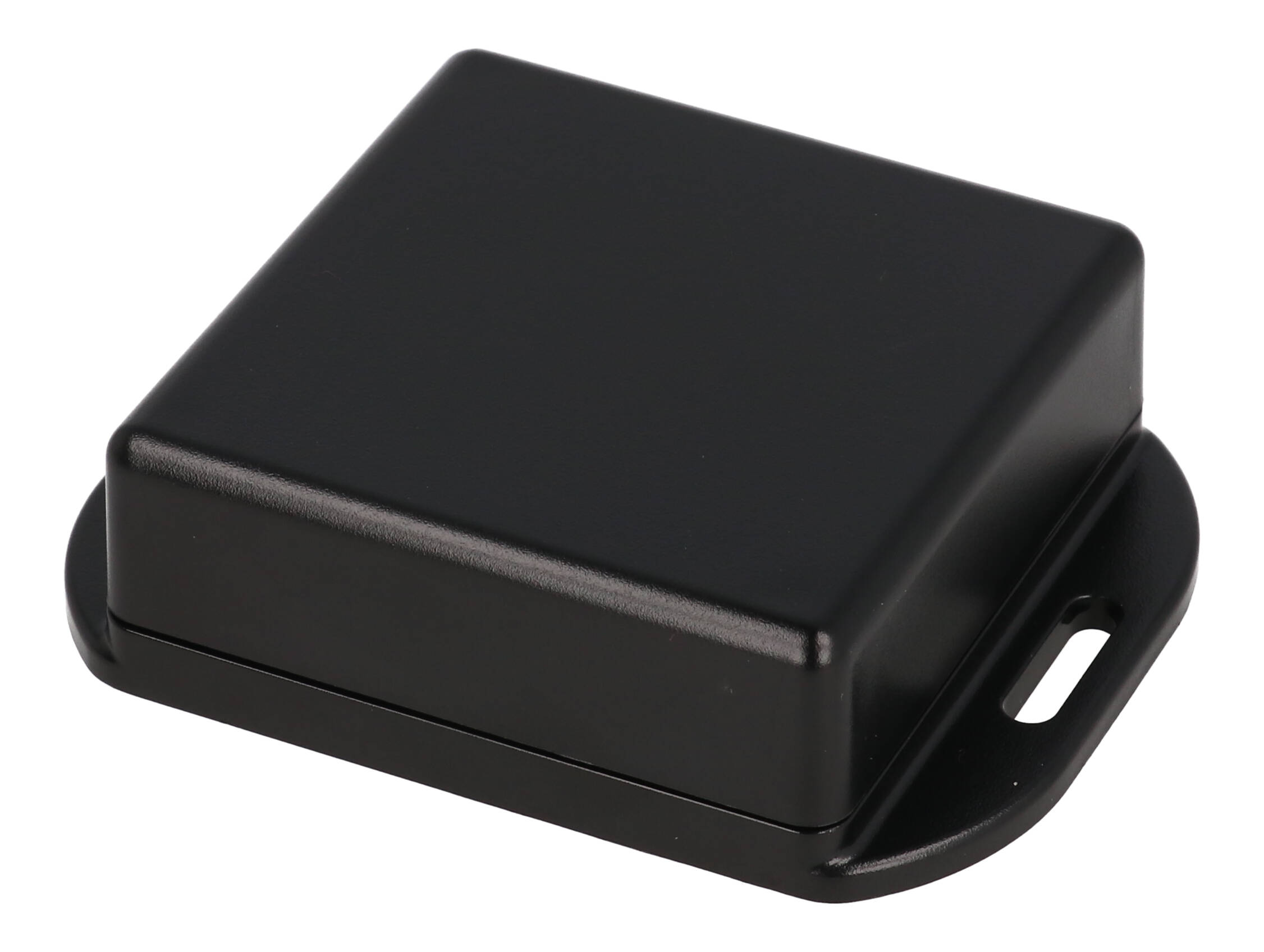

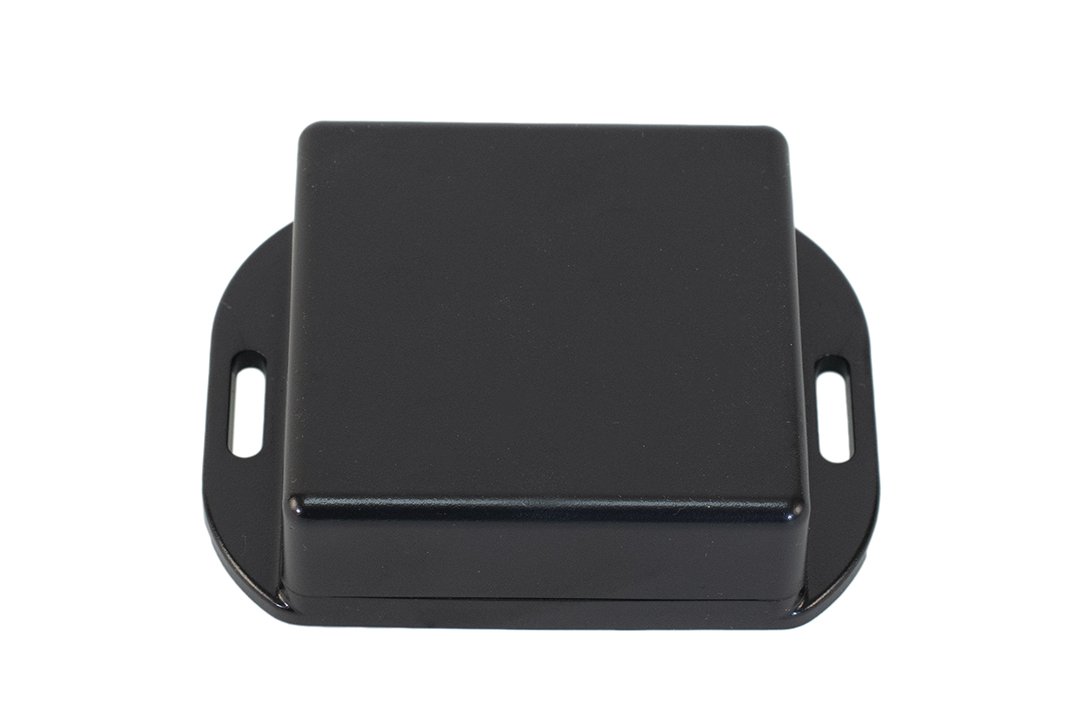

The 1551WTFLBK is a black 60 x 60 x 22 mm watertight polycarbonate enclosure with integrated wall-mounting flanges, part of the 1551W miniature series. It is aimed at builders of outdoor and wet-location electronics who want a sealed square PCB box that bolts directly to a wall or surface.
Robust polycarbonate with a satin texture forms the body and lid, and the material is rated UL94 V-0. The replaceable silicone gasket guards against water and dust ingress, and the enclosure is designed to meet IP68. Included: box, lid, gasket and four #4 plastite self-tapping cover screws.
The body is 60 mm (2.36 in) square, not including flanges, and 22 mm (0.87 in) deep including the lid; the drawing shows 80.01 mm [3.15 in] overall across the flanges. Molded-in standoffs take #2 self-tapping screws and a board up to 54.5 x 54.5 mm. Recommended torque is 71-100 ozf.in (50-70 cN.m) for #4 cover screws and 21-28 ozf.in (15-20 cN.m) for #2 internal screws.
The light gray flanged option is 1551WTFLGY and the flangeless black option is 1551WTBK. Replacement gaskets are ordered as 1551WTGASKET (2-pack). RoHS and REACH compliant, shrink wrapped, 0.09 lbs (0.04 kg).
Ideal For
- Wall- or surface-mounted outdoor electronics
- Square sensor and controller housings
- Sealed PCB enclosures for wet or dusty sites
- Flange-mounted OEM modules
Overview
| Type | Miniature flanged watertight |
| Series | 1551W Series Watertight Polycarbonate Miniature Enclosures |
| Product | Watertight plastic enclosure |
| Part Number | 1551WTFLBK |
| Mounting Flanges | Integrated wall-mounting flanges |
| Short Description | 60x60x22mm PC W/GASK FL BK |
Dimensions
| Width | 2.36 in (60 mm) |
| Depth (Including Lid) | 0.87 in (22 mm) |
| Overall Width (Drawing) | 60.00 mm [2.36 in] |
| Overall Height (Drawing) | 22.00 mm [.87 in] |
| Flange Dimension (Drawing) | 70.00 mm [2.76 in] |
| Length (Not Including Flange) | 2.36 in (60 mm) |
| Nominal Size (L X W X H, As Listed) | 2.36 in x 2.36 in x 0.87 in (60 mm x 60 mm x 22 mm) |
| Overall Length Including Flanges (Drawing) | 80.01 mm [3.15 in] |
Accessories
| Colour / Flange Variants | 1551WTBK, 1551WTGY, 1551WTFLGY |
| Replacement Gasket (2-pack) | 1551WTGASKET |
| Internal Mounting Post Screw | 1553WTS100 (Pkg 100) - #2 x 3/16" Plastite self-tapping (4.8 mm) |
| Stainless Steel Cover Screws | SC509-50 (Pkg 50) - #4 x 3/8" Plastite self-tapping (9.5 mm) |
Identifiers
| UPC | 623980173719 |
| UNSPSC | 39121301 |
| Drawing Revision | REV: 31.08.2023 |
PCB Mounting
| PC Board Standoffs | Molded into interior |
| Max. P.C. Board Width | 54.5 mm |
| Max. P.C. Board Length | 54.5 mm |
| Internal Mounting Posts | Accept #2 self-tapping screw |
| Recommended Torque, #2 Internal Screws | (21-28) Ozf.in / (15-20) cN.m |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.09 lbs (0.04 kg) |
Construction & Finish
| Color | Black |
| Finish | Satin texture |
| Gasket | Replaceable silicone gasket |
| Included | Box, lid, gasket, 4 cover screws |
| Material | Polycarbonate |
| CAD Models | Solid models available in .stp or .x_t |
| Cover Screws | Accept #4 self-tapping screw (four plastite #4 self-tapping screws included) |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
| Recommended Torque, #4 Cover Screw | (71-100) Ozf.in / (50-70) cN.m |
Environmental & Protection
| IP Rating | IP68 |
| Outdoor Use | Suitable for outdoor use |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection and anti-seize paste, strong solvents or cleaners, and some greases and oils |
Compliance & Certifications
| Flame Rating | UL94 V-0 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How long is the 1551WTFLBK including the flanges?▾
The drawing shows 80.01 mm [3.15 in] overall across the flanges. The body itself is 60 mm (2.36 in) long not including the flange, 60 mm (2.36 in) wide and 22 mm (0.87 in) deep.
What is the maximum PCB size?▾
54.5 mm by 54.5 mm.
How is it sealed?▾
With a replaceable silicone gasket that protects against ingress of water or dust. The enclosure is designed to meet IP68.
What comes in the package?▾

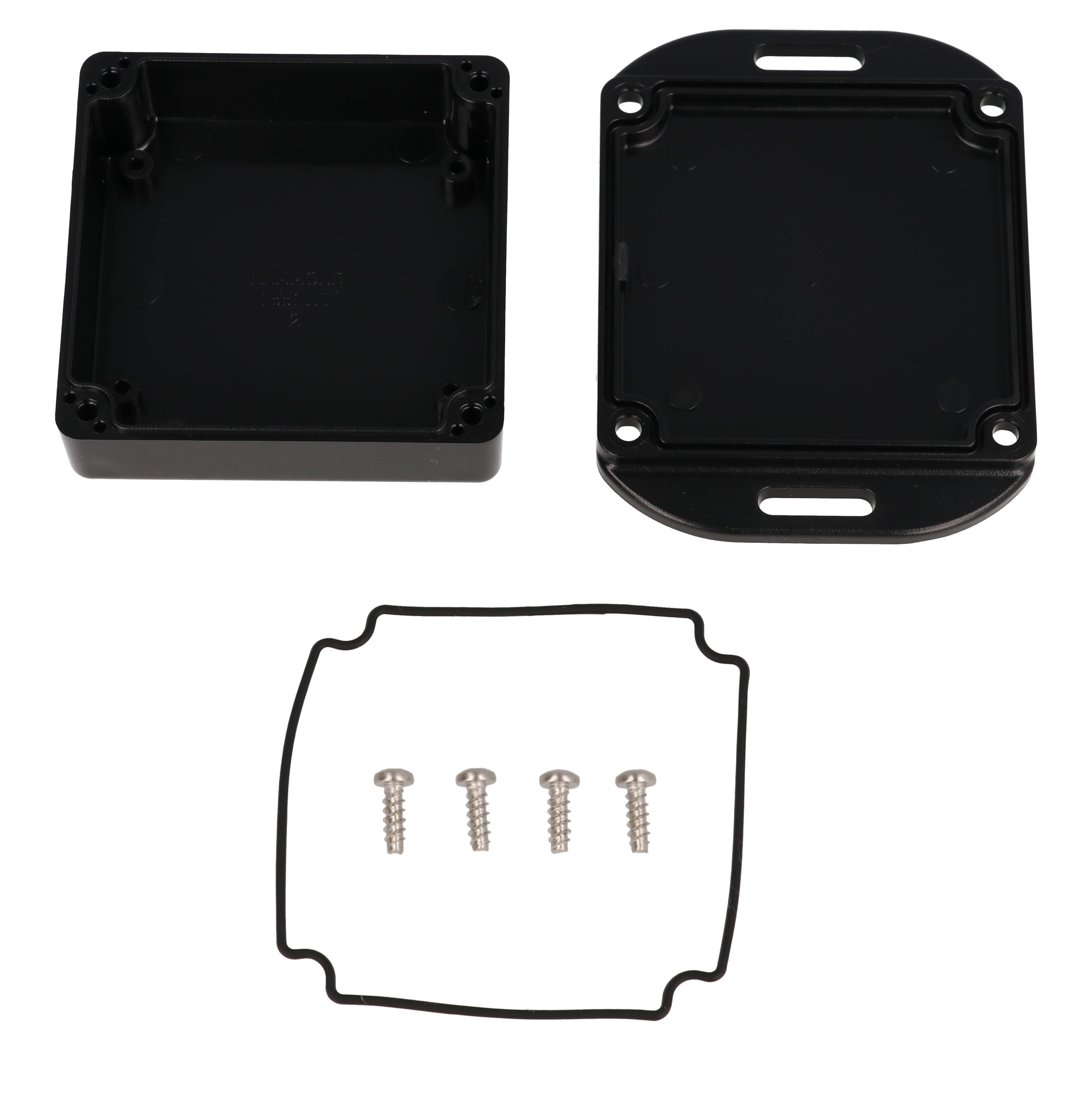

Box, lid, gasket and four #4 plastite self-tapping cover screws.
Which gasket is the replacement?▾
1551WTGASKET, a 2-pack of replacement gaskets for the 1551WT size.
