Hammond 1551WYGY 100x50x24mm Watertight Polycarbonate Enclosure, Gray
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 100 x 50 x 24 mm light gray polycarbonate enclosure without flanges
- Accepts a long, narrow PC board up to 94.5 x 44.5 mm on molded-in standoffs
- Replaceable silicone gasket; designed to meet IP68 and suitable for outdoor use
- UL94 V-0 polycarbonate with satin texture finish
- Includes box, lid, gasket and four #4 plastite self-tapping cover screws
- RoHS and REACH compliant; 0.11 lbs (0.05 kg) shipping weight

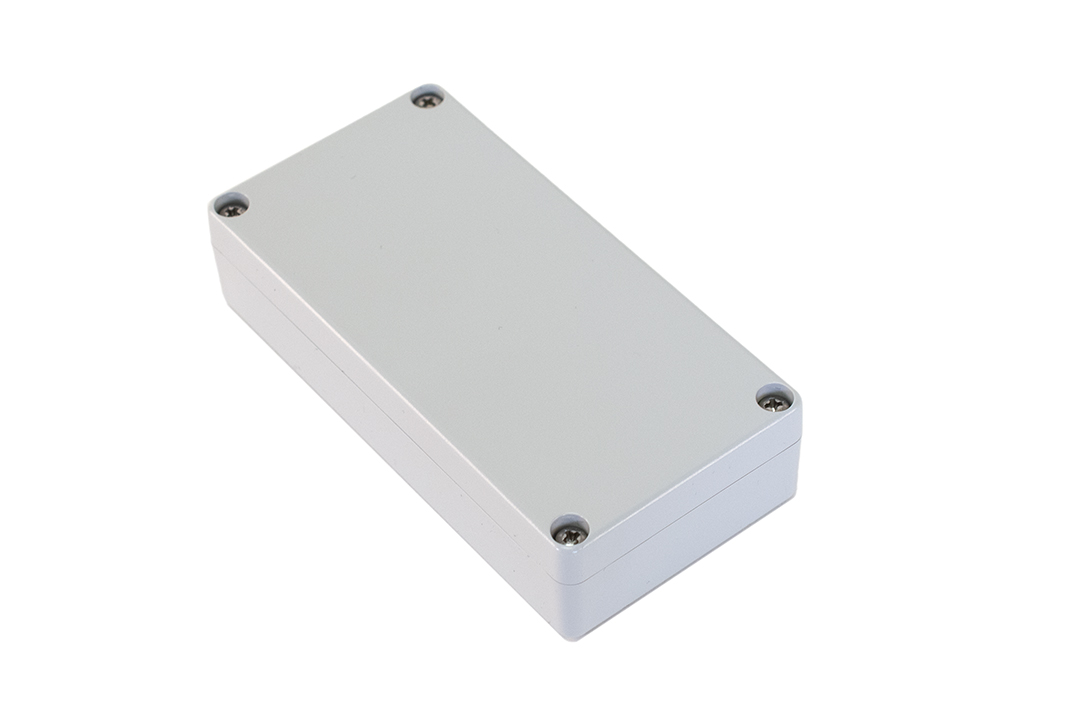

At 100 x 50 x 24 mm, the 1551WYGY is the longest and deepest size in the 1551W watertight miniature enclosure series. This light gray version has no flanges and suits designers who need a slim, sealed housing for a longer, narrow circuit board, indoors or out.
Molded from robust polycarbonate with a satin texture finish, the enclosure carries a UL94 V-0 flame rating. Its replaceable silicone gasket protects against ingress of water or dust, it is designed to meet IP68, and the series is suitable for outdoor use.
The body is 100 mm (3.94 in) long, 50 mm (1.97 in) wide and 24 mm (0.94 in) deep including the lid, a little deeper than the 22 mm 1551W sizes. Molded-in PC board standoffs accept #2 self-tapping screws and a board up to 94.5 mm long by 44.5 mm wide. Recommended torque is 21-28 ozf.in (15-20 cN.m) on #2 internal screws and 71-100 ozf.in (50-70 cN.m) on the #4 cover screws.

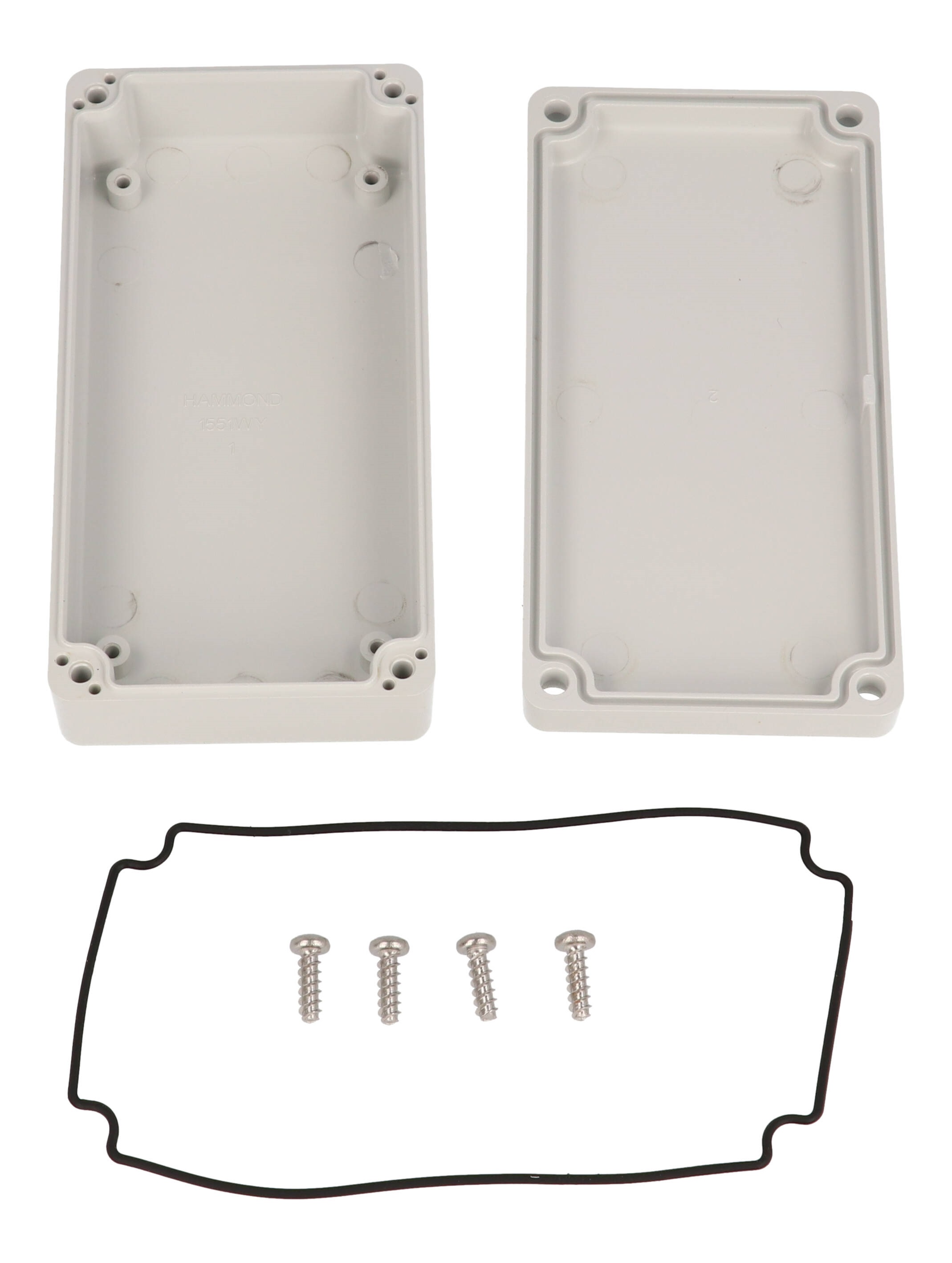

The purchased assembly includes box, lid, gasket and four #4 plastite self-tapping cover screws. Alternatives in the same size are 1551WYBK (other colour) and 1551WYFLGY (with flanges); replacement gaskets are 1551WYGASKET (2-pack). RoHS and REACH compliant, shrink wrapped, 0.11 lbs (0.05 kg).
Ideal For
- Housings for long, narrow PCBs
- Outdoor sensors and transmitters
- Sealed electronics in wet or dusty areas
- Compact OEM control modules
Overview
| Type | Miniature, watertight |
| Series | 1551W Series Watertight Polycarbonate Miniature Enclosures |
| Product | Watertight plastic enclosure |
| Part Number | 1551WYGY |
| Mounting Flanges | Without flange |
| Short Description | 50x100x24mm PC W/GASK GY |
Dimensions
| Width | 1.97 in (50 mm) |
| Depth (Including Lid) | 0.94 in (24 mm) |
| Overall Width (Drawing) | 50.00 mm [1.97 in] |
| Overall Height (Drawing) | 24.00 mm [.94 in] |
| Overall Length (Drawing) | 100.00 mm [3.94 in] |
| Length (Not Including Flange) | 3.94 in (100 mm) |
| Nominal Size (L X W X H, As Listed) | 1.97 in x 3.94 in x 0.94 in (50 mm x 100 mm x 24 mm) |
Accessories
| Colour / Flange Variants | 1551WYBK, 1551WYFLBK, 1551WYFLGY |
| Replacement Gasket (2-pack) | 1551WYGASKET |
| Internal Mounting Post Screw | 1553WTS100 (Pkg 100) - #2 x 3/16" Plastite self-tapping (4.8 mm) |
| Stainless Steel Cover Screws | SC509-50 (Pkg 50) - #4 x 3/8" Plastite self-tapping (9.5 mm) |
Identifiers
| UPC | 623980173788 |
| UNSPSC | 39121301 |
| Drawing Revision | REV: 31.08.2023 |
PCB Mounting
| PC Board Standoffs | Molded into interior |
| Max. P.C. Board Width | 44.5 mm |
| Max. P.C. Board Length | 94.5 mm |
| Internal Mounting Posts | Accept #2 self-tapping screw |
| Recommended Torque, #2 Internal Screws | (21-28) Ozf.in / (15-20) cN.m |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.11 lbs (0.05 kg) |
Construction & Finish
| Color | Light Gray |
| Finish | Satin texture |
| Gasket | Replaceable silicone gasket |
| Included | Box, lid, gasket, 4 cover screws |
| Material | Polycarbonate |
| CAD Models | Solid models available in .stp or .x_t |
| Cover Screws | Accept #4 self-tapping screw (four plastite #4 self-tapping screws included) |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
| Recommended Torque, #4 Cover Screw | (71-100) Ozf.in / (50-70) cN.m |
Environmental & Protection
| IP Rating | IP68 |
| Outdoor Use | Suitable for outdoor use |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection and anti-seize paste, strong solvents or cleaners, and some greases and oils |
Compliance & Certifications
| Flame Rating | UL94 V-0 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1551WYGY?▾
100 mm (3.94 in) long, 50 mm (1.97 in) wide and 24 mm (0.94 in) deep including the lid.
What board size fits?▾
A P.C. board up to 94.5 mm long and 44.5 mm wide.
Is it rated for water and dust?▾
Yes, it is designed to meet IP68 using a replaceable silicone gasket.
What screws does it use?▾
Four #4 plastite self-tapping cover screws are included (torque 71-100 ozf.in / 50-70 cN.m). Internal posts accept #2 self-tapping screws such as 1553WTS100.
Is there a version with mounting flanges?▾
Yes, 1551WYFLGY.
