N4X 24X20X10-304SS White
$1,241.31In stock
Buy now
Type 4X Painted White Stainless Steel Wallmount Enclosure · Eclipse Series
Brand: Hammond Manufacturing · 11 part numbers
Hinge Door with Handle
- ■Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments for wallmount applications.
- ■Impressive styling features like hidden hinges and attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation.
- ■A wide range of sizes and practical accessories make this product line a complete package.
- ■UL 508A Type 3R, 4, 4X and 12
- ■CSA Type 3R, 4, 4X and 12
- ■Complies with NEMA 3R, 4, 4X, 12 and 13 IEC 60529, IP 66
from $167.85
11 of 11 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your Eclipse Series part number
Filter 10 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
10 of 10 part numbers · 10 priced online
N4X 24X24X12-304SS White
$1,448.82In stock
Buy now
N4X 24X24X8-304SS White
$1,088.64Backorder
Buy now
N4X 30X24X8-304SS White
$1,448.82Backorder
Buy now
N4X 36X30X12-304SS White
$2,092.86In stock
Buy now

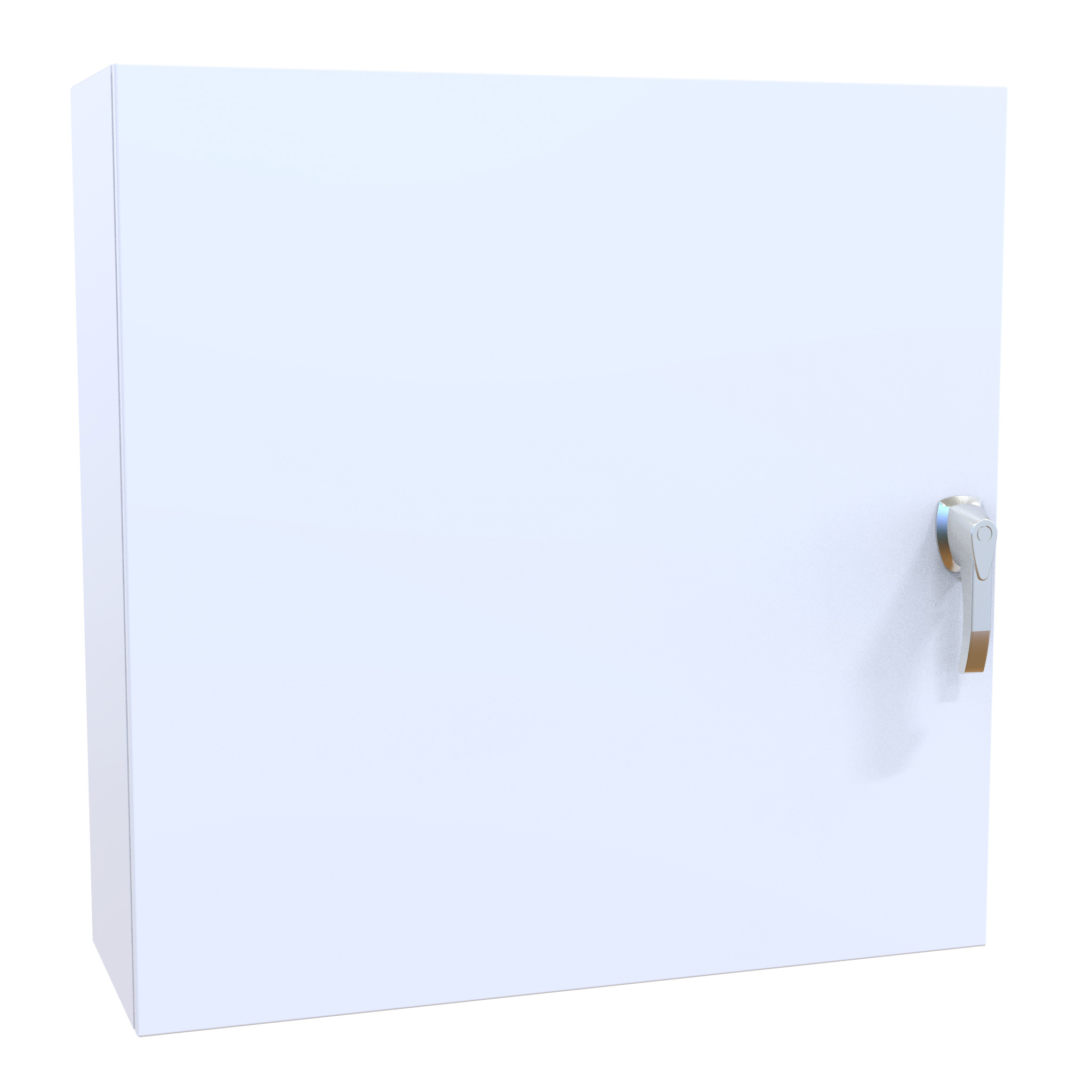

N4X 36X36X12-304SS White
$2,350.91In stock
Buy now
N4X 42X36X12-304SS White
$2,606.26In stock
Buy now

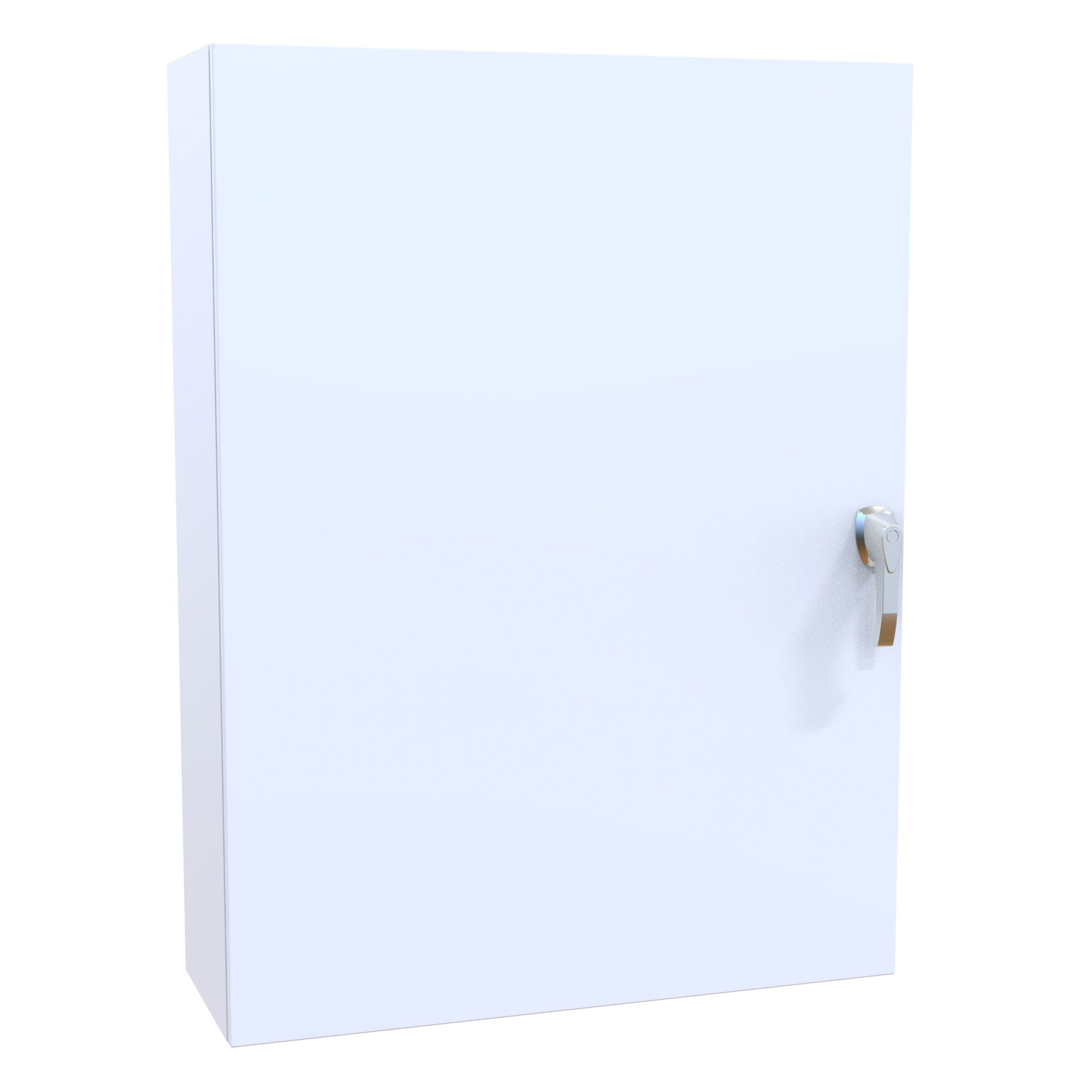

N4X 48X36X12-304SS White
$2,864.31In stock
Buy now
N4X 48X36X16-304SS White
$3,164.29In stock
Buy now
N4X 60X36X12-304SS White
$3,379.33In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Optional Inner Panel · Part No. | Optional Inner Panel · H | Optional Inner Panel · W | Price | Order |
|---|---|---|---|---|---|---|---|---|

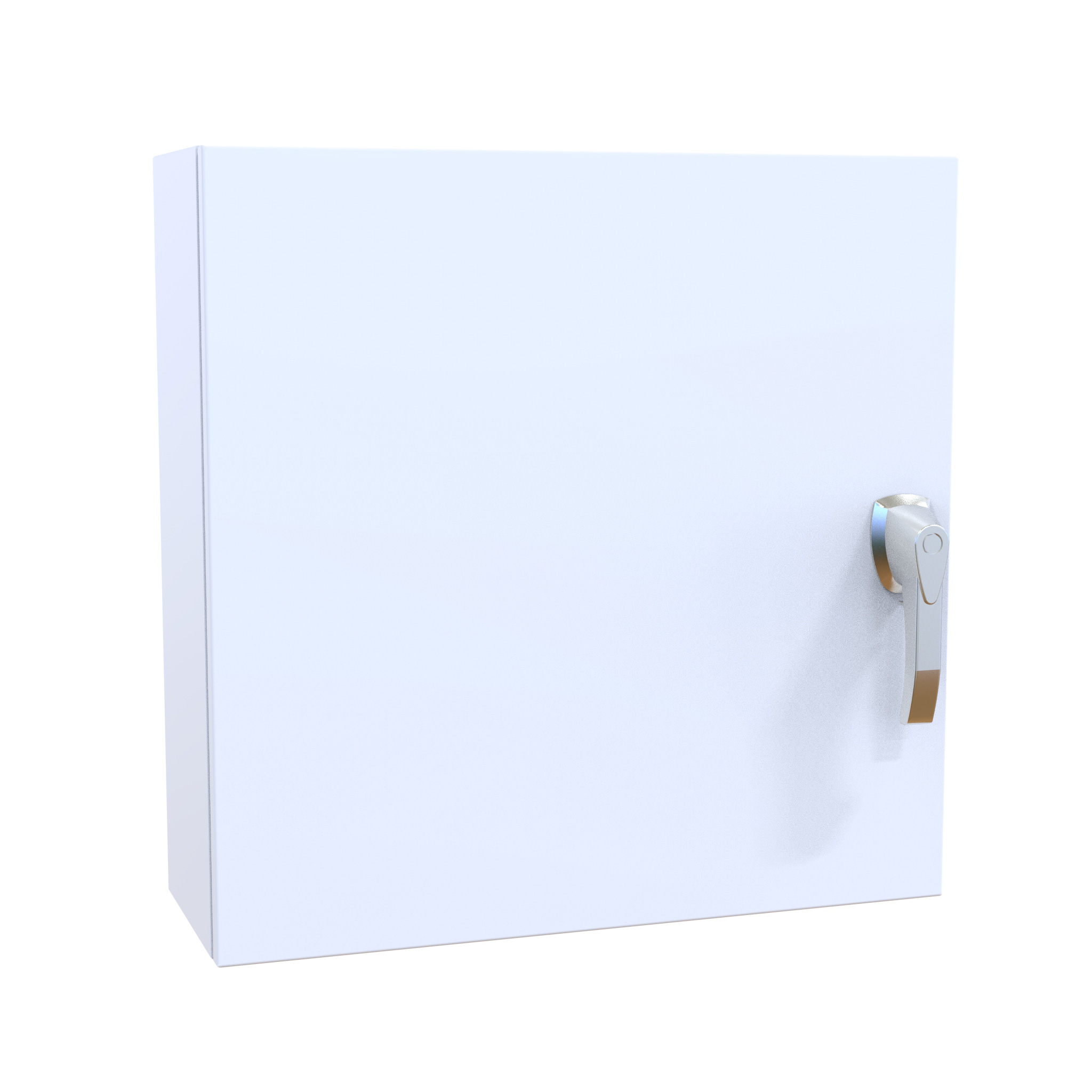

| EN4SD24248SSWH | 24.00 | 24.00 | 8.00 | EP2424 | 22.20 | 22.20 | $1,088.64Backorder | Buy now |

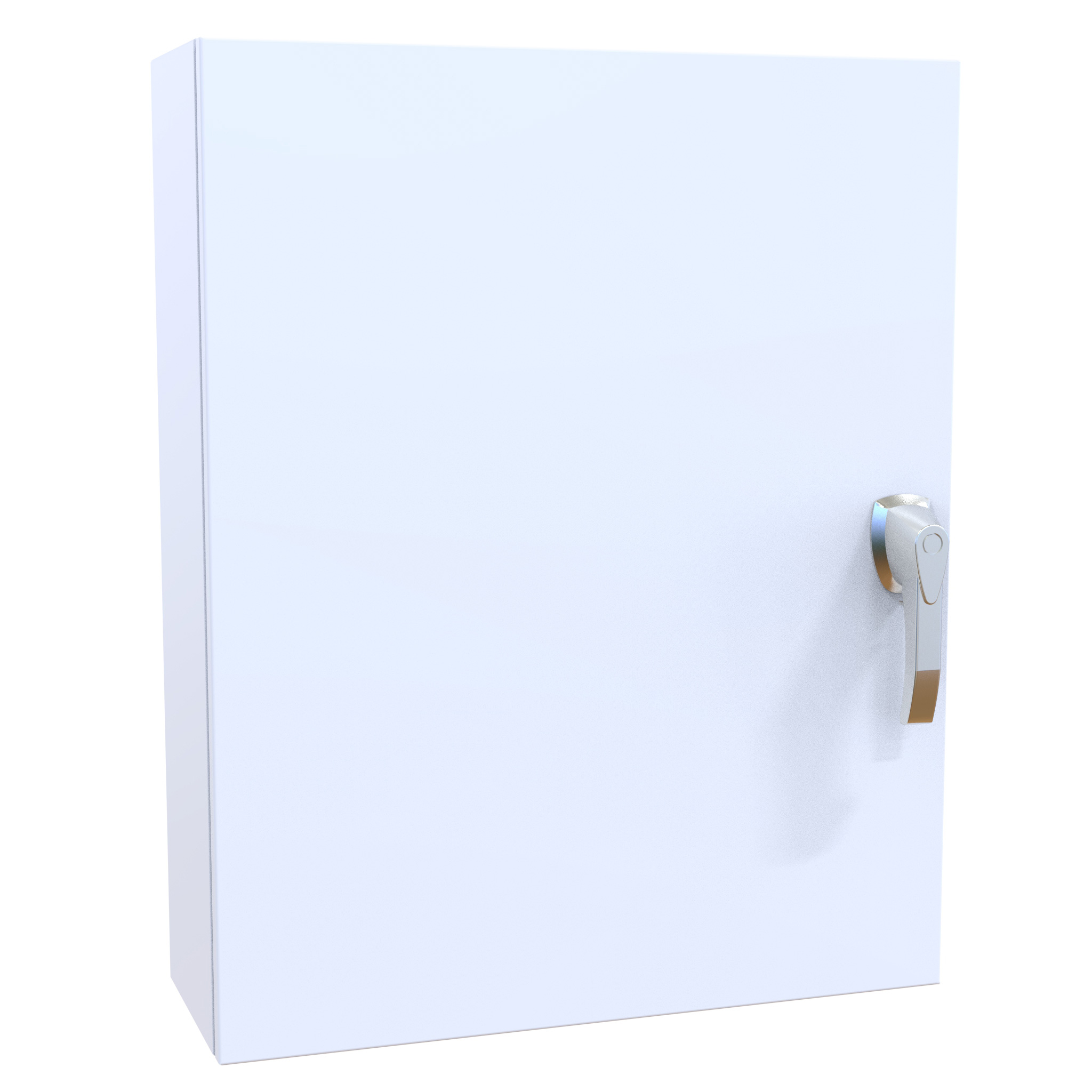

| EN4SD30248SSWH | 30.00 | 24.00 | 8.00 | EP3024 | 28.20 | 22.20 | $1,448.82Backorder | Buy now |

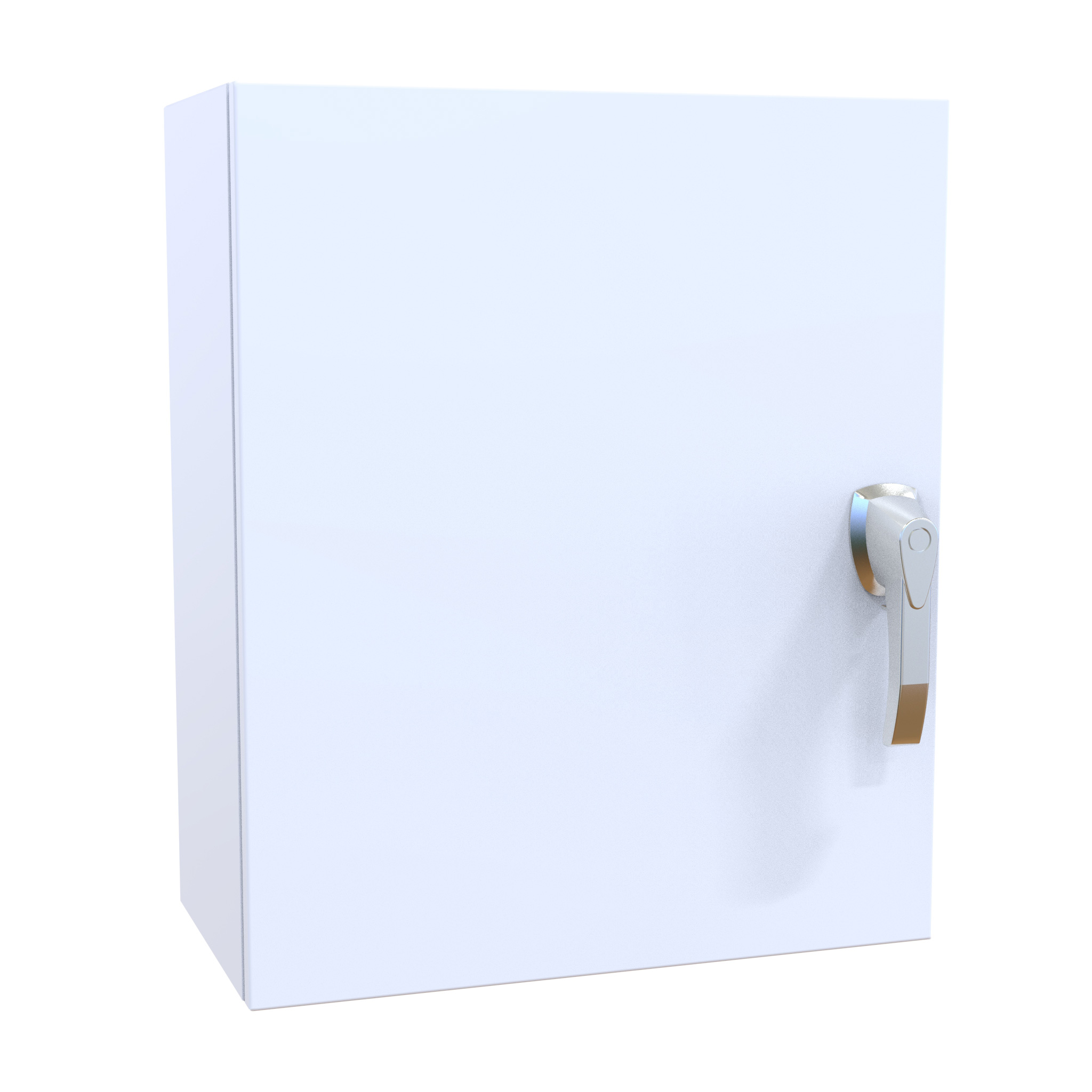

| EN4SD242010SSWH | 24.00 | 20.00 | 10.00 | EP2420 | 22.20 | 18.20 | $1,241.31In stock | Buy now |

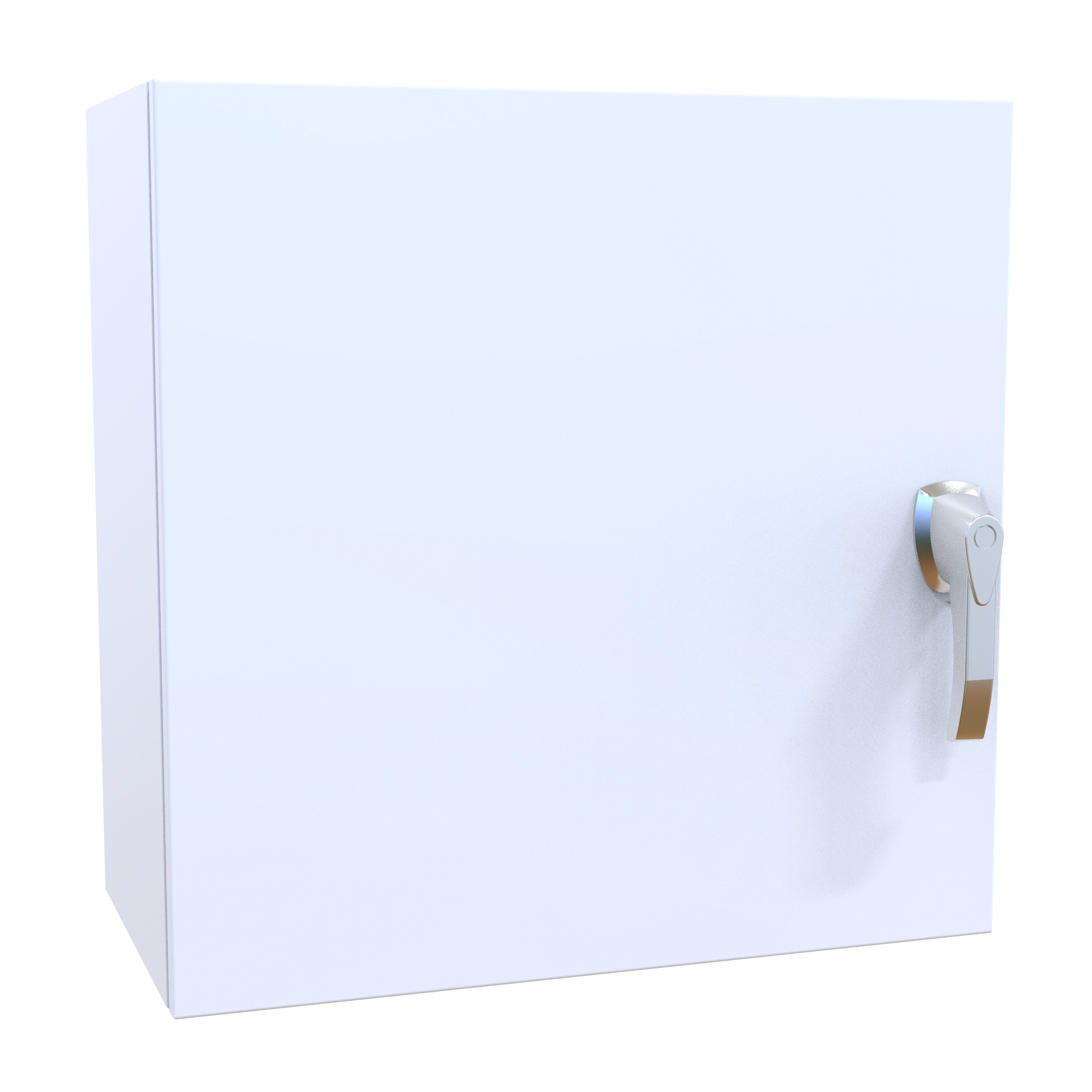

| EN4SD242412SSWH | 24.00 | 24.00 | 12.00 | EP2424 | 22.20 | 22.20 | $1,448.82In stock | Buy now |

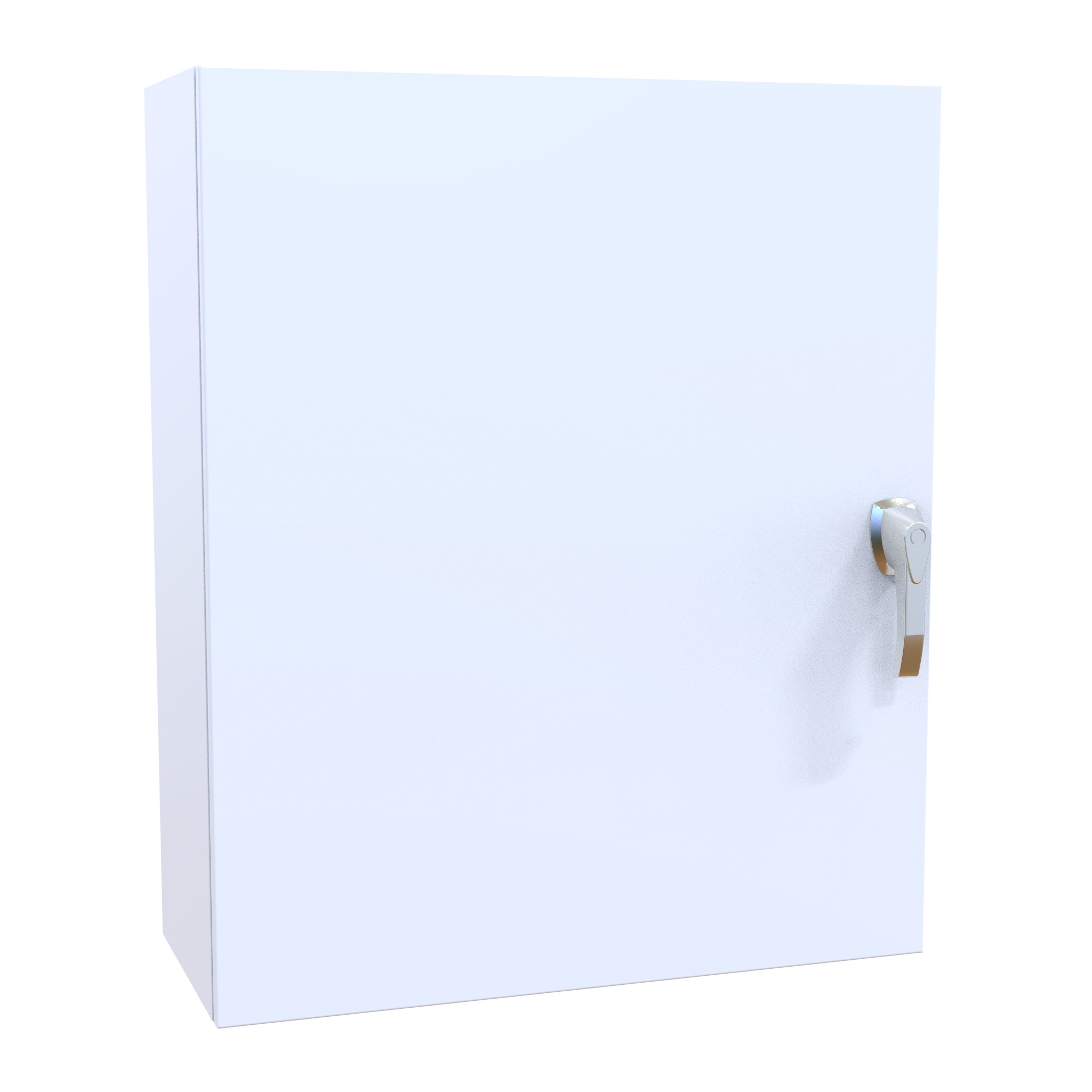

| EN4SD363012SSWH | 36.00 | 30.00 | 12.00 | EP3630 | 34.20 | 28.20 | $2,092.86In stock | Buy now |
| EN4SD363612SSWH | 36.00 | 36.00 | 12.00 | EP3636 | 34.20 | 34.20 | $2,350.91In stockEN4SD363612SSWH | Buy now |

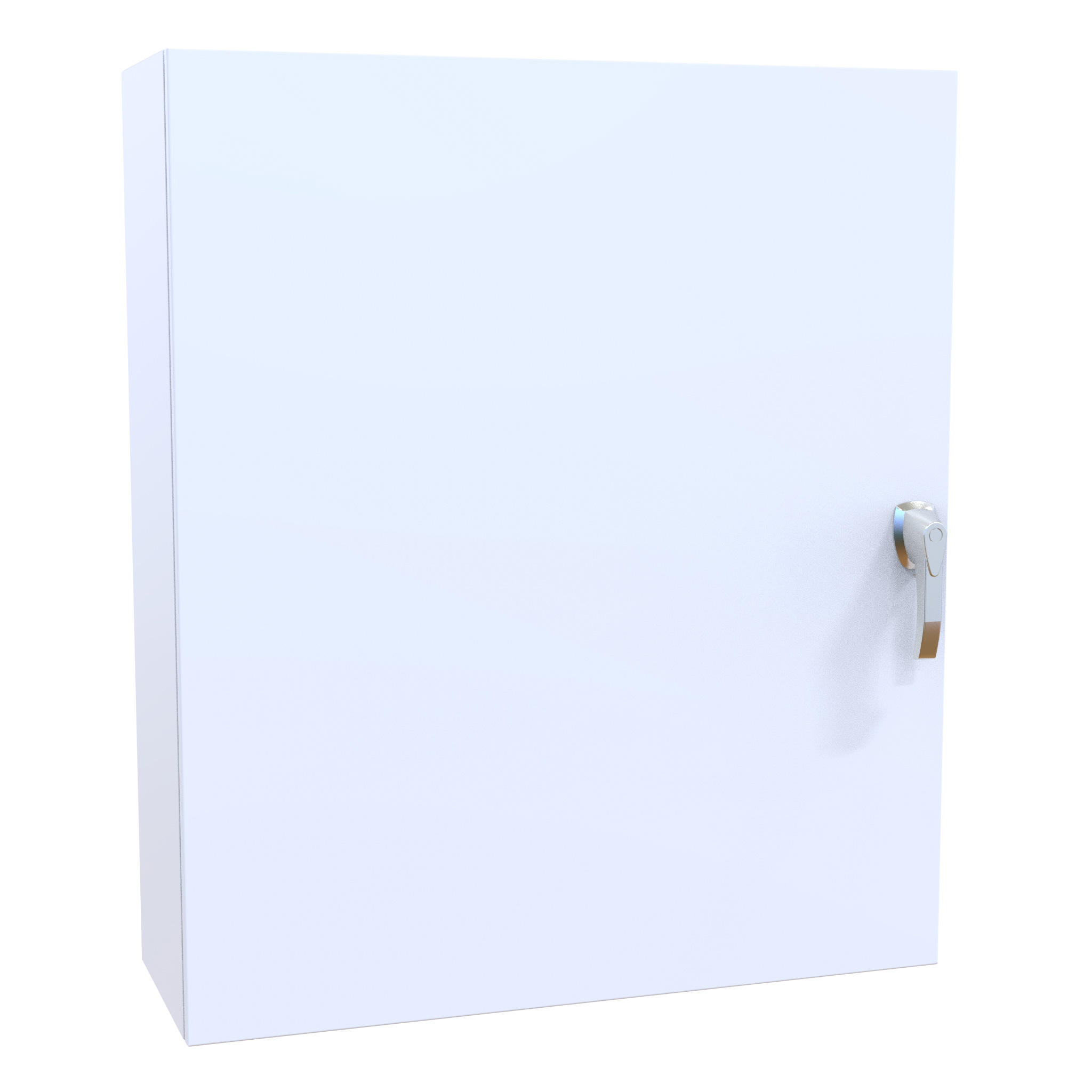

| EN4SD423612SSWH | 42.00 | 36.00 | 12.00 | EP4236 | 40.20 | 34.20 | $2,606.26In stock | Buy now |
| EN4SD483612SSWH | 48.00 | 36.00 | 12.00 | EP4836 | 46.20 | 34.20 | $2,864.31In stock | Buy now |

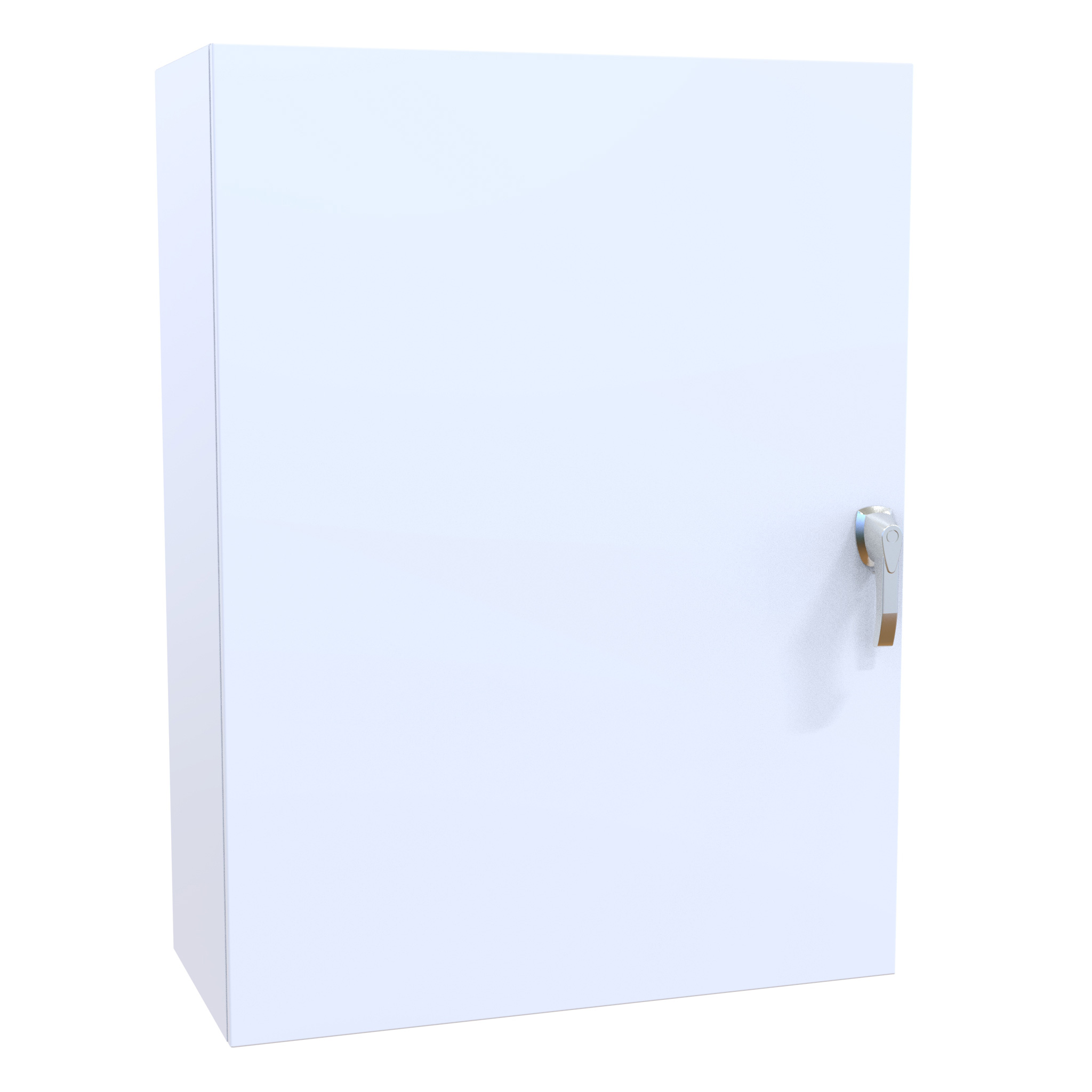

| EN4SD483616SSWH | 48.00 | 36.00 | 16.00 | EP4836 | 46.20 | 34.20 | $3,164.29In stock | Buy now |

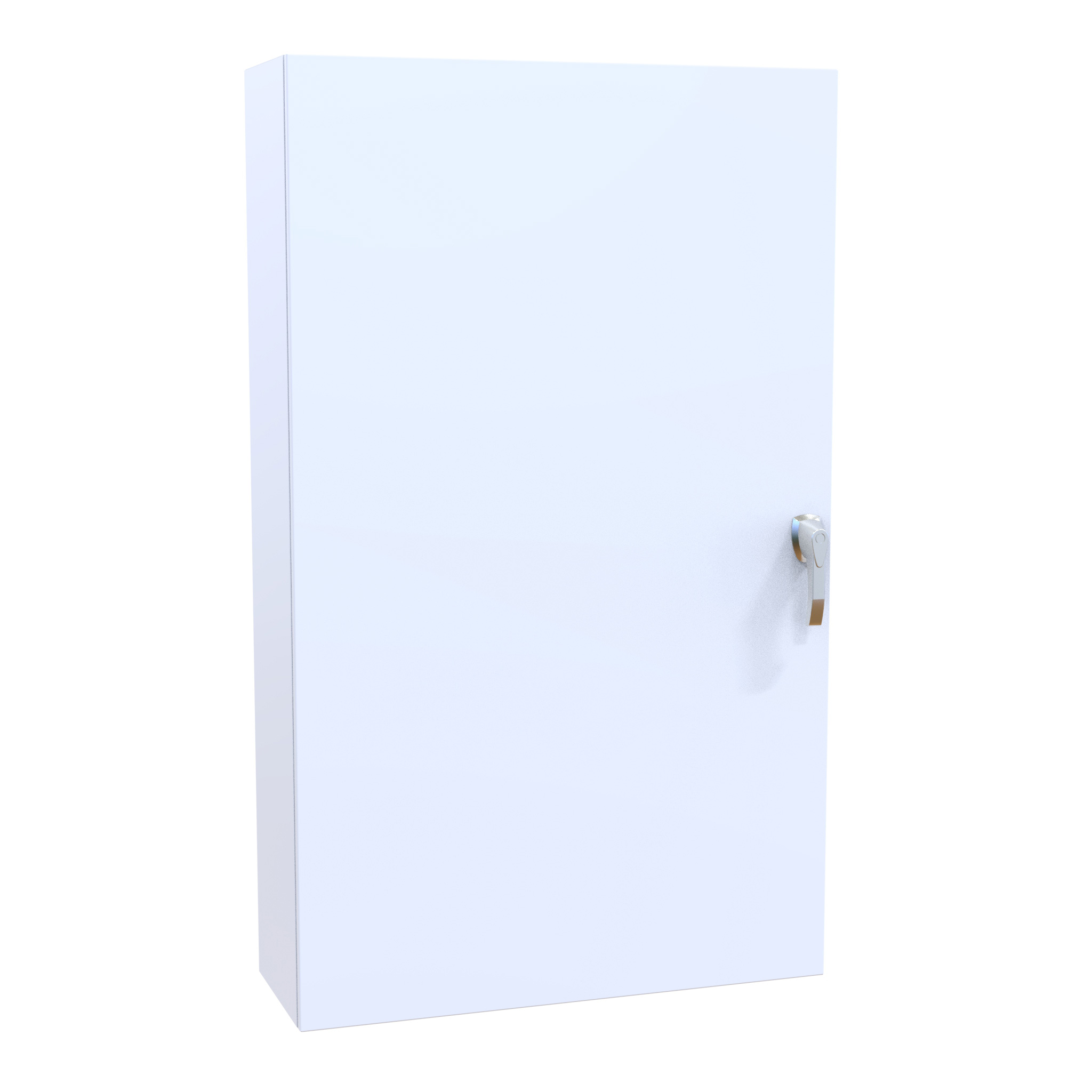

| EN4SD603612SSWH | 60.00 | 36.00 | 12.00 | EP6036 | 58.20 | 34.20 | $3,379.33In stock | Buy now |
Application
- ■Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments for wallmount applications.
- ■Impressive styling features like hidden hinges and attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation.
- ■A wide range of sizes and practical accessories make this product line a complete package.
Standards
- ■UL 508A Type 3R, 4, 4X and 12
- ■CSA Type 3R, 4, 4X and 12
- ■Complies with NEMA 3R, 4, 4X, 12 and 13 IEC 60529, IP 66
- ■NEMA 3R, 4, 4X, 12 and 13
- ■IEC 60529, IP 66
Construction
- ■Formed 14 gauge 304 stainless steel.
- ■Continuously welded seams ground smooth.
- ■Door stiffeners are provided where required for increased strength and rigidity - designed to also permit additional mounting options.
- ■Formed lip on enclosure to exclude flowing liquids and contaminants.
- ■Doors are secured with a 3 point Handle in 316 stainless with pad lockable feature.
- ■Doors may be easily removed for modifications and are interchangeable.
- ■Seamless poured-in place gasket.
- ■Collar studs provided for mounting inner panel.
- ■Includes hardware kit with panel mounting nuts and sealing washers for wall mounting holes.
- ■Bonding stud provided on door and grounding stud installed in enclosure.
- ■Stainless steel hinge pins and hinges.
Finish
- ■Cover and enclosure are finished in recoatable smooth RAL 9003 White powder coating inside and out.
Documents
Additional information
Part Details
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Optional Inner Panel · Part No. | Optional Inner Panel · H | Optional Inner Panel · W |
|---|---|---|---|---|---|---|
| EN4SD24248SSWH | 24.00 | 24.00 | 8.00 | EP2424 | 22.20 | 22.20 |
| EN4SD30248SSWH | 30.00 | 24.00 | 8.00 | EP3024 | 28.20 | 22.20 |
| EN4SD242010SSWH | 24.00 | 20.00 | 10.00 | EP2420 | 22.20 | 18.20 |
| EN4SD242412SSWH | 24.00 | 24.00 | 12.00 | EP2424 | 22.20 | 22.20 |
| EN4SD363012SSWH | 36.00 | 30.00 | 12.00 | EP3630 | 34.20 | 28.20 |
| EN4SD363612SSWH | 36.00 | 36.00 | 12.00 | EP3636 | 34.20 | 34.20 |
| EN4SD423612SSWH | 42.00 | 36.00 | 12.00 | EP4236 | 40.20 | 34.20 |
| EN4SD483612SSWH | 48.00 | 36.00 | 12.00 | EP4836 | 46.20 | 34.20 |
| EN4SD483616SSWH | 48.00 | 36.00 | 16.00 | EP4836 | 46.20 | 34.20 |
| EN4SD603612SSWH | 60.00 | 36.00 | 12.00 | EP6036 | 58.20 | 34.20 |
