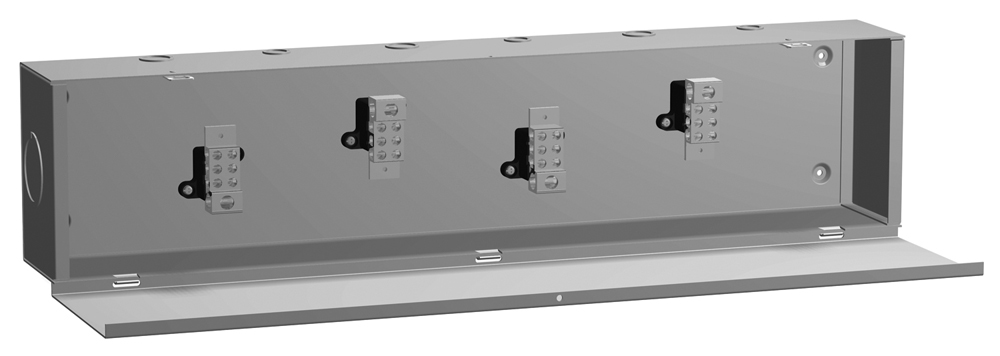

Type 1 Mild Steel Splitter Trough CST Series

Type 1 Mild Steel Splitter Trough · CST Series

Brand: Hammond Manufacturing · 52 part numbers

Hinged Door with Screw

  • ■The splitter troughs are designed for distribution of up to 600 A (max) service (600V max) using either 3 or 4 wires. 75° C conductor ampacity permitted.
  • ■CSA Certified
  • ■Complies with IEC 60529, IP20
  • ■IEC 60529, IP20
  • ■Formed and spot welded from 16 gauge steel. When width is 8" or more, 14 gauge.
  • ■Factory installed splitter blocks.

from $18.70

52 of 52 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocumentsAdditional information

Configure & price

Find your CST Series part number

Filter 48 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

48 of 48 part numbers · 48 priced online

CST2100

Splitter Trough 24X6X4, Empty

  • CU/AL Amps 125/120
$78.45In stock
Buy now
CST2103

Splitter Trough 24X6X4, 125A

  • CU/AL Amps 125/120
$106.63In stock
Buy now
CST2104

Splitter Trough 24X6X4, 125A

  • CU/AL Amps 125/120
$141.28In stock
Buy now
CST2200

Splitter Trough 24X8X5, Empty

  • CU/AL Amps 225/225
$104.16In stock
Buy now
CST2203

Splitter Trough 24X8X5, 225A

  • CU/AL Amps 225/225
$146.75In stock
Buy now
CST273

Splitter Trough 24X6X4, 70A

  • CU/AL Amps 70/70
$98.09In stock
Buy now
CST274

Splitter Trough 24X6X4, 70A

  • CU/AL Amps 70/70
$124.14In stock
Buy now
CST3100

Splitter Trough 36X6X4, Empty

  • CU/AL Amps 125/120
$97.01In stock
Buy now
CST3103

Splitter Trough 36X6X4, 125A

  • CU/AL Amps 125/120
$119.82In stock
Buy now
CST3104

Splitter Trough 36X6X4, 125A

  • CU/AL Amps 125/120
$157.31In stock
Buy now
CST3200

Splitter Trough 36X8X5, Empty

  • CU/AL Amps 225/225
$115.56In stock
Buy now
CST3203

Splitter Trough 36X8X5, 225A

  • CU/AL Amps 225/225
$148.09In stock
Buy now
CST3204

Splitter Trough 36X8X5, 225A

  • CU/AL Amps 225/225
$195.79Backorder
Buy now
CST3400

Splitter Trough 36X10X6, Empty

  • CU/AL Amps 400/400
$152.61In stock
Buy now
CST3403

Splitter Trough 36X10X6, 400A

  • CU/AL Amps 400/400
$245.16In stock
Buy now
CST373

Splitter Trough 36X6X4, 70A

  • CU/AL Amps 70/70
$111.54In stock
Buy now
CST374

Splitter Trough 36X6X4, 70A

  • CU/AL Amps 70/70
$140.86In stock
Buy now
CST4100

Splitter Trough 48X6X4, Empty

  • CU/AL Amps 125/120
$114.10Backorder
Buy now
CST4103

Splitter Trough 48X6X4, 125A

  • CU/AL Amps 125/120
$140.77In stock
Buy now
CST4104

Splitter Trough 48X6X4, 125A

  • CU/AL Amps 125/120
$171.35In stock
Buy now
CST4200

Splitter Trough 48X8X5, Empty

  • CU/AL Amps 225/225
$126.96In stock
Buy now
CST4203

Splitter Trough 48X8X5, 225A

  • CU/AL Amps 225/225
$155.74In stock
Buy now
CST4204

Splitter Trough 48X8X5, 225A

  • CU/AL Amps 225/225
$203.43In stock
Buy now
CST4400

Splitter Trough 48X10X6, Empty

  • CU/AL Amps 400/400
$179.72In stock
Buy now
CST4403

Splitter Trough 48X10X6, 400A

  • CU/AL Amps 400/400
$245.16In stock
Buy now
CST4603

Splitter Trough 48X10X6, 600A

  • CU/AL Amps 600/600
$398.73In stock
Buy now
CST4604

Splitter Trough 48X10X6, 600A

  • CU/AL Amps 600/600
$512.13Backorder
Buy now
CST473

Splitter Trough 48X6X4, 70A

  • CU/AL Amps 70/70
$124.14In stock
Buy now
CST474

Splitter Trough 48X6X4, 70A

  • CU/AL Amps 70/70
$153.87In stock
Buy now
CST5200

Splitter Trough 60X8X5, Empty

  • CU/AL Amps 225/225
$168.31Backorder
Buy now
CST5203

Splitter Trough 60X8X5, 225A

  • CU/AL Amps 225/225
$197.84In stock
Buy now
CST5204

Splitter Trough 60X8X5, 225A

  • CU/AL Amps 225/225
$238.61In stock
Buy now
CST5400

Splitter Trough 60X10X6, Empty

  • CU/AL Amps 400/400
$203.96In stock
Buy now
CST5403

Splitter Trough 60X10X6, 400A

  • CU/AL Amps 400/400
$270.07In stock
Buy now
CST5603

Splitter Trough 60X10X6, 600A

  • CU/AL Amps 600/600
$454.97In stock
Buy now
CST5604

Splitter Trough 60X10X6, 600A

  • CU/AL Amps 600/600
$568.90In stock
Buy now
CST6100

Splitter Trough 72X8X5, Empty

  • CU/AL Amps 125/120
$196.85In stock
Buy now
CST6103

Splitter Trough 72X8X5, 125A

  • CU/AL Amps 125/120
$203.72Backorder
Buy now
CST6104

Splitter Trough 72X8X5, 125A

  • CU/AL Amps 125/120
$242.85In stock
Buy now
CST6203

Splitter Trough 72X8X5, 225A

  • CU/AL Amps 225/225
$216.30Backorder
Buy now
CST6204

Splitter Trough 72X8X5, 225A

  • CU/AL Amps 225/225
$253.15In stock
Buy now
CST6400

Splitter Trough 72X10X6, Empty

  • CU/AL Amps 400/400
$241.10In stock
Buy now
CST6403

Splitter Trough 72X10X6, 400A

  • CU/AL Amps 400/400
$297.46In stock
Buy now
CST6603

Splitter Trough 72X10X6, 600A

  • CU/AL Amps 600/600
$532.49In stock
Buy now
CST6604

Splitter Trough 72X10X6, 600A

  • CU/AL Amps 600/600
$627.04Backorder
Buy now
Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

3 Wire · Part No.4 Wire · Part No.Less Blocks · Part No.CU/AL · AmpsDimensions · HDimensions · WDimensions · DSplitter · Block Reference (Part No.)PriceOrder
CST273CST274-70/7024.006.004.00CSBL125T$98.09In stockCST273Buy now
CST373CST374-70/7036.006.004.00CSBL125T$111.54In stockCST373Buy now
CST473CST474-70/7048.006.004.00CSBL125T$124.14In stockCST473Buy now
CST2103CST2104CST2100125/12024.006.004.00CSBL125T$106.63In stockCST2103Buy now
CST3103CST3104CST3100125/12036.006.004.00CSBL125T$119.82In stockCST3103Buy now
CST4103CST4104CST4100125/12048.006.004.00CSBL125T$140.77In stockCST4103Buy now
CST6103CST6104CST6100125/12072.008.005.00CSBL125T$203.72BackorderCST6103Buy now
CST2203-CST2200225/22524.008.005.00CSBL225$146.75In stockCST2203Buy now
CST3203CST3204CST3200225/22536.008.005.00CSBL225$148.09In stockCST3203Buy now
CST4203CST4204CST4200225/22548.008.005.00CSBL225$155.74In stockCST4203Buy now
CST5203CST5204CST5200225/22560.008.005.00CSBL225$197.84In stockCST5203Buy now
CST6203CST6204-225/22572.008.005.00CSBL225$216.30BackorderCST6203Buy now
CST3403-CST3400400/40036.0010.006.00CSBL400$245.16In stockCST3403Buy now
CST4403CST4404CST4400400/40048.0010.006.00CSBL400$245.16In stockCST4403Buy now
CST5403CST5404CST5400400/40060.0010.006.00CSBL400$270.07In stockCST5403Buy now
CST6403CST6404CST6400400/40072.0010.006.00CSBL400$297.46In stockCST6403Buy now
CST4603CST4604-600/60048.0010.006.00CSBL600$398.73In stockCST4603Buy now
CST5603CST5604-600/60060.0010.006.00CSBL600$454.97In stockCST5603Buy now
CST6603CST6604-600/60072.0010.006.00CSBL600$532.49In stockCST6603Buy now

Application

  • ■The splitter troughs are designed for distribution of up to 600 A (max) service (600V max) using either 3 or 4 wires. 75° C conductor ampacity permitted.

Standards

  • ■CSA Certified
  • ■Complies with IEC 60529, IP20
  • ■IEC 60529, IP20

Construction

  • ■Formed and spot welded from 16 gauge steel. When width is 8" or more, 14 gauge.
  • ■Factory installed splitter blocks.
  • ■Series of knockouts on each side.
  • ■Padlocking hasp.

Finish

  • ■Cover and enclosure are finished in recoatable smooth ANSI 61 gray powder coating.

Documents

Specification Sheet

Additional information

Part Details

3 Wire · Part No.4 Wire · Part No.Less Blocks · Part No.CU/AL · AmpsDimensions · HDimensions · WDimensions · DSplitter · Block Reference
CST273CST274-70/7024.006.004.00CSBL125T
CST373CST374-70/7036.006.004.00CSBL125T
CST473CST474-70/7048.006.004.00CSBL125T
CST2103CST2104CST2100125/12024.006.004.00CSBL125T
CST3103CST3104CST3100125/12036.006.004.00CSBL125T
CST4103CST4104CST4100125/12048.006.004.00CSBL125T
CST6103 *CST6104 *CST6100 *125/12072.008.005.00CSBL125T
CST2203 *-CST2200 *225/22524.008.005.00CSBL225
CST3203 *CST3204 *CST3200 *225/22536.008.005.00CSBL225
CST4203 *CST4204 *CST4200 *225/22548.008.005.00CSBL225
CST5203 *CST5204 *CST5200 *225/22560.008.005.00CSBL225
CST6203 *CST6204 *-225/22572.008.005.00CSBL225
CST3403 *-CST3400 *400/40036.0010.006.00CSBL400
CST4403 *CST4404 *CST4400 *400/40048.0010.006.00CSBL400
CST5403 *CST5404 *CST5400 *400/40060.0010.006.00CSBL400
CST6403 *CST6404 *CST6400 *400/40072.0010.006.00CSBL400
CST4603 *CST4604 *-600/60048.0010.006.00CSBL600
CST5603 *CST5604 *-600/60060.0010.006.00CSBL600
CST6603 *CST6604 *-600/60072.0010.006.00CSBL600
