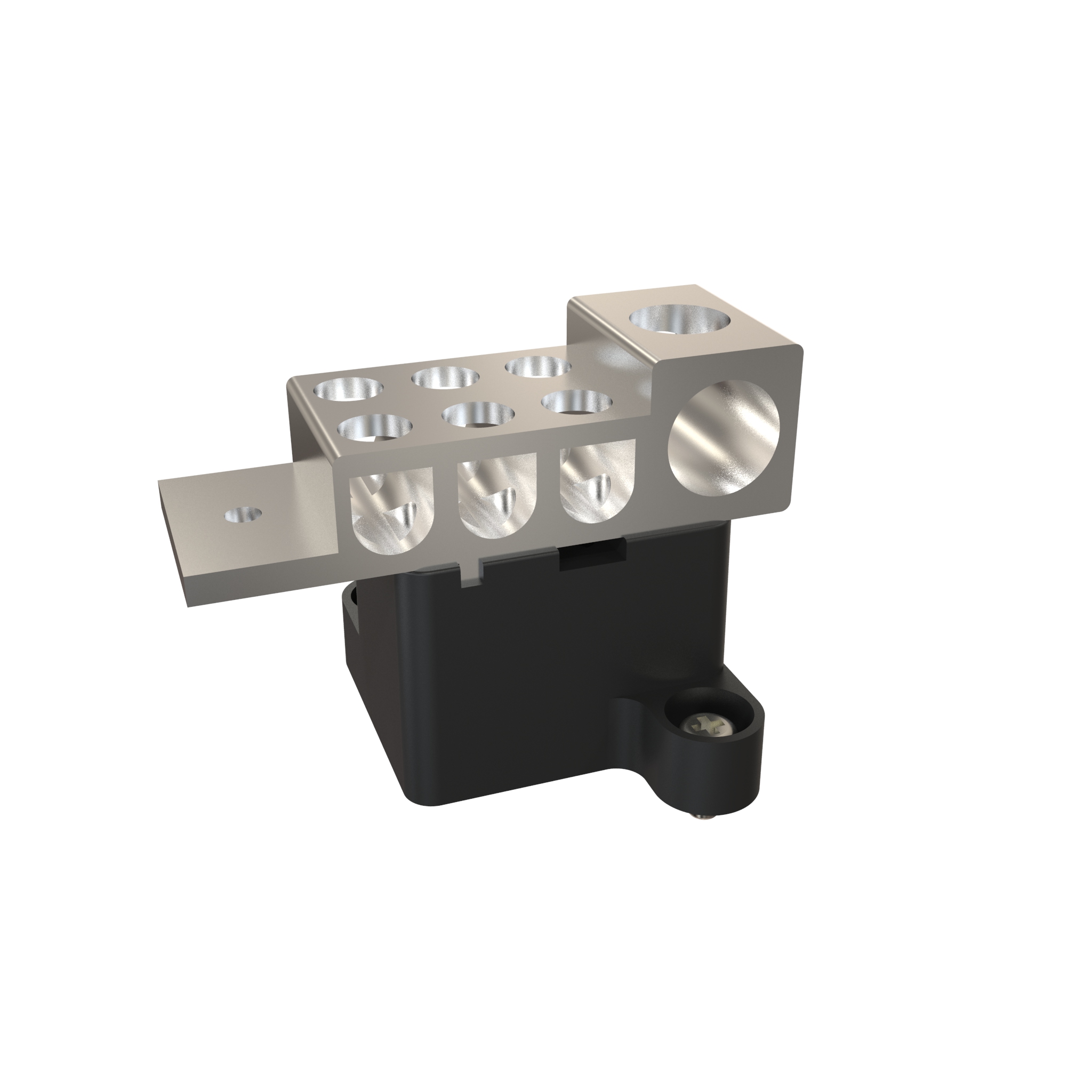

Hammond CSBL225 225A Splitter Block, 600V Cu-Al Main and Branch Lugs
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 225 A main lug, 300MCM to 6 wire capacity
- Six branch lugs: 6/125 ampacity, 6 x (2/0-14) wire capacity
- Copper or aluminum conductors on main and branch lugs
- Cu-Al monopiece connectors secured to insulators
- Rated 600 V; 75 °C conductor ampacity permitted
- For Hammond standard splitter troughs and boxes
- REACH and RoHS compliant; 0.38 lb shipping weight
The CSBL225 is a 225 A splitter block in the CSBL Series. These blocks are used in Hammond standard splitter troughs and boxes, and this part is aimed at electricians who need a 225 A block for new work, a replacement or a field-fitted splitter enclosure.
The main lug is rated 225 A and accepts conductors from 300MCM down to 6. Branch lug ampacity is listed as 6/125, and branch wire capacity is 6 x (2/0-14), so six branch conductors between 2/0 and 14 can be landed.
Construction consists of Cu-Al monopiece connectors secured to insulators, with a main lug and branch lugs on each block. Both main and branch lugs can use copper or aluminum conductors. All CSBL blocks are rated 600 V, and 75 °C conductor ampacity is permitted.
- Main lug: 225 A, 300MCM - 6 wire (max./min.)
- Branch lugs: 6/125 ampacity, 6 x (2/0-14) wire capacity
- Voltage: 600 V, copper or aluminum conductors
- Connectors: Cu-Al monopiece, secured to insulators
- Packaging: bag, 0.38 lbs (0.17 kg)
The CSBL225 is REACH and RoHS compliant, ships in a bag, and has a shipping weight of 0.38 lbs (0.17 kg). UPC 623980263830.
Ideal For
- 225 A splitter block for Hammond standard splitter boxes and troughs
- Distributing a feeder to six branch conductors
- Fitting blocks into an empty splitter box
Overview
| Series | CSBL Series – Splitter Blocks |
| Description | Splitter Blocks 225 A |
| Part Number | CSBL225 |
Electrical
| Voltage Rating | 600 V |
| Main Lug Ampacity | 225 A |
| Conductor Material | Main and branch lugs accept copper or aluminum conductors |
| Branch Lugs Ampacity | 6/125 |
| Conductor Temperature | 75 °C conductor ampacity permitted |
| Main Lug Max./Min. Wire Capacity | 300MCM - 6 |
| Branch Lugs Max./Min. Wire Capacity | 6 x (2/0-14) |
Identifiers
| UPC | 623980263830 |
| UNSPSC | 39121410 |
Packaging & Shipping
| Packaging Type | Bag |
| Shipping Weight | 0.38 lbs (0.17 kg) |
Construction & Finish
| Connectors | Cu-Al monopiece connectors secured to insulators |
| Included Lugs | One main lug and branch lugs per block |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What wire size does the CSBL225 main lug accept?▾
The main lug accepts 300MCM (max.) to 6 (min.) and is rated 225 A.
How many branch lugs does it have?▾
The branch wire capacity is 6 x (2/0-14), meaning six branch lugs taking 2/0 to 14 wire, with branch ampacity listed as 6/125.
Does it work with aluminum conductors?▾
Yes. Both main and branch lugs can use either copper or aluminum conductors.
What voltage rating does it carry?▾
All CSBL Series blocks are rated 600 V.
