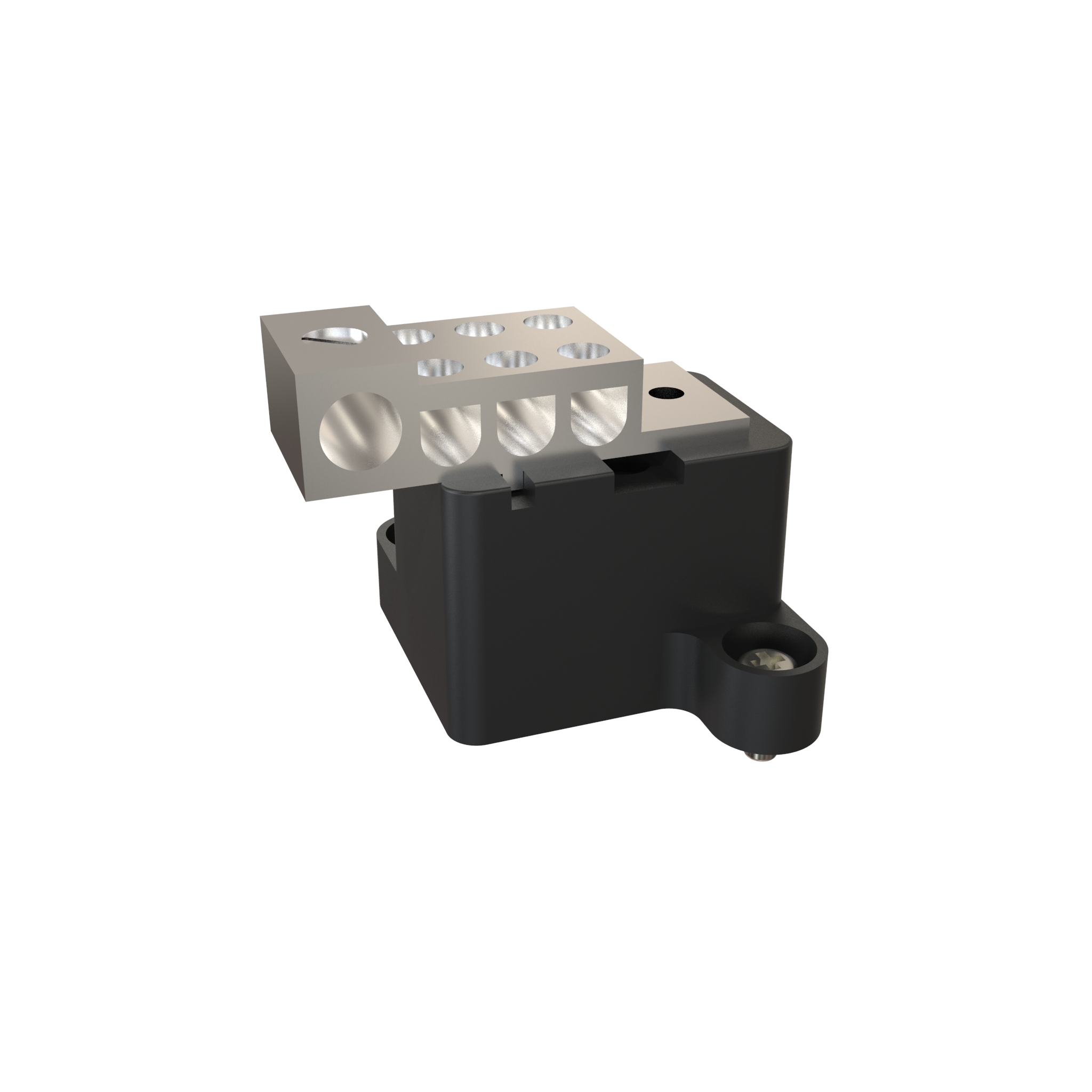

Hammond CSBL125T 125A Trough Splitter Block, 600V Cu-Al Lugs
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 125 A main lug, 1/0 to 14 wire capacity
- Six branch lugs: 6/70 ampacity, 6 x (2-14) wire capacity
- Trough version of the 125 A block
- Copper or aluminum conductors on main and branch lugs
- Cu-Al monopiece connectors secured to insulators
- Rated 600 V; 75 °C conductor ampacity permitted
- REACH and RoHS compliant
The CSBL125T is the 125 A trough version of the CSBL Series splitter blocks. These blocks are used in Hammond standard splitter troughs and boxes, and the CSBL125T is described as the 125 A trough block, making it relevant to contractors wiring or servicing splitter trough installations.
Its main lug is rated 125 A with a max./min. wire capacity of 1/0 - 14. On the branch side, ampacity is listed as 6/70 and wire capacity as 6 x (2-14), giving six branch terminations for conductors from 2 to 14. That is double the branch count of the box version, the CSBL125B, which has three.
The block uses Cu-Al monopiece connectors secured to insulators and includes a main lug and branch lugs. Both main and branch lugs can use copper or aluminum conductors. Like all CSBL blocks it is rated 600 V, with 75 °C conductor ampacity permitted.
- Main lug: 125 A, 1/0 - 14 wire (max./min.)
- Branch lugs: 6/70 ampacity, 6 x (2-14) wire capacity
- Voltage: 600 V, copper or aluminum conductors
- Packaging: bag, 1 lbs (0.45 kg)
The CSBL125T is REACH and RoHS compliant, ships in a bag, and has a shipping weight of 1 lbs (0.45 kg). UPC 623980263878.
Ideal For
- Splitter block for Hammond standard splitter troughs
- Distributing a 125 A feeder to six branch conductors
- Replacement or retrofit block in splitter trough runs
Overview
| Series | CSBL Series – Splitter Blocks |
| Description | Splitter Blocks 125 A Trough |
| Part Number | CSBL125T |
Electrical
| Voltage Rating | 600 V |
| Main Lug Ampacity | 125 A |
| Conductor Material | Main and branch lugs accept copper or aluminum conductors |
| Branch Lugs Ampacity | 6/70 |
| Conductor Temperature | 75 °C conductor ampacity permitted |
| Main Lug Max./Min. Wire Capacity | 1/0 - 14 |
| Branch Lugs Max./Min. Wire Capacity | 6 x (2-14) |
Identifiers
| UPC | 623980263878 |
| UNSPSC | 39121410 |
Packaging & Shipping
| Packaging Type | Bag |
| Shipping Weight | 1 lbs (0.45 kg) |
Construction & Finish
| Connectors | Cu-Al monopiece connectors secured to insulators |
| Included Lugs | One main lug and branch lugs per block |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the CSBL125T for a trough or a box?▾
The manufacturer describes it as Splitter Blocks 125 A Trough. The box version is the CSBL125B.
How many branch circuits can it feed?▾
The branch wire capacity is 6 x (2-14), so six branch conductors from 2 to 14 can be connected.
What size wire does the main lug take?▾
The main lug is rated 125 A and accepts 1/0 to 14 wire.
Is it rated for 600 V?▾
Yes, all CSBL Series blocks are rated 600 V.
