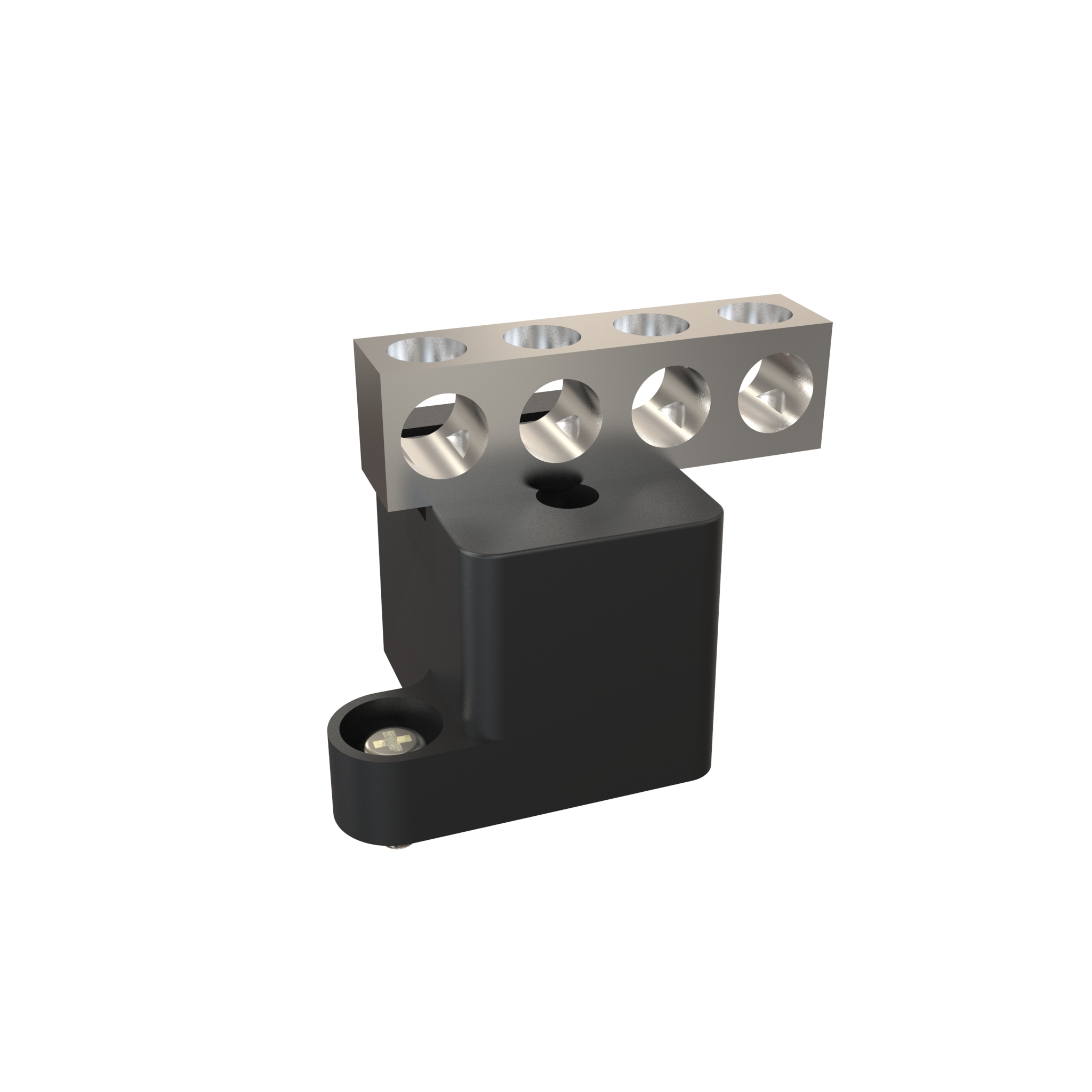

Splitter Blocks 125 A Box
- Max./Min. Wire Cap 2/0 - 14
- Branch Lugs Ampaci 3/70
- Max./Min. Wire Cap 3 x (2/0-14)
$21.85In stock
Buy now

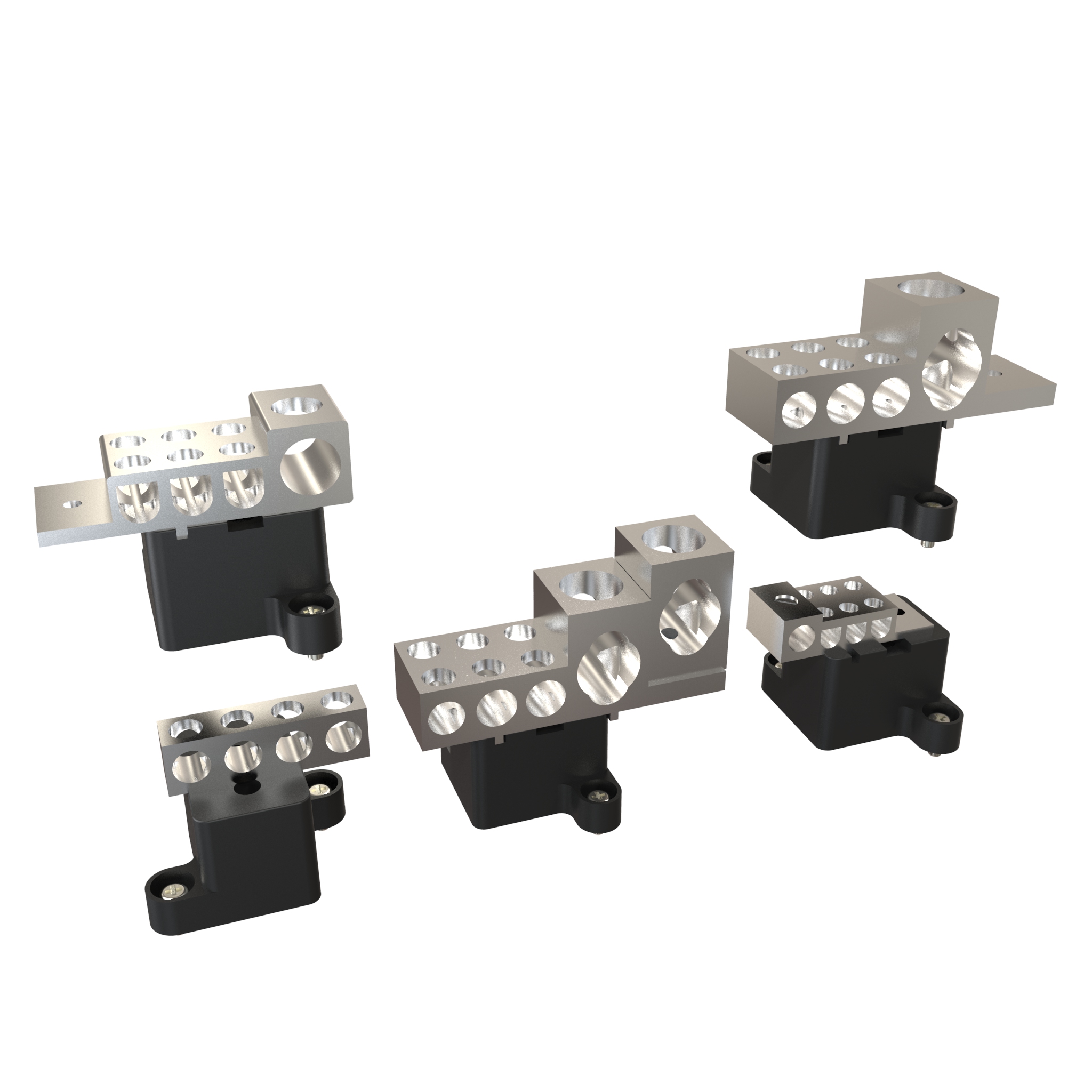

Splitter Blocks · CSBL Series
Brand: Hammond Manufacturing · 5 part numbers
- ■These blocks are used in Hammond standard splitter troughs and boxes.
- ■The design includes the main and branch lugs which can use either copper or aluminum conductors.
- ■All blocks are rated 600 V.
- ■75° C conductor ampacity permitted.
- ■Cu-Al monopiece connectors are secured to insulators.
- ■Each block includes a main lug and branch lugs.
from $18.70
5 of 5 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your CSBL Series part number
Filter 5 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
5 of 5 part numbers · 5 priced online

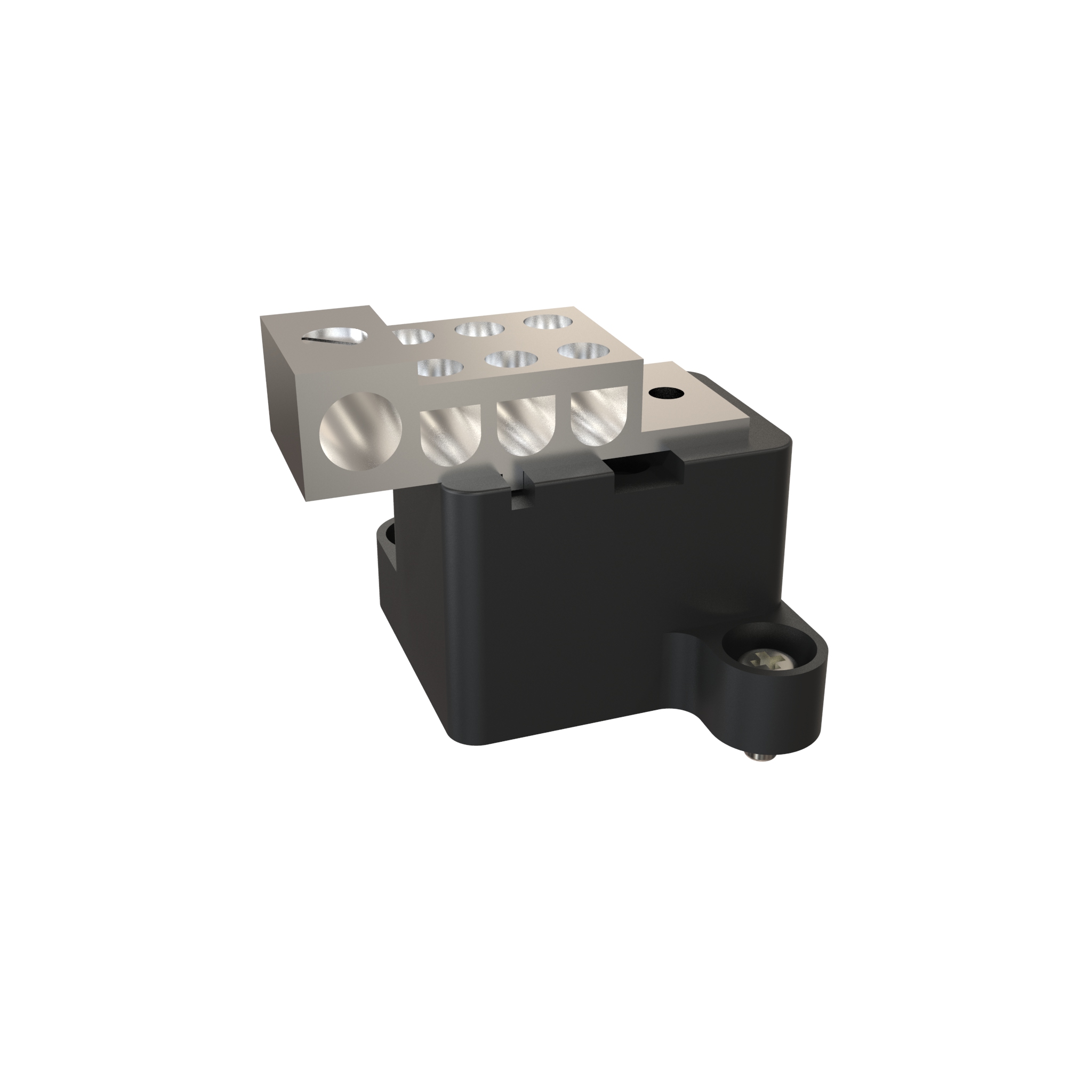

Splitter Blocks 125 A Trough
- Max./Min. Wire Cap 1/0 - 14
- Branch Lugs Ampaci 6/70
- Max./Min. Wire Cap 6 x (2-14)
$18.70In stock
Buy now

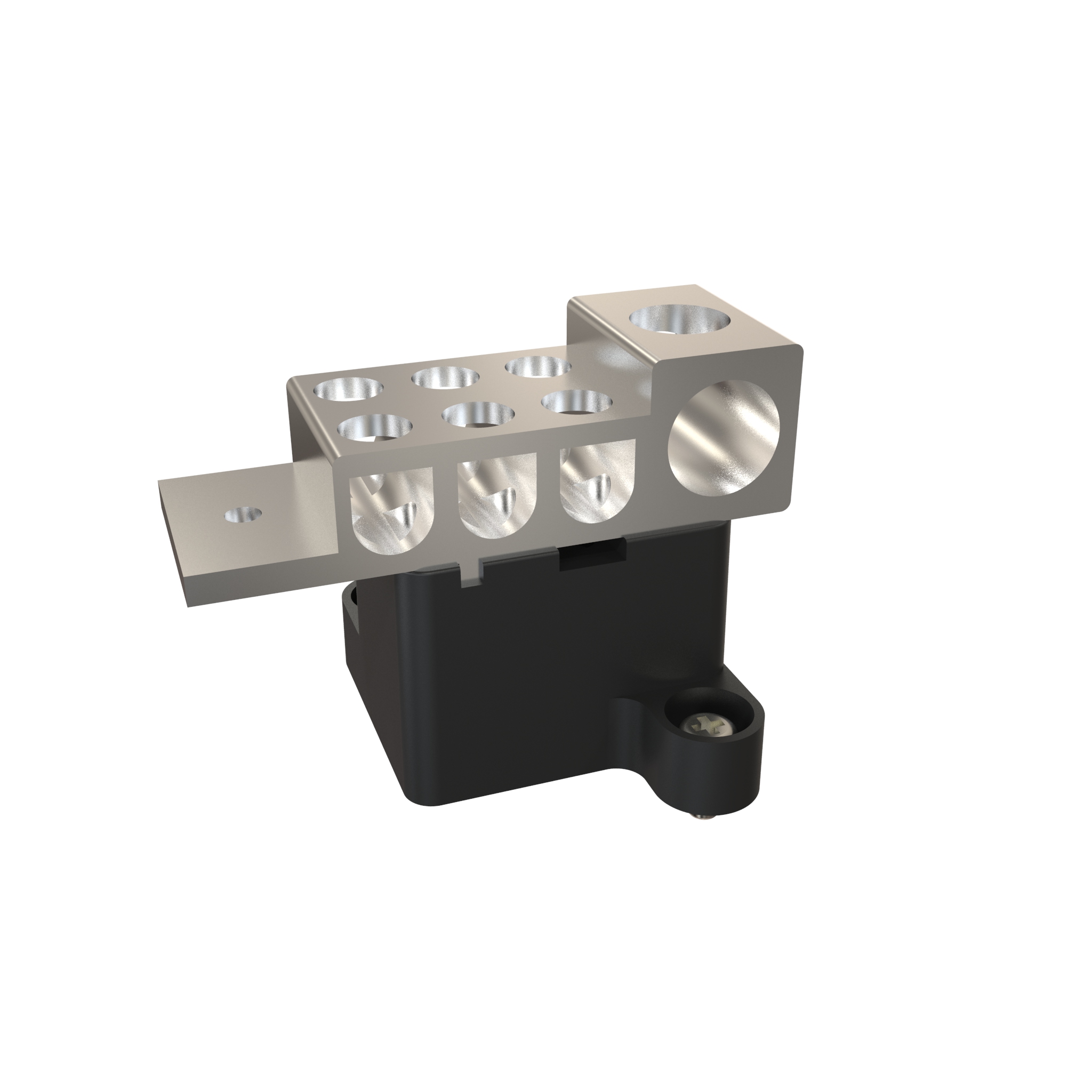

Splitter Blocks 225 A
- Max./Min. Wire Cap 300MCM - 6
- Branch Lugs Ampaci 6/125
- Max./Min. Wire Cap 6 x (2/0-14)
$25.38In stock
Buy now

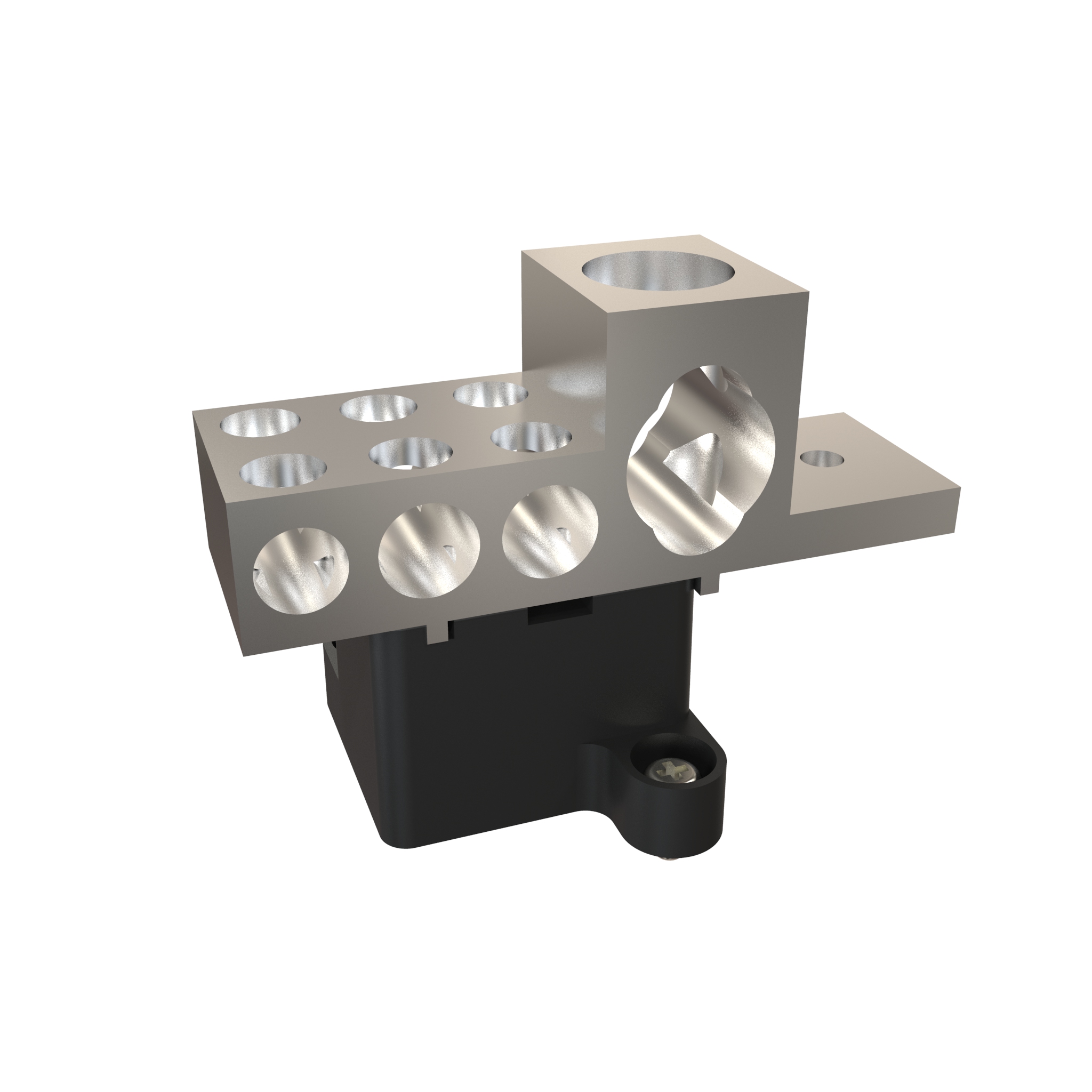

Splitter Blocks 400 A
- Max./Min. Wire Cap 600MCM - 4 or (2x) 250 MCM - 1/0
- Branch Lugs Ampaci 6/200
- Max./Min. Wire Cap 6 x (3/0-14)
$42.39In stock
Buy now

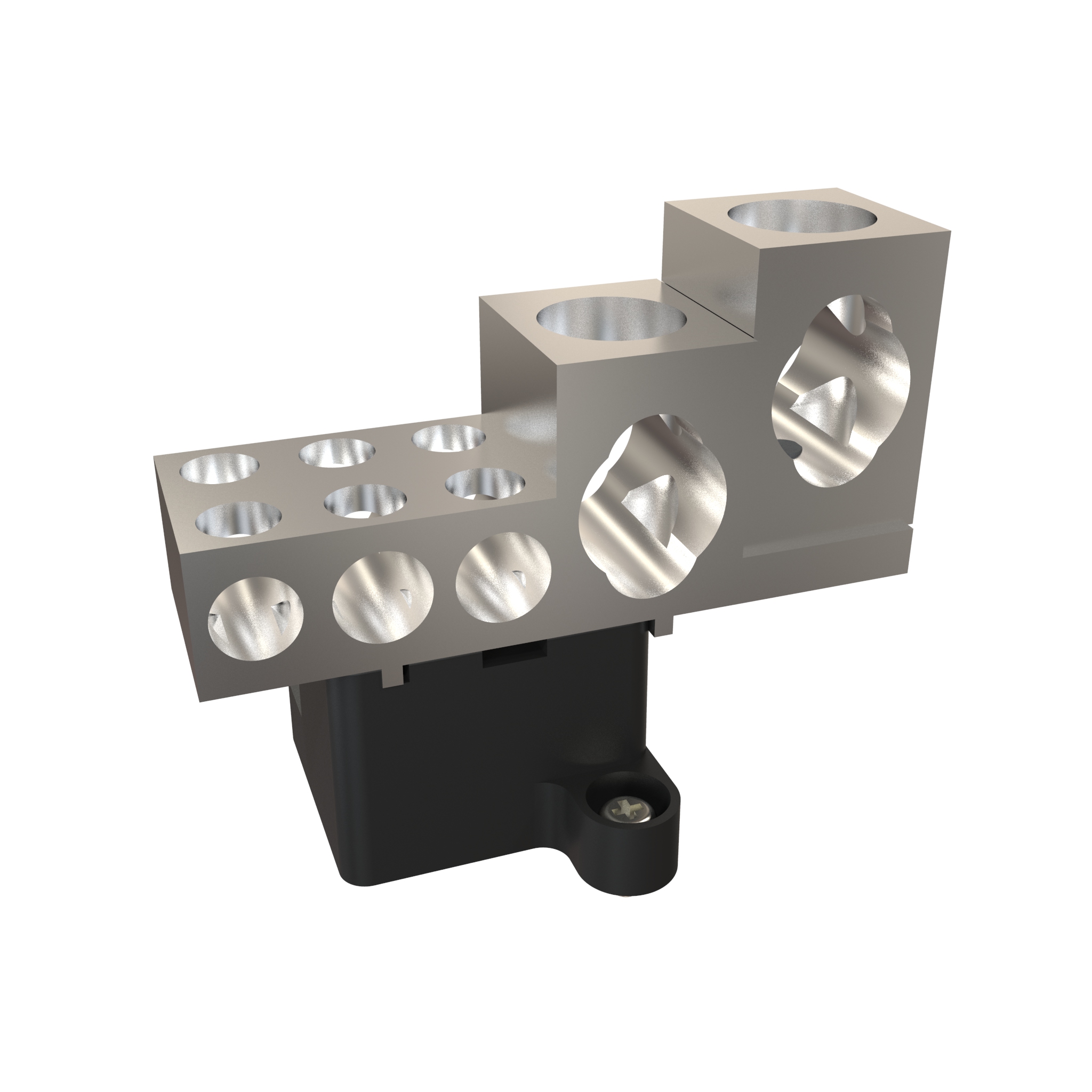

Splitter Blocks 600 A
- Max./Min. Wire Cap (2x) 600MCM - 4 or (4x) 250MCM - 1/0
- Branch Lugs Ampaci 6/200
- Max./Min. Wire Cap 6 x (3/0-14)
$62.14In stock
Buy nowDimension tables (inches / mm)
| Part No. | Main Lug Ampacity | Max./Min. Wire Capacity | Branch Lugs Ampacity | Max./Min. Wire Capacity (2) | Price | Order |
|---|---|---|---|---|---|---|
| CSBL125B | 125 | 2/0 - 14 | 3/70 | 3 x (2/0-14) | $21.85In stock | Buy now |
| CSBL125T | 125 | 1/0 - 14 | 6/70 | 6 x (2-14) | $18.70In stock | Buy now |
| CSBL225 | 225 | 300MCM - 6 | 6/125 | 6 x (2/0-14) | $25.38In stock | Buy now |
| CSBL400 | 400 | 600MCM - 4 or (2x) 250 MCM - 1/0 | 6/200 | 6 x (3/0-14) | $42.39In stock | Buy now |
| CSBL600 | 600 | (2x) 600MCM - 4 or (4x) 250MCM - 1/0 | 6/200 | 6 x (3/0-14) | $62.14In stock | Buy now |
Application
- ■These blocks are used in Hammond standard splitter troughs and boxes.
- ■The design includes the main and branch lugs which can use either copper or aluminum conductors.
- ■All blocks are rated 600 V.
- ■75° C conductor ampacity permitted.
Construction
- ■Cu-Al monopiece connectors are secured to insulators.
- ■Each block includes a main lug and branch lugs.
Documents
Additional information
Part Details
| Part No. | Main Lug Ampacity | Max./Min. Wire Capacity | Branch Lugs Ampacity | Max./Min. Wire Capacity (2) |
|---|---|---|---|---|
| CSBL125B | 125 | 2/0 - 14 | 3/70 | 3 x (2/0-14) |
| CSBL125T | 125 | 1/0 - 14 | 6/70 | 6 x (2-14) |
| CSBL225 | 225 | 300MCM - 6 | 6/125 | 6 x (2/0-14) |
| CSBL400 | 400 | 600MCM - 4 or (2x) 250 MCM - 1/0 | 6/200 | 6 x (3/0-14) |
| CSBL600 | 600 | (2x) 600MCM - 4 or (4x) 250MCM - 1/0 | 6/200 | 6 x (3/0-14) |
