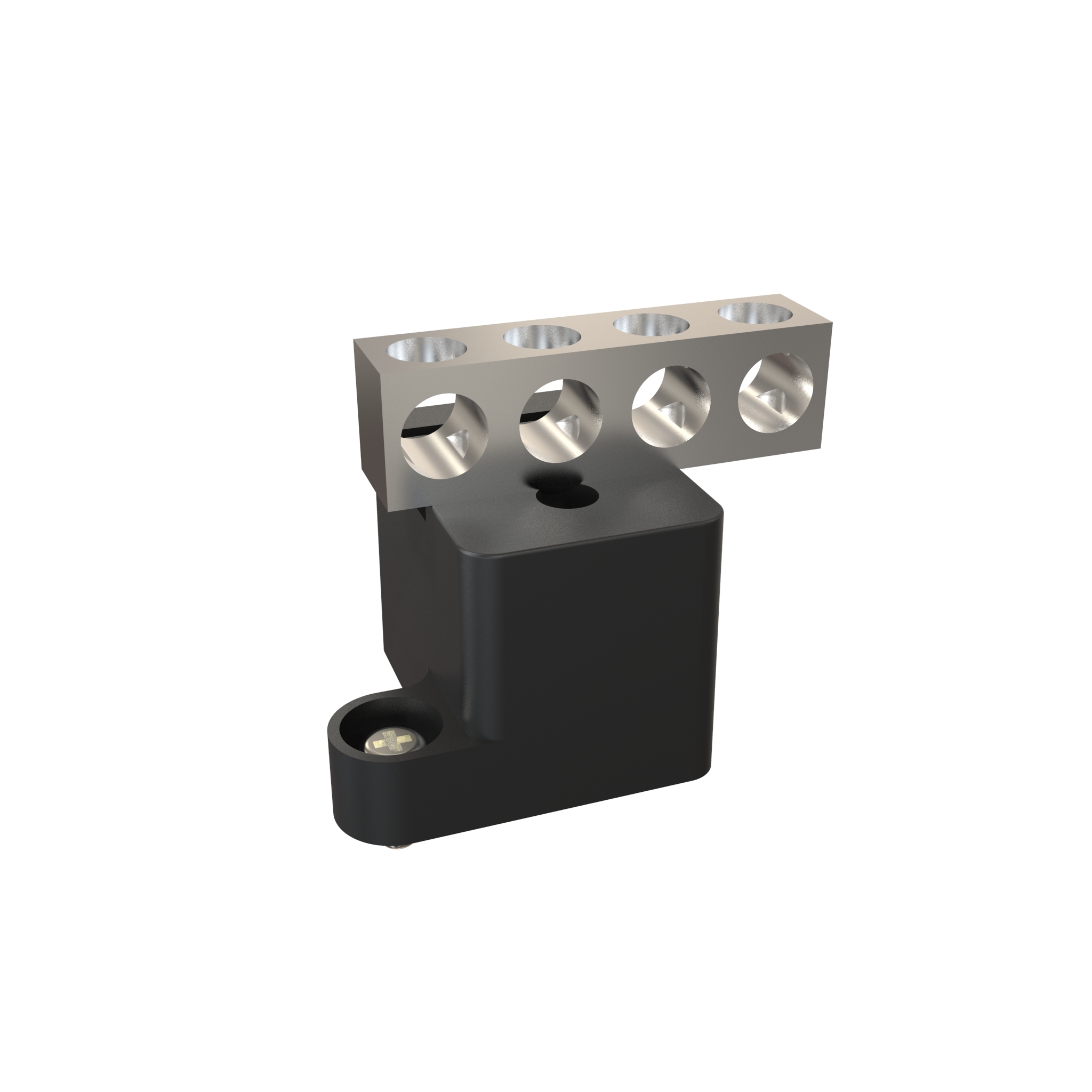

Hammond CSBL125B 125A Box Splitter Block, 600V Cu-Al Lugs
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 125 A main lug, 2/0 to 14 wire capacity
- Branch lugs listed at 3/70 ampacity, 3 x (2/0-14) wire capacity
- Box version of the 125 A block (trough version is CSBL125T)
- Main and branch lugs accept copper or aluminum conductors
- Cu-Al monopiece connectors secured to insulators
- Rated 600 V; 75 °C conductor ampacity permitted
- REACH and RoHS compliant; ships in a bag
The CSBL125B is a 125 A splitter block from the CSBL Series, described by the manufacturer as the 125 A box version. CSBL blocks are used in Hammond standard splitter troughs and boxes, so this part suits electricians replacing, adding or fitting blocks in a splitter box installation.
Each CSBL block includes a main lug and branch lugs. On the CSBL125B the main lug is rated 125 A and accepts wire from 2/0 down to 14 (max./min.). The branch lug ampacity is listed as 3/70, with a wire capacity of 3 x (2/0-14), so three branch conductors in the 2/0 to 14 range can be terminated.
The block is built from Cu-Al monopiece connectors secured to insulators, and both main and branch lugs can use either copper or aluminum conductors. All CSBL blocks are rated 600 V, and 75 °C conductor ampacity is permitted.
- Main lug: 125 A, 2/0 - 14 wire (max./min.)
- Branch lugs: 3/70 ampacity, 3 x (2/0-14) wire capacity
- Voltage: 600 V, copper or aluminum conductors
- Packaging: bag, 1 lbs (0.45 kg)
The CSBL125B is REACH and RoHS compliant. It ships in a bag with a shipping weight of 1 lbs (0.45 kg), UPC 623980263823.
Ideal For
- Splitter block for Hammond standard splitter boxes
- Tapping a 125 A feeder into three branch conductors
- Replacement block for splitter box installations
Overview
| Series | CSBL Series – Splitter Blocks |
| Description | Splitter Blocks 125 A Box |
| Part Number | CSBL125B |
Electrical
| Voltage Rating | 600 V |
| Main Lug Ampacity | 125 A |
| Conductor Material | Main and branch lugs accept copper or aluminum conductors |
| Branch Lugs Ampacity | 3/70 |
| Conductor Temperature | 75 °C conductor ampacity permitted |
| Main Lug Max./Min. Wire Capacity | 2/0 - 14 |
| Branch Lugs Max./Min. Wire Capacity | 3 x (2/0-14) |
Identifiers
| UPC | 623980263823 |
| UNSPSC | 39121410 |
Packaging & Shipping
| Packaging Type | Bag |
| Shipping Weight | 1 lbs (0.45 kg) |
Construction & Finish
| Connectors | Cu-Al monopiece connectors secured to insulators |
| Included Lugs | One main lug and branch lugs per block |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the difference between the CSBL125B and CSBL125T?▾
Both have a 125 A main lug. The CSBL125B is the box version, with a 2/0-14 main lug and 3 x (2/0-14) branch lugs; the CSBL125T is the trough version, with a 1/0-14 main lug and 6 x (2-14) branch lugs.
Can I use aluminum wire?▾
Yes. The main and branch lugs can use either copper or aluminum conductors.
What voltage is it rated for?▾
All CSBL Series blocks are rated 600 V.
How many branch conductors does it accept?▾
The branch wire capacity is 3 x (2/0-14), i.e. three branch lugs each taking 2/0 to 14 wire.
