Splitter Box 15X10X4, Empty
- CU/AL Amps 125/120
$56.63In stock
Buy now

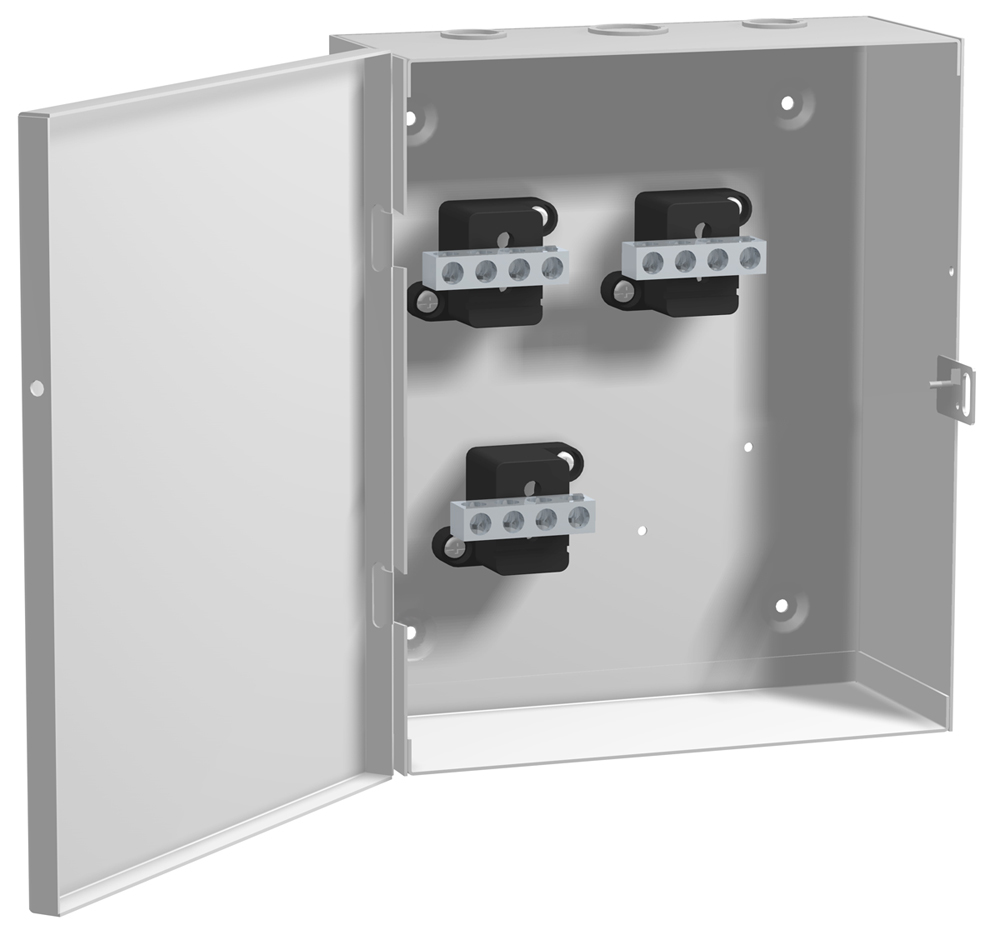

Type 1 Mild Steel Splitter Box · CSB Series
Brand: Hammond Manufacturing · 19 part numbers
Hinged Door with Screw
- ■The splitter boxes are designed for indoor distribution of up to 600 A (max) service (600V max) using either 3 or 4 wires. 75° C conductor ampacity permitted.
- ■CSA Type 1
- ■Complies with IEC 60529, IP20
- ■IEC 60529, IP20
- ■Formed and spot welded from 14 or 16 gauge steel.
- ■Factory installed splitter blocks - 3 or 4 wire option. Empty box without splitter blocks also offered.
from $21.85
19 of 19 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your CSB Series part number
Filter 15 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
15 of 15 part numbers · 15 priced online
Splitter Box 15X10X4, 125A
- CU/AL Amps 125/120
$66.61Backorder
Buy nowSplitter Box 15X10X4, 125A
- CU/AL Amps 125/120
$97.47In stock
Buy nowSplitter Box 18X12X5, Empty
- CU/AL Amps 225/180
$90.65In stock
Buy nowSplitter Box 18X12X5, 225A
- CU/AL Amps 225/180
$106.81In stock
Buy nowSplitter Box 18X12X5, 225A
- CU/AL Amps 225/180
$135.49Backorder
Buy nowSplitter Box 24X17X6, Empty
- CU/AL Amps 400/400
$212.77In stock
Buy nowSplitter Box 24X17X6, 400A
- CU/AL Amps 400/400
$250.81In stock
Buy now- CU/AL Amps 400/400
$309.57In stock
Buy nowSplitter Box 30X24X7, Empty
- CU/AL Amps 600/600
$434.72In stock
Buy nowSplitter Box 30X24X7, 600A
- CU/AL Amps 600/600
$508.60In stock
Buy nowSplitter Box 30X24X7, 600A
- CU/AL Amps 600/600
$615.90Backorder
Buy nowSplitter Box 12X10X4, Empty
- CU/AL Amps 70/70
$55.96In stock
Buy nowSplitter Box 12X10X4, 70A
- CU/AL Amps 70/70
$65.78In stock
Buy nowSplitter Box 12X10X4, 70A
- CU/AL Amps 70/70
$65.78In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| 3 Wire · Part No. | 4 Wire · Part No. | Less Blocks · Part No. | CU/AL · Amps | Enclosure · H | Enclosure · W | Enclosure · D | Splitter · Block Reference (Part No.) | Price | Order |
|---|---|---|---|---|---|---|---|---|---|
| CSB73 | CSB74 | CSB70 | 70/70 | 12.00 | 10.00 | 4.00 | CSBL125B | $65.78In stockCSB73 | Buy now |
| CSB103 | CSB104 | CSB100 | 125/120 | 15.00 | 10.00 | 4.00 | CSBL125B | $66.61BackorderCSB103 | Buy now |
| CSB203 | CSB204 | CSB200 | 225/180 | 18.00 | 12.00 | 5.00 | CSBL225 | $106.81In stockCSB203 | Buy now |
| CSB403 | CSB404 | CSB400 | 400/400 | 24.00 | 17.00 | 6.00 | CSBL400 | $250.81In stockCSB403 | Buy now |
| CSB603 | CSB604 | CSB600 | 600/600 | 30.00 | 24.00 | 7.00 | CSBL600 | $508.60In stockCSB603 | Buy now |
Application
- ■The splitter boxes are designed for indoor distribution of up to 600 A (max) service (600V max) using either 3 or 4 wires. 75° C conductor ampacity permitted.
Standards
- ■CSA Type 1
- ■Complies with IEC 60529, IP20
- ■IEC 60529, IP20
Construction
- ■Formed and spot welded from 14 or 16 gauge steel.
- ■Factory installed splitter blocks - 3 or 4 wire option. Empty box without splitter blocks also offered.
- ■Series of knockouts on each side.
- ■Padlocking hasp.
Finish
- ■Enclosure and cover are finished in ANSI 61 gray powder coating.
Documents
Additional information
Part Details
| 3 Wire · Part No. | 4 Wire · Part No. | Less Blocks · Part No. | CU/AL · Amps | Enclosure · H | Enclosure · W | Enclosure · D | Splitter · Block Reference |
|---|---|---|---|---|---|---|---|
| CSB73 | CSB74 | CSB70 | 70/70 | 12.00 | 10.00 | 4.00 | CSBL125B |
| CSB103 | CSB104 | CSB100 | 125/120 | 15.00 | 10.00 | 4.00 | CSBL125B |
| CSB203 | CSB204 | CSB200 | 225/180 | 18.00 | 12.00 | 5.00 | CSBL225 |
| CSB403 | CSB404 | CSB400 | 400/400 | 24.00 | 17.00 | 6.00 | CSBL400 |
| CSB603 * | CSB604 * | CSB600 * | 600/600 | 30.00 | 24.00 | 7.00 | CSBL600 |
