Audio TX 8K Ohm 10 Watt
- Audio Watts 10
- Ohms 8,000 ct
- Maximum D.C. Per S 100 ma.
- Ohms 4-8-16
$108.32In stock
Buy now

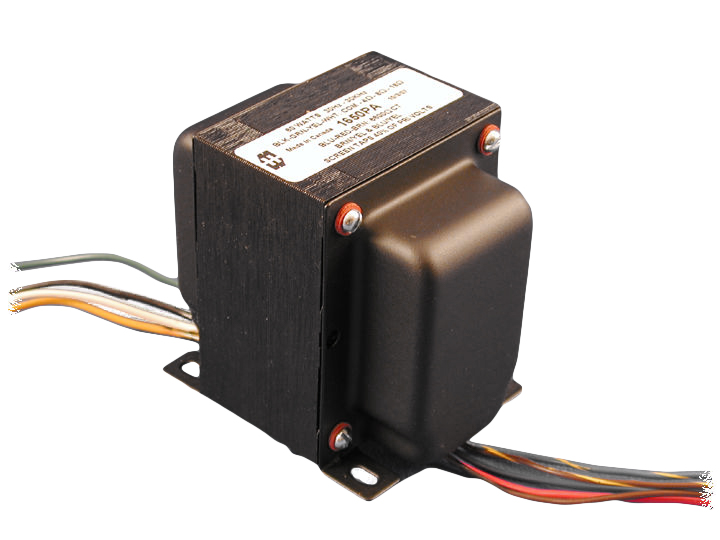

Tube Output (10 - 280 Watts) Easy Wire Secondary · 1608A-1650A Series
Brand: Hammond Manufacturing · 17 part numbers
Push-Pull - HI-FI
- ■NEW & improved version of our 1608-1650 Series multiple secondary output transformers (re-designed secondaries for easy hook-up of secondary loads).
- ■Designed for push-pull tube output circuits.
- ■Units are designed to provide ample "headroom" at bass frequencies (note the weight of each transformer).
- ■All models have a secondary tapped for 4, 8 or 16 ohm outputs.
- ■Enclosed (shielded), 4 slot, above chassis Type "X" mounting.
- ■Manufactured with plastic coil forms for coil support and insulation.
from $108.32
17 of 17 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 1608A-1650A Series part number
Filter 17 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
17 of 17 part numbers · 17 priced online
Audio TX 10K Ohm 10 Watt
- Audio Watts 10
- Ohms 10,000 ct
- Maximum D.C. Per S 100 ma.
- Ohms 4-8-16
$108.32In stock
Buy nowAudio TX 5K Ohm 15 Watt
- Audio Watts 15
- Ohms 5,000 ct
- Maximum D.C. Per S 100 ma.
- Ohms 4-8-16
$117.34In stock
Buy nowHifi Audio Output
- Audio Watts 15
- Ohms 7,600 ct
- Maximum D.C. Per S 100 ma.
- Ohms 16
$117.34In stock
Buy nowAudio TX 6.6K Ohm 20 Watt
- Audio Watts 20
- Ohms 6,600 ct
- Maximum D.C. Per S 158 ma.
- Ohms 4-8-16
$126.36In stock
Buy nowAudio TX 5K Ohm 30 Watt
- Audio Watts 30
- Ohms 5,000 ct
- Maximum D.C. Per S 128 ma.
- Ohms 4-8-16
$153.55In stock
Buy nowHI-FI,8000CT, 15WATTS, 4/8/16
- Audio Watts 15
- Ohms 8,000 ct
- Maximum D.C. Per S 100 ma.
- Ohms 4-8-16
$126.36In stock
Buy nowAudio TX 7.6K Ohm 25 Watt
- Audio Watts 25
- Ohms 7,600 ct
- Maximum D.C. Per S 128 ma.
- Ohms 4-8-16-70V
$131.77In stock
Buy nowAudio TX 6K Ohm 35 Watt
- Audio Watts 35
- Ohms 6,600 ct
- Maximum D.C. Per S 200 ma.
- Ohms 3.5/8/16/250/500
$137.20In stock
Buy nowAudio TX 6.6K Ohm 40 Watt
- Audio Watts 40
- Ohms 6,600 ct
- Maximum D.C. Per S 200 ma.
- Ohms 4-8-16
$151.61In stock
Buy nowAudio TX 3.4K Ohm 50 Watt
- Audio Watts 50
- Ohms 3,400 ct
- Maximum D.C. Per S 318 ma.
- Ohms 4-8-16
$162.47In stock
Buy nowAudio TX 5.0K Ohm 50 Watt
- Ohms 4-8-16
$145.84In stock
Buy nowAudio TX 4.3K Ohm 60 Watt
- Audio Watts 60
- Ohms 4,300 ct
- Maximum D.C. Per S 318 ma.
- Ohms 4-8-16
$167.88In stock
Buy now
Audio TX 6.6K Ohm 60 Watt
- Audio Watts 60
- Ohms 6,600 ct
- Maximum D.C. Per S 200 ma.
- Ohms 4-8-16
$167.88In stock
Buy nowAudio TX 5K Ohm 100 Watt
- Audio Watts 100
- Ohms 5,000 ct
- Maximum D.C. Per S 318 ma.
- Ohms 4-8-16
$189.55In stock
Buy nowAudio TX 1.9K Ohm 120 Watt
- Audio Watts 120
- Ohms 1,900 ct
- Maximum D.C. Per S 403 ma.
- Ohms 4-8-16
$198.56In stock
Buy nowAudio TX 1.9K Ohm 280 Watt
- Audio Watts 280
- Ohms 1,900 ct
- Maximum D.C. Per S 806 ma.
- Ohms 4-8-16
$433.22In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Audio · Watts · (RMS) | Primary · Impedance · (Ohms) | Maximum · DC · Per Side | Secondary · Impedance · (Ohms) | Dimensions · A | Dimensions · B | Dimensions · C | Dimensions · D | Dimensions · E · +/- 1/16" | Dimensions · G · Slot | Dimensions · G · Slot (2) | Dimensions · G · Slot (3) | Weight · (lbs.) | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1608A | 10 | 8,000 ct | 100 ma. | 4-8-16 | 2.50 | 2.75 | 3.06 | 2.00 | 1.69 | 0.20 | x | 0.38 | 2.5 | $108.32In stock | Buy now |
| 1609A | 10 | 10,000 ct | 100 ma. | 4-8-16 | 2.50 | 2.75 | 3.06 | 2.00 | 1.69 | 0.20 | x | 0.38 | 2.5 | $108.32In stock | Buy now |
| 1615A | 15 | 5,000 ct | 100 ma. | 4-8-16 | 2.50 | 3.25 | 3.06 | 2.00 | 2.19 | 0.20 | x | 0.38 | 3.25 | $117.34In stock | Buy now |
| 1616 | 15 | 7,600 ct | 100 ma. | 16 | 2.50 | 3.50 | 3.06 | 2.00 | 2.50 | 0.20 | x | 0.38 | 3.5 | $117.34In stock | Buy now |
| 1650E | 15 | 8,000 ct | 100 ma. | 4-8-16 | 2.50 | 3.25 | 3.06 | 2.00 | 2.50 | 0.20 | x | 0.38 | 3.5 | $126.36In stock | Buy now |
| 1620A | 20 | 6,600 ct | 158 ma. | 4-8-16 | 2.50 | 3.50 | 3.06 | 2.00 | 2.44 | 0.20 | x | 0.38 | 3.5 | $126.36In stock | Buy now |
| 1650FA | 25 | 7,600 ct | 128 ma. | 4-8-16 | 2.50 | 3.50 | 3.06 | 2.00 | 2.44 | 0.20 | x | 0.38 | 4 | $131.77In stock | Buy now |
| 1645A | 30 | 5,000 ct | 128 ma. | 4-8-16-70V | 2.50 | 3.75 | 3.06 | 2.00 | 2.69 | 0.20 | x | 0.38 | 4.5 | $153.55In stock | Buy now |
| 1650G | 35 | 6,600 ct | 200 ma. | 3.5/8/16/250/500 | 3.13 | 3.75 | 3.81 | 2.50 | 2.25 | 0.20 | x | 0.38 | 5 | $137.20In stock | Buy now |
| 1650HA | 40 | 6,600 ct | 200 ma. | 4-8-16 | 3.13 | 4.00 | 3.81 | 2.50 | 2.69 | 0.20 | x | 0.38 | 6.5 | $151.61In stock | Buy now |
| 1650KA | 50 | 3,400 ct | 318 ma. | 4-8-16 | 3.13 | 4.00 | 3.81 | 2.50 | 2.69 | 0.20 | x | 0.38 | 7 | $162.47In stock | Buy now |
| 1650LA | 50 | 5,000 ct | 150 ma. | 4-8-16 | 3.75 | 3.96 | 4.60 | 3.00 | 2.81 | 0.20 | x | 0.38 | 8 | $145.84In stock | Buy now |
| 1650NA | 60 | 4,300 ct | 318 ma. | 4-8-16 | 3.13 | 4.25 | 3.81 | 2.50 | 2.94 | 0.20 | x | 0.38 | 8 | $167.88In stock | Buy now |

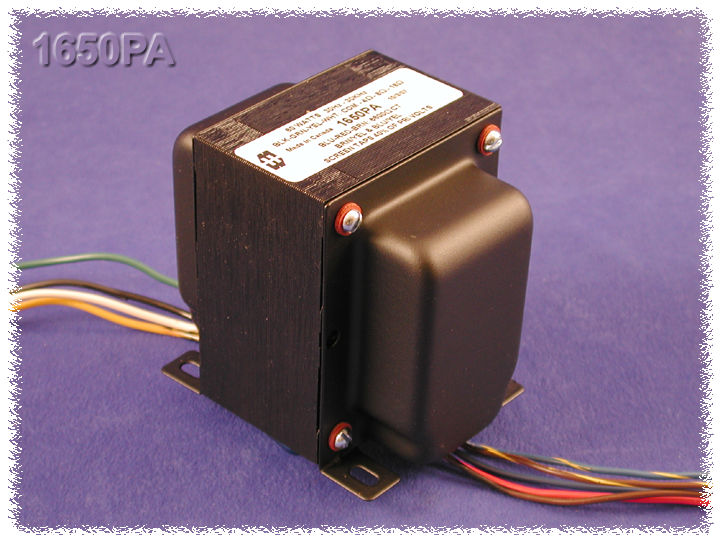

| 1650PA | 60 | 6,600 ct | 200 ma. | 4-8-16 | 3.13 | 4.25 | 3.81 | 2.50 | 2.94 | 0.20 | x | 0.38 | 8 | $167.88In stock | Buy now |
| 1650RA | 100 | 5,000 ct | 318 ma. | 4-8-16 | 3.75 | 4.25 | 4.56 | 3.00 | 3.06 | 0.20 | x | 0.38 | 12 | $189.55In stock | Buy now |
| 1650TA | 120 | 1,900 ct | 403 ma. | 4-8-16 | 3.75 | 4.50 | 4.56 | 3.00 | 3.31 | 0.20 | x | 0.38 | 14 | $198.56In stock | Buy now |
| 1650WA | 280 | 1,900 ct | 806 ma. | 4-8-16 | 4.38 | 7.50 | 5.25 | 3.50 | 5.88 | 0.20 | x | 0.38 | 28 | $433.22In stock | Buy now |
Suggested Tube Types
| Part No. | Audio · Watts · (R.M.S.) | Primary · Impedance · (Ohms) | Operation | Suggested Tube Types | Price | Order |
|---|---|---|---|---|---|---|
| 1608A | 10 | 8,000 ct | Push-Pull (2 Tubes) | 6AQ5, 6V6, 6BQ5, EL84, SV83 | $108.32In stock | Buy now |
| 1609A | 10 | 10,000 ct | Push-Pull (2 Tubes) | 6AQ5, 6V6, 6BQ5, EL84, SV83 | $108.32In stock | Buy now |
| 1615A | 15 | 5,000 ct | Push-Pull (2 Tubes) | 2A3, 6A3, 6AQ5, 6B4G, 6L6, 6V6 | $117.34In stock | Buy now |
| 1650E | 15 | 8,000 ct | Push-Pull (2 Tubes) | 6AQ5, 6V6, 6BQ5, EL84, SV83 | $126.36In stock | Buy now |
| 1620A | 20 | 6,600 ct | Push-Pull (2 Tubes) | 6AQ5, 6L6, 6V6 | $126.36In stock | Buy now |
| 1650FA | 25 | 7,600 ct | Push-Pull (2 Tubes) | 6L6GC, 6V6, 807, 5881, EL34 | $131.77In stock | Buy now |
| 1645A | 30 | 5,000 ct | Push-Pull (2 Tubes) | 6L6GC, 6V6, 807, 5881, EL34 | $153.55In stock | Buy now |
| 1650G | 35 | 6,600 ct | Push-Pull (2 Tubes) | 6L6GC, 807, 5881, EL34 | $137.20In stock | Buy now |
| 1650HA | 40 | 6,600 ct | Push-Pull (2 Tubes) | 6L6GC, 807, 5881, EL34 | $151.61In stock | Buy now |
| 1650KA | 50 | 3,400 ct | Push-Pull Par. (4 Tubes) | 6L6GC, 807, 5881, EL34, 6146B, 6550B | $162.47In stock | Buy now |
| 1650NA | 60 | 4,300 ct | Push-Pull Par. (2 or 4 Tubes) | 6L6GC, 807, 5881, EL34, 6146B, 6550B, KT88 | $167.88In stock | Buy now |
| 1650PA | 60 | 6,600 ct | Push-Pull (2 Tubes) | 6L6GC, 807, 5881, EL34, 6146B, 6550B, KT88 | $167.88In stock | Buy now |
| 1650RA | 100 | 5,000 ct | Push-Pull Par. (2 or 4 Tubes) | 807, 5881, EL34, 6146B, 6550B, KT88 | $189.55In stock | Buy now |
| 1650TA | 120 | 1,900 ct | Push-Pull Par. (4 or 6 Tubes) | 6L6GC, 5881, EL34, 6550B, KT88 | $198.56In stock | Buy now |
| 1650WA | 280 | 1,900 ct | Push-Pull Par. (6 or 8 Tubes) | 6L6GC, 5881, EL34, 6550B, KT88 | $433.22In stock | Buy now |
Features
- ■NEW & improved version of our 1608-1650 Series multiple secondary output transformers (re-designed secondaries for easy hook-up of secondary loads).
- ■Designed for push-pull tube output circuits.
- ■Units are designed to provide ample "headroom" at bass frequencies (note the weight of each transformer).
- ■All models have a secondary tapped for 4, 8 or 16 ohm outputs.
- ■Enclosed (shielded), 4 slot, above chassis Type "X" mounting.
- ■Manufactured with plastic coil forms for coil support and insulation.
- ■Frequency response 30 Hz. to 30 Khz. at full rated power (+/- 1 db max. - ref. 1 Khz) minimum.
- ■Insulated flexible leads 8" min.
- ■All units (except the 1650G ) include 40% screen taps for Ultra-Linear operation (if desired).
- ■Typical applications - Push-Pull: triode, Ultra-Linear pentode, pentode and tetrode connected audio output. The 1650G does NOT have primary screen taps and will not support "Ultra-Linear" applications.
