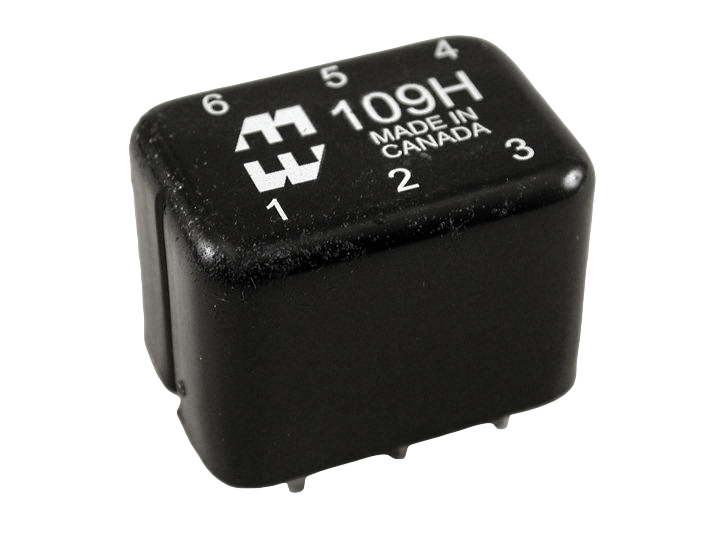

2W Audio Miniature Epoxy Potted 109 Series

2W Audio Miniature Epoxy Potted · 109 Series

Brand: Hammond Manufacturing · 10 part numbers

PC Board Mount

from $24.33

10 of 10 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsDocumentsAdditional information

Configure & price

Find your 109 Series part number

Filter 10 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

10 of 10 part numbers · 10 priced online

109E

Audio TX Potted

  • Max. D.C. Unbalanc 6
  • Pri. DCR (Ohms) +/ 43
  • Pri. Nominal Imped 600 ct
  • Sec. DCR (Ohms) +/ 0.37
$27.59In stock
Buy now
109F

Audio TX Potted

  • Max. D.C. Unbalanc 6
  • Pri. DCR (Ohms) +/ 43
  • Pri. Nominal Imped 600 ct
  • Sec. DCR (Ohms) +/ 15
$24.33In stock
Buy now
109G

Audio TX Potted

  • Max. D.C. Unbalanc 6
  • Pri. DCR (Ohms) +/ 43
  • Pri. Nominal Imped 600 ct
  • Sec. DCR (Ohms) +/ 24
$24.33Backorder
Buy now
109H

Audio TX Potted

  • Max. D.C. Unbalanc 6
  • Pri. DCR (Ohms) +/ 43
  • Pri. Nominal Imped 600 ct
  • Sec. DCR (Ohms) +/ 60
$24.33In stock
Buy now
109J

Audio TX Potted

  • Max. D.C. Unbalanc 4.5
  • Pri. DCR (Ohms) +/ 69
  • Pri. Nominal Imped 1K ct
  • Sec. DCR (Ohms) +/ 60
$24.33In stock
Buy now
109K

Audio TX Potted

  • Max. D.C. Unbalanc 4
  • Pri. DCR (Ohms) +/ 105
  • Pri. Nominal Imped 1.5K ct
  • Sec. DCR (Ohms) +/ 60
$24.33In stock
Buy now
109L

Audio TX Potted

  • Max. D.C. Unbalanc 1.5
  • Pri. DCR (Ohms) +/ 700
  • Pri. Nominal Imped 10K ct
  • Sec. DCR (Ohms) +/ 0.37
$27.59In stock
Buy now
109N

Audio TX Potted

  • Max. D.C. Unbalanc 1.5
  • Pri. DCR (Ohms) +/ 700
  • Pri. Nominal Imped 10K ct
  • Sec. DCR (Ohms) +/ 60
$24.33In stock
Buy now
109R

Audio TX Potted

  • Max. D.C. Unbalanc 1.5
  • Pri. DCR (Ohms) +/ 700
  • Pri. Nominal Imped 10K ct
  • Sec. DCR (Ohms) +/ 150
$27.59In stock
Buy now
109T

Audio TX Potted

  • Max. D.C. Unbalanc 1.5
  • Pri. DCR (Ohms) +/ 700
  • Pri. Nominal Imped 10K ct
  • Sec. DCR (Ohms) +/ 1000
$24.33In stock
Buy now
Dimension tables (inches / mm)
Part No.Nominal Impedance (Ohms) · Primary · (Pins 1-3)Nominal Impedance (Ohms) · Secondary · (Pins 4-6)D.C. Resistance (Ohms) +/- 20% · Primary · (Pins 1-3)D.C. Resistance (Ohms) +/- 20% · Secondary · (Pins 4-6)Max. D.C. · Unbalance · (ma.)PriceOrder
109E600 ct3.2430.376$27.59In stockBuy now
109F600 ct150 ct43156$24.33In stockBuy now
109G600 ct250 ct43246$24.33BackorderBuy now
109H600 ct600 ct43606$24.33In stockBuy now
109J1K ct600 ct69604.5$24.33In stockBuy now
109K1.5K ct600 ct105604$24.33In stockBuy now
109L10K ct3.27000.371.5$27.59In stockBuy now
109N10K ct600 ct700601.5$24.33In stockBuy now
109R10K ct1.5K ct7001501.5$27.59In stockBuy now
109T10K ct10K ct70010001.5$24.33In stockBuy now

Documents

Specification Sheet

Additional information

Part Details

Part No.Nominal Impedance (Ohms) · Primary · (Pins 1-3)Nominal Impedance (Ohms) · Secondary · (Pins 4-6)D.C. Resistance (Ohms) +/- 20% · Primary · (Pins 1-3)D.C. Resistance (Ohms) +/- 20% · Secondary · (Pins 4-6)Max. D.C. · Unbalance · (ma.)
109E600 ct3.2430.376
109F600 ct150 ct43156
109G600 ct250 ct43246
109H600 ct600 ct43606
109J1K ct600 ct69604.5
109K1.5K ct600 ct105604
109L10K ct3.27000.371.5
109N10K ct600 ct700601.5
109R10K ct1.5K ct7001501.5
109T10K ct10K ct70010001.5
