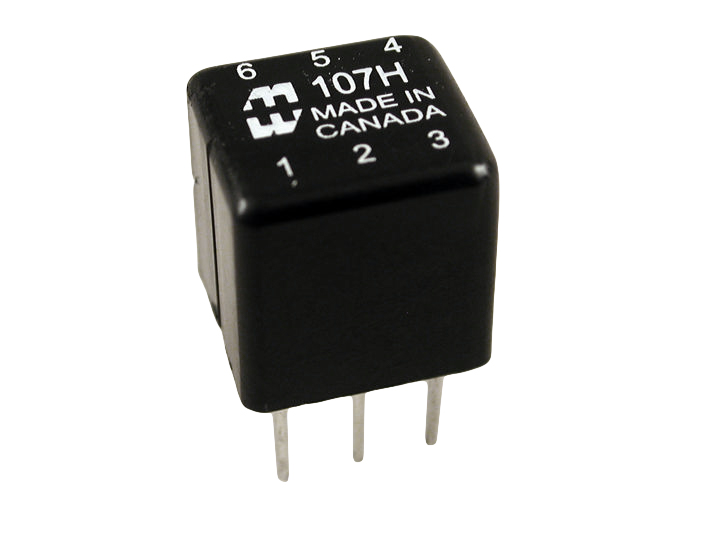

150mw Audio Miniature Epoxy Potted 107 Series

150mw Audio Miniature Epoxy Potted · 107 Series

Brand: Hammond Manufacturing · 13 part numbers

PC Board Mount

from $17.60

13 of 13 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsDocumentsAdditional information

Configure & price

Find your 107 Series part number

Filter 13 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

13 of 13 part numbers · 13 priced online

107B

Audio TX Potted

  • Max. D.C. Unbalanc 12
  • Pri. DCR (Ohms) +/ 20
  • Pri. Nominal Imped 150 ct
  • Sec. DCR (Ohms) +/ 2
$17.60In stock
Buy now
107D

Audio TX Potted

  • Max. D.C. Unbalanc 12
  • Pri. DCR (Ohms) +/ 20
  • Pri. Nominal Imped 150 ct
  • Sec. DCR (Ohms) +/ 25
$17.60In stock
Buy now
107E

Audio TX Potted

  • Max. D.C. Unbalanc 6
  • Pri. DCR (Ohms) +/ 59
  • Pri. Nominal Imped 600 ct
  • Sec. DCR (Ohms) +/ 0.6
$17.60In stock
Buy now
107G

Audio TX Potted

  • Max. D.C. Unbalanc 6
  • Pri. DCR (Ohms) +/ 59
  • Pri. Nominal Imped 600 ct
  • Sec. DCR (Ohms) +/ 10
$17.60In stock
Buy now

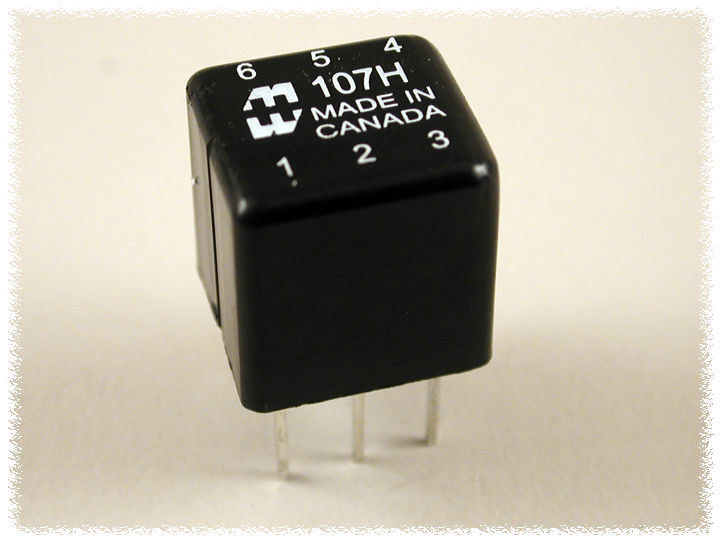

107H

Audio TX Potted

  • Max. D.C. Unbalanc 6
  • Pri. DCR (Ohms) +/ 59
  • Pri. Nominal Imped 600 ct
  • Sec. DCR (Ohms) +/ 75
$17.60Backorder
Buy now
107J

Audio TX Potted

  • Max. D.C. Unbalanc 4.5
  • Pri. DCR (Ohms) +/ 92
  • Pri. Nominal Imped 1K ct
  • Sec. DCR (Ohms) +/ 71
$17.60In stock
Buy now
107L

Audio TX Potted

  • Max. D.C. Unbalanc 1.5
  • Pri. DCR (Ohms) +/ 780
  • Pri. Nominal Imped 10K ct
  • Sec. DCR (Ohms) +/ 0.65
$17.60In stock
Buy now
107N

Audio TX Potted

  • Max. D.C. Unbalanc 1.5
  • Pri. DCR (Ohms) +/ 680
  • Pri. Nominal Imped 10K ct
  • Sec. DCR (Ohms) +/ 70
$17.60In stock
Buy now
107P

Audio TX Potted

  • Max. D.C. Unbalanc 1.5
  • Pri. DCR (Ohms) +/ 680
  • Pri. Nominal Imped 10K ct
  • Sec. DCR (Ohms) +/ 150
$17.60In stock
Buy now
107R

Audio TX Potted

  • Max. D.C. Unbalanc 1.5
  • Pri. DCR (Ohms) +/ 680
  • Pri. Nominal Imped 10K ct
  • Sec. DCR (Ohms) +/ 390
$17.60In stock
Buy now
107T

Audio TX Potted

  • Max. D.C. Unbalanc 1.5
  • Pri. DCR (Ohms) +/ 680
  • Pri. Nominal Imped 10K ct
  • Sec. DCR (Ohms) +/ 700
$17.60In stock
Buy now
107V

Audio TX Potted

  • Max. D.C. Unbalanc 1
  • Pri. DCR (Ohms) +/ 1300
  • Pri. Nominal Imped 25K ct
  • Sec. DCR (Ohms) +/ 70
$22.72In stock
Buy now
107X

Audio TX Potted

  • Max. D.C. Unbalanc 0
  • Pri. DCR (Ohms) +/ 3700
  • Pri. Nominal Imped 100K ct
  • Sec. DCR (Ohms) +/ 80
$22.72In stock
Buy now
Dimension tables (inches / mm)
Part No.Nominal Impedance (Ohms) · Primary · (Pins 1-3)Nominal Impedance (Ohms) · Secondary · (Pins 4-6)D.C. Resistance (Ohms) +/- 20% · Primary · (Pins 1-3)D.C. Resistance (Ohms) +/- 20% · Secondary · (Pins 4-6)Max. D.C. · Unbalance · (ma.)PriceOrder
107B150 ct1220212$17.60In stockBuy now
107D150 ct150 ct202512$17.60In stockBuy now
107E600 ct3.2590.66$17.60In stockBuy now
107G600 ct250 ct59106$17.60In stockBuy now
107H600 ct600 ct59756$17.60BackorderBuy now
107J1K ct600 ct92714.5$17.60In stockBuy now
107L10K ct3.27800.651.5$17.60In stockBuy now
107N10K ct600 ct680701.5$17.60In stockBuy now
107P10K ct1.5K ct6801501.5$17.60In stockBuy now
107R10K ct4K ct6803901.5$17.60In stockBuy now
107T10K ct10K ct6807001.5$17.60In stockBuy now
107V25K ct600 ct1300701$22.72In stockBuy now
107X100K ct1K ct3700800$22.72In stockBuy now

Documents

Specification Sheet

Additional information

Part Details

Part No.Nominal Impedance (Ohms) · Primary · (Pins 1-3)Nominal Impedance (Ohms) · Secondary · (Pins 4-6)D.C. Resistance (Ohms) +/- 20% · Primary · (Pins 1-3)D.C. Resistance (Ohms) +/- 20% · Secondary · (Pins 4-6)Max. D.C. · Unbalance · (ma.)
107B150 ct1220212
107D150 ct150 ct202512
107E600 ct3.2590.66
107G600 ct250 ct59106
107H600 ct600 ct59756
107J1K ct600 ct92714.5
107L10K ct3.27800.651.5
107N10K ct600 ct680701.5
107P10K ct1.5K ct6801501.5
107R10K ct4K ct6803901.5
107T10K ct10K ct6807001.5
107V25K ct600 ct1300701
107X100K ct1K ct3700800
