Audio TX Input Potted
- Hz 60
- Max Primary D.C. m 0
- Output Milliwatts 5
- Pri. DCR (Ohms) +/ 6.6
$22.72In stock
Buy now

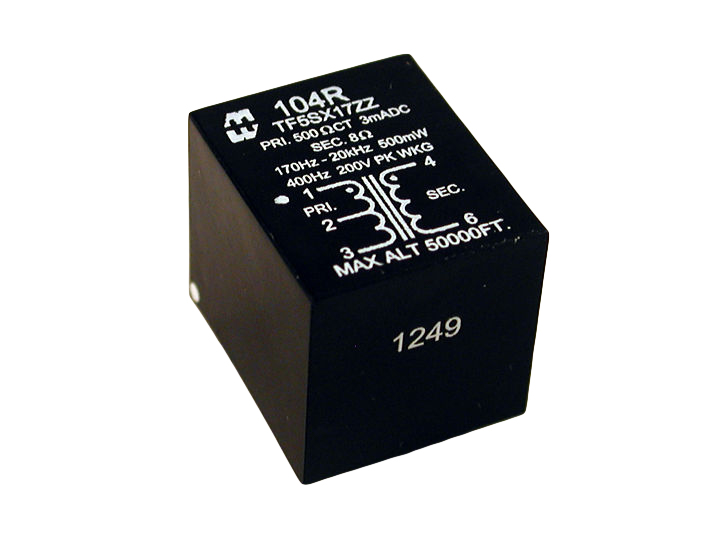

Miniature Audio Epoxy Potted · 104 Series
Brand: Hammond Manufacturing · 8 part numbers
PC Board Mount
- ■Output power models from 5 to 1,500 milliwatt level available.
- ■P.C. board mount - square pin type (0.025" square typical)
- ■Bifilar winding technique used on center tapped units for balanced resistive and capacitive characteristics.
- ■Rugged black epoxy potted construction produces a completely sealed unit withstanding severe environmental conditions including those of MIL-T-27 (Grade 5, Class S).
- ■For the more economical open type P.C. mount types please refer to the 148 and 149 series.
- ■Peak working voltage rating of: 200V
from $21.09
8 of 8 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 104 Series part number
Filter 8 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
8 of 8 part numbers · 8 priced online
Audio TX Interstage Potted
- Hz 200
- Max Primary D.C. m 3.2
- Output Milliwatts 35
- Pri. DCR (Ohms) +/ 675
$21.09In stock
Buy nowAudio TX Interstage Potted
- Hz 200
- Max Primary D.C. m 3.2
- Output Milliwatts 35
- Pri. DCR (Ohms) +/ 790
$21.09In stock
Buy nowAudio TX Interstage Potted
- Hz 200
- Max Primary D.C. m 2
- Output Milliwatts 35
- Pri. DCR (Ohms) +/ 1890
$21.09In stock
Buy nowAudio TX Output Potted
- Hz 200
- Max Primary D.C. m 6
- Output Milliwatts 500
- Pri. DCR (Ohms) +/ 27
$22.72In stock
Buy nowAudio TX Output Potted
- Hz 200
- Max Primary D.C. m 6
- Output Milliwatts 500
- Pri. DCR (Ohms) +/ 27
$22.72In stock
Buy nowAudio TX Output Potted
- Hz 200
- Max Primary D.C. m 6
- Output Milliwatts 500
- Pri. DCR (Ohms) +/ 47
$22.72In stock
Buy nowAudio TX Output Potted Long
- Hz 200
- Max Primary D.C. m 6
- Output Milliwatts 500
- Pri. DCR (Ohms) +/ 46
$24.33In stock
Buy nowDimension tables (inches / mm)
| Part No. | Typical · Applicaton | Nominal Impedance · (Ohms) · Primary | Nominal Impedance · (Ohms) · Secondary | Max. Primary · D.C. ma. · (*1) | D.C. Resistance · (Ohms) +/- 15% · Primary | D.C. Resistance · (Ohms) +/- 15% · Secondary | Output · Milliwatts · (*2) | Insertion · Loss · db (*3) | Low Frequency · Roll Off · -1 db (Hz.) (*4) | Drawing · Figure | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 104B | Input | 150 | 80000 | 0 | 6.6 | 3730 | 5 | 1 | 60 | 5 | $22.72In stock | Buy now |
| 104H | Interstage | 10000 | 2,000 ct | 3.2 | 675 | 89 | 35 | 1 | 200 | 6 | $21.09In stock | Buy now |
| 104K | Interstage | 20000 | 1,000 ct | 3.2 | 790 | 125 | 35 | 1 | 200 | 6 | $21.09In stock | Buy now |
| 104L | Interstage | 25000 | 600 ct | 2 | 1890 | 50 | 35 | 1 | 200 | 6 | $21.09In stock | Buy now |
| 104Q | Output | 500 ct | 3.2 | 6 | 27 | 0.4 | 500 | 1 | 200 | 3 | $22.72In stock | Buy now |
| 104R | Output | 500 ct | 8 | 6 | 27 | 0.9 | 500 | 1 | 200 | 3 | $22.72In stock | Buy now |
| 104S | Output | 600 ct | 150 ct | 6 | 47 | 10.6 | 500 | 1 | 200 | 4 | $22.72In stock | Buy now |
| 104SL | Output | 600 ct | 150 ct | 6 | 46 | 10.3 | 500 | 1 | 200 | SEE DWG | $24.33In stock | Buy now |
Features
- ■Output power models from 5 to 1,500 milliwatt level available.
- ■P.C. board mount - square pin type (0.025" square typical)
- ■Bifilar winding technique used on center tapped units for balanced resistive and capacitive characteristics.
- ■Rugged black epoxy potted construction produces a completely sealed unit withstanding severe environmental conditions including those of MIL-T-27 (Grade 5, Class S).
- ■For the more economical open type P.C. mount types please refer to the 148 and 149 series.
- ■Peak working voltage rating of: 200V
- ■Referring to figures 1-9, if connection is not used - no pin will exist.
- ■Pin length is 0.11" +/-15%
