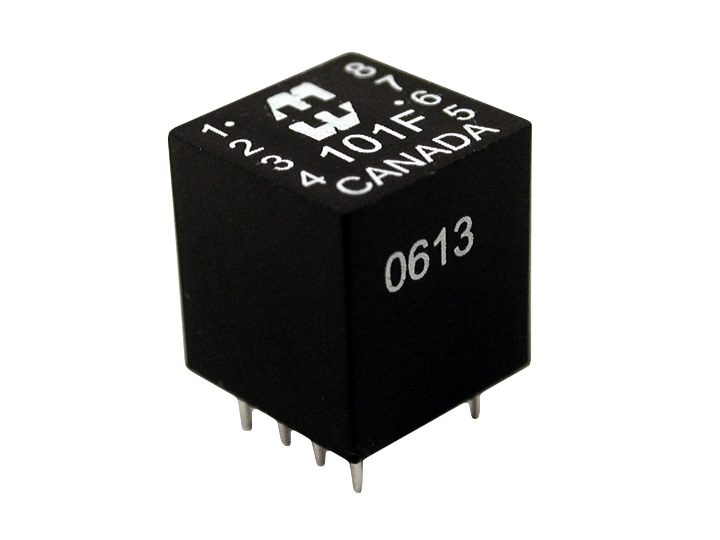

Miniature Audio Potted · 101 Series

Features

Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)

• ■Pin type, miniature size, P.C. board mount, net weight of only 0.1 oz.
• ■Rugged potted construction produces a completely sealed unit withstanding severe environmental conditions.
• ■Secondary may be used as primary and primary as secondary.
• ■Power level: Minimum frequency range: 300 Hz. to 100 Khz. +/- 0.5 db @ 100 mw Frequency range @ +10 dbm is 200 Hz. to 100 Khz. +/- 0.5 db Frequency range @ +15 dbm is 200 Hz. to 100 Khz. +/- 0.5 db Frequency range @ +20 dbm is 300 Hz. to 100 Khz. +/- 0.5 db Frequency measurements with no D.C. current saturation.
• ■Frequency range @ +10 dbm is 200 Hz. to 100 Khz. +/- 0.5 db
• ■Frequency range @ +15 dbm is 200 Hz. to 100 Khz. +/- 0.5 db
• ■Frequency range @ +20 dbm is 300 Hz. to 100 Khz. +/- 0.5 db
• ■Frequency measurements with no D.C. current saturation.
• ■See data sheets for more detailed information.
