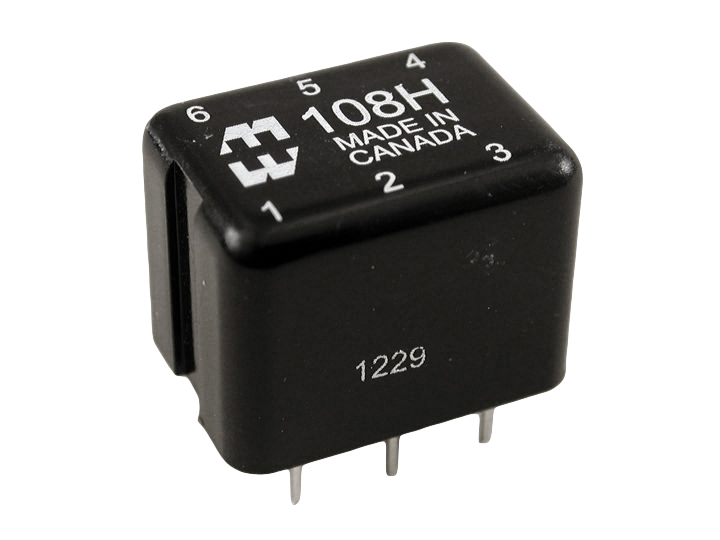

500mw Audio Miniature Epoxy Potted 108 Series

500mw Audio Miniature Epoxy Potted · 108 Series

Brand: Hammond Manufacturing · 10 part numbers

PC Board Mount

from $20.27

10 of 10 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsDocumentsAdditional information

Configure & price

Find your 108 Series part number

Filter 10 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

10 of 10 part numbers · 10 priced online

108E

Audio TX Potted

  • Max. D.C. Unbalanc 6
  • Pri. DCR (Ohms) +/ 65
  • Pri. Nominal Imped 600 ct
  • Sec. DCR (Ohms) +/ 0.43
$20.27In stock
Buy now
108F

Audio TX Potted

  • Max. D.C. Unbalanc 6
  • Pri. DCR (Ohms) +/ 65
  • Pri. Nominal Imped 600 ct
  • Sec. DCR (Ohms) +/ 18
$20.27In stock
Buy now
108G

Audio TX Potted

  • Max. D.C. Unbalanc 6
  • Pri. DCR (Ohms) +/ 65
  • Pri. Nominal Imped 600 ct
  • Sec. DCR (Ohms) +/ 29
$20.27In stock
Buy now

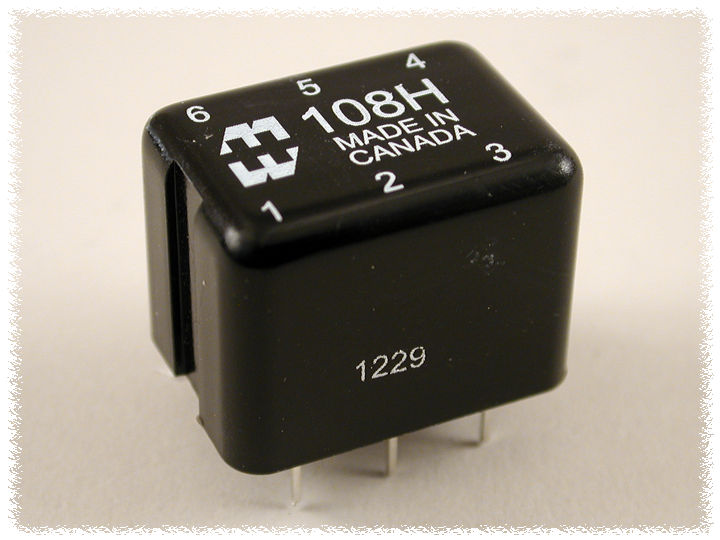

108H

Audio TX Potted

  • Max. D.C. Unbalanc 6
  • Pri. DCR (Ohms) +/ 65
  • Pri. Nominal Imped 600 ct
  • Sec. DCR (Ohms) +/ 69
$20.27In stock
Buy now
108J

Audio TX Potted

  • Max. D.C. Unbalanc 4.5
  • Pri. DCR (Ohms) +/ 109
  • Pri. Nominal Imped 1K ct
  • Sec. DCR (Ohms) +/ 69
$20.27In stock
Buy now
108K

Audio TX Potted

  • Max. D.C. Unbalanc 4
  • Pri. DCR (Ohms) +/ 170
  • Pri. Nominal Imped 1.5K ct
  • Sec. DCR (Ohms) +/ 69
$20.27In stock
Buy now
108L

Audio TX Potted

  • Max. D.C. Unbalanc 1.5
  • Pri. DCR (Ohms) +/ 1050
  • Pri. Nominal Imped 10K ct
  • Sec. DCR (Ohms) +/ 0.43
$20.27In stock
Buy now
108N

Audio TX Potted

  • Max. D.C. Unbalanc 1.5
  • Pri. DCR (Ohms) +/ 1050
  • Pri. Nominal Imped 10K ct
  • Sec. DCR (Ohms) +/ 69
$20.27In stock
Buy now
108P

Audio TX Potted

  • Max. D.C. Unbalanc 1.5
  • Pri. DCR (Ohms) +/ 1050
  • Pri. Nominal Imped 10K ct
  • Sec. DCR (Ohms) +/ 180
$20.27In stock
Buy now
108T

Audio TX Potted

  • Max. D.C. Unbalanc 1.5
  • Pri. DCR (Ohms) +/ 1050
  • Pri. Nominal Imped 10K ct
  • Sec. DCR (Ohms) +/ 1200
$20.27In stock
Buy now
Dimension tables (inches / mm)
Part No.Nominal Impedance (Ohms) · Primary · (Pins 1-3)Nominal Impedance (Ohms) · Secondary · (Pins 4-6)D.C. Resistance (Ohms) +/- 20% · Primary · (Pins 1-3)D.C. Resistance (Ohms) +/- 20% · Secondary · (Pins 4-6)Max. D.C. · Unbalance · (ma.)PriceOrder
108E600 ct3.2650.436$20.27In stockBuy now
108F600 ct150 ct65186$20.27In stockBuy now
108G600 ct250 ct65296$20.27In stockBuy now
108H600 ct600 ct65696$20.27In stockBuy now
108J1K ct600 ct109694.5$20.27In stockBuy now
108K1.5K ct600 ct170694$20.27In stockBuy now
108L10K ct3.210500.431.5$20.27In stockBuy now
108N10K ct600 ct1050691.5$20.27In stockBuy now
108P10K ct1.5K ct10501801.5$20.27In stockBuy now
108T10K ct10K ct105012001.5$20.27In stockBuy now

Documents

Specification Sheet

Additional information

Part Details

Part No.Nominal Impedance (Ohms) · Primary · (Pins 1-3)Nominal Impedance (Ohms) · Secondary · (Pins 4-6)D.C. Resistance (Ohms) +/- 20% · Primary · (Pins 1-3)D.C. Resistance (Ohms) +/- 20% · Secondary · (Pins 4-6)Max. D.C. · Unbalance · (ma.)
108E600 ct3.2650.436
108F600 ct150 ct65186
108G600 ct250 ct65296
108H600 ct600 ct65696
108J1K ct600 ct109694.5
108K1.5K ct600 ct170694
108L10K ct3.210500.431.5
108N10K ct600 ct1050691.5
108P10K ct1.5K ct10501801.5
108T10K ct10K ct105012001.5
