Audio TX Input Potted
- Hz 60
- Max Primary D.C. m 0
- Output Milliwatts 10
- Pri. DCR (Ohms) +/ 2400
$25.97In stock
Buy now

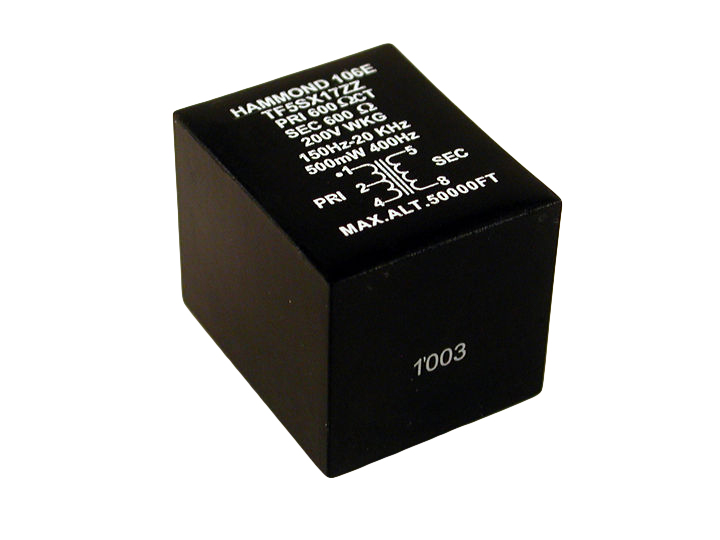

Miniature Audio Epoxy Potted · 106 Series
Brand: Hammond Manufacturing · 14 part numbers
PC Board Mount
- ■Output power models from 5 to 1,500 milliwatt level available.
- ■P.C. board mount - square pin type (0.025" square typical) - see mechanical information below for lengths.
- ■Bifilar winding technique used on center tapped units for balanced resistive and capacitive characteristics.
- ■Rugged black epoxy potted construction produces a completely sealed unit withstanding severe environmental conditions including those of MIL-T-27 (Grade 5, Class S).
- ■For the more economical open type P.C. mount types please refer to the 148 and 149 series.
- ■Peak working voltage rating of: 200V
from $22.72
14 of 14 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 106 Series part number
Filter 14 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
14 of 14 part numbers · 14 priced online
Audio TX Input Potted
- Hz 150
- Max Primary D.C. m 9
- Output Milliwatts 500
- Pri. DCR (Ohms) +/ 65
$22.72In stock
Buy nowAudio TX Input Potted
- Hz 150
- Max Primary D.C. m 9
- Output Milliwatts 500
- Pri. DCR (Ohms) +/ 65
$22.72Backorder
Buy nowAudio TX Interstage Potted
- Hz 215
- Max Primary D.C. m 10
- Output Milliwatts 150
- Pri. DCR (Ohms) +/ 340
$22.72Backorder
Buy nowAudio TX Interstage Potted
- Hz 215
- Max Primary D.C. m 10
- Output Milliwatts 150
- Pri. DCR (Ohms) +/ 340
$22.72Backorder
Buy nowAudio TX Interstage Potted
- Hz 215
- Max Primary D.C. m 6.5
- Output Milliwatts 150
- Pri. DCR (Ohms) +/ 700
$22.72In stock
Buy nowAudio TX Interstage Potted
- Hz 215
- Max Primary D.C. m 4.5
- Output Milliwatts 150
- Pri. DCR (Ohms) +/ 1180
$22.72Backorder
Buy nowAudio TX Output Potted
- Hz 170
- Max Primary D.C. m 32
- Output Milliwatts 1500
- Pri. DCR (Ohms) +/ 2.4
$24.33In stock
Buy nowAudio TX Output Potted
- Hz 170
- Max Primary D.C. m 32
- Output Milliwatts 1500
- Pri. DCR (Ohms) +/ 2.4
$24.33In stock
Buy nowAudio TX Output Potted
- Hz 170
- Max Primary D.C. m 22
- Output Milliwatts 1500
- Pri. DCR (Ohms) +/ 4.4
$24.33In stock
Buy nowAudio TX Output Potted
- Hz 170
- Max Primary D.C. m 22
- Output Milliwatts 1500
- Pri. DCR (Ohms) +/ 4.4
$24.33In stock
Buy nowAudio TX Output Potted
- Hz 170
- Max Primary D.C. m 14
- Output Milliwatts 1500
- Pri. DCR (Ohms) +/ 11
$24.33In stock
Buy nowAudio TX Output Potted
- Hz 170
- Max Primary D.C. m 10
- Output Milliwatts 1500
- Pri. DCR (Ohms) +/ 26
$24.33In stock
Buy nowAudio TX Output Potted
- Hz 170
- Max Primary D.C. m 10
- Output Milliwatts 1500
- Pri. DCR (Ohms) +/ 26
$24.33In stock
Buy nowDimension tables (inches / mm)
| Part No. | Typical · Applicaton | Nominal Impedance · (Ohms) · Primary | Nominal Impedance · (Ohms) · Secondary | Max. Primary · D.C. ma. · (*1) | D.C. Resistance · (Ohms) +/- 15% · Primary | D.C. Resistance · (Ohms) +/- 15% · Secondary | Output · Milliwatts · (*2) | Insertion · Loss · db (*3) | Low Frequency · Roll Off · -1 db (Hz.) (*4) | Drawing · Figure | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 106C | Input | 50000 | 1,500 ct | 0 | 2400 | 52 | 10 | 1 | 60 | 7 | $25.97In stock | Buy now |
| 106E | Input | 600 ct | 600 | 9 | 65 | 83 | 500 | 1 | 150 | 8 | $22.72In stock | Buy now |
| 106EE | Input | 600 ct | 600 ct | 9 | 65 | 83 | 500 | 1 | 150 | 9 | $22.72Backorder | Buy now |
| 106G | Interstage | 4000 | 600 ct | 10 | 340 | 24 | 150 | 1 | 215 | 7 | $22.72Backorder | Buy now |
| 106H | Interstage | 4000 | 2,600 ct | 10 | 340 | 100 | 150 | 1 | 215 | 7 | $22.72Backorder | Buy now |
| 106J | Interstage | 10000 | 2,000 ct | 6.5 | 700 | 89 | 150 | 1 | 215 | 7 | $22.72In stock | Buy now |
| 106M | Interstage | 20000 | 2,000 ct | 4.5 | 1180 | 89 | 150 | 1 | 215 | 7 | $22.72Backorder | Buy now |
| 106Q | Output | 48 ct | 3.2 | 32 | 2.4 | 0.3 | 1500 | 1 | 170 | 8 | $24.33In stock | Buy now |
| 106R | Output | 48 ct | 8 | 32 | 2.4 | 0.7 | 1500 | 1 | 170 | 8 | $24.33In stock | Buy now |
| 106S | Output | 100 ct | 3.2 | 22 | 4.4 | 0.3 | 1500 | 1 | 170 | 8 | $24.33In stock | Buy now |
| 106T | Output | 100 ct | 8 | 22 | 4.4 | 0.7 | 1500 | 1 | 170 | 8 | $24.33In stock | Buy now |
| 106V | Output | 250 ct | 8 | 14 | 11 | 0.7 | 1500 | 1 | 170 | 8 | $24.33In stock | Buy now |
| 106W | Output | 500 ct | 3.2 | 10 | 26 | 0.3 | 1500 | 1 | 170 | 8 | $24.33In stock | Buy now |
| 106X | Output | 500 ct | 8 | 10 | 26 | 0.7 | 1500 | 1 | 170 | 8 | $24.33In stock | Buy now |
Features
- ■Output power models from 5 to 1,500 milliwatt level available.
- ■P.C. board mount - square pin type (0.025" square typical) - see mechanical information below for lengths.
- ■Bifilar winding technique used on center tapped units for balanced resistive and capacitive characteristics.
- ■Rugged black epoxy potted construction produces a completely sealed unit withstanding severe environmental conditions including those of MIL-T-27 (Grade 5, Class S).
- ■For the more economical open type P.C. mount types please refer to the 148 and 149 series.
- ■Peak working voltage rating of: 200V
- ■Referring to figures 1-9, if connection is not used - no pin will exist.
