Audio TX Input Potted
- Max Primary D.C. m 0
- Sec. DCR (Ohms) +/ 95
- ohms 1500
- Typical Applicatio Input
$17.04In stock
Buy now

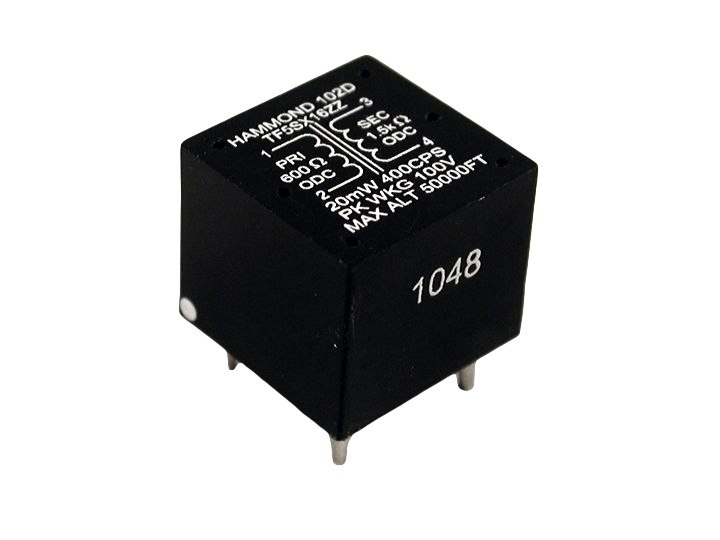

Miniature Audio Epoxy Potted · 102 Series
Brand: Hammond Manufacturing · 5 part numbers
PC Board Mount
- ■Output power models from 5 to 1,500 milliwatt level available.
- ■P.C. board mount - square pin type (0.025" square typical) - see mechanical information below for lengths.
- ■Bifilar winding technique used on center tapped units for balanced resistive and capacitive characteristics.
- ■Rugged black epoxy potted construction produces a completely sealed unit.
- ■For the more economical open type P.C. mount types please refer to the 148 and 149 series.
- ■Peak working voltage rating of: 100V
from $17.04
5 of 5 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 102 Series part number
Filter 5 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
5 of 5 part numbers · 5 priced online
Audio TX Input Potted
- Max Primary D.C. m 0
- Sec. DCR (Ohms) +/ 85
- ohms 1500
- Typical Applicatio Input
$17.04In stock
Buy nowAudio TX Interstage Potted
- Max Primary D.C. m 5.6
- Sec. DCR (Ohms) +/ 62
- ohms 500
- Typical Applicatio Interstage
$17.04In stock
Buy nowAudio TX Interstage Potted
- Max Primary D.C. m 2.8
- Sec. DCR (Ohms) +/ 260
- ohms 2000
- Typical Applicatio Interstage
$17.04Backorder
Buy nowAudio TX Interstage Potted
- Max Primary D.C. m 2.5
- Sec. DCR (Ohms) +/ 260
- ohms 2000
- Typical Applicatio Interstage
$17.04In stock
Buy nowDimension tables (inches / mm)
| Part No. | Typical · Application | Nominal Impedance · (Ohms) · Primary | Nominal Impedance · (Ohms) · Secondary | Max. Primary · D.C. ma. · (*1) | D.C. Resistance · (Ohms) +/- 15% · Primary | D.C. Resistance · (Ohms) +/- 15% · Secondary | Output · Milliwatts · (*2) | Insertion · Loss · db (*3) | Low Frequency · Roll Off · -1 db (Hz.) (*4) | Drawing · Figure | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 102B | Input | 50 | 1500 | 0 | 4 | 95 | 20 | 1.5 | 310 | 1 | $17.04In stock | Buy now |
| 102D | Input | 600 | 1500 | 0 | 43 | 85 | 20 | 1.5 | 310 | 1 | $17.04In stock | Buy now |
| 102H | Interstage | 2000 | 500 ct | 5.6 | 341 | 62 | 20 | 1.5 | 310 | 2 | $17.04In stock | Buy now |
| 102J | Interstage | 6000 | 2,000 ct | 2.8 | 900 | 260 | 20 | 1.5 | 310 | 2 | $17.04Backorder | Buy now |
| 102K | Interstage | 10000 | 2,000 ct | 2.5 | 1585 | 260 | 20 | 1.5 | 310 | 2 | $17.04In stock | Buy now |
Features
- ■Output power models from 5 to 1,500 milliwatt level available.
- ■P.C. board mount - square pin type (0.025" square typical) - see mechanical information below for lengths.
- ■Bifilar winding technique used on center tapped units for balanced resistive and capacitive characteristics.
- ■Rugged black epoxy potted construction produces a completely sealed unit.
- ■For the more economical open type P.C. mount types please refer to the 148 and 149 series.
- ■Peak working voltage rating of: 100V
- ■Referring to figures 1-9, if connection is not used - no pin will exist.
