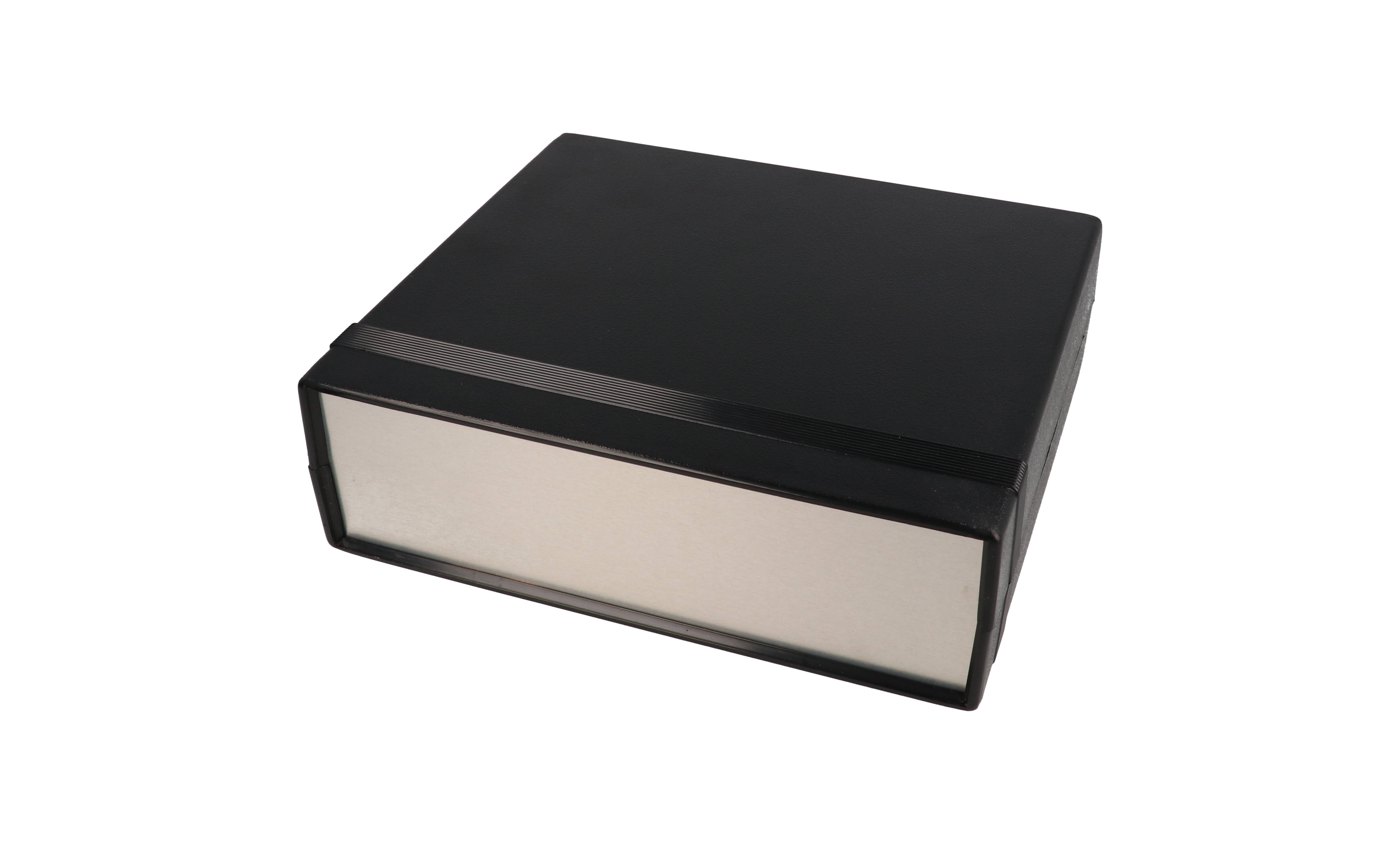

ABS Plastic Instrument Enclosures · 1598R Series

Key Features:

• ■Desk top electronic instrument enclosure, ideally suited for mounting printed circuit boards.
• ■Molded from flame retardant ABS plastic (material carries a UL flammability rating of 94V-0).

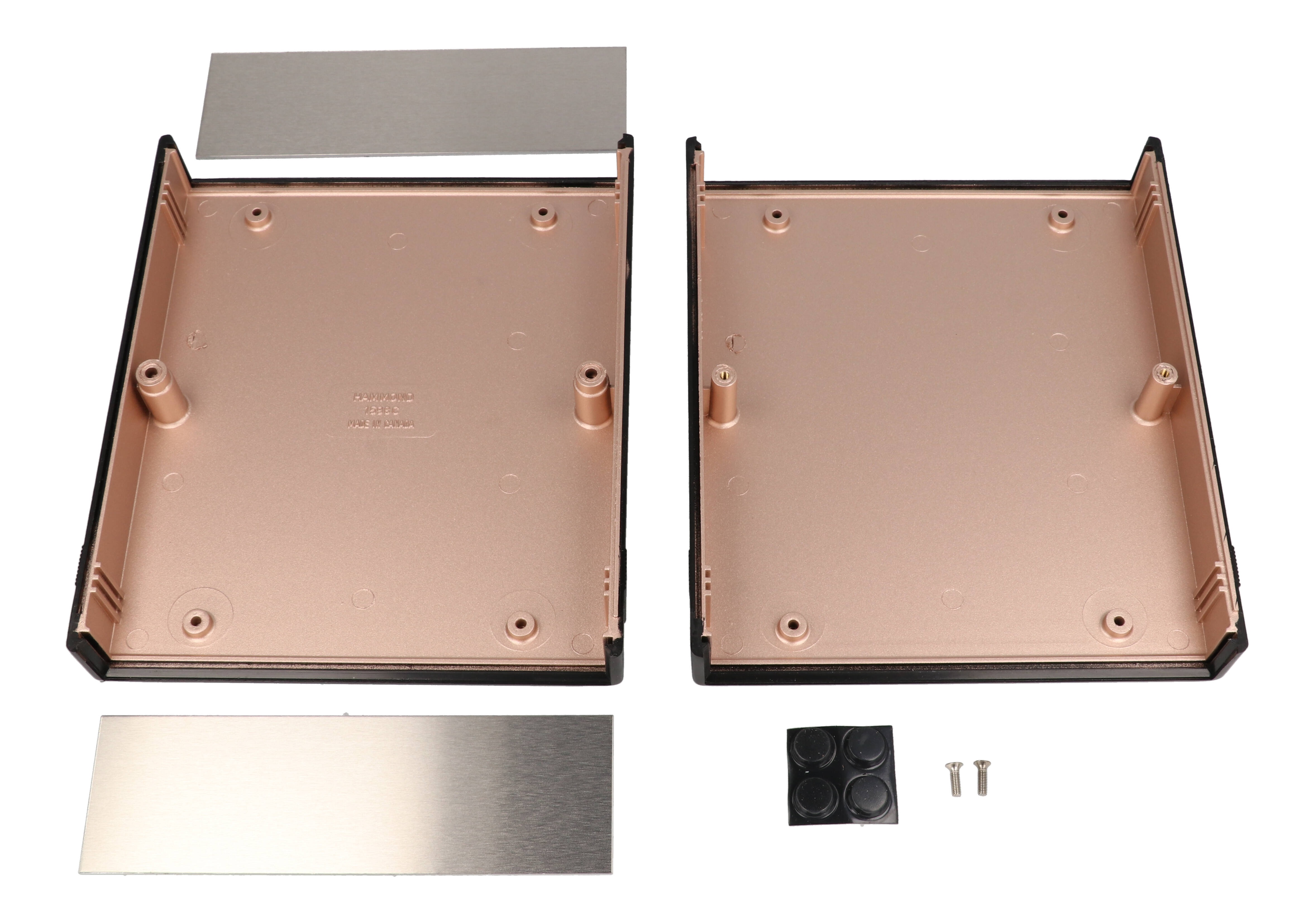

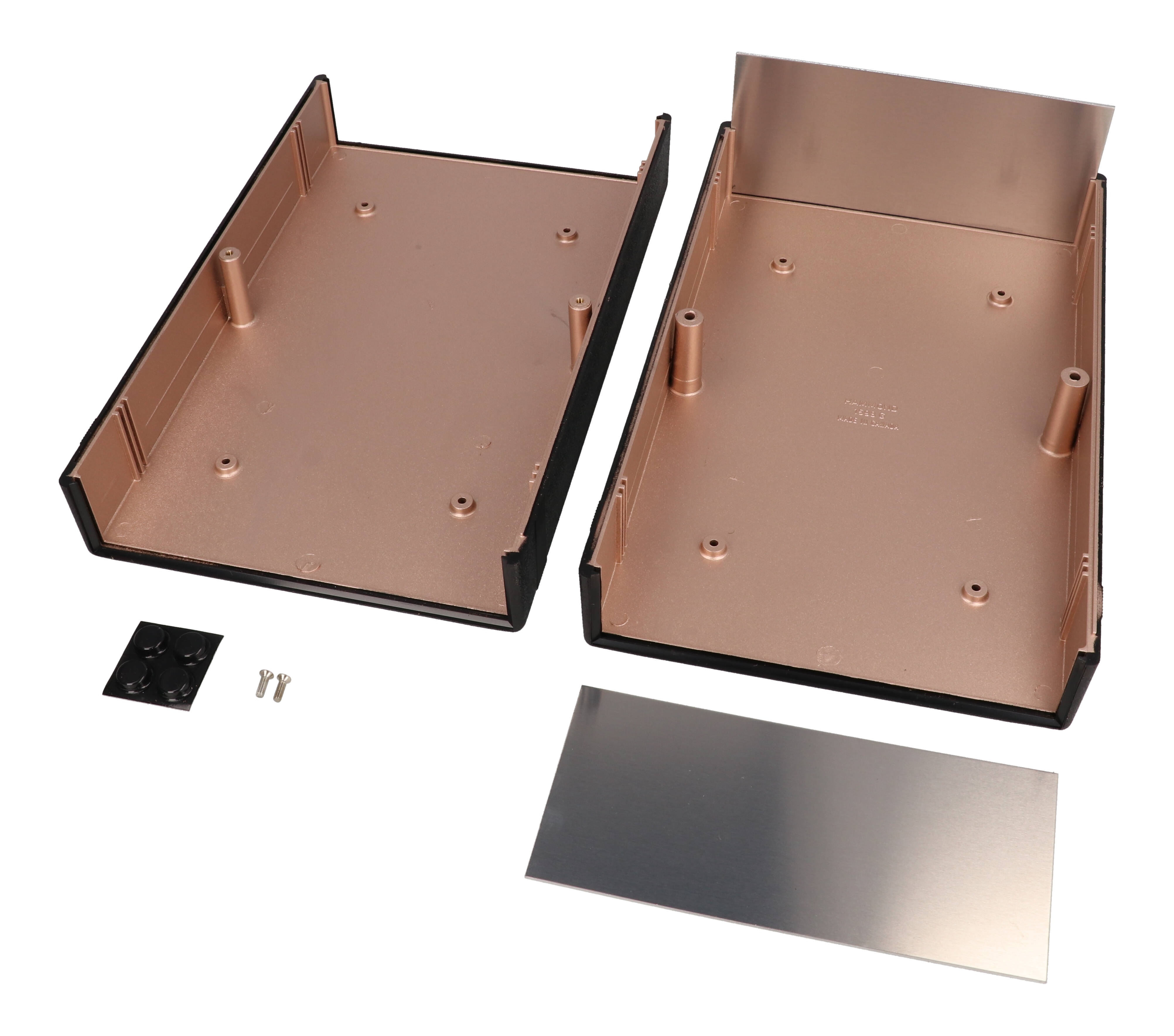

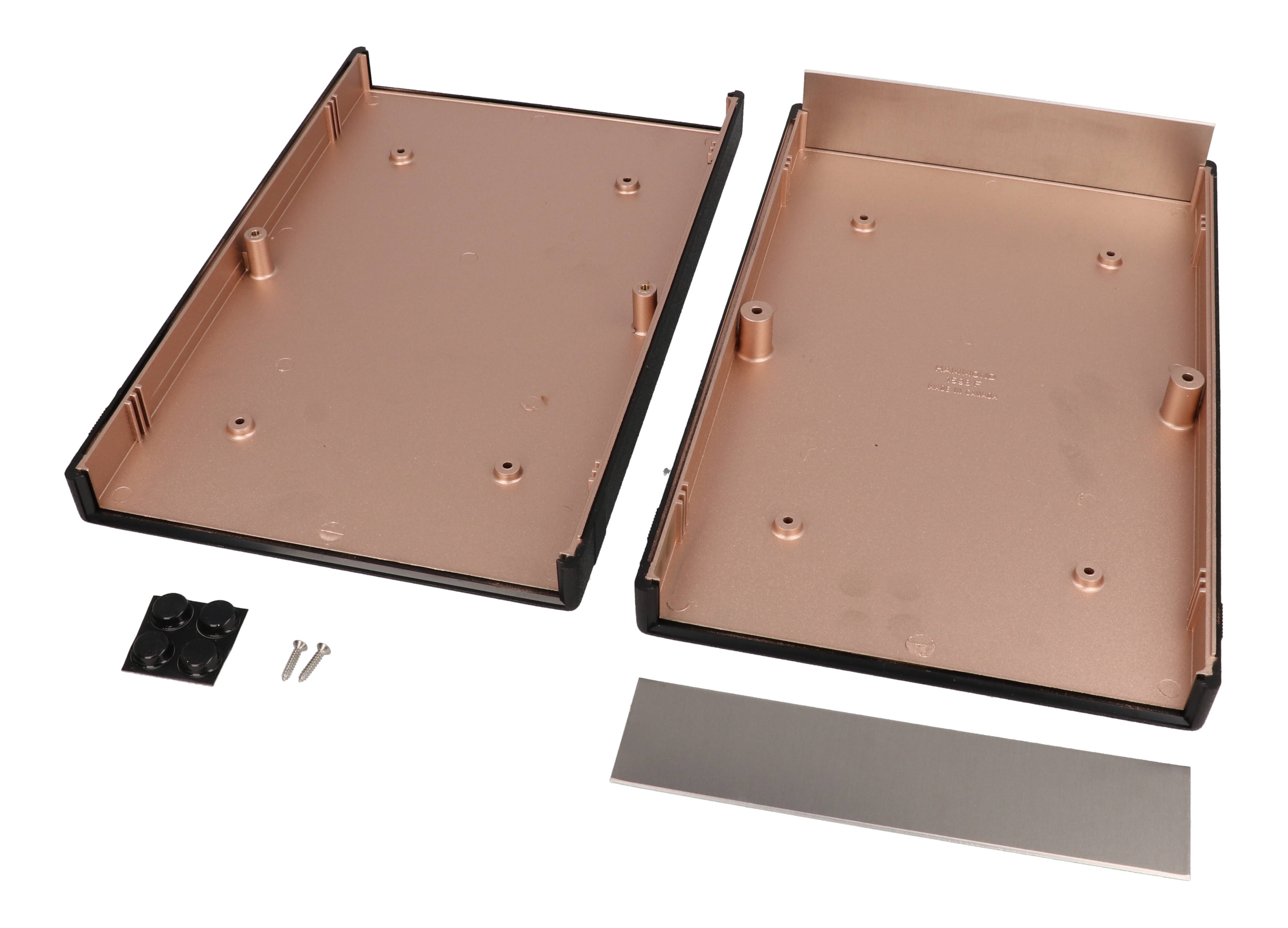

• ■Interior of each enclosure half is specially masked and sprayed with an RFI/EMI copper conductive coating (see close up photo below).
• ■Coating manufacturer specifies an attenuation of more than 75 db from 1 Mhz. to 1 Ghz.
• ■Designed to meet IP54.
• ■Two sets of vertical 1.5 mm (0.062”) P.C. board guides are molded into case halves front and rear.

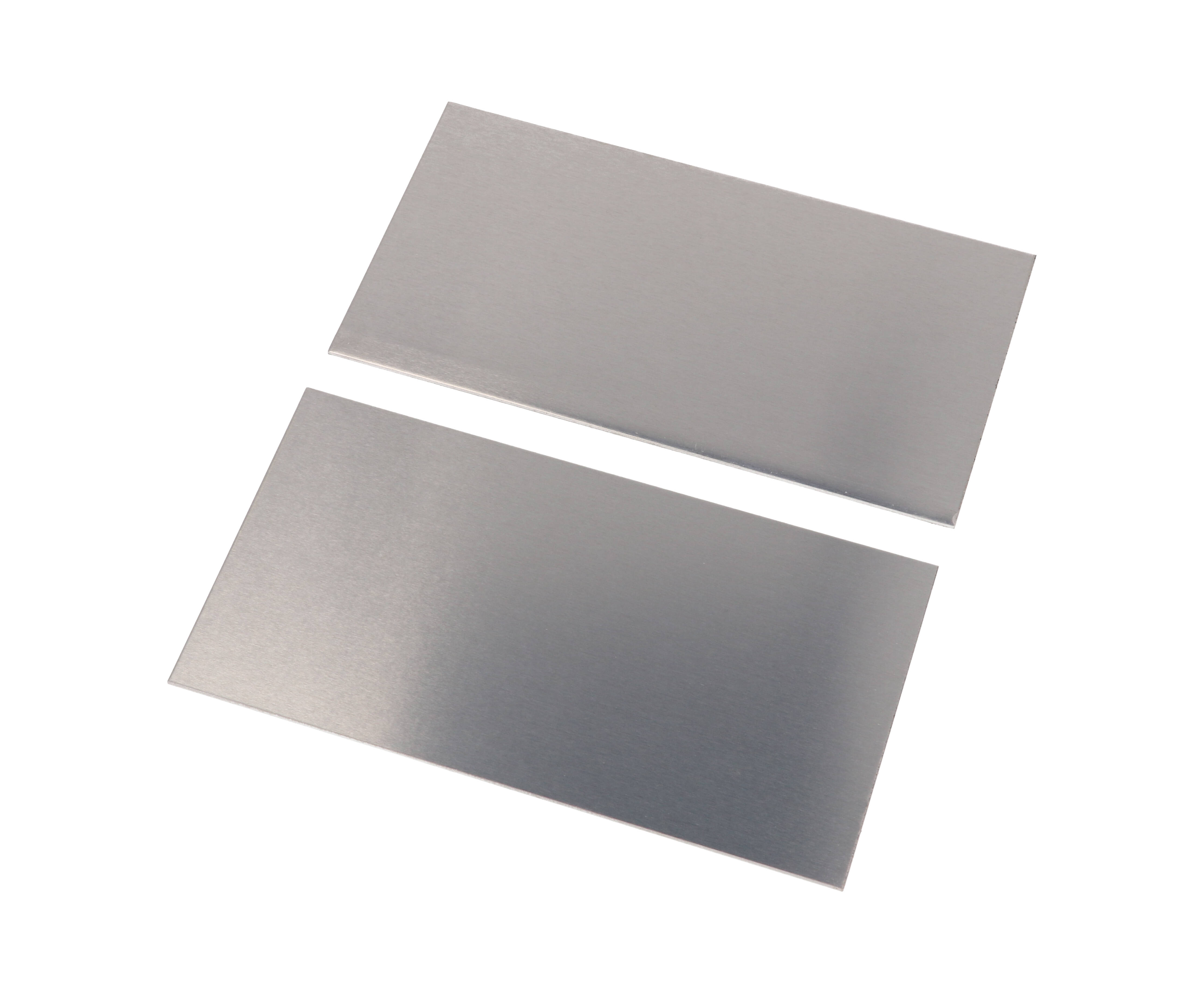

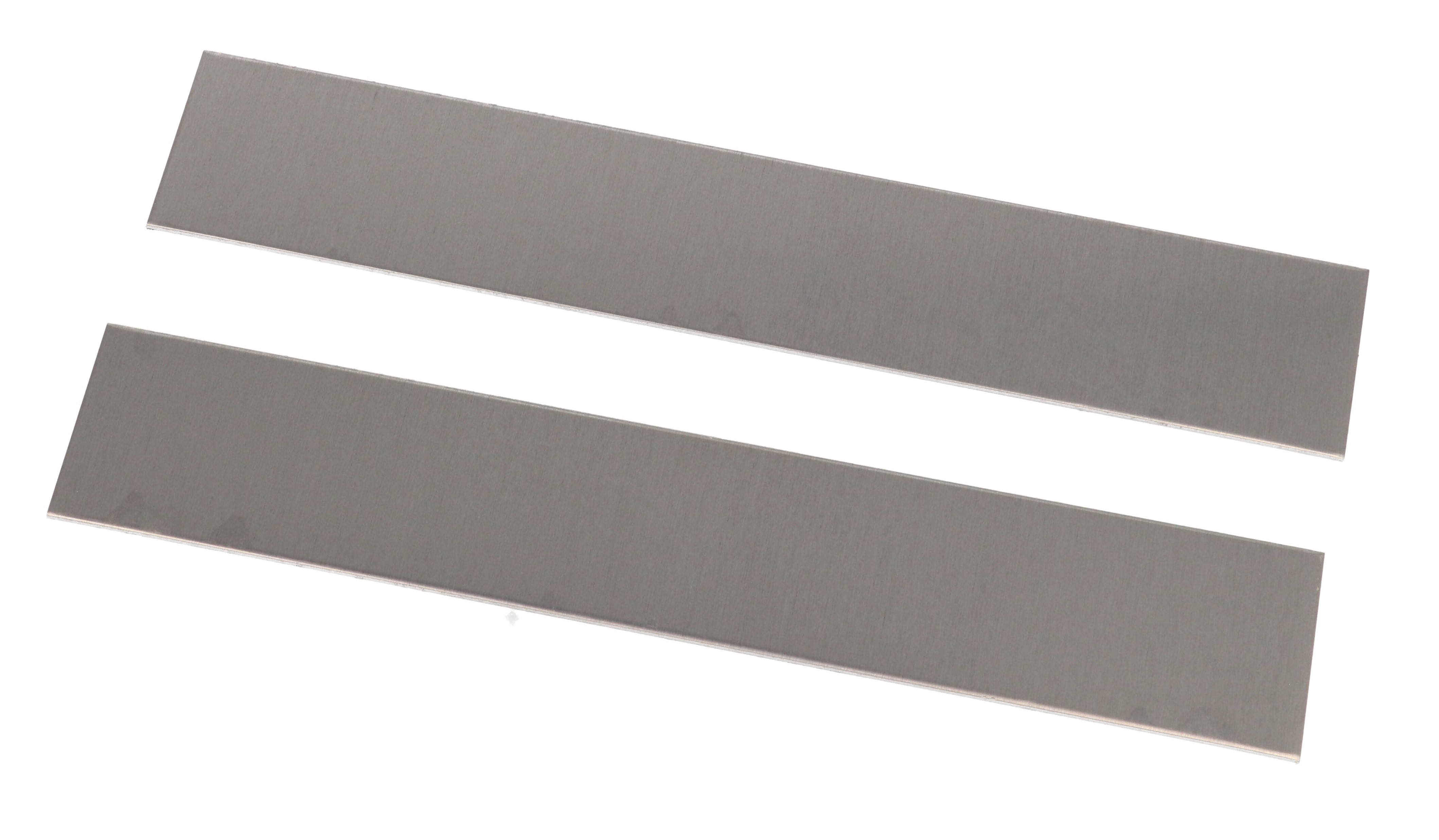

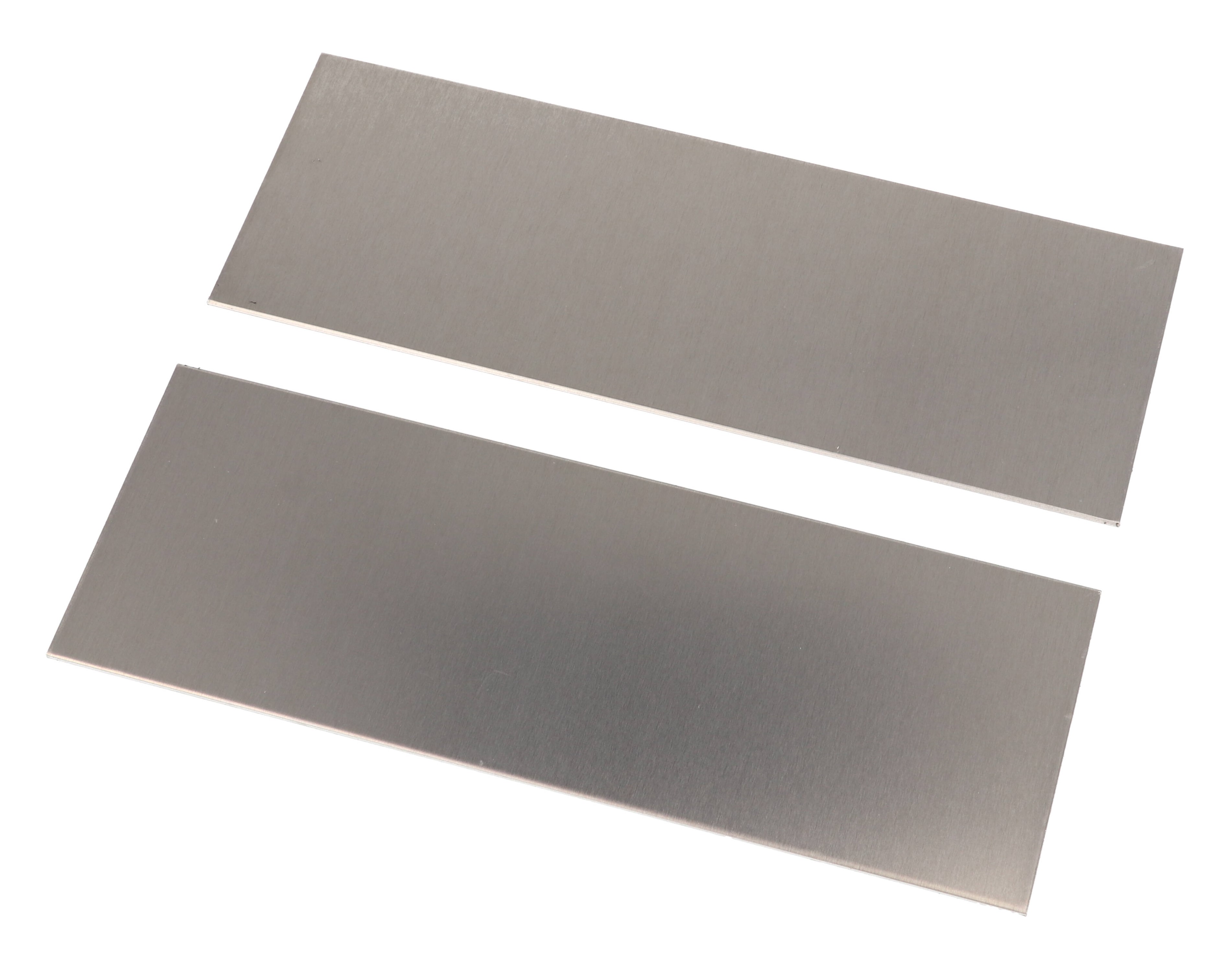

• ■Front and rear panels are 1.6 mm (0.064”) brushed aluminum with protective paper on one side.
• ■Cases halves are secured with M3 x 0.5” x 10 mm (0.39”) Phillips machine screws threaded into tapped integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required.
• ■Integral horizontal P.C. card mounts on Eurocard centers.
• ■P.C. card standoffs molded into top & bottom half of enclosure - require #6 x 1/4” (6.4mm) screws - part number 1598ATS100
• ■Stocked in matte textured black.
• ■Some chemicals can damage or weaken plastic. Please read our Chemical Resistance Statement under Downloads for more information.
• ■When shielding is not required, try series 1598
