Hammond 1598RFBK 250x159x41 mm Low-Profile Shielded ABS Case
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Interior RFI/EMI copper conductive coating, over 75 dB attenuation from 1 MHz to 1 GHz (coating maker spec)
- 250 x 159 x 41 mm (L x W x D) per ordering table; inner box 239.35 mm x 150.21 mm x 33.70 mm
- Accepts P.C. boards up to 238.35 mm x 144.71 mm on 4 mounting bosses
- Flame retardant ABS, UL94 V-0, designed to meet IP54, matte textured black
- 1.6 mm brushed aluminum 5052-H32 front and rear panels, easy to machine for I/O
- M3 machine screws into brass bushings for repeated assembly and disassembly
- Includes top and bottom covers, aluminum panels, 2 cover screws and 4 rubber feet
- Spare panels 1598PLF-AL; optional 1598TH1 tilt bail kit

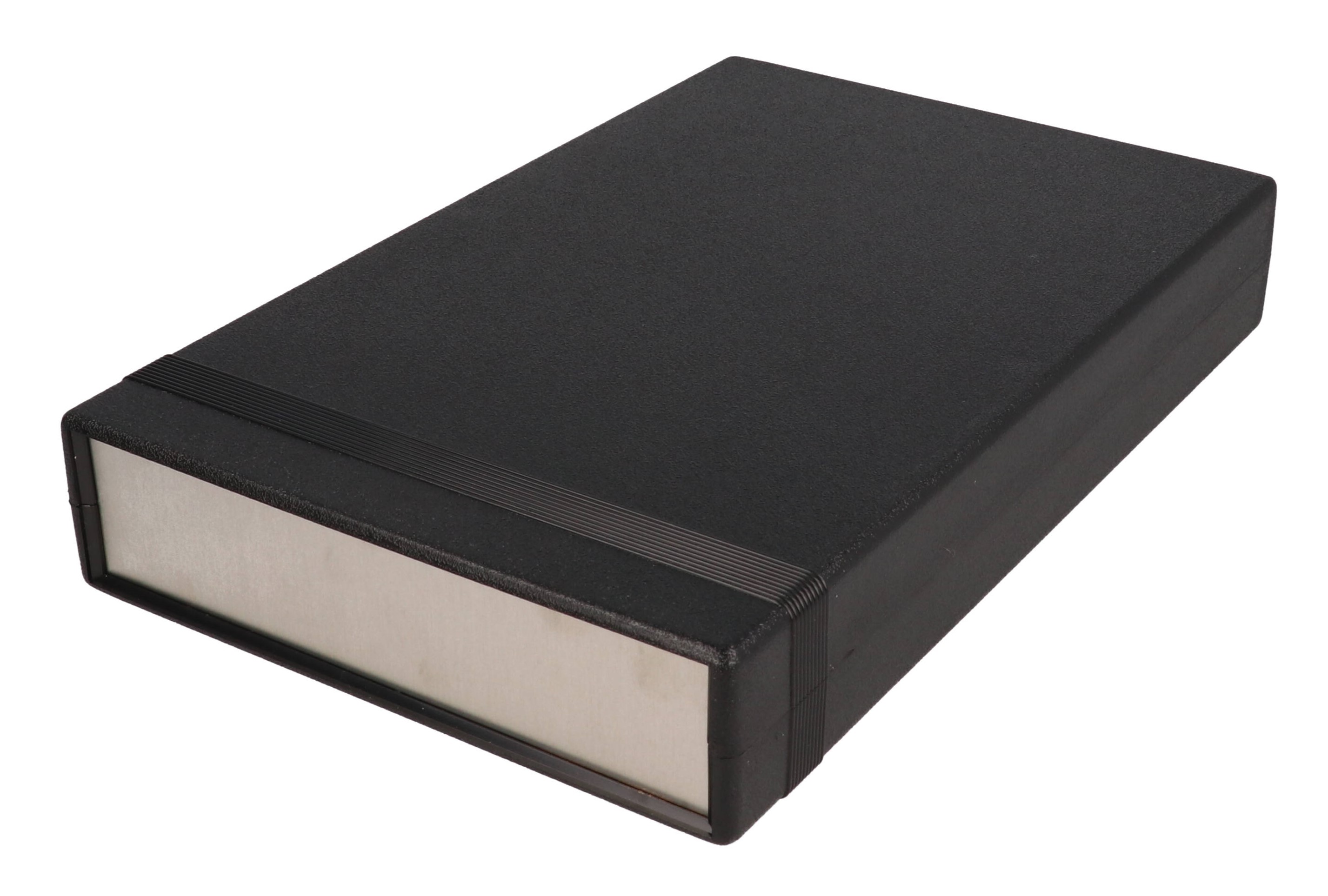

The 1598RFBK is a long, low-profile shielded instrument case: 250 mm in length but only 41 mm deep in the ordering table. It is aimed at engineers packaging long, flat circuit boards where a slim desktop profile matters and EMI/RFI suppression is needed.
Inside each half, a masked and sprayed copper conductive coating provides shielding; the coating manufacturer states more than 75 dB attenuation from 1 MHz to 1 GHz. The enclosure is molded from flame retardant ABS rated UL94 V-0, is designed to meet IP54, and is finished in matte textured black.
The drawing gives 249.70 x 159.25 x 40.90 mm overall (part page nominal 250 x 160 x 40 mm) and an inner box of 239.35 x 150.21 x 33.70 mm. The maximum board is 238.35 x 144.71 mm on four 3.51 mm bosses. Front and rear panels are brushed aluminum 5052-H32 with a 146.15 x 32.70 mm viewing area.
M3 Phillips machine screws thread into tapped brass bushings, suited to products that are opened often. The 1598RFBK includes top and bottom covers, front and end aluminum panels, 2 cover screws and 4 rubber feet. Extra panel pairs are 1598PLF-AL; the 1598TH1 tilt bail kit fits this size.
Ideal For
- Long, flat PCB assemblies in a slim desktop case
- Shielded desktop electronic instruments
- Bench controllers angled with the 1598TH1 bail
- Low-profile electronics sensitive to RF interference
Overview
| Color | Black (matte textured) |
| Description | enclosure - plastic, EMI/RFI shielded |
| Model Family | 1598F Instrument Case (Black EMI/RFI Shielded) |
| Product Type | Instrument enclosure, EMI/RFI Shielded |
| Short Description | SHLDD INSTR CASE PLASTIC |
Dimensions
| Inner Box Width | 150.21 mm [5.914 in] |
| Inner Box Height | 33.70 mm [1.327 in] |
| Inner Box Length | 239.35 mm [9.423 in] |
| Depth (Ordering Table) | 41 mm |
| Width (Ordering Table) | 159 mm |
| Length (Ordering Table) | 250 mm |
| Overall Width (Drawing) | 159.25 mm [6.270 in] |
| Nominal Size (L X W X H) | 9.84 in x 6.3 in x 1.58 in (250 mm x 160 mm x 40 mm) |
| Overall Height (Drawing) | 40.90 mm [1.610 in] |
| Overall Length (Drawing) | 249.70 mm [9.831 in] |
| Front/Rear Panel Viewing Area | 146.15 mm [5.754 in] x 32.70 mm [1.287 in] |
Accessories
| Tilt Bail Kit | 1598TH1 |
| Black Plastic Panels | 1598PLFBK |
| PCB Screws (Pkg 100) | 1598ATS100 [#6 x 1/4" (6.4 mm)] |
| Rubber Feet (Pkg 24) | 1421T2 |
| Related Unshielded Versions | 1598FBK (black, aluminum panels), 1598FGY (grey, aluminum panels), 1598FSGY and 1598FSGYPBK (GPABS UL94-HB) |
| Extra Aluminum Panels (Pair) | 1598PLF-AL |
| Cover Screws (Pkg 100) For FR-ABS | 1591MS100 [M3 - 0.5 x 10 mm] |
Identifiers
| UPC | 623980797441 |
| UNSPSC | 39121301 |
| Part Number | 1598RFBK |
PCB Mounting
| P.C. Board | Not supplied |
| P.C. Card Standoffs | Molded into top and bottom half; require #6 x 1/4" (6.4 mm) screws, part number 1598ATS100 (Pkg 100) |
| PCB Mounting Bosses | 4 x ø3.51 mm [.138 in]; P.C. board aligned on bosses |
| Max. P.C. Board Width | 238.35 mm |
| Max. P.C. Board Length | 144.71 mm |
| Vertical P.C. Board Guides | Two sets, 1.5 mm (0.062"), molded into case halves front and rear |
| Horizontal P.C. Card Mounts | Integral, on Eurocard centers |
| PCB Distance From End Panel | 0.50 mm [.020 in] |
| PCB Distance From Inner Wall | 2.75 mm [.108 in] |
| Maximum P.C. Board Size (Drawing) | 238.35 mm [9.384 in] x 144.71 mm [5.697 in] |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 1.03 lbs (0.47 kg) |
Construction & Finish
| Material | ABS Plastic, flame retardant |
| Shielding | Interior of each enclosure half masked and sprayed with RFI/EMI copper conductive coating |
| CAD Models | Solid models available in STEP or IGES |
| Case Fastening | M3 x 0.5 x 10 mm (0.39") Phillips machine screws threaded into tapped integral brass bushings |
| Factory Modification | Milling, drilling, printing etc. available from factory |
| Included In Assembly | Top and bottom cover, front and end aluminum panels, 2 cover screws, 4 rubber feet |
| Front And Rear Panels | 1.6 mm (0.064") brushed aluminum, alloy 5052-H32, protective paper / SPV coating on one side |
| Shielding Attenuation | More than 75 dB from 1 MHz to 1 GHz (coating manufacturer specification) |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 V-0 |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, strong solvents; use plastic-safe cleaners |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1598RFBK?▾
The series ordering table lists 250 mm long x 159 mm wide x 41 mm deep. The drawing gives 249.70 mm [9.831 in] x 159.25 mm [6.270 in] x 40.90 mm [1.610 in] overall, and the part page lists a nominal size of 9.84 in x 6.3 in x 1.58 in (250 mm x 160 mm x 40 mm).
What is the largest circuit board it will hold?▾
The maximum P.C. board size is 238.35 mm [9.384 in] x 144.71 mm [5.697 in], aligned on 4 bosses of 3.51 mm diameter. The inner box measures 239.35 mm [9.423 in] x 150.21 mm [5.914 in] x 33.70 mm [1.327 in]. The board is not supplied.
How effective is the EMI/RFI shielding?▾
The inside of each enclosure half is masked and sprayed with a copper conductive coating. The coating manufacturer specifies an attenuation of more than 75 dB from 1 MHz to 1 GHz.
What comes in the box?▾
The purchased assembly includes the top and bottom cover, front and end aluminum panels (alloy 5052-H32, coating on one side), 2 cover screws and 4 rubber feet.
Is it flame retardant and dust/water resistant?▾
Yes. It is molded from flame retardant ABS rated UL94 V-0 and is designed to meet IP54.
Which accessories fit this size?▾
The ordering table lists 1598PLF-AL as the extra aluminum panel pair and 1598TH1 as the tilt bail kit. The drawing also lists black plastic panels 1598PLFBK, rubber feet 1421T2 (Pkg 24), cover screws 1591MS100 and PCB screws 1598ATS100.
