Hammond 1598RHBK 281x200x41 mm Large Low-Profile Shielded Case
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Interior RFI/EMI copper conductive coating, over 75 dB attenuation from 1 MHz to 1 GHz (coating maker spec)
- 281 x 200 x 41 mm (L x W x D) per ordering table; inner box 269.69 mm x 190.16 mm x 33.50 mm
- Accepts P.C. boards up to 268.70 mm x 184.30 mm on 8 mounting bosses
- Flame retardant ABS, UL94 V-0, designed to meet IP54, matte textured black
- 1.6 mm brushed aluminum 5052-H32 front and rear panels, easy to machine for I/O
- M3 machine screws into brass bushings for repeated assembly and disassembly
- Includes top and bottom covers, aluminum panels, 2 cover screws and 4 rubber feet
- Spare panels 1598PLH-AL; optional 1598TH2 tilt bail kit

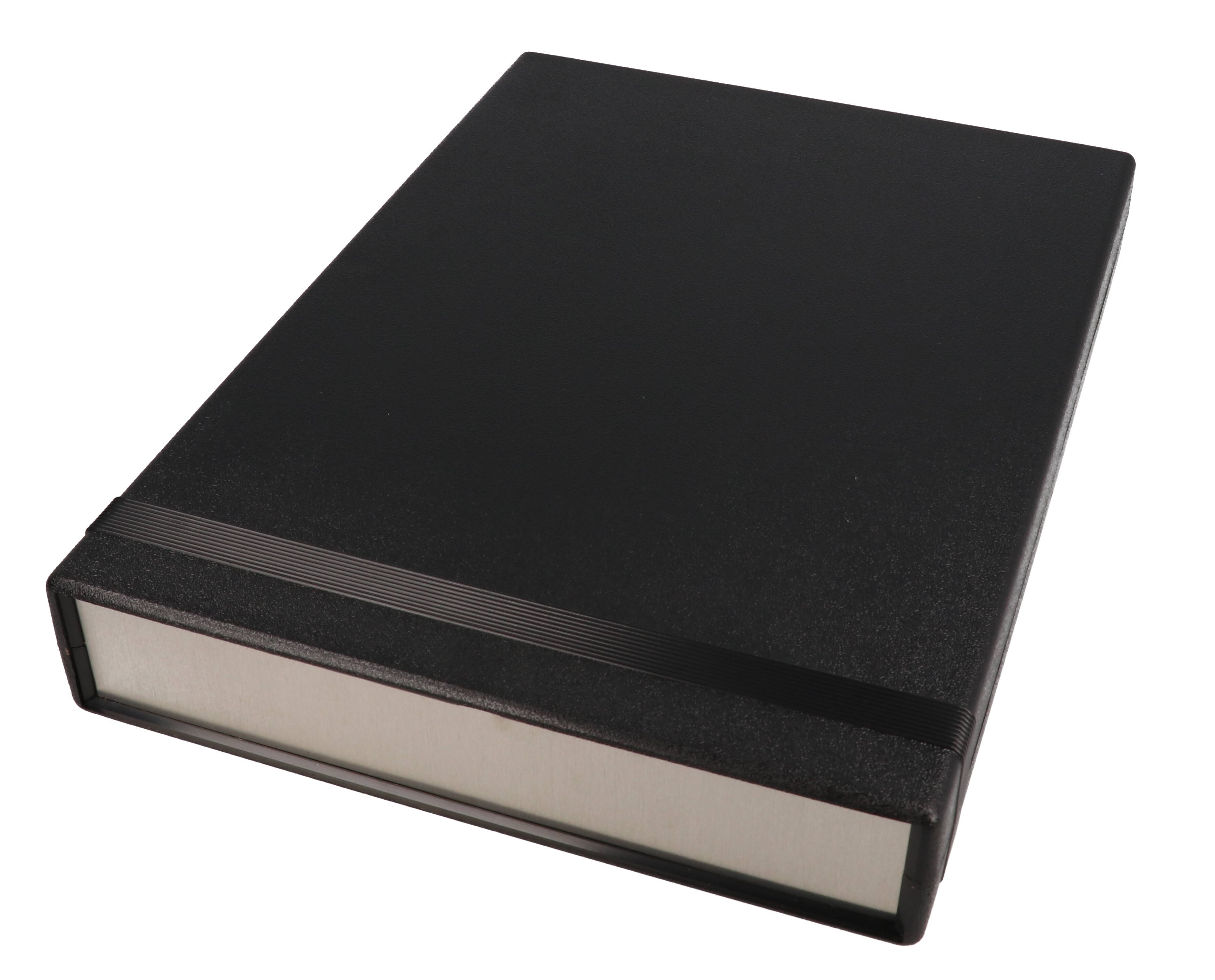

The 1598RHBK is one of the two largest shielded cases in the 1598R series and the slimmer of the pair: 281 mm long, 200 mm wide and 41 mm deep in the ordering table. It suits large, flat PCB assemblies - control boards, interface panels and desktop instruments - that need a low profile and built-in EMI/RFI shielding.

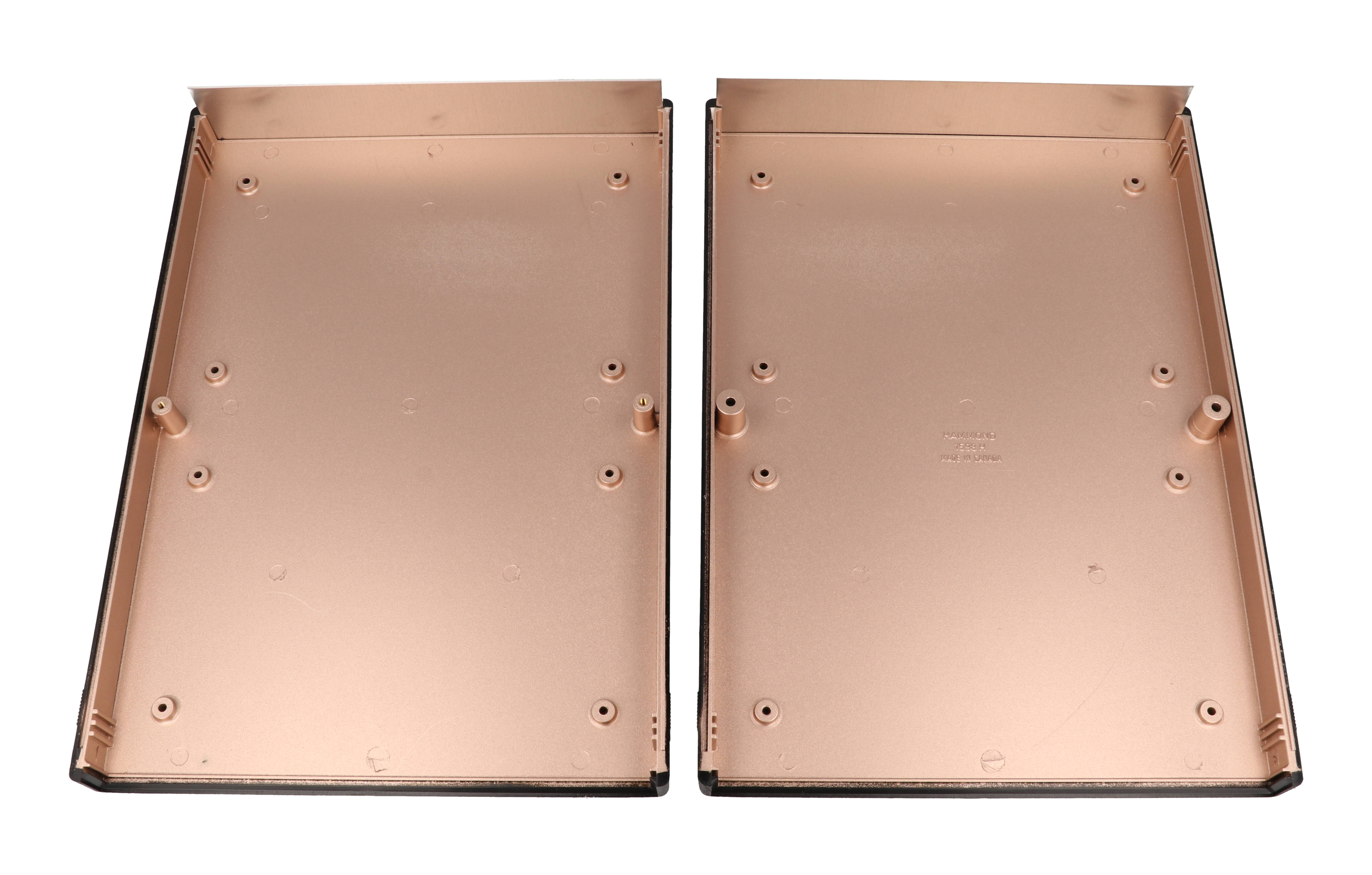

The interior of both halves is sprayed with an RFI/EMI copper conductive coating that the coating manufacturer rates at more than 75 dB attenuation from 1 MHz to 1 GHz. The shell is flame retardant ABS (UL94 V-0), designed to meet IP54, in matte textured black.
Drawing dimensions are 280.89 x 199.89 x 41.00 mm overall (part page nominal 280 x 200 x 40 mm) with a 269.69 x 190.16 x 33.50 mm inner box. Boards up to 268.70 x 184.30 mm sit on eight 3.51 mm bosses. The brushed aluminum 5052-H32 front and rear panels have a 185.89 x 30.50 mm viewing area.

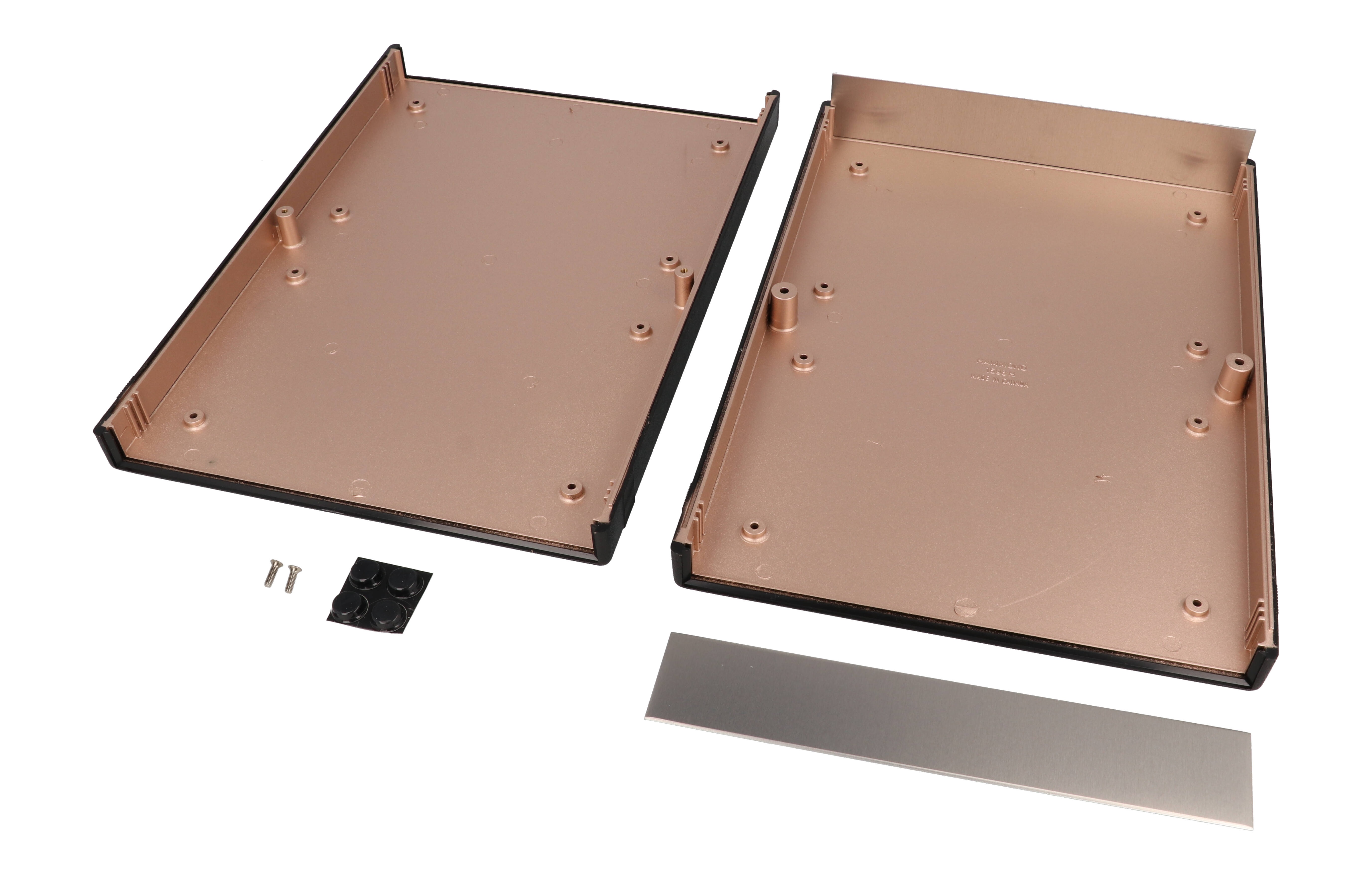

The 1598RHBK is secured with M3 machine screws into brass bushings for repeated assembly, and comes with top and bottom covers, front and end aluminum panels, 2 cover screws and 4 rubber feet. Spare panel pairs are 1598PLH-AL and the matching tilt bail kit is 1598TH2.
Ideal For
- Large, flat shielded PCB assemblies
- Low-profile desktop control and interface units
- Bench instruments angled with the 1598TH2 bail
- OEM electronics needing EMI/RFI suppression
Overview
| Color | Black (matte textured) |
| Description | enclosure - plastic, EMI/RFI shielded |
| Model Family | 1598H Instrument Case (Black EMI/RFI Shielded) |
| Product Type | Instrument enclosure, EMI/RFI Shielded |
| Short Description | SHLDD INSTR CASE PLASTIC |
Dimensions
| Inner Box Width | 190.16 mm [7.487 in] |
| Inner Box Height | 33.50 mm [1.319 in] |
| Inner Box Length | 269.69 mm [10.618 in] |
| Depth (Ordering Table) | 41 mm |
| Width (Ordering Table) | 200 mm |
| Length (Ordering Table) | 281 mm |
| Overall Width (Drawing) | 199.89 mm [7.870 in] |
| Nominal Size (L X W X H) | 11.02 in x 7.87 in x 1.58 in (280 mm x 200 mm x 40 mm) |
| Overall Height (Drawing) | 41.00 mm [1.614 in] |
| Overall Length (Drawing) | 280.89 mm [11.059 in] |
| Front/Rear Panel Viewing Area | 185.89 mm [7.319 in] x 30.50 mm [1.201 in] |
Accessories
| Tilt Bail Kit | 1598TH2 |
| Black Plastic Panels | 1598PLHBK |
| PCB Screws (Pkg 100) | 1598ATS100 [#6 x 1/4" (6.4 mm)] |
| Rubber Feet (Pkg 24) | 1421T2 |
| Related Unshielded Versions | 1598HBK (black, aluminum panels), 1598HGY (grey, aluminum panels), 1598HSGY and 1598HSGYPBK (GPABS UL94-HB) |
| Extra Aluminum Panels (Pair) | 1598PLH-AL |
| Cover Screws (Pkg 100) For FR-ABS | 1591MS100 [M3 - 0.5 x 10 mm] |
Identifiers
| UPC | 623980797540 |
| UNSPSC | 39121301 |
| Part Number | 1598RHBK |
PCB Mounting
| P.C. Board | Not supplied |
| P.C. Card Standoffs | Molded into top and bottom half; require #6 x 1/4" (6.4 mm) screws, part number 1598ATS100 (Pkg 100) |
| PCB Mounting Bosses | 8 x ø3.51 mm [.138 in]; P.C. board aligned on bosses |
| Max. P.C. Board Width | 268.7 mm |
| Max. P.C. Board Length | 184.3 mm |
| Vertical P.C. Board Guides | Two sets, 1.5 mm (0.062"), molded into case halves front and rear |
| Horizontal P.C. Card Mounts | Integral, on Eurocard centers |
| PCB Distance From End Panel | 0.50 mm [.020 in] |
| PCB Distance From Inner Wall | 2.93 mm [.115 in] |
| Maximum P.C. Board Size (Drawing) | 268.70 mm [10.579 in] x 184.30 mm [7.256 in] |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 1.5 lbs (0.68 kg) |
Construction & Finish
| Material | ABS Plastic, flame retardant |
| Shielding | Interior of each enclosure half masked and sprayed with RFI/EMI copper conductive coating |
| CAD Models | Solid models available in STEP or IGES |
| Case Fastening | M3 x 0.5 x 10 mm (0.39") Phillips machine screws threaded into tapped integral brass bushings |
| Factory Modification | Milling, drilling, printing etc. available from factory |
| Included In Assembly | Top and bottom cover, front and end aluminum panels, 2 cover screws, 4 rubber feet |
| Front And Rear Panels | 1.6 mm (0.064") brushed aluminum, alloy 5052-H32, protective paper / SPV coating on one side |
| Shielding Attenuation | More than 75 dB from 1 MHz to 1 GHz (coating manufacturer specification) |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 V-0 |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, strong solvents; use plastic-safe cleaners |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1598RHBK?▾
The series ordering table lists 281 mm long x 200 mm wide x 41 mm deep. The drawing gives 280.89 mm [11.059 in] x 199.89 mm [7.870 in] x 41.00 mm [1.614 in] overall, and the part page lists a nominal size of 11.02 in x 7.87 in x 1.58 in (280 mm x 200 mm x 40 mm).
What is the largest circuit board it will hold?▾
The maximum P.C. board size is 268.70 mm [10.579 in] x 184.30 mm [7.256 in], aligned on 8 bosses of 3.51 mm diameter. The inner box measures 269.69 mm [10.618 in] x 190.16 mm [7.487 in] x 33.50 mm [1.319 in]. The board is not supplied.
How effective is the EMI/RFI shielding?▾
The inside of each enclosure half is masked and sprayed with a copper conductive coating. The coating manufacturer specifies an attenuation of more than 75 dB from 1 MHz to 1 GHz.
What comes in the box?▾
The purchased assembly includes the top and bottom cover, front and end aluminum panels (alloy 5052-H32, coating on one side), 2 cover screws and 4 rubber feet.
Is it flame retardant and dust/water resistant?▾
Yes. It is molded from flame retardant ABS rated UL94 V-0 and is designed to meet IP54.
Which accessories fit this size?▾
The ordering table lists 1598PLH-AL as the extra aluminum panel pair and 1598TH2 as the tilt bail kit. The drawing also lists black plastic panels 1598PLHBK, rubber feet 1421T2 (Pkg 24), cover screws 1591MS100 and PCB screws 1598ATS100.
