1 Pb 316SS 22MM 3.5X3.3X2.8
$194.69In stock
Buy now
Type 4, 4X Stainless Steel Pushbutton Enclosures · 1435SS Series
Brand: Hammond Manufacturing · 28 part numbers
- ■Designed to accept standard heavy duty oil tight pushbuttons, switches and pilot lights.
- ■Provides protection from dirt, dust, oil and large amounts of water from any angle, or where highly corrosive conditions exist.
- ■UL 508A Type 4 and 4X
- ■CSA Type 4 and 4X
- ■Complies with NEMA Type 3R, 4 and 4X IEC 60529, IP66
- ■NEMA Type 3R, 4 and 4X
from $152.68
28 of 28 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 1435SS Series part number
Filter 28 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
28 of 28 part numbers · 28 priced online
2 Pb 316SS 22MM 5.8X3.3X2.8
$230.20Backorder
Buy now
3 Pb 316SS 22MM 8X3.3X2.8
$266.15In stock
Buy now
4 Pb 316SS 22MM 10.3X3.3X2.8
$301.36In stock
Buy now
6 Pb 316SS 22MM 9.5X6.3X3
$397.74In stock
Buy now
9 Pb 316SS 22MM 9.5X8.5X3
$471.75In stock
Buy now
12 Pb 316SS 22MM 11.8X8.5X3
$540.12In stock
Buy now
1PB 304SS 22MM 3.5X3.3X2.8
$155.90In stock
Buy now
2 Pb 304SS 22MM 5.8X3.3X2.8
$182.79In stock
Buy now
3 Pb 304SS 22MM 8X3.3X2.8
$212.34Backorder
Buy now
4 Pb 304SS 22MM 10.3X3.3X2.8
$239.77In stock
Buy now
6 Pb 304SS 22MM 9.5X6.3X3
$321.49In stock
Buy now
9 Pb 304SS 22MM 9.5X8.5X3
$380.08In stock
Buy now
12 Pb 304SS 22MM 11.8X8.5X3
$434.92In stock
Buy now
1 Pb 316SS 3.5X3.3X2.8
$193.00In stock
Buy now
2 Pb 316SS 5.8X3.3X2.8
$228.48In stock
Buy now
3 Pb 316SS 8X3.3X2.8
$262.88In stock
Buy now
4 Pb 316SS 10X3.3X2.8
$297.83In stock
Buy now
6 Pb 316SS 9.5X6.3X3
$392.99Backorder
Buy now
9 Pb 316SS 9.5X8.5X3
$465.55In stock
Buy now
12 Pb 316SS 11.8X8.5X3
$532.22In stock
Buy now
Pushbutton Enclosure 1 Hole
$152.68In stock
Buy now
Pushbutton Enclosure 2 Hole
$180.09In stock
Buy now
Pushbutton Enclosure 3 Hole
$208.05In stock
Buy now
Pushbutton Enclosure 4 Hole
$241.92In stock
Buy now
Pushbutton Enclosure 6 Hole
$317.71In stock
Buy now
Pushbutton Enclosure 9 Hole
$375.24In stock
Buy now
Pushbutton Enclosure 12 Hole
$430.08In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm

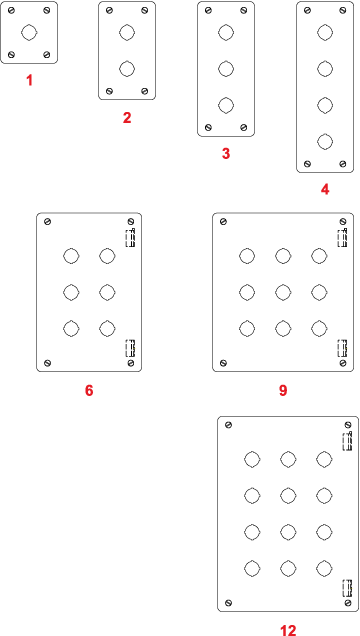

| 304 S.S. · 22.5mm PB · Part No. | 304 S.S. · 30.5mm PB · Part No. | 316 S.S. · 22.5mm PB · Part No. | 316 S.S. · 30.5mm PB · Part No. | No. · Of · Holes | Enclosure · H | Enclosure · W | Enclosure · D | Price | Order |
|---|---|---|---|---|---|---|---|---|---|
| 1435MSSA | 1435SSA | 1435MS16A | 1435S16A | 1 | 3.50 | 3.25 | 2.75 | $155.90In stock1435MSSA | Buy now |

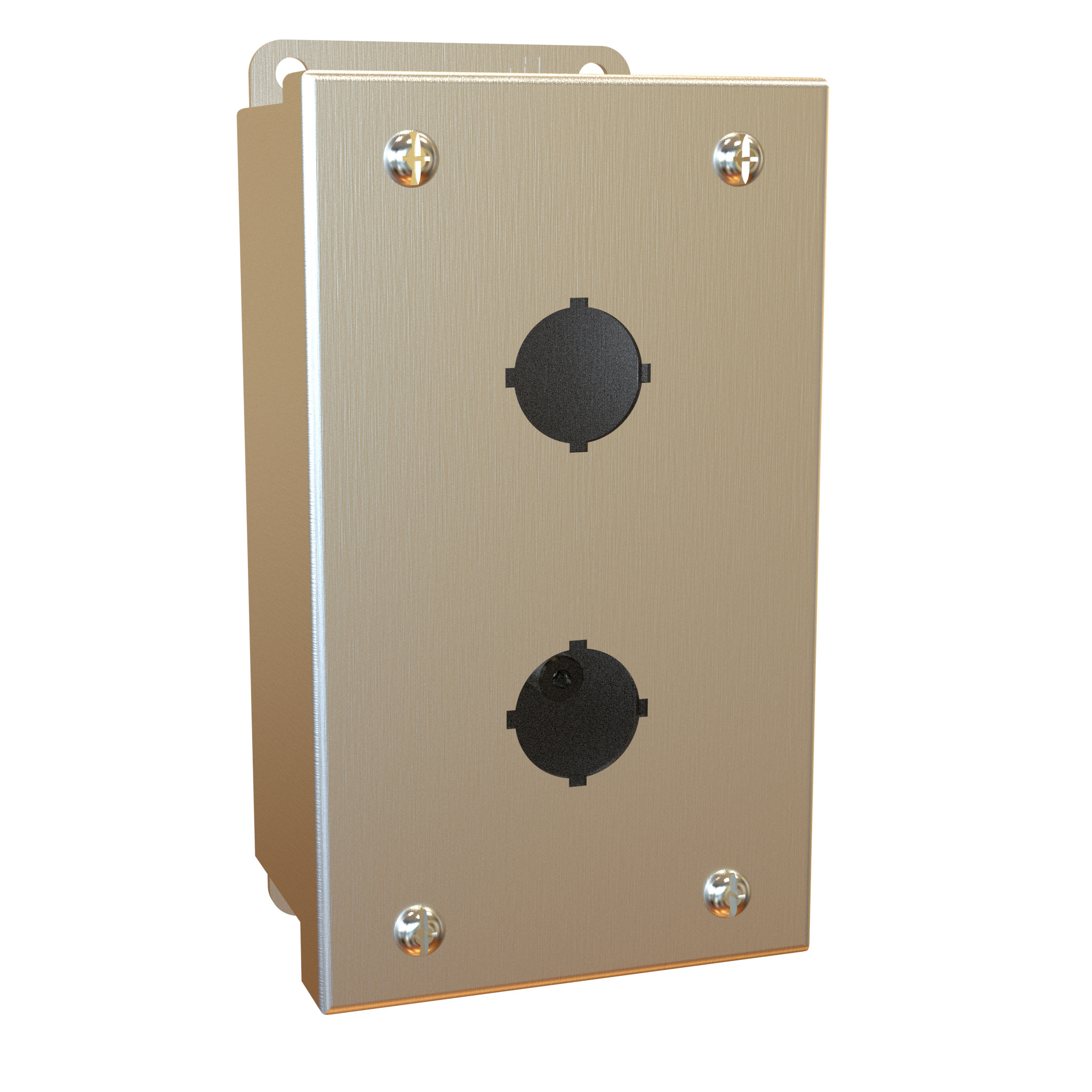

| 1435MSSB | 1435SSB | 1435MS16B | 1435S16B | 2 | 5.75 | 3.25 | 2.75 | $182.79In stock1435MSSB | Buy now |

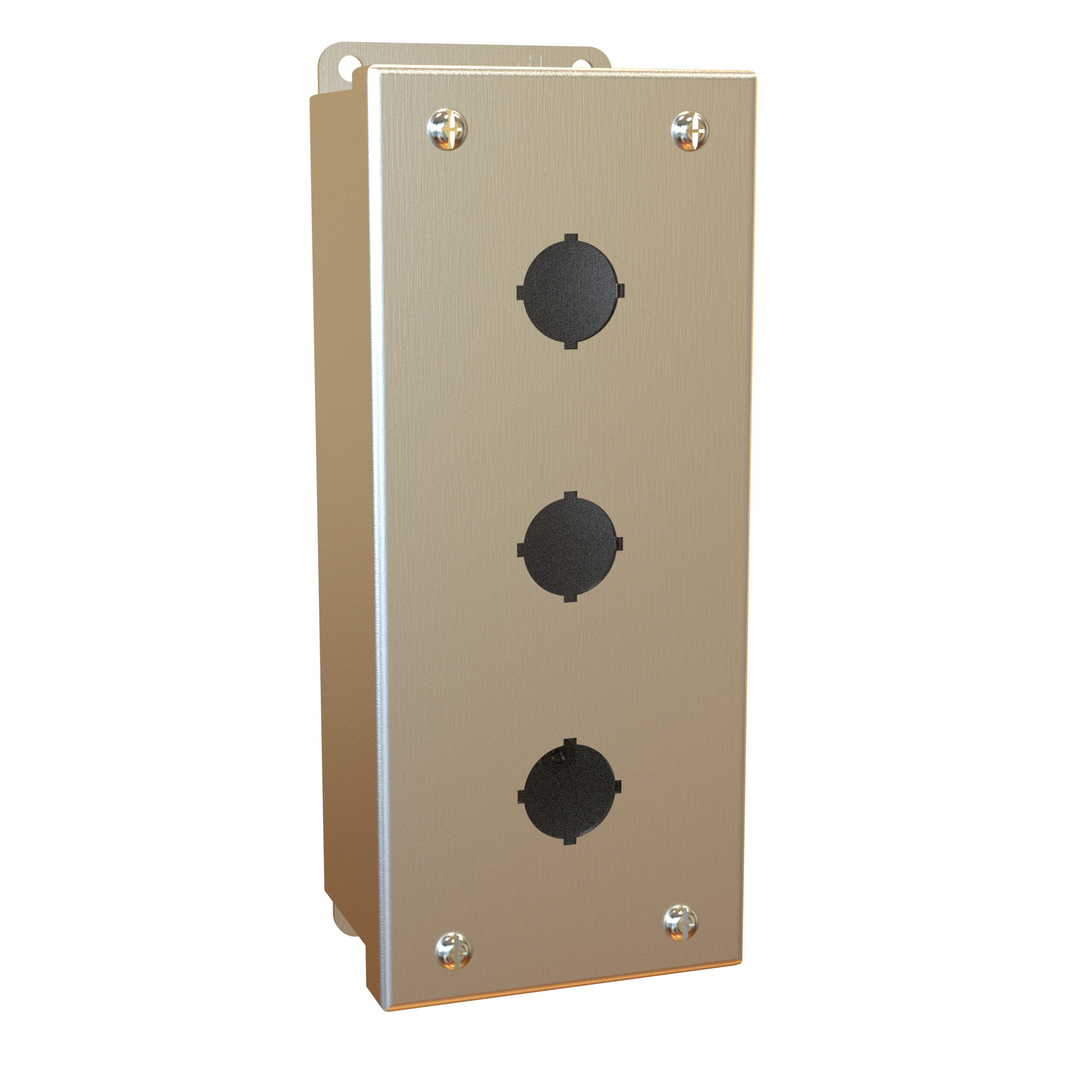

| 1435MSSC | 1435SSC | 1435MS16C | 1435S16C | 3 | 8.00 | 3.25 | 2.75 | $212.34Backorder1435MSSC | Buy now |
| 1435MSSD | 1435SSD | 1435MS16D | 1435S16D | 4 | 10.25 | 3.25 | 2.75 | $239.77In stock1435MSSD | Buy now |

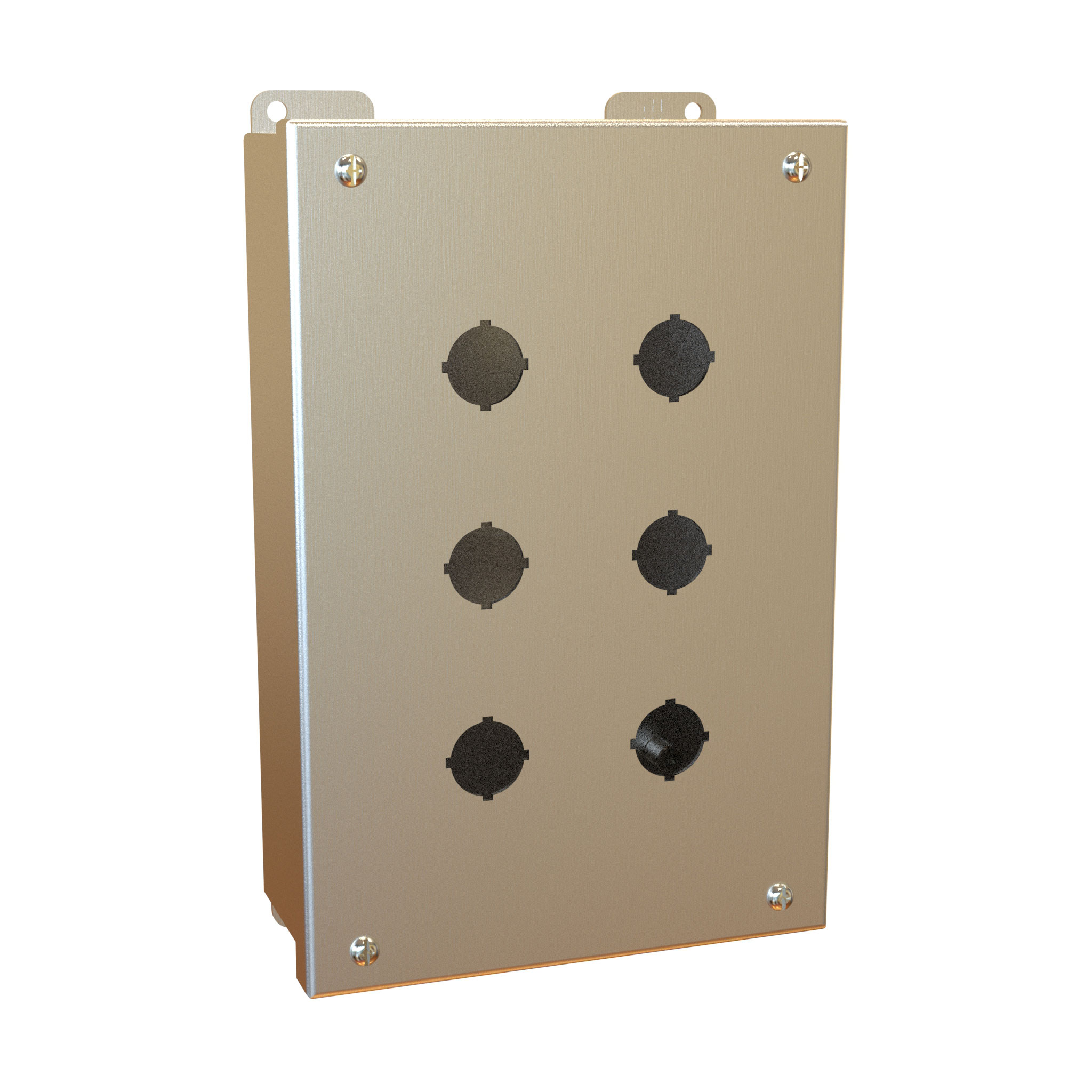

| 1435MSSH | 1435SSH | 1435MS16H | 1435S16H | 6 | 9.50 | 6.25 | 3.00 | $321.49In stock1435MSSH | Buy now |
| 1435MSSK | 1435SSK | 1435MS16K | 1435S16K | 9 | 9.50 | 8.50 | 3.00 | $380.08In stock1435MSSK | Buy now |

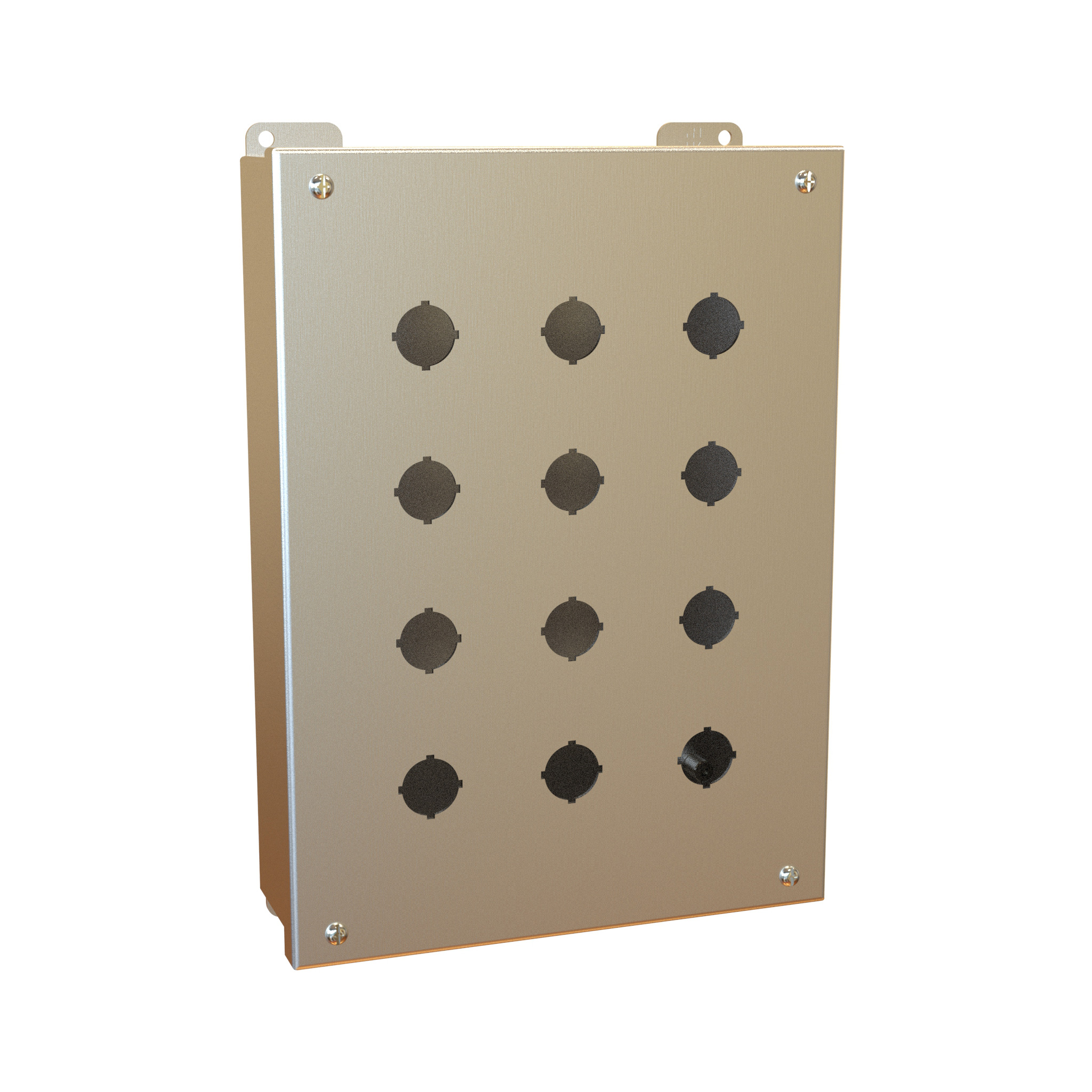

| 1435MSSO | 1435SSO | 1435MS16O | 1435S16O | 12 | 11.75 | 8.50 | 3.00 | $434.92In stock1435MSSO | Buy now |
Application
- ■Designed to accept standard heavy duty oil tight pushbuttons, switches and pilot lights.
- ■Provides protection from dirt, dust, oil and large amounts of water from any angle, or where highly corrosive conditions exist.
Standards
- ■UL 508A Type 4 and 4X
- ■CSA Type 4 and 4X
- ■Complies with NEMA Type 3R, 4 and 4X IEC 60529, IP66
- ■NEMA Type 3R, 4 and 4X
- ■IEC 60529, IP66
- ■Appropriate components are required to maintain these standards.
Construction
- ■Formed 16 gauge stainless steel.
- ■304 or 316 SS.
- ■Smooth continuously welded seams.
- ■Welded brackets provide for enclosure mounting.
- ■Captive stainless steel cover screws thread into sealed wells.
- ■Larger enclosures provide internally hinged removable covers, designed to hold the cover open during wiring.
- ■Oil resistant gasket.
- ■A bonding stud is provided on the door and a grounding stud is provided on the enclosure.
Finish
- ■Natural stainless steel with a smooth brushed finish.
Documents
Additional information
Part Details
| 304 S.S. · 22.5mm PB · Part No. | 304 S.S. · 30.5mm PB · Part No. | 316 S.S. · 22.5mm PB · Part No. | 316 S.S. · 30.5mm PB · Part No. | No. · Of · Holes | Enclosure · H | Enclosure · W | Enclosure · D |
|---|---|---|---|---|---|---|---|
| 1435MSSA ¹ | 1435SSA ¹ | 1435MS16A ¹ | 1435S16A ¹ | 1 | 3.50 | 3.25 | 2.75 |
| 1435MSSB ¹ | 1435SSB ¹ | 1435MS16B ¹ | 1435S16B ¹ | 2 | 5.75 | 3.25 | 2.75 |
| 1435MSSC ¹ | 1435SSC ¹ | 1435MS16C ¹ | 1435S16C ¹ | 3 | 8.00 | 3.25 | 2.75 |
| 1435MSSD ¹ | 1435SSD ¹ | 1435MS16D ¹ | 1435S16D ¹ | 4 | 10.25 | 3.25 | 2.75 |
| 1435MSSH | 1435SSH | 1435MS16H | 1435S16H | 6 | 9.50 | 6.25 | 3.00 |
| 1435MSSK | 1435SSK | 1435MS16K | 1435S16K | 9 | 9.50 | 8.50 | 3.00 |
| 1435MSSO | 1435SSO | 1435MS16O | 1435S16O | 12 | 11.75 | 8.50 | 3.00 |
